8-21 — METER ASM (#117172) — 15 parça

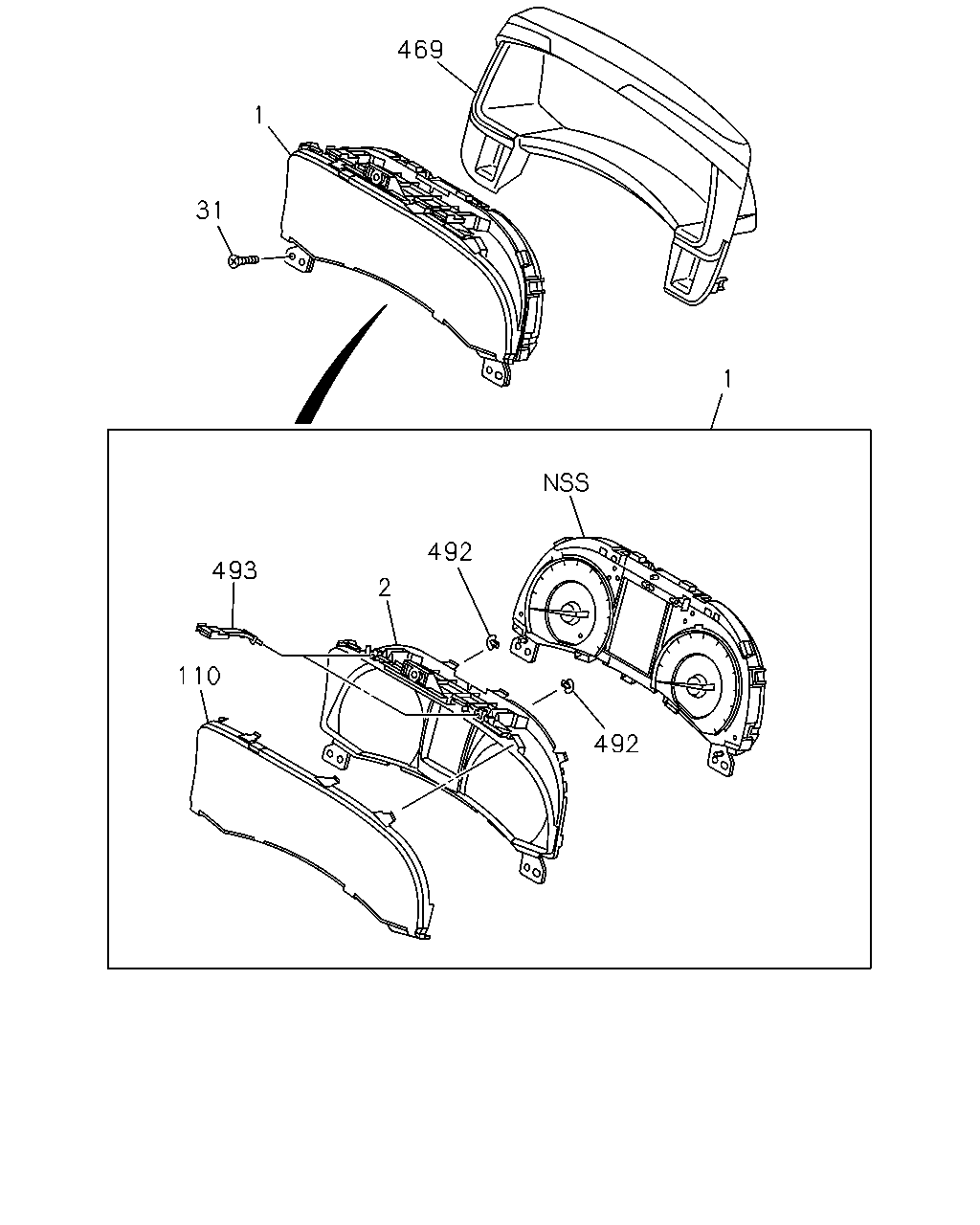

çizim 344465
1 1 469 31 110 493 2 492 492
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 09.735 METER COMPL; CLUSTER
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) ELECTRO LUMINESCENT INSTRUMENTATION CLU STER<UCA> 		8-98209-570-0 01 1 1304- ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) ELECTRO LUMINESCENT INSTRUMENTATION CLU STER<UCA> 		8-98209-570-0 01 1 1304- ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EXC. ELECTRO LUMINESCENT INSTRUMENTATIO N CLUSTER<UCA> 		8-98209-559-0 01 1 1304- ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) EXC. ELECTRO LUMINESCENT INSTRUMENTATIO N CLUSTER<UCA> 		8-98209-559-0 01 1 1304- ● ●
1 09.735 METER COMPL; CLUSTER
4JA1-T ENG(LP0) M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) EXC. ELECTRO LUMINESCENT INSTRUMENTATIO N CLUSTER<UCA> 		8-98103-761-8 01 1 1304- ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) A/T 5 SPEED-AISIN(MA1) ELECTRO LUMINESCENT INSTRUMENTATION CLU STER<UCA> 		8-98209-567-0 01 1 1304- ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) A/T 5 SPEED-AISIN(MA1) EXC. ELECTRO LUMINESCENT INSTRUMENTATIO N CLUSTER<UCA> 		8-98209-556-0 01 1 1304- ● ●
2 09.735 PANEL; CLUSTER
ELECTRO LUMINESCENT INSTRUMENTATION CLU STER<UCA> 		8-98163-884-0 01 1 1304- ● ● ● ●
2 09.735 PANEL; CLUSTER
EXC. ELECTRO LUMINESCENT INSTRUMENTATIO N CLUSTER<UCA> 		8-98163-885-0 01 1 1304- ● ● ● ●
31 09.761 SCREW; METER,INST PANEL
08.083 M5X16 TAPPING 		8-98167-449-0 03 1 1304- ● ● ● ●
110 09.748 GLASS; CLUSTER METER
ELECTRO LUMINESCENT INSTRUMENTATION CLU STER<UCA> 		8-98163-882-0 01 1 1304- ● ● ● ●
110 09.748 GLASS; CLUSTER METER
EXC. ELECTRO LUMINESCENT INSTRUMENTATIO N CLUSTER<UCA> 		8-98163-883-0 01 1 1304- ● ● ● ●
469 16.080 PLATE; INSTRUMENT PANEL
BLACK 		8-97416-628-1 01 1 1304- ● ● ● ●
492 09.743 PANEL; TURN LENS
ELECTRO LUMINESCENT INSTRUMENTATION CLU STER<UCA> 		8-98163-886-0 02 1 1304- ● ● ● ●
493 09.743 PANEL; TOP LIGHT PRISM
ELECTRO LUMINESCENT INSTRUMENTATION CLU STER<UCA> 		8-98163-887-0 02 1 1304- ● ● ● ●
