Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#117170) — 441 parça

1 178 178 178 178 530 16 194 206 470 16 538 51 369 470 425 380 194 171 104 51 48 16 14 194 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SLEEVE; RUBBER ID=38.1 L=50	5-09360-835-0	01	1	1302-	●	●
14	CLIP; BAND,HARNESS ZF9S1310 M/T<Y5K> (A) L=350	1-09707-183-0	01	1	1302-	●	●
14	CLIP; BAND,HARNESS ANTILOCK BRAKE SYSTEM<BFA> (B) L=250	1-09707-126-0	02	1	1302-		●
14	CLIP; BAND,HARNESS ANTILOCK BRAKE SYSTEM<BFA> (A) L=350	1-09707-183-0	02	1	1302-		●

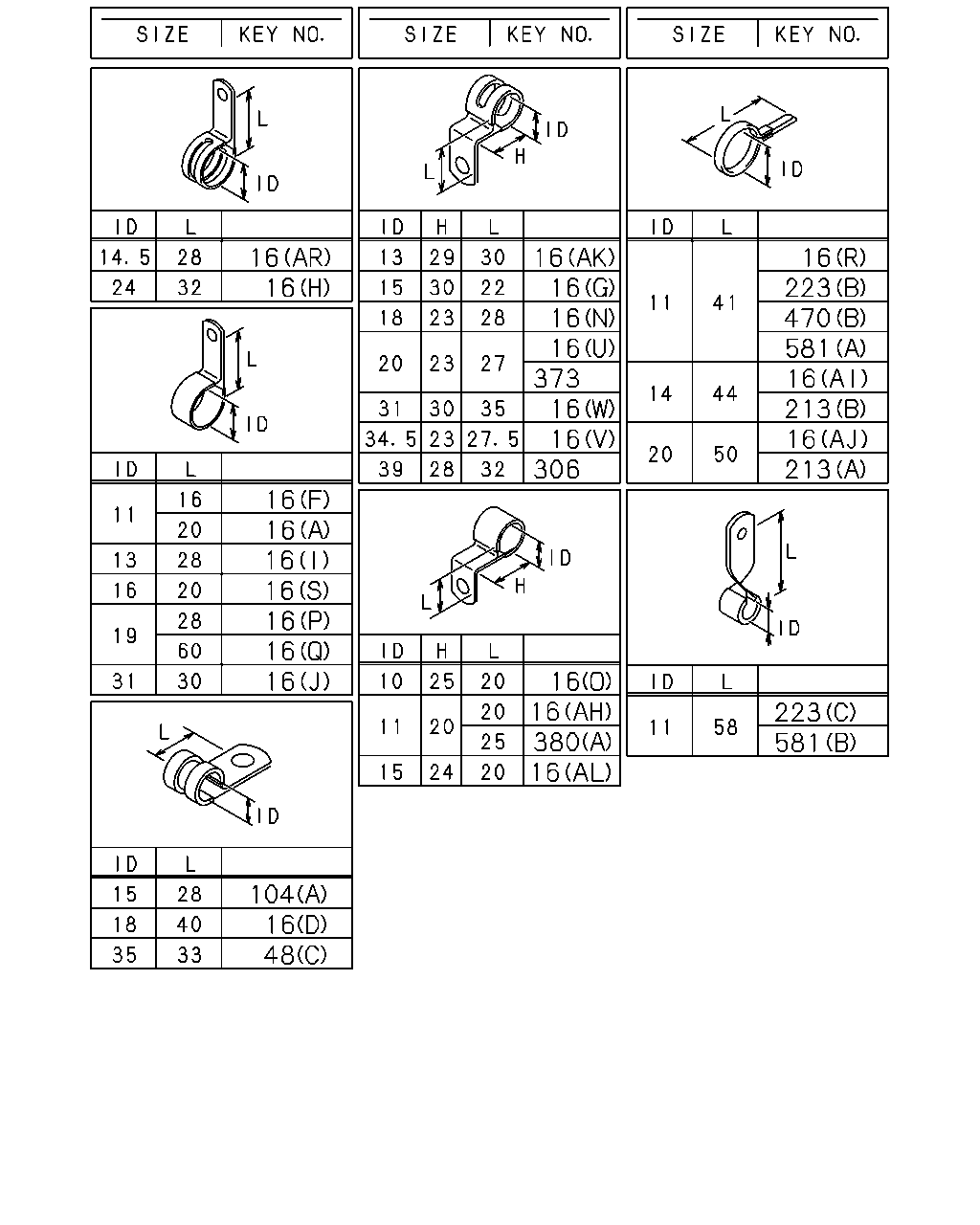

16	CLIP; HARNESS MAL6R M/T<Y2J> (S) ID=16 L=20	0-95235-535-0	01	1	1302-	●
16	CLIP; HARNESS MAL6R M/T<Y2J> (AK) ID=13 H=29 L=30	1-09700-001-0	01	1	1302-	●
16	CLIP; HARNESS MAL6R M/T<Y2J> (N) ID=18 H=23 L=28	1-09701-070-0	02	1	1302-	●
16	CLIP; HARNESS MAL6R M/T<Y2J> (M) L=36	8-94224-891-1	01	1	1302-	●
16	CLIP; HARNESS ENGINE REAR PTO<SV1> ISUZU M/T<X9A> (M) L=36	8-94224-891-1	01	1	1302-	●
16	CLIP; HARNESS ISUZU M/T<X9A>,ZF M/T<X9E> EXC. ENGINE REAR PTO<SV1> (M) L=36	8-94224-891-1	01	1	1302-	●
16	CLIP; HARNESS (M) L=36	8-94224-891-1	01	1	1302-		●

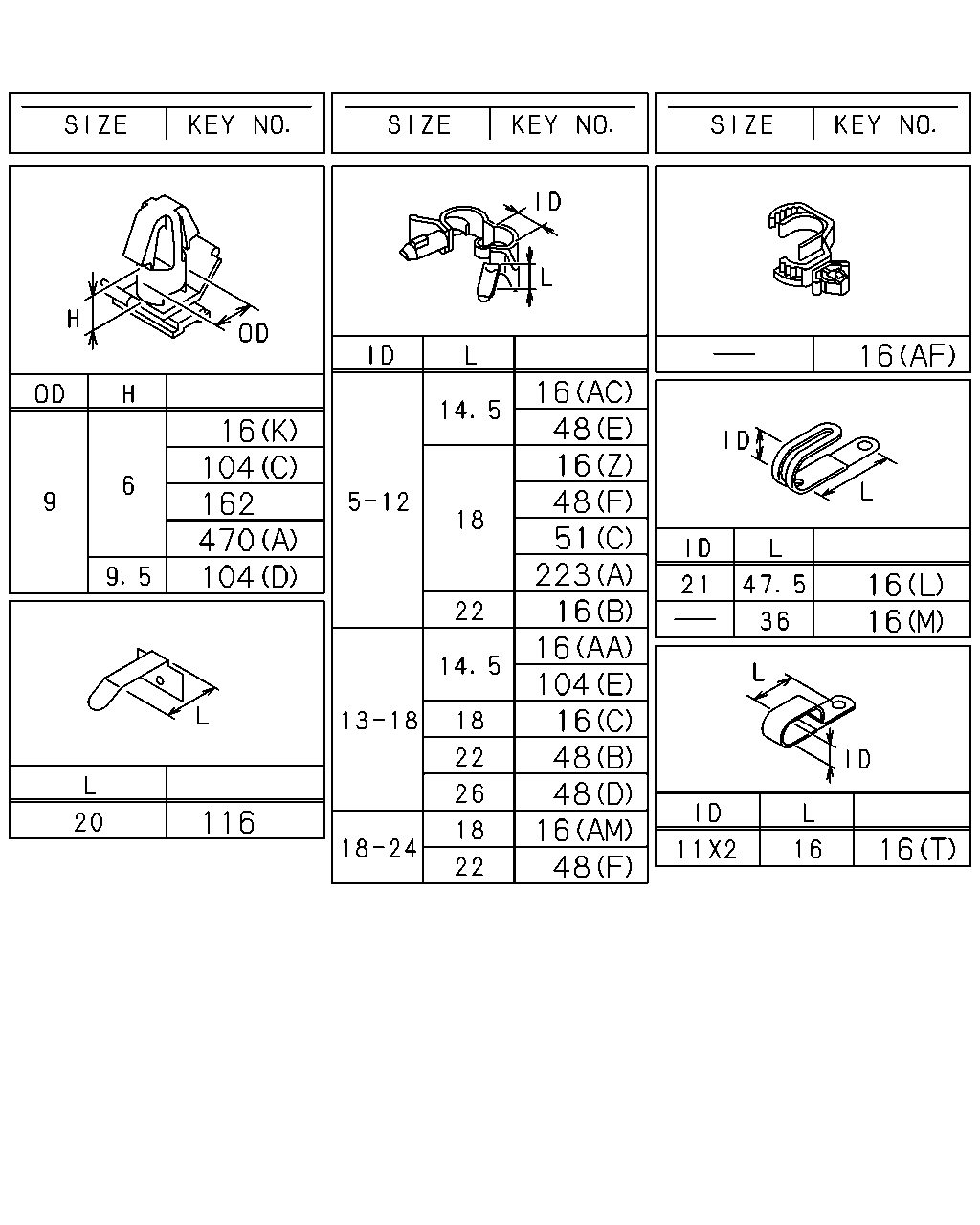

16	CLIP; HARNESS MAL6R M/T<Y2J>,MJT7U M/T<Y4X> (K) OD=9 H=6	1-09709-178-0	02	1	1302-	●
16	CLIP; HARNESS MJT7U M/T<Y4X> (I) ID=13 L=28	0-95235-255-0	01	1	1302-	●
16	CLIP; HARNESS MJT7U M/T<Y4X> (O) ID=10 H=25 L=20	1-09700-519-0	01	1	1302-	●
16	CLIP; HARNESS MJT7U M/T<Y4X> (AL) ID=15 H=24 L=20	1-09700-606-0	01	1	1302-	●
16	CLIP; HARNESS MJT7U M/T<Y4X> (AR) ID=14.5 L=28	1-09701-013-0	01	1	1302-	●
16	CLIP; HARNESS WHEEL BASE 4700MM<47W> (C) ID=13-18 L=18	1-09709-291-0	09	1	1302-	●
16	CLIP; HARNESS WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W> (AD) L=250	5-09707-030-1	02	1	1302-	●
16	CLIP; HARNESS (AD) L=250	5-09707-030-1	02	1	1302-		●
16	CLIP; HARNESS WHEEL BASE 5200MM<52W> (X) L=350	1-09707-183-0	04	1	1302-	●
16	CLIP; HARNESS WHEEL BASE 5200MM<52W> (C) ID=13-18 L=18	1-09709-291-0	02	1	1302-	●
16	CLIP; HARNESS WHEEL BASE 5200MM<52W>,WHEEL BASE 5300MM<53W> (Z) ID=5-12 L=18	1-09709-287-0	06	1	1302-	●
16	CLIP; HARNESS WHEEL BASE 5200MM<52W>,WHEEL BASE 5300MM<53W> (C) ID=13-18 L=18	1-09709-291-0	12	1	1302-	●
16	CLIP; HARNESS ZF9S1310 M/T<Y5K> (P) ID=19 L=28	0-95235-856-0	01	1	1302-	●
16	CLIP; HARNESS (P) ID=19 L=28	0-95235-856-0	01	1	1302-		●
16	CLIP; HARNESS ZF9S1310 M/T<Y5K> (Q) ID=19 L=60	0-95235-896-0	02	1	1302-	●
16	CLIP; HARNESS (Q) ID=19 L=60	0-95235-896-0	02	1	1302-		●
16	CLIP; HARNESS (F) ID=11 L=16	0-95235-025-0	01	1	1302-	●	●
16	CLIP; HARNESS (A) ID=11 L=20	0-95235-035-0	03	1	1302-	●	●
16	CLIP; HARNESS (R) ID=11 L=41	1-09700-403-0	01	1	1302-	●	●
16	CLIP; HARNESS (H) ID=24 L=32	1-09700-766-1	01	1	1302-	●	●
16	CLIP; HARNESS (N) ID=18 H=23 L=28	1-09700-860-0	01	1	1302-	●	●
16	CLIP; HARNESS (U) ID=20 H=23 L=27	1-09700-861-0	01	1	1302-	●	●
16	CLIP; HARNESS (U) ID=20 H=23 L=27	1-09700-861-0	01	1	1302-	●	●
16	CLIP; HARNESS (V) ID=34.5 H=23 L=27.5	1-09700-905-0	03	1	1302-	●	●
16	CLIP; HARNESS (J) ID=31 L=30	1-09700-969-0	01	1	1302-	●	●
16	CLIP; HARNESS (W) ID=31 H=30 L=35	1-09700-994-0	01	1	1302-	●	●
16	CLIP; HARNESS (W) ID=31 H=30 L=35	1-09700-994-0	01	1	1302-	●	●
16	CLIP; HARNESS (D) ID=18 L=40	1-09701-111-0	01	1	1302-	●	●
16	CLIP; HARNESS (G) ID=15 L=22 H=30	1-09701-215-1	01	1	1302-	●	●
16	CLIP; HARNESS (X) L=350	1-09707-183-0	06	1	1302-	●	●
16	CLIP; HARNESS (K) OD=9 H=6	1-09709-178-0	01	1	1302-	●	●
16	CLIP; HARNESS (AA) ID=13-18 L=14.5	1-09709-290-0	01	1	1302-	●	●
16	CLIP; HARNESS (AC) ID=5-12 L=14.5	1-09987-221-0	01	1	1302-	●	●
16	CLIP; HARNESS (AC) ID=5-12 L=14.5	1-09987-221-0	05	1	1302-	●	●
16	CLIP; HARNESS (L) ID=21 L=47.5	8-94178-108-0	01	1	1302-	●	●
16	CLIP; HARNESS (AF) ID=10 & 16	8-94413-325-0	01	1	1302-	●	●
16	CLIP; HARNESS (AB) ID=20 & 16.5	8-94486-835-0	01	1	1302-	●	●
16	CLIP; HARNESS (Y) L=155 THA	8-97173-307-0	18	1	1302-	●	●
16	CLIP; HARNESS (E) L=40.6 THA	8-97229-357-0	02	1	1302-	●	●
16	CLIP; HARNESS (K) OD=9 H=6	8-97368-793-0	02	1	1302-	●	●
16	CLIP; HARNESS (AE) L=140 THA	8-97920-656-0	04	1	1302-	●	●
16	CLIP; HARNESS (AH) ID=11 H=20 L=20	8-98033-780-0	01	1	1302-	●	●
16	CLIP; HARNESS (AG) THA	8-98052-679-0	02	1	1302-	●	●
16	CLIP; HARNESS (AI) ID=14 L=44	9-09917-427-0	03	1	1302-	●	●
16	CLIP; HARNESS WHEEL BASE 5200MM<52W> (AI) ID=14 L=44	9-09917-427-0	03	1	1302-	●
16	CLIP; HARNESS (AJ) ID=20 L=50	9-09917-430-0	02	1	1302-	●	●
16	CLIP; HARNESS WHEEL BASE 4700MM<47W> (Z) ID=5-12 L=18	1-09709-287-0	04	1	1302-	●
16	CLIP; HARNESS (Z) ID=5-12 L=18	1-09709-287-0	04	1	1302-		●
16	CLIP; HARNESS WHEEL BASE 4700MM<47W> (B) ID=5-12 L=22	1-09709-288-0	02	1	1302-	●
16	CLIP; HARNESS (B) ID=5-12 L=22	1-09709-288-0	02	1	1302-		●
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM<BFA> (F) ID=11 L=16	0-95235-025-0	02	1	1302-		●
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM<BFA> (T) ID=11X2 L=16	0-95325-025-0	01	1	1302-		●
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM<BFA> (X) L=350	1-09707-183-0	01	1	1302-		●
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM<BFA> (AE) L=140 THA	8-97920-656-0	01	1	1302-		●
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM<BFA> (C) ID=13-18 L=18	1-09709-291-0	03	1	1302-		●
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM<BFA> (AM) ID=18-24 L=18	1-09709-294-0	06	1	1302-		●
16	CLIP; HARNESS EXC. ANTILOCK BRAKE SYSTEM<BFA> (AA) ID=13-18 L=14.5	1-09709-290-0	02	1	1302-		●
16	CLIP; HARNESS EXC. ANTILOCK BRAKE SYSTEM<BFA> (C) ID=13-18 L=18	1-09709-291-0	07	1	1302-		●
48	CLIP; FRAME HARNESS WHEEL BASE 4700MM<47W> (B) ID=13-18 L=22	1-09709-292-0	02	1	1302-	●
48	CLIP; FRAME HARNESS EXC. ANTILOCK BRAKE SYSTEM<BFA> (B) ID=13-18 L=22	1-09709-292-0	02	1	1302-		●
48	CLIP; FRAME HARNESS WHEEL BASE 5200MM<52W>,WHEEL BASE 5300MM<53W> (D) ID=13-18 L=26	1-09709-293-0	02	1	1302-	●
48	CLIP; FRAME HARNESS (C) ID=35 L=33	1-09700-945-0	04	1	1302-	●	●
48	CLIP; FRAME HARNESS (A) L=350	1-09707-183-0	06	1	1302-	●	●
48	CLIP; FRAME HARNESS (A) L=350	1-09707-183-0	08	1	1302-	●	●
48	CLIP; FRAME HARNESS (E) ID=5-12 L=14.5	1-09987-221-0	01	1	1302-	●	●
48	CLIP; FRAME HARNESS ANTILOCK BRAKE SYSTEM<BFA> (F) ID=18-24 L=22	1-09709-295-0	02	1	1302-		●
51	CLIP; COOLER CMPR (A) L=180	1-09707-162-1	01	1	1302-	●	●
51	CLIP; COOLER CMPR (B) L=350	1-09707-183-0	01	1	1302-	●	●
51	CLIP; COOLER CMPR (C) ID=5-12 L=18	1-09709-287-0	01	1	1302-	●	●
104	CLIP; HEADLAMP HARNESS (A) ID=15 L=28	1-09701-216-0	01	1	1302-	●	●
104	CLIP; HEADLAMP HARNESS (B) L=350	1-09707-183-0	02	1	1302-	●	●
104	CLIP; HEADLAMP HARNESS (C) OD=9 H=6	1-09709-178-0	01	1	1302-	●	●
104	CLIP; HEADLAMP HARNESS (D) OD=9 H=9.5	1-09709-179-0	01	1	1302-	●	●
104	CLIP; HEADLAMP HARNESS (E) ID=13-18 L=14.5	1-09709-290-0	02	1	1302-	●	●
171	CLIP; STARTER HARNESS L=350	1-09707-183-0	03	1	1302-	●	●
178	GROMMET; HARNESS (B) ID=24 OD=30 T=22	1-09332-126-0	01	1	1302-	●	●
178	GROMMET; HARNESS (A) ID=15 OD=20 T=17.5	1-09332-130-0	01	1	1302-	●	●
178	GROMMET; HARNESS (C) ID=28 OD=35 T=17	9-09956-256-2	01	1	1302-	●	●
178	GROMMET; HARNESS (C) ID=28 OD=35 T=17	9-09956-256-2	01	1	1302-	●	●
178	GROMMET; HARNESS ANTILOCK BRAKE SYSTEM<BFA> (D) ID=28 OD=35 T=25	1-09332-011-1	03	1	1302-		●
194	CLIP; BAND (A) L=300	1-09707-001-1	02	1	1302-	●	●
194	CLIP; BAND (B) L=350	1-09707-183-0	06	1	1302-	●	●
194	CLIP; BAND (C) L=140 THA	8-97920-656-0	02	1	1302-	●	●
206	CLIP; FUEL TANK HARNESS (B) ID=8.3 & 10	8-94176-792-0	01	1	1302-	●	●
206	CLIP; FUEL TANK HARNESS (A) L=140 THA	8-97920-656-0	02	1	1302-	●	●
369	CLIP; BAND EDS HARNESS L=500	1-09707-082-1	01	1	1302-	●	●
380	CLIP; EARTH HARNESS (A) ID=11 H=20 L=25	1-09700-848-0	02	1	1302-	●	●
380	CLIP; EARTH HARNESS (B) L=350	1-09707-183-0	03	1	1302-	●	●
425	CLIP; MODULATOR ANTILOCK BRAKE SYSTEM<BFA> L=350	1-09707-183-0	03	1	1302-		●
470	CLIP; HARNESS,LICENSE LAMP (A) OD=9 H=6	1-09709-178-0	01	1	1302-	●	●
470	CLIP; HARNESS,LICENSE LAMP (B) ID=11 L=41	1-09700-403-0	01	1	1302-		●
470	CLIP; HARNESS,LICENSE LAMP (C) L=350	1-09707-183-0	01	1	1302-		●
470	CLIP; HARNESS,LICENSE LAMP (D) L=140 THA	8-97920-656-0	02	1	1302-		●
530	SEAL; HARNESS 180X40	1-72498-019-1	23	1	1302-	●	●
538	SEAL; HOLE OD=25 BLACK THA	1-76798-019-0	01	1	1302-	●	●

16 16 48 48 16 16 48 48 48 51 16 223 104 16 16 16 104 104 470 162 16 16 16 116

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	CLIP; HARNESS MAL6R M/T<Y2J> (S) ID=16 L=20	0-95235-535-0	01	1	1302-	●
16	CLIP; HARNESS MAL6R M/T<Y2J> (AK) ID=13 H=29 L=30	1-09700-001-0	01	1	1302-	●
16	CLIP; HARNESS MAL6R M/T<Y2J> (N) ID=18 H=23 L=28	1-09701-070-0	02	1	1302-	●
16	CLIP; HARNESS MAL6R M/T<Y2J> (M) L=36	8-94224-891-1	01	1	1302-	●
16	CLIP; HARNESS ENGINE REAR PTO<SV1> ISUZU M/T<X9A> (M) L=36	8-94224-891-1	01	1	1302-	●
16	CLIP; HARNESS ISUZU M/T<X9A>,ZF M/T<X9E> EXC. ENGINE REAR PTO<SV1> (M) L=36	8-94224-891-1	01	1	1302-	●
16	CLIP; HARNESS (M) L=36	8-94224-891-1	01	1	1302-		●
16	CLIP; HARNESS MAL6R M/T<Y2J>,MJT7U M/T<Y4X> (K) OD=9 H=6	1-09709-178-0	02	1	1302-	●
16	CLIP; HARNESS MJT7U M/T<Y4X> (I) ID=13 L=28	0-95235-255-0	01	1	1302-	●
16	CLIP; HARNESS MJT7U M/T<Y4X> (O) ID=10 H=25 L=20	1-09700-519-0	01	1	1302-	●
16	CLIP; HARNESS MJT7U M/T<Y4X> (AL) ID=15 H=24 L=20	1-09700-606-0	01	1	1302-	●
16	CLIP; HARNESS MJT7U M/T<Y4X> (AR) ID=14.5 L=28	1-09701-013-0	01	1	1302-	●
16	CLIP; HARNESS WHEEL BASE 4700MM<47W> (C) ID=13-18 L=18	1-09709-291-0	09	1	1302-	●
16	CLIP; HARNESS WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W> (AD) L=250	5-09707-030-1	02	1	1302-	●
16	CLIP; HARNESS (AD) L=250	5-09707-030-1	02	1	1302-		●
16	CLIP; HARNESS WHEEL BASE 5200MM<52W> (X) L=350	1-09707-183-0	04	1	1302-	●
16	CLIP; HARNESS WHEEL BASE 5200MM<52W> (C) ID=13-18 L=18	1-09709-291-0	02	1	1302-	●
16	CLIP; HARNESS WHEEL BASE 5200MM<52W>,WHEEL BASE 5300MM<53W> (Z) ID=5-12 L=18	1-09709-287-0	06	1	1302-	●
16	CLIP; HARNESS WHEEL BASE 5200MM<52W>,WHEEL BASE 5300MM<53W> (C) ID=13-18 L=18	1-09709-291-0	12	1	1302-	●
16	CLIP; HARNESS ZF9S1310 M/T<Y5K> (P) ID=19 L=28	0-95235-856-0	01	1	1302-	●
16	CLIP; HARNESS (P) ID=19 L=28	0-95235-856-0	01	1	1302-		●
16	CLIP; HARNESS ZF9S1310 M/T<Y5K> (Q) ID=19 L=60	0-95235-896-0	02	1	1302-	●
16	CLIP; HARNESS (Q) ID=19 L=60	0-95235-896-0	02	1	1302-		●
16	CLIP; HARNESS (F) ID=11 L=16	0-95235-025-0	01	1	1302-	●	●
16	CLIP; HARNESS (A) ID=11 L=20	0-95235-035-0	03	1	1302-	●	●
16	CLIP; HARNESS (R) ID=11 L=41	1-09700-403-0	01	1	1302-	●	●
16	CLIP; HARNESS (H) ID=24 L=32	1-09700-766-1	01	1	1302-	●	●
16	CLIP; HARNESS (N) ID=18 H=23 L=28	1-09700-860-0	01	1	1302-	●	●
16	CLIP; HARNESS (U) ID=20 H=23 L=27	1-09700-861-0	01	1	1302-	●	●
16	CLIP; HARNESS (U) ID=20 H=23 L=27	1-09700-861-0	01	1	1302-	●	●
16	CLIP; HARNESS (V) ID=34.5 H=23 L=27.5	1-09700-905-0	03	1	1302-	●	●
16	CLIP; HARNESS (J) ID=31 L=30	1-09700-969-0	01	1	1302-	●	●
16	CLIP; HARNESS (W) ID=31 H=30 L=35	1-09700-994-0	01	1	1302-	●	●
16	CLIP; HARNESS (W) ID=31 H=30 L=35	1-09700-994-0	01	1	1302-	●	●
16	CLIP; HARNESS (D) ID=18 L=40	1-09701-111-0	01	1	1302-	●	●
16	CLIP; HARNESS (G) ID=15 L=22 H=30	1-09701-215-1	01	1	1302-	●	●
16	CLIP; HARNESS (X) L=350	1-09707-183-0	06	1	1302-	●	●
16	CLIP; HARNESS (K) OD=9 H=6	1-09709-178-0	01	1	1302-	●	●
16	CLIP; HARNESS (AA) ID=13-18 L=14.5	1-09709-290-0	01	1	1302-	●	●
16	CLIP; HARNESS (AC) ID=5-12 L=14.5	1-09987-221-0	01	1	1302-	●	●
16	CLIP; HARNESS (AC) ID=5-12 L=14.5	1-09987-221-0	05	1	1302-	●	●
16	CLIP; HARNESS (L) ID=21 L=47.5	8-94178-108-0	01	1	1302-	●	●
16	CLIP; HARNESS (AF) ID=10 & 16	8-94413-325-0	01	1	1302-	●	●
16	CLIP; HARNESS (AB) ID=20 & 16.5	8-94486-835-0	01	1	1302-	●	●
16	CLIP; HARNESS (Y) L=155 THA	8-97173-307-0	18	1	1302-	●	●
16	CLIP; HARNESS (E) L=40.6 THA	8-97229-357-0	02	1	1302-	●	●
16	CLIP; HARNESS (K) OD=9 H=6	8-97368-793-0	02	1	1302-	●	●
16	CLIP; HARNESS (AE) L=140 THA	8-97920-656-0	04	1	1302-	●	●
16	CLIP; HARNESS (AH) ID=11 H=20 L=20	8-98033-780-0	01	1	1302-	●	●
16	CLIP; HARNESS (AG) THA	8-98052-679-0	02	1	1302-	●	●
16	CLIP; HARNESS (AI) ID=14 L=44	9-09917-427-0	03	1	1302-	●	●
16	CLIP; HARNESS WHEEL BASE 5200MM<52W> (AI) ID=14 L=44	9-09917-427-0	03	1	1302-	●
16	CLIP; HARNESS (AJ) ID=20 L=50	9-09917-430-0	02	1	1302-	●	●
16	CLIP; HARNESS WHEEL BASE 4700MM<47W> (Z) ID=5-12 L=18	1-09709-287-0	04	1	1302-	●
16	CLIP; HARNESS (Z) ID=5-12 L=18	1-09709-287-0	04	1	1302-		●
16	CLIP; HARNESS WHEEL BASE 4700MM<47W> (B) ID=5-12 L=22	1-09709-288-0	02	1	1302-	●
16	CLIP; HARNESS (B) ID=5-12 L=22	1-09709-288-0	02	1	1302-		●
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM<BFA> (F) ID=11 L=16	0-95235-025-0	02	1	1302-		●
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM<BFA> (T) ID=11X2 L=16	0-95325-025-0	01	1	1302-		●
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM<BFA> (X) L=350	1-09707-183-0	01	1	1302-		●
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM<BFA> (AE) L=140 THA	8-97920-656-0	01	1	1302-		●
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM<BFA> (C) ID=13-18 L=18	1-09709-291-0	03	1	1302-		●
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM<BFA> (AM) ID=18-24 L=18	1-09709-294-0	06	1	1302-		●
16	CLIP; HARNESS EXC. ANTILOCK BRAKE SYSTEM<BFA> (AA) ID=13-18 L=14.5	1-09709-290-0	02	1	1302-		●
16	CLIP; HARNESS EXC. ANTILOCK BRAKE SYSTEM<BFA> (C) ID=13-18 L=18	1-09709-291-0	07	1	1302-		●
48	CLIP; FRAME HARNESS WHEEL BASE 4700MM<47W> (B) ID=13-18 L=22	1-09709-292-0	02	1	1302-	●
48	CLIP; FRAME HARNESS EXC. ANTILOCK BRAKE SYSTEM<BFA> (B) ID=13-18 L=22	1-09709-292-0	02	1	1302-		●
48	CLIP; FRAME HARNESS WHEEL BASE 5200MM<52W>,WHEEL BASE 5300MM<53W> (D) ID=13-18 L=26	1-09709-293-0	02	1	1302-	●
48	CLIP; FRAME HARNESS (C) ID=35 L=33	1-09700-945-0	04	1	1302-	●	●
48	CLIP; FRAME HARNESS (A) L=350	1-09707-183-0	06	1	1302-	●	●
48	CLIP; FRAME HARNESS (A) L=350	1-09707-183-0	08	1	1302-	●	●
48	CLIP; FRAME HARNESS (E) ID=5-12 L=14.5	1-09987-221-0	01	1	1302-	●	●
48	CLIP; FRAME HARNESS ANTILOCK BRAKE SYSTEM<BFA> (F) ID=18-24 L=22	1-09709-295-0	02	1	1302-		●
51	CLIP; COOLER CMPR (A) L=180	1-09707-162-1	01	1	1302-	●	●
51	CLIP; COOLER CMPR (B) L=350	1-09707-183-0	01	1	1302-	●	●
51	CLIP; COOLER CMPR (C) ID=5-12 L=18	1-09709-287-0	01	1	1302-	●	●
104	CLIP; HEADLAMP HARNESS (A) ID=15 L=28	1-09701-216-0	01	1	1302-	●	●
104	CLIP; HEADLAMP HARNESS (B) L=350	1-09707-183-0	02	1	1302-	●	●
104	CLIP; HEADLAMP HARNESS (C) OD=9 H=6	1-09709-178-0	01	1	1302-	●	●
104	CLIP; HEADLAMP HARNESS (D) OD=9 H=9.5	1-09709-179-0	01	1	1302-	●	●
104	CLIP; HEADLAMP HARNESS (E) ID=13-18 L=14.5	1-09709-290-0	02	1	1302-	●	●
116	CLIP; ROOF HARNESS L=20	1-09987-246-2	03	1	1302-	●	●
162	CLIP; SW HARNESS OD=9 H=6	1-09709-178-0	01	1	1302-	●	●
223	CLIP; AIR TANK HARNESS WHEEL BASE 4700MM<47W> (B) ID=11 L=41	1-09700-403-0	01	1	1302-	●
223	CLIP; AIR TANK HARNESS WHEEL BASE 5200MM<52W>,WHEEL BASE 5300MM<53W> (A) ID=5-12 L=18	1-09709-287-0	01	1	1302-	●
223	CLIP; AIR TANK HARNESS (C) ID=11 L=58	9-09917-135-2	01	1	1302-		●
470	CLIP; HARNESS,LICENSE LAMP (A) OD=9 H=6	1-09709-178-0	01	1	1302-	●	●
470	CLIP; HARNESS,LICENSE LAMP (B) ID=11 L=41	1-09700-403-0	01	1	1302-		●
470	CLIP; HARNESS,LICENSE LAMP (C) L=350	1-09707-183-0	01	1	1302-		●
470	CLIP; HARNESS,LICENSE LAMP (D) L=140 THA	8-97920-656-0	02	1	1302-		●

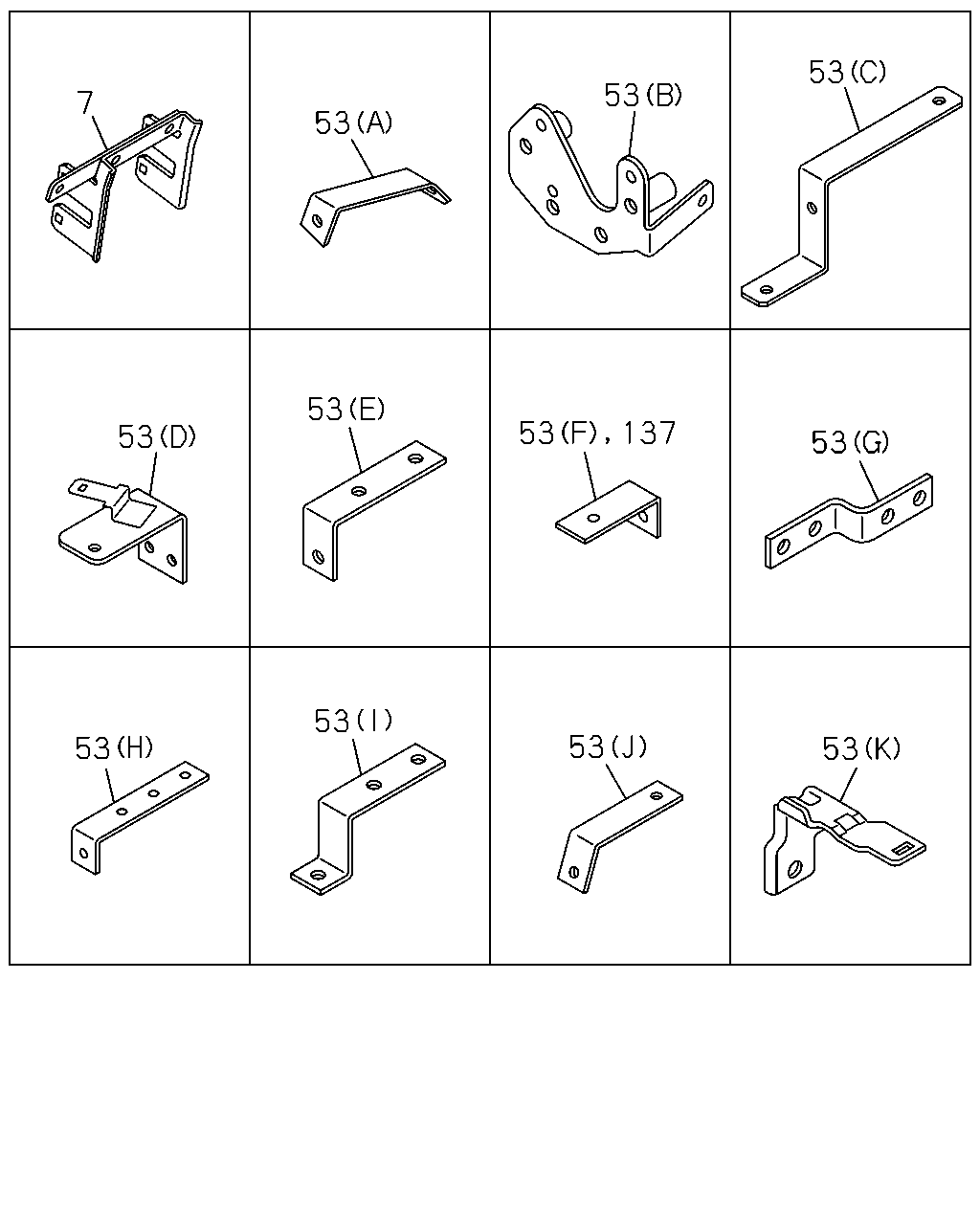

7 53 53 53 53 53 53 137 53 53 53 53 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
7	BRACKET; CONNECTOR THA	8-97925-591-0	01	1	1302-	●	●
53	BRACKET; HARNESS (E) L=82 B=20	1-47478-420-0	01	1	1302-1404	●	●
53	BRACKET; HARNESS (E) L=82 B=20	8-98259-390-0	01	1	1405-	●	●
53	BRACKET; HARNESS (F) L=65	1-47479-064-1	01	1	1302-	●	●
53	BRACKET; HARNESS (A)	1-47479-537-0	06	1	1302-	●	●
53	BRACKET; HARNESS (A)	1-47479-537-0	08	1	1302-	●	●
53	BRACKET; HARNESS (G)	1-82569-278-0	01	1	1302-	●	●
53	BRACKET; HARNESS (H) L=120 H=35	1-82698-088-0	01	1	1302-	●	●
53	BRACKET; HARNESS (I)	1-82698-382-0	01	1	1302-	●	●
53	BRACKET; HARNESS (J)	1-82698-514-0	01	1	1302-	●	●
53	BRACKET; HARNESS (B)	8-97611-413-0	01	1	1302-	●	●
53	BRACKET; HARNESS (K)	8-98052-458-0	01	1	1302-	●	●
53	BRACKET; HARNESS (C)	8-98078-801-0	01	1	1302-	●	●
53	BRACKET; HARNESS (D)	8-98102-490-0	01	1	1302-	●	●
53	BRACKET; HARNESS EXC. ANTILOCK BRAKE SYSTEM<BFA> (F) L=65	1-47479-064-1	02	1	1302-		●
137	BRACKET; HARNESS CLAMP ANTILOCK BRAKE SYSTEM<BFA> 25X37	1-34656-004-0	01	1	1302-		●

211 312 312 375 335 375 375 335 335 600

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
211	BRACKET; AXLE HARNESS ANTILOCK BRAKE SYSTEM<BFA>	8-97621-353-1	01	1	1302-		●
211	BRACKET; AXLE HARNESS ANTILOCK BRAKE SYSTEM<BFA>	8-97621-352-1	01	1	1302-		●
312	BRACKET; CLIP HARNESS MAL6R M/T<Y2J> (B)	1-47476-932-0	01	1	1302-	●
312	BRACKET; CLIP HARNESS (A)	8-97619-440-0	01	1	1302-	●	●
335	BRACKET; CONNECTOR MAL6R M/T<Y2J> (A)	1-82699-425-0	01	1	1302-	●
335	BRACKET; CONNECTOR (B)	1-82698-358-0	01	1	1302-	●	●
335	BRACKET; CONNECTOR ANTILOCK BRAKE SYSTEM<BFA> (C)	1-82698-167-0	01	1	1302-		●
375	BRACKET; AC GEN HARNESS CLIP (A) L=120 H=35	1-82698-088-0	01	1	1302-	●	●
375	BRACKET; AC GEN HARNESS CLIP (B)	1-82698-569-0	01	1	1302-	●	●
375	BRACKET; AC GEN HARNESS CLIP (C)	1-82698-583-1	01	1	1302-	●	●
600	PROTECTOR; HEAT	8-97608-456-0	01	1	1302-	●	●

16 16 206 16 142 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	CLIP; HARNESS MAL6R M/T<Y2J> (S) ID=16 L=20	0-95235-535-0	01	1	1302-	●
16	CLIP; HARNESS MAL6R M/T<Y2J> (AK) ID=13 H=29 L=30	1-09700-001-0	01	1	1302-	●
16	CLIP; HARNESS MAL6R M/T<Y2J> (N) ID=18 H=23 L=28	1-09701-070-0	02	1	1302-	●
16	CLIP; HARNESS MAL6R M/T<Y2J> (M) L=36	8-94224-891-1	01	1	1302-	●
16	CLIP; HARNESS ENGINE REAR PTO<SV1> ISUZU M/T<X9A> (M) L=36	8-94224-891-1	01	1	1302-	●
16	CLIP; HARNESS ISUZU M/T<X9A>,ZF M/T<X9E> EXC. ENGINE REAR PTO<SV1> (M) L=36	8-94224-891-1	01	1	1302-	●
16	CLIP; HARNESS (M) L=36	8-94224-891-1	01	1	1302-		●
16	CLIP; HARNESS MAL6R M/T<Y2J>,MJT7U M/T<Y4X> (K) OD=9 H=6	1-09709-178-0	02	1	1302-	●
16	CLIP; HARNESS MJT7U M/T<Y4X> (I) ID=13 L=28	0-95235-255-0	01	1	1302-	●
16	CLIP; HARNESS MJT7U M/T<Y4X> (O) ID=10 H=25 L=20	1-09700-519-0	01	1	1302-	●
16	CLIP; HARNESS MJT7U M/T<Y4X> (AL) ID=15 H=24 L=20	1-09700-606-0	01	1	1302-	●
16	CLIP; HARNESS MJT7U M/T<Y4X> (AR) ID=14.5 L=28	1-09701-013-0	01	1	1302-	●
16	CLIP; HARNESS WHEEL BASE 4700MM<47W> (C) ID=13-18 L=18	1-09709-291-0	09	1	1302-	●
16	CLIP; HARNESS WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W> (AD) L=250	5-09707-030-1	02	1	1302-	●
16	CLIP; HARNESS (AD) L=250	5-09707-030-1	02	1	1302-		●
16	CLIP; HARNESS WHEEL BASE 5200MM<52W> (X) L=350	1-09707-183-0	04	1	1302-	●
16	CLIP; HARNESS WHEEL BASE 5200MM<52W> (C) ID=13-18 L=18	1-09709-291-0	02	1	1302-	●
16	CLIP; HARNESS WHEEL BASE 5200MM<52W>,WHEEL BASE 5300MM<53W> (Z) ID=5-12 L=18	1-09709-287-0	06	1	1302-	●
16	CLIP; HARNESS WHEEL BASE 5200MM<52W>,WHEEL BASE 5300MM<53W> (C) ID=13-18 L=18	1-09709-291-0	12	1	1302-	●
16	CLIP; HARNESS ZF9S1310 M/T<Y5K> (P) ID=19 L=28	0-95235-856-0	01	1	1302-	●
16	CLIP; HARNESS (P) ID=19 L=28	0-95235-856-0	01	1	1302-		●
16	CLIP; HARNESS ZF9S1310 M/T<Y5K> (Q) ID=19 L=60	0-95235-896-0	02	1	1302-	●
16	CLIP; HARNESS (Q) ID=19 L=60	0-95235-896-0	02	1	1302-		●
16	CLIP; HARNESS (F) ID=11 L=16	0-95235-025-0	01	1	1302-	●	●
16	CLIP; HARNESS (A) ID=11 L=20	0-95235-035-0	03	1	1302-	●	●
16	CLIP; HARNESS (R) ID=11 L=41	1-09700-403-0	01	1	1302-	●	●
16	CLIP; HARNESS (H) ID=24 L=32	1-09700-766-1	01	1	1302-	●	●
16	CLIP; HARNESS (N) ID=18 H=23 L=28	1-09700-860-0	01	1	1302-	●	●
16	CLIP; HARNESS (U) ID=20 H=23 L=27	1-09700-861-0	01	1	1302-	●	●
16	CLIP; HARNESS (U) ID=20 H=23 L=27	1-09700-861-0	01	1	1302-	●	●
16	CLIP; HARNESS (V) ID=34.5 H=23 L=27.5	1-09700-905-0	03	1	1302-	●	●
16	CLIP; HARNESS (J) ID=31 L=30	1-09700-969-0	01	1	1302-	●	●
16	CLIP; HARNESS (W) ID=31 H=30 L=35	1-09700-994-0	01	1	1302-	●	●
16	CLIP; HARNESS (W) ID=31 H=30 L=35	1-09700-994-0	01	1	1302-	●	●
16	CLIP; HARNESS (D) ID=18 L=40	1-09701-111-0	01	1	1302-	●	●
16	CLIP; HARNESS (G) ID=15 L=22 H=30	1-09701-215-1	01	1	1302-	●	●
16	CLIP; HARNESS (X) L=350	1-09707-183-0	06	1	1302-	●	●
16	CLIP; HARNESS (K) OD=9 H=6	1-09709-178-0	01	1	1302-	●	●
16	CLIP; HARNESS (AA) ID=13-18 L=14.5	1-09709-290-0	01	1	1302-	●	●
16	CLIP; HARNESS (AC) ID=5-12 L=14.5	1-09987-221-0	01	1	1302-	●	●
16	CLIP; HARNESS (AC) ID=5-12 L=14.5	1-09987-221-0	05	1	1302-	●	●
16	CLIP; HARNESS (L) ID=21 L=47.5	8-94178-108-0	01	1	1302-	●	●
16	CLIP; HARNESS (AF) ID=10 & 16	8-94413-325-0	01	1	1302-	●	●
16	CLIP; HARNESS (AB) ID=20 & 16.5	8-94486-835-0	01	1	1302-	●	●
16	CLIP; HARNESS (Y) L=155 THA	8-97173-307-0	18	1	1302-	●	●
16	CLIP; HARNESS (E) L=40.6 THA	8-97229-357-0	02	1	1302-	●	●
16	CLIP; HARNESS (K) OD=9 H=6	8-97368-793-0	02	1	1302-	●	●
16	CLIP; HARNESS (AE) L=140 THA	8-97920-656-0	04	1	1302-	●	●
16	CLIP; HARNESS (AH) ID=11 H=20 L=20	8-98033-780-0	01	1	1302-	●	●
16	CLIP; HARNESS (AG) THA	8-98052-679-0	02	1	1302-	●	●
16	CLIP; HARNESS (AI) ID=14 L=44	9-09917-427-0	03	1	1302-	●	●
16	CLIP; HARNESS WHEEL BASE 5200MM<52W> (AI) ID=14 L=44	9-09917-427-0	03	1	1302-	●
16	CLIP; HARNESS (AJ) ID=20 L=50	9-09917-430-0	02	1	1302-	●	●
16	CLIP; HARNESS WHEEL BASE 4700MM<47W> (Z) ID=5-12 L=18	1-09709-287-0	04	1	1302-	●
16	CLIP; HARNESS (Z) ID=5-12 L=18	1-09709-287-0	04	1	1302-		●
16	CLIP; HARNESS WHEEL BASE 4700MM<47W> (B) ID=5-12 L=22	1-09709-288-0	02	1	1302-	●
16	CLIP; HARNESS (B) ID=5-12 L=22	1-09709-288-0	02	1	1302-		●
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM<BFA> (F) ID=11 L=16	0-95235-025-0	02	1	1302-		●
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM<BFA> (T) ID=11X2 L=16	0-95325-025-0	01	1	1302-		●
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM<BFA> (X) L=350	1-09707-183-0	01	1	1302-		●
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM<BFA> (AE) L=140 THA	8-97920-656-0	01	1	1302-		●
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM<BFA> (C) ID=13-18 L=18	1-09709-291-0	03	1	1302-		●
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM<BFA> (AM) ID=18-24 L=18	1-09709-294-0	06	1	1302-		●
16	CLIP; HARNESS EXC. ANTILOCK BRAKE SYSTEM<BFA> (AA) ID=13-18 L=14.5	1-09709-290-0	02	1	1302-		●
16	CLIP; HARNESS EXC. ANTILOCK BRAKE SYSTEM<BFA> (C) ID=13-18 L=18	1-09709-291-0	07	1	1302-		●
142	CLIP; HARNESS,ENG L=170.3	8-97209-720-0	01	1	1302-	●	●
206	CLIP; FUEL TANK HARNESS (B) ID=8.3 & 10	8-94176-792-0	01	1	1302-	●	●
206	CLIP; FUEL TANK HARNESS (A) L=140 THA	8-97920-656-0	02	1	1302-	●	●

16 16 16 16 16 16 16 16 16 16 306 16 16 16 373 16 16 16 223 470 581 16 213 16 213 223 581 16 16 380 16 104 16 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	CLIP; HARNESS MAL6R M/T<Y2J> (S) ID=16 L=20	0-95235-535-0	01	1	1302-	●
16	CLIP; HARNESS MAL6R M/T<Y2J> (AK) ID=13 H=29 L=30	1-09700-001-0	01	1	1302-	●
16	CLIP; HARNESS MAL6R M/T<Y2J> (N) ID=18 H=23 L=28	1-09701-070-0	02	1	1302-	●
16	CLIP; HARNESS MAL6R M/T<Y2J> (M) L=36	8-94224-891-1	01	1	1302-	●
16	CLIP; HARNESS ENGINE REAR PTO<SV1> ISUZU M/T<X9A> (M) L=36	8-94224-891-1	01	1	1302-	●
16	CLIP; HARNESS ISUZU M/T<X9A>,ZF M/T<X9E> EXC. ENGINE REAR PTO<SV1> (M) L=36	8-94224-891-1	01	1	1302-	●
16	CLIP; HARNESS (M) L=36	8-94224-891-1	01	1	1302-		●
16	CLIP; HARNESS MAL6R M/T<Y2J>,MJT7U M/T<Y4X> (K) OD=9 H=6	1-09709-178-0	02	1	1302-	●
16	CLIP; HARNESS MJT7U M/T<Y4X> (I) ID=13 L=28	0-95235-255-0	01	1	1302-	●
16	CLIP; HARNESS MJT7U M/T<Y4X> (O) ID=10 H=25 L=20	1-09700-519-0	01	1	1302-	●
16	CLIP; HARNESS MJT7U M/T<Y4X> (AL) ID=15 H=24 L=20	1-09700-606-0	01	1	1302-	●
16	CLIP; HARNESS MJT7U M/T<Y4X> (AR) ID=14.5 L=28	1-09701-013-0	01	1	1302-	●
16	CLIP; HARNESS WHEEL BASE 4700MM<47W> (C) ID=13-18 L=18	1-09709-291-0	09	1	1302-	●
16	CLIP; HARNESS WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W> (AD) L=250	5-09707-030-1	02	1	1302-	●
16	CLIP; HARNESS (AD) L=250	5-09707-030-1	02	1	1302-		●
16	CLIP; HARNESS WHEEL BASE 5200MM<52W> (X) L=350	1-09707-183-0	04	1	1302-	●
16	CLIP; HARNESS WHEEL BASE 5200MM<52W> (C) ID=13-18 L=18	1-09709-291-0	02	1	1302-	●
16	CLIP; HARNESS WHEEL BASE 5200MM<52W>,WHEEL BASE 5300MM<53W> (Z) ID=5-12 L=18	1-09709-287-0	06	1	1302-	●
16	CLIP; HARNESS WHEEL BASE 5200MM<52W>,WHEEL BASE 5300MM<53W> (C) ID=13-18 L=18	1-09709-291-0	12	1	1302-	●
16	CLIP; HARNESS ZF9S1310 M/T<Y5K> (P) ID=19 L=28	0-95235-856-0	01	1	1302-	●
16	CLIP; HARNESS (P) ID=19 L=28	0-95235-856-0	01	1	1302-		●
16	CLIP; HARNESS ZF9S1310 M/T<Y5K> (Q) ID=19 L=60	0-95235-896-0	02	1	1302-	●
16	CLIP; HARNESS (Q) ID=19 L=60	0-95235-896-0	02	1	1302-		●
16	CLIP; HARNESS (F) ID=11 L=16	0-95235-025-0	01	1	1302-	●	●
16	CLIP; HARNESS (A) ID=11 L=20	0-95235-035-0	03	1	1302-	●	●
16	CLIP; HARNESS (R) ID=11 L=41	1-09700-403-0	01	1	1302-	●	●
16	CLIP; HARNESS (H) ID=24 L=32	1-09700-766-1	01	1	1302-	●	●
16	CLIP; HARNESS (N) ID=18 H=23 L=28	1-09700-860-0	01	1	1302-	●	●
16	CLIP; HARNESS (U) ID=20 H=23 L=27	1-09700-861-0	01	1	1302-	●	●
16	CLIP; HARNESS (U) ID=20 H=23 L=27	1-09700-861-0	01	1	1302-	●	●
16	CLIP; HARNESS (V) ID=34.5 H=23 L=27.5	1-09700-905-0	03	1	1302-	●	●
16	CLIP; HARNESS (J) ID=31 L=30	1-09700-969-0	01	1	1302-	●	●
16	CLIP; HARNESS (W) ID=31 H=30 L=35	1-09700-994-0	01	1	1302-	●	●
16	CLIP; HARNESS (W) ID=31 H=30 L=35	1-09700-994-0	01	1	1302-	●	●
16	CLIP; HARNESS (D) ID=18 L=40	1-09701-111-0	01	1	1302-	●	●
16	CLIP; HARNESS (G) ID=15 L=22 H=30	1-09701-215-1	01	1	1302-	●	●
16	CLIP; HARNESS (X) L=350	1-09707-183-0	06	1	1302-	●	●
16	CLIP; HARNESS (K) OD=9 H=6	1-09709-178-0	01	1	1302-	●	●
16	CLIP; HARNESS (AA) ID=13-18 L=14.5	1-09709-290-0	01	1	1302-	●	●
16	CLIP; HARNESS (AC) ID=5-12 L=14.5	1-09987-221-0	01	1	1302-	●	●
16	CLIP; HARNESS (AC) ID=5-12 L=14.5	1-09987-221-0	05	1	1302-	●	●
16	CLIP; HARNESS (L) ID=21 L=47.5	8-94178-108-0	01	1	1302-	●	●
16	CLIP; HARNESS (AF) ID=10 & 16	8-94413-325-0	01	1	1302-	●	●
16	CLIP; HARNESS (AB) ID=20 & 16.5	8-94486-835-0	01	1	1302-	●	●
16	CLIP; HARNESS (Y) L=155 THA	8-97173-307-0	18	1	1302-	●	●
16	CLIP; HARNESS (E) L=40.6 THA	8-97229-357-0	02	1	1302-	●	●
16	CLIP; HARNESS (K) OD=9 H=6	8-97368-793-0	02	1	1302-	●	●
16	CLIP; HARNESS (AE) L=140 THA	8-97920-656-0	04	1	1302-	●	●
16	CLIP; HARNESS (AH) ID=11 H=20 L=20	8-98033-780-0	01	1	1302-	●	●
16	CLIP; HARNESS (AG) THA	8-98052-679-0	02	1	1302-	●	●
16	CLIP; HARNESS (AI) ID=14 L=44	9-09917-427-0	03	1	1302-	●	●
16	CLIP; HARNESS WHEEL BASE 5200MM<52W> (AI) ID=14 L=44	9-09917-427-0	03	1	1302-	●
16	CLIP; HARNESS (AJ) ID=20 L=50	9-09917-430-0	02	1	1302-	●	●
16	CLIP; HARNESS WHEEL BASE 4700MM<47W> (Z) ID=5-12 L=18	1-09709-287-0	04	1	1302-	●
16	CLIP; HARNESS (Z) ID=5-12 L=18	1-09709-287-0	04	1	1302-		●
16	CLIP; HARNESS WHEEL BASE 4700MM<47W> (B) ID=5-12 L=22	1-09709-288-0	02	1	1302-	●
16	CLIP; HARNESS (B) ID=5-12 L=22	1-09709-288-0	02	1	1302-		●
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM<BFA> (F) ID=11 L=16	0-95235-025-0	02	1	1302-		●
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM<BFA> (T) ID=11X2 L=16	0-95325-025-0	01	1	1302-		●
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM<BFA> (X) L=350	1-09707-183-0	01	1	1302-		●
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM<BFA> (AE) L=140 THA	8-97920-656-0	01	1	1302-		●
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM<BFA> (C) ID=13-18 L=18	1-09709-291-0	03	1	1302-		●
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM<BFA> (AM) ID=18-24 L=18	1-09709-294-0	06	1	1302-		●
16	CLIP; HARNESS EXC. ANTILOCK BRAKE SYSTEM<BFA> (AA) ID=13-18 L=14.5	1-09709-290-0	02	1	1302-		●
16	CLIP; HARNESS EXC. ANTILOCK BRAKE SYSTEM<BFA> (C) ID=13-18 L=18	1-09709-291-0	07	1	1302-		●
48	CLIP; FRAME HARNESS WHEEL BASE 4700MM<47W> (B) ID=13-18 L=22	1-09709-292-0	02	1	1302-	●
48	CLIP; FRAME HARNESS EXC. ANTILOCK BRAKE SYSTEM<BFA> (B) ID=13-18 L=22	1-09709-292-0	02	1	1302-		●
48	CLIP; FRAME HARNESS WHEEL BASE 5200MM<52W>,WHEEL BASE 5300MM<53W> (D) ID=13-18 L=26	1-09709-293-0	02	1	1302-	●
48	CLIP; FRAME HARNESS (C) ID=35 L=33	1-09700-945-0	04	1	1302-	●	●
48	CLIP; FRAME HARNESS (A) L=350	1-09707-183-0	06	1	1302-	●	●
48	CLIP; FRAME HARNESS (A) L=350	1-09707-183-0	08	1	1302-	●	●
48	CLIP; FRAME HARNESS (E) ID=5-12 L=14.5	1-09987-221-0	01	1	1302-	●	●
48	CLIP; FRAME HARNESS ANTILOCK BRAKE SYSTEM<BFA> (F) ID=18-24 L=22	1-09709-295-0	02	1	1302-		●
104	CLIP; HEADLAMP HARNESS (A) ID=15 L=28	1-09701-216-0	01	1	1302-	●	●
104	CLIP; HEADLAMP HARNESS (B) L=350	1-09707-183-0	02	1	1302-	●	●
104	CLIP; HEADLAMP HARNESS (C) OD=9 H=6	1-09709-178-0	01	1	1302-	●	●
104	CLIP; HEADLAMP HARNESS (D) OD=9 H=9.5	1-09709-179-0	01	1	1302-	●	●
104	CLIP; HEADLAMP HARNESS (E) ID=13-18 L=14.5	1-09709-290-0	02	1	1302-	●	●
213	CLIP; END CROSS HARNESS WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W> (B) ID=14 L=44	9-09917-427-0	03	1	1302-	●
213	CLIP; END CROSS HARNESS EXC. ANTILOCK BRAKE SYSTEM<BFA> (B) ID=14 L=44	9-09917-427-0	03	1	1302-		●
213	CLIP; END CROSS HARNESS ANTILOCK BRAKE SYSTEM<BFA> (A) ID=20 L=50	9-09917-430-0	03	1	1302-		●
223	CLIP; AIR TANK HARNESS WHEEL BASE 4700MM<47W> (B) ID=11 L=41	1-09700-403-0	01	1	1302-	●
223	CLIP; AIR TANK HARNESS WHEEL BASE 5200MM<52W>,WHEEL BASE 5300MM<53W> (A) ID=5-12 L=18	1-09709-287-0	01	1	1302-	●
223	CLIP; AIR TANK HARNESS (C) ID=11 L=58	9-09917-135-2	01	1	1302-		●
306	CLIP; HARNESS,ELEC GOV ID=39 H=28 L=32	1-09701-263-0	03	1	1302-	●	●
373	CLIP; BAND,GEN HARNESS ID=20 H=23 L=27	1-09700-861-0	02	1	1302-	●	●
380	CLIP; EARTH HARNESS (A) ID=11 H=20 L=25	1-09700-848-0	02	1	1302-	●	●
380	CLIP; EARTH HARNESS (B) L=350	1-09707-183-0	03	1	1302-	●	●
470	CLIP; HARNESS,LICENSE LAMP (A) OD=9 H=6	1-09709-178-0	01	1	1302-	●	●
470	CLIP; HARNESS,LICENSE LAMP (B) ID=11 L=41	1-09700-403-0	01	1	1302-		●
470	CLIP; HARNESS,LICENSE LAMP (C) L=350	1-09707-183-0	01	1	1302-		●
470	CLIP; HARNESS,LICENSE LAMP (D) L=140 THA	8-97920-656-0	02	1	1302-		●
581	CLIP; HARNESS,REAR SUSP WHEEL BASE 4700MM<47W> (A) ID=11 L=41	1-09700-403-0	02	1	1302-	●
581	CLIP; HARNESS,REAR SUSP WHEEL BASE 4700MM<47W> (B) ID=11 L=58	9-09917-135-2	01	1	1302-	●

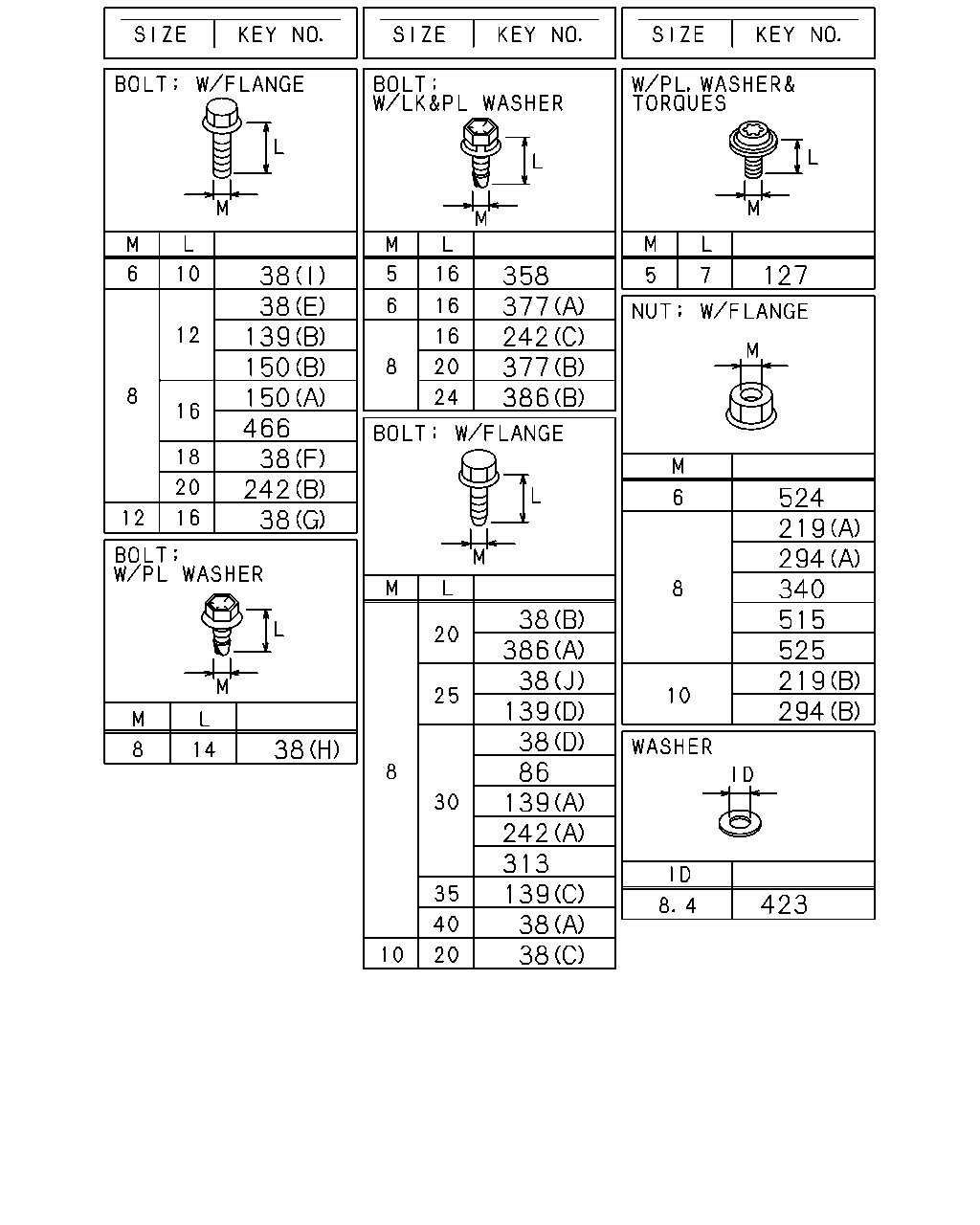

38 38 139 150 150 466 38 242 38 38 358 377 242 377 386 38 386 38 139 38 86 139 242 313 139 38 38 127 524 219 294 340 515 525 219 294 423

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
38	BOLT; CLIP,HARNESS MAL6R M/T<Y2J>,MJT7U M/T<Y4X> (B) M8X20 FLANGE THA	0-28650-820-0	03	1	1302-	●
38	BOLT; CLIP,HARNESS ANTILOCK BRAKE SYSTEM<BFA> (B) M8X20 FLANGE THA	0-28650-820-0	03	1	1302-		●
38	BOLT; CLIP,HARNESS MAL6R M/T<Y2J>,MJT7U M/T<Y4X> (C) M10X20 FLANGE THA	0-28751-020-0	01	1	1302-	●
38	BOLT; CLIP,HARNESS ZF9S1310 M/T<Y5K> (E) M8X12 FLANGE THA	0-28050-812-0	02	1	1302-	●
38	BOLT; CLIP,HARNESS (E) M8X12 FLANGE THA	0-28050-812-0	02	1	1302-		●
38	BOLT; CLIP,HARNESS (I) M6X10 FLANGE THA	0-28050-610-0	01	1	1302-	●	●
38	BOLT; CLIP,HARNESS (G) M12X16 FLANGE	0-28051-216-0	01	1	1302-	●	●
38	BOLT; CLIP,HARNESS (F) M8X18 FLANGE	0-28080-818-0	01	1	1302-	●	●
38	BOLT; CLIP,HARNESS (B) M8X20 FLANGE THA	0-28650-820-0	04	1	1302-	●	●
38	BOLT; CLIP,HARNESS (J) M8X25 FLANGE THA	0-28650-825-0	06	1	1302-	●	●
38	BOLT; CLIP,HARNESS (D) M8X30 FLANGE THA	0-28650-830-0	02	1	1302-	●	●
38	BOLT; CLIP,HARNESS (D) M8X30 FLANGE THA	0-28650-830-0	09	1	1302-	●	●
38	BOLT; CLIP,HARNESS (A) M8X40 FLANGE THA	0-28650-840-0	01	1	1302-	●	●
38	BOLT; CLIP,HARNESS (H) M8X14 W/PL WASHER	8-98164-837-0	03	1	1302-	●	●
38	BOLT; CLIP,HARNESS ZF9S1310 M/T<Y5K> (B) M8X20 FLANGE THA	0-28650-820-0	01	1	1302-	●	●
38	BOLT; CLIP,HARNESS WHEEL BASE 4700MM<47W> (B) M8X20 FLANGE THA	0-28650-820-0	01	1	1302-	●
38	BOLT; CLIP,HARNESS (D) M8X30 FLANGE THA	0-28650-830-0	01	1	1302-		●
86	BOLT; CLIP BRKT M8X30 FLANGE THA	0-28650-830-0	01	1	1302-	●	●
127	SCREW; FACIA HARNESS CLIP M5X7 HEXALOBULAR SOCKET	8-98063-767-0	01	1	1302-	●	●
139	BOLT; BRKT (B) M8X12 FLANGE THA	0-28050-812-0	01	1	1302-	●	●
139	BOLT; BRKT ANTILOCK BRAKE SYSTEM<BFA> (B) M8X12 FLANGE THA	0-28050-812-0	01	1	1302-		●
139	BOLT; BRKT (A) M8X30 FLANGE THA	0-28650-830-0	01	1	1302-	●	●
139	BOLT; BRKT (A) M8X30 FLANGE THA	0-28650-830-0	06	1	1302-	●	●
139	BOLT; BRKT (C) M8X35 FLANGE THA	0-28650-835-0	02	1	1302-	●	●
139	BOLT; BRKT ANTILOCK BRAKE SYSTEM<BFA> (A) M8X30 FLANGE THA	0-28650-830-0	03	1	1302-		●
139	BOLT; BRKT EXC. ANTILOCK BRAKE SYSTEM<BFA> (D) M8X25 FLANGE THA	0-28650-825-0	02	1	1302-		●
150	BOLT; CLIP (B) M8X12 FLANGE THA	0-28050-812-0	02	1	1302-	●	●
150	BOLT; CLIP (A) M8X16 FLANGE THA	0-28050-816-0	08	1	1302-	●	●
219	NUT MAL6R M/T<Y2J> (B) M10 FLANGE THA	0-91180-210-0	01	1	1302-	●
219	NUT (A) M8 FLANGE THA	0-91180-108-0	01	1	1302-	●	●
219	NUT WHEEL BASE 4700MM<47W> (A) M8 FLANGE THA	0-91180-108-0	01	1	1302-	●
219	NUT (A) M8 FLANGE THA	0-91180-108-0	01	1	1302-		●
219	NUT (A) M8 FLANGE THA	0-91180-108-0	08	1	1302-	●	●
219	NUT ANTILOCK BRAKE SYSTEM<BFA> (A) M8 FLANGE THA	0-91180-108-0	03	1	1302-		●
242	BOLT; BRKT,HARNESS (B) M8X20 FLANGE THA	0-28050-820-0	01	1	1302-	●	●
242	BOLT; BRKT,HARNESS (A) M8X30 FLANGE THA	0-28650-830-0	01	1	1302-	●	●
242	BOLT; BRKT,HARNESS (C) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	1302-	●	●
294	NUT MAL6R M/T<Y2J> (B) M10 FLANGE THA	0-91180-210-0	02	1	1302-	●
294	NUT (A) M8 FLANGE THA	0-91180-108-0	01	1	1302-	●	●
294	NUT (A) M8 FLANGE THA	0-91180-108-0	01	1	1302-	●	●
294	NUT (A) M8 FLANGE THA	0-91180-108-0	07	1	1302-	●	●
294	NUT ANTILOCK BRAKE SYSTEM<BFA> (A) M8 FLANGE THA	0-91180-108-0	03	1	1302-		●
313	BOLT; BRKT M8X30 FLANGE THA	0-28650-830-0	08	1	1302-	●	●
340	NUT; HARNESS CAB TO FRAME M8 FLANGE THA	0-91180-108-0	03	1	1302-	●	●
358	BOLT; EARTH M5X16 W/LK&PL WASHER	8-94198-538-0	01	1	1302-	●	●
377	BOLT; CAB EARTH (A) M6X16 W/LK&PL WASHER	8-97086-823-0	02	1	1302-	●	●
377	BOLT; CAB EARTH (B) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	1302-	●	●
386	BOLT; GRAND HARNESS (A) M8X20 FLANGE THA	0-28650-820-0	02	1	1302-	●	●
386	BOLT; GRAND HARNESS (B) M8X24 W/PL WASHER	8-98141-256-1	02	1	1302-	●	●
423	WASHER; HARNESS,EARTH ID=8.4	1-09503-264-0	03	1	1302-	●	●
466	BOLT; HEAT PROTECTOR M8X16 FLANGE THA	0-28050-816-0	02	1	1302-	●	●
515	NUT; BRKT M8 FLANGE THA	0-91180-108-0	01	1	1302-	●	●
515	NUT; BRKT M8 FLANGE THA	0-91180-108-0	08	1	1302-	●	●
515	NUT; BRKT EXC. ANTILOCK BRAKE SYSTEM<BFA> M8 FLANGE THA	0-91180-108-0	02	1	1302-		●
524	NUT; HARNESS M6 FLANGE THA	0-91180-106-0	04	1	1302-	●	●
525	NUT; CLIP M8 FLANGE THA	0-91180-108-0	02	1	1302-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
