Sayfa 8-10 - Isuzu EPC

8-10 — WIRING HARNESS AND FUSE (#117168) — 205 parça

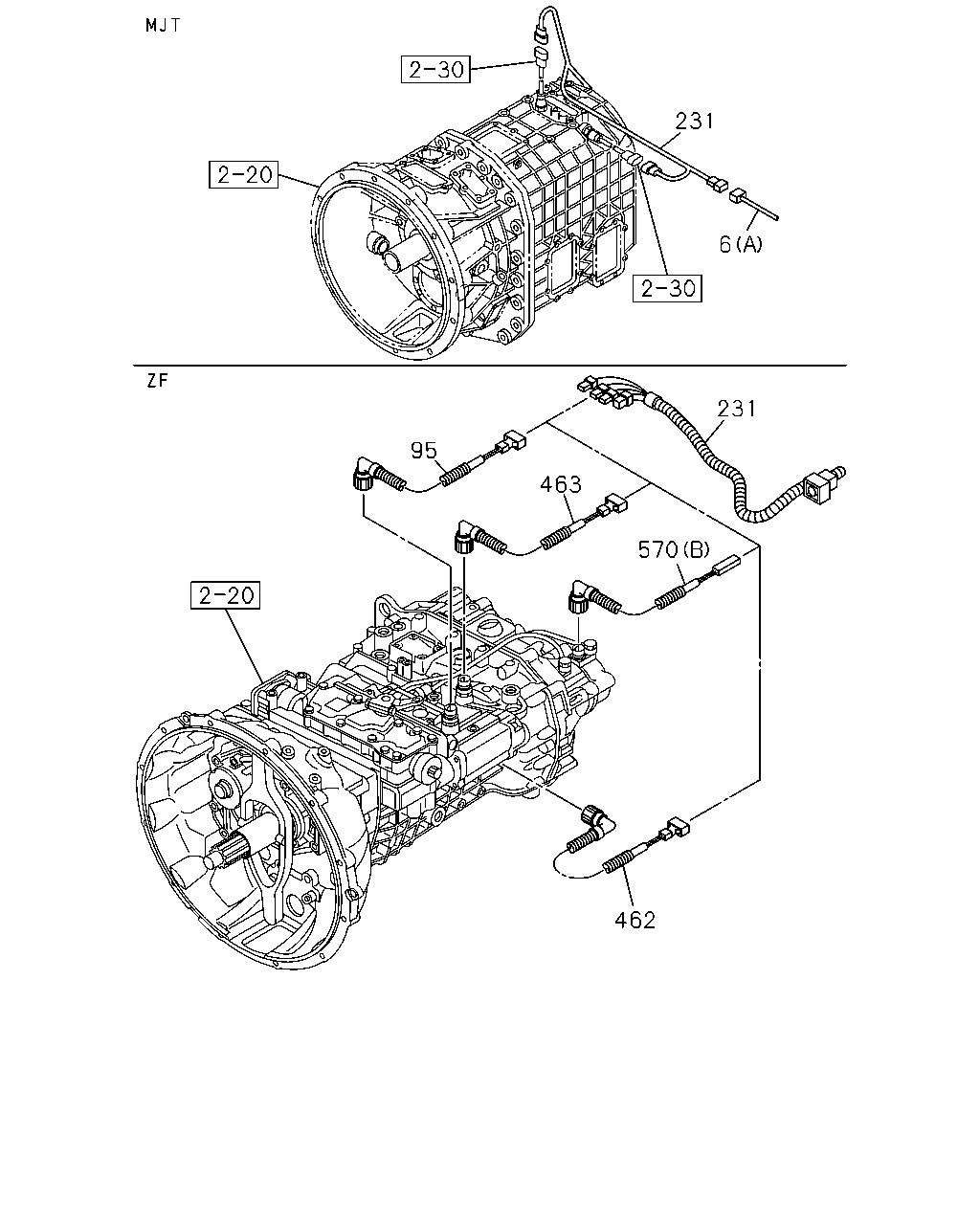

462 570 463 95 231 231 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	HARNESS; FRAME (B)	8-98075-634-3	01	1	1304-	●
6	HARNESS; FRAME MJT7U M/T(Y4X) ANTILOCK BRAKE SYSTEM(BFA) FUEL TANK 200L RECTANGULAR<NH6> EXC. GENERATOR 24V90A(K44) (A)	8-98235-448-2	01	1	1304-	●
6	HARNESS; FRAME MJT7U M/T(Y4X) ANTILOCK BRAKE SYSTEM(BFA) GENERATOR 24V90A(K44) FUEL TANK 200L RECTANGULAR<NH6> (A)	8-98235-449-2	01	1	1304-	●
6	HARNESS; FRAME MJT7U M/T(Y4X) FUEL TANK 200L RECTANGULAR<NH6> EXC. ANTILOCK BRAKE SYSTEM(BFA),GENERATOR 24V90A(K44) (A)	8-98217-136-2	01	1	1304-	●
6	HARNESS; FRAME MJT7U M/T(Y4X) GENERATOR 24V90A(K44) FUEL TANK 200L RECTANGULAR<NH6> EXC. ANTILOCK BRAKE SYSTEM(BFA) (A)	8-98235-469-2	01	1	1304-	●
6	HARNESS; FRAME ZF9S1310 M/T(Y5K) ANTILOCK BRAKE SYSTEM(BFA) FUEL TANK 400L<SDH> EXC. GENERATOR 24V90A(K44) (A)	8-98235-456-0	01	1	1304-	●
6	HARNESS; FRAME ZF9S1310 M/T(Y5K) ANTILOCK BRAKE SYSTEM(BFA) GENERATOR 24V90A(K44) FUEL TANK 400L<SDH> (A)	8-98235-457-0	01	1	1304-	●
6	HARNESS; FRAME ZF9S1310 M/T(Y5K) FUEL TANK 400L<SDH> EXC. ANTILOCK BRAKE SYSTEM(BFA),GENERATOR 24V90A(K44) (A)	8-98235-459-0	01	1	1304-	●
6	HARNESS; FRAME ZF9S1310 M/T(Y5K) GENERATOR 24V90A(K44) FUEL TANK 400L<SDH> EXC. ANTILOCK BRAKE SYSTEM(BFA) (A)	8-98235-460-0	01	1	1304-	●
6	HARNESS; FRAME (B)	8-98116-180-1	01	1	1304-		●
6	HARNESS; FRAME ZF9S1310 M/T(Y5K) ANTILOCK BRAKE SYSTEM(BFA) GENERATOR 24V90A(K44) (A)	8-98237-178-0	01	1	1304-		●
6	HARNESS; FRAME ZF9S1310 M/T(Y5K) ANTILOCK BRAKE SYSTEM(BFA) EXC. GENERATOR 24V90A(K44) (A)	8-98237-177-0	01	1	1304-		●
6	HARNESS; FRAME ZF9S1310 M/T(Y5K) EXC. ANTILOCK BRAKE SYSTEM(BFA),GENERATOR 24V90A(K44) (A)	8-98237-179-0	01	1	1304-		●
6	HARNESS; FRAME ZF9S1310 M/T(Y5K) GENERATOR 24V90A(K44) EXC. ANTILOCK BRAKE SYSTEM(BFA) (A)	8-98237-180-0	01	1	1304-		●
95	HARNESS; NEUTRAL SW ZF9S1310 M/T(Y5K) RED	8-98145-855-0	01	1	1304-	●	●
231	HARNESS; TRANS MJT7U M/T(Y4X)	8-97615-725-1	01	1	1304-	●
231	HARNESS; TRANS ZF9S1310 M/T(Y5K)	8-98172-096-0	01	1	1304-	●	●
462	HARNESS; SW,RANGE ZF9S1310 M/T(Y5K) BLUE	8-98145-857-0	01	1	1304-	●	●
463	HARNESS; SW,BACK UP ZF9S1310 M/T(Y5K) BLACK	8-98145-856-0	01	1	1304-	●	●
570	HARNESS; SPEED SENSOR ZF9S1310 M/T(Y5K) (A)	8-98058-327-1	01	1	1304-	●	●
570	HARNESS; SPEED SENSOR ZF9S1310 M/T(Y5K) (B)	8-98148-602-0	01	1	1304-	●	●

2 2 2 2 1 535 668 533 534 536

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HARNESS; CAB ANTILOCK BRAKE SYSTEM(BFA)	8-98234-812-2	01	1	1304-	●
1	HARNESS; CAB EXC. ANTILOCK BRAKE SYSTEM(BFA)	8-98234-813-4	01	1	1304-	●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) ANTILOCK BRAKE SYSTEM(BFA)	8-98234-814-2	01	1	1304-1311		●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) ANTILOCK BRAKE SYSTEM(BFA)	8-98253-293-1	01	1	1312-		●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) EXC. ANTILOCK BRAKE SYSTEM(BFA)	8-98234-815-3	01	1	1304-		●
2	DIODE; CABLE HARNESS (A) BLACK 10P	1-82699-703-0	01	1	1304-	●	●
2	DIODE; CABLE HARNESS (D) BLACK 3P-1.5A	8-94416-438-1	01	1	1304-	●	●
2	DIODE; CABLE HARNESS (C) BLACK 2P-1.5A	8-94422-639-1	02	1	1304-	●	●
2	DIODE; CABLE HARNESS (B) BLACK 3P-1.5A	8-94422-640-1	01	1	1304-	●	●
533	CLIP ID=31 L=35	1-09700-329-1	01	1	1304-	●	●
534	BOLT M8X20 FLANGE	0-28650-820-0	01	1	1304-	●	●
535	BOLT; BRKT FIX M8X20 FLANGE	0-28650-820-0	01	1	1304-	●	●
536	NUT; BRKT FIX M8	8-98041-929-0	01	1	1304-	●	●
668	BRACKET; HARNESS (A)	8-98095-653-2	01	1	1304-	●	●
668	BRACKET; HARNESS (B)	8-98117-572-0	01	1	1304-	●	●

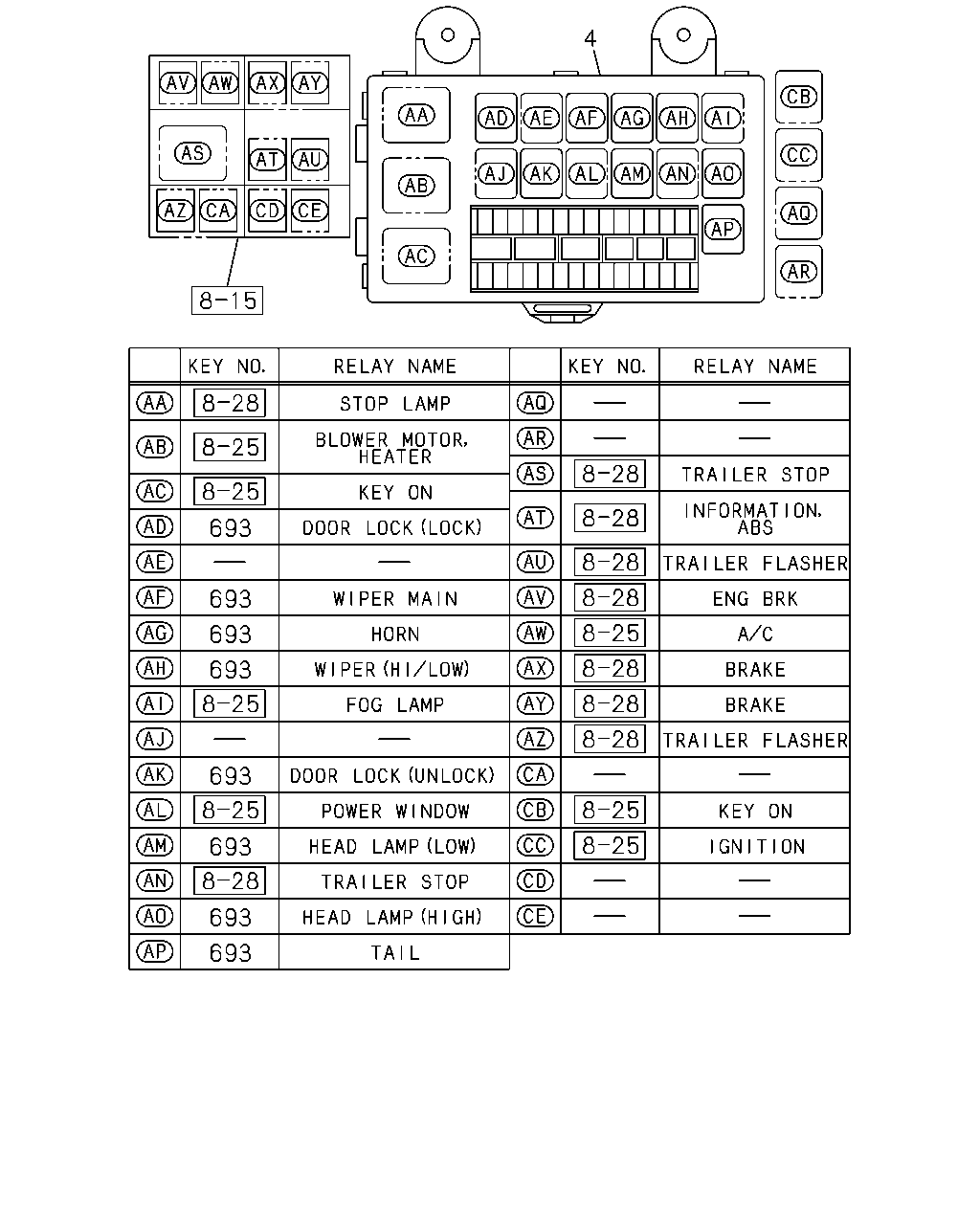

4 693 693 693 693 693 693 693 693

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	4	BOX ASM; FUSE,HARNESS	8-98065-666-0	01	1	1304-	●	●
	693	RELAY; FUSE BOX 24V 10A PANASONIC	8-97173-035-1	AR	1	1304-	●	●

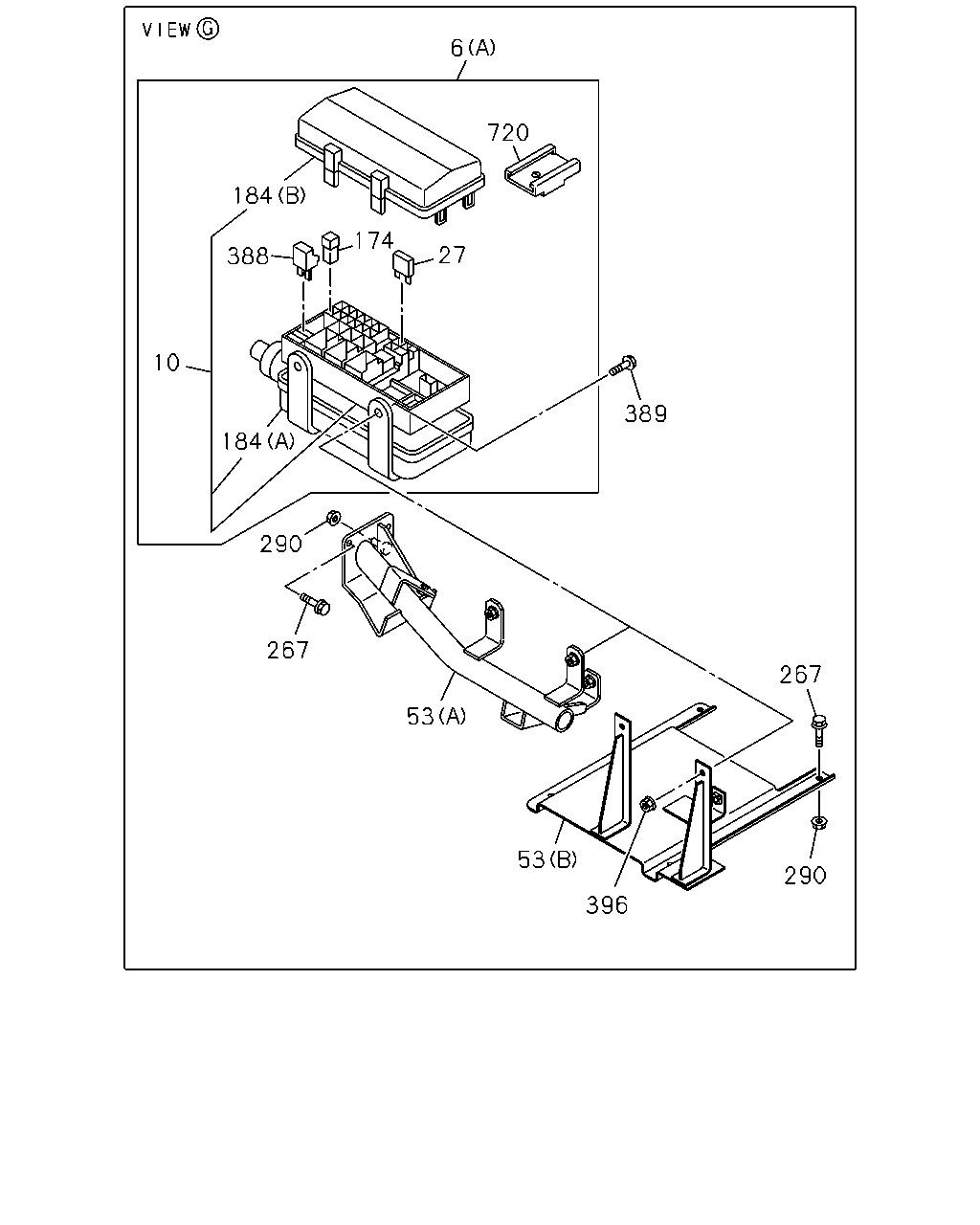

6 720 184 388 174 27 10 184 389 290 267 53 267 53 396 290

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	HARNESS; FRAME (B)	8-98075-634-3	01	1	1304-	●
6	HARNESS; FRAME MJT7U M/T(Y4X) ANTILOCK BRAKE SYSTEM(BFA) FUEL TANK 200L RECTANGULAR<NH6> EXC. GENERATOR 24V90A(K44) (A)	8-98235-448-2	01	1	1304-	●
6	HARNESS; FRAME MJT7U M/T(Y4X) ANTILOCK BRAKE SYSTEM(BFA) GENERATOR 24V90A(K44) FUEL TANK 200L RECTANGULAR<NH6> (A)	8-98235-449-2	01	1	1304-	●
6	HARNESS; FRAME MJT7U M/T(Y4X) FUEL TANK 200L RECTANGULAR<NH6> EXC. ANTILOCK BRAKE SYSTEM(BFA),GENERATOR 24V90A(K44) (A)	8-98217-136-2	01	1	1304-	●
6	HARNESS; FRAME MJT7U M/T(Y4X) GENERATOR 24V90A(K44) FUEL TANK 200L RECTANGULAR<NH6> EXC. ANTILOCK BRAKE SYSTEM(BFA) (A)	8-98235-469-2	01	1	1304-	●
6	HARNESS; FRAME ZF9S1310 M/T(Y5K) ANTILOCK BRAKE SYSTEM(BFA) FUEL TANK 400L<SDH> EXC. GENERATOR 24V90A(K44) (A)	8-98235-456-0	01	1	1304-	●
6	HARNESS; FRAME ZF9S1310 M/T(Y5K) ANTILOCK BRAKE SYSTEM(BFA) GENERATOR 24V90A(K44) FUEL TANK 400L<SDH> (A)	8-98235-457-0	01	1	1304-	●
6	HARNESS; FRAME ZF9S1310 M/T(Y5K) FUEL TANK 400L<SDH> EXC. ANTILOCK BRAKE SYSTEM(BFA),GENERATOR 24V90A(K44) (A)	8-98235-459-0	01	1	1304-	●
6	HARNESS; FRAME ZF9S1310 M/T(Y5K) GENERATOR 24V90A(K44) FUEL TANK 400L<SDH> EXC. ANTILOCK BRAKE SYSTEM(BFA) (A)	8-98235-460-0	01	1	1304-	●
6	HARNESS; FRAME (B)	8-98116-180-1	01	1	1304-		●
6	HARNESS; FRAME ZF9S1310 M/T(Y5K) ANTILOCK BRAKE SYSTEM(BFA) GENERATOR 24V90A(K44) (A)	8-98237-178-0	01	1	1304-		●
6	HARNESS; FRAME ZF9S1310 M/T(Y5K) ANTILOCK BRAKE SYSTEM(BFA) EXC. GENERATOR 24V90A(K44) (A)	8-98237-177-0	01	1	1304-		●
6	HARNESS; FRAME ZF9S1310 M/T(Y5K) EXC. ANTILOCK BRAKE SYSTEM(BFA),GENERATOR 24V90A(K44) (A)	8-98237-179-0	01	1	1304-		●
6	HARNESS; FRAME ZF9S1310 M/T(Y5K) GENERATOR 24V90A(K44) EXC. ANTILOCK BRAKE SYSTEM(BFA) (A)	8-98237-180-0	01	1	1304-		●
10	BOX; FUSE,HARNESS	8-98030-762-0	01	1	1304-	●	●
27	FUSE UNIT 10A RED	8-98054-257-0	03	1	1304-	●	●
27	FUSE UNIT 15A BLUE	8-98054-258-0	01	1	1304-	●	●
53	BRACKET; FUSE BOX FUEL TANK 200L RECTANGULAR<NH6> (B)	8-98168-973-2	01	1	1304-	●
53	BRACKET; FUSE BOX EXC. FUEL TANK 200L RECTANGULAR<NH6> (A)	8-98078-800-1	01	1	1304-	●
53	BRACKET; FUSE BOX (A)	8-98078-800-1	01	1	1304-		●
174	FUSE; SLOW BLOW ZF9S1310 M/T(Y5K) ANTILOCK BRAKE SYSTEM(BFA) FUEL TANK 400L<SDH> 30A PINK	8-98079-191-0	02	1	1304-	●
174	FUSE; SLOW BLOW ZF9S1310 M/T(Y5K) ANTILOCK BRAKE SYSTEM(BFA) 30A PINK	8-98079-191-0	02	1	1304-		●
174	FUSE; SLOW BLOW ZF9S1310 M/T(Y5K) FUEL TANK 400L<SDH> EXC. ANTILOCK BRAKE SYSTEM(BFA) 30A PINK	8-98079-191-0	01	1	1304-	●
174	FUSE; SLOW BLOW MJT7U M/T(Y4X) FUEL TANK 200L RECTANGULAR<NH6> 30A PINK	8-98079-191-0	01	1	1304-	●
174	FUSE; SLOW BLOW ZF9S1310 M/T(Y5K) EXC. ANTILOCK BRAKE SYSTEM(BFA) 30A PINK	8-98079-191-0	01	1	1304-		●
174	FUSE; SLOW BLOW 60A YELLOW	8-97219-407-0	01	1	1304-	●	●
174	FUSE; SLOW BLOW 60A YELLOW 60A YELLOW	8-97219-407-0	01	1	1304-	●	●
174	FUSE; SLOW BLOW 40A GREEN	8-98079-192-0	01	1	1304-	●	●
174	FUSE; SLOW BLOW 50A RED	8-98079-193-0	03	1	1304-	●	●
184	COVER; RELAY & FUSE BOX (A)	8-98030-766-0	01	1	1304-	●	●
184	COVER; RELAY & FUSE BOX (B)	8-98030-767-1	01	1	1304-	●	●
267	BOLT; BRKT FUEL TANK 200L RECTANGULAR<NH6> M8X25 FLANGE	0-28650-825-0	02	1	1304-	●
267	BOLT; BRKT FUEL TANK 200L RECTANGULAR<NH6> M8X30 FLANGE	0-28650-830-0	02	1	1304-	●
267	BOLT; BRKT EXC. FUEL TANK 200L RECTANGULAR<NH6> M10X30 FLANGE	0-28651-030-0	02	1	1304-	●
267	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	02	1	1304-		●
290	NUT; BRKT FUEL TANK 200L RECTANGULAR<NH6> M8 FLANGE	0-91180-108-0	04	1	1304-	●
290	NUT; BRKT EXC. FUEL TANK 200L RECTANGULAR<NH6> M10 FLANGE	0-91180-210-0	01	1	1304-	●
290	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1304-		●
388	DIODE; RELAY BOX BLACK 4P-1.5A	8-94381-730-0	01	1	1304-	●	●
388	DIODE; RELAY BOX BLACK 2P-1.5A	8-94422-639-1	01	1	1304-	●	●
389	BOLT; COVER,RELAY BOX M8X35 W/LK&PL WASHER	1-09030-073-0	03	1	1304-	●	●
396	NUT; COVER,RELAY BOX FUEL TANK 200L RECTANGULAR<NH6> M8 FLANGE	0-91180-108-0	02	1	1304-	●
720	ATTACHMENT; CONNECTOR	1-82699-688-0	03	1	1304-	●	●

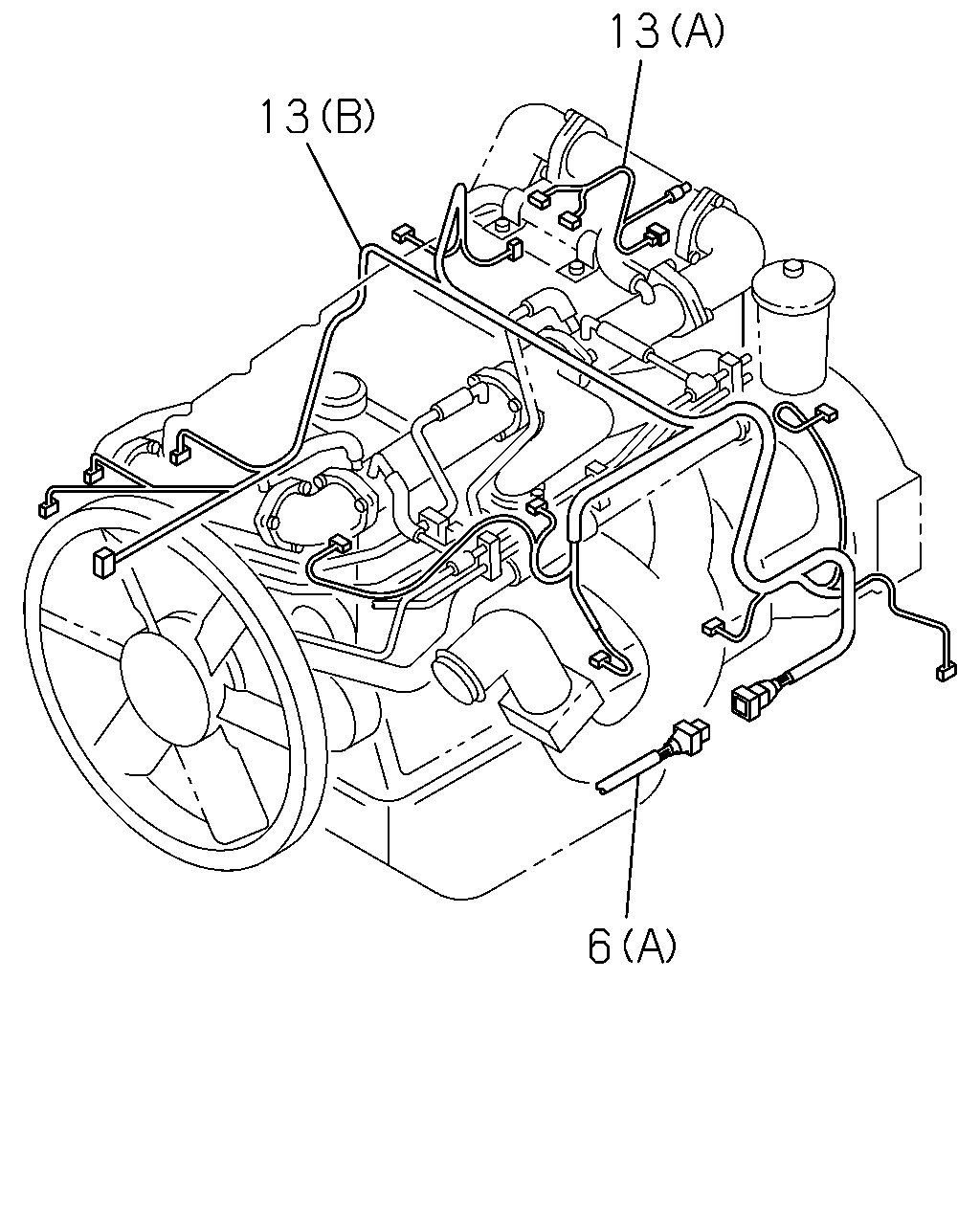

13 13 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	HARNESS; FRAME (B)	8-98075-634-3	01	1	1304-	●
6	HARNESS; FRAME MJT7U M/T(Y4X) ANTILOCK BRAKE SYSTEM(BFA) FUEL TANK 200L RECTANGULAR<NH6> EXC. GENERATOR 24V90A(K44) (A)	8-98235-448-2	01	1	1304-	●
6	HARNESS; FRAME MJT7U M/T(Y4X) ANTILOCK BRAKE SYSTEM(BFA) GENERATOR 24V90A(K44) FUEL TANK 200L RECTANGULAR<NH6> (A)	8-98235-449-2	01	1	1304-	●
6	HARNESS; FRAME MJT7U M/T(Y4X) FUEL TANK 200L RECTANGULAR<NH6> EXC. ANTILOCK BRAKE SYSTEM(BFA),GENERATOR 24V90A(K44) (A)	8-98217-136-2	01	1	1304-	●
6	HARNESS; FRAME MJT7U M/T(Y4X) GENERATOR 24V90A(K44) FUEL TANK 200L RECTANGULAR<NH6> EXC. ANTILOCK BRAKE SYSTEM(BFA) (A)	8-98235-469-2	01	1	1304-	●
6	HARNESS; FRAME ZF9S1310 M/T(Y5K) ANTILOCK BRAKE SYSTEM(BFA) FUEL TANK 400L<SDH> EXC. GENERATOR 24V90A(K44) (A)	8-98235-456-0	01	1	1304-	●
6	HARNESS; FRAME ZF9S1310 M/T(Y5K) ANTILOCK BRAKE SYSTEM(BFA) GENERATOR 24V90A(K44) FUEL TANK 400L<SDH> (A)	8-98235-457-0	01	1	1304-	●
6	HARNESS; FRAME ZF9S1310 M/T(Y5K) FUEL TANK 400L<SDH> EXC. ANTILOCK BRAKE SYSTEM(BFA),GENERATOR 24V90A(K44) (A)	8-98235-459-0	01	1	1304-	●
6	HARNESS; FRAME ZF9S1310 M/T(Y5K) GENERATOR 24V90A(K44) FUEL TANK 400L<SDH> EXC. ANTILOCK BRAKE SYSTEM(BFA) (A)	8-98235-460-0	01	1	1304-	●
6	HARNESS; FRAME (B)	8-98116-180-1	01	1	1304-		●
6	HARNESS; FRAME ZF9S1310 M/T(Y5K) ANTILOCK BRAKE SYSTEM(BFA) GENERATOR 24V90A(K44) (A)	8-98237-178-0	01	1	1304-		●
6	HARNESS; FRAME ZF9S1310 M/T(Y5K) ANTILOCK BRAKE SYSTEM(BFA) EXC. GENERATOR 24V90A(K44) (A)	8-98237-177-0	01	1	1304-		●
6	HARNESS; FRAME ZF9S1310 M/T(Y5K) EXC. ANTILOCK BRAKE SYSTEM(BFA),GENERATOR 24V90A(K44) (A)	8-98237-179-0	01	1	1304-		●
6	HARNESS; FRAME ZF9S1310 M/T(Y5K) GENERATOR 24V90A(K44) EXC. ANTILOCK BRAKE SYSTEM(BFA) (A)	8-98237-180-0	01	1	1304-		●
13	HARNESS; ENG (A)	8-97609-178-1	01	1	1304-	●	●
13	HARNESS; ENG (B)	8-98172-215-0	01	1	1304-	●	●

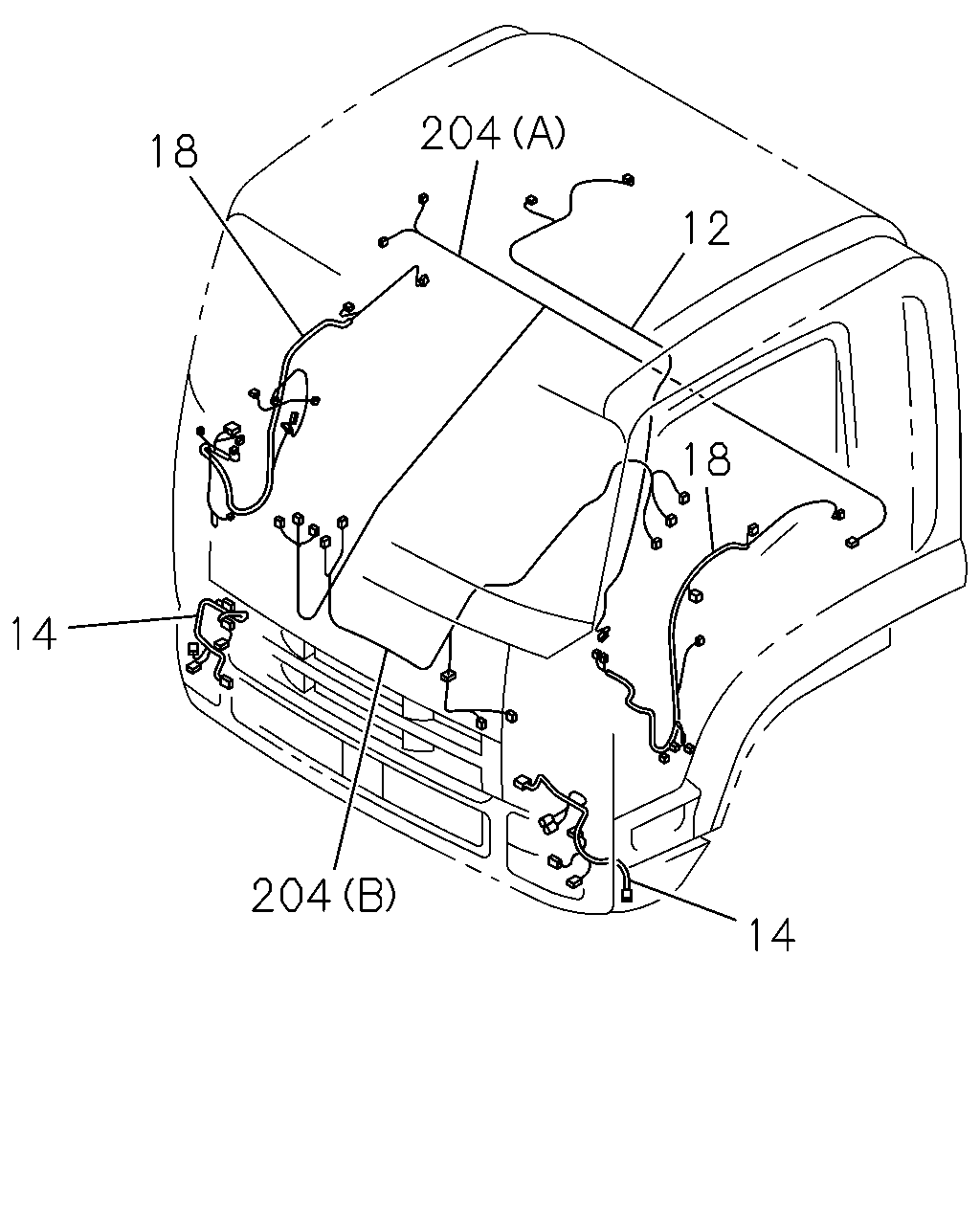

204 18 14 12 18 14 204

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	HARNESS; ROOF FLUORESCENT LAMP<6UC>	8-98048-931-2	01	1	1304-	●	●
12	HARNESS; ROOF EXC. FLUORESCENT LAMP<6UC>	8-98041-949-2	01	1	1304-	●	●
14	HARNESS; HEADLAMP HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98103-680-1	02	1	1304-	●	●
14	HARNESS; HEADLAMP HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5>	8-98075-629-3	02	1	1304-	●	●
18	HARNESS; DOOR AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32>	8-98108-440-1	01	1	1304-	●	●
18	HARNESS; DOOR AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32>	8-98108-439-1	01	1	1304-	●	●
18	HARNESS; DOOR DOOR WINDOW MANUAL CONT<SKF> EXC. AUTO DOOR LOCK<AU4>	8-98076-305-3	01	1	1304-	●	●
18	HARNESS; DOOR DOOR WINDOW MANUAL CONT<SKF> EXC. AUTO DOOR LOCK<AU4>	8-98076-304-3	01	1	1304-	●	●
204	HARNESS; CABLE,FLOOR (A)	8-98226-474-0	01	1	1304-	●
204	HARNESS; CABLE,FLOOR (B)	8-98188-517-0	01	1	1304-	●	●
204	HARNESS; CABLE,FLOOR (A)	8-98234-723-0	01	1	1304-		●

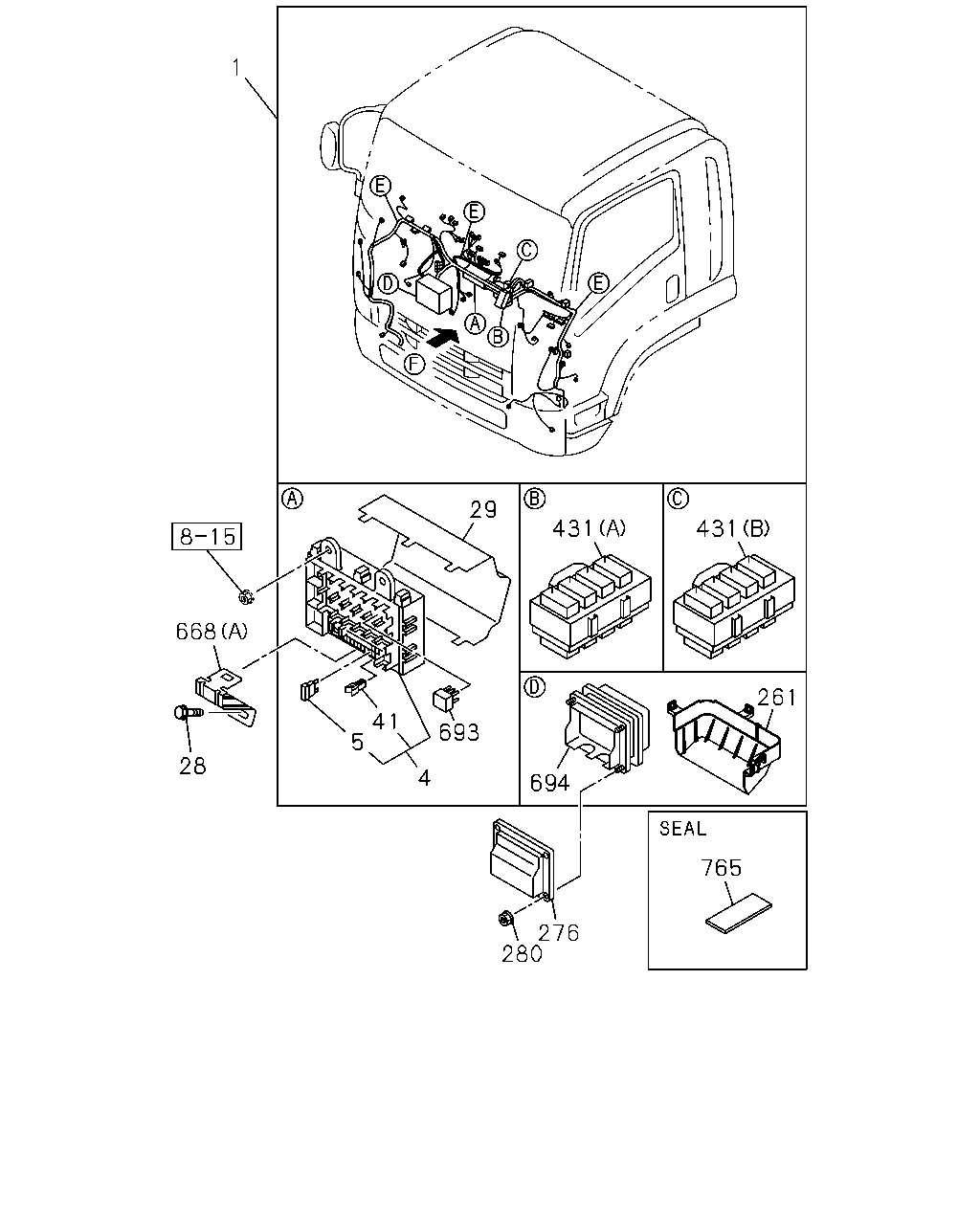

1 668 41 5 4 693 694 765 276 280 28 29 431 431 261

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HARNESS; CAB ANTILOCK BRAKE SYSTEM(BFA)	8-98234-812-2	01	1	1304-	●
1	HARNESS; CAB EXC. ANTILOCK BRAKE SYSTEM(BFA)	8-98234-813-4	01	1	1304-	●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) ANTILOCK BRAKE SYSTEM(BFA)	8-98234-814-2	01	1	1304-1311		●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) ANTILOCK BRAKE SYSTEM(BFA)	8-98253-293-1	01	1	1312-		●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) EXC. ANTILOCK BRAKE SYSTEM(BFA)	8-98234-815-3	01	1	1304-		●
4	BOX ASM; FUSE,HARNESS	8-98065-666-0	01	1	1304-	●	●
5	FUSE; FACIA HARNESS 10A RED	8-98054-257-0	AR	1	1304-	●	●
5	FUSE; FACIA HARNESS 15A BLUE	8-98054-258-0	AR	1	1304-	●	●
5	FUSE; FACIA HARNESS 20A YELLOW	8-98054-259-0	AR	1	1304-	●	●
5	FUSE; FACIA HARNESS 25A WHITE	8-98062-982-0	AR	1	1304-	●	●
28	SCREW; FUSE BOX M6X16 FLANGE	0-28650-616-0	01	1	1304-	●	●
29	COVER; FUSE BOX	8-98056-968-0	01	1	1304-	●	●
41	PULLER; FUSE	8-98054-260-0	01	1	1304-	●	●
261	COVER; CONNECTOR BOX	8-98065-986-1	01	1	1304-	●	●
276	COVER; BOX,FRAME HARNESS	8-98034-039-1	01	1	1304-	●	●
280	NUT; BOX ASM FIX M6 FLANGE	0-91180-106-0	04	1	1304-	●	●
431	CONNECTOR; JOINT (A) WHITE	8-98056-374-0	01	1	1304-	●	●
431	CONNECTOR; JOINT (B) WHITE	8-98056-375-0	01	1	1304-	●	●
668	BRACKET; HARNESS (A)	8-98095-653-2	01	1	1304-	●	●
668	BRACKET; HARNESS (B)	8-98117-572-0	01	1	1304-	●	●
693	RELAY; FUSE BOX 24V 10A PANASONIC	8-97173-035-1	AR	1	1304-	●	●
694	BOX ASM; CONNECTOR	8-98057-771-0	01	1	1304-	●	●
765	TAPE 100X40	1-72498-022-1	01	1	1409-	●	●

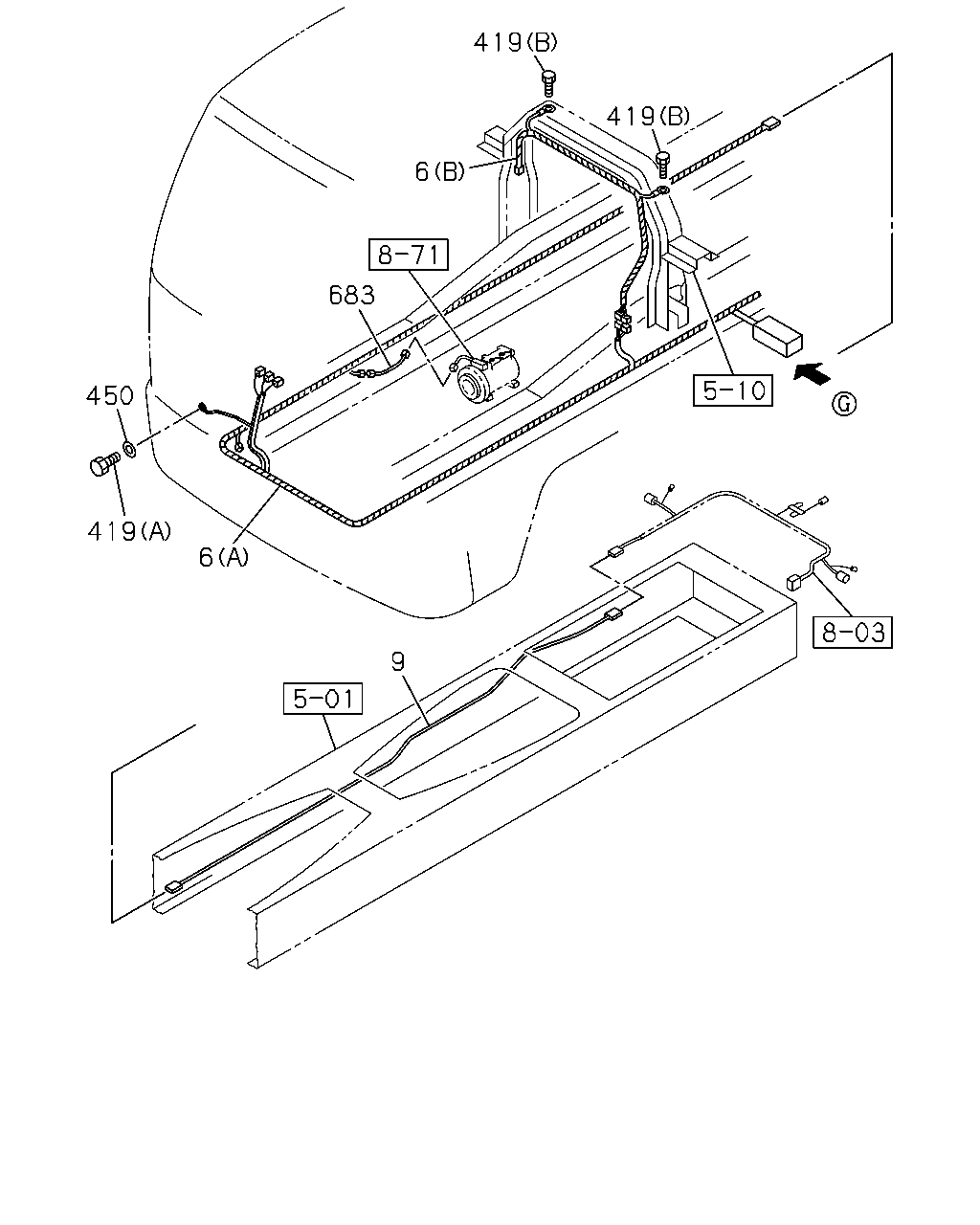

419 419 6 683 6 419 450 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	HARNESS; FRAME (B)	8-98075-634-3	01	1	1304-	●
6	HARNESS; FRAME MJT7U M/T(Y4X) ANTILOCK BRAKE SYSTEM(BFA) FUEL TANK 200L RECTANGULAR<NH6> EXC. GENERATOR 24V90A(K44) (A)	8-98235-448-2	01	1	1304-	●
6	HARNESS; FRAME MJT7U M/T(Y4X) ANTILOCK BRAKE SYSTEM(BFA) GENERATOR 24V90A(K44) FUEL TANK 200L RECTANGULAR<NH6> (A)	8-98235-449-2	01	1	1304-	●
6	HARNESS; FRAME MJT7U M/T(Y4X) FUEL TANK 200L RECTANGULAR<NH6> EXC. ANTILOCK BRAKE SYSTEM(BFA),GENERATOR 24V90A(K44) (A)	8-98217-136-2	01	1	1304-	●
6	HARNESS; FRAME MJT7U M/T(Y4X) GENERATOR 24V90A(K44) FUEL TANK 200L RECTANGULAR<NH6> EXC. ANTILOCK BRAKE SYSTEM(BFA) (A)	8-98235-469-2	01	1	1304-	●
6	HARNESS; FRAME ZF9S1310 M/T(Y5K) ANTILOCK BRAKE SYSTEM(BFA) FUEL TANK 400L<SDH> EXC. GENERATOR 24V90A(K44) (A)	8-98235-456-0	01	1	1304-	●
6	HARNESS; FRAME ZF9S1310 M/T(Y5K) ANTILOCK BRAKE SYSTEM(BFA) GENERATOR 24V90A(K44) FUEL TANK 400L<SDH> (A)	8-98235-457-0	01	1	1304-	●
6	HARNESS; FRAME ZF9S1310 M/T(Y5K) FUEL TANK 400L<SDH> EXC. ANTILOCK BRAKE SYSTEM(BFA),GENERATOR 24V90A(K44) (A)	8-98235-459-0	01	1	1304-	●
6	HARNESS; FRAME ZF9S1310 M/T(Y5K) GENERATOR 24V90A(K44) FUEL TANK 400L<SDH> EXC. ANTILOCK BRAKE SYSTEM(BFA) (A)	8-98235-460-0	01	1	1304-	●
6	HARNESS; FRAME (B)	8-98116-180-1	01	1	1304-		●
6	HARNESS; FRAME ZF9S1310 M/T(Y5K) ANTILOCK BRAKE SYSTEM(BFA) GENERATOR 24V90A(K44) (A)	8-98237-178-0	01	1	1304-		●
6	HARNESS; FRAME ZF9S1310 M/T(Y5K) ANTILOCK BRAKE SYSTEM(BFA) EXC. GENERATOR 24V90A(K44) (A)	8-98237-177-0	01	1	1304-		●
6	HARNESS; FRAME ZF9S1310 M/T(Y5K) EXC. ANTILOCK BRAKE SYSTEM(BFA),GENERATOR 24V90A(K44) (A)	8-98237-179-0	01	1	1304-		●
6	HARNESS; FRAME ZF9S1310 M/T(Y5K) GENERATOR 24V90A(K44) EXC. ANTILOCK BRAKE SYSTEM(BFA) (A)	8-98237-180-0	01	1	1304-		●
9	HARNESS; FRAME,RR WHEEL BASE 4500MM(45W) ANTILOCK BRAKE SYSTEM(BFA)	8-98217-129-0	01	1	1304-	●
9	HARNESS; FRAME,RR WHEEL BASE 4500MM(45W) EXC. ANTILOCK BRAKE SYSTEM(BFA)	8-98217-130-0	01	1	1304-	●
9	HARNESS; FRAME,RR WHEEL BASE 6600MM(66W) ANTILOCK BRAKE SYSTEM(BFA)	8-98235-478-0	01	1	1304-	●
9	HARNESS; FRAME,RR WHEEL BASE 6600MM(66W) EXC. ANTILOCK BRAKE SYSTEM(BFA)	8-98235-480-0	01	1	1304-	●
9	HARNESS; FRAME,RR ANTILOCK BRAKE SYSTEM(BFA) EXC. PTO ZF TRANS RR(BDM)	8-98236-592-0	01	1	1304-		●
9	HARNESS; FRAME,RR PTO ZF TRANS RR(BDM) ANTILOCK BRAKE SYSTEM(BFA)	8-98235-485-0	01	1	1304-		●
9	HARNESS; FRAME,RR PTO ZF TRANS RR(BDM) EXC. ANTILOCK BRAKE SYSTEM(BFA)	8-98235-486-0	01	1	1304-		●
9	HARNESS; FRAME,RR EXC. PTO ZF TRANS RR(BDM),ANTILOCK BRAKE SYSTEM(BFA)	8-98236-594-0	01	1	1304-		●
419	BOLT; CAB EARTH (A) M6X16 W/LK&PL WASHER	8-97086-823-0	01	1	1304-	●	●
419	BOLT; CAB EARTH (B) M8X14 W/PL WASHER	8-98164-837-0	03	1	1304-	●	●
450	WASHER; PL,CAB EARTH ID=8.4	1-09503-264-0	01	1	1304-	●	●
683	HARNESS; EXT,COOLER AIR CONDITIONER MANUAL CONTROL(C60)	8-97609-020-1	01	1	1304-	●	●

1 570 253 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HARNESS; CAB ANTILOCK BRAKE SYSTEM(BFA)	8-98234-812-2	01	1	1304-	●
1	HARNESS; CAB EXC. ANTILOCK BRAKE SYSTEM(BFA)	8-98234-813-4	01	1	1304-	●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) ANTILOCK BRAKE SYSTEM(BFA)	8-98234-814-2	01	1	1304-1311		●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) ANTILOCK BRAKE SYSTEM(BFA)	8-98253-293-1	01	1	1312-		●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) EXC. ANTILOCK BRAKE SYSTEM(BFA)	8-98234-815-3	01	1	1304-		●
253	HARNESS; EXT,HORN ELECTRICAL HORN<WB7>	8-98074-081-2	01	1	1304-	●	●
253	HARNESS; EXT,HORN EXC. ELECTRICAL HORN<WB7>	8-98074-080-3	01	1	1304-	●	●
570	HARNESS; SPEED SENSOR ZF9S1310 M/T(Y5K) (A)	8-98058-327-1	01	1	1304-	●	●
570	HARNESS; SPEED SENSOR ZF9S1310 M/T(Y5K) (B)	8-98148-602-0	01	1	1304-	●	●

706 6 6 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	HARNESS; FRAME (B)	8-98075-634-3	01	1	1304-	●
6	HARNESS; FRAME MJT7U M/T(Y4X) ANTILOCK BRAKE SYSTEM(BFA) FUEL TANK 200L RECTANGULAR<NH6> EXC. GENERATOR 24V90A(K44) (A)	8-98235-448-2	01	1	1304-	●
6	HARNESS; FRAME MJT7U M/T(Y4X) ANTILOCK BRAKE SYSTEM(BFA) GENERATOR 24V90A(K44) FUEL TANK 200L RECTANGULAR<NH6> (A)	8-98235-449-2	01	1	1304-	●
6	HARNESS; FRAME MJT7U M/T(Y4X) FUEL TANK 200L RECTANGULAR<NH6> EXC. ANTILOCK BRAKE SYSTEM(BFA),GENERATOR 24V90A(K44) (A)	8-98217-136-2	01	1	1304-	●
6	HARNESS; FRAME MJT7U M/T(Y4X) GENERATOR 24V90A(K44) FUEL TANK 200L RECTANGULAR<NH6> EXC. ANTILOCK BRAKE SYSTEM(BFA) (A)	8-98235-469-2	01	1	1304-	●
6	HARNESS; FRAME ZF9S1310 M/T(Y5K) ANTILOCK BRAKE SYSTEM(BFA) FUEL TANK 400L<SDH> EXC. GENERATOR 24V90A(K44) (A)	8-98235-456-0	01	1	1304-	●
6	HARNESS; FRAME ZF9S1310 M/T(Y5K) ANTILOCK BRAKE SYSTEM(BFA) GENERATOR 24V90A(K44) FUEL TANK 400L<SDH> (A)	8-98235-457-0	01	1	1304-	●
6	HARNESS; FRAME ZF9S1310 M/T(Y5K) FUEL TANK 400L<SDH> EXC. ANTILOCK BRAKE SYSTEM(BFA),GENERATOR 24V90A(K44) (A)	8-98235-459-0	01	1	1304-	●
6	HARNESS; FRAME ZF9S1310 M/T(Y5K) GENERATOR 24V90A(K44) FUEL TANK 400L<SDH> EXC. ANTILOCK BRAKE SYSTEM(BFA) (A)	8-98235-460-0	01	1	1304-	●
6	HARNESS; FRAME (B)	8-98116-180-1	01	1	1304-		●
6	HARNESS; FRAME ZF9S1310 M/T(Y5K) ANTILOCK BRAKE SYSTEM(BFA) GENERATOR 24V90A(K44) (A)	8-98237-178-0	01	1	1304-		●
6	HARNESS; FRAME ZF9S1310 M/T(Y5K) ANTILOCK BRAKE SYSTEM(BFA) EXC. GENERATOR 24V90A(K44) (A)	8-98237-177-0	01	1	1304-		●
6	HARNESS; FRAME ZF9S1310 M/T(Y5K) EXC. ANTILOCK BRAKE SYSTEM(BFA),GENERATOR 24V90A(K44) (A)	8-98237-179-0	01	1	1304-		●
6	HARNESS; FRAME ZF9S1310 M/T(Y5K) GENERATOR 24V90A(K44) EXC. ANTILOCK BRAKE SYSTEM(BFA) (A)	8-98237-180-0	01	1	1304-		●
7	LINK ASM; FUSIBLE GENERATOR 24V90A(K44)	8-98103-000-0	01	1	1304-	●	●
7	LINK ASM; FUSIBLE EXC. GENERATOR 24V90A(K44)	8-98088-132-0	01	1	1304-	●	●
706	HARNESS; EXT,SEDIMENTER FUEL TANK 200L RECTANGULAR<NH6>	8-98235-491-1	01	1	1304-	●
706	HARNESS; EXT,SEDIMENTER FUEL TANK 400L<SDH>	8-98235-492-0	01	1	1304-1308	●
706	HARNESS; EXT,SEDIMENTER	8-98235-494-0	01	1	1304-1308		●
706	HARNESS; EXT,SEDIMENTER FUEL TANK 400L<SDH>	8-98235-494-1	01	1	1309-	●
706	HARNESS; EXT,SEDIMENTER	8-98235-494-1	01	1	1309-		●

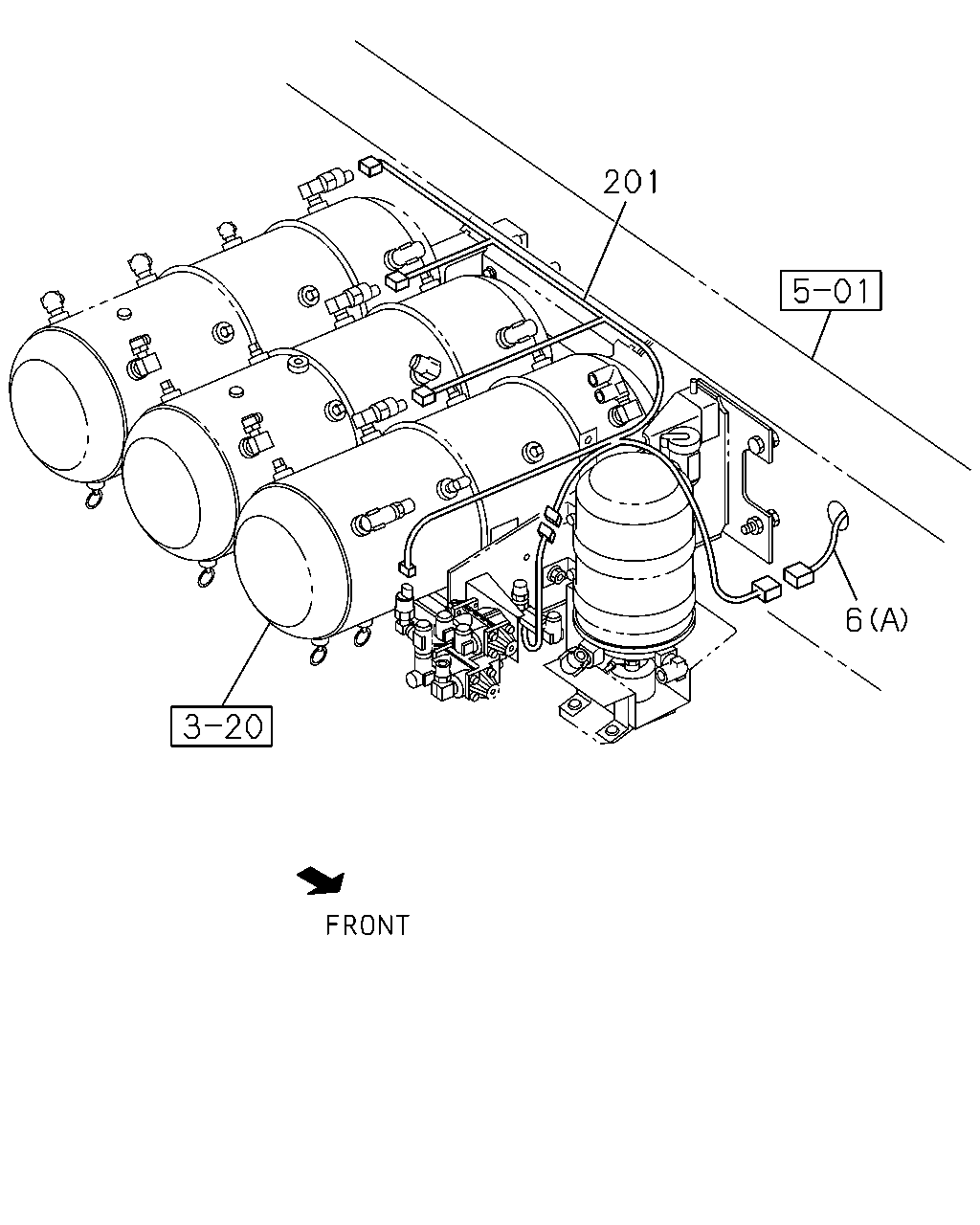

201 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	HARNESS; FRAME (B)	8-98075-634-3	01	1	1304-	●
6	HARNESS; FRAME MJT7U M/T(Y4X) ANTILOCK BRAKE SYSTEM(BFA) FUEL TANK 200L RECTANGULAR<NH6> EXC. GENERATOR 24V90A(K44) (A)	8-98235-448-2	01	1	1304-	●
6	HARNESS; FRAME MJT7U M/T(Y4X) ANTILOCK BRAKE SYSTEM(BFA) GENERATOR 24V90A(K44) FUEL TANK 200L RECTANGULAR<NH6> (A)	8-98235-449-2	01	1	1304-	●
6	HARNESS; FRAME MJT7U M/T(Y4X) FUEL TANK 200L RECTANGULAR<NH6> EXC. ANTILOCK BRAKE SYSTEM(BFA),GENERATOR 24V90A(K44) (A)	8-98217-136-2	01	1	1304-	●
6	HARNESS; FRAME MJT7U M/T(Y4X) GENERATOR 24V90A(K44) FUEL TANK 200L RECTANGULAR<NH6> EXC. ANTILOCK BRAKE SYSTEM(BFA) (A)	8-98235-469-2	01	1	1304-	●
6	HARNESS; FRAME ZF9S1310 M/T(Y5K) ANTILOCK BRAKE SYSTEM(BFA) FUEL TANK 400L<SDH> EXC. GENERATOR 24V90A(K44) (A)	8-98235-456-0	01	1	1304-	●
6	HARNESS; FRAME ZF9S1310 M/T(Y5K) ANTILOCK BRAKE SYSTEM(BFA) GENERATOR 24V90A(K44) FUEL TANK 400L<SDH> (A)	8-98235-457-0	01	1	1304-	●
6	HARNESS; FRAME ZF9S1310 M/T(Y5K) FUEL TANK 400L<SDH> EXC. ANTILOCK BRAKE SYSTEM(BFA),GENERATOR 24V90A(K44) (A)	8-98235-459-0	01	1	1304-	●
6	HARNESS; FRAME ZF9S1310 M/T(Y5K) GENERATOR 24V90A(K44) FUEL TANK 400L<SDH> EXC. ANTILOCK BRAKE SYSTEM(BFA) (A)	8-98235-460-0	01	1	1304-	●
6	HARNESS; FRAME (B)	8-98116-180-1	01	1	1304-		●
6	HARNESS; FRAME ZF9S1310 M/T(Y5K) ANTILOCK BRAKE SYSTEM(BFA) GENERATOR 24V90A(K44) (A)	8-98237-178-0	01	1	1304-		●
6	HARNESS; FRAME ZF9S1310 M/T(Y5K) ANTILOCK BRAKE SYSTEM(BFA) EXC. GENERATOR 24V90A(K44) (A)	8-98237-177-0	01	1	1304-		●
6	HARNESS; FRAME ZF9S1310 M/T(Y5K) EXC. ANTILOCK BRAKE SYSTEM(BFA),GENERATOR 24V90A(K44) (A)	8-98237-179-0	01	1	1304-		●
6	HARNESS; FRAME ZF9S1310 M/T(Y5K) GENERATOR 24V90A(K44) EXC. ANTILOCK BRAKE SYSTEM(BFA) (A)	8-98237-180-0	01	1	1304-		●
201	HARNESS; AIR TANK WHEEL BASE 4500MM(45W)	8-98079-765-5	01	1	1304-	●
201	HARNESS; AIR TANK	8-98079-765-5	01	1	1304-		●
201	HARNESS; AIR TANK WHEEL BASE 6600MM(66W)	8-98148-958-0	01	1	1304-1307	●
201	HARNESS; AIR TANK WHEEL BASE 6600MM(66W)	8-98248-215-0	01	1	1308-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
