◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11530 - FXZ/GXZ(RHD)EURO3 ▶ 9 - Tools ▶ 9-01 - TOOLS ▶
9-01 — TOOLS (#117160) — 101 parça

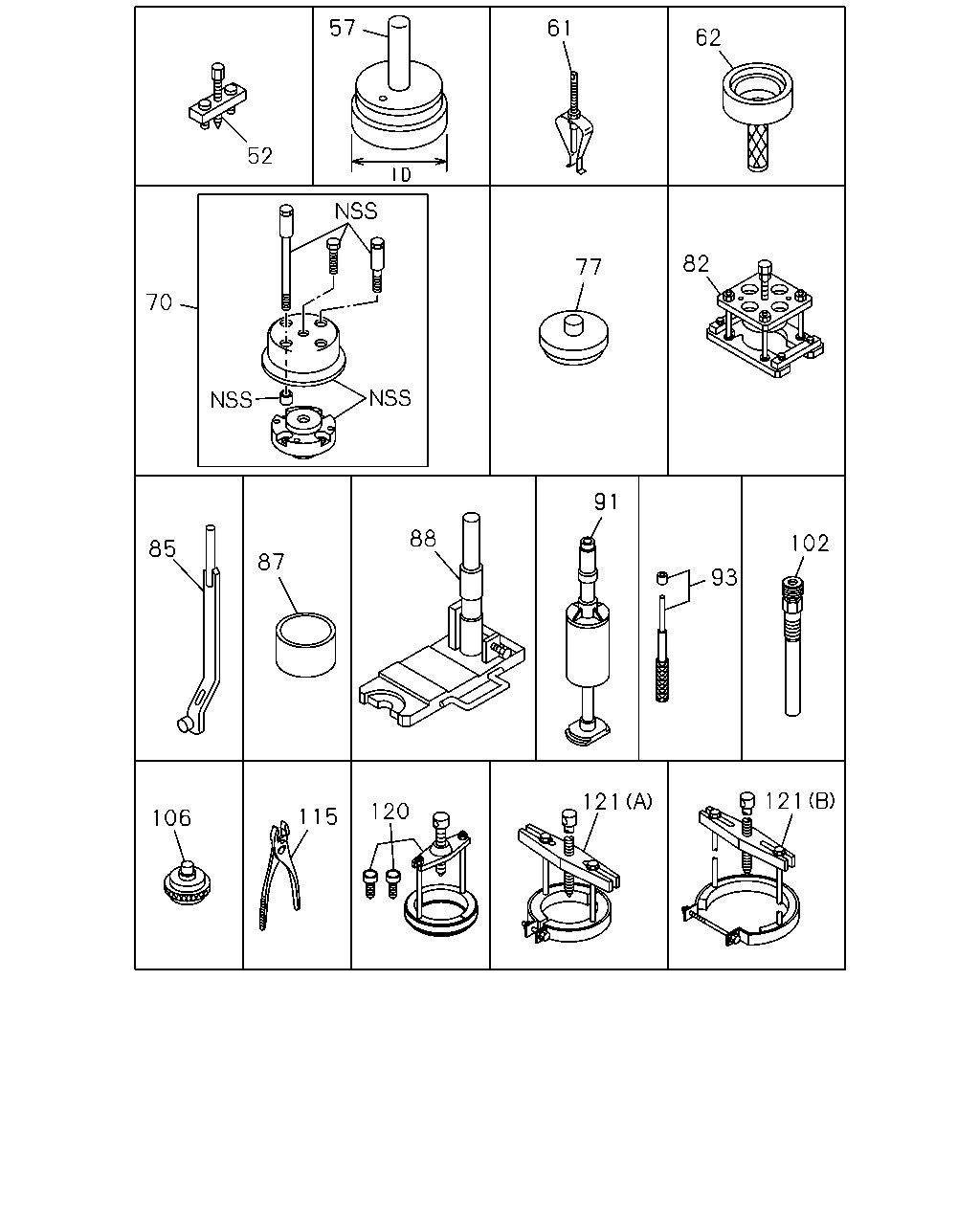

çizim 344617
52 57 61 62 77 70 82 85 87 88 91 93 102 106 115 120 121 121
BalonParca AdiParca NoAdetTipApplied Date A B
52 REMOVER; WATER PUMP 1-85210-047-0 01 1 1304- ● ●
57 TOOL; SETTING CRANK GEAR
ID=144.5 		1-85221-072-0 01 1 1304- ● ●
57 TOOL; SETTING CRANK GEAR
ID=165.8 		1-85221-075-0 01 1 1304- ● ●
61 PULLER ASM; PILOT BRG 1-85220-028-0 01 1 1304- ● ●
62 TOOL ASM; SETTING WEAR RING 1-85221-079-0 01 1 1304- ● ●
70 TOOL; SETTING,OIL SEAL 8-98194-607-0 01 1 1304-1308 ● ●
70 TOOL; SETTING,OIL SEAL 8-98194-607-0 AR 1 1309- ● ●
77 TOOL; SETTING,CYL LINER 1-85221-073-0 01 1 1304- ● ●
82 PULLER ASM; CR/SHF GEAR 1-85210-051-0 01 1 1304- ● ●
85 REPLACER ASM; VALVE SPR 1-85235-007-0 01 1 1304- ● ●
87 TOOL; PISTON 1-85221-082-0 01 1 1304- ● ●
88 TOOL; CONNROD BUSHING 1-85220-037-0 01 1 1304- ● ●
91 REPLACER ASM; CYL LINER 1-85231-021-0 01 1 1304- ● ●
93 SETTING KIT; VALVE GUIDE
L=260 		9-85231-202-0 01 1 1304- ● ●
102 ADAPTER; COMP GAGE 5-85317-001-0 01 1 1304- ● ●
106 TOOL; SETTING PILOT BRG 1-85221-080-0 01 1 1304- ● ●
115 PLIER
TOOL B KIT<SL1> 		5-85171-002-0 01 1 1304-1410 ● ●
115 PLIER
TOOL B KIT<SL1> 		8-98282-845-0 01 1 1411- ● ●
120 PULLER ASM; MAIN REAR BRG
MJT7U M/T(Y4X) L=285 		9-85210-184-0 01 1 1304- ●
121 PULLER ASM; COUNTER REAR
MJT7U M/T(Y4X) (B) 		1-85210-069-0 01 1 1304- ●
121 PULLER ASM; COUNTER REAR
MJT7U M/T(Y4X) (A) OD=146 		1-85210-074-0 01 1 1304- ●

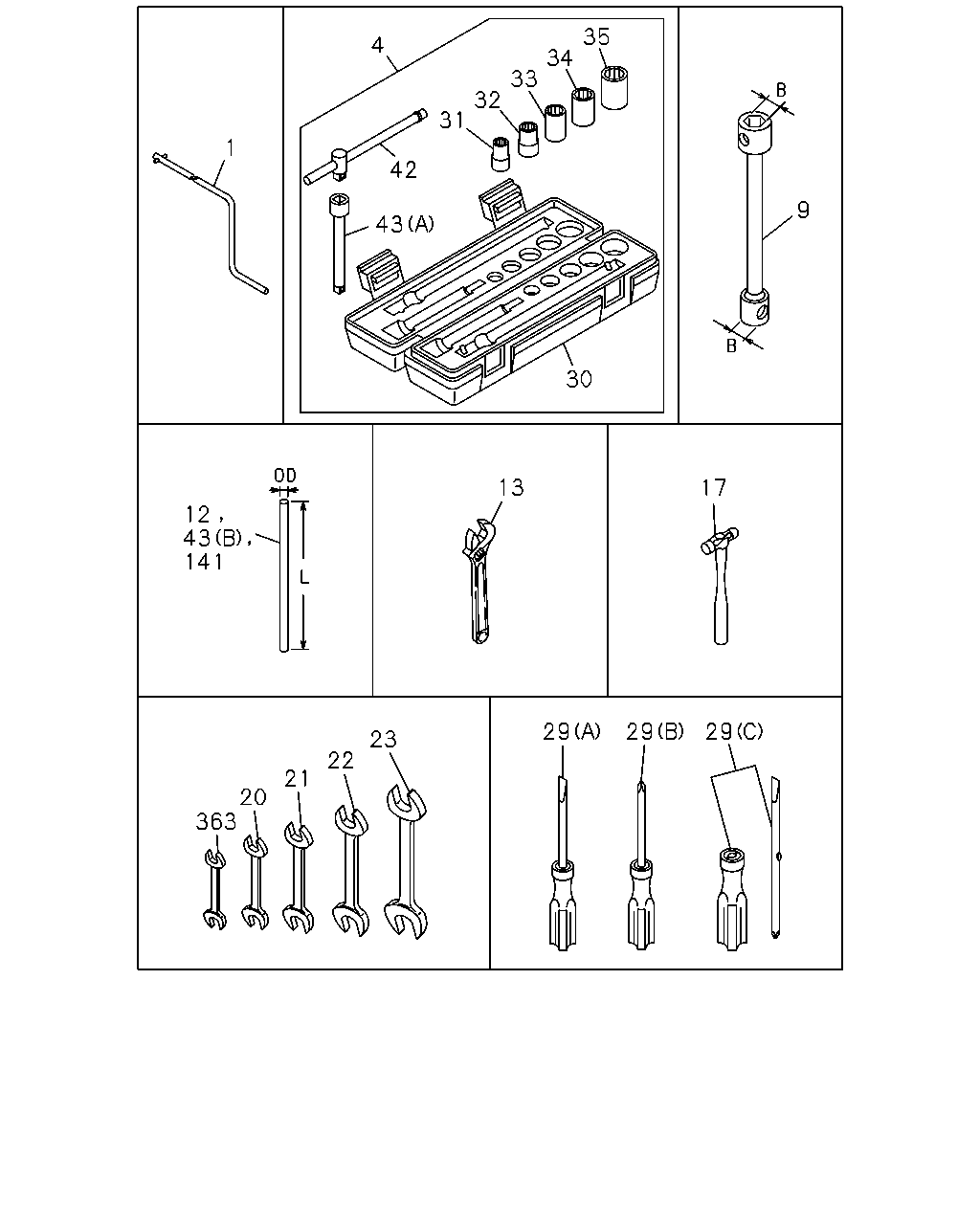

çizim 344734
1 4 43 42 31 32 33 34 35 9 17 13 12 43 141 23 22 21 20 363 29 29 29 30
BalonParca AdiParca NoAdetTipApplied Date A B
1 HANDLE; SPARE TIRE CARRIER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> 		9-23110-018-0 01 1 1304- ●
4 WRENCH KIT; SOCKET
TOOL B KIT<SL1> 		1-85000-491-0 01 1 1304- ● ●
9 WRENCH; WHEEL PIN
INTERNATIONAL STANDARD ISO 10STUD<B3V> TOOL B KIT<SL1> B=33X30 L=450 		1-85111-033-1 01 1 1304- ● ●
9 WRENCH; WHEEL PIN
TOOL B KIT<SL1> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> B=41X21 L=440 		1-85113-015-1 01 1 1304- ● ●
12 HANDLE; WRENCH,WHEEL PIN
TOOL B KIT<SL1> OD=25 L=480 		1-85116-011-0 01 1 1304-1501 ● ●
12 HANDLE; WRENCH,WHEEL PIN
TOOL B KIT<SL1> OD=25 L=480 		8-98257-407-0 01 1 1502- ● ●
13 WRENCH; MONKEY
TOOL B KIT<SL1> L=247 		1-85117-006-0 01 1 1304-1407 ● ●
13 WRENCH; MONKEY
TOOL B KIT<SL1> L=255 		8-98270-303-0 01 1 1408- ● ●
17 HAMMER
TOOL B KIT<SL1> 		9-85121-406-0 01 1 1304- ● ●
20 WRENCH; 10X12
TOOL B KIT<SL1> 10X12 		0-95902-510-0 01 1 1304- ● ●
21 WRENCH; 14X17
TOOL B KIT<SL1> 14X17 		0-95902-514-0 01 1 1304- ● ●
22 WRENCH; 19X22
TOOL B KIT<SL1> 19X22 		0-95902-519-0 01 1 1304- ● ●
23 WRENCH; 24X27
TOOL B KIT<SL1> 24X27 		0-95902-524-0 01 1 1304- ● ●
29 DRIVER; SCREW
TOOL B KIT<SL1> (A) <-> L=285 		1-85151-004-0 01 1 1304- ● ●
29 DRIVER; SCREW
TOOL B KIT<SL1> (C) <+>,<-> L=160 		8-94242-798-1 01 1 1304- ● ●
29 DRIVER; SCREW
TOOL B KIT<SL1> (B) <+> L=275 		9-09595-023-0 01 1 1304- ● ●
30 BOX; SOCKET WRENCH
TOOL B KIT<SL1> 		1-85000-492-0 01 1 1304- ● ●
31 WRENCH; 12
TOOL B KIT<SL1> 		1-85000-495-0 01 1 1304- ● ●
32 WRENCH; 14
TOOL B KIT<SL1> 		1-85000-496-0 01 1 1304- ● ●
33 WRENCH; 17
TOOL B KIT<SL1> 		1-85000-497-0 01 1 1304- ● ●
34 WRENCH; 19
TOOL B KIT<SL1> 		1-85000-498-0 01 1 1304- ● ●
35 WRENCH; 22
TOOL B KIT<SL1> 		1-85000-499-0 01 1 1304- ● ●
42 HANDLE; SLIDING
TOOL B KIT<SL1> 		1-85000-500-0 01 1 1304- ● ●
43 BAR; EXTENSION,SOCKET WRENCH
TOOL B KIT<SL1> (A) 		1-85000-501-0 01 1 1304- ● ●
43 BAR; EXTENSION,SOCKET WRENCH
TOOL B KIT<SL1> (B) OD=25 L=480 		8-98257-407-0 01 1 1502- ● ●
141 HANDLE; WRENCH
TOOL B KIT<SL1> OD=16 L=200 		9-85111-934-0 01 1 1304- ● ●
363 WRENCH; OPEN END 8X10
TOOL B KIT<SL1> 8X10 		0-95902-508-0 01 1 1304- ● ●

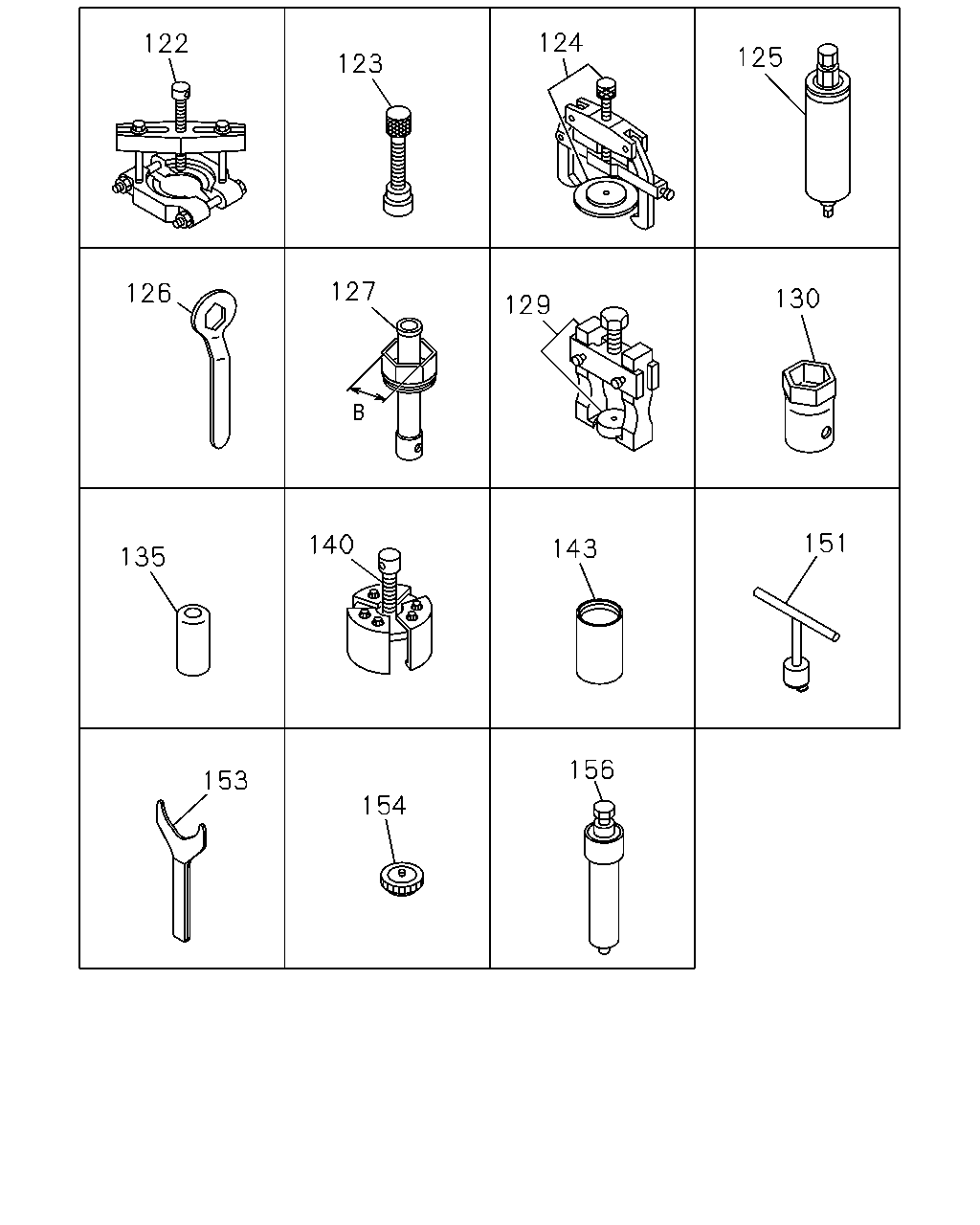

çizim 344756
122 123 124 125 130 129 127 126 135 140 143 151 156 154 153
BalonParca AdiParca NoAdetTipApplied Date A B
122 PULLER ASM; COUNTER FRT
MJT7U M/T(Y4X) 		9-85210-195-0 01 1 1304- ●
123 PULLER; SPEEDOMETER BUSHING
MJT7U M/T(Y4X) 		9-85210-091-0 01 1 1304- ●
124 PULLER ASM; BRG DIFF 9-85210-131-0 01 1 1304- ● ●
125 PULLER ASM; KING PIN
L=450 		1-85210-009-0 01 1 1304- ● ●
126 WRENCH; FRT HUB BRG NUT
L=350 B=75 		1-85110-002-1 01 1 1304- ● ●
127 WRENCH ASM; HUB BRG NUT
L=400 B=116 		8-98119-000-1 01 1 1304- ● ●
129 PULLER ASM; PITMAN ARM 1-85210-011-0 01 1 1304- ● ●
130 WRENCH; BOX
TOOL B KIT<SL1> B=63 		9-85111-368-0 01 1 1304- ● ●
135 COVER; ENG MTG,FRT
TOOL B KIT<SL1> 		9-85595-016-0 02 1 1304- ●
140 REMOVER; WEAR RING 1-85210-053-0 01 1 1304- ● ●
143 GUIDE; BOOT,TIE ROD END 1-85229-013-0 01 1 1304- ● ●
151 REMOVER; OIL BRK,FRT RETURN SPR
ID=16 		1-85237-002-0 01 1 1304- ● ●
153 DRIVER; WASHER,THRUST WASHER 1-85238-002-0 01 1 1304- ● ●
154 SLEEPER; KING PIN 1-85238-003-0 01 1 1304- ● ●
156 PULLER; ANCHOR PIN 1-85210-025-0 01 1 1304- ● ●

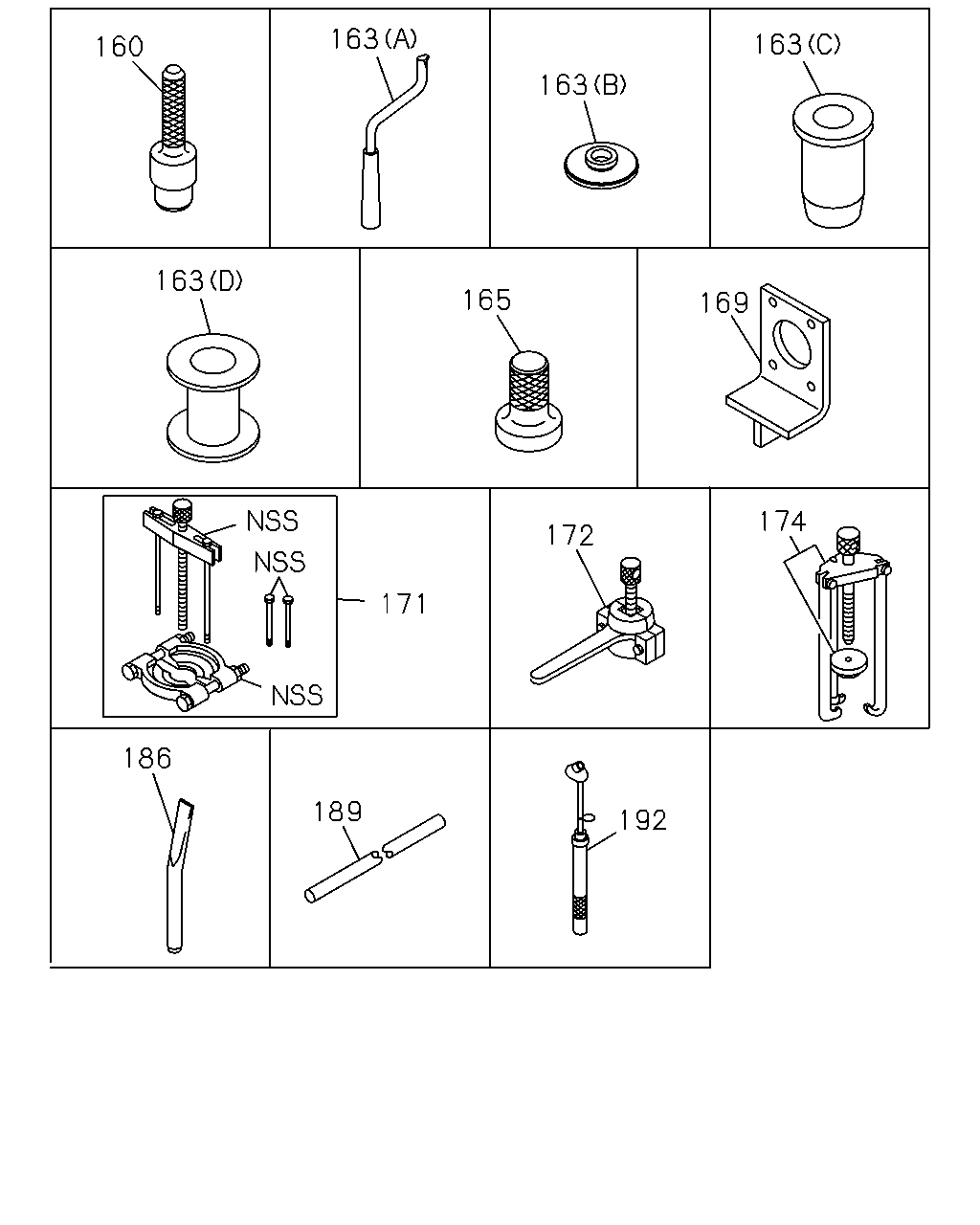

çizim 344793
186 189 192 172 174 169 165 163 160 163 163 163 171
BalonParca AdiParca NoAdetTipApplied Date A B
160 REMOVER; NEEDLE BRG
L=220 		1-85238-001-0 01 1 1304- ● ●
163 TOOL; SETTING
MJT7U M/T(Y4X) (C) L=195 		1-85221-162-1 01 1 1304- ●
163 TOOL; SETTING
MJT7U M/T(Y4X) (D) L=150 		1-85221-163-0 01 1 1304- ●
163 TOOL; SETTING
MJT7U M/T(Y4X) (B) OD=150 		1-85221-167-0 01 1 1304- ●
163 TOOL; SETTING
(A) 		9-85221-231-0 01 1 1304- ● ●
165 SETTING TOOL; PTO
MJT7U M/T(Y4X) 		1-85221-177-0 01 1 1304- ●
169 BRACKET; SPLINE YOKE 1-85221-317-0 01 1 1304- ● ●
171 PULLER ASM; PINION BRG 9-85210-152-0 01 1 1304- ● ●
172 PULLER ASM; BRG DIFF PILOT 9-85210-182-0 01 1 1304- ● ●
174 PULLER ASM; MAIN CLU SHAFT 9-85210-148-0 01 1 1304- ● ●
186 ADJUSTER; BRAKE 1-85269-008-0 01 1 1304- ● ●
189 TUBE; AIR BREATHER
TOOL B KIT<SL1> L=460 		9-85291-414-0 01 1 1304- ● ●
192 GAUGE; TIRE PRESSURE 1-85315-002-0 01 1 1304- ● ●

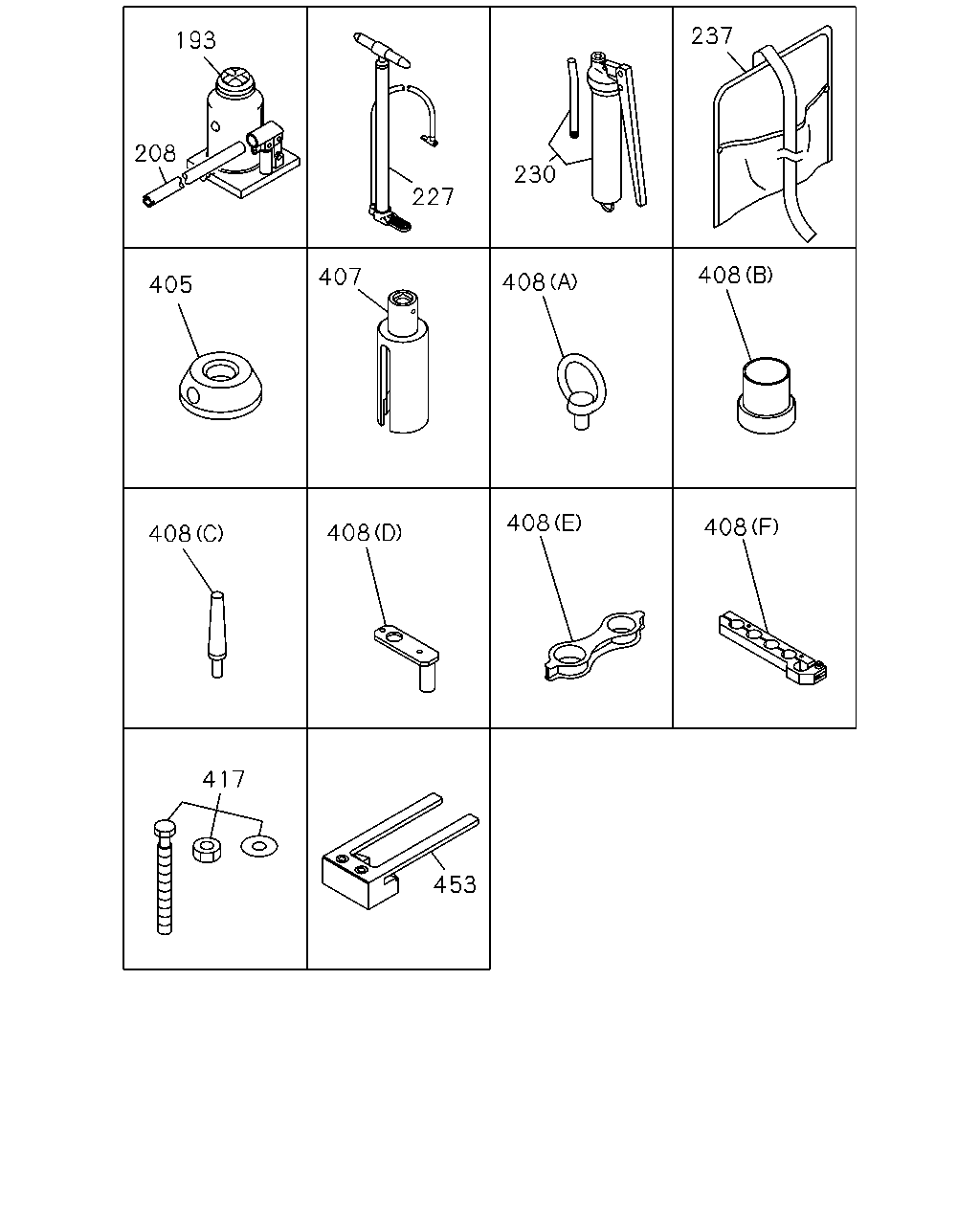

çizim 344815
193 208 227 230 237 408 408 407 405 408 408 408 408 417 453
BalonParca AdiParca NoAdetTipApplied Date A B
193 JACK ASM
TOOL B KIT<SL1> 15TON 		1-85510-019-2 01 1 1304- ● ●
208 HANDLE; JACK
TOOL B KIT<SL1> L=600 		8-98181-437-0 01 1 1304- ● ●
227 PUMP ASM; TIRE 9-85521-132-0 01 1 1304- ● ●
230 PUMP; GREASE
TOOL B KIT<SL1> 		1-85556-007-5 01 1 1304- ● ●
237 BAG; TOOL
TOOL B KIT<SL1> 		8-97130-902-1 01 1 1304- ● ●
405 GUIDE; COUNTER
MJT7U M/T(Y4X) 		1-85221-264-0 01 1 1304- ●
407 SOCKET; SW
MJT7U M/T(Y4X) 		1-85221-267-1 01 1 1304- ●
408 TOOL; SETTING,SHIFT ASSISTER
MJT7U M/T(Y4X) (D) 		1-85221-257-0 01 1 1304- ●
408 TOOL; SETTING,SHIFT ASSISTER
MJT7U M/T(Y4X) (E) 		1-85221-259-0 01 1 1304- ●
408 TOOL; SETTING,SHIFT ASSISTER
MJT7U M/T(Y4X) (F) 		1-85221-260-0 01 1 1304- ●
408 TOOL; SETTING,SHIFT ASSISTER
MJT7U M/T(Y4X) (A) 		1-85221-262-0 02 1 1304- ●
408 TOOL; SETTING,SHIFT ASSISTER
MJT7U M/T(Y4X) (B) 		1-85221-268-0 01 1 1304- ●
408 TOOL; SETTING,SHIFT ASSISTER
MJT7U M/T(Y4X) (C) 		1-85221-269-0 01 1 1304- ●
417 BOLT; CHAMBER RELEASE
1/2-13 UNC L=124 4-SETS 		1-85576-331-1 01 1 1304- ● ●
453 TOOL; SETTING,COUPLING 8-97620-813-0 01 1 1304- ● ●
çizim 344817
36 37 38 39 40 108 146 388 388 348
BalonParca AdiParca NoAdetTipApplied Date A B
36 WRENCH; 24 9-85111-377-0 01 1 1304- ●
37 WRENCH; 27 9-85111-375-0 01 1 1304- ●
38 WRENCH; 32 9-85111-358-0 01 1 1304- ●
39 WRENCH; 36 9-85111-374-0 01 1 1304- ●
40 WRENCH; 41 9-85111-356-0 01 1 1304- ●
108 WRENCH; SOCKET 9-85113-132-0 01 1 1304- ●
146 REPLACER KIT; LEAF SPR 9-85231-556-0 01 1 1304- ●
348 PULLER; TORQUE ROD 1-85230-008-0 01 1 1304- ●
388 WRENCH; U-BOLT
(A) 		9-85111-954-0 01 1 1304- ●
388 WRENCH; U-BOLT
(B) 		9-85111-955-0 01 1 1304- ●
