8-73 — BLOWER UNIT (#117152) — 19 parça

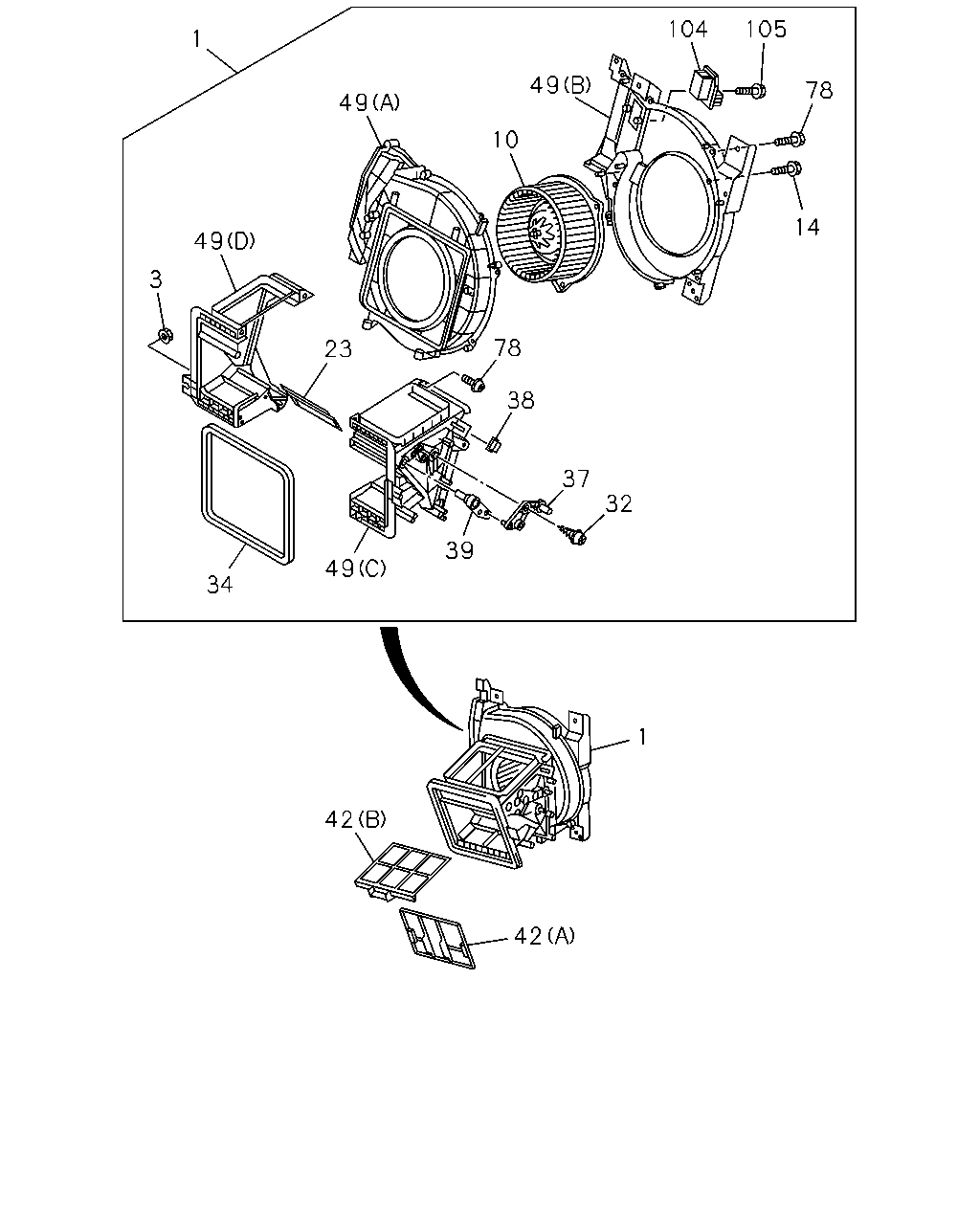

çizim 344593
42 1 42 32 37 49 39 38 78 23 34 3 49 49 10 49 104 105 78 14 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 BLOWER ASM 8-98171-720-0 01 1 1302- ● ●
3 NUT; CASE
M6 THA 		1-83539-354-0 02 1 1302- ● ●
10 MOTOR ASM; FAN,BLOWER UNIT 8-98183-924-0 01 1 1302- ● ●
14 SCREW; COVER TO CASE
M5X16 		8-98047-448-0 03 1 1302- ● ●
23 SHUTTER; BLOWER UNIT 8-98171-863-0 01 1 1302- ● ●
32 SCREW; LEVER
M4X16 		8-98047-416-0 01 1 1302- ● ●
34 LINING; BLOWER UNIT 8-98096-453-0 01 1 1302- ● ●
37 LEVER; MODE LEVER 8-98047-436-0 01 1 1302- ● ●
38 CLIP; BLOWER UNIT 8-98047-417-0 01 1 1302- ● ●
39 LEVER; SHUTTER,BLOWER UNIT 8-98047-435-0 01 1 1302- ● ●
42 FILTER; BLOWER UNIT
(B) 		8-98025-006-1 01 1 1302- ● ●
42 FILTER; BLOWER UNIT
(A) 		8-98041-327-0 01 1 1302- ● ●
49 CASE; BLOWER UNIT
(B) 		8-98047-440-0 01 1 1302- ● ●
49 CASE; BLOWER UNIT
(A) 		8-98047-441-0 01 1 1302- ● ●
49 CASE; BLOWER UNIT
(D) 		8-98077-413-0 01 1 1302- ● ●
49 CASE; BLOWER UNIT
(C) 		8-98077-414-0 01 1 1302- ● ●
78 SCREW; CASE TO CASE
M4X16 TAPPING 		8-97957-708-0 15 1 1302- ● ●
104 RESISTOR; BLOWER UNIT 8-98074-113-0 01 1 1302- ● ●
105 SCREW; RESISTOR
M4X16 TAPPING 		8-97957-708-0 02 1 1302- ● ●
