◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51472 - TFR/TFS MIDDLE EAST ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-65 - CONTROL LEVER; HEATER AND AIR CON ▶
8-65 — CONTROL LEVER; HEATER AND AIR CON (#117149) — 40 parça

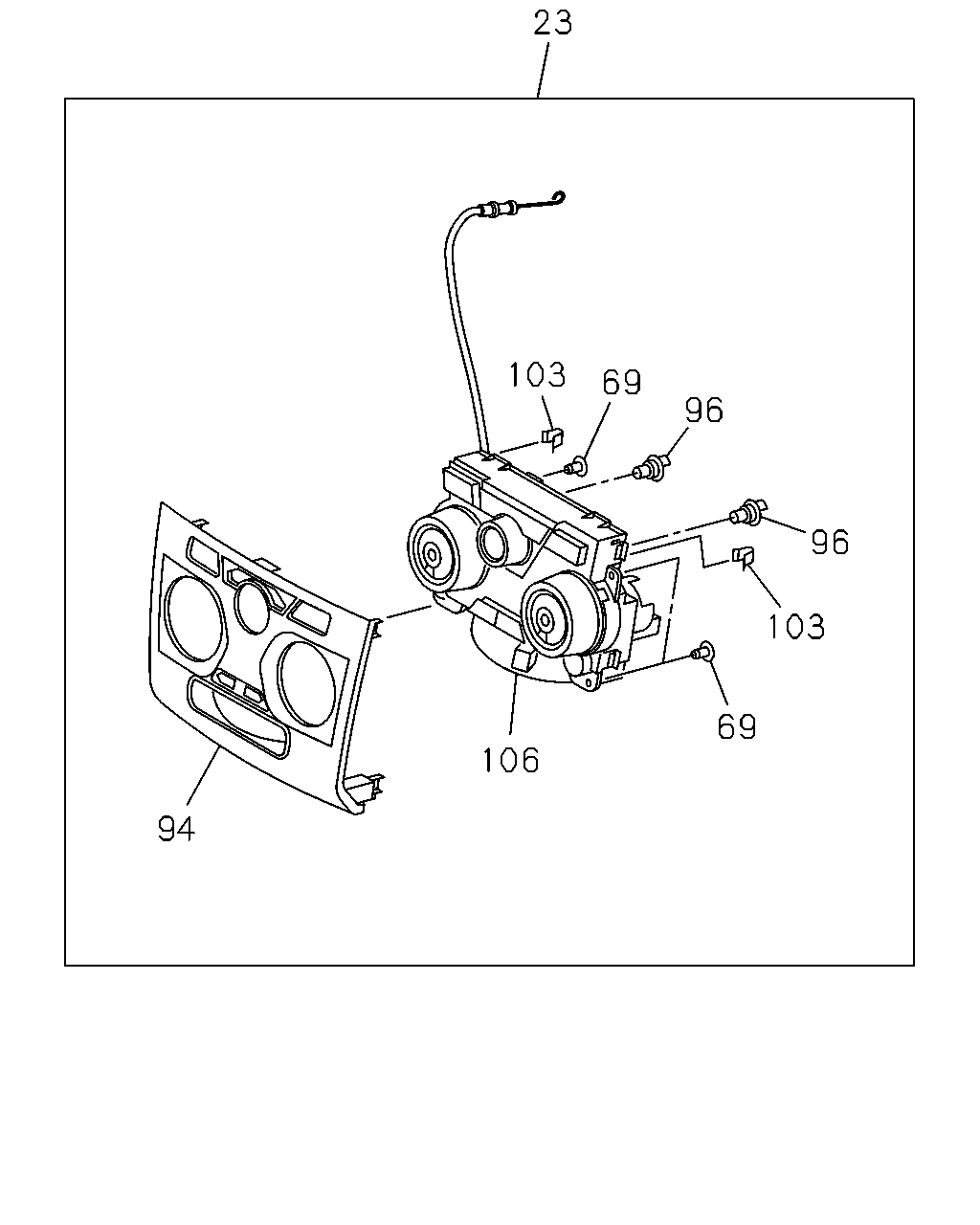

çizim 344762
23 103 69 96 103 69 96 106 94
BalonParca AdiParca NoAdetTipApplied Date A B C D
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> HEATER & DEFROSTER(C42) 		8-98120-141-3 01 1 1304- ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> HEATER & DEFROSTER(C42) EXC. REAR DEFOGGER<C49> 		8-98120-141-3 01 1 1304- ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> AIR CONDITIONER MANUAL CONT(C60) 		8-98120-143-4 01 1 1304- ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> AIR CONDITIONER MANUAL CONT(C60) EXC. REAR DEFOGGER<C49> 		8-98120-143-4 01 1 1304- ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> COOLER W/FRESH AIR(C65) 		8-98120-142-3 01 1 1304- ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> COOLER W/FRESH AIR(C65) EXC. REAR DEFOGGER<C49> 		8-98120-142-3 01 1 1304- ● ●
23 08.852 BEZEL; CONT LEVER
HEATER & DEFROSTER(C42) EXC. INTERIOR SILVER BEZEL<BY9> 		8-98120-135-3 01 1 1304- ● ●
23 08.852 BEZEL; CONT LEVER
HEATER & DEFROSTER(C42) EXC. INTERIOR SILVER BEZEL<BY9>,REAR DEFOGGER<C49> 		8-98120-135-3 01 1 1304- ● ●
23 08.852 BEZEL; CONT LEVER
AIR CONDITIONER MANUAL CONT(C60) EXC. INTERIOR SILVER BEZEL<BY9> 		8-98120-137-4 01 1 1304- ● ●
23 08.852 BEZEL; CONT LEVER
AIR CONDITIONER MANUAL CONT(C60) EXC. INTERIOR SILVER BEZEL<BY9>,REAR DEFOGGER<C49> 		8-98120-137-4 01 1 1304- ● ●
23 08.852 BEZEL; CONT LEVER
COOLER W/FRESH AIR(C65) EXC. INTERIOR SILVER BEZEL<BY9> 		8-98120-136-3 01 1 1304- ● ●
23 08.852 BEZEL; CONT LEVER
COOLER W/FRESH AIR(C65) EXC. INTERIOR SILVER BEZEL<BY9>,REAR DEFOGGER<C49> 		8-98120-136-3 01 1 1304- ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> HEATER & DEFROSTER(C42) REAR DEFOGGER<C49> 		8-98120-144-4 01 1 1304- ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> REAR DEFOGGER<C49> AIR CONDITIONER MANUAL CONT(C60) 		8-98120-146-4 01 1 1304- ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> REAR DEFOGGER<C49> COOLER W/FRESH AIR(C65) 		8-98120-145-4 01 1 1304- ● ●
23 08.852 BEZEL; CONT LEVER
HEATER & DEFROSTER(C42) REAR DEFOGGER<C49> EXC. INTERIOR SILVER BEZEL<BY9> 		8-98120-138-4 01 1 1304- ● ●
23 08.852 BEZEL; CONT LEVER
REAR DEFOGGER<C49> AIR CONDITIONER MANUAL CONT(C60) EXC. INTERIOR SILVER BEZEL<BY9> 		8-98120-140-4 01 1 1304- ● ●
23 08.852 BEZEL; CONT LEVER
REAR DEFOGGER<C49> COOLER W/FRESH AIR(C65) EXC. INTERIOR SILVER BEZEL<BY9> 		8-98120-139-4 01 1 1304- ● ●
69 08.852 SCREW; BEZEL BRKT
M4X10 TAPPING 		8-98164-986-0 04 1 1304- ● ● ● ●
94 08.849 PANEL; BEZEL 8-98164-669-0 01 1 1304- ● ● ● ●
96 08.852 BULB ASM; BEZEL 8-98156-188-0 02 1 1304- ● ● ● ●
103 08.854 CLIP
16.165 		8-98164-677-0 04 1 1304- ● ● ● ●
106 08.852 CONTROL SUB ASM; HTR & A/C
INTERIOR SILVER BEZEL<BY9> HEATER & DEFROSTER(C42) 		8-98156-903-0 01 1 1304- ● ●
106 08.852 CONTROL SUB ASM; HTR & A/C
INTERIOR SILVER BEZEL<BY9> HEATER & DEFROSTER(C42) EXC. REAR DEFOGGER<C49> 		8-98156-903-0 01 1 1304- ● ●
106 08.852 CONTROL SUB ASM; HTR & A/C
INTERIOR SILVER BEZEL<BY9> AIR CONDITIONER MANUAL CONT(C60) 		8-98156-905-0 01 1 1304- ● ●
106 08.852 CONTROL SUB ASM; HTR & A/C
INTERIOR SILVER BEZEL<BY9> AIR CONDITIONER MANUAL CONT(C60) EXC. REAR DEFOGGER<C49> 		8-98156-905-0 01 1 1304- ● ●
106 08.852 CONTROL SUB ASM; HTR & A/C
INTERIOR SILVER BEZEL<BY9> COOLER W/FRESH AIR(C65) 		8-98156-904-0 01 1 1304- ● ●
106 08.852 CONTROL SUB ASM; HTR & A/C
INTERIOR SILVER BEZEL<BY9> COOLER W/FRESH AIR(C65) EXC. REAR DEFOGGER<C49> 		8-98156-904-0 01 1 1304- ● ●
106 08.852 CONTROL SUB ASM; HTR & A/C
HEATER & DEFROSTER(C42) EXC. INTERIOR SILVER BEZEL<BY9> 		8-98156-897-0 01 1 1304- ● ●
106 08.852 CONTROL SUB ASM; HTR & A/C
HEATER & DEFROSTER(C42) EXC. INTERIOR SILVER BEZEL<BY9>,REAR DEFOGGER<C49> 		8-98156-897-0 01 1 1304- ● ●
106 08.852 CONTROL SUB ASM; HTR & A/C
AIR CONDITIONER MANUAL CONT(C60) EXC. INTERIOR SILVER BEZEL<BY9> 		8-98156-899-0 01 1 1304- ● ●
106 08.852 CONTROL SUB ASM; HTR & A/C
AIR CONDITIONER MANUAL CONT(C60) EXC. INTERIOR SILVER BEZEL<BY9>,REAR DEFOGGER<C49> 		8-98156-899-0 01 1 1304- ● ●
106 08.852 CONTROL SUB ASM; HTR & A/C
COOLER W/FRESH AIR(C65) EXC. INTERIOR SILVER BEZEL<BY9> 		8-98156-898-0 01 1 1304- ● ●
106 08.852 CONTROL SUB ASM; HTR & A/C
COOLER W/FRESH AIR(C65) EXC. INTERIOR SILVER BEZEL<BY9>,REAR DEFOGGER<C49> 		8-98156-898-0 01 1 1304- ● ●
106 08.852 CONTROL SUB ASM; HTR & A/C
INTERIOR SILVER BEZEL<BY9> HEATER & DEFROSTER(C42) REAR DEFOGGER<C49> 		8-98156-906-0 01 1 1304- ● ●
106 08.852 CONTROL SUB ASM; HTR & A/C
INTERIOR SILVER BEZEL<BY9> REAR DEFOGGER<C49> AIR CONDITIONER MANUAL CONT(C60) 		8-98156-908-0 01 1 1304- ● ●
106 08.852 CONTROL SUB ASM; HTR & A/C
INTERIOR SILVER BEZEL<BY9> REAR DEFOGGER<C49> COOLER W/FRESH AIR(C65) 		8-98156-907-0 01 1 1304- ● ●
106 08.852 CONTROL SUB ASM; HTR & A/C
HEATER & DEFROSTER(C42) REAR DEFOGGER<C49> EXC. INTERIOR SILVER BEZEL<BY9> 		8-98156-900-0 01 1 1304- ● ●
106 08.852 CONTROL SUB ASM; HTR & A/C
REAR DEFOGGER<C49> AIR CONDITIONER MANUAL CONT(C60) EXC. INTERIOR SILVER BEZEL<BY9> 		8-98156-902-0 01 1 1304- ● ●
106 08.852 CONTROL SUB ASM; HTR & A/C
REAR DEFOGGER<C49> COOLER W/FRESH AIR(C65) EXC. INTERIOR SILVER BEZEL<BY9> 		8-98156-901-0 01 1 1304- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
