8-60 — HEATER UNIT; FRONT (#117147) — 297 parça

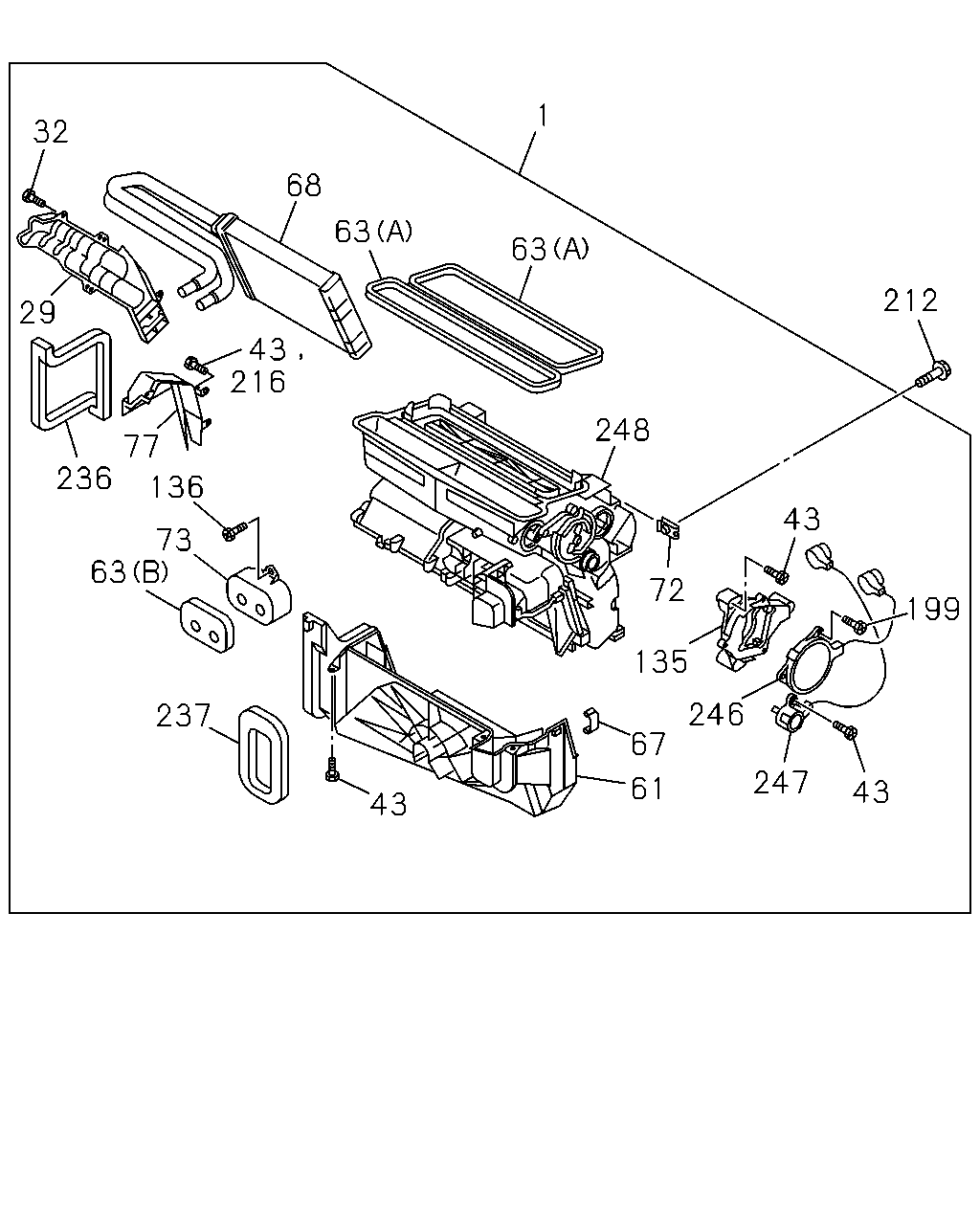

çizim 344580
1 212 248 63 63 68 32 43 77 29 216 136 236 63 237 43 73 72 43 199 43 246 247 135 67 61
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-014-0 01 1 1304- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-014-0 01 1 1304- ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C> 		8-98233-014-0 01 1 1304- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-014-0 01 1 1304- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-014-0 01 1 1304- ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY FLAT BED(E39),REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-030-0 01 1 1304- ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-030-0 01 1 1304- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-030-0 01 1 1304- ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-015-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-015-1 01 1 1304- ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C> 		8-98233-015-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-015-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-015-1 01 1 1304- ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY FLAT BED(E39),REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-031-1 01 1 1304- ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-031-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-031-1 01 1 1304- ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-013-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-013-1 01 1 1304- ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C> 		8-98233-013-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-013-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-013-1 01 1 1304- ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY FLAT BED(E39),REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-029-1 01 1 1304- ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-029-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-029-1 01 1 1304- ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-021-0 01 1 1304- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR HEATER DUCT<S8C> REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-021-0 01 1 1304- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63) REAR HEATER DUCT<S8C> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-037-0 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-022-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C> REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-022-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63) REAR HEATER DUCT<S8C> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-038-1 01 1 1304- ● ●
29 08.857 COVER; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-590-0 01 1 1304- ●
29 08.857 COVER; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-590-0 01 1 1304- ●
29 08.857 COVER; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98233-590-0 01 1 1304- ● ● ●
32 08.852 SCREW; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-593-0 04 1 1304- ●
32 08.852 SCREW; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-593-0 04 1 1304- ●
32 08.852 SCREW; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98233-593-0 04 1 1304- ● ● ●
43 09.786 SCREW; CASE,HTR UNIT
08.852 		8-98233-593-0 18 1 1304- ● ● ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C42) 		8-98233-582-0 01 1 1304- ● ● ● ●
61 08.854 CASE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60), COOLERW/FRESH AIR(C65) 		8-98233-581-0 01 1 1304- ● ● ● ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-98139-358-1 02 1 1304- ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-98139-358-1 02 1 1304- ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) (A) 		8-98139-358-1 02 1 1304- ● ● ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> (B) 		8-98139-361-1 01 1 1304- ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) 		8-98139-361-1 01 1 1304- ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) (B) 		8-98139-361-1 01 1 1304- ● ● ●
63 08.856 LINING; HTR UNIT
COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-98139-358-1 01 1 1304- ●
63 08.856 LINING; HTR UNIT
COOLER W/FRESH AIR(C65) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-98139-358-1 01 1 1304- ●
63 08.856 LINING; HTR UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> (A) 		8-98139-358-1 01 1 1304- ● ●
63 08.856 LINING; HTR UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) (A) 		8-98139-358-1 01 1 1304- ●
63 08.856 LINING; HTR UNIT
COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT> (C) 		8-98157-118-1 01 1 1304- ●
63 08.856 LINING; HTR UNIT
COOLER W/FRESH AIR(C65) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) 		8-98157-118-1 01 1 1304- ●
63 08.856 LINING; HTR UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> (C) 		8-98157-118-1 01 1 1304- ● ●
63 08.856 LINING; HTR UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) (C) 		8-98157-118-1 01 1 1304- ●
67 08.854 CLIP; HTR UNIT 8-98157-123-0 01 1 1304- ● ● ● ●
68 08.854 CORE; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-374-0 01 1 1304- ●
68 08.854 CORE; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-374-0 01 1 1304- ●
68 08.854 CORE; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98139-374-0 01 1 1304- ● ● ●
72 08.845 NUT; CASE,HTR UNIT 8-98139-394-1 03 1 1304- ● ● ● ●
73 08.845 PLATE; HTR UNIT 8-98233-591-0 01 1 1304- ● ● ● ●
77 08.857 COVER; HTR CASE 8-98233-589-0 01 1 1304- ● ● ● ●
135 08.854 COVER; HTR 8-98139-377-0 01 1 1304- ● ● ● ●
136 08.850 SCREW; PLATE
08.852 		8-98233-593-0 02 1 1304- ● ● ● ●
199 08.854 SCREW; ACTUATOR
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> 08.852 		8-98233-593-0 05 1 1304- ●
199 08.854 SCREW; ACTUATOR
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) EXC. IDENTIFICATION LABEL FOR KD<6UT> 08.852 		8-98233-593-0 05 1 1304- ●
199 08.854 SCREW; ACTUATOR
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 08.852 		8-98233-593-0 05 1 1304- ● ● ●
199 08.854 SCREW; ACTUATOR
COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT> 08.852 		8-98233-593-0 03 1 1304- ●
199 08.854 SCREW; ACTUATOR
COOLER W/FRESH AIR(C65) EXC. IDENTIFICATION LABEL FOR KD<6UT> 08.852 		8-98233-593-0 03 1 1304- ●
199 08.854 SCREW; ACTUATOR
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 08.852 		8-98233-593-0 03 1 1304- ● ●
199 08.854 SCREW; ACTUATOR
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 08.852 		8-98233-593-0 03 1 1304- ●
212 09.262 BOLT; HTR UNIT
03.162 M6X20 FLANGE 		0-28650-620-0 05 1 1304- ● ● ● ●
216 08.845 SCREW; COVER,HEATER UNIT
08.852 		8-98233-593-0 03 1 1304- ● ● ● ●
236 08.855 GASKET; HEATER 8-98139-357-1 01 1 1304- ● ● ● ●
237 08.855 INSULATOR; EVAPORATOR 8-98139-360-1 01 1 1304- ● ● ● ●
246 08.852 ACTUATOR; MODE
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> 		8-98157-124-2 01 1 1304- ●
246 08.852 ACTUATOR; MODE
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98157-124-2 01 1 1304- ●
246 08.852 ACTUATOR; MODE
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98157-124-2 01 1 1304- ● ● ●
246 08.852 ACTUATOR; MODE
COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-397-1 01 1 1304- ●
246 08.852 ACTUATOR; MODE
COOLER W/FRESH AIR(C65) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-397-1 01 1 1304- ●
246 08.852 ACTUATOR; MODE
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98139-397-1 01 1 1304- ● ●
246 08.852 ACTUATOR; MODE
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98139-397-1 01 1 1304- ●
247 08.852 ACTUATOR; TEMP
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-398-1 01 1 1304- ●
247 08.852 ACTUATOR; TEMP
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-398-1 01 1 1304- ●
247 08.852 ACTUATOR; TEMP
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98139-398-1 01 1 1304- ● ● ●
248 08.854 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-575-0 01 1 1304- ●
248 08.854 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-575-0 01 1 1304- ●
248 08.854 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98233-575-0 01 1 1304- ● ●
248 08.854 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98233-575-0 01 1 1304- ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-576-0 01 1 1304- ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-576-0 01 1 1304- ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98233-576-0 01 1 1304- ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98233-576-0 01 1 1304- ●
248 08.854 CASE ASM; HTR UNIT
COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-574-0 01 1 1304- ●
248 08.854 CASE ASM; HTR UNIT
COOLER W/FRESH AIR(C65) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-574-0 01 1 1304- ●
248 08.854 CASE ASM; HTR UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98233-574-0 01 1 1304- ● ●
248 08.854 CASE ASM; HTR UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98233-574-0 01 1 1304- ●
248 08.854 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> 		8-98233-578-0 01 1 1304- ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> 		8-98233-579-0 01 1 1304- ● ●

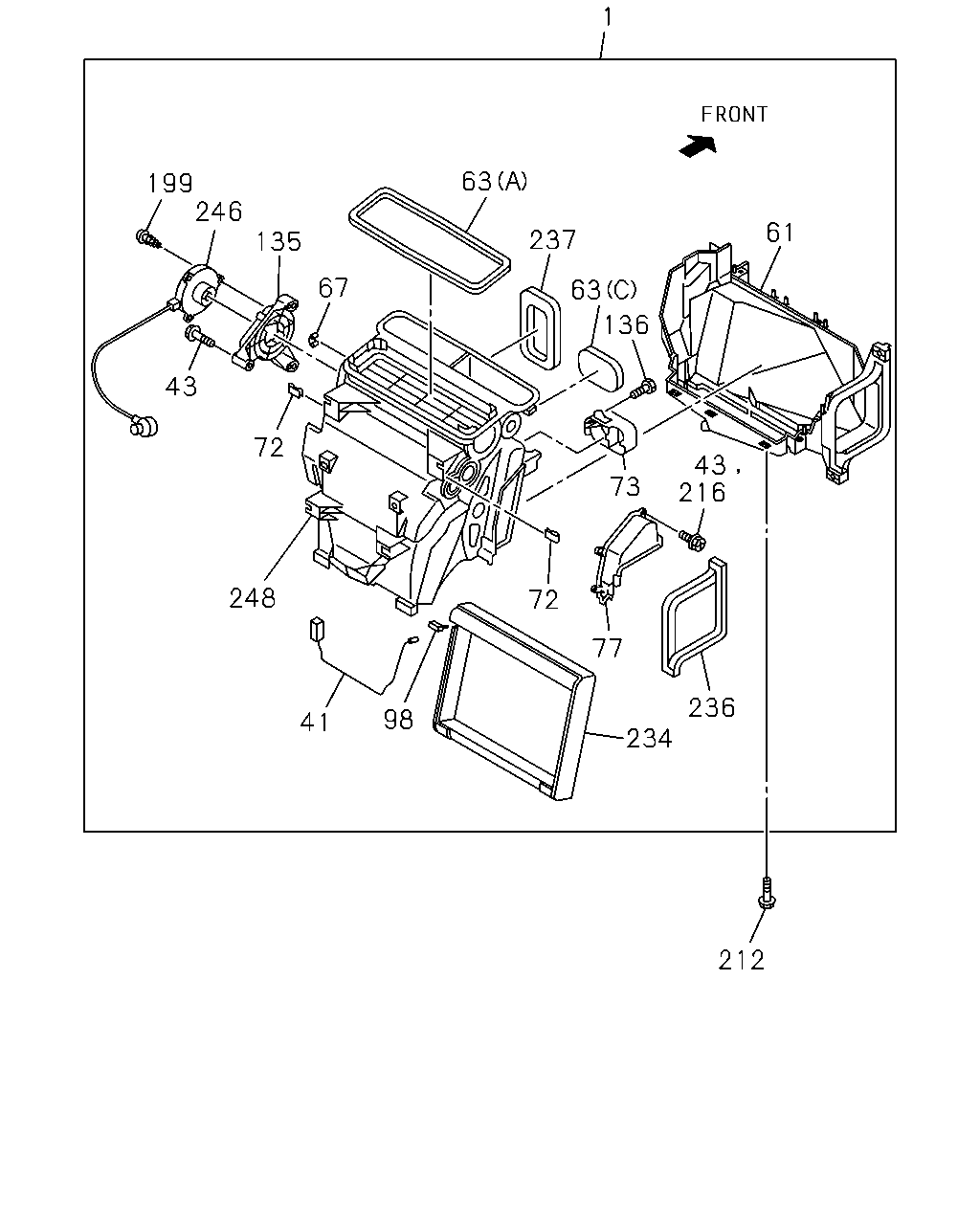

çizim 344660
199 67 135 246 63 63 237 61 1 216 43 73 72 234 98 236 41 248 72 43 77 136 212
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-014-0 01 1 1304- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-014-0 01 1 1304- ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C> 		8-98233-014-0 01 1 1304- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-014-0 01 1 1304- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-014-0 01 1 1304- ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY FLAT BED(E39),REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-030-0 01 1 1304- ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-030-0 01 1 1304- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-030-0 01 1 1304- ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-015-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-015-1 01 1 1304- ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C> 		8-98233-015-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-015-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-015-1 01 1 1304- ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY FLAT BED(E39),REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-031-1 01 1 1304- ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-031-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-031-1 01 1 1304- ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-013-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-013-1 01 1 1304- ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C> 		8-98233-013-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-013-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-013-1 01 1 1304- ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY FLAT BED(E39),REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-029-1 01 1 1304- ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-029-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-029-1 01 1 1304- ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-021-0 01 1 1304- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR HEATER DUCT<S8C> REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-021-0 01 1 1304- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63) REAR HEATER DUCT<S8C> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-037-0 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-022-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C> REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-022-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63) REAR HEATER DUCT<S8C> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-038-1 01 1 1304- ● ●
41 08.852 THERMOSTAT; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-383-0 01 1 1304- ●
41 08.852 THERMOSTAT; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-383-0 01 1 1304- ●
41 08.852 THERMOSTAT; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98139-383-0 01 1 1304- ● ● ●
41 08.852 THERMOSTAT; HTR UNIT
COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT> 		8-98157-121-0 01 1 1304- ●
41 08.852 THERMOSTAT; HTR UNIT
COOLER W/FRESH AIR(C65) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98157-121-0 01 1 1304- ●
41 08.852 THERMOSTAT; HTR UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98157-121-0 01 1 1304- ● ●
41 08.852 THERMOSTAT; HTR UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98157-121-0 01 1 1304- ●
43 09.786 SCREW; CASE,HTR UNIT
08.852 		8-98233-593-0 18 1 1304- ● ● ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C42) 		8-98233-582-0 01 1 1304- ● ● ● ●
61 08.854 CASE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60), COOLERW/FRESH AIR(C65) 		8-98233-581-0 01 1 1304- ● ● ● ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-98139-358-1 02 1 1304- ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-98139-358-1 02 1 1304- ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) (A) 		8-98139-358-1 02 1 1304- ● ● ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> (B) 		8-98139-361-1 01 1 1304- ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) 		8-98139-361-1 01 1 1304- ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) (B) 		8-98139-361-1 01 1 1304- ● ● ●
63 08.856 LINING; HTR UNIT
COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-98139-358-1 01 1 1304- ●
63 08.856 LINING; HTR UNIT
COOLER W/FRESH AIR(C65) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-98139-358-1 01 1 1304- ●
63 08.856 LINING; HTR UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> (A) 		8-98139-358-1 01 1 1304- ● ●
63 08.856 LINING; HTR UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) (A) 		8-98139-358-1 01 1 1304- ●
63 08.856 LINING; HTR UNIT
COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT> (C) 		8-98157-118-1 01 1 1304- ●
63 08.856 LINING; HTR UNIT
COOLER W/FRESH AIR(C65) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) 		8-98157-118-1 01 1 1304- ●
63 08.856 LINING; HTR UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> (C) 		8-98157-118-1 01 1 1304- ● ●
63 08.856 LINING; HTR UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) (C) 		8-98157-118-1 01 1 1304- ●
67 08.854 CLIP; HTR UNIT 8-98157-123-0 01 1 1304- ● ● ● ●
72 08.845 NUT; CASE,HTR UNIT 8-98139-394-1 03 1 1304- ● ● ● ●
73 08.845 PLATE; HTR UNIT 8-98233-591-0 01 1 1304- ● ● ● ●
77 08.857 COVER; HTR CASE 8-98233-589-0 01 1 1304- ● ● ● ●
98 08.854 CLIP; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60), COOLERW/FRESH AIR(C65) 		8-98157-122-0 01 1 1304- ● ● ● ●
135 08.854 COVER; HTR 8-98139-377-0 01 1 1304- ● ● ● ●
136 08.850 SCREW; PLATE
08.852 		8-98233-593-0 02 1 1304- ● ● ● ●
199 08.854 SCREW; ACTUATOR
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> 08.852 		8-98233-593-0 05 1 1304- ●
199 08.854 SCREW; ACTUATOR
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) EXC. IDENTIFICATION LABEL FOR KD<6UT> 08.852 		8-98233-593-0 05 1 1304- ●
199 08.854 SCREW; ACTUATOR
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 08.852 		8-98233-593-0 05 1 1304- ● ● ●
199 08.854 SCREW; ACTUATOR
COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT> 08.852 		8-98233-593-0 03 1 1304- ●
199 08.854 SCREW; ACTUATOR
COOLER W/FRESH AIR(C65) EXC. IDENTIFICATION LABEL FOR KD<6UT> 08.852 		8-98233-593-0 03 1 1304- ●
199 08.854 SCREW; ACTUATOR
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 08.852 		8-98233-593-0 03 1 1304- ● ●
199 08.854 SCREW; ACTUATOR
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 08.852 		8-98233-593-0 03 1 1304- ●
212 09.262 BOLT; HTR UNIT
03.162 M6X20 FLANGE 		0-28650-620-0 05 1 1304- ● ● ● ●
216 08.845 SCREW; COVER,HEATER UNIT
08.852 		8-98233-593-0 03 1 1304- ● ● ● ●
234 08.854 EVAPORATOR ASM; HEATER
AIR CONDITIONER MANUAL CONT(C60), COOLERW/FRESH AIR(C65) 		8-98139-376-1 01 1 1304- ● ● ● ●
236 08.855 GASKET; HEATER 8-98139-357-1 01 1 1304- ● ● ● ●
237 08.855 INSULATOR; EVAPORATOR 8-98139-360-1 01 1 1304- ● ● ● ●
246 08.852 ACTUATOR; MODE
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> 		8-98157-124-2 01 1 1304- ●
246 08.852 ACTUATOR; MODE
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98157-124-2 01 1 1304- ●
246 08.852 ACTUATOR; MODE
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98157-124-2 01 1 1304- ● ● ●
246 08.852 ACTUATOR; MODE
COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-397-1 01 1 1304- ●
246 08.852 ACTUATOR; MODE
COOLER W/FRESH AIR(C65) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-397-1 01 1 1304- ●
246 08.852 ACTUATOR; MODE
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98139-397-1 01 1 1304- ● ●
246 08.852 ACTUATOR; MODE
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98139-397-1 01 1 1304- ●
248 08.854 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-575-0 01 1 1304- ●
248 08.854 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-575-0 01 1 1304- ●
248 08.854 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98233-575-0 01 1 1304- ● ●
248 08.854 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98233-575-0 01 1 1304- ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-576-0 01 1 1304- ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-576-0 01 1 1304- ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98233-576-0 01 1 1304- ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98233-576-0 01 1 1304- ●
248 08.854 CASE ASM; HTR UNIT
COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-574-0 01 1 1304- ●
248 08.854 CASE ASM; HTR UNIT
COOLER W/FRESH AIR(C65) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-574-0 01 1 1304- ●
248 08.854 CASE ASM; HTR UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98233-574-0 01 1 1304- ● ●
248 08.854 CASE ASM; HTR UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98233-574-0 01 1 1304- ●
248 08.854 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> 		8-98233-578-0 01 1 1304- ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> 		8-98233-579-0 01 1 1304- ● ●

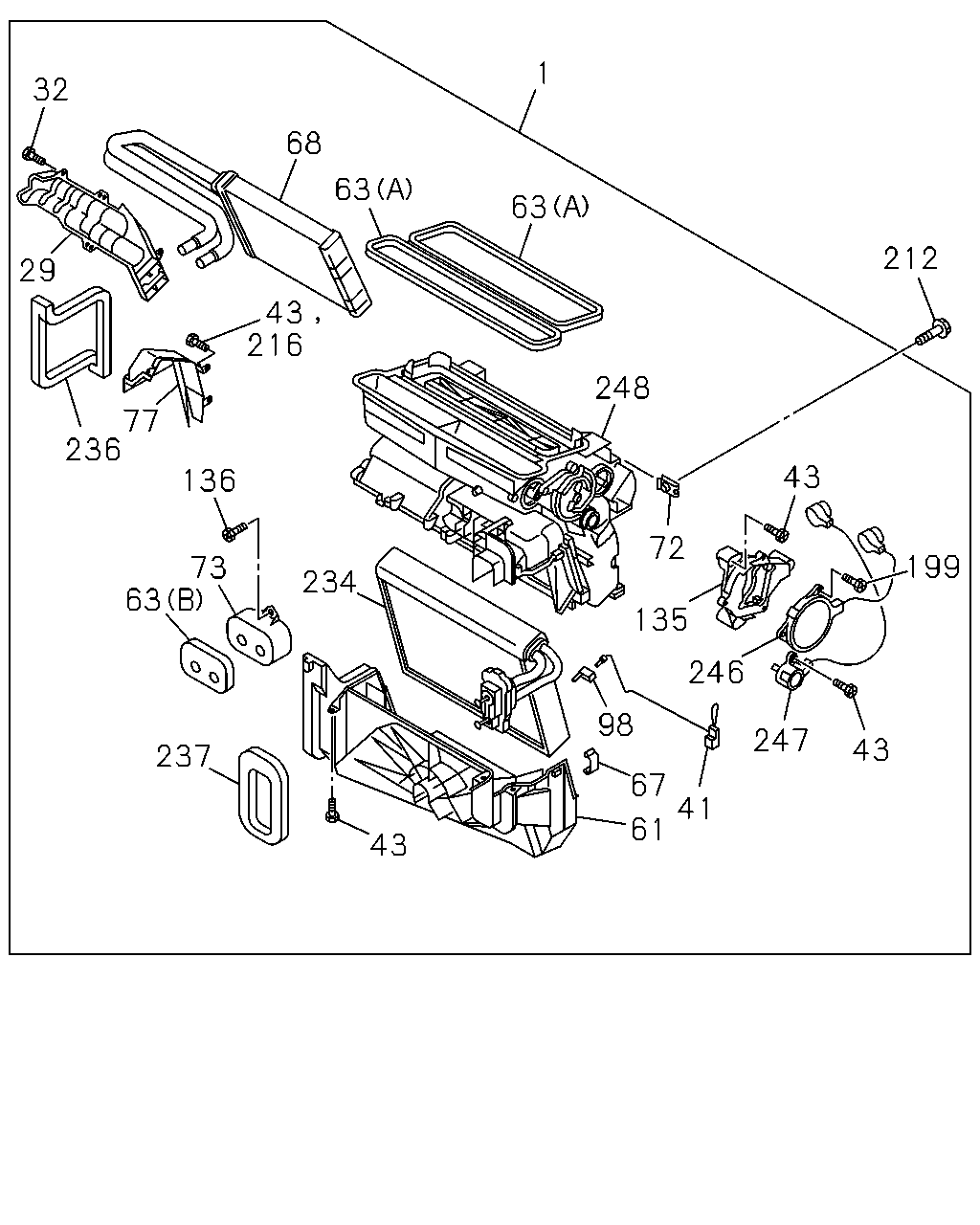

çizim 344675
32 29 236 136 63 216 77 43 63 68 63 1 234 73 237 43 98 67 41 61 247 43 246 135 72 43 199 248 212
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-014-0 01 1 1304- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-014-0 01 1 1304- ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C> 		8-98233-014-0 01 1 1304- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-014-0 01 1 1304- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-014-0 01 1 1304- ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY FLAT BED(E39),REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-030-0 01 1 1304- ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-030-0 01 1 1304- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-030-0 01 1 1304- ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-015-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-015-1 01 1 1304- ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C> 		8-98233-015-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-015-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-015-1 01 1 1304- ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY FLAT BED(E39),REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-031-1 01 1 1304- ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-031-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-031-1 01 1 1304- ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-013-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-013-1 01 1 1304- ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> EXC. REAR HEATER DUCT<S8C> 		8-98233-013-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-013-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-013-1 01 1 1304- ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY FLAT BED(E39),REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-029-1 01 1 1304- ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR HEATER DUCT<S8C>, IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-029-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-029-1 01 1 1304- ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-021-0 01 1 1304- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR HEATER DUCT<S8C> REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-021-0 01 1 1304- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63) REAR HEATER DUCT<S8C> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-037-0 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-022-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C> REAR BODY DELETE(8HH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-022-1 01 1 1304- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63) REAR HEATER DUCT<S8C> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-038-1 01 1 1304- ● ●
29 08.857 COVER; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-590-0 01 1 1304- ●
29 08.857 COVER; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-590-0 01 1 1304- ●
29 08.857 COVER; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98233-590-0 01 1 1304- ● ● ●
32 08.852 SCREW; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-593-0 04 1 1304- ●
32 08.852 SCREW; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-593-0 04 1 1304- ●
32 08.852 SCREW; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98233-593-0 04 1 1304- ● ● ●
41 08.852 THERMOSTAT; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-383-0 01 1 1304- ●
41 08.852 THERMOSTAT; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-383-0 01 1 1304- ●
41 08.852 THERMOSTAT; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98139-383-0 01 1 1304- ● ● ●
41 08.852 THERMOSTAT; HTR UNIT
COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT> 		8-98157-121-0 01 1 1304- ●
41 08.852 THERMOSTAT; HTR UNIT
COOLER W/FRESH AIR(C65) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98157-121-0 01 1 1304- ●
41 08.852 THERMOSTAT; HTR UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98157-121-0 01 1 1304- ● ●
41 08.852 THERMOSTAT; HTR UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98157-121-0 01 1 1304- ●
43 09.786 SCREW; CASE,HTR UNIT
08.852 		8-98233-593-0 18 1 1304- ● ● ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C42) 		8-98233-582-0 01 1 1304- ● ● ● ●
61 08.854 CASE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60), COOLERW/FRESH AIR(C65) 		8-98233-581-0 01 1 1304- ● ● ● ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-98139-358-1 02 1 1304- ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-98139-358-1 02 1 1304- ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) (A) 		8-98139-358-1 02 1 1304- ● ● ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> (B) 		8-98139-361-1 01 1 1304- ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) 		8-98139-361-1 01 1 1304- ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) (B) 		8-98139-361-1 01 1 1304- ● ● ●
63 08.856 LINING; HTR UNIT
COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-98139-358-1 01 1 1304- ●
63 08.856 LINING; HTR UNIT
COOLER W/FRESH AIR(C65) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) 		8-98139-358-1 01 1 1304- ●
63 08.856 LINING; HTR UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> (A) 		8-98139-358-1 01 1 1304- ● ●
63 08.856 LINING; HTR UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) (A) 		8-98139-358-1 01 1 1304- ●
63 08.856 LINING; HTR UNIT
COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT> (C) 		8-98157-118-1 01 1 1304- ●
63 08.856 LINING; HTR UNIT
COOLER W/FRESH AIR(C65) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) 		8-98157-118-1 01 1 1304- ●
63 08.856 LINING; HTR UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> (C) 		8-98157-118-1 01 1 1304- ● ●
63 08.856 LINING; HTR UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) (C) 		8-98157-118-1 01 1 1304- ●
67 08.854 CLIP; HTR UNIT 8-98157-123-0 01 1 1304- ● ● ● ●
68 08.854 CORE; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-374-0 01 1 1304- ●
68 08.854 CORE; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-374-0 01 1 1304- ●
68 08.854 CORE; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98139-374-0 01 1 1304- ● ● ●
72 08.845 NUT; CASE,HTR UNIT 8-98139-394-1 03 1 1304- ● ● ● ●
73 08.845 PLATE; HTR UNIT 8-98233-591-0 01 1 1304- ● ● ● ●
77 08.857 COVER; HTR CASE 8-98233-589-0 01 1 1304- ● ● ● ●
98 08.854 CLIP; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60), COOLERW/FRESH AIR(C65) 		8-98157-122-0 01 1 1304- ● ● ● ●
135 08.854 COVER; HTR 8-98139-377-0 01 1 1304- ● ● ● ●
136 08.850 SCREW; PLATE
08.852 		8-98233-593-0 02 1 1304- ● ● ● ●
199 08.854 SCREW; ACTUATOR
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> 08.852 		8-98233-593-0 05 1 1304- ●
199 08.854 SCREW; ACTUATOR
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) EXC. IDENTIFICATION LABEL FOR KD<6UT> 08.852 		8-98233-593-0 05 1 1304- ●
199 08.854 SCREW; ACTUATOR
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 08.852 		8-98233-593-0 05 1 1304- ● ● ●
199 08.854 SCREW; ACTUATOR
COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT> 08.852 		8-98233-593-0 03 1 1304- ●
199 08.854 SCREW; ACTUATOR
COOLER W/FRESH AIR(C65) EXC. IDENTIFICATION LABEL FOR KD<6UT> 08.852 		8-98233-593-0 03 1 1304- ●
199 08.854 SCREW; ACTUATOR
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 08.852 		8-98233-593-0 03 1 1304- ● ●
199 08.854 SCREW; ACTUATOR
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 08.852 		8-98233-593-0 03 1 1304- ●
212 09.262 BOLT; HTR UNIT
03.162 M6X20 FLANGE 		0-28650-620-0 05 1 1304- ● ● ● ●
216 08.845 SCREW; COVER,HEATER UNIT
08.852 		8-98233-593-0 03 1 1304- ● ● ● ●
234 08.854 EVAPORATOR ASM; HEATER
AIR CONDITIONER MANUAL CONT(C60), COOLERW/FRESH AIR(C65) 		8-98139-376-1 01 1 1304- ● ● ● ●
236 08.855 GASKET; HEATER 8-98139-357-1 01 1 1304- ● ● ● ●
237 08.855 INSULATOR; EVAPORATOR 8-98139-360-1 01 1 1304- ● ● ● ●
246 08.852 ACTUATOR; MODE
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> 		8-98157-124-2 01 1 1304- ●
246 08.852 ACTUATOR; MODE
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98157-124-2 01 1 1304- ●
246 08.852 ACTUATOR; MODE
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98157-124-2 01 1 1304- ● ● ●
246 08.852 ACTUATOR; MODE
COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-397-1 01 1 1304- ●
246 08.852 ACTUATOR; MODE
COOLER W/FRESH AIR(C65) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-397-1 01 1 1304- ●
246 08.852 ACTUATOR; MODE
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98139-397-1 01 1 1304- ● ●
246 08.852 ACTUATOR; MODE
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98139-397-1 01 1 1304- ●
247 08.852 ACTUATOR; TEMP
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-398-1 01 1 1304- ●
247 08.852 ACTUATOR; TEMP
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98139-398-1 01 1 1304- ●
247 08.852 ACTUATOR; TEMP
HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98139-398-1 01 1 1304- ● ● ●
248 08.854 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-575-0 01 1 1304- ●
248 08.854 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-575-0 01 1 1304- ●
248 08.854 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98233-575-0 01 1 1304- ● ●
248 08.854 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98233-575-0 01 1 1304- ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-576-0 01 1 1304- ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-576-0 01 1 1304- ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98233-576-0 01 1 1304- ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98233-576-0 01 1 1304- ●
248 08.854 CASE ASM; HTR UNIT
COOLER W/FRESH AIR(C65) IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-574-0 01 1 1304- ●
248 08.854 CASE ASM; HTR UNIT
COOLER W/FRESH AIR(C65) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98233-574-0 01 1 1304- ●
248 08.854 CASE ASM; HTR UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98233-574-0 01 1 1304- ● ●
248 08.854 CASE ASM; HTR UNIT
COOLER W/FRESH AIR(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98233-574-0 01 1 1304- ●
248 08.854 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> 		8-98233-578-0 01 1 1304- ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> 		8-98233-579-0 01 1 1304- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
