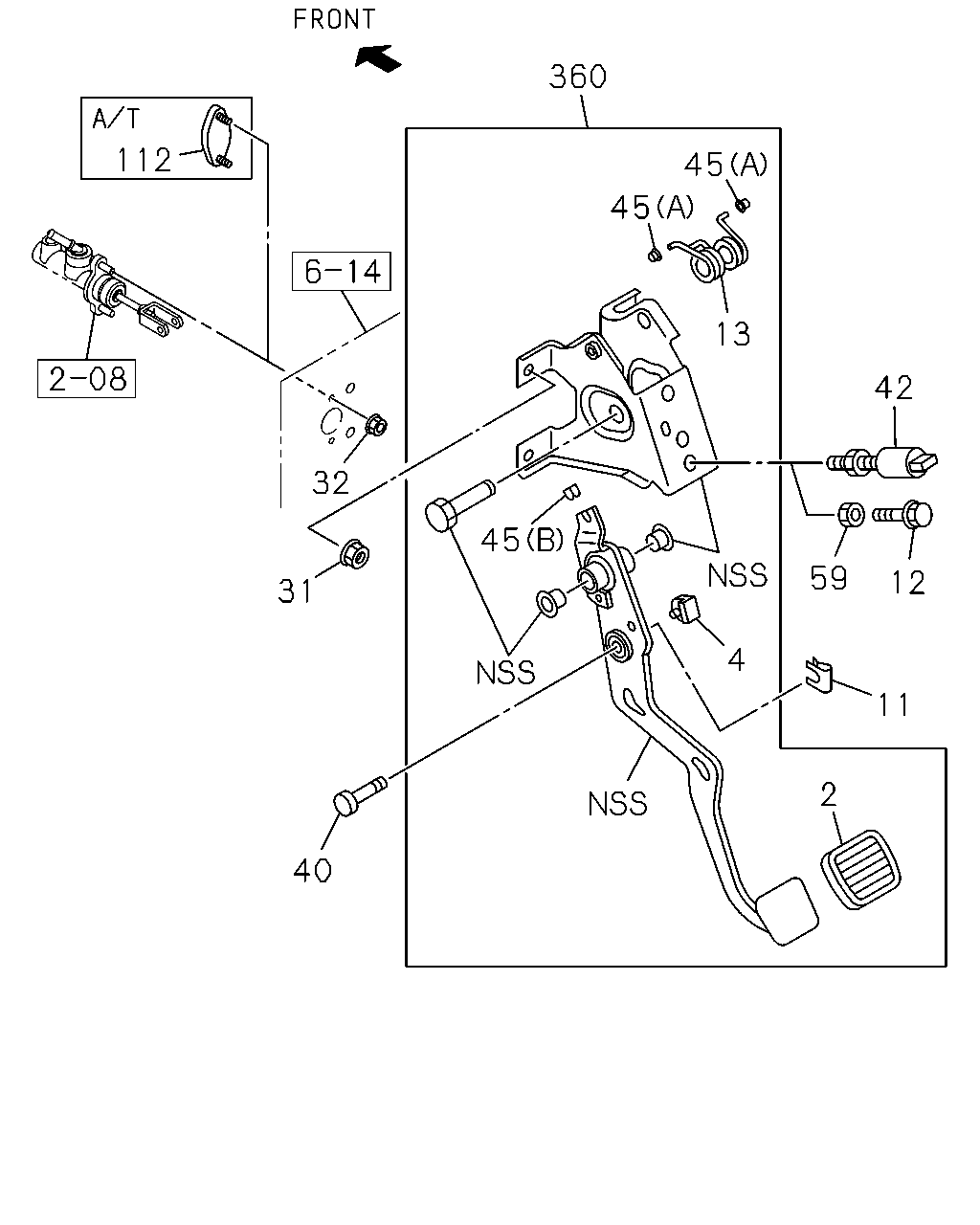

2-03 — CLUTCH PEDAL AND CONTROL (#117136) — 24 parça

360 45 45 42 12 59 11 2 4 45 32 31 40 112 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
2	04.630 COVER; CLU PEDAL M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T AISIN 6 SPEED(RNU),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ)	8-97318-799-0	01	1	1304-	●	●	●	●	●
4	00.829 STOPPER; CLU PEDAL M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T AISIN 6 SPEED(RNU),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ)	8-97947-783-0	01	1	1304-	●	●	●	●	●
11	00.833 PIN; SNAP,PUSH ROD TO PEDAL M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T AISIN 6 SPEED(RNU),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ)	8-98007-161-0	01	1	1304-	●	●	●	●	●
12	00.841 BOLT; CLU PEDAL ADJ M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA5 SPEED 5S(RSQ) M10X35	0-20851-035-0	01	1	1304-	●	●	●	●	●
13	00.844 SPRING; ASSIST,CLU PEDAL M/T MUA 5 SPEED 5H(MWQ),M/T AISIN 6 SPEED(RNU)	8-97942-312-0	01	1	1304-	●	●	●	●	●
13	00.844 SPRING; ASSIST,CLU PEDAL M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ)	8-98207-852-0	01	1	1304-	●	●
31	01.153 NUT; MTG BRKT TO BODY M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T AISIN 6 SPEED(RNU),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 01.062 M8 FLANGE	0-91180-108-0	04	1	1304-	●	●	●	●	●
32	00.777 NUT; BRKT TO CLU M/CYL 01.062 M8 FLANGE	0-91180-108-0	02	1	1304-	●	●	●	●	●
40	00.833 PIN; JOINT,CLU DAMPER M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T AISIN 6 SPEED(RNU),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) OD=7.9 L=27.5	8-97312-338-0	01	1	1304-	●	●	●	●	●
42	04.054 SWITCH; CLU 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) M/T MUA 5 SPEED 5H(MWQ),M/T AISIN 6 SPEED(RNU)	8-98154-210-0	01	1	1304-1408	●	●	●	●	●
42	04.054 SWITCH; CLU 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ) AUTO CRUISE CONT<K30>	8-98154-210-0	01	1	1304-1408	●	●	●	●	●
42	04.054 SWITCH; CLU 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JK1-TCY ENG(RDX) M/T MUA 5 SPEED 5H(MWQ),M/T AISIN 6 SPEED(RNU)	8-98154-210-0	01	1	1409-	●	●	●	●	●
45	00.831 BUSHING; ASSIST SPRING,CLU PEDAL M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T AISIN 6 SPEED(RNU),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) (A)	8-97942-313-0	02	1	1304-	●	●	●	●	●
45	00.831 BUSHING; ASSIST SPRING,CLU PEDAL M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T AISIN 6 SPEED(RNU),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) (B)	8-97942-314-0	01	1	1304-	●	●	●	●	●
59	00.833 NUT; CLU PEDAL ADJ M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA5 SPEED 5S(RSQ) M10	0-91110-510-0	01	1	1304-	●	●	●	●	●
112	00.785 PLUG; METAL,M/CYL A/T 5 SPEED-AISIN(MA1)	8-97945-168-0	01	1	1304-		●	●		●
360	00.830 PEDAL ASM; CLUTCH 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) M/T MUA 5 SPEED 5H(MWQ)	8-97947-852-0	01	1	1304-1408	●	●	●	●	●
360	00.830 PEDAL ASM; CLUTCH 4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ)	8-97947-852-0	01	1	1409-1512		●	●	●	●
360	00.830 PEDAL ASM; CLUTCH 4JJ1-TCS ENG(LFB) M/T MUA 5 SPEED 5H(MWQ)	8-98317-403-0	01	1	1601-		●	●	●	●
360	00.830 PEDAL ASM; CLUTCH M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ)	8-97947-855-0	01	1	1304-1512	●	●
360	00.830 PEDAL ASM; CLUTCH M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ)	8-98317-402-0	01	1	1601-	●	●
360	00.830 PEDAL ASM; CLUTCH 4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) M/T MUA 5 SPEED 5H(MWQ),M/T AISIN 6 SPEED(RNU)	8-97947-853-0	01	1	1304-1408	●	●	●	●	●
360	00.830 PEDAL ASM; CLUTCH 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JK1-TCY ENG(RDX) M/T MUA 5 SPEED 5H(MWQ),M/T AISIN 6 SPEED(RNU)	8-97947-853-0	01	1	1409-1512	●	●	●	●	●
360	00.830 PEDAL ASM; CLUTCH 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JK1-TCY ENG(RDX) M/T MUA 5 SPEED 5H(MWQ),M/T AISIN 6 SPEED(RNU)	8-98317-405-0	01	1	1601-	●	●	●	●	●
