Sayfa 2-30A - Isuzu EPC

2-30A — GEAR SHIFTER AND QUADRANT BOX (#117134) — 211 parça

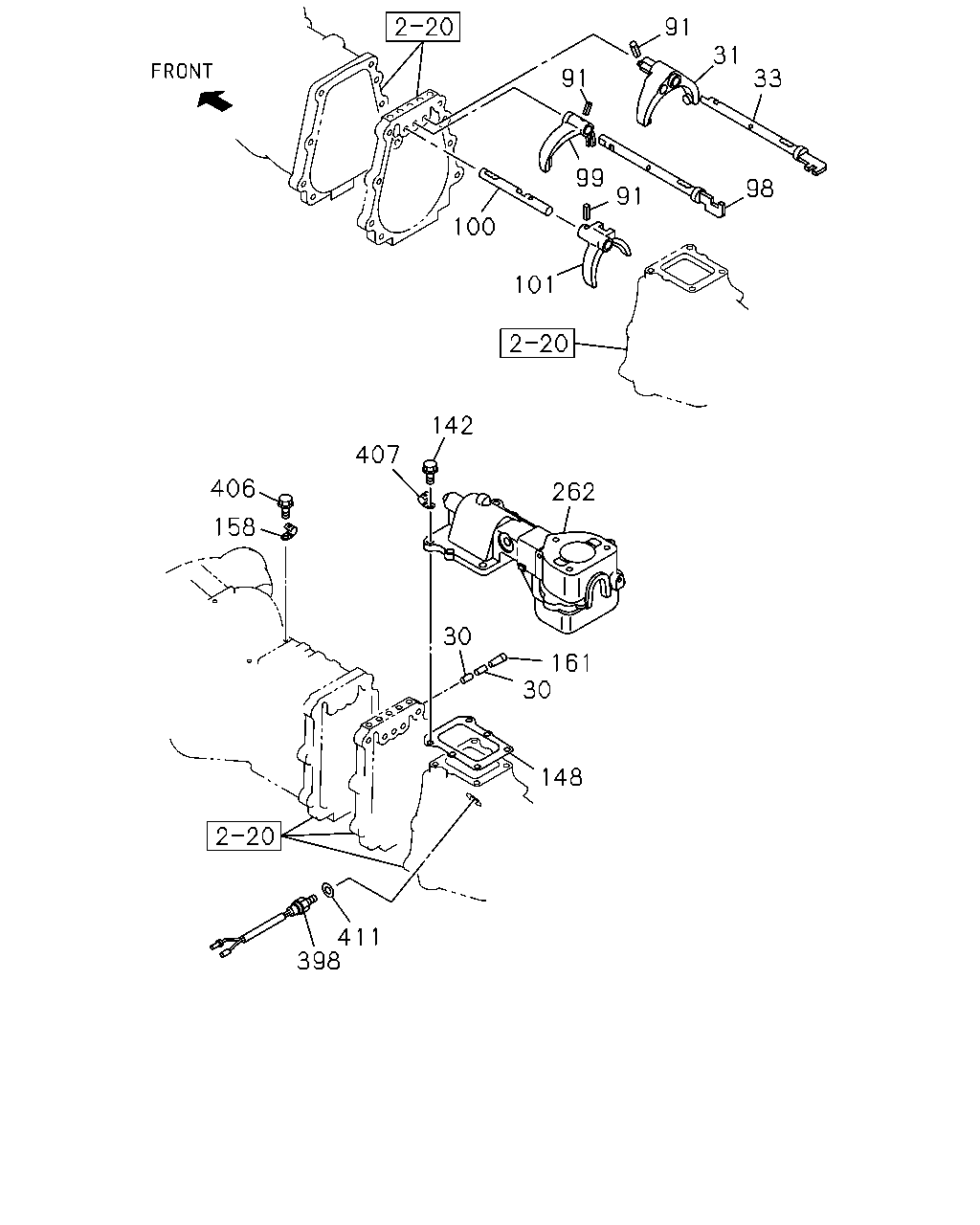

91 91 99 100 101 91 31 98 33 262 142 407 406 30 158 161 30 148 411 398

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
30	04.307 PIN; INTER LK OD=5.5 L=10	5-33534-002-1	02	1	1304-	●	●	●	●
31	04.302 ARM; SHIFT,LOW & 2ND	8-97024-503-1	01	1	1304-	●
31	04.302 ARM; SHIFT,LOW & 2ND	8-94421-912-2	01	1	1304-		●	●	●
33	04.309 ROD; SHIFT,LOW & 2ND	8-97213-047-0	01	1	1304-	●
33	04.309 ROD; SHIFT,LOW & 2ND	8-98203-156-0	01	1	1304-					●
33	04.309 ROD; SHIFT,LOW & 2ND	8-97019-061-2	01	1	1304-		●	●	●
91	04.302 PIN; SPR,SHIFT ARM	8-97164-994-0	01	1	1304-					●
91	04.302 PIN; SPR,SHIFT ARM 04.303 D=4.2 L=25	8-94171-541-0	03	1	1304-	●	●	●	●
98	04.309 ROD; SHIFT,TOP & 3RD	8-97213-045-0	01	1	1304-	●
98	04.309 ROD; SHIFT,TOP & 3RD	8-97019-060-3	01	1	1304-		●	●	●
99	04.302 ARM; SHIFT,4TH & 3RD	8-94435-153-1	01	1	1304-	●
99	04.302 ARM; SHIFT,4TH & 3RD	8-94421-911-2	01	1	1304-		●	●	●
100	04.309 ROD; SHIFT,REV & 5TH	8-97232-885-0	01	1	1304-	●
101	04.302 ARM; SHIFT,REV & 5TH EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-94448-755-2	01	1	1304-		●	●
101	04.302 ARM; SHIFT,REV & 5TH	8-94455-851-3	01	1	1304-	●
101	04.302 ARM; SHIFT,REV & 5TH IDENTIFICATION LABEL FOR KD<6UT>	8-97232-894-0	01	1	1304-		●	●
101	04.302 ARM; SHIFT,REV & 5TH	8-97232-894-0	01	1	1304-				●
142	04.012 BOLT; QUAD BOX 04.356 M8X22 FLANGE	8-97365-376-0	04	1	1304-	●	●	●	●
148	04.015 GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	8-97184-922-0	01	1	1304-	●
148	04.015 GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	8-97083-599-0	01	1	1304-		●	●	●
158	04.105 CLIP; HARNESS 03.671 ID=12 VINYL CHLORIDE	8-97367-984-1	02	1	1304-	●
161	04.307 PLUG; INTER LK HOLE	8-94239-543-1	01	1	1304-	●	●	●	●
262	04.105 BOX ASM; SHIFT CONT	8-98219-762-0	01	1	1304-	●
262	04.105 BOX ASM; SHIFT CONT	8-98219-761-0	01	1	1304-		●	●	●
398	02.698 SWITCH; REV LAMP	8-98254-591-0	01	1	1503-				●
398	02.698 SWITCH; REV LAMP CONGO EQUIPMENT(CDF)	8-98254-591-0	01	1	1503-		●
398	02.698 SWITCH; REV LAMP	8-98208-758-0	01	1	1304-					●
398	02.698 SWITCH; REV LAMP	8-98103-750-0	01	1	1304-1502	●	●	●	●
398	02.698 SWITCH; REV LAMP	8-98103-750-0	01	1	1503-	●		●
398	02.698 SWITCH; REV LAMP EXC. CONGO EQUIPMENT(CDF)	8-98103-750-0	01	1	1503-		●
406	02.559 BOLT; HARNESS CLIP 02.343 M8X16 FLANGE	0-28050-816-0	01	1	1304-	●
407	02.698 CLIP; SWITCH HARNESS 03.671 ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1304-	●
411	02.698 GASKET; REV LAMP SW ALSO INCLUDED IN GASKET SET(M/T). 04.075 ID=14.2	8-94462-114-0	01	1	1304-	●
411	02.698 GASKET; REV LAMP SW ALSO INCLUDED IN GASKET SET(M/T). 04.054	8-98210-376-0	01	1	1304-					●

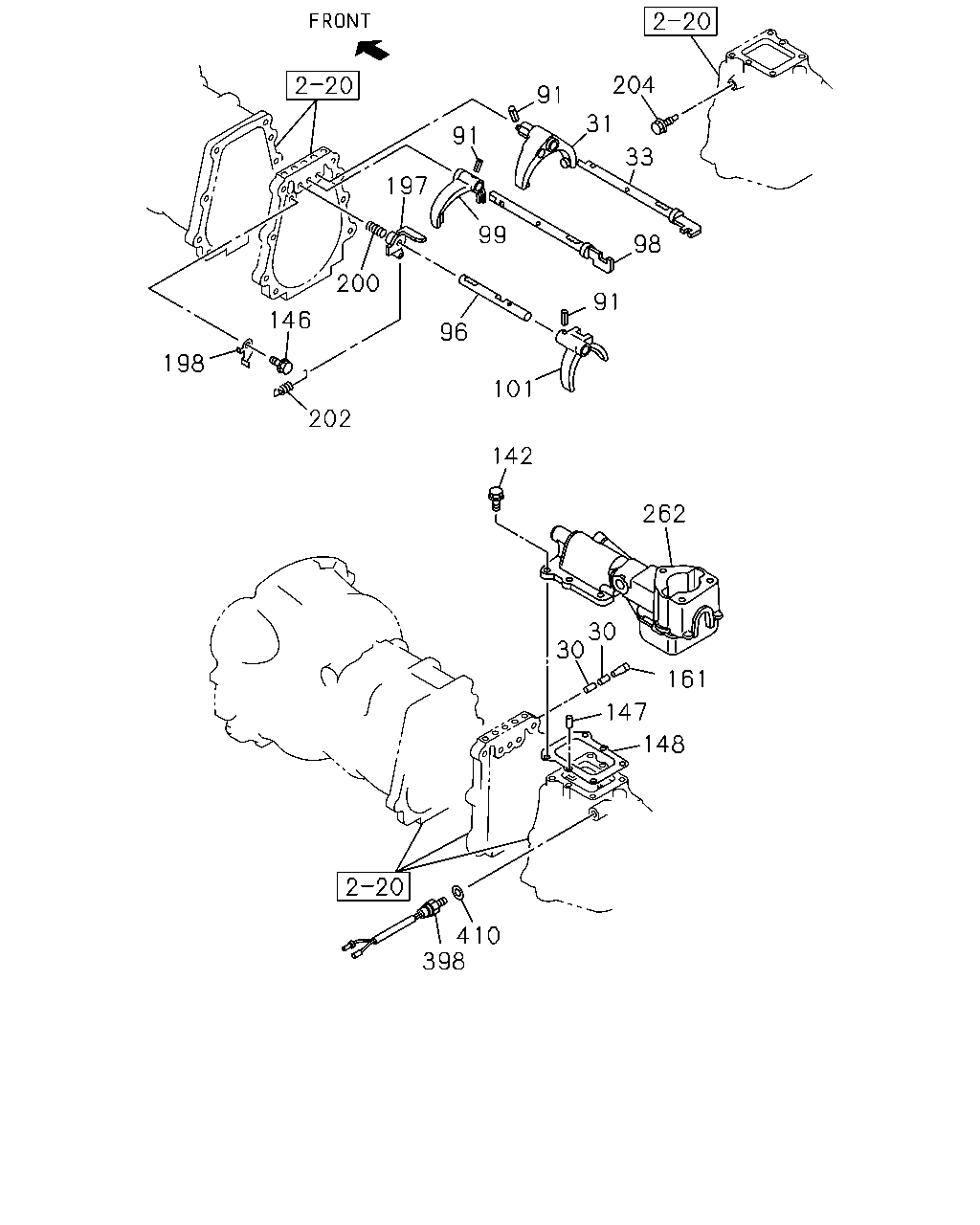

398 148 147 30 161 30 410 262 142 101 91 98 33 204 31 91 91 99 197 96 200 146 198 202

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
30	04.307 PIN; INTER LK OD=5.5 L=10	5-33534-002-1	02	1	1304-	●	●	●	●
31	04.302 ARM; SHIFT,LOW & 2ND	8-97024-503-1	01	1	1304-	●
31	04.302 ARM; SHIFT,LOW & 2ND	8-94421-912-2	01	1	1304-		●	●	●
33	04.309 ROD; SHIFT,LOW & 2ND	8-97213-047-0	01	1	1304-	●
33	04.309 ROD; SHIFT,LOW & 2ND	8-98203-156-0	01	1	1304-					●
33	04.309 ROD; SHIFT,LOW & 2ND	8-97019-061-2	01	1	1304-		●	●	●
91	04.302 PIN; SPR,SHIFT ARM	8-97164-994-0	01	1	1304-					●
91	04.302 PIN; SPR,SHIFT ARM 04.303 D=4.2 L=25	8-94171-541-0	03	1	1304-	●	●	●	●
96	04.309 ROD; SHIFT,5TH EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-94440-079-1	01	1	1304-		●	●
96	04.309 ROD; SHIFT,5TH IDENTIFICATION LABEL FOR KD<6UT>	8-97232-886-0	01	1	1304-		●	●
96	04.309 ROD; SHIFT,5TH	8-97232-886-0	01	1	1304-				●
98	04.309 ROD; SHIFT,TOP & 3RD	8-97213-045-0	01	1	1304-	●
98	04.309 ROD; SHIFT,TOP & 3RD	8-97019-060-3	01	1	1304-		●	●	●
99	04.302 ARM; SHIFT,4TH & 3RD	8-94435-153-1	01	1	1304-	●
99	04.302 ARM; SHIFT,4TH & 3RD	8-94421-911-2	01	1	1304-		●	●	●
101	04.302 ARM; SHIFT,REV & 5TH EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-94448-755-2	01	1	1304-		●	●
101	04.302 ARM; SHIFT,REV & 5TH	8-94455-851-3	01	1	1304-	●
101	04.302 ARM; SHIFT,REV & 5TH IDENTIFICATION LABEL FOR KD<6UT>	8-97232-894-0	01	1	1304-		●	●
101	04.302 ARM; SHIFT,REV & 5TH	8-97232-894-0	01	1	1304-				●
142	04.012 BOLT; QUAD BOX 04.356 M8X22 FLANGE	8-97365-376-0	04	1	1304-	●	●	●	●
146	04.032 BOLT; REV INHIBITOR EXC. IDENTIFICATION LABEL FOR KD<6UT> 04.338 M8X20 FLANGE	0-28050-820-0	01	1	1304-		●	●
146	04.032 BOLT; REV INHIBITOR IDENTIFICATION LABEL FOR KD<6UT> 01.531 M8X20 FLANGE	0-28650-820-0	01	1	1304-		●	●
146	04.032 BOLT; REV INHIBITOR 01.531 M8X20 FLANGE	0-28650-820-0	01	1	1304-				●
147	04.020 PIN; KNOCK 04.510 OD=6 L=12	9-08150-612-0	02	1	1304-		●	●	●
148	04.015 GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	8-97184-922-0	01	1	1304-	●
148	04.015 GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	8-97083-599-0	01	1	1304-		●	●	●
161	04.307 PLUG; INTER LK HOLE	8-94239-543-1	01	1	1304-	●	●	●	●
197	04.309 INHIBITOR; REV SHIFT	8-94448-753-0	01	1	1304-		●	●	●
198	04.309 BRACKET; REV INHIBITOR	8-94448-199-0	01	1	1304-		●	●	●
200	04.309 SPRING; REV INHIBITOR,COMP	8-94448-807-0	01	1	1304-		●	●	●
202	04.309 SPRING; REV INHIBITOR,EXT	8-97017-500-0	01	1	1304-		●	●	●
204	04.309 STOPPER; REV INHIBITOR	8-98035-673-0	01	1	1304-		●	●	●
262	04.105 BOX ASM; SHIFT CONT	8-98219-762-0	01	1	1304-	●
262	04.105 BOX ASM; SHIFT CONT	8-98219-761-0	01	1	1304-		●	●	●
398	02.698 SWITCH; REV LAMP	8-98254-591-0	01	1	1503-				●
398	02.698 SWITCH; REV LAMP CONGO EQUIPMENT(CDF)	8-98254-591-0	01	1	1503-		●
398	02.698 SWITCH; REV LAMP	8-98208-758-0	01	1	1304-					●
398	02.698 SWITCH; REV LAMP	8-98103-750-0	01	1	1304-1502	●	●	●	●
398	02.698 SWITCH; REV LAMP	8-98103-750-0	01	1	1503-	●		●
398	02.698 SWITCH; REV LAMP EXC. CONGO EQUIPMENT(CDF)	8-98103-750-0	01	1	1503-		●
410	04.054 GASKET; REV SW ALSO INCLUDED IN GASKET SET(M/T). 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	1304-		●	●	●

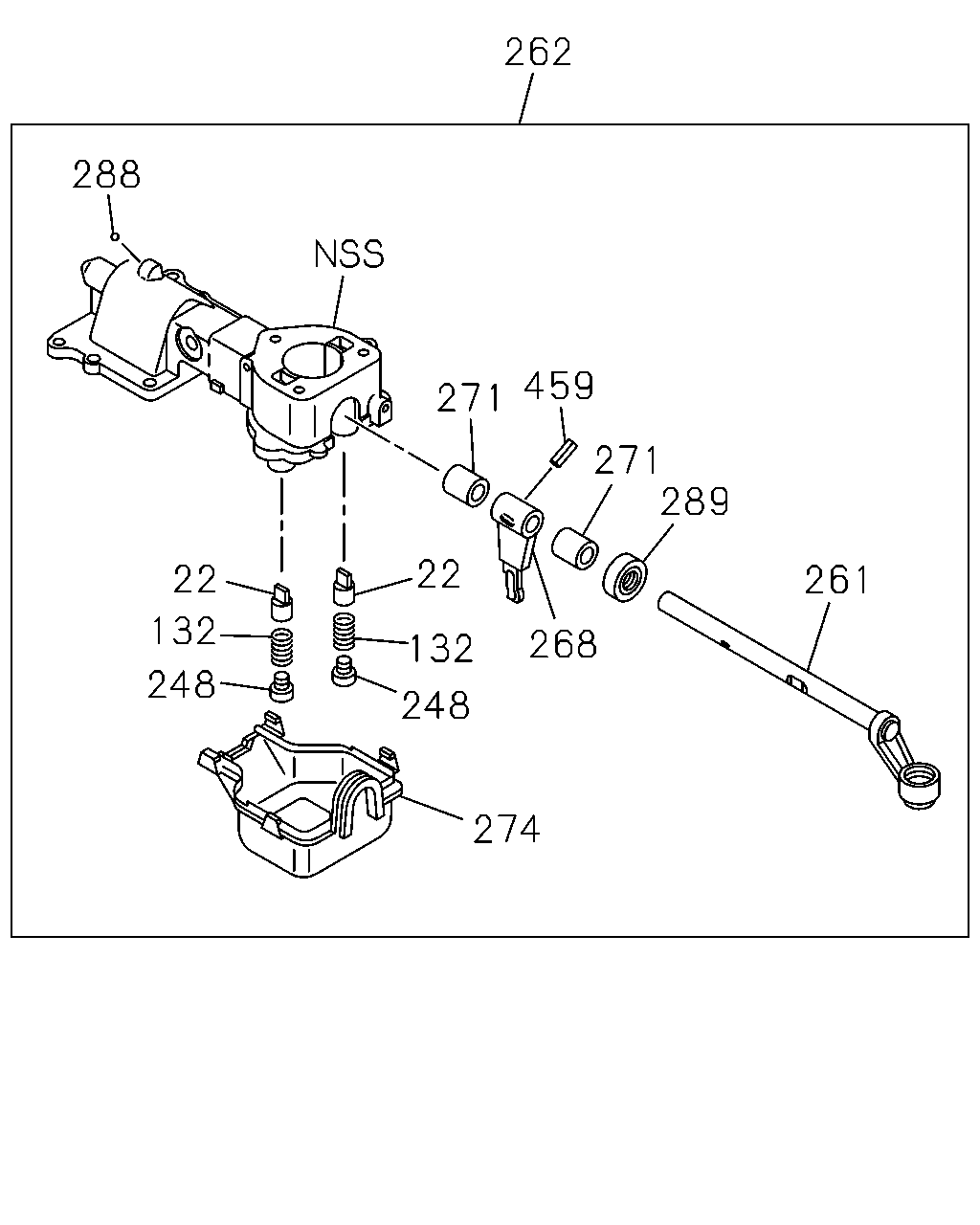

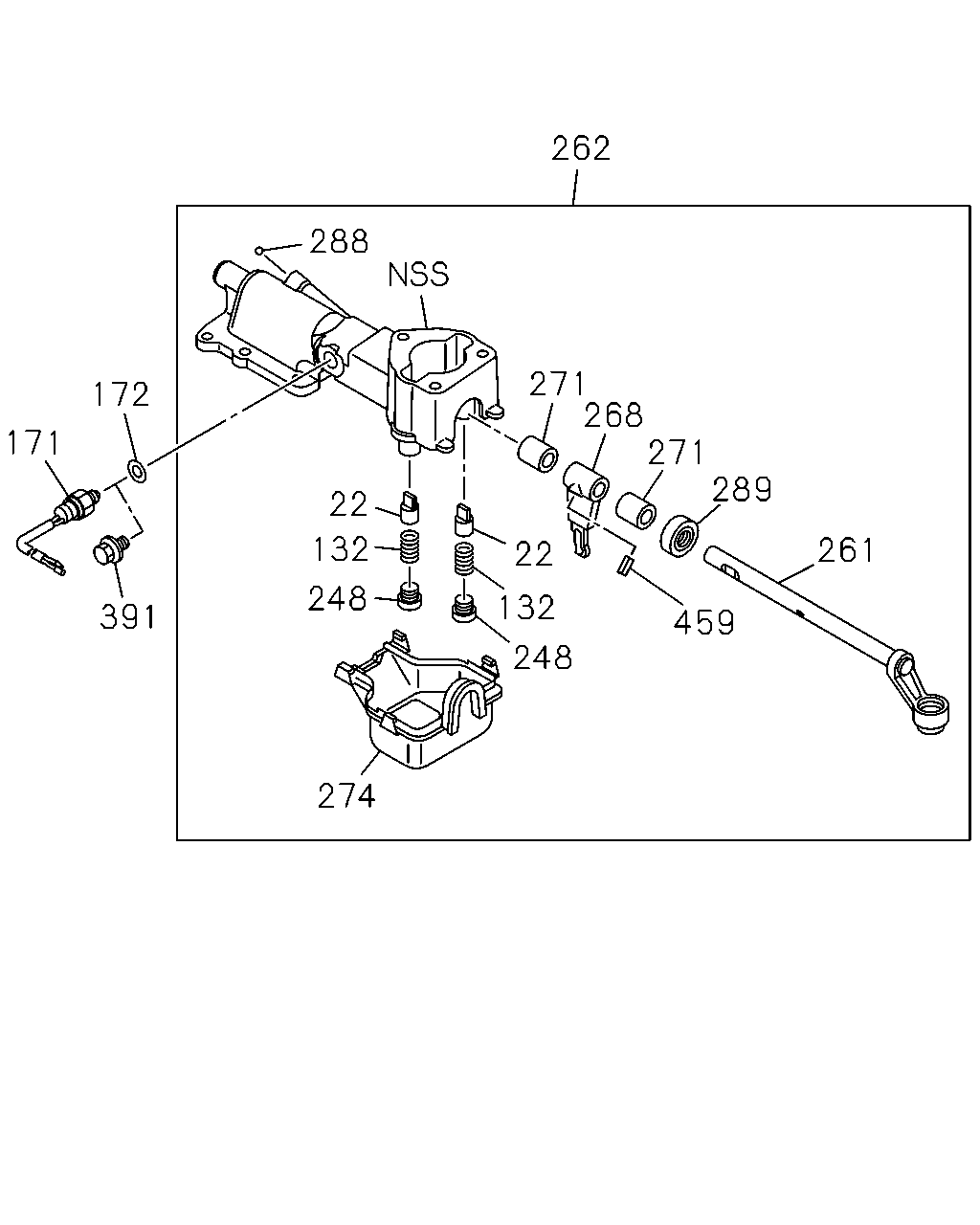

262 289 271 459 268 271 22 132 248 274 248 132 22 288 172 171 391 261

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
22	04.307 CAP; RETURN SPR,SHIFT BLOCK	8-97181-326-0	02	1	1304-	●	●	●	●
132	04.027 SPRING; SELECT STOP	8-97181-395-0	02	1	1304-	●	●	●	●
171	04.054 SWITCH; NEUTRAL	8-98103-743-0	01	1	1304-		●
171	04.054 SWITCH; NEUTRAL	8-98203-248-0	01	1	1304-					●
172	04.054 GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T). 04.075 ID=14.2	8-94462-114-0	01	1	1304-		●	●	●
172	04.054 GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T).	8-98210-376-0	01	1	1304-					●
248	04.105 RETAINER; CONT BOX	8-98203-143-0	01	1	1304-					●
248	04.105 RETAINER; CONT BOX	8-98210-983-0	02	1	1304-	●	●	●	●
261	04.309 ROD; GEAR CONT	8-97257-825-0	01	1	1304-	●
261	04.309 ROD; GEAR CONT	8-97257-909-0	01	1	1304-		●	●	●
262	04.105 BOX ASM; SHIFT CONT	8-98219-762-0	01	1	1304-	●
262	04.105 BOX ASM; SHIFT CONT	8-98219-761-0	01	1	1304-		●	●	●
268	04.302 LEVER; CONT,INTERNAL	8-97184-894-0	01	1	1304-	●
268	04.302 LEVER; CONT,INTERNAL	8-97184-895-0	01	1	1304-		●	●	●
271	04.105 BUSHING; QUAD BOX ID=14 L=12	8-98017-908-0	02	1	1304-	●	●	●	●
274	04.105 COVER; SHAFT,QUAD BOX	8-97181-324-1	01	1	1304-	●	●	●	●
288	04.307 PLUG; AIR BREATHER	9-00097-517-0	01	1	1304-	●	●	●	●
289	04.107 SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	8-98017-744-0	01	1	1304-	●	●	●	●
391	04.104 PLUG; SW HOLE M14X11	8-98035-674-0	01	1	1304-			●	●
459	04.302 PIN; SPR,ROD TO ARM OD=5	8-97184-905-0	01	1	1304-	●	●	●	●

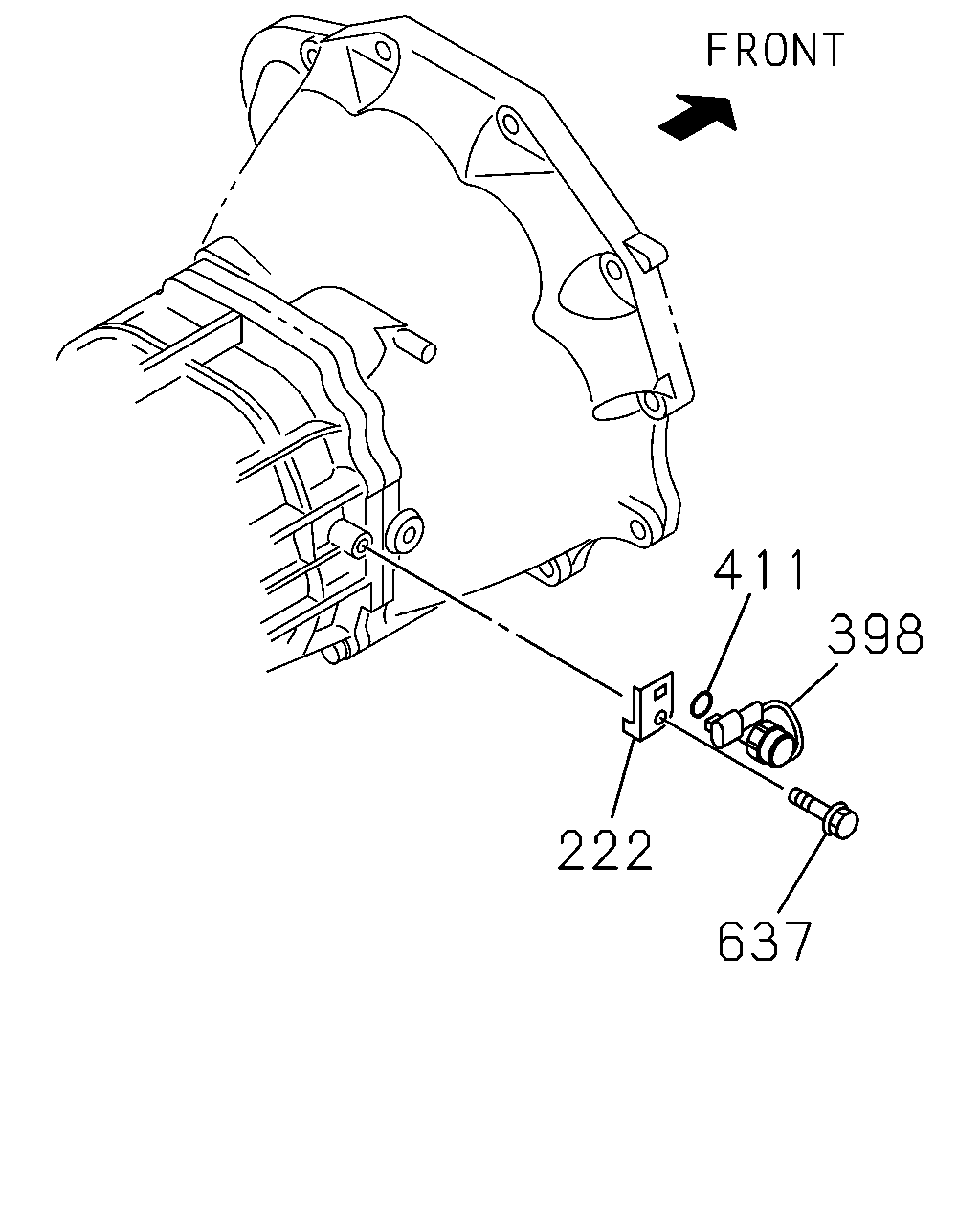

411 398 637 222

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
222	04.057 BRACKET; CLIP	8-98203-246-0	01	1	1304-					●
398	02.698 SWITCH; REV LAMP	8-98254-591-0	01	1	1503-				●
398	02.698 SWITCH; REV LAMP CONGO EQUIPMENT(CDF)	8-98254-591-0	01	1	1503-		●
398	02.698 SWITCH; REV LAMP	8-98208-758-0	01	1	1304-					●
398	02.698 SWITCH; REV LAMP	8-98103-750-0	01	1	1304-1502	●	●	●	●
398	02.698 SWITCH; REV LAMP	8-98103-750-0	01	1	1503-	●		●
398	02.698 SWITCH; REV LAMP EXC. CONGO EQUIPMENT(CDF)	8-98103-750-0	01	1	1503-		●
411	02.698 GASKET; REV LAMP SW ALSO INCLUDED IN GASKET SET(M/T). 04.075 ID=14.2	8-94462-114-0	01	1	1304-	●
411	02.698 GASKET; REV LAMP SW ALSO INCLUDED IN GASKET SET(M/T). 04.054	8-98210-376-0	01	1	1304-					●
637	04.105 BOLT; BRACKET	8-98203-256-0	01	1	1304-					●

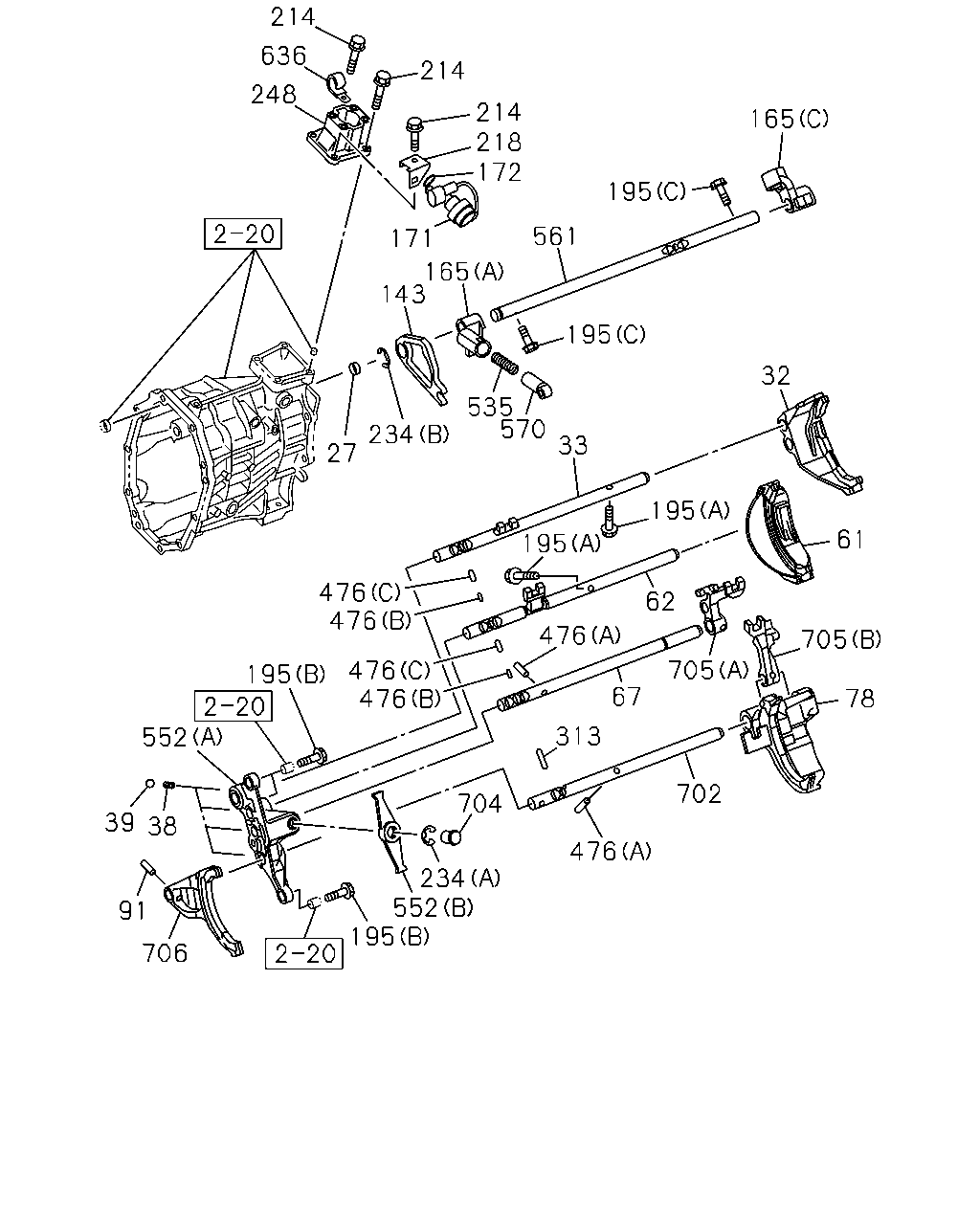

214 214 636 214 165 195 561 71 248 165 143 195 535 234 27 570 33 32 61 705 78 705 702 476 704 313 476 476 195 552 39 38 91 706 476 62 195 195 476 476 67 218 172 234 552 195

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
27	04.302 BUSHING; SHIFT ROD 04.317	8-89048-304-0	01	1	1304-					●
32	04.303 ARM; SHIFT,1ST & 2ND	8-98203-153-0	01	1	1304-					●
33	04.309 ROD; SHIFT,LOW & 2ND	8-97213-047-0	01	1	1304-	●
33	04.309 ROD; SHIFT,LOW & 2ND	8-98203-156-0	01	1	1304-					●
33	04.309 ROD; SHIFT,LOW & 2ND	8-97019-061-2	01	1	1304-		●	●	●
38	04.311 SPRING; DETENT	8-98203-171-0	04	1	1304-					●
39	04.307 BALL; DETENT	8-97165-089-0	04	1	1304-					●
61	04.303 ARM; SHIFT,3RD & 4TH	8-98203-150-0	01	1	1304-					●
62	04.309 ROD; SHIFT,3RD & 4TH	8-98203-157-0	01	1	1304-					●
67	04.309 ROD; SHIFT,5TH & 6TH	8-98203-158-0	01	1	1304-					●
78	04.302 ARM; SHIFT,REV	8-98203-149-0	01	1	1304-					●
91	04.302 PIN; SPR,SHIFT ARM	8-97164-994-0	01	1	1304-					●
91	04.302 PIN; SPR,SHIFT ARM 04.303 D=4.2 L=25	8-94171-541-0	03	1	1304-	●	●	●	●
143	04.030 CAM; STOPPER,REV INHIBITOR	8-98203-148-0	01	1	1304-					●
165	04.302 LEVER; SHIFT 4X2(TFB***) (B)	8-98203-142-0	01	1	1304-					●
165	04.302 LEVER; SHIFT (A)	8-98203-160-0	01	1	1304-					●
165	04.302 LEVER; SHIFT 4X4(TFS***) (C)	8-98203-141-0	01	1	1304-					●
172	04.054 GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T). 04.075 ID=14.2	8-94462-114-0	01	1	1304-		●	●	●
172	04.054 GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T).	8-98210-376-0	01	1	1304-					●
195	04.105 BOLT (A)	8-97164-962-0	02	1	1304-					●
195	04.105 BOLT (B)	8-98203-146-0	04	1	1304-					●
195	04.105 BOLT (C)	8-98203-167-0	02	1	1304-					●
214	04.510 BOLT; CONT BOX,SUB TRANS 04.105	8-98203-146-0	04	1	1304-					●
218	04.057 BRACKET; HARNESS CLIP,QUAD BOX	8-98203-245-0	01	1	1304-					●
234	04.311 RING; SNAP (A)	8-98203-175-0	01	1	1304-					●
234	04.311 RING; SNAP (B)	8-98203-176-0	01	1	1304-					●
248	04.105 RETAINER; CONT BOX	8-98203-143-0	01	1	1304-					●
248	04.105 RETAINER; CONT BOX	8-98210-983-0	02	1	1304-	●	●	●	●
313	04.309 ROLLER; SHAFT	8-98203-168-0	01	1	1304-					●
476	04.311 PIN; SHIFT ROD 04.303 (A)	8-97164-925-0	02	1	1304-					●
476	04.311 PIN; SHIFT ROD (B)	8-98203-172-0	02	1	1304-					●
476	04.311 PIN; SHIFT ROD (C)	8-98203-173-0	02	1	1304-					●
535	04.302 SPRING; LEVER	8-98203-170-0	01	1	1304-					●
552	04.105 BRACKET (A)	8-98203-147-0	01	1	1304-					●
552	04.105 BRACKET (B)	8-98203-151-0	01	1	1304-					●
561	04.309 ROD; SHIFT 4X2(TFB***)	8-98203-163-0	01	1	1304-					●
561	04.309 ROD; SHIFT 4X4(TFS***)	8-98203-162-0	01	1	1304-					●
570	04.311 PIN; SHIFT LEVER	8-98203-166-0	01	1	1304-					●
636	04.057 BRACKET; CLIP 02.343 ID=22 L=35	8-97375-643-0	01	1	1304-					●
702	04.309 ROD; REVERSE	8-98203-159-0	01	1	1304-					●
704	04.105 PIVOT	8-98203-152-0	01	1	1304-					●
705	04.309 HEAD; GEAR SHIFT (A)	8-98236-473-0	01	1	1304-					●
705	04.309 HEAD; GEAR SHIFT (B)	8-98203-155-0	01	1	1304-					●
706	04.309 FORK; GEAR SHIFT	8-98203-161-0	01	1	1304-					●

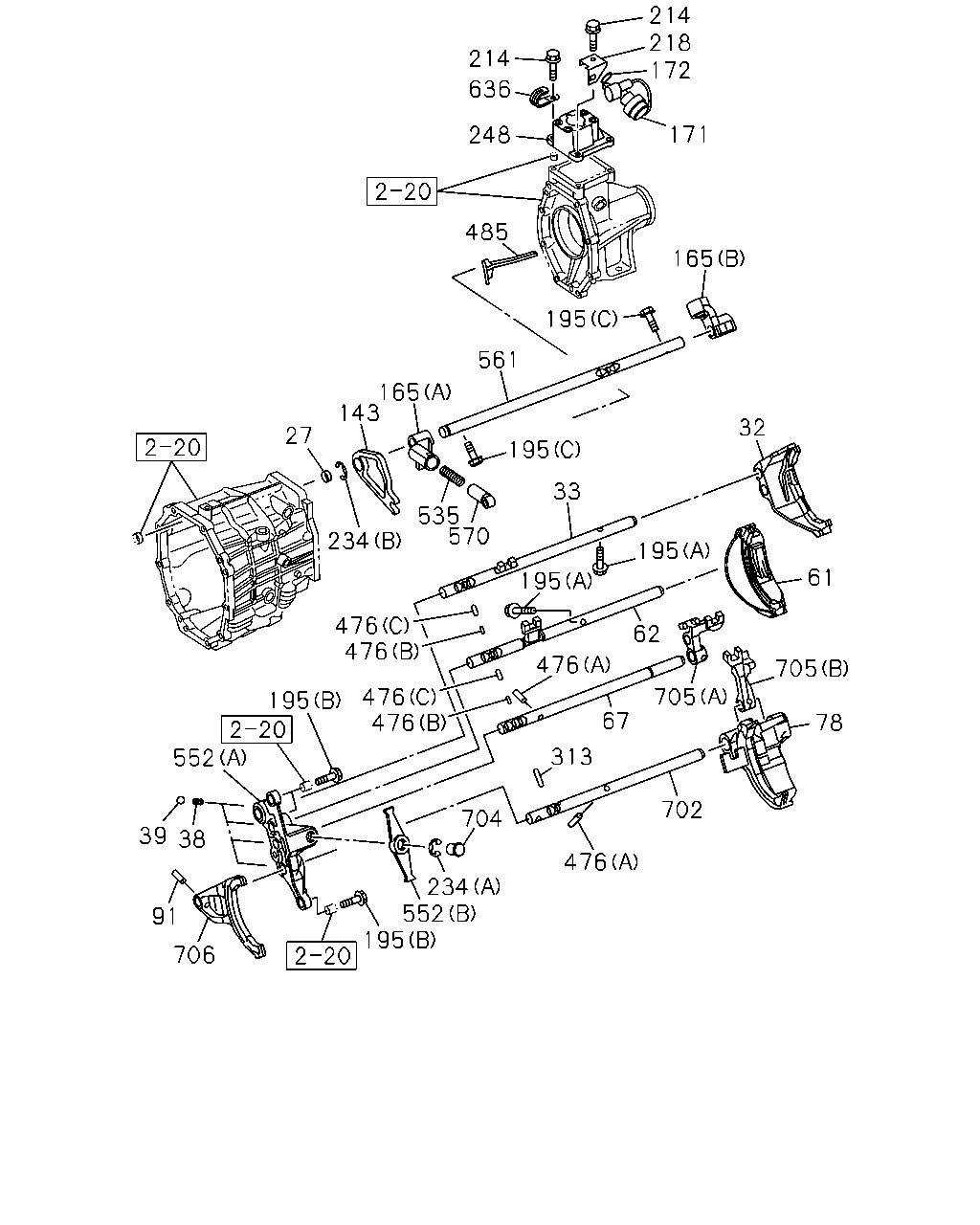

214 218 172 171 214 636 248 485 165 195 561 165 143 195 32 61 195 195 570 535 234 27 476 476 476 476 195 552 39 38 705 78 705 62 476 67 702 476 704 234 552 195 706 91 33 313

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
27	04.302 BUSHING; SHIFT ROD 04.317	8-89048-304-0	01	1	1304-					●
32	04.303 ARM; SHIFT,1ST & 2ND	8-98203-153-0	01	1	1304-					●
33	04.309 ROD; SHIFT,LOW & 2ND	8-97213-047-0	01	1	1304-	●
33	04.309 ROD; SHIFT,LOW & 2ND	8-98203-156-0	01	1	1304-					●
33	04.309 ROD; SHIFT,LOW & 2ND	8-97019-061-2	01	1	1304-		●	●	●
38	04.311 SPRING; DETENT	8-98203-171-0	04	1	1304-					●
39	04.307 BALL; DETENT	8-97165-089-0	04	1	1304-					●
61	04.303 ARM; SHIFT,3RD & 4TH	8-98203-150-0	01	1	1304-					●
62	04.309 ROD; SHIFT,3RD & 4TH	8-98203-157-0	01	1	1304-					●
67	04.309 ROD; SHIFT,5TH & 6TH	8-98203-158-0	01	1	1304-					●
78	04.302 ARM; SHIFT,REV	8-98203-149-0	01	1	1304-					●
91	04.302 PIN; SPR,SHIFT ARM	8-97164-994-0	01	1	1304-					●
91	04.302 PIN; SPR,SHIFT ARM 04.303 D=4.2 L=25	8-94171-541-0	03	1	1304-	●	●	●	●
143	04.030 CAM; STOPPER,REV INHIBITOR	8-98203-148-0	01	1	1304-					●
165	04.302 LEVER; SHIFT 4X2(TFB***) (B)	8-98203-142-0	01	1	1304-					●
165	04.302 LEVER; SHIFT (A)	8-98203-160-0	01	1	1304-					●
165	04.302 LEVER; SHIFT 4X4(TFS***) (C)	8-98203-141-0	01	1	1304-					●
171	04.054 SWITCH; NEUTRAL	8-98103-743-0	01	1	1304-		●
171	04.054 SWITCH; NEUTRAL	8-98203-248-0	01	1	1304-					●
172	04.054 GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T). 04.075 ID=14.2	8-94462-114-0	01	1	1304-		●	●	●
172	04.054 GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T).	8-98210-376-0	01	1	1304-					●
195	04.105 BOLT (A)	8-97164-962-0	02	1	1304-					●
195	04.105 BOLT (B)	8-98203-146-0	04	1	1304-					●
195	04.105 BOLT (C)	8-98203-167-0	02	1	1304-					●
214	04.510 BOLT; CONT BOX,SUB TRANS 04.105	8-98203-146-0	04	1	1304-					●
218	04.057 BRACKET; HARNESS CLIP,QUAD BOX	8-98203-245-0	01	1	1304-					●
234	04.311 RING; SNAP (A)	8-98203-175-0	01	1	1304-					●
234	04.311 RING; SNAP (B)	8-98203-176-0	01	1	1304-					●
248	04.105 RETAINER; CONT BOX	8-98203-143-0	01	1	1304-					●
248	04.105 RETAINER; CONT BOX	8-98210-983-0	02	1	1304-	●	●	●	●
313	04.309 ROLLER; SHAFT	8-98203-168-0	01	1	1304-					●
476	04.311 PIN; SHIFT ROD 04.303 (A)	8-97164-925-0	02	1	1304-					●
476	04.311 PIN; SHIFT ROD (B)	8-98203-172-0	02	1	1304-					●
476	04.311 PIN; SHIFT ROD (C)	8-98203-173-0	02	1	1304-					●
485	04.105 TROUGH; OIL 4X2(TFB***)	8-98203-178-0	01	1	1304-					●
535	04.302 SPRING; LEVER	8-98203-170-0	01	1	1304-					●
552	04.105 BRACKET (A)	8-98203-147-0	01	1	1304-					●
552	04.105 BRACKET (B)	8-98203-151-0	01	1	1304-					●
561	04.309 ROD; SHIFT 4X2(TFB***)	8-98203-163-0	01	1	1304-					●
561	04.309 ROD; SHIFT 4X4(TFS***)	8-98203-162-0	01	1	1304-					●
570	04.311 PIN; SHIFT LEVER	8-98203-166-0	01	1	1304-					●
636	04.057 BRACKET; CLIP 02.343 ID=22 L=35	8-97375-643-0	01	1	1304-					●
702	04.309 ROD; REVERSE	8-98203-159-0	01	1	1304-					●
704	04.105 PIVOT	8-98203-152-0	01	1	1304-					●
705	04.309 HEAD; GEAR SHIFT (A)	8-98236-473-0	01	1	1304-					●
705	04.309 HEAD; GEAR SHIFT (B)	8-98203-155-0	01	1	1304-					●
706	04.309 FORK; GEAR SHIFT	8-98203-161-0	01	1	1304-					●

262 288 271 459 271 289 261 274 268 248 22 132 132 248 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
22	04.307 CAP; RETURN SPR,SHIFT BLOCK	8-97181-326-0	02	1	1304-	●	●	●	●
132	04.027 SPRING; SELECT STOP	8-97181-395-0	02	1	1304-	●	●	●	●
248	04.105 RETAINER; CONT BOX	8-98203-143-0	01	1	1304-					●
248	04.105 RETAINER; CONT BOX	8-98210-983-0	02	1	1304-	●	●	●	●
261	04.309 ROD; GEAR CONT	8-97257-825-0	01	1	1304-	●
261	04.309 ROD; GEAR CONT	8-97257-909-0	01	1	1304-		●	●	●
262	04.105 BOX ASM; SHIFT CONT	8-98219-762-0	01	1	1304-	●
262	04.105 BOX ASM; SHIFT CONT	8-98219-761-0	01	1	1304-		●	●	●
268	04.302 LEVER; CONT,INTERNAL	8-97184-894-0	01	1	1304-	●
268	04.302 LEVER; CONT,INTERNAL	8-97184-895-0	01	1	1304-		●	●	●
271	04.105 BUSHING; QUAD BOX ID=14 L=12	8-98017-908-0	02	1	1304-	●	●	●	●
274	04.105 COVER; SHAFT,QUAD BOX	8-97181-324-1	01	1	1304-	●	●	●	●
288	04.307 PLUG; AIR BREATHER	9-00097-517-0	01	1	1304-	●	●	●	●
289	04.107 SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	8-98017-744-0	01	1	1304-	●	●	●	●
459	04.302 PIN; SPR,ROD TO ARM OD=5	8-97184-905-0	01	1	1304-	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
