◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51474 - TFR/TFS-RHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-26A - MANUAL TRANSMISSION GEAR ▶
2-26A — MANUAL TRANSMISSION GEAR (#117132) — 843 parça

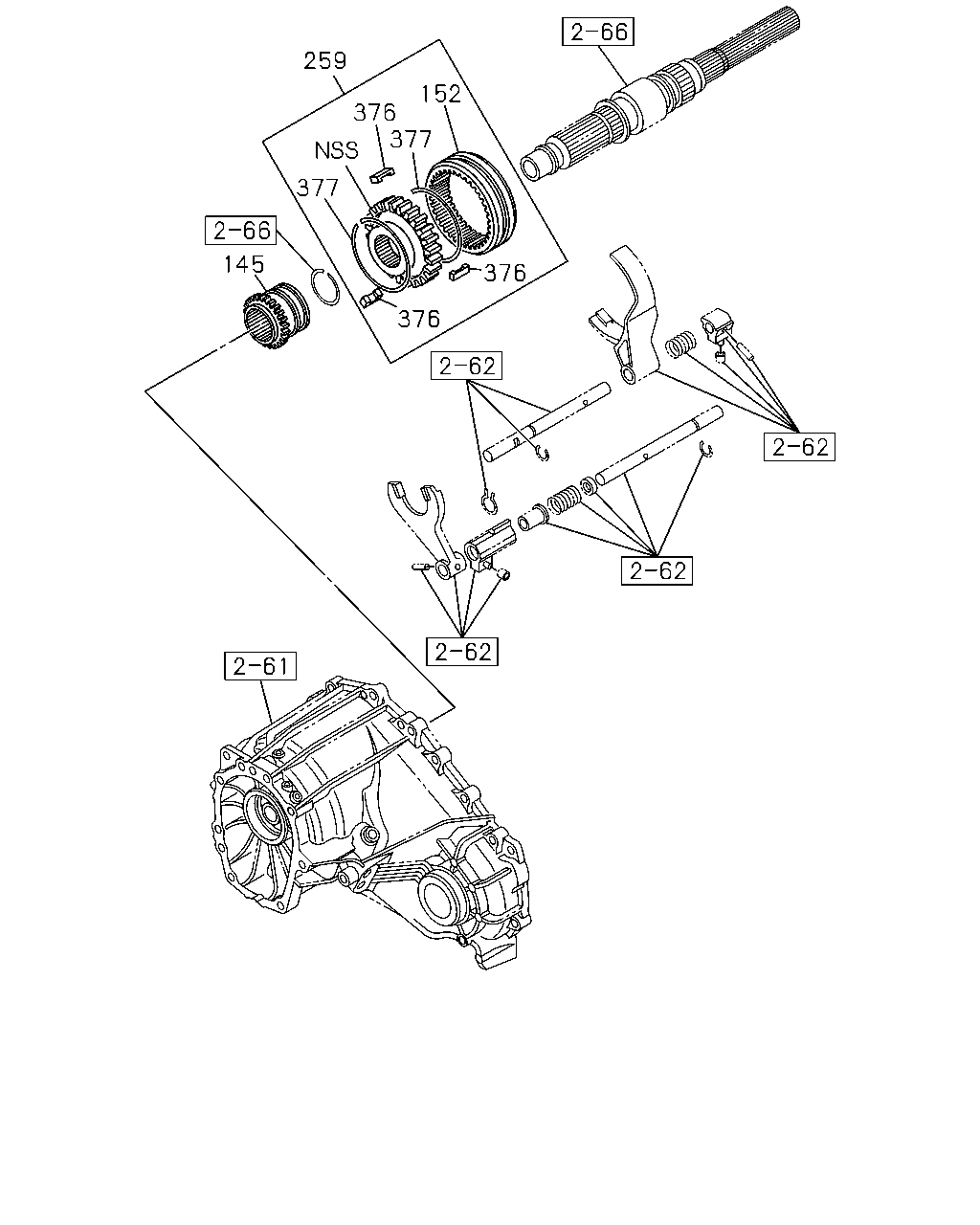

çizim 342895
259 377 145 376 152 377 376 376
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
145 04.530 SLEEVE; HIGH-LOW SHIFT,TRANSFER
4X4(TFS***) 		8-98063-369-1 01 1 1304- ● ● ●
152 04.535 SLEEVE; 4X2-4X4 SHIFT,TRANSFER
4X4(TFS***) 		8-94363-060-0 01 1 1304- ● ● ●
259 04.538 SYNCHRONIZER; 4X2-4X4,TRANSFER
4X4(TFS***) 		8-97234-225-0 01 1 1304- ● ● ●
376 04.384 INSERT; 4X2-4X4 SYN,TRANSFER
4X4(TFS***) 		8-97238-590-0 03 1 1304- ● ● ●
377 04.384 SPRING; INSERT,4X2-4X4 SYN,TRANS
4X4(TFS***) 		8-94448-045-0 02 1 1304- ● ● ●

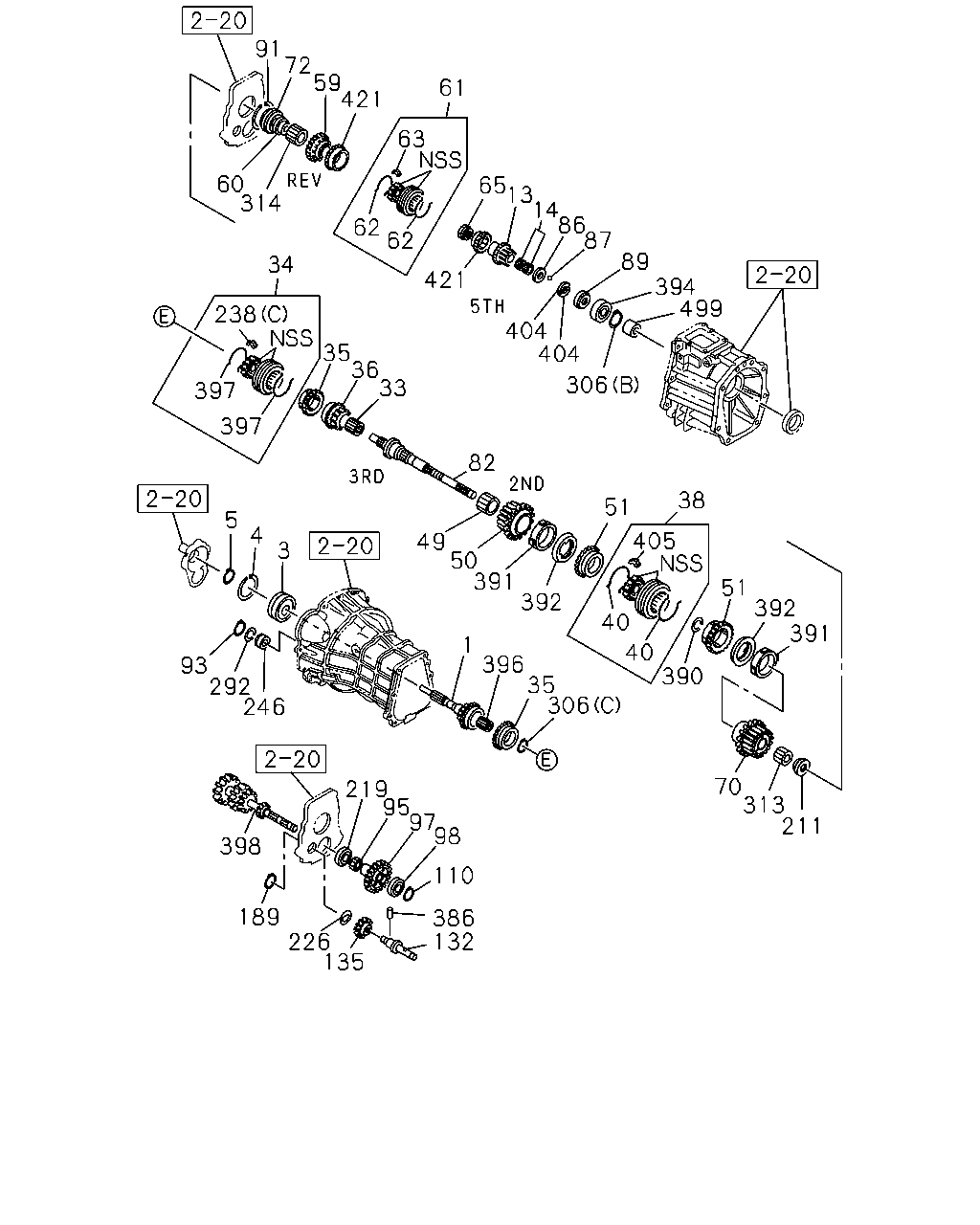

çizim 344645
91 72 59 421 61 63 65 13 86 14 87 89 394 499 306 404 404 421 62 62 314 60 34 238 35 36 33 82 51 38 51 392 391 405 40 40 390 70 313 211 306 35 396 392 391 50 49 397 397 5 4 3 93 292 246 219 95 97 8 110 386 132 135 226 189 398 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 04.351 SHAFT; TOP GEAR,TRANS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0) IDENTIFICATION LABEL FOR KD<6UT> Z=26 		8-98210-225-0 01 1 1304-1307 ● ●
1 04.351 SHAFT; TOP GEAR,TRANS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0) IDENTIFICATION LABEL FOR KD<6UT> Z=26 		8-98210-225-0 01 1 1308- ● ●
1 04.351 SHAFT; TOP GEAR,TRANS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0) EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=26 		8-98210-225-0 01 1 1304- ● ●
1 04.351 SHAFT; TOP GEAR,TRANS
Z=23 		8-94435-160-2 01 1 1304- ●
1 04.351 SHAFT; TOP GEAR,TRANS
Z=25 		8-98210-240-0 01 1 1304- ●
1 04.351 SHAFT; TOP GEAR,TRANS
4JK1-TCX ENG(LR0) IDENTIFICATION LABEL FOR KD<6UT> Z=26 		8-98210-248-0 01 1 1304-1307 ●
1 04.351 SHAFT; TOP GEAR,TRANS
4JK1-TCX ENG(LR0) IDENTIFICATION LABEL FOR KD<6UT> Z=26 		8-98233-594-0 01 1 1308- ●
1 04.351 SHAFT; TOP GEAR,TRANS
4JK1-TCX ENG(LR0) EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=26 		8-98210-247-0 01 1 1304- ●
3 04.403 BEARING; TOP GEAR SHAFT
EXC. IDENTIFICATION LABEL FOR KD<6UT> NSK 		8-94380-015-1 01 1 1304- ● ●
3 04.403 BEARING; TOP GEAR SHAFT
NSK 		8-97943-882-0 01 1 1304- ●
3 04.403 BEARING; TOP GEAR SHAFT
IDENTIFICATION LABEL FOR KD<6UT> NSK 		8-97943-879-0 01 1 1304- ● ●
3 04.403 BEARING; TOP GEAR SHAFT
NSK 		8-97943-879-0 01 1 1304- ●
4 04.416 RING; SNAP,BRG TO TOP GEAR SHAFT
04.376 NSK 		8-94206-485-0 01 1 1304- ●
4 04.416 RING; SNAP,BRG TO TOP GEAR SHAFT
NSK 		8-94422-083-0 01 1 1304- ● ● ●
5 04.416 RING; SNAP,BRG TO TOP GEAR SHAFT
08.934 ID=37.0 		9-09180-040-0 01 1 1304- ●
5 04.416 RING; SNAP,BRG TO TOP GEAR SHAFT
04.525 ID=37.4 		8-97254-316-0 01 1 1304- ● ● ●
13 04.415 GEAR; 5TH,MAINSHAFT
IDENTIFICATION LABEL FOR KD<6UT> Z=22 		8-98210-227-0 01 1 1304- ●
13 04.415 GEAR; 5TH,MAINSHAFT
Z=22 		8-98210-227-0 01 1 1304- ●
13 04.415 GEAR; 5TH,MAINSHAFT
EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=22 		8-98210-227-0 01 1 1304- ●
13 04.415 GEAR; 5TH,MAINSHAFT
Z=25 		8-94161-912-3 01 1 1304- ●
13 04.415 GEAR; 5TH,MAINSHAFT
4JA1-T ENG(LP0) IDENTIFICATION LABEL FOR KD<6UT> EXC. CONGO EQUIPMENT(CDF) Z=24 		8-98210-254-0 01 1 1304- ●
13 04.415 GEAR; 5TH,MAINSHAFT
4JA1-T ENG(LP0) EXC. CONGO EQUIPMENT(CDF), IDENTIFICATION LABEL FOR KD<6UT> Z=24 		8-98210-254-0 01 1 1304- ●
14 04.419 BEARING; NEEDLE,5TH
NSK 		8-97362-728-0 01 1 1304- ●
14 04.419 BEARING; NEEDLE,5TH
NSK 		8-94161-994-0 01 1 1304- ●
14 04.419 BEARING; NEEDLE,5TH
NTN 		8-98172-356-0 01 1 1304- ● ● ●
33 04.352 BEARING; NEEDLE,3RD GEAR 8-98203-209-0 01 1 1304- ●
33 04.352 BEARING; NEEDLE,3RD GEAR
04.419 NSK 		1-09811-028-1 01 1 1304- ● ● ● ●
34 04.380 SYNCHRONIZER; 4TH & 3RD
IDENTIFICATION LABEL FOR KD<6UT> 		8-97977-991-0 01 1 1402- ● ●
34 04.380 SYNCHRONIZER; 4TH & 3RD 8-97977-991-0 01 1 1402- ●
34 04.380 SYNCHRONIZER; 4TH & 3RD 8-97362-474-3 01 1 1304- ●
34 04.380 SYNCHRONIZER; 4TH & 3RD 8-94161-860-0 01 1 1304- ●
34 04.380 SYNCHRONIZER; 4TH & 3RD 8-97104-027-0 01 1 1304-1401 ● ● ●
34 04.380 SYNCHRONIZER; 4TH & 3RD
EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97104-027-0 01 1 1402- ● ●
35 04.383 RING; BLOCK,4TH & 3RD
Z=30 		8-94463-830-1 02 1 1304- ●
35 04.383 RING; BLOCK,4TH & 3RD
Z=45 		8-94151-510-3 02 1 1304- ● ● ●
36 04.415 GEAR; 3RD,MAINSHAFT
IDENTIFICATION LABEL FOR KD<6UT> Z=27 		8-98233-597-0 01 1 1304- ● ●
36 04.415 GEAR; 3RD,MAINSHAFT
EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=27 		8-98210-226-0 01 1 1304- ● ●
36 04.415 GEAR; 3RD,MAINSHAFT
Z=29 		8-94161-137-1 01 1 1304- ●
36 04.415 GEAR; 3RD,MAINSHAFT
Z=31 		8-98210-249-0 01 1 1304- ●
38 04.384 SYNCHRONIZER; LOW & 2ND
IDENTIFICATION LABEL FOR KD<6UT> 		8-97977-989-0 01 1 1402- ● ●
38 04.384 SYNCHRONIZER; LOW & 2ND 8-97977-989-0 01 1 1402- ●
38 04.384 SYNCHRONIZER; LOW & 2ND 8-97362-503-1 01 1 1304- ●
38 04.384 SYNCHRONIZER; LOW & 2ND 8-94435-140-0 01 1 1304- ●
38 04.384 SYNCHRONIZER; LOW & 2ND 8-94363-059-1 01 1 1304-1401 ● ● ●
38 04.384 SYNCHRONIZER; LOW & 2ND
EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-94363-059-1 01 1 1402- ● ●
40 04.384 SPRING; INSERT,LOW & 2ND 8-94152-558-1 02 1 1304- ●
40 04.384 SPRING; INSERT,LOW & 2ND 8-94448-045-0 02 1 1304- ● ● ● ●
49 04.352 BEARING; NEEDLE,2ND GEAR 8-98203-208-0 01 1 1304- ●
49 04.352 BEARING; NEEDLE,2ND GEAR
JTEKT 		9-00096-625-0 01 1 1304- ● ● ●
50 04.395 GEAR; 2ND,MAINSHAFT
EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=34 		8-97300-953-1 01 1 1304- ● ●
50 04.395 GEAR; 2ND,MAINSHAFT
Z=31 		8-94311-564-1 01 1 1304- ●
50 04.395 GEAR; 2ND,MAINSHAFT
IDENTIFICATION LABEL FOR KD<6UT> Z=34 		8-97301-183-1 01 1 1304- ● ●
50 04.395 GEAR; 2ND,MAINSHAFT
Z=34 		8-97301-183-1 01 1 1304- ●
51 04.383 RING; BLOCK,LOW & 2ND
Z=45 		8-94151-510-3 02 1 1304- ●
51 04.383 RING; BLOCK,LOW & 2ND
Z=36 		8-98115-804-0 02 1 1304- ● ● ● ●
59 04.417 GEAR; REV MAINSHAFT
EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=41 		8-98210-228-0 01 1 1304- ● ●
59 04.417 GEAR; REV MAINSHAFT
Z=37 		8-94310-158-1 01 1 1304- ●
59 04.417 GEAR; REV MAINSHAFT
IDENTIFICATION LABEL FOR KD<6UT> Z=41 		8-98210-228-0 01 1 1304- ● ●
59 04.417 GEAR; REV MAINSHAFT
Z=41 		8-98210-228-0 01 1 1304- ●
60 04.419 COLLAR; REV MAIN 8-97031-079-0 01 1 1304- ● ● ●
61 04.380 SYNCHRONIZER; REV & 5TH 5-33260-010-0 01 1 1304- ●
61 04.380 SYNCHRONIZER; REV & 5TH 8-97030-106-1 01 1 1304- ● ● ●
62 04.384 SPRING; INSERT,REV & 5TH 5-33264-010-0 02 1 1304- ●
62 04.384 SPRING; INSERT,REV & 5TH 5-33264-012-0 02 1 1304- ● ● ●
63 04.384 INSERT; SYN,REV & 5TH 5-33263-002-3 03 1 1304- ●
63 04.384 INSERT; SYN,REV & 5TH 5-33263-001-0 03 1 1304- ● ● ●
65 04.356 NUT; MAINSHAFT
M32 		8-94238-094-1 01 1 1304- ●
65 04.356 NUT; MAINSHAFT
M34 		8-94422-071-1 01 1 1304- ● ● ●
70 04.417 GEAR; 1ST,MAINSHAFT
EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=45 		8-97300-952-1 01 1 1304- ● ●
70 04.417 GEAR; 1ST,MAINSHAFT
Z=41 		8-94310-154-1 01 1 1304- ●
70 04.417 GEAR; 1ST,MAINSHAFT
IDENTIFICATION LABEL FOR KD<6UT> Z=45 		8-97301-182-1 01 1 1304- ● ●
70 04.417 GEAR; 1ST,MAINSHAFT
Z=45 		8-97301-182-1 01 1 1304- ●
72 04.352 BEARING; BALL,MAINSHAFT
EXC. IDENTIFICATION LABEL FOR KD<6UT> NSK 		8-94380-017-1 01 1 1304- ● ●
72 04.352 BEARING; BALL,MAINSHAFT
IDENTIFICATION LABEL FOR KD<6UT> NSK 		8-94380-017-1 01 1 1304- ● ●
72 04.352 BEARING; BALL,MAINSHAFT
NSK 		8-94380-017-1 01 1 1304- ●
82 04.403 SHAFT; MAIN,TRANS
Z=28-34-26-27 		8-97300-981-0 01 1 1304- ● ●
82 04.403 SHAFT; MAIN,TRANS
4X2(TFB***) Z=28-34-26-27 		8-97300-981-0 01 1 1304- ●
82 04.403 SHAFT; MAIN,TRANS
Z=26-24-27 		8-94435-162-3 01 1 1304- ●
82 04.403 SHAFT; MAIN,TRANS
4X4(TFS***) Z=28-34-26-27 		8-97300-980-0 01 1 1304- ●
86 04.416 WASHER; THRUST,5TH
T=7.80 		8-94238-099-4 01 1 1304- ●
86 04.416 WASHER; THRUST,5TH
T=7.90 		8-94238-100-4 01 1 1304- ●
86 04.416 WASHER; THRUST,5TH
T=8.00 		8-94238-101-4 01 1 1304- ●
86 04.416 WASHER; THRUST,5TH
T=8.10 		8-94238-102-4 01 1 1304- ●
86 04.416 WASHER; THRUST,5TH
T=8.20 		8-94238-103-4 01 1 1304- ●
86 04.416 WASHER; THRUST,5TH
T=8.30 		8-94238-104-4 01 1 1304- ●
86 04.416 WASHER; THRUST,5TH
T=7.90 WHITE 		8-94422-110-2 01 1 1304- ● ● ●
86 04.416 WASHER; THRUST,5TH
T=8.00 YELLOW 		8-94422-111-2 01 1 1304- ● ● ●
86 04.416 WASHER; THRUST,5TH
T=8.10 GREEN 		8-94422-112-2 01 1 1304- ● ● ●
86 04.416 WASHER; THRUST,5TH
T=8.20 BLUE 		8-94422-113-2 01 1 1304- ● ● ●
87 04.416 BALL; THRUST WASHER 8-94201-356-0 01 1 1304- ● ● ● ●
89 04.416 RING; RET,THRUST RING
ID=31.8 		8-94422-395-0 01 1 1304- ● ● ●
91 04.416 RING; SNAP,CENTER BRG,MAINSHAFT
ID=76.2 		8-94322-411-0 01 1 1304- ● ● ●
93 04.422 RING; SNAP,COUNTER FRT BRG
08.934 ID=23.2 		9-09180-025-0 01 1 1304- ● ● ●
95 04.417 GEAR; REV,COUNTER
Z=41 		8-98210-237-0 01 1 1304- ●
95 04.417 GEAR; REV,COUNTER
EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=19 		8-94377-433-0 01 1 1304- ● ●
95 04.417 GEAR; REV,COUNTER
Z=16 		8-94161-120-1 01 1 1304- ●
95 04.417 GEAR; REV,COUNTER 8-98203-243-0 01 1 1304- ●
95 04.417 GEAR; REV,COUNTER
IDENTIFICATION LABEL FOR KD<6UT> Z=19 		8-94377-433-0 01 1 1304- ● ●
95 04.417 GEAR; REV,COUNTER
Z=19 		8-94377-433-0 01 1 1304- ●
97 04.415 GEAR; 5TH,COUNTER
Z=27 		8-98040-114-0 01 1 1304- ●
97 04.415 GEAR; 5TH,COUNTER
IDENTIFICATION LABEL FOR KD<6UT> Z=50 		8-94377-434-0 01 1 1304- ●
97 04.415 GEAR; 5TH,COUNTER
Z=50 		8-94377-434-0 01 1 1304- ●
97 04.415 GEAR; 5TH,COUNTER
EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=50 		8-94377-434-0 01 1 1304- ●
97 04.415 GEAR; 5TH,COUNTER
Z=47 		8-94161-098-2 01 1 1304- ●
97 04.415 GEAR; 5TH,COUNTER
4JA1-T ENG(LP0) IDENTIFICATION LABEL FOR KD<6UT> EXC. CONGO EQUIPMENT(CDF) Z=49 		8-97216-154-0 01 1 1304- ●
97 04.415 GEAR; 5TH,COUNTER
4JA1-T ENG(LP0) EXC. CONGO EQUIPMENT(CDF), IDENTIFICATION LABEL FOR KD<6UT> Z=49 		8-97216-154-0 01 1 1304- ●
110 04.422 RING; SNAP,COUNTER BRG 8-98203-219-0 01 1 1304- ●
110 04.422 RING; SNAP,COUNTER BRG
T=1.10 WHITE 		8-94422-103-0 01 1 1304- ● ● ●
110 04.422 RING; SNAP,COUNTER BRG
T=1.20 YELLOW 		8-94422-104-0 01 1 1304- ● ● ●
110 04.422 RING; SNAP,COUNTER BRG
T=1.30 BLUE 		8-94422-105-0 01 1 1304- ● ● ●
110 04.422 RING; SNAP,COUNTER BRG
T=1.40 PINK 		8-94422-106-0 01 1 1304- ● ● ●
110 04.422 RING; SNAP,COUNTER BRG
T=1.50 GREEN 		8-94422-107-0 01 1 1304- ● ● ●
110 04.422 RING; SNAP,COUNTER BRG
T=1.60 BROWN 		8-94422-108-0 01 1 1304- ● ● ●
132 04.433 SHAFT; REV
IDENTIFICATION LABEL FOR KD<6UT> 		8-98245-493-0 01 1 1309- ● ●
132 04.433 SHAFT; REV 8-98245-493-0 01 1 1309- ●
132 04.433 SHAFT; REV 8-98023-113-0 01 1 1304- ●
132 04.433 SHAFT; REV 8-94435-146-0 01 1 1304- ●
132 04.433 SHAFT; REV 8-98203-238-0 01 1 1304- ●
132 04.433 SHAFT; REV 8-97019-155-1 01 1 1304-1308 ● ● ●
132 04.433 SHAFT; REV
EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98249-849-0 01 1 1309- ● ●
135 04.430 GEAR; REV IDLER
Z=32 		8-98233-615-0 01 1 1304- ●
135 04.430 GEAR; REV IDLER
EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=33 		8-98146-726-1 01 1 1304- ● ●
135 04.430 GEAR; REV IDLER
Z=33 		8-98146-724-0 01 1 1304- ●
135 04.430 GEAR; REV IDLER 8-98203-240-0 01 1 1304- ●
135 04.430 GEAR; REV IDLER
IDENTIFICATION LABEL FOR KD<6UT> Z=33 		8-98233-606-0 01 1 1304- ● ●
135 04.430 GEAR; REV IDLER
Z=33 		8-98233-606-0 01 1 1304- ●
189 04.435 RING; SNAP,REV,GEAR
T=1.20 WHITE 		8-94422-100-0 01 1 1304- ● ● ●
189 04.435 RING; SNAP,REV,GEAR
T=1.30 YELLOW 		8-94422-101-0 01 1 1304- ● ● ●
189 04.435 RING; SNAP,REV,GEAR
T=1.40 BLUE 		8-94422-102-0 01 1 1304- ● ● ●
211 04.419 BEARING; THRUST NEEDLE,1ST GEAR
NSK 		8-94148-935-0 01 1 1304- ● ● ●
219 04.422 BEARING; BALL,CLUSTER,RR
NSK 		8-94436-929-0 01 1 1304- ● ● ●
226 04.437 WASHER; THRUST,REV GEAR,COUNTER
ID=30.0 		8-94223-069-1 01 1 1304- ● ● ●
238 04.384 INSERT
(B) 		8-94249-576-2 03 1 1304- ●
238 04.384 INSERT
(A) 		8-98004-522-0 06 1 1304- ●
238 04.384 INSERT
(C) 		8-94448-202-2 03 1 1304- ● ● ●
246 04.422 BEARING; ROLLER,COUNTER SHAFT FR
NSK 		8-97029-600-4 01 1 1304- ● ● ●
292 04.422 RING; SNAP,BRG OUTER 8-98203-225-0 01 1 1304- ●
292 04.422 RING; SNAP,BRG OUTER
NSK 		8-94422-081-0 01 1 1304- ● ● ●
306 04.416 RING; SNAP,MAINSHAFT
(B) ID=27.9 		9-09180-030-0 02 1 1304- ● ●
306 04.416 RING; SNAP,MAINSHAFT
4X2(TFB***) (B) ID=27.9 		9-09180-030-0 02 1 1304- ●
306 04.416 RING; SNAP,MAINSHAFT
04.399 (A) T=1.50 		5-09588-020-1 01 1 1304- ●
306 04.416 RING; SNAP,MAINSHAFT
04.399 (A) T=1.55 		5-09588-021-1 01 1 1304- ●
306 04.416 RING; SNAP,MAINSHAFT
04.399 (A) T=1.60 		5-09588-022-1 01 1 1304- ●
306 04.416 RING; SNAP,MAINSHAFT
04.399 (A) T=1.65 		5-09588-023-1 01 1 1304- ●
306 04.416 RING; SNAP,MAINSHAFT
(D) 		8-98203-220-0 01 1 1304- ●
306 04.416 RING; SNAP,MAINSHAFT
4X4(TFS***) (B) ID=27.9 		9-09180-030-0 01 1 1304- ●
306 04.416 RING; SNAP,MAINSHAFT
(C) T=1.90 BLUE 		8-97129-615-0 01 1 1304- ● ● ●
306 04.416 RING; SNAP,MAINSHAFT
(C) T=1.85 YELLOW 		8-97129-616-0 01 1 1304- ● ● ●
306 04.416 RING; SNAP,MAINSHAFT
(C) T=1.80 WHITE 		8-97129-617-0 01 1 1304- ● ● ●
313 04.419 BEARING; NEEDLE,LOW GEAR
NSK 		1-09811-028-1 01 1 1304- ● ● ●
314 04.419 BEARING; NEEDLE,REV GEAR
NSK 		8-97362-719-0 01 1 1304- ●
314 04.419 BEARING; NEEDLE,REV GEAR 8-98203-212-0 01 1 1304- ●
314 04.419 BEARING; NEEDLE,REV GEAR
NSK 		8-94422-064-0 01 1 1304- ● ● ●
314 04.419 BEARING; NEEDLE,REV GEAR
JTEKT 		8-94422-065-1 01 1 1304- ● ● ●
386 04.435 PIN; REV SHAFT
00.662 OD=4 L=8 		9-08160-408-0 01 1 1304- ●
386 04.435 PIN; REV SHAFT
OD=6 L=40 		9-08150-640-0 01 1 1304- ● ● ●
390 04.383 RING; SNAP,CLU HUB 8-98203-221-0 01 1 1304- ●
390 04.383 RING; SNAP,CLU HUB
T=1.80 WHITE 		8-94422-088-2 01 1 1304- ● ● ●
390 04.383 RING; SNAP,CLU HUB
T=1.85 YELLOW 		8-94422-089-1 01 1 1304- ● ● ●
390 04.383 RING; SNAP,CLU HUB
T=1.90 BLUE 		8-94422-090-2 01 1 1304- ● ● ●
391 04.383 RING; INSIDE,SYN
OD=95.8 		8-94363-056-0 02 1 1304- ● ● ●
392 04.383 RING; OUTSIDE,SYN
OD=90.0 		8-98115-793-0 02 1 1304- ● ● ●
394 04.419 BEARING; BALL,MAINSHAFT RR
4X4(TFS***) IDENTIFICATION LABEL FOR KD<6UT> 04.352 NSK 		8-97018-921-1 01 1 1304- ●
394 04.419 BEARING; BALL,MAINSHAFT RR
4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> 04.352 NSK 		8-97018-921-1 01 1 1304- ●
396 04.352 BEARING; NEEDLE,MAINSHAFT
JTEKT 		9-00096-100-1 01 1 1304- ●
396 04.352 BEARING; NEEDLE,MAINSHAFT 8-98203-210-0 01 1 1304- ●
396 04.352 BEARING; NEEDLE,MAINSHAFT
NSK 		8-98172-355-0 01 1 1304- ● ● ●
397 04.384 SPRING; INSERT,4TH & 3RD 5-33264-010-0 02 1 1304- ●
397 04.384 SPRING; INSERT,4TH & 3RD 8-94422-075-0 02 1 1304- ● ● ●
398 04.421 GEAR; COUNTER
Z=23 		8-98106-584-0 01 1 1304- ●
398 04.421 GEAR; COUNTER
IDENTIFICATION LABEL FOR KD<6UT> Z=44-32-25-19 		8-97301-186-2 01 1 1304- ● ●
398 04.421 GEAR; COUNTER
EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=44-32-25-19 		8-97216-164-1 01 1 1304- ● ●
398 04.421 GEAR; COUNTER
Z=37-31-20-16 		8-94469-524-1 01 1 1304- ●
398 04.421 GEAR; COUNTER
Z=46-32-25-19 		8-97209-758-1 01 1 1304- ●
404 04.307 PLATE; THRUST 8-98203-202-0 02 1 1304- ●
404 04.307 PLATE; THRUST 8-94421-892-0 02 1 1304- ● ● ●
405 04.384 INSERT; SYN,LOW & 2ND 8-94152-557-1 03 1 1304- ●
405 04.384 INSERT; SYN,LOW & 2ND 8-98203-191-0 03 1 1304- ●
405 04.384 INSERT; SYN,LOW & 2ND 8-94363-062-1 03 1 1304- ● ● ● ●
421 04.383 RING; BLOCK,REV & 5TH
Z=36 		8-97071-688-0 02 1 1304- ● ● ●
499 04.419 COLLAR; OIL SEAL
4X4(TFS***) IDENTIFICATION LABEL FOR KD<6UT> 		8-97300-954-0 01 1 1304- ●
499 04.419 COLLAR; OIL SEAL
4X4(TFS***) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97300-954-0 01 1 1304- ●

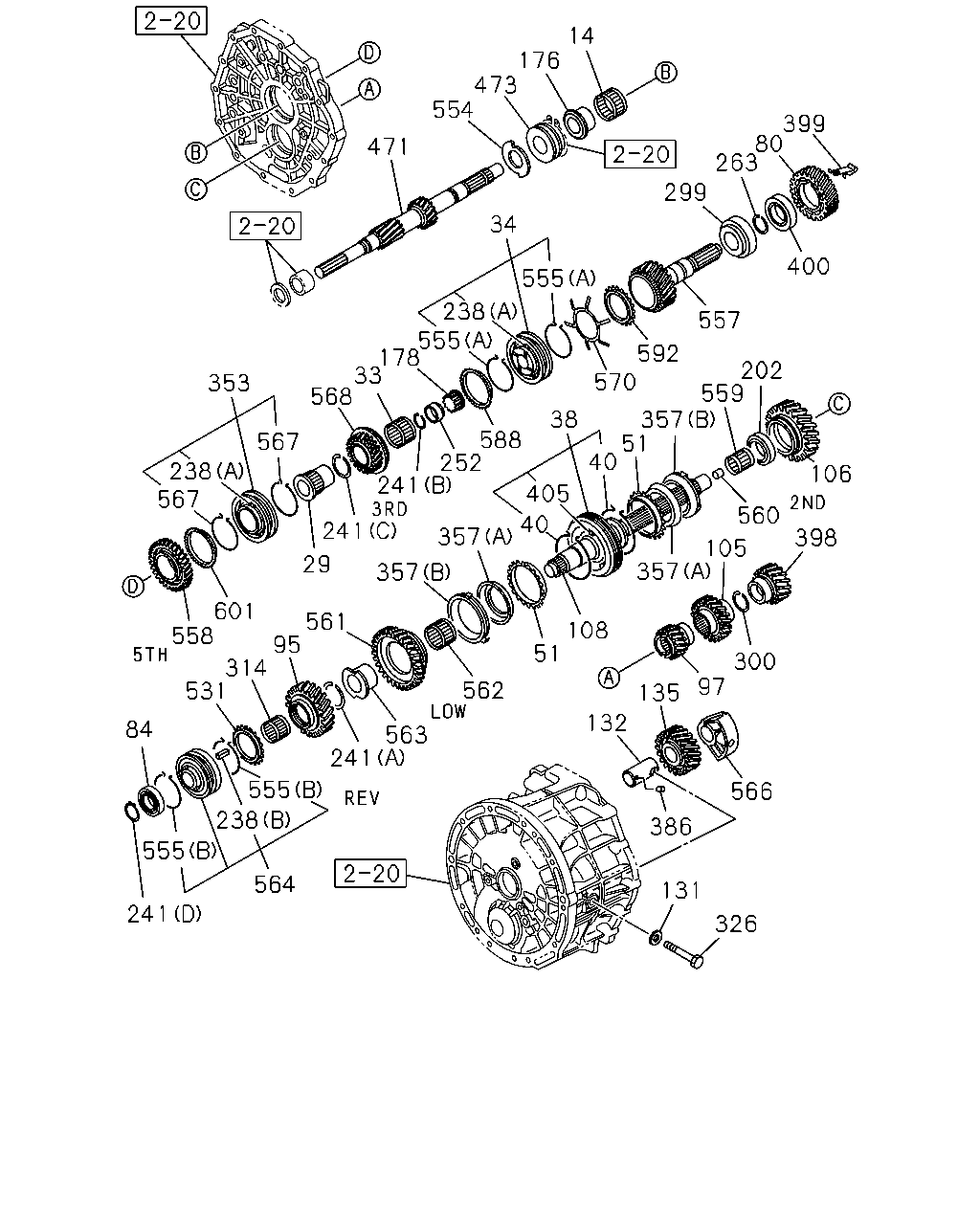

çizim 344975
554 473 176 14 471 353 238 567 567 568 33 178 555 238 555 34 299 263 80 399 400 557 592 570 38 588 252 241 241 29 601 558 84 555 241 564 238 555 241 563 562 51 108 357 105 560 106 398 202 559 357 51 40 405 40 357 357 561 95 314 531 386 131 326 566 132 135 97 300
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
14 04.419 BEARING; NEEDLE,5TH
NSK 		8-97362-728-0 01 1 1304- ●
14 04.419 BEARING; NEEDLE,5TH
NSK 		8-94161-994-0 01 1 1304- ●
14 04.419 BEARING; NEEDLE,5TH
NTN 		8-98172-356-0 01 1 1304- ● ● ●
29 04.416 COLLAR; 3RD GEAR 8-97362-568-1 01 1 1304- ●
33 04.352 BEARING; NEEDLE,3RD GEAR 8-98203-209-0 01 1 1304- ●
33 04.352 BEARING; NEEDLE,3RD GEAR
04.419 NSK 		1-09811-028-1 01 1 1304- ● ● ● ●
34 04.380 SYNCHRONIZER; 4TH & 3RD
IDENTIFICATION LABEL FOR KD<6UT> 		8-97977-991-0 01 1 1402- ● ●
34 04.380 SYNCHRONIZER; 4TH & 3RD 8-97977-991-0 01 1 1402- ●
34 04.380 SYNCHRONIZER; 4TH & 3RD 8-97362-474-3 01 1 1304- ●
34 04.380 SYNCHRONIZER; 4TH & 3RD 8-94161-860-0 01 1 1304- ●
34 04.380 SYNCHRONIZER; 4TH & 3RD 8-97104-027-0 01 1 1304-1401 ● ● ●
34 04.380 SYNCHRONIZER; 4TH & 3RD
EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97104-027-0 01 1 1402- ● ●
38 04.384 SYNCHRONIZER; LOW & 2ND
IDENTIFICATION LABEL FOR KD<6UT> 		8-97977-989-0 01 1 1402- ● ●
38 04.384 SYNCHRONIZER; LOW & 2ND 8-97977-989-0 01 1 1402- ●
38 04.384 SYNCHRONIZER; LOW & 2ND 8-97362-503-1 01 1 1304- ●
38 04.384 SYNCHRONIZER; LOW & 2ND 8-94435-140-0 01 1 1304- ●
38 04.384 SYNCHRONIZER; LOW & 2ND 8-94363-059-1 01 1 1304-1401 ● ● ●
38 04.384 SYNCHRONIZER; LOW & 2ND
EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-94363-059-1 01 1 1402- ● ●
40 04.384 SPRING; INSERT,LOW & 2ND 8-94152-558-1 02 1 1304- ●
40 04.384 SPRING; INSERT,LOW & 2ND 8-94448-045-0 02 1 1304- ● ● ● ●
51 04.383 RING; BLOCK,LOW & 2ND
Z=45 		8-94151-510-3 02 1 1304- ●
51 04.383 RING; BLOCK,LOW & 2ND
Z=36 		8-98115-804-0 02 1 1304- ● ● ● ●
80 04.343 GEAR; SPD DRIVE
Z=6 		8-94472-608-1 01 1 1304- ● ●
80 04.343 GEAR; SPD DRIVE
4X2(TFB***) Z=6 		8-94472-608-1 01 1 1304- ●
80 04.343 GEAR; SPD DRIVE
Z=6 		8-94161-085-1 01 1 1304- ●
80 04.343 GEAR; SPD DRIVE
4X2(TFB***) 4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> Z=7 		8-98123-463-0 01 1 1304- ●
84 04.422 BEARING; COUNTER SHAFT,FRT 8-97362-724-0 01 1 1304- ●
84 04.422 BEARING; COUNTER SHAFT,FRT
NSK ID=20 OD=47 		8-97063-365-0 01 1 1304- ●
84 04.422 BEARING; COUNTER SHAFT,FRT 8-98203-206-0 01 1 1304- ●
95 04.417 GEAR; REV,COUNTER
Z=41 		8-98210-237-0 01 1 1304- ●
95 04.417 GEAR; REV,COUNTER
EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=19 		8-94377-433-0 01 1 1304- ● ●
95 04.417 GEAR; REV,COUNTER
Z=16 		8-94161-120-1 01 1 1304- ●
95 04.417 GEAR; REV,COUNTER 8-98203-243-0 01 1 1304- ●
95 04.417 GEAR; REV,COUNTER
IDENTIFICATION LABEL FOR KD<6UT> Z=19 		8-94377-433-0 01 1 1304- ● ●
95 04.417 GEAR; REV,COUNTER
Z=19 		8-94377-433-0 01 1 1304- ●
97 04.415 GEAR; 5TH,COUNTER
Z=27 		8-98040-114-0 01 1 1304- ●
97 04.415 GEAR; 5TH,COUNTER
IDENTIFICATION LABEL FOR KD<6UT> Z=50 		8-94377-434-0 01 1 1304- ●
97 04.415 GEAR; 5TH,COUNTER
Z=50 		8-94377-434-0 01 1 1304- ●
97 04.415 GEAR; 5TH,COUNTER
EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=50 		8-94377-434-0 01 1 1304- ●
97 04.415 GEAR; 5TH,COUNTER
Z=47 		8-94161-098-2 01 1 1304- ●
97 04.415 GEAR; 5TH,COUNTER
4JA1-T ENG(LP0) IDENTIFICATION LABEL FOR KD<6UT> EXC. CONGO EQUIPMENT(CDF) Z=49 		8-97216-154-0 01 1 1304- ●
97 04.415 GEAR; 5TH,COUNTER
4JA1-T ENG(LP0) EXC. CONGO EQUIPMENT(CDF), IDENTIFICATION LABEL FOR KD<6UT> Z=49 		8-97216-154-0 01 1 1304- ●
105 04.415 GEAR; 3RD,COUNTER
Z=31 		8-98233-612-0 01 1 1304- ●
106 04.395 GEAR; 2ND,COUNTER
Z=38 		8-98210-236-0 01 1 1304- ●
106 04.395 GEAR; 2ND,COUNTER 8-98203-237-0 01 1 1304- ●
108 04.428 SHAFT; COUNTER
Z=26-34-26-26 		8-98023-108-1 01 1 1304- ●
108 04.428 SHAFT; COUNTER 8-98203-235-0 01 1 1304- ●
131 04.435 GASKET; REV SHAFT
ALSO INCLUDED IN GASKET SET(M/T). 08.955 ID=12.2 		9-09571-412-0 01 1 1304- ●
132 04.433 SHAFT; REV
IDENTIFICATION LABEL FOR KD<6UT> 		8-98245-493-0 01 1 1309- ● ●
132 04.433 SHAFT; REV 8-98245-493-0 01 1 1309- ●
132 04.433 SHAFT; REV 8-98023-113-0 01 1 1304- ●
132 04.433 SHAFT; REV 8-94435-146-0 01 1 1304- ●
132 04.433 SHAFT; REV 8-98203-238-0 01 1 1304- ●
132 04.433 SHAFT; REV 8-97019-155-1 01 1 1304-1308 ● ● ●
132 04.433 SHAFT; REV
EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98249-849-0 01 1 1309- ● ●
135 04.430 GEAR; REV IDLER
Z=32 		8-98233-615-0 01 1 1304- ●
135 04.430 GEAR; REV IDLER
EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=33 		8-98146-726-1 01 1 1304- ● ●
135 04.430 GEAR; REV IDLER
Z=33 		8-98146-724-0 01 1 1304- ●
135 04.430 GEAR; REV IDLER 8-98203-240-0 01 1 1304- ●
135 04.430 GEAR; REV IDLER
IDENTIFICATION LABEL FOR KD<6UT> Z=33 		8-98233-606-0 01 1 1304- ● ●
135 04.430 GEAR; REV IDLER
Z=33 		8-98233-606-0 01 1 1304- ●
176 04.415 COLLAR; 5TH GEAR 8-97362-567-0 01 1 1304- ●
178 04.352 BEARING; NEEDLE,MAINSHAFT 8-97362-869-0 01 1 1304- ●
202 04.422 BEARING; COUNTER GEAR 8-97362-725-0 01 1 1304- ●
238 04.384 INSERT
(B) 		8-94249-576-2 03 1 1304- ●
238 04.384 INSERT
(A) 		8-98004-522-0 06 1 1304- ●
238 04.384 INSERT
(C) 		8-94448-202-2 03 1 1304- ● ● ●
241 04.416 RING; SNAP
04.422 (A) ID=34.4 T=1.9 		8-97254-735-0 01 1 1304- ●
241 04.416 RING; SNAP
(B) ID=27.1 T=1.9 		8-97362-871-0 01 1 1304- ●
241 04.416 RING; SNAP
(B) ID=27.1 T=2.1 		8-97362-872-0 01 1 1304- ●
241 04.416 RING; SNAP
(B) ID=27.1 T=2.3 		8-97362-873-0 01 1 1304- ●
241 04.416 RING; SNAP
(C) ID=37 T=1.95 		8-98004-523-1 01 1 1304- ●
241 04.416 RING; SNAP
(C) ID=37 T=2.1 		8-98004-524-1 01 1 1304- ●
241 04.416 RING; SNAP
(D) ID=27.9 		9-09180-030-0 01 1 1304- ●
241 04.416 RING; SNAP
(E) 		8-98203-218-0 01 1 1304- ●
241 04.416 RING; SNAP
(F) 		8-98203-223-0 01 1 1304- ●
252 04.412 SPACER 8-98024-456-0 01 1 1304- ●
252 04.412 SPACER 8-98203-226-0 01 1 1304- ●
263 04.525 RING; SNAP,OUTPUT SHAFT BRG
ID=30.7 T=2.1 		8-98004-525-0 01 1 1304- ●
263 04.525 RING; SNAP,OUTPUT SHAFT BRG
ID=30.7 T=2.2 		8-98004-526-0 01 1 1304- ●
263 04.525 RING; SNAP,OUTPUT SHAFT BRG
ID=30.7 T=2.3 		8-98004-527-0 01 1 1304- ●
263 04.525 RING; SNAP,OUTPUT SHAFT BRG
ID=30.7 T=2.4 		8-98004-528-0 01 1 1304- ●
263 04.525 RING; SNAP,OUTPUT SHAFT BRG
ID=30.7 T=2.5 		8-98004-529-0 01 1 1304- ●
263 04.525 RING; SNAP,OUTPUT SHAFT BRG
ID=30.7 T=2.6 		8-98004-530-0 01 1 1304- ●
299 04.422 BEARING; OUTPUT SHAFT FRT 8-97362-722-0 01 1 1304- ●
300 04.422 RING; SNAP,COUNTER SHAFT,RR END
ID=29 T=2.3 		8-98024-222-1 01 1 1304- ●
300 04.422 RING; SNAP,COUNTER SHAFT,RR END
ID=29 T=2.5 		8-98024-223-1 01 1 1304- ●
300 04.422 RING; SNAP,COUNTER SHAFT,RR END
ID=29 T=2.7 		8-98024-224-1 01 1 1304- ●
300 04.422 RING; SNAP,COUNTER SHAFT,RR END
04.416 		8-98203-218-0 01 1 1304- ●
314 04.419 BEARING; NEEDLE,REV GEAR
NSK 		8-97362-719-0 01 1 1304- ●
314 04.419 BEARING; NEEDLE,REV GEAR 8-98203-212-0 01 1 1304- ●
314 04.419 BEARING; NEEDLE,REV GEAR
NSK 		8-94422-064-0 01 1 1304- ● ● ●
314 04.419 BEARING; NEEDLE,REV GEAR
JTEKT 		8-94422-065-1 01 1 1304- ● ● ●
326 04.412 BOLT; REV SHAFT
04.439 M12X70 		9-92621-270-0 01 1 1304- ●
353 04.380 SYNCHRONIZER; 5TH 8-98004-511-1 01 1 1304- ●
357 04.383 RING
(B) OD=95.8 		8-94363-056-0 02 1 1304- ●
357 04.383 RING
(A) OD=90.0 		8-98115-793-0 02 1 1304- ●
357 04.383 RING
(C) 		8-98203-182-0 01 1 1304- ●
386 04.435 PIN; REV SHAFT
00.662 OD=4 L=8 		9-08160-408-0 01 1 1304- ●
386 04.435 PIN; REV SHAFT
OD=6 L=40 		9-08150-640-0 01 1 1304- ● ● ●
398 04.421 GEAR; COUNTER
Z=23 		8-98106-584-0 01 1 1304- ●
398 04.421 GEAR; COUNTER
IDENTIFICATION LABEL FOR KD<6UT> Z=44-32-25-19 		8-97301-186-2 01 1 1304- ● ●
398 04.421 GEAR; COUNTER
EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=44-32-25-19 		8-97216-164-1 01 1 1304- ● ●
398 04.421 GEAR; COUNTER
Z=37-31-20-16 		8-94469-524-1 01 1 1304- ●
398 04.421 GEAR; COUNTER
Z=46-32-25-19 		8-97209-758-1 01 1 1304- ●
399 04.345 CLIP; SPEEDOMETER DRIVE GEAR
4X2(TFB***) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-94310-229-0 01 1 1304- ●
399 04.345 CLIP; SPEEDOMETER DRIVE GEAR 8-94310-229-0 01 1 1304- ● ●
399 04.345 CLIP; SPEEDOMETER DRIVE GEAR
4X2(TFB***) 		8-94310-229-0 01 1 1304- ●
400 04.408 BEARING; OUTPUT SHAFT RR 8-97362-723-0 01 1 1304- ●
405 04.384 INSERT; SYN,LOW & 2ND 8-94152-557-1 03 1 1304- ●
405 04.384 INSERT; SYN,LOW & 2ND 8-98203-191-0 03 1 1304- ●
405 04.384 INSERT; SYN,LOW & 2ND 8-94363-062-1 03 1 1304- ● ● ● ●
471 04.530 SHAFT; INPUT
Z=24-14-20-27 		8-98106-034-0 01 1 1304- ●
471 04.530 SHAFT; INPUT 8-98203-234-0 01 1 1304- ●
473 04.352 BEARING; INPUT SHAFT 8-97362-721-1 01 1 1304- ●
473 04.352 BEARING; INPUT SHAFT 8-98203-205-0 01 1 1304- ●
531 04.383 RING; BLOCK,REV
OD=74 		8-98037-846-0 01 1 1304- ●
531 04.383 RING; BLOCK,REV 8-98203-197-0 01 1 1304- ●
554 04.422 IMPELLER; OIL 8-97362-730-0 01 1 1304- ●
555 04.384 SPRING; INSERT
(A) 		5-33264-012-0 02 1 1304- ●
555 04.384 SPRING; INSERT
(B) 		8-97109-690-0 02 1 1304- ●
557 04.535 GEAR; OUTPUT
4X2(TFB***) Z=31-27 		8-98210-238-0 01 1 1304- ●
557 04.535 GEAR; OUTPUT
4X4(TFS***) Z=31-27 		8-98210-239-0 01 1 1304- ●
558 04.415 GEAR; 5TH,INPUT SHAFT
Z=46 		8-98233-610-0 01 1 1304- ●
559 04.352 BEARING; NEEDLE,LOW & 2ND 8-97362-727-0 01 1 1304- ●
560 04.416 RING; DUM 8-97078-729-1 01 1 1304- ●
561 04.395 GEAR; LOW,COUNTER
Z=45 		8-98210-235-0 01 1 1304- ●
562 04.422 BEARING; NEEDLE,LOW & 2ND
04.352 		8-97362-727-0 01 1 1304- ●
563 04.419 COLLAR; 1ST GEAR 8-97362-569-1 01 1 1304- ●
564 04.380 SYNCHRONIZER; REV 8-97362-496-1 01 1 1304- ●
566 04.342 BRACKET; REV IDLER 8-97362-516-0 01 1 1304- ●
567 04.384 SPRING; INSERT,5TH 5-33264-012-0 02 1 1304- ●
568 04.415 GEAR; 3RD,INPUT SHAFT
Z=28 		8-98233-608-0 01 1 1304- ●
568 04.415 GEAR; 3RD,INPUT SHAFT 8-98203-229-0 01 1 1304- ●
570 04.422 SPRING; PLATE 8-98072-467-2 01 1 1304- ●
588 04.383 RING; BLOCK,3RD
Z=36 		8-98052-559-0 01 1 1304- ●
592 04.383 RING; BLOCK,4TH 8-98197-460-0 01 1 1304- ●
601 04.383 RING; BLOCK,5TH 8-98283-241-0 01 1 1304- ●

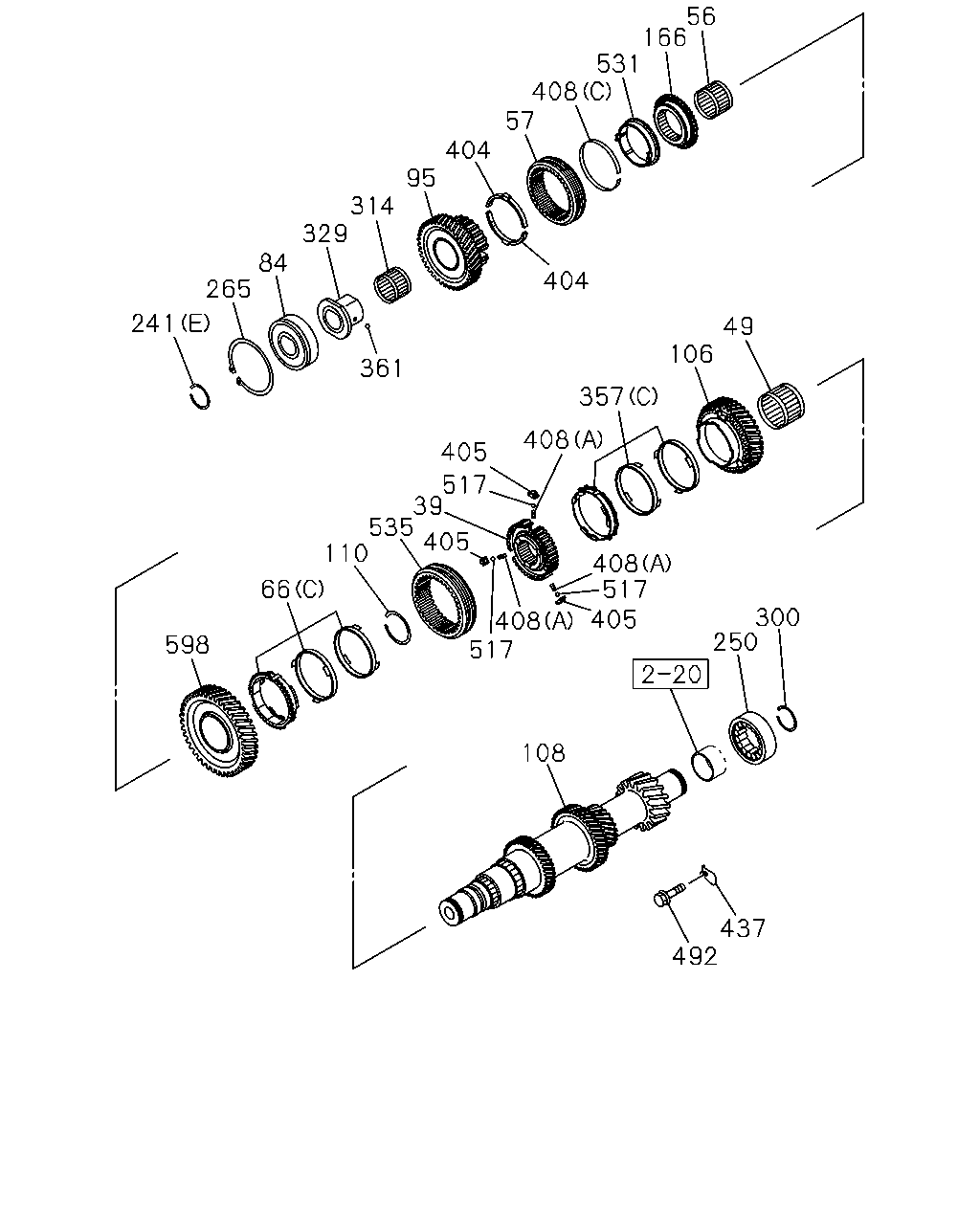

çizim 345138
56 166 531 408 57 404 95 314 329 84 265 241 361 404 49 598 66 110 535 517 108 492 437 250 300 408 405 517 408 405 39 517 405 408 357 106
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
39 04.384 HUB; CLU,LOW & 2ND 8-98203-187-0 01 1 1304- ●
49 04.352 BEARING; NEEDLE,2ND GEAR 8-98203-208-0 01 1 1304- ●
49 04.352 BEARING; NEEDLE,2ND GEAR
JTEKT 		9-00096-625-0 01 1 1304- ● ● ●
56 04.419 BEARING; NEEDLE,1ST,REV 8-98203-207-0 01 1 1304- ●
57 04.419 SLEEVE; REV 8-98203-203-0 01 1 1304- ●
66 04.383 RING; BLOCK,SYN
(A) Z=30 		8-94463-830-1 01 1 1304- ●
66 04.383 RING; BLOCK,SYN
(C) 		8-98203-181-0 01 1 1304- ●
66 04.383 RING; BLOCK,SYN
(B) 		8-98203-194-0 01 1 1304- ●
84 04.422 BEARING; COUNTER SHAFT,FRT 8-97362-724-0 01 1 1304- ●
84 04.422 BEARING; COUNTER SHAFT,FRT
NSK ID=20 OD=47 		8-97063-365-0 01 1 1304- ●
84 04.422 BEARING; COUNTER SHAFT,FRT 8-98203-206-0 01 1 1304- ●
95 04.417 GEAR; REV,COUNTER
Z=41 		8-98210-237-0 01 1 1304- ●
95 04.417 GEAR; REV,COUNTER
EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=19 		8-94377-433-0 01 1 1304- ● ●
95 04.417 GEAR; REV,COUNTER
Z=16 		8-94161-120-1 01 1 1304- ●
95 04.417 GEAR; REV,COUNTER 8-98203-243-0 01 1 1304- ●
95 04.417 GEAR; REV,COUNTER
IDENTIFICATION LABEL FOR KD<6UT> Z=19 		8-94377-433-0 01 1 1304- ● ●
95 04.417 GEAR; REV,COUNTER
Z=19 		8-94377-433-0 01 1 1304- ●
106 04.395 GEAR; 2ND,COUNTER
Z=38 		8-98210-236-0 01 1 1304- ●
106 04.395 GEAR; 2ND,COUNTER 8-98203-237-0 01 1 1304- ●
108 04.428 SHAFT; COUNTER
Z=26-34-26-26 		8-98023-108-1 01 1 1304- ●
108 04.428 SHAFT; COUNTER 8-98203-235-0 01 1 1304- ●
110 04.422 RING; SNAP,COUNTER BRG 8-98203-219-0 01 1 1304- ●
110 04.422 RING; SNAP,COUNTER BRG
T=1.10 WHITE 		8-94422-103-0 01 1 1304- ● ● ●
110 04.422 RING; SNAP,COUNTER BRG
T=1.20 YELLOW 		8-94422-104-0 01 1 1304- ● ● ●
110 04.422 RING; SNAP,COUNTER BRG
T=1.30 BLUE 		8-94422-105-0 01 1 1304- ● ● ●
110 04.422 RING; SNAP,COUNTER BRG
T=1.40 PINK 		8-94422-106-0 01 1 1304- ● ● ●
110 04.422 RING; SNAP,COUNTER BRG
T=1.50 GREEN 		8-94422-107-0 01 1 1304- ● ● ●
110 04.422 RING; SNAP,COUNTER BRG
T=1.60 BROWN 		8-94422-108-0 01 1 1304- ● ● ●
166 04.435 PIECE; DIST 8-98203-184-0 01 1 1304- ●
241 04.416 RING; SNAP
04.422 (A) ID=34.4 T=1.9 		8-97254-735-0 01 1 1304- ●
241 04.416 RING; SNAP
(B) ID=27.1 T=1.9 		8-97362-871-0 01 1 1304- ●
241 04.416 RING; SNAP
(B) ID=27.1 T=2.1 		8-97362-872-0 01 1 1304- ●
241 04.416 RING; SNAP
(B) ID=27.1 T=2.3 		8-97362-873-0 01 1 1304- ●
241 04.416 RING; SNAP
(C) ID=37 T=1.95 		8-98004-523-1 01 1 1304- ●
241 04.416 RING; SNAP
(C) ID=37 T=2.1 		8-98004-524-1 01 1 1304- ●
241 04.416 RING; SNAP
(D) ID=27.9 		9-09180-030-0 01 1 1304- ●
241 04.416 RING; SNAP
(E) 		8-98203-218-0 01 1 1304- ●
241 04.416 RING; SNAP
(F) 		8-98203-223-0 01 1 1304- ●
250 04.352 BEARING; COUNTER SHAFT RR 8-98203-215-0 01 1 1304- ●
265 04.525 RING; SNAP,BRG OUTER 8-98203-224-0 01 1 1304- ●
300 04.422 RING; SNAP,COUNTER SHAFT,RR END
ID=29 T=2.3 		8-98024-222-1 01 1 1304- ●
300 04.422 RING; SNAP,COUNTER SHAFT,RR END
ID=29 T=2.5 		8-98024-223-1 01 1 1304- ●
300 04.422 RING; SNAP,COUNTER SHAFT,RR END
ID=29 T=2.7 		8-98024-224-1 01 1 1304- ●
300 04.422 RING; SNAP,COUNTER SHAFT,RR END
04.416 		8-98203-218-0 01 1 1304- ●
314 04.419 BEARING; NEEDLE,REV GEAR
NSK 		8-97362-719-0 01 1 1304- ●
314 04.419 BEARING; NEEDLE,REV GEAR 8-98203-212-0 01 1 1304- ●
314 04.419 BEARING; NEEDLE,REV GEAR
NSK 		8-94422-064-0 01 1 1304- ● ● ●
314 04.419 BEARING; NEEDLE,REV GEAR
JTEKT 		8-94422-065-1 01 1 1304- ● ● ●
329 04.352 COLLAR; BEARING 8-98203-186-0 01 1 1304- ●
357 04.383 RING
(B) OD=95.8 		8-94363-056-0 02 1 1304- ●
357 04.383 RING
(A) OD=90.0 		8-98115-793-0 02 1 1304- ●
357 04.383 RING
(C) 		8-98203-182-0 01 1 1304- ●
361 04.419 BALL; LK,THRUST WASHER,REV GEAR
04.345 		8-89048-423-0 01 1 1304- ●
404 04.307 PLATE; THRUST 8-98203-202-0 02 1 1304- ●
404 04.307 PLATE; THRUST 8-94421-892-0 02 1 1304- ● ● ●
405 04.384 INSERT; SYN,LOW & 2ND 8-94152-557-1 03 1 1304- ●
405 04.384 INSERT; SYN,LOW & 2ND 8-98203-191-0 03 1 1304- ●
405 04.384 INSERT; SYN,LOW & 2ND 8-94363-062-1 03 1 1304- ● ● ● ●
408 04.384 SPRING
(A) 		8-98203-195-0 03 1 1304- ●
408 04.384 SPRING
(B) 		8-98203-196-0 06 1 1304- ●
408 04.384 SPRING
(C) 		8-98203-198-0 01 1 1304- ●
437 04.435 PLATE; LOCK 8-98203-107-0 01 1 1304- ●
492 04.435 BOLT; PLATE 8-98203-122-0 01 1 1304- ●
517 04.384 BALL; SYNCHRO,INDEX 8-98203-204-0 09 1 1304- ●
531 04.383 RING; BLOCK,REV
OD=74 		8-98037-846-0 01 1 1304- ●
531 04.383 RING; BLOCK,REV 8-98203-197-0 01 1 1304- ●
535 04.395 SLEEVE; HUB,LOW-2ND 8-98203-189-0 01 1 1304- ●
598 04.421 GEAR; 1ST,COUNTER 8-98203-236-0 01 1 1304- ●

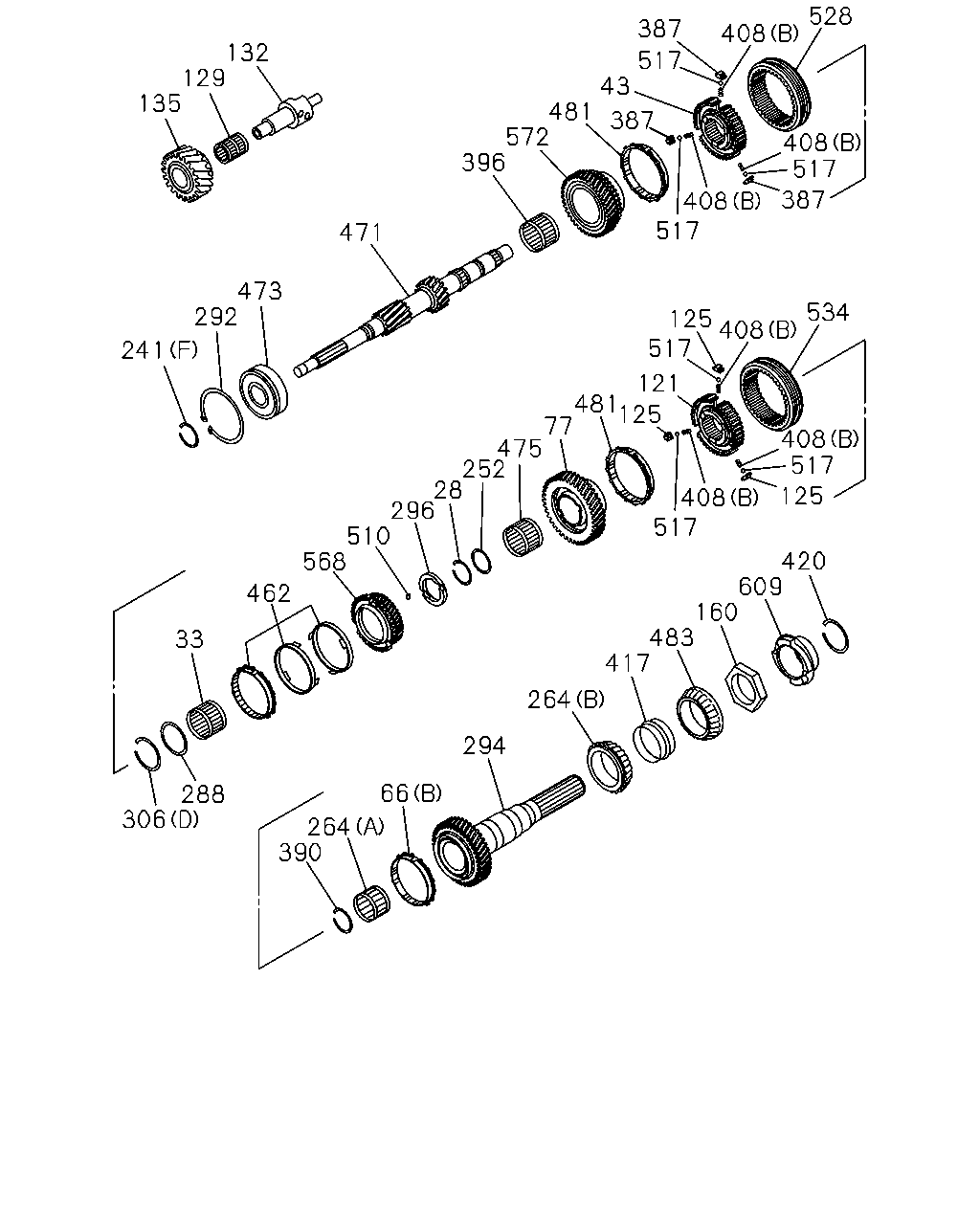

çizim 345211
135 129 132 471 473 292 241 396 572 481 43 517 387 408 528 408 387 517 408 517 534 408 125 517 121 125 481 77 475 252 28 296 510 568 462 33 408 517 125 408 517 420 609 160 483 417 264 294 66 264 390 288 306 387
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
28 04.416 RING; SNAP,3RD GEAR 8-98203-222-0 01 1 1304- ●
33 04.352 BEARING; NEEDLE,3RD GEAR 8-98203-209-0 01 1 1304- ●
33 04.352 BEARING; NEEDLE,3RD GEAR
04.419 NSK 		1-09811-028-1 01 1 1304- ● ● ● ●
43 04.384 HUB; CLU,3RD & 4TH,MAIN 8-98203-188-0 01 1 1304- ●
66 04.383 RING; BLOCK,SYN
(A) Z=30 		8-94463-830-1 01 1 1304- ●
66 04.383 RING; BLOCK,SYN
(C) 		8-98203-181-0 01 1 1304- ●
66 04.383 RING; BLOCK,SYN
(B) 		8-98203-194-0 01 1 1304- ●
77 04.421 GEAR; 6TH,MAINSHAFT 8-98203-231-0 01 1 1304- ●
121 04.384 HUB; CLU,6TH 8-98203-199-0 01 1 1304- ●
125 04.384 INSERT; 6TH SYN 8-98203-192-0 03 1 1304- ●
129 04.431 BEARING; NEEDLE,IDLER 8-98203-213-0 01 1 1304- ●
132 04.433 SHAFT; REV
IDENTIFICATION LABEL FOR KD<6UT> 		8-98245-493-0 01 1 1309- ● ●
132 04.433 SHAFT; REV 8-98245-493-0 01 1 1309- ●
132 04.433 SHAFT; REV 8-98023-113-0 01 1 1304- ●
132 04.433 SHAFT; REV 8-94435-146-0 01 1 1304- ●
132 04.433 SHAFT; REV 8-98203-238-0 01 1 1304- ●
132 04.433 SHAFT; REV 8-97019-155-1 01 1 1304-1308 ● ● ●
132 04.433 SHAFT; REV
EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98249-849-0 01 1 1309- ● ●
135 04.430 GEAR; REV IDLER
Z=32 		8-98233-615-0 01 1 1304- ●
135 04.430 GEAR; REV IDLER
EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=33 		8-98146-726-1 01 1 1304- ● ●
135 04.430 GEAR; REV IDLER
Z=33 		8-98146-724-0 01 1 1304- ●
135 04.430 GEAR; REV IDLER 8-98203-240-0 01 1 1304- ●
135 04.430 GEAR; REV IDLER
IDENTIFICATION LABEL FOR KD<6UT> Z=33 		8-98233-606-0 01 1 1304- ● ●
135 04.430 GEAR; REV IDLER
Z=33 		8-98233-606-0 01 1 1304- ●
160 04.525 NUT; OUTPUT SHAFT END 8-98203-252-0 01 1 1304- ●
241 04.416 RING; SNAP
04.422 (A) ID=34.4 T=1.9 		8-97254-735-0 01 1 1304- ●
241 04.416 RING; SNAP
(B) ID=27.1 T=1.9 		8-97362-871-0 01 1 1304- ●
241 04.416 RING; SNAP
(B) ID=27.1 T=2.1 		8-97362-872-0 01 1 1304- ●
241 04.416 RING; SNAP
(B) ID=27.1 T=2.3 		8-97362-873-0 01 1 1304- ●
241 04.416 RING; SNAP
(C) ID=37 T=1.95 		8-98004-523-1 01 1 1304- ●
241 04.416 RING; SNAP
(C) ID=37 T=2.1 		8-98004-524-1 01 1 1304- ●
241 04.416 RING; SNAP
(D) ID=27.9 		9-09180-030-0 01 1 1304- ●
241 04.416 RING; SNAP
(E) 		8-98203-218-0 01 1 1304- ●
241 04.416 RING; SNAP
(F) 		8-98203-223-0 01 1 1304- ●
252 04.412 SPACER 8-98024-456-0 01 1 1304- ●
252 04.412 SPACER 8-98203-226-0 01 1 1304- ●
264 04.520 BEARING; RR OUTPUT SHAFT,FRT
(A) 		8-98203-214-0 01 1 1304- ●
264 04.520 BEARING; RR OUTPUT SHAFT,FRT
(B) 		8-98203-216-0 01 1 1304- ●
288 04.399 SPACER; BRG,MAINSHAFT 8-98203-227-0 01 1 1304- ●
292 04.422 RING; SNAP,BRG OUTER 8-98203-225-0 01 1 1304- ●
292 04.422 RING; SNAP,BRG OUTER
NSK 		8-94422-081-0 01 1 1304- ● ● ●
294 04.530 SHAFT; OUTPUT
4X2(TFB***) 4JK1-TCY ENG(RDX) 		8-98203-233-0 01 1 1304- ●
294 04.530 SHAFT; OUTPUT
4X4(TFS***) 4JK1-TCY ENG(RDX) 		8-98203-232-0 01 1 1304- ●
296 04.406 WASHER; THRUST 8-98203-185-0 01 1 1304- ●
306 04.416 RING; SNAP,MAINSHAFT
(B) ID=27.9 		9-09180-030-0 02 1 1304- ● ●
306 04.416 RING; SNAP,MAINSHAFT
4X2(TFB***) (B) ID=27.9 		9-09180-030-0 02 1 1304- ●
306 04.416 RING; SNAP,MAINSHAFT
04.399 (A) T=1.50 		5-09588-020-1 01 1 1304- ●
306 04.416 RING; SNAP,MAINSHAFT
04.399 (A) T=1.55 		5-09588-021-1 01 1 1304- ●
306 04.416 RING; SNAP,MAINSHAFT
04.399 (A) T=1.60 		5-09588-022-1 01 1 1304- ●
306 04.416 RING; SNAP,MAINSHAFT
04.399 (A) T=1.65 		5-09588-023-1 01 1 1304- ●
306 04.416 RING; SNAP,MAINSHAFT
(D) 		8-98203-220-0 01 1 1304- ●
306 04.416 RING; SNAP,MAINSHAFT
4X4(TFS***) (B) ID=27.9 		9-09180-030-0 01 1 1304- ●
306 04.416 RING; SNAP,MAINSHAFT
(C) T=1.90 BLUE 		8-97129-615-0 01 1 1304- ● ● ●
306 04.416 RING; SNAP,MAINSHAFT
(C) T=1.85 YELLOW 		8-97129-616-0 01 1 1304- ● ● ●
306 04.416 RING; SNAP,MAINSHAFT
(C) T=1.80 WHITE 		8-97129-617-0 01 1 1304- ● ● ●
387 04.384 INSERT; SYN,4TH & 3RD 9-33263-048-2 03 1 1304- ●
387 04.384 INSERT; SYN,4TH & 3RD 8-98203-192-0 03 1 1304- ●
390 04.383 RING; SNAP,CLU HUB 8-98203-221-0 01 1 1304- ●
390 04.383 RING; SNAP,CLU HUB
T=1.80 WHITE 		8-94422-088-2 01 1 1304- ● ● ●
390 04.383 RING; SNAP,CLU HUB
T=1.85 YELLOW 		8-94422-089-1 01 1 1304- ● ● ●
390 04.383 RING; SNAP,CLU HUB
T=1.90 BLUE 		8-94422-090-2 01 1 1304- ● ● ●
396 04.352 BEARING; NEEDLE,MAINSHAFT
JTEKT 		9-00096-100-1 01 1 1304- ●
396 04.352 BEARING; NEEDLE,MAINSHAFT 8-98203-210-0 01 1 1304- ●
396 04.352 BEARING; NEEDLE,MAINSHAFT
NSK 		8-98172-355-0 01 1 1304- ● ● ●
408 04.384 SPRING
(A) 		8-98203-195-0 03 1 1304- ●
408 04.384 SPRING
(B) 		8-98203-196-0 06 1 1304- ●
408 04.384 SPRING
(C) 		8-98203-198-0 01 1 1304- ●
417 04.384 SPACER; OUTPUT SHAFT
4X2(TFB***) 4JK1-TCY ENG(RDX) 		8-98203-255-0 01 1 1304- ●
417 04.384 SPACER; OUTPUT SHAFT
4X4(TFS***) 4JK1-TCY ENG(RDX) 		8-98203-254-0 01 1 1304- ●
420 04.416 RING; SNAP,OUTPUT SHAFT 8-98203-257-0 01 1 1304- ●
462 04.383 RING ASM; BLOCK,SYNCHRONIZER 8-98203-183-0 01 1 1304- ●
471 04.530 SHAFT; INPUT
Z=24-14-20-27 		8-98106-034-0 01 1 1304- ●
471 04.530 SHAFT; INPUT 8-98203-234-0 01 1 1304- ●
473 04.352 BEARING; INPUT SHAFT 8-97362-721-1 01 1 1304- ●
473 04.352 BEARING; INPUT SHAFT 8-98203-205-0 01 1 1304- ●
475 04.419 BEARING; 6TH 8-98203-211-0 01 1 1304- ●
481 04.383 RING; BLOCK 8-98203-193-0 02 1 1304- ●
483 04.352 BEARING; TAPER 8-98203-217-0 01 1 1304- ●
510 04.540 PIN; STRAIGHT,ANTI LASH 8-98203-228-0 01 1 1304- ●
517 04.384 BALL; SYNCHRO,INDEX 8-98203-204-0 09 1 1304- ●
528 04.384 SLEEVE; 6TH 8-98203-190-0 01 1 1304- ●
534 04.395 SLEEVE; HUB,4TH-3RD
04.384 		8-98203-190-0 01 1 1304- ●
568 04.415 GEAR; 3RD,INPUT SHAFT
Z=28 		8-98233-608-0 01 1 1304- ●
568 04.415 GEAR; 3RD,INPUT SHAFT 8-98203-229-0 01 1 1304- ●
572 04.415 GEAR; 4TH,INPUT 8-98203-230-0 01 1 1304- ●
609 04.384 PIPE; OUTPUT SHAFT
4X2(TFB***) 4JK1-TCY ENG(RDX) 		8-98203-250-0 01 1 1304- ●
609 04.384 PIPE; OUTPUT SHAFT
4X4(TFS***) 4JK1-TCY ENG(RDX) 		8-98203-249-0 01 1 1304- ●

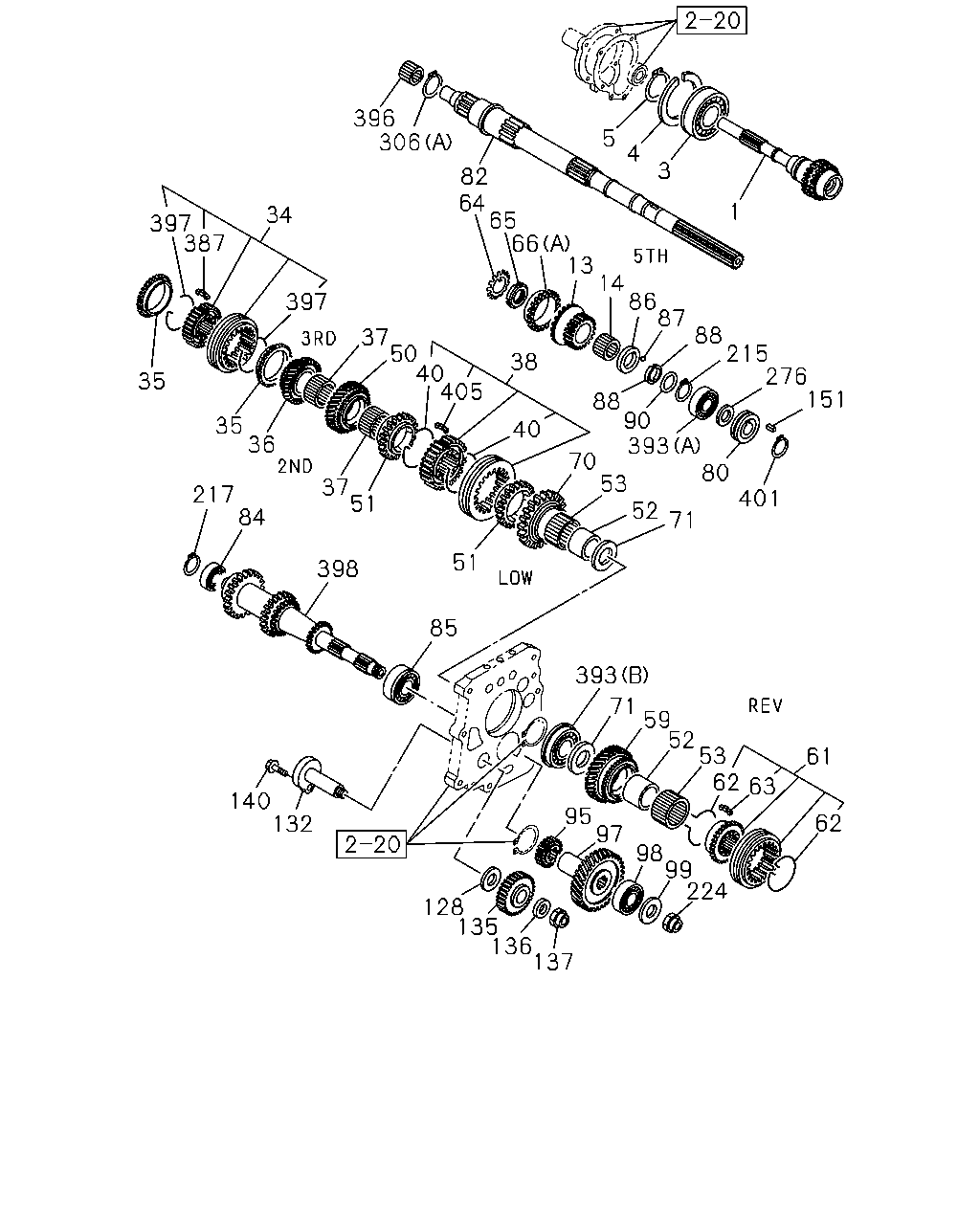

çizim 345568
5 1 3 4 396 82 306 64 13 65 14 215 88 87 86 276 151 80 393 90 88 38 401 66 34 397 397 50 37 71 52 53 70 40 405 40 387 35 36 35 51 37 51 398 84 217 85 132 140 128 35 136 137 224 99 98 97 95 62 61 63 59 71 393 53 52 62
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 04.351 SHAFT; TOP GEAR,TRANS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0) IDENTIFICATION LABEL FOR KD<6UT> Z=26 		8-98210-225-0 01 1 1304-1307 ● ●
1 04.351 SHAFT; TOP GEAR,TRANS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0) IDENTIFICATION LABEL FOR KD<6UT> Z=26 		8-98210-225-0 01 1 1308- ● ●
1 04.351 SHAFT; TOP GEAR,TRANS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0) EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=26 		8-98210-225-0 01 1 1304- ● ●
1 04.351 SHAFT; TOP GEAR,TRANS
Z=23 		8-94435-160-2 01 1 1304- ●
1 04.351 SHAFT; TOP GEAR,TRANS
Z=25 		8-98210-240-0 01 1 1304- ●
1 04.351 SHAFT; TOP GEAR,TRANS
4JK1-TCX ENG(LR0) IDENTIFICATION LABEL FOR KD<6UT> Z=26 		8-98210-248-0 01 1 1304-1307 ●
1 04.351 SHAFT; TOP GEAR,TRANS
4JK1-TCX ENG(LR0) IDENTIFICATION LABEL FOR KD<6UT> Z=26 		8-98233-594-0 01 1 1308- ●
1 04.351 SHAFT; TOP GEAR,TRANS
4JK1-TCX ENG(LR0) EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=26 		8-98210-247-0 01 1 1304- ●
3 04.403 BEARING; TOP GEAR SHAFT
EXC. IDENTIFICATION LABEL FOR KD<6UT> NSK 		8-94380-015-1 01 1 1304- ● ●
3 04.403 BEARING; TOP GEAR SHAFT
NSK 		8-97943-882-0 01 1 1304- ●
3 04.403 BEARING; TOP GEAR SHAFT
IDENTIFICATION LABEL FOR KD<6UT> NSK 		8-97943-879-0 01 1 1304- ● ●
3 04.403 BEARING; TOP GEAR SHAFT
NSK 		8-97943-879-0 01 1 1304- ●
4 04.416 RING; SNAP,BRG TO TOP GEAR SHAFT
04.376 NSK 		8-94206-485-0 01 1 1304- ●
4 04.416 RING; SNAP,BRG TO TOP GEAR SHAFT
NSK 		8-94422-083-0 01 1 1304- ● ● ●
5 04.416 RING; SNAP,BRG TO TOP GEAR SHAFT
08.934 ID=37.0 		9-09180-040-0 01 1 1304- ●
5 04.416 RING; SNAP,BRG TO TOP GEAR SHAFT
04.525 ID=37.4 		8-97254-316-0 01 1 1304- ● ● ●
13 04.415 GEAR; 5TH,MAINSHAFT
IDENTIFICATION LABEL FOR KD<6UT> Z=22 		8-98210-227-0 01 1 1304- ●
13 04.415 GEAR; 5TH,MAINSHAFT
Z=22 		8-98210-227-0 01 1 1304- ●
13 04.415 GEAR; 5TH,MAINSHAFT
EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=22 		8-98210-227-0 01 1 1304- ●
13 04.415 GEAR; 5TH,MAINSHAFT
Z=25 		8-94161-912-3 01 1 1304- ●
13 04.415 GEAR; 5TH,MAINSHAFT
4JA1-T ENG(LP0) IDENTIFICATION LABEL FOR KD<6UT> EXC. CONGO EQUIPMENT(CDF) Z=24 		8-98210-254-0 01 1 1304- ●
13 04.415 GEAR; 5TH,MAINSHAFT
4JA1-T ENG(LP0) EXC. CONGO EQUIPMENT(CDF), IDENTIFICATION LABEL FOR KD<6UT> Z=24 		8-98210-254-0 01 1 1304- ●
14 04.419 BEARING; NEEDLE,5TH
NSK 		8-97362-728-0 01 1 1304- ●
14 04.419 BEARING; NEEDLE,5TH
NSK 		8-94161-994-0 01 1 1304- ●
14 04.419 BEARING; NEEDLE,5TH
NTN 		8-98172-356-0 01 1 1304- ● ● ●
34 04.380 SYNCHRONIZER; 4TH & 3RD
IDENTIFICATION LABEL FOR KD<6UT> 		8-97977-991-0 01 1 1402- ● ●
34 04.380 SYNCHRONIZER; 4TH & 3RD 8-97977-991-0 01 1 1402- ●
34 04.380 SYNCHRONIZER; 4TH & 3RD 8-97362-474-3 01 1 1304- ●
34 04.380 SYNCHRONIZER; 4TH & 3RD 8-94161-860-0 01 1 1304- ●
34 04.380 SYNCHRONIZER; 4TH & 3RD 8-97104-027-0 01 1 1304-1401 ● ● ●
34 04.380 SYNCHRONIZER; 4TH & 3RD
EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97104-027-0 01 1 1402- ● ●
35 04.383 RING; BLOCK,4TH & 3RD
Z=30 		8-94463-830-1 02 1 1304- ●
35 04.383 RING; BLOCK,4TH & 3RD
Z=45 		8-94151-510-3 02 1 1304- ● ● ●
36 04.415 GEAR; 3RD,MAINSHAFT
IDENTIFICATION LABEL FOR KD<6UT> Z=27 		8-98233-597-0 01 1 1304- ● ●
36 04.415 GEAR; 3RD,MAINSHAFT
EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=27 		8-98210-226-0 01 1 1304- ● ●
36 04.415 GEAR; 3RD,MAINSHAFT
Z=29 		8-94161-137-1 01 1 1304- ●
36 04.415 GEAR; 3RD,MAINSHAFT
Z=31 		8-98210-249-0 01 1 1304- ●
37 04.352 BEARING; NEEDLE,2ND & 3RD
NTN 		8-94161-988-2 02 1 1304- ●
37 04.352 BEARING; NEEDLE,2ND & 3RD
NSK 		8-94161-989-0 02 1 1304- ●
38 04.384 SYNCHRONIZER; LOW & 2ND
IDENTIFICATION LABEL FOR KD<6UT> 		8-97977-989-0 01 1 1402- ● ●
38 04.384 SYNCHRONIZER; LOW & 2ND 8-97977-989-0 01 1 1402- ●
38 04.384 SYNCHRONIZER; LOW & 2ND 8-97362-503-1 01 1 1304- ●
38 04.384 SYNCHRONIZER; LOW & 2ND 8-94435-140-0 01 1 1304- ●
38 04.384 SYNCHRONIZER; LOW & 2ND 8-94363-059-1 01 1 1304-1401 ● ● ●
38 04.384 SYNCHRONIZER; LOW & 2ND
EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-94363-059-1 01 1 1402- ● ●
40 04.384 SPRING; INSERT,LOW & 2ND 8-94152-558-1 02 1 1304- ●
40 04.384 SPRING; INSERT,LOW & 2ND 8-94448-045-0 02 1 1304- ● ● ● ●
50 04.395 GEAR; 2ND,MAINSHAFT
EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=34 		8-97300-953-1 01 1 1304- ● ●
50 04.395 GEAR; 2ND,MAINSHAFT
Z=31 		8-94311-564-1 01 1 1304- ●
50 04.395 GEAR; 2ND,MAINSHAFT
IDENTIFICATION LABEL FOR KD<6UT> Z=34 		8-97301-183-1 01 1 1304- ● ●
50 04.395 GEAR; 2ND,MAINSHAFT
Z=34 		8-97301-183-1 01 1 1304- ●
51 04.383 RING; BLOCK,LOW & 2ND
Z=45 		8-94151-510-3 02 1 1304- ●
51 04.383 RING; BLOCK,LOW & 2ND
Z=36 		8-98115-804-0 02 1 1304- ● ● ● ●
52 04.419 COLLAR; NEEDLE BRG,LOW 8-97238-834-0 02 1 1304- ●
53 04.419 BEARING; NEEDLE,LOW & REV
NTN 		8-94161-990-2 02 1 1304- ●
53 04.419 BEARING; NEEDLE,LOW & REV
NSK 		8-94161-991-0 02 1 1304- ●
59 04.417 GEAR; REV MAINSHAFT
EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=41 		8-98210-228-0 01 1 1304- ● ●
59 04.417 GEAR; REV MAINSHAFT
Z=37 		8-94310-158-1 01 1 1304- ●
59 04.417 GEAR; REV MAINSHAFT
IDENTIFICATION LABEL FOR KD<6UT> Z=41 		8-98210-228-0 01 1 1304- ● ●
59 04.417 GEAR; REV MAINSHAFT
Z=41 		8-98210-228-0 01 1 1304- ●
61 04.380 SYNCHRONIZER; REV & 5TH 5-33260-010-0 01 1 1304- ●
61 04.380 SYNCHRONIZER; REV & 5TH 8-97030-106-1 01 1 1304- ● ● ●
62 04.384 SPRING; INSERT,REV & 5TH 5-33264-010-0 02 1 1304- ●
62 04.384 SPRING; INSERT,REV & 5TH 5-33264-012-0 02 1 1304- ● ● ●
63 04.384 INSERT; SYN,REV & 5TH 5-33263-002-3 03 1 1304- ●
63 04.384 INSERT; SYN,REV & 5TH 5-33263-001-0 03 1 1304- ● ● ●
64 04.419 WASHER; LK,LOW
04.412 		8-94238-095-0 01 1 1304- ●
65 04.356 NUT; MAINSHAFT
M32 		8-94238-094-1 01 1 1304- ●
65 04.356 NUT; MAINSHAFT
M34 		8-94422-071-1 01 1 1304- ● ● ●
66 04.383 RING; BLOCK,SYN
(A) Z=30 		8-94463-830-1 01 1 1304- ●
66 04.383 RING; BLOCK,SYN
(C) 		8-98203-181-0 01 1 1304- ●
66 04.383 RING; BLOCK,SYN
(B) 		8-98203-194-0 01 1 1304- ●
70 04.417 GEAR; 1ST,MAINSHAFT
EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=45 		8-97300-952-1 01 1 1304- ● ●
70 04.417 GEAR; 1ST,MAINSHAFT
Z=41 		8-94310-154-1 01 1 1304- ●
70 04.417 GEAR; 1ST,MAINSHAFT
IDENTIFICATION LABEL FOR KD<6UT> Z=45 		8-97301-182-1 01 1 1304- ● ●
70 04.417 GEAR; 1ST,MAINSHAFT
Z=45 		8-97301-182-1 01 1 1304- ●
71 04.406 WASHER; THRUST,LOW
ID=32.0 		5-33239-043-3 02 1 1304- ●
80 04.343 GEAR; SPD DRIVE
Z=6 		8-94472-608-1 01 1 1304- ● ●
80 04.343 GEAR; SPD DRIVE
4X2(TFB***) Z=6 		8-94472-608-1 01 1 1304- ●
80 04.343 GEAR; SPD DRIVE
Z=6 		8-94161-085-1 01 1 1304- ●
80 04.343 GEAR; SPD DRIVE
4X2(TFB***) 4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> Z=7 		8-98123-463-0 01 1 1304- ●
82 04.403 SHAFT; MAIN,TRANS
Z=28-34-26-27 		8-97300-981-0 01 1 1304- ● ●
82 04.403 SHAFT; MAIN,TRANS
4X2(TFB***) Z=28-34-26-27 		8-97300-981-0 01 1 1304- ●
82 04.403 SHAFT; MAIN,TRANS
Z=26-24-27 		8-94435-162-3 01 1 1304- ●
82 04.403 SHAFT; MAIN,TRANS
4X4(TFS***) Z=28-34-26-27 		8-97300-980-0 01 1 1304- ●
84 04.422 BEARING; COUNTER SHAFT,FRT 8-97362-724-0 01 1 1304- ●
84 04.422 BEARING; COUNTER SHAFT,FRT
NSK ID=20 OD=47 		8-97063-365-0 01 1 1304- ●
84 04.422 BEARING; COUNTER SHAFT,FRT 8-98203-206-0 01 1 1304- ●
85 04.422 BEARING; ANGULAR BALL,CLUSTER
NSK ID=25 OD=52 		8-97365-931-0 01 1 1304- ●
86 04.416 WASHER; THRUST,5TH
T=7.80 		8-94238-099-4 01 1 1304- ●
86 04.416 WASHER; THRUST,5TH
T=7.90 		8-94238-100-4 01 1 1304- ●
86 04.416 WASHER; THRUST,5TH
T=8.00 		8-94238-101-4 01 1 1304- ●
86 04.416 WASHER; THRUST,5TH
T=8.10 		8-94238-102-4 01 1 1304- ●
86 04.416 WASHER; THRUST,5TH
T=8.20 		8-94238-103-4 01 1 1304- ●
86 04.416 WASHER; THRUST,5TH
T=8.30 		8-94238-104-4 01 1 1304- ●
86 04.416 WASHER; THRUST,5TH
T=7.90 WHITE 		8-94422-110-2 01 1 1304- ● ● ●
86 04.416 WASHER; THRUST,5TH
T=8.00 YELLOW 		8-94422-111-2 01 1 1304- ● ● ●
86 04.416 WASHER; THRUST,5TH
T=8.10 GREEN 		8-94422-112-2 01 1 1304- ● ● ●
86 04.416 WASHER; THRUST,5TH
T=8.20 BLUE 		8-94422-113-2 01 1 1304- ● ● ●
87 04.416 BALL; THRUST WASHER 8-94201-356-0 01 1 1304- ● ● ● ●
88 04.416 RING; THRUST,THRUST WASHER 8-94473-936-2 02 1 1304- ●
90 04.416 RING; SNAP,THRUST RING
04.422 ID=29.6 		9-09180-032-0 01 1 1304- ● ●
90 04.416 RING; SNAP,THRUST RING
4X2(TFB***) 04.422 ID=29.6 		9-09180-032-0 01 1 1304- ●
90 04.416 RING; SNAP,THRUST RING
08.934 ID=37.0 		9-09180-040-0 01 1 1304- ●
95 04.417 GEAR; REV,COUNTER
Z=41 		8-98210-237-0 01 1 1304- ●
95 04.417 GEAR; REV,COUNTER
EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=19 		8-94377-433-0 01 1 1304- ● ●
95 04.417 GEAR; REV,COUNTER
Z=16 		8-94161-120-1 01 1 1304- ●
95 04.417 GEAR; REV,COUNTER 8-98203-243-0 01 1 1304- ●
95 04.417 GEAR; REV,COUNTER
IDENTIFICATION LABEL FOR KD<6UT> Z=19 		8-94377-433-0 01 1 1304- ● ●
95 04.417 GEAR; REV,COUNTER
Z=19 		8-94377-433-0 01 1 1304- ●
97 04.415 GEAR; 5TH,COUNTER
Z=27 		8-98040-114-0 01 1 1304- ●
97 04.415 GEAR; 5TH,COUNTER
IDENTIFICATION LABEL FOR KD<6UT> Z=50 		8-94377-434-0 01 1 1304- ●
97 04.415 GEAR; 5TH,COUNTER
Z=50 		8-94377-434-0 01 1 1304- ●
97 04.415 GEAR; 5TH,COUNTER
EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=50 		8-94377-434-0 01 1 1304- ●
97 04.415 GEAR; 5TH,COUNTER
Z=47 		8-94161-098-2 01 1 1304- ●
97 04.415 GEAR; 5TH,COUNTER
4JA1-T ENG(LP0) IDENTIFICATION LABEL FOR KD<6UT> EXC. CONGO EQUIPMENT(CDF) Z=49 		8-97216-154-0 01 1 1304- ●
97 04.415 GEAR; 5TH,COUNTER
4JA1-T ENG(LP0) EXC. CONGO EQUIPMENT(CDF), IDENTIFICATION LABEL FOR KD<6UT> Z=49 		8-97216-154-0 01 1 1304- ●
98 04.422 BEARING; BALL,COUNTER END
EXC. IDENTIFICATION LABEL FOR KD<6UT> NSK 		8-97018-535-1 01 1 1304- ● ●
98 04.422 BEARING; BALL,COUNTER END
NSK 		8-98019-664-0 01 1 1304- ●
98 04.422 BEARING; BALL,COUNTER END
IDENTIFICATION LABEL FOR KD<6UT> NSK 		8-97018-535-1 01 1 1304- ● ●
98 04.422 BEARING; BALL,COUNTER END
NSK 		8-97018-535-1 01 1 1304- ●
99 04.429 WASHER; PL,COUNTER 5TH GEAR
ID=17 OD=30 		0-91610-516-0 01 1 1304- ●
128 04.437 WASHER; THRUST,REV SHAFT
ID=22.0 		5-33363-004-0 01 1 1304- ●
132 04.433 SHAFT; REV
IDENTIFICATION LABEL FOR KD<6UT> 		8-98245-493-0 01 1 1309- ● ●
132 04.433 SHAFT; REV 8-98245-493-0 01 1 1309- ●
132 04.433 SHAFT; REV 8-98023-113-0 01 1 1304- ●
132 04.433 SHAFT; REV 8-94435-146-0 01 1 1304- ●
132 04.433 SHAFT; REV 8-98203-238-0 01 1 1304- ●
132 04.433 SHAFT; REV 8-97019-155-1 01 1 1304-1308 ● ● ●
132 04.433 SHAFT; REV
EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98249-849-0 01 1 1309- ● ●
136 04.437 WASHER; THRUST,REV IDLE,RR
ID=16.2 		5-33363-003-3 01 1 1304- ●
137 04.429 NUT; REV GEAR
M16 		8-98035-678-0 01 1 1304- ●
140 04.435 BOLT; LK PIECE
02.343 M8X16 FLANGE 		0-28050-816-0 01 1 1304- ●
151 04.345 KEY; FEATHER,SPD DRIVE GEAR
08.960 		9-08020-510-0 01 1 1304- ●
215 04.416 RING; SNAP,BALL BRG
ID=27.9 		9-09180-030-0 01 1 1304- ●
217 04.376 RING; SNAP,COUNTER FRT BRG
04.422 ID=18.5 		9-09180-020-0 01 1 1304- ●
224 04.429 NUT; SELF LK,COUNTER
M16 		8-98035-678-0 01 1 1304- ●
276 04.419 SPACER; BRG TO DRIVE GEAR
04.423 		8-94161-087-0 01 1 1304- ●
306 04.416 RING; SNAP,MAINSHAFT
(B) ID=27.9 		9-09180-030-0 02 1 1304- ● ●
306 04.416 RING; SNAP,MAINSHAFT
4X2(TFB***) (B) ID=27.9 		9-09180-030-0 02 1 1304- ●
306 04.416 RING; SNAP,MAINSHAFT
04.399 (A) T=1.50 		5-09588-020-1 01 1 1304- ●
306 04.416 RING; SNAP,MAINSHAFT
04.399 (A) T=1.55 		5-09588-021-1 01 1 1304- ●
306 04.416 RING; SNAP,MAINSHAFT
04.399 (A) T=1.60 		5-09588-022-1 01 1 1304- ●
306 04.416 RING; SNAP,MAINSHAFT
04.399 (A) T=1.65 		5-09588-023-1 01 1 1304- ●
306 04.416 RING; SNAP,MAINSHAFT
(D) 		8-98203-220-0 01 1 1304- ●
306 04.416 RING; SNAP,MAINSHAFT
4X4(TFS***) (B) ID=27.9 		9-09180-030-0 01 1 1304- ●
306 04.416 RING; SNAP,MAINSHAFT
(C) T=1.90 BLUE 		8-97129-615-0 01 1 1304- ● ● ●
306 04.416 RING; SNAP,MAINSHAFT
(C) T=1.85 YELLOW 		8-97129-616-0 01 1 1304- ● ● ●
306 04.416 RING; SNAP,MAINSHAFT
(C) T=1.80 WHITE 		8-97129-617-0 01 1 1304- ● ● ●
387 04.384 INSERT; SYN,4TH & 3RD 9-33263-048-2 03 1 1304- ●
387 04.384 INSERT; SYN,4TH & 3RD 8-98203-192-0 03 1 1304- ●
393 04.352 BEARING; MAINSHAFT END
04.408 (B) NSK 		8-94173-866-0 01 1 1304- ●
393 04.352 BEARING; MAINSHAFT END
04.422 (A) NSK 		8-94173-863-0 01 1 1304- ●
396 04.352 BEARING; NEEDLE,MAINSHAFT
JTEKT 		9-00096-100-1 01 1 1304- ●
396 04.352 BEARING; NEEDLE,MAINSHAFT 8-98203-210-0 01 1 1304- ●
396 04.352 BEARING; NEEDLE,MAINSHAFT
NSK 		8-98172-355-0 01 1 1304- ● ● ●
397 04.384 SPRING; INSERT,4TH & 3RD 5-33264-010-0 02 1 1304- ●
397 04.384 SPRING; INSERT,4TH & 3RD 8-94422-075-0 02 1 1304- ● ● ●
398 04.421 GEAR; COUNTER
Z=23 		8-98106-584-0 01 1 1304- ●
398 04.421 GEAR; COUNTER
IDENTIFICATION LABEL FOR KD<6UT> Z=44-32-25-19 		8-97301-186-2 01 1 1304- ● ●
398 04.421 GEAR; COUNTER
EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=44-32-25-19 		8-97216-164-1 01 1 1304- ● ●
398 04.421 GEAR; COUNTER
Z=37-31-20-16 		8-94469-524-1 01 1 1304- ●
398 04.421 GEAR; COUNTER
Z=46-32-25-19 		8-97209-758-1 01 1 1304- ●
401 04.345 RING; SNAP,SPD DRIVE GEAR
04.416 ID=27.9 		9-09180-030-0 01 1 1304- ●
405 04.384 INSERT; SYN,LOW & 2ND 8-94152-557-1 03 1 1304- ●
405 04.384 INSERT; SYN,LOW & 2ND 8-98203-191-0 03 1 1304- ●
405 04.384 INSERT; SYN,LOW & 2ND 8-94363-062-1 03 1 1304- ● ● ● ●
çizim 345746
72 61 60 421 421 91 62 59 62 314 65 404 13 87 306 399 89 86 14 80 38 149 90 404 51 392 391 50 49 40 392 211 313 70 391 51 390 405 306 82 33 36 35 238 35 396 1 40 3 4 5 93 292 246 306 397 397 219 97 98 110 132 386 135 226 189 398 95 34 63
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 04.351 SHAFT; TOP GEAR,TRANS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0) IDENTIFICATION LABEL FOR KD<6UT> Z=26 		8-98210-225-0 01 1 1304-1307 ● ●
1 04.351 SHAFT; TOP GEAR,TRANS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0) IDENTIFICATION LABEL FOR KD<6UT> Z=26 		8-98210-225-0 01 1 1308- ● ●
1 04.351 SHAFT; TOP GEAR,TRANS
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0) EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=26 		8-98210-225-0 01 1 1304- ● ●
1 04.351 SHAFT; TOP GEAR,TRANS
Z=23 		8-94435-160-2 01 1 1304- ●
1 04.351 SHAFT; TOP GEAR,TRANS
Z=25 		8-98210-240-0 01 1 1304- ●
1 04.351 SHAFT; TOP GEAR,TRANS
4JK1-TCX ENG(LR0) IDENTIFICATION LABEL FOR KD<6UT> Z=26 		8-98210-248-0 01 1 1304-1307 ●
1 04.351 SHAFT; TOP GEAR,TRANS
4JK1-TCX ENG(LR0) IDENTIFICATION LABEL FOR KD<6UT> Z=26 		8-98233-594-0 01 1 1308- ●
1 04.351 SHAFT; TOP GEAR,TRANS
4JK1-TCX ENG(LR0) EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=26 		8-98210-247-0 01 1 1304- ●
3 04.403 BEARING; TOP GEAR SHAFT
EXC. IDENTIFICATION LABEL FOR KD<6UT> NSK 		8-94380-015-1 01 1 1304- ● ●
3 04.403 BEARING; TOP GEAR SHAFT
NSK 		8-97943-882-0 01 1 1304- ●
3 04.403 BEARING; TOP GEAR SHAFT
IDENTIFICATION LABEL FOR KD<6UT> NSK 		8-97943-879-0 01 1 1304- ● ●
3 04.403 BEARING; TOP GEAR SHAFT
NSK 		8-97943-879-0 01 1 1304- ●
4 04.416 RING; SNAP,BRG TO TOP GEAR SHAFT
04.376 NSK 		8-94206-485-0 01 1 1304- ●
4 04.416 RING; SNAP,BRG TO TOP GEAR SHAFT
NSK 		8-94422-083-0 01 1 1304- ● ● ●
5 04.416 RING; SNAP,BRG TO TOP GEAR SHAFT
08.934 ID=37.0 		9-09180-040-0 01 1 1304- ●
5 04.416 RING; SNAP,BRG TO TOP GEAR SHAFT
04.525 ID=37.4 		8-97254-316-0 01 1 1304- ● ● ●
13 04.415 GEAR; 5TH,MAINSHAFT
IDENTIFICATION LABEL FOR KD<6UT> Z=22 		8-98210-227-0 01 1 1304- ●
13 04.415 GEAR; 5TH,MAINSHAFT
Z=22 		8-98210-227-0 01 1 1304- ●
13 04.415 GEAR; 5TH,MAINSHAFT
EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=22 		8-98210-227-0 01 1 1304- ●
13 04.415 GEAR; 5TH,MAINSHAFT
Z=25 		8-94161-912-3 01 1 1304- ●
13 04.415 GEAR; 5TH,MAINSHAFT
4JA1-T ENG(LP0) IDENTIFICATION LABEL FOR KD<6UT> EXC. CONGO EQUIPMENT(CDF) Z=24 		8-98210-254-0 01 1 1304- ●
13 04.415 GEAR; 5TH,MAINSHAFT
4JA1-T ENG(LP0) EXC. CONGO EQUIPMENT(CDF), IDENTIFICATION LABEL FOR KD<6UT> Z=24 		8-98210-254-0 01 1 1304- ●
14 04.419 BEARING; NEEDLE,5TH
NSK 		8-97362-728-0 01 1 1304- ●
14 04.419 BEARING; NEEDLE,5TH
NSK 		8-94161-994-0 01 1 1304- ●
14 04.419 BEARING; NEEDLE,5TH
NTN 		8-98172-356-0 01 1 1304- ● ● ●
33 04.352 BEARING; NEEDLE,3RD GEAR 8-98203-209-0 01 1 1304- ●
33 04.352 BEARING; NEEDLE,3RD GEAR
04.419 NSK 		1-09811-028-1 01 1 1304- ● ● ● ●
34 04.380 SYNCHRONIZER; 4TH & 3RD
IDENTIFICATION LABEL FOR KD<6UT> 		8-97977-991-0 01 1 1402- ● ●
34 04.380 SYNCHRONIZER; 4TH & 3RD 8-97977-991-0 01 1 1402- ●
34 04.380 SYNCHRONIZER; 4TH & 3RD 8-97362-474-3 01 1 1304- ●
34 04.380 SYNCHRONIZER; 4TH & 3RD 8-94161-860-0 01 1 1304- ●
34 04.380 SYNCHRONIZER; 4TH & 3RD 8-97104-027-0 01 1 1304-1401 ● ● ●
34 04.380 SYNCHRONIZER; 4TH & 3RD
EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97104-027-0 01 1 1402- ● ●
35 04.383 RING; BLOCK,4TH & 3RD
Z=30 		8-94463-830-1 02 1 1304- ●
35 04.383 RING; BLOCK,4TH & 3RD
Z=45 		8-94151-510-3 02 1 1304- ● ● ●
36 04.415 GEAR; 3RD,MAINSHAFT
IDENTIFICATION LABEL FOR KD<6UT> Z=27 		8-98233-597-0 01 1 1304- ● ●
36 04.415 GEAR; 3RD,MAINSHAFT
EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=27 		8-98210-226-0 01 1 1304- ● ●
36 04.415 GEAR; 3RD,MAINSHAFT
Z=29 		8-94161-137-1 01 1 1304- ●
36 04.415 GEAR; 3RD,MAINSHAFT
Z=31 		8-98210-249-0 01 1 1304- ●
38 04.384 SYNCHRONIZER; LOW & 2ND
IDENTIFICATION LABEL FOR KD<6UT> 		8-97977-989-0 01 1 1402- ● ●
38 04.384 SYNCHRONIZER; LOW & 2ND 8-97977-989-0 01 1 1402- ●
38 04.384 SYNCHRONIZER; LOW & 2ND 8-97362-503-1 01 1 1304- ●
38 04.384 SYNCHRONIZER; LOW & 2ND 8-94435-140-0 01 1 1304- ●
38 04.384 SYNCHRONIZER; LOW & 2ND 8-94363-059-1 01 1 1304-1401 ● ● ●
38 04.384 SYNCHRONIZER; LOW & 2ND
EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-94363-059-1 01 1 1402- ● ●
40 04.384 SPRING; INSERT,LOW & 2ND 8-94152-558-1 02 1 1304- ●
40 04.384 SPRING; INSERT,LOW & 2ND 8-94448-045-0 02 1 1304- ● ● ● ●
49 04.352 BEARING; NEEDLE,2ND GEAR 8-98203-208-0 01 1 1304- ●
49 04.352 BEARING; NEEDLE,2ND GEAR
JTEKT 		9-00096-625-0 01 1 1304- ● ● ●
50 04.395 GEAR; 2ND,MAINSHAFT
EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=34 		8-97300-953-1 01 1 1304- ● ●
50 04.395 GEAR; 2ND,MAINSHAFT
Z=31 		8-94311-564-1 01 1 1304- ●
50 04.395 GEAR; 2ND,MAINSHAFT
IDENTIFICATION LABEL FOR KD<6UT> Z=34 		8-97301-183-1 01 1 1304- ● ●
50 04.395 GEAR; 2ND,MAINSHAFT
Z=34 		8-97301-183-1 01 1 1304- ●
51 04.383 RING; BLOCK,LOW & 2ND
Z=45 		8-94151-510-3 02 1 1304- ●
51 04.383 RING; BLOCK,LOW & 2ND
Z=36 		8-98115-804-0 02 1 1304- ● ● ● ●
59 04.417 GEAR; REV MAINSHAFT
EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=41 		8-98210-228-0 01 1 1304- ● ●
59 04.417 GEAR; REV MAINSHAFT
Z=37 		8-94310-158-1 01 1 1304- ●
59 04.417 GEAR; REV MAINSHAFT
IDENTIFICATION LABEL FOR KD<6UT> Z=41 		8-98210-228-0 01 1 1304- ● ●
59 04.417 GEAR; REV MAINSHAFT
Z=41 		8-98210-228-0 01 1 1304- ●
60 04.419 COLLAR; REV MAIN 8-97031-079-0 01 1 1304- ● ● ●
61 04.380 SYNCHRONIZER; REV & 5TH 5-33260-010-0 01 1 1304- ●
61 04.380 SYNCHRONIZER; REV & 5TH 8-97030-106-1 01 1 1304- ● ● ●
62 04.384 SPRING; INSERT,REV & 5TH 5-33264-010-0 02 1 1304- ●
62 04.384 SPRING; INSERT,REV & 5TH 5-33264-012-0 02 1 1304- ● ● ●
63 04.384 INSERT; SYN,REV & 5TH 5-33263-002-3 03 1 1304- ●
63 04.384 INSERT; SYN,REV & 5TH 5-33263-001-0 03 1 1304- ● ● ●
65 04.356 NUT; MAINSHAFT
M32 		8-94238-094-1 01 1 1304- ●
65 04.356 NUT; MAINSHAFT
M34 		8-94422-071-1 01 1 1304- ● ● ●
70 04.417 GEAR; 1ST,MAINSHAFT
EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=45 		8-97300-952-1 01 1 1304- ● ●
70 04.417 GEAR; 1ST,MAINSHAFT
Z=41 		8-94310-154-1 01 1 1304- ●
70 04.417 GEAR; 1ST,MAINSHAFT
IDENTIFICATION LABEL FOR KD<6UT> Z=45 		8-97301-182-1 01 1 1304- ● ●
70 04.417 GEAR; 1ST,MAINSHAFT
Z=45 		8-97301-182-1 01 1 1304- ●
72 04.352 BEARING; BALL,MAINSHAFT
EXC. IDENTIFICATION LABEL FOR KD<6UT> NSK 		8-94380-017-1 01 1 1304- ● ●
72 04.352 BEARING; BALL,MAINSHAFT
IDENTIFICATION LABEL FOR KD<6UT> NSK 		8-94380-017-1 01 1 1304- ● ●
72 04.352 BEARING; BALL,MAINSHAFT
NSK 		8-94380-017-1 01 1 1304- ●
80 04.343 GEAR; SPD DRIVE
Z=6 		8-94472-608-1 01 1 1304- ● ●
80 04.343 GEAR; SPD DRIVE
4X2(TFB***) Z=6 		8-94472-608-1 01 1 1304- ●
80 04.343 GEAR; SPD DRIVE
Z=6 		8-94161-085-1 01 1 1304- ●
80 04.343 GEAR; SPD DRIVE
4X2(TFB***) 4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> Z=7 		8-98123-463-0 01 1 1304- ●
82 04.403 SHAFT; MAIN,TRANS
Z=28-34-26-27 		8-97300-981-0 01 1 1304- ● ●
82 04.403 SHAFT; MAIN,TRANS
4X2(TFB***) Z=28-34-26-27 		8-97300-981-0 01 1 1304- ●
82 04.403 SHAFT; MAIN,TRANS
Z=26-24-27 		8-94435-162-3 01 1 1304- ●
82 04.403 SHAFT; MAIN,TRANS
4X4(TFS***) Z=28-34-26-27 		8-97300-980-0 01 1 1304- ●
86 04.416 WASHER; THRUST,5TH
T=7.80 		8-94238-099-4 01 1 1304- ●
86 04.416 WASHER; THRUST,5TH
T=7.90 		8-94238-100-4 01 1 1304- ●
86 04.416 WASHER; THRUST,5TH
T=8.00 		8-94238-101-4 01 1 1304- ●
86 04.416 WASHER; THRUST,5TH
T=8.10 		8-94238-102-4 01 1 1304- ●
86 04.416 WASHER; THRUST,5TH
T=8.20 		8-94238-103-4 01 1 1304- ●
86 04.416 WASHER; THRUST,5TH
T=8.30 		8-94238-104-4 01 1 1304- ●
86 04.416 WASHER; THRUST,5TH
T=7.90 WHITE 		8-94422-110-2 01 1 1304- ● ● ●
86 04.416 WASHER; THRUST,5TH
T=8.00 YELLOW 		8-94422-111-2 01 1 1304- ● ● ●
86 04.416 WASHER; THRUST,5TH
T=8.10 GREEN 		8-94422-112-2 01 1 1304- ● ● ●
86 04.416 WASHER; THRUST,5TH
T=8.20 BLUE 		8-94422-113-2 01 1 1304- ● ● ●
87 04.416 BALL; THRUST WASHER 8-94201-356-0 01 1 1304- ● ● ● ●
89 04.416 RING; RET,THRUST RING
ID=31.8 		8-94422-395-0 01 1 1304- ● ● ●
90 04.416 RING; SNAP,THRUST RING
04.422 ID=29.6 		9-09180-032-0 01 1 1304- ● ●
90 04.416 RING; SNAP,THRUST RING
4X2(TFB***) 04.422 ID=29.6 		9-09180-032-0 01 1 1304- ●
90 04.416 RING; SNAP,THRUST RING
08.934 ID=37.0 		9-09180-040-0 01 1 1304- ●
91 04.416 RING; SNAP,CENTER BRG,MAINSHAFT
ID=76.2 		8-94322-411-0 01 1 1304- ● ● ●
93 04.422 RING; SNAP,COUNTER FRT BRG
08.934 ID=23.2 		9-09180-025-0 01 1 1304- ● ● ●
95 04.417 GEAR; REV,COUNTER
Z=41 		8-98210-237-0 01 1 1304- ●
95 04.417 GEAR; REV,COUNTER
EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=19 		8-94377-433-0 01 1 1304- ● ●
95 04.417 GEAR; REV,COUNTER
Z=16 		8-94161-120-1 01 1 1304- ●
95 04.417 GEAR; REV,COUNTER 8-98203-243-0 01 1 1304- ●
95 04.417 GEAR; REV,COUNTER
IDENTIFICATION LABEL FOR KD<6UT> Z=19 		8-94377-433-0 01 1 1304- ● ●
95 04.417 GEAR; REV,COUNTER
Z=19 		8-94377-433-0 01 1 1304- ●
97 04.415 GEAR; 5TH,COUNTER
Z=27 		8-98040-114-0 01 1 1304- ●
97 04.415 GEAR; 5TH,COUNTER
IDENTIFICATION LABEL FOR KD<6UT> Z=50 		8-94377-434-0 01 1 1304- ●
97 04.415 GEAR; 5TH,COUNTER
Z=50 		8-94377-434-0 01 1 1304- ●
97 04.415 GEAR; 5TH,COUNTER
EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=50 		8-94377-434-0 01 1 1304- ●
97 04.415 GEAR; 5TH,COUNTER
Z=47 		8-94161-098-2 01 1 1304- ●
97 04.415 GEAR; 5TH,COUNTER
4JA1-T ENG(LP0) IDENTIFICATION LABEL FOR KD<6UT> EXC. CONGO EQUIPMENT(CDF) Z=49 		8-97216-154-0 01 1 1304- ●
97 04.415 GEAR; 5TH,COUNTER
4JA1-T ENG(LP0) EXC. CONGO EQUIPMENT(CDF), IDENTIFICATION LABEL FOR KD<6UT> Z=49 		8-97216-154-0 01 1 1304- ●
98 04.422 BEARING; BALL,COUNTER END
EXC. IDENTIFICATION LABEL FOR KD<6UT> NSK 		8-97018-535-1 01 1 1304- ● ●
98 04.422 BEARING; BALL,COUNTER END
NSK 		8-98019-664-0 01 1 1304- ●
98 04.422 BEARING; BALL,COUNTER END
IDENTIFICATION LABEL FOR KD<6UT> NSK 		8-97018-535-1 01 1 1304- ● ●
98 04.422 BEARING; BALL,COUNTER END
NSK 		8-97018-535-1 01 1 1304- ●
110 04.422 RING; SNAP,COUNTER BRG 8-98203-219-0 01 1 1304- ●
110 04.422 RING; SNAP,COUNTER BRG
T=1.10 WHITE 		8-94422-103-0 01 1 1304- ● ● ●
110 04.422 RING; SNAP,COUNTER BRG
T=1.20 YELLOW 		8-94422-104-0 01 1 1304- ● ● ●
110 04.422 RING; SNAP,COUNTER BRG
T=1.30 BLUE 		8-94422-105-0 01 1 1304- ● ● ●
110 04.422 RING; SNAP,COUNTER BRG
T=1.40 PINK 		8-94422-106-0 01 1 1304- ● ● ●
110 04.422 RING; SNAP,COUNTER BRG
T=1.50 GREEN 		8-94422-107-0 01 1 1304- ● ● ●
110 04.422 RING; SNAP,COUNTER BRG
T=1.60 BROWN 		8-94422-108-0 01 1 1304- ● ● ●
132 04.433 SHAFT; REV
IDENTIFICATION LABEL FOR KD<6UT> 		8-98245-493-0 01 1 1309- ● ●
132 04.433 SHAFT; REV 8-98245-493-0 01 1 1309- ●
132 04.433 SHAFT; REV 8-98023-113-0 01 1 1304- ●
132 04.433 SHAFT; REV 8-94435-146-0 01 1 1304- ●
132 04.433 SHAFT; REV 8-98203-238-0 01 1 1304- ●
132 04.433 SHAFT; REV 8-97019-155-1 01 1 1304-1308 ● ● ●
132 04.433 SHAFT; REV
EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98249-849-0 01 1 1309- ● ●
135 04.430 GEAR; REV IDLER
Z=32 		8-98233-615-0 01 1 1304- ●
135 04.430 GEAR; REV IDLER
EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=33 		8-98146-726-1 01 1 1304- ● ●
135 04.430 GEAR; REV IDLER
Z=33 		8-98146-724-0 01 1 1304- ●
135 04.430 GEAR; REV IDLER 8-98203-240-0 01 1 1304- ●
135 04.430 GEAR; REV IDLER
IDENTIFICATION LABEL FOR KD<6UT> Z=33 		8-98233-606-0 01 1 1304- ● ●
135 04.430 GEAR; REV IDLER
Z=33 		8-98233-606-0 01 1 1304- ●
149 04.352 BEARING; NEEDLE,MAINSHAFT,RR
IDENTIFICATION LABEL FOR KD<6UT> 04.422 NSK 		8-94173-863-0 01 1 1304- ● ●
149 04.352 BEARING; NEEDLE,MAINSHAFT,RR
4X2(TFB***) IDENTIFICATION LABEL FOR KD<6UT> 04.422 NSK 		8-94173-863-0 01 1 1304- ●
149 04.352 BEARING; NEEDLE,MAINSHAFT,RR
EXC. IDENTIFICATION LABEL FOR KD<6UT> 04.422 NSK 		8-94173-863-0 01 1 1304- ●
149 04.352 BEARING; NEEDLE,MAINSHAFT,RR
4X2(TFB***) EXC. IDENTIFICATION LABEL FOR KD<6UT> 04.422 NSK 		8-94173-863-0 01 1 1304- ●
189 04.435 RING; SNAP,REV,GEAR
T=1.20 WHITE 		8-94422-100-0 01 1 1304- ● ● ●
189 04.435 RING; SNAP,REV,GEAR
T=1.30 YELLOW 		8-94422-101-0 01 1 1304- ● ● ●
189 04.435 RING; SNAP,REV,GEAR
T=1.40 BLUE 		8-94422-102-0 01 1 1304- ● ● ●
211 04.419 BEARING; THRUST NEEDLE,1ST GEAR
NSK 		8-94148-935-0 01 1 1304- ● ● ●
219 04.422 BEARING; BALL,CLUSTER,RR
NSK 		8-94436-929-0 01 1 1304- ● ● ●
226 04.437 WASHER; THRUST,REV GEAR,COUNTER
ID=30.0 		8-94223-069-1 01 1 1304- ● ● ●
238 04.384 INSERT
(B) 		8-94249-576-2 03 1 1304- ●
238 04.384 INSERT
(A) 		8-98004-522-0 06 1 1304- ●
238 04.384 INSERT
(C) 		8-94448-202-2 03 1 1304- ● ● ●
246 04.422 BEARING; ROLLER,COUNTER SHAFT FR
NSK 		8-97029-600-4 01 1 1304- ● ● ●
292 04.422 RING; SNAP,BRG OUTER 8-98203-225-0 01 1 1304- ●
292 04.422 RING; SNAP,BRG OUTER
NSK 		8-94422-081-0 01 1 1304- ● ● ●
306 04.416 RING; SNAP,MAINSHAFT
(B) ID=27.9 		9-09180-030-0 02 1 1304- ● ●
306 04.416 RING; SNAP,MAINSHAFT
4X2(TFB***) (B) ID=27.9 		9-09180-030-0 02 1 1304- ●
306 04.416 RING; SNAP,MAINSHAFT
04.399 (A) T=1.50 		5-09588-020-1 01 1 1304- ●
306 04.416 RING; SNAP,MAINSHAFT
04.399 (A) T=1.55 		5-09588-021-1 01 1 1304- ●
306 04.416 RING; SNAP,MAINSHAFT
04.399 (A) T=1.60 		5-09588-022-1 01 1 1304- ●
306 04.416 RING; SNAP,MAINSHAFT
04.399 (A) T=1.65 		5-09588-023-1 01 1 1304- ●
306 04.416 RING; SNAP,MAINSHAFT
(D) 		8-98203-220-0 01 1 1304- ●
306 04.416 RING; SNAP,MAINSHAFT
4X4(TFS***) (B) ID=27.9 		9-09180-030-0 01 1 1304- ●
306 04.416 RING; SNAP,MAINSHAFT
(C) T=1.90 BLUE 		8-97129-615-0 01 1 1304- ● ● ●
306 04.416 RING; SNAP,MAINSHAFT
(C) T=1.85 YELLOW 		8-97129-616-0 01 1 1304- ● ● ●
306 04.416 RING; SNAP,MAINSHAFT
(C) T=1.80 WHITE 		8-97129-617-0 01 1 1304- ● ● ●
313 04.419 BEARING; NEEDLE,LOW GEAR
NSK 		1-09811-028-1 01 1 1304- ● ● ●
314 04.419 BEARING; NEEDLE,REV GEAR
NSK 		8-97362-719-0 01 1 1304- ●
314 04.419 BEARING; NEEDLE,REV GEAR 8-98203-212-0 01 1 1304- ●
314 04.419 BEARING; NEEDLE,REV GEAR
NSK 		8-94422-064-0 01 1 1304- ● ● ●
314 04.419 BEARING; NEEDLE,REV GEAR
JTEKT 		8-94422-065-1 01 1 1304- ● ● ●
386 04.435 PIN; REV SHAFT
00.662 OD=4 L=8 		9-08160-408-0 01 1 1304- ●
386 04.435 PIN; REV SHAFT
OD=6 L=40 		9-08150-640-0 01 1 1304- ● ● ●
390 04.383 RING; SNAP,CLU HUB 8-98203-221-0 01 1 1304- ●
390 04.383 RING; SNAP,CLU HUB
T=1.80 WHITE 		8-94422-088-2 01 1 1304- ● ● ●
390 04.383 RING; SNAP,CLU HUB
T=1.85 YELLOW 		8-94422-089-1 01 1 1304- ● ● ●
390 04.383 RING; SNAP,CLU HUB
T=1.90 BLUE 		8-94422-090-2 01 1 1304- ● ● ●
391 04.383 RING; INSIDE,SYN
OD=95.8 		8-94363-056-0 02 1 1304- ● ● ●
392 04.383 RING; OUTSIDE,SYN
OD=90.0 		8-98115-793-0 02 1 1304- ● ● ●
396 04.352 BEARING; NEEDLE,MAINSHAFT
JTEKT 		9-00096-100-1 01 1 1304- ●
396 04.352 BEARING; NEEDLE,MAINSHAFT 8-98203-210-0 01 1 1304- ●
396 04.352 BEARING; NEEDLE,MAINSHAFT
NSK 		8-98172-355-0 01 1 1304- ● ● ●
397 04.384 SPRING; INSERT,4TH & 3RD 5-33264-010-0 02 1 1304- ●
397 04.384 SPRING; INSERT,4TH & 3RD 8-94422-075-0 02 1 1304- ● ● ●
398 04.421 GEAR; COUNTER
Z=23 		8-98106-584-0 01 1 1304- ●
398 04.421 GEAR; COUNTER
IDENTIFICATION LABEL FOR KD<6UT> Z=44-32-25-19 		8-97301-186-2 01 1 1304- ● ●
398 04.421 GEAR; COUNTER
EXC. IDENTIFICATION LABEL FOR KD<6UT> Z=44-32-25-19 		8-97216-164-1 01 1 1304- ● ●
398 04.421 GEAR; COUNTER
Z=37-31-20-16 		8-94469-524-1 01 1 1304- ●
398 04.421 GEAR; COUNTER
Z=46-32-25-19 		8-97209-758-1 01 1 1304- ●
399 04.345 CLIP; SPEEDOMETER DRIVE GEAR
4X2(TFB***) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-94310-229-0 01 1 1304- ●
399 04.345 CLIP; SPEEDOMETER DRIVE GEAR 8-94310-229-0 01 1 1304- ● ●
399 04.345 CLIP; SPEEDOMETER DRIVE GEAR
4X2(TFB***) 		8-94310-229-0 01 1 1304- ●
404 04.307 PLATE; THRUST 8-98203-202-0 02 1 1304- ●
404 04.307 PLATE; THRUST 8-94421-892-0 02 1 1304- ● ● ●
405 04.384 INSERT; SYN,LOW & 2ND 8-94152-557-1 03 1 1304- ●
405 04.384 INSERT; SYN,LOW & 2ND 8-98203-191-0 03 1 1304- ●
405 04.384 INSERT; SYN,LOW & 2ND 8-94363-062-1 03 1 1304- ● ● ● ●
421 04.383 RING; BLOCK,REV & 5TH
Z=36 		8-97071-688-0 02 1 1304- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
