◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10871 - EXZ RHD FUEL TANK 400L/400L+400L ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-20A - MANUAL TRANSMISSION ASM AND CASE ▶

2-20A — MANUAL TRANSMISSION ASM AND CASE (#11713) — 207 parça

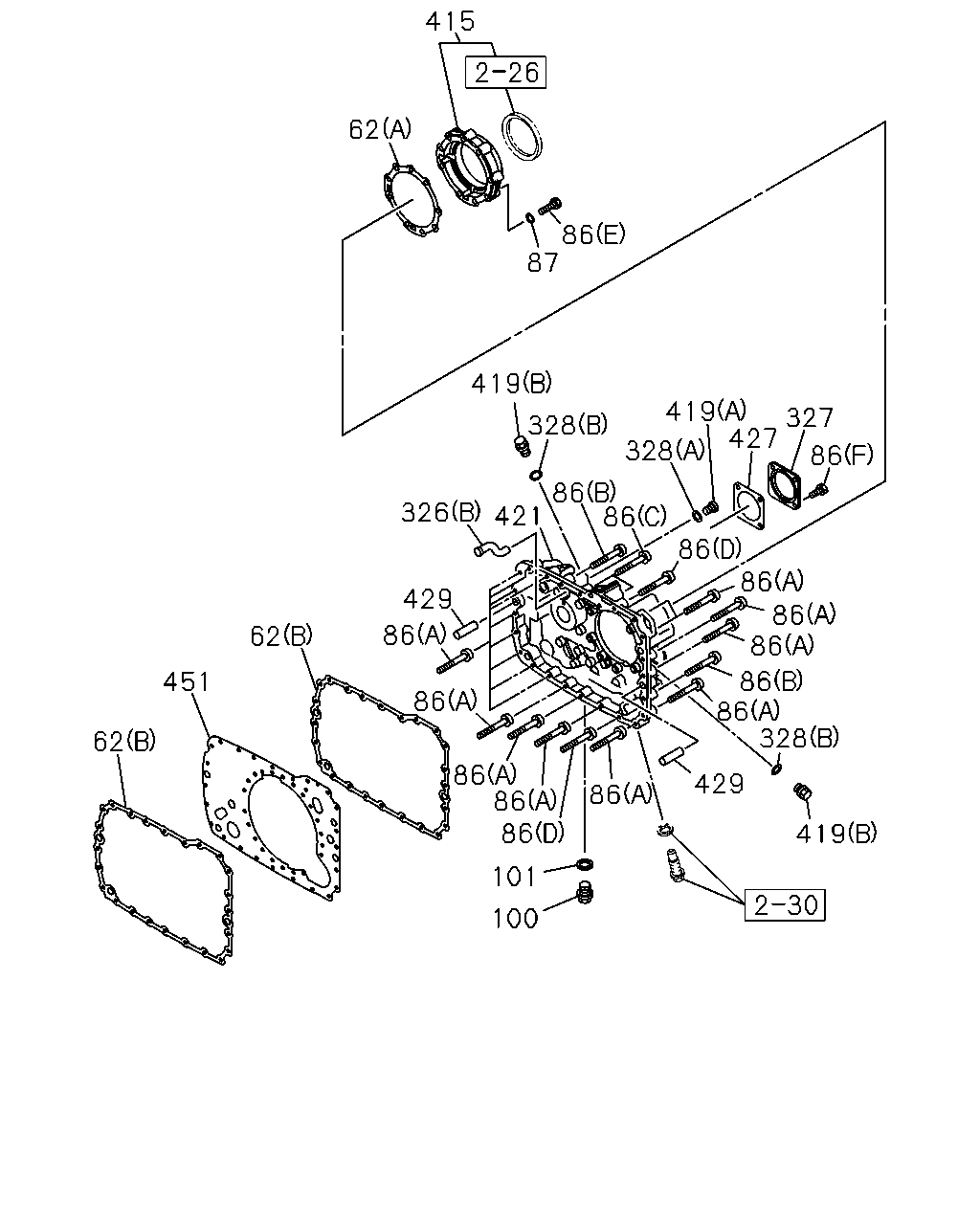

415 62 86 87 419 419 328 327 427 328 86 86 326 421 86 86 86 86 86 86 86 328 429 86 62 451 86 86 86 86 62 429 86 419 101 100

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T). (B)	1-33119-399-0	02	1	0106-
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T). (A)	1-33139-053-0	01	1	0106-
86	BOLT; RR COVER (A)	1-33119-266-0	18	1	0106-
86	BOLT; RR COVER (E)	1-33139-054-0	09	1	0106-
86	BOLT; RR COVER (B)	1-33139-056-0	02	1	0106-
86	BOLT; RR COVER (C)	1-33139-057-0	02	1	0106-
86	BOLT; RR COVER (D)	1-33139-058-0	02	1	0106-
86	BOLT; RR COVER EXC. PTO ZF TRANS RR(BDM) (F)	1-33119-400-0	04	1	0106-
87	WASHER; LK,RR COVER	1-09469-010-0	09	1	0106-
100	PLUG; DRAIN RR COVER	1-33119-268-0	01	1	0106-
101	GASKET; DRAIN RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33119-264-0	01	1	0106-
326	NOZZLE; OIL,OUTLET (A)	1-33119-272-0	01	1	0106-
326	NOZZLE; OIL,OUTLET (B)	1-33139-021-0	01	1	0106-
327	COVER; RR,COUNTER EXC. PTO ZF TRANS RR(BDM)	1-33131-165-0	01	1	0106-
328	GASKET; PLUG (B)	1-33119-249-0	02	1	0106-
328	GASKET; PLUG (C)	1-33119-264-0	01	1	0106-
328	GASKET; PLUG (A)	1-33139-023-0	01	1	0106-
415	COVER; BRG	1-33159-039-0	01	1	0106-
419	PLUG; RR COVER (B)	1-33119-171-0	02	1	0106-
419	PLUG; RR COVER (A)	1-34119-008-0	01	1	0106-
421	COVER; RR,TRANS	1-33131-244-0	01	1	0106-
427	GASKET; RR COVER EXC. PTO ZF TRANS RR(BDM)	1-33132-054-0	01	1	0106-
429	PIN; STRAIGHT	1-33119-265-0	07	1	0106-
451	PLATE; RR COVER	1-33139-055-0	01	1	0106-

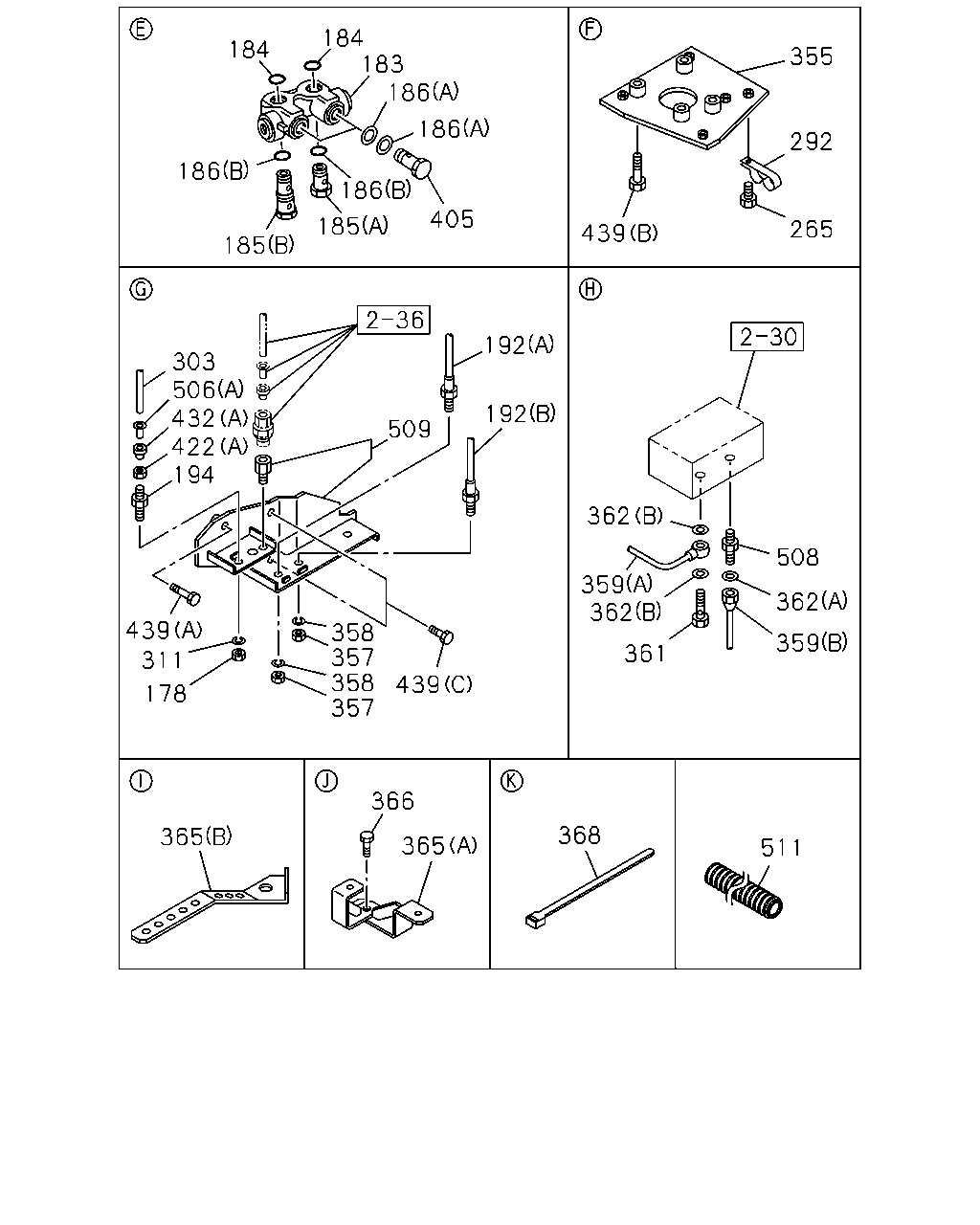

184 183 186 184 355 186 292 186 186 405 185 265 439 185 192 303 506 432 422 194 192 509 362 508 359 362 362 439 358 357 358 357 359 361 311 439 178 366 368 365 365 511

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
178	NUT; UNION M14	9-99111-414-0	01	1	0106-0512
178	NUT; UNION M14	0-91111-514-0	01	1	0601-
183	VALVE; BYPASS,TRANS	1-32569-046-0	01	1	0106-
184	GASKET; BYPASS VLV	1-32568-003-0	02	1	0106-
185	UNION; SCREW,BYPASS VLV (A) M22	1-32567-011-0	01	1	0106-
185	UNION; SCREW,BYPASS VLV (B)	1-32567-016-0	01	1	0106-
186	RING; SEAL (A) ID=22	1-32568-001-0	04	1	0106-
186	RING; SEAL (B) ID=22	1-32568-002-0	02	1	0106-
192	HOSE; FLEX,TRANS (B) L=311	1-09364-921-0	01	1	0106-
192	HOSE; FLEX,TRANS (A) L=406	1-09364-961-0	01	1	0106-
194	UNION; NYLON TUBE M14	1-09664-230-0	01	1	0106-
265	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	01	1	0106-0106
265	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	01	1	0106-0512
265	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0601-
292	CLIP; OIL PIPE ID=16 & 16 L=28	1-09701-219-0	01	1	0106-
303	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	0106-
303	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	02	1	0107-0201
303	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	0202-
303	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	0202-
311	WASHER; LK ID=14.2	9-09150-514-0	01	1	0106-0603
311	WASHER; LK ID=14.2	0-91510-514-0	01	1	0604-
355	BRACKET; OIL PIPE	1-47477-500-1	01	1	0106-
357	NUT; UNION,FLEX HOSE M22	9-09111-522-0	02	1	0106-0512
357	NUT; UNION,FLEX HOSE M22	0-91111-522-0	02	1	0601-
358	WASHER; LK,UNION ID=22.5	9-09150-522-0	02	1	0106-0603
358	WASHER; LK,UNION ID=22.5	0-91510-522-0	02	1	0604-
359	PIPE; AIR,TRANS TO UNION (C)	1-33119-395-0	01	1	0106-
359	PIPE; AIR,TRANS TO UNION (A)	1-49118-935-0	01	1	0106-0109
359	PIPE; AIR,TRANS TO UNION (A)	1-49123-133-0	01	1	0110-
359	PIPE; AIR,TRANS TO UNION (B)	1-49118-937-0	01	1	0106-0109
359	PIPE; AIR,TRANS TO UNION (B)	1-49123-134-0	01	1	0110-
361	BOLT; EYE,AIR PIPE M12X24 EYE-BOLT	1-09675-229-0	01	1	0106-
362	GASKET; AIR PIPE (A) ID=10.2	1-09630-083-0	01	1	0106-
362	GASKET; AIR PIPE (B) ID=12.2	1-09630-084-0	02	1	0106-
365	BRACKET; HARNESS (A)	1-47479-047-0	01	1	0106-
365	BRACKET; HARNESS (B)	1-82699-490-2	01	1	0106-
366	BOLT; BRKT,HARNESS M12X25 FLANGE	0-28181-225-0	01	1	0106-0512
366	BOLT; BRKT,HARNESS M12X25 FLANGE	0-28151-225-0	01	1	0601-
368	CLIP; BAND,CABLE L=140	5-09707-031-1	03	1	0106-
405	BOLT; EYE,OIL PIPE M22X37	1-09675-060-0	02	1	0106-
422	NUT; SLEEVE (B) M18	1-09660-213-0	01	1	0106-
422	NUT; SLEEVE (B) M14	1-09660-212-0	01	1	0106-
422	NUT; SLEEVE (A) M14	1-09660-767-0	01	1	0106-
432	SLEEVE; TUBE (B) ID=12.15 OD=15 L=10	1-09666-043-0	01	1	0106-
432	SLEEVE; TUBE (B) ID=8.15 OD=11 L=9.5	1-09666-042-0	01	1	0106-
432	SLEEVE; TUBE (A) ID=8.2 L=9.5	1-09666-067-0	01	1	0106-
439	BOLT; BRKT (B) M10X40 FLANGE	0-28781-040-0	04	1	0106-0512
439	BOLT; BRKT (B) M10X40 FLANGE	0-28751-040-0	04	1	0601-
439	BOLT; BRKT (C) M16X25 FLANGE	0-28881-625-0	02	1	0106-0512
439	BOLT; BRKT (C) M16X25 FLANGE	0-28851-625-0	02	1	0601-
439	BOLT; BRKT (A) M16X40 FLANGE	0-28881-640-0	01	1	0106-0512
439	BOLT; BRKT (A) M16X40 FLANGE	0-28851-640-0	01	1	0601-
506	INSERT (B) ID=7.5 OD=8.8 L=18	1-09669-055-0	01	1	0106-
506	INSERT (B) ID=4.5 OD=5.8 L=18	1-09669-054-0	01	1	0106-
506	INSERT (A) ID=5 OD=5.9 L=16	1-09669-122-0	01	1	0106-
508	UNION; AIR M10 & M12 STRAIGHT	1-09664-235-0	01	1	0106-
509	BRACKET; PIPE	1-47477-447-2	01	1	0106-
511	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	0202-
511	TUBE; CORRUGATE L=250 ID=7 L=800	1-83129-031-1	01	1	0106-
511	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	01	1	0106-
511	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	01	1	0106-0106
511	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	02	1	0107-0201
511	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	01	1	0202-
511	TUBE; CORRUGATE L=350 SERVICED BY L=2000 ID=10	1-87411-019-0	03	1	0106-

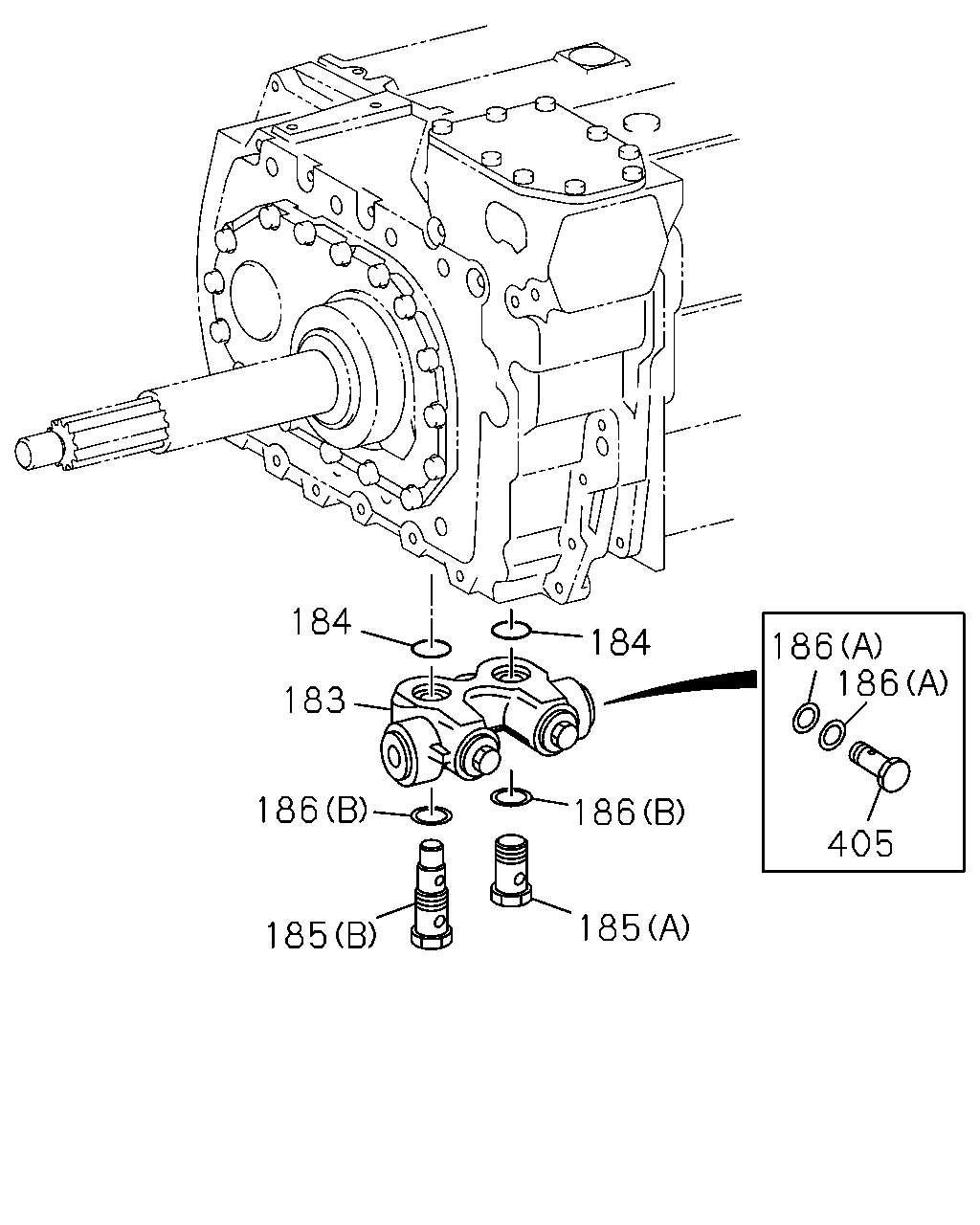

184 184 186 186 183 186 186 405 185 185

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
183	VALVE; BYPASS,TRANS	1-32569-046-0	01	1	0106-
184	GASKET; BYPASS VLV	1-32568-003-0	02	1	0106-
185	UNION; SCREW,BYPASS VLV (A) M22	1-32567-011-0	01	1	0106-
185	UNION; SCREW,BYPASS VLV (B)	1-32567-016-0	01	1	0106-
186	RING; SEAL (A) ID=22	1-32568-001-0	04	1	0106-
186	RING; SEAL (B) ID=22	1-32568-002-0	02	1	0106-
405	BOLT; EYE,OIL PIPE M22X37	1-09675-060-0	02	1	0106-

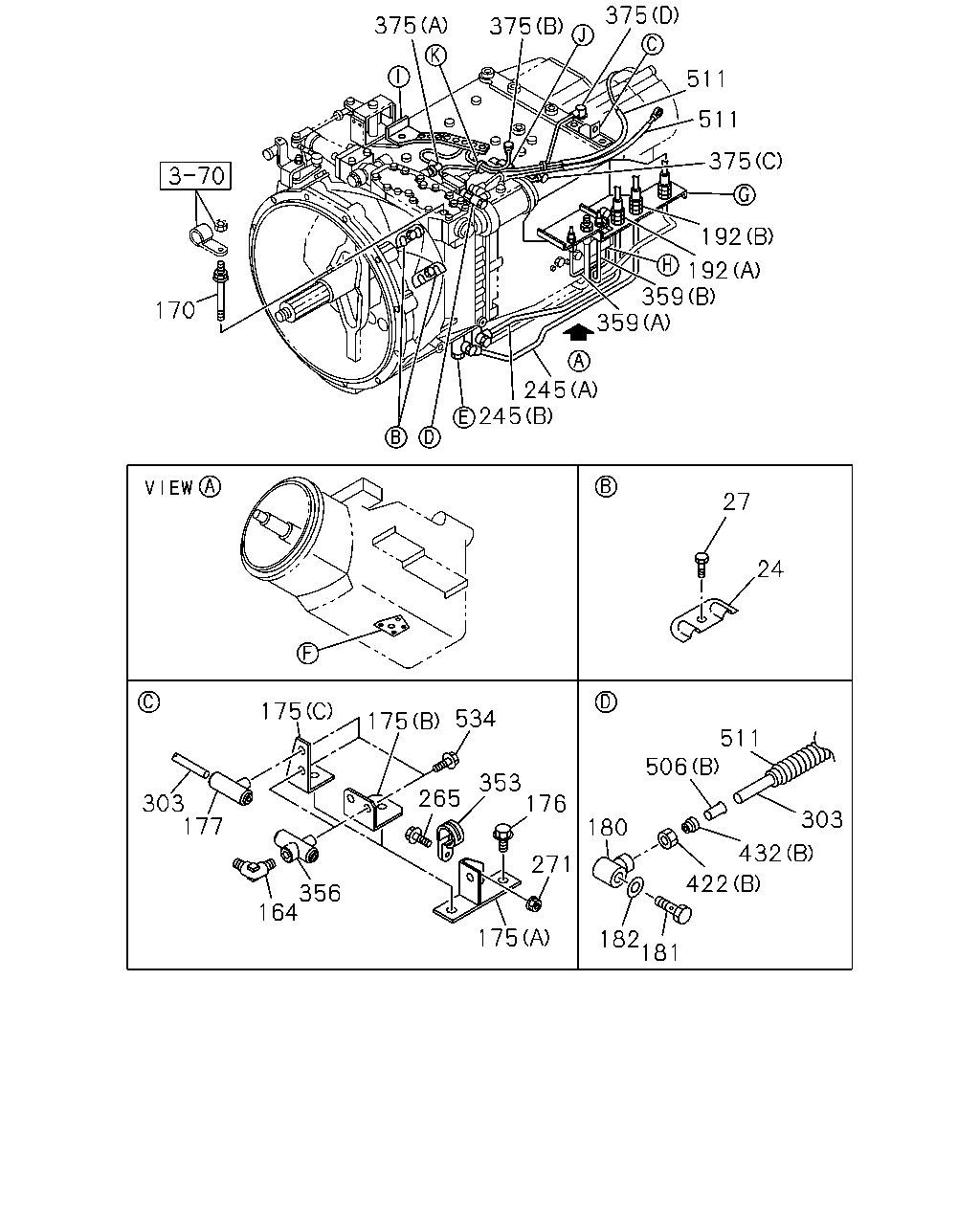

375 375 375 511 511 375 192 192 359 359 170 245 245 27 24 175 534 175 511 506 353 176 265 303 177 303 180 432 271 422 356 164 175 182 181

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	COVER; CHECK HOLE,DUST	1-31131-038-0	03	1	0106-
27	BOLT; COVER TO CLU HSG M16X25 FLANGE	0-28881-625-0	02	1	0106-0512
27	BOLT; COVER TO CLU HSG M16X25 FLANGE	0-28851-625-0	02	1	0601-
164	CONNECTOR; ELBOW DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0106-
170	STUD; QUAD BOX	1-09052-017-1	01	1	0108-
175	BRACKET; UNION (B)	1-47477-572-0	01	1	0106-0106
175	BRACKET; UNION (C)	1-47479-299-0	01	1	0107-
175	BRACKET; UNION (A)	1-47477-545-0	01	1	0106-
176	BOLT; UNION BRKT M16X25 FLANGE	0-28881-625-0	02	1	0106-0512
176	BOLT; UNION BRKT M16X25 FLANGE	0-28851-625-0	02	1	0601-
177	UNION; NYLON TUBE	1-09661-133-0	01	1	0107-
180	CONNECTOR; NYLON TUBE	1-09660-239-0	01	1	0106-
181	BOLT; EYE,NYLON TUBE M12 L=35.5	1-09675-169-0	01	1	0106-
182	GASKET; EYE BOLT,NYLON TUBE ID=12.2	9-09571-412-0	01	1	0106-
192	HOSE; FLEX,TRANS (B) L=311	1-09364-921-0	01	1	0106-
192	HOSE; FLEX,TRANS (A) L=406	1-09364-961-0	01	1	0106-
245	PIPE; OIL (A)	1-49161-055-0	01	1	0106-
245	PIPE; OIL (B)	1-49161-061-0	01	1	0106-
265	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	01	1	0106-0106
265	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	01	1	0106-0512
265	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0601-
271	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0106-0106
303	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	0106-
303	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	02	1	0107-0201
303	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	0202-
303	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	0202-
353	CLIP; NYLON TUBE ID=24 L=27	1-09700-809-0	01	1	0106-0106
356	UNION DIN8 & DIN12 & R3/8 3WAY	1-09661-130-0	01	1	0106-
359	PIPE; AIR,TRANS TO UNION (C)	1-33119-395-0	01	1	0106-
359	PIPE; AIR,TRANS TO UNION (A)	1-49118-935-0	01	1	0106-0109
359	PIPE; AIR,TRANS TO UNION (A)	1-49123-133-0	01	1	0110-
359	PIPE; AIR,TRANS TO UNION (B)	1-49118-937-0	01	1	0106-0109
359	PIPE; AIR,TRANS TO UNION (B)	1-49123-134-0	01	1	0110-
375	CABLE; TRANS (A) L=250	1-82659-134-1	01	1	0106-
375	CABLE; TRANS (B) L=580	1-82659-135-1	01	1	0106-
375	CABLE; TRANS (C) L=880	1-82659-137-1	01	1	0106-
375	CABLE; TRANS WARNING BUZZER-SPEED<RF8> (D) L=700	1-82659-136-1	01	1	0106-
422	NUT; SLEEVE (B) M18	1-09660-213-0	01	1	0106-
422	NUT; SLEEVE (B) M14	1-09660-212-0	01	1	0106-
422	NUT; SLEEVE (A) M14	1-09660-767-0	01	1	0106-
432	SLEEVE; TUBE (B) ID=12.15 OD=15 L=10	1-09666-043-0	01	1	0106-
432	SLEEVE; TUBE (B) ID=8.15 OD=11 L=9.5	1-09666-042-0	01	1	0106-
432	SLEEVE; TUBE (A) ID=8.2 L=9.5	1-09666-067-0	01	1	0106-
506	INSERT (B) ID=7.5 OD=8.8 L=18	1-09669-055-0	01	1	0106-
506	INSERT (B) ID=4.5 OD=5.8 L=18	1-09669-054-0	01	1	0106-
506	INSERT (A) ID=5 OD=5.9 L=16	1-09669-122-0	01	1	0106-
511	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	0202-
511	TUBE; CORRUGATE L=250 ID=7 L=800	1-83129-031-1	01	1	0106-
511	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	01	1	0106-
511	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	01	1	0106-0106
511	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	02	1	0107-0201
511	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	01	1	0202-
511	TUBE; CORRUGATE L=350 SERVICED BY L=2000 ID=10	1-87411-019-0	03	1	0106-
534	BOLT; UNION M8X12 FLANGE	0-28080-812-0	01	1	0106-0106
534	BOLT; UNION M8X16 FLANGE	0-28080-816-0	02	1	0107-0512
534	BOLT; UNION M8X16 FLANGE	0-28050-816-0	02	1	0601-

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

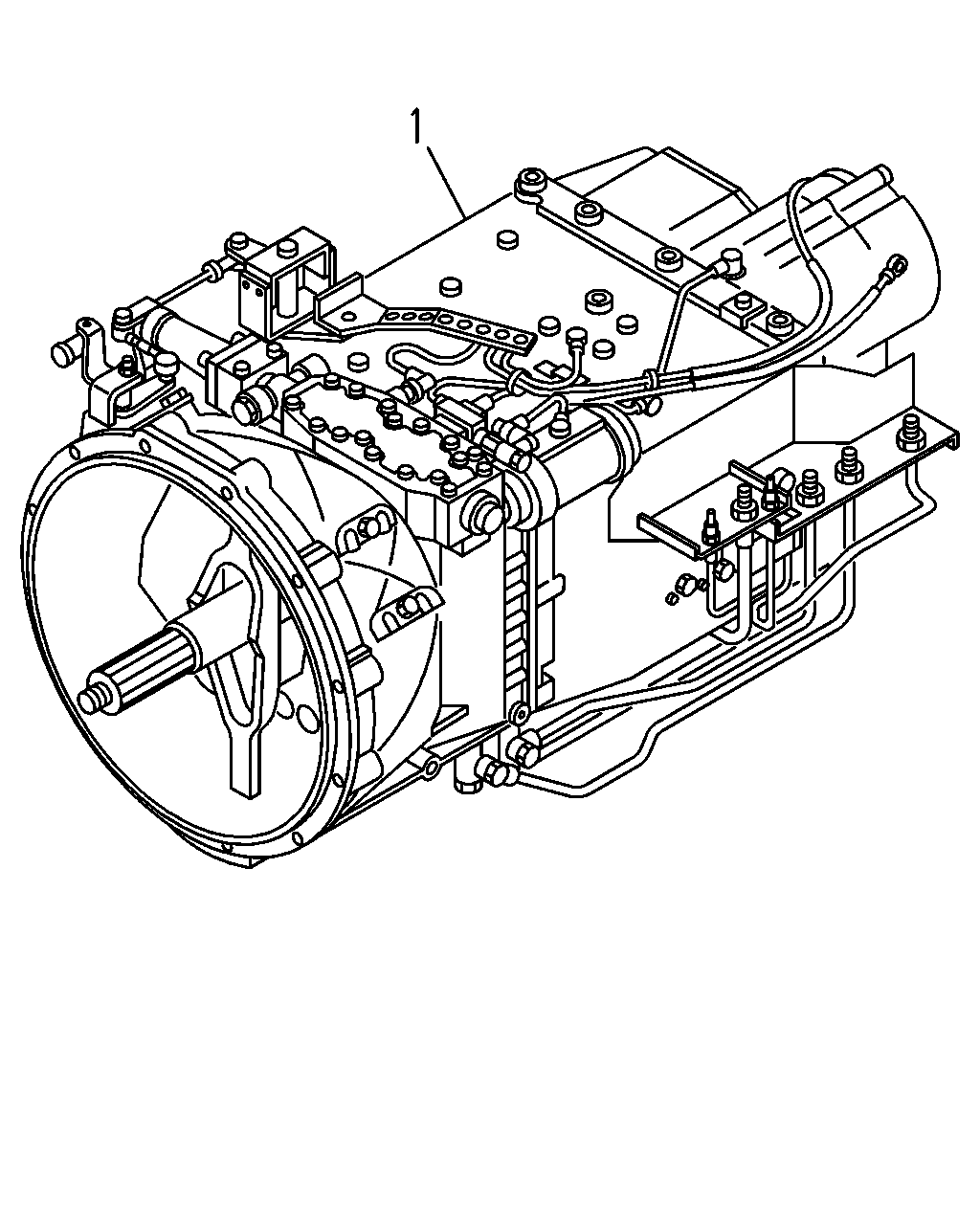

1	TRANSMISSION ASM; MANUAL PTO ZF TRANS RR(BDM) TRANS SELECT DETENT HEAVY<BFU>	1-33043-021-0	01	1	0106-0109
1	TRANSMISSION ASM; MANUAL PTO ZF TRANS RR(BDM) TRANS SELECT DETENT HEAVY<BFU>	1-33043-383-0	01	1	0110-
1	TRANSMISSION ASM; MANUAL PTO ZF TRANS RR(BDM) EXC. TRANS SELECT DETENT HEAVY<BFU>	1-33042-033-0	01	1	0106-0109
1	TRANSMISSION ASM; MANUAL PTO ZF TRANS RR(BDM) EXC. TRANS SELECT DETENT HEAVY<BFU>	1-33043-381-0	01	1	0110-
1	TRANSMISSION ASM; MANUAL EXC. PTO ZF TRANS RR(BDM),TRANS SELECT DETENT HEAVY<BFU>	1-33042-017-0	01	1	0106-0109
1	TRANSMISSION ASM; MANUAL EXC. PTO ZF TRANS RR(BDM),TRANS SELECT DETENT HEAVY<BFU>	1-33043-380-0	01	1	0110-
1	TRANSMISSION ASM; MANUAL TRANS SELECT DETENT HEAVY<BFU> EXC. PTO ZF TRANS RR(BDM)	1-33043-020-0	01	1	0106-0109
1	TRANSMISSION ASM; MANUAL TRANS SELECT DETENT HEAVY<BFU> EXC. PTO ZF TRANS RR(BDM)	1-33043-382-0	01	1	0110-

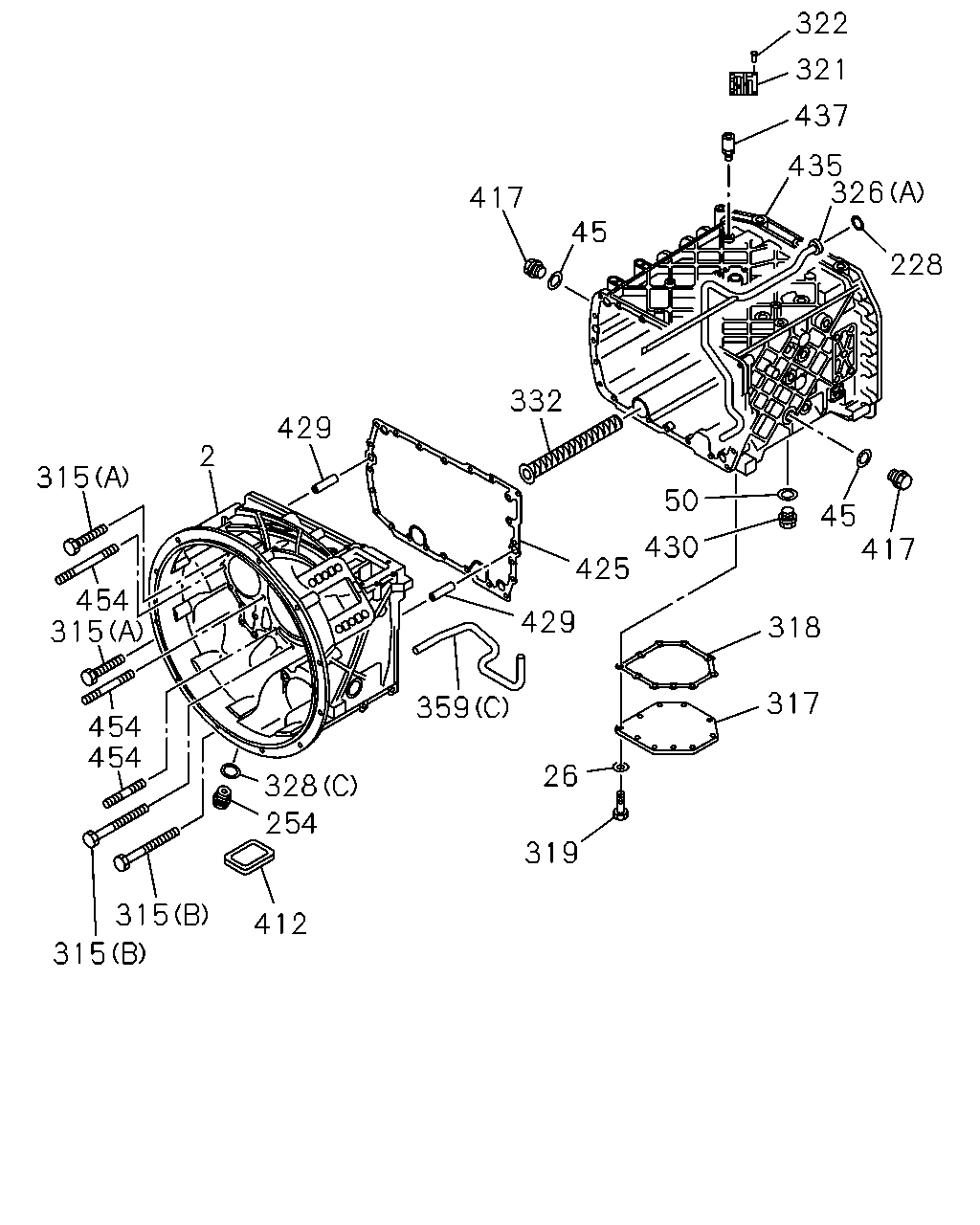

322 321 437 435 326 417 45 228 332 429 2 315 50 430 425 45 417 429 454 315 318 359 317 454 454 26 328 254 319 315 315 412

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	HOUSING; CLU	1-31111-194-0	01	1	0106-
26	WASHER; PL,COVER	1-09469-010-0	10	1	0106-
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T).	1-33119-264-0	02	1	0106-
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	1-33119-264-0	01	1	0106-
228	GASKET; NOZZLE	1-33119-273-0	01	1	0106-
254	PLUG; DRAIN,OIL	1-33119-376-0	01	1	0106-
315	BOLT; CASE (A)	1-33119-266-0	15	1	0106-
315	BOLT; CASE (B)	1-33119-267-0	07	1	0106-
317	COVER; CASE	1-33119-274-0	01	1	0106-
318	GASKET; COVER	1-33119-409-0	01	1	0106-
319	BOLT; COVER	1-33119-276-0	10	1	0106-
321	PLATE; NAME	1-33119-277-0	01	1	0106-
322	RIVET; NAME PLATE	1-33119-398-0	04	1	0106-
326	NOZZLE; OIL,OUTLET (A)	1-33119-272-0	01	1	0106-
326	NOZZLE; OIL,OUTLET (B)	1-33139-021-0	01	1	0106-
328	GASKET; PLUG (B)	1-33119-249-0	02	1	0106-
328	GASKET; PLUG (C)	1-33119-264-0	01	1	0106-
328	GASKET; PLUG (A)	1-33139-023-0	01	1	0106-
332	FILTER; OIL	1-33119-370-0	01	1	0106-
359	PIPE; AIR,TRANS TO UNION (C)	1-33119-395-0	01	1	0106-
359	PIPE; AIR,TRANS TO UNION (A)	1-49118-935-0	01	1	0106-0109
359	PIPE; AIR,TRANS TO UNION (A)	1-49123-133-0	01	1	0110-
359	PIPE; AIR,TRANS TO UNION (B)	1-49118-937-0	01	1	0106-0109
359	PIPE; AIR,TRANS TO UNION (B)	1-49123-134-0	01	1	0110-
412	CAP; CLU HSG	1-31119-022-0	01	1	0106-
417	PLUG; OIL FILLER,TRANS	1-33119-268-0	02	1	0106-
425	GASKET; CLU HSG TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33119-262-0	01	1	0106-
429	PIN; STRAIGHT	1-33119-265-0	07	1	0106-
430	PLUG; OIL DRAIN	1-33119-268-0	01	1	0106-
435	CASE; TRANS	1-33111-290-0	01	1	0106-
437	BREATHER; TRANS	1-36122-004-0	01	1	0106-
454	STUD; CLU HSG M10 L=50	1-33119-381-0	04	1	0106-
454	STUD; CLU HSG M10 L=80	1-33119-393-0	08	1	0106-
454	STUD; CLU HSG M10 L=25	1-33119-394-0	11	1	0106-

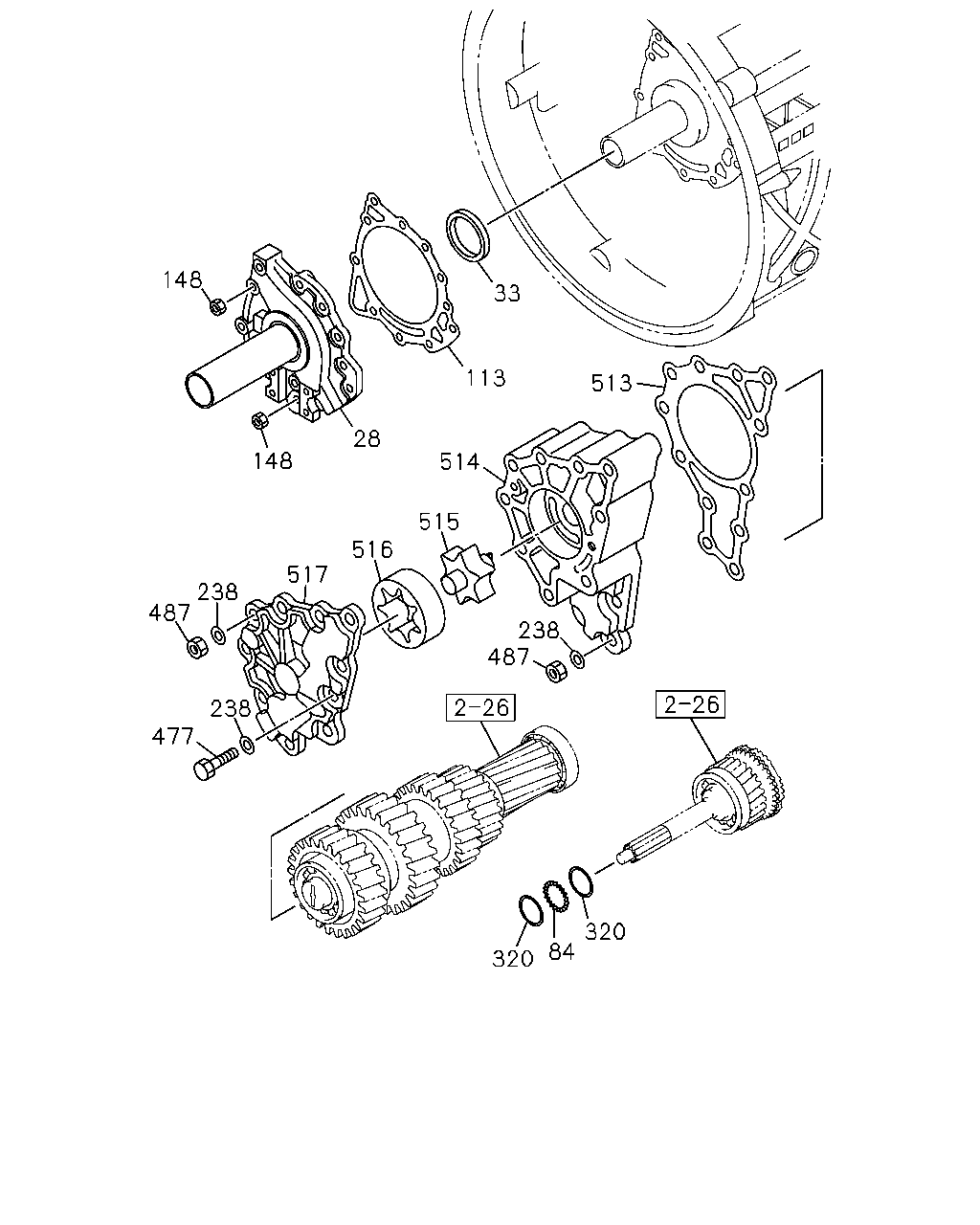

148 33 113 513 28 148 514 515 516 517 238 487 238 487 238 477 320 84 320

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
28	COVER; FRT,TRANS CASE	1-33121-149-0	01	1	0106-
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-33219-248-0	01	1	0106-
84	SPACER; COVER,TRANS	1-33129-006-0	01	1	0106-
113	GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33122-018-0	01	1	0106-
148	NUT	1-33529-056-0	11	1	0106-
238	WASHER; PL	1-09469-010-0	14	1	0106-
320	WASHER; COVER	1-33129-007-0	02	1	0106-
477	BOLT; OIL PUMP	1-33529-055-0	02	1	0106-
487	NUT; COVER,OIL PUMP	1-33529-056-0	12	1	0106-
513	GASKET; HOUSING	1-34159-058-0	01	1	0106-
514	HOUSING; OIL PUMP	1-34155-027-0	01	1	0106-
515	SHAFT; OIL PUMP	1-34159-070-0	01	1	0106-
516	ROTOR; OIL PUMP	1-34159-060-0	01	1	0106-
517	COVER; OIL PUMP	1-34159-071-0	01	1	0106-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
