1-41 — FUEL PIPING; CHASSIS (#117128) — 91 parça

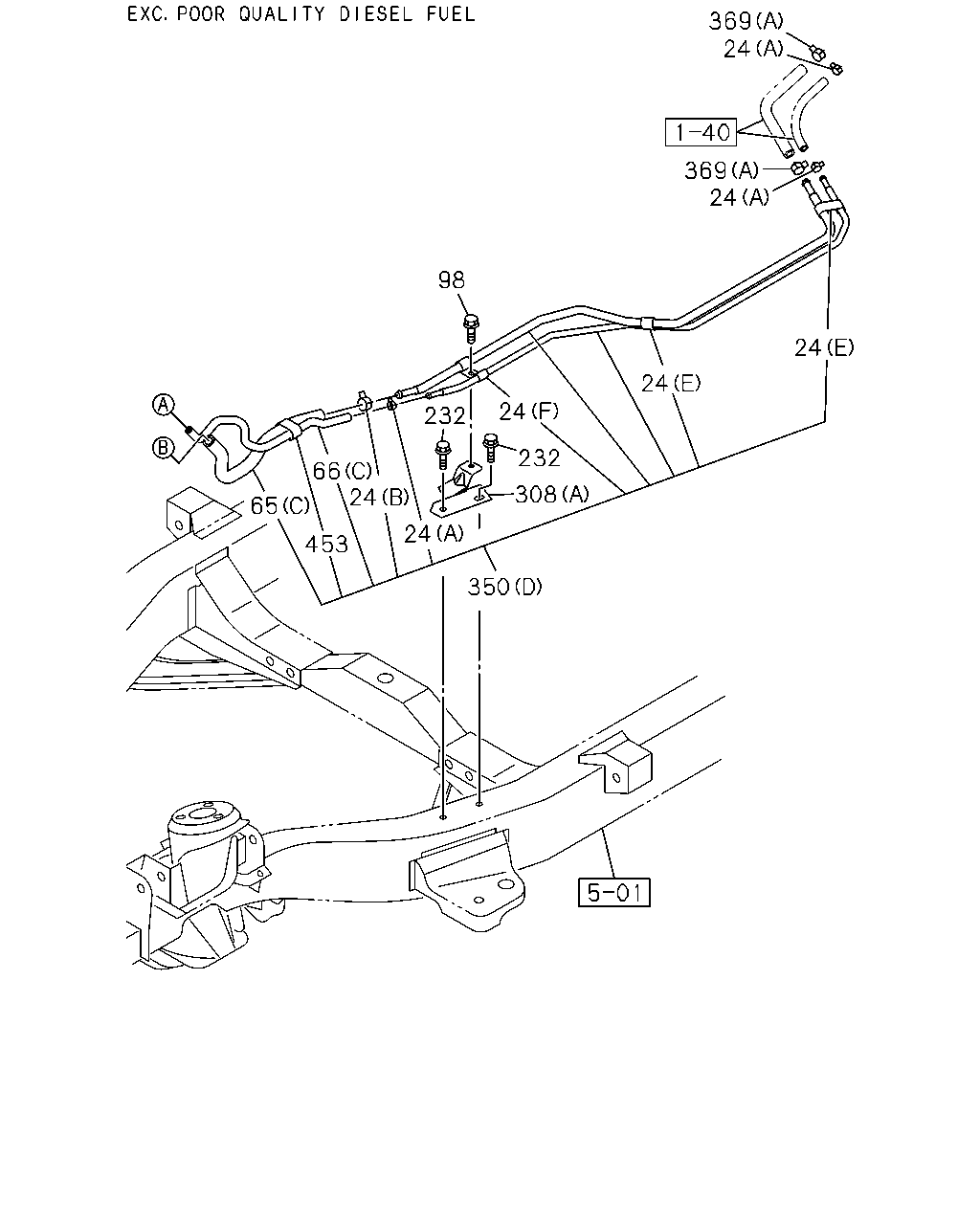

98 369 24 24 24 24 232 66 65 24 453 24 350 308 232 24 369

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	03.162 CLIP; FUEL HOSE (E)	8-98233-886-0	02	1	1304-
24	03.162 CLIP; FUEL HOSE EXC. POOR QUALITY DIESEL FUEL<KF0> (F)	8-98233-887-0	01	1	1304-
24	03.162 CLIP; FUEL HOSE (D) ID=13	8-98150-357-0	02	1	1304-
24	03.162 CLIP; FUEL HOSE (D) ID=13	8-98150-357-0	02	1	1304-
24	03.162 CLIP; FUEL HOSE 01.762 (C) ID=16	8-98030-682-0	01	1	1304-
24	03.162 CLIP; FUEL HOSE 03.330 (A) ID=11.5	8-98051-892-0	01	1	1304-
24	03.162 CLIP; FUEL HOSE 03.330 (A) ID=11.5	8-98051-892-0	01	1	1304-
24	03.162 CLIP; FUEL HOSE 03.330 (A) ID=11.5	8-98051-892-0	06	1	1304-
24	03.162 CLIP; FUEL HOSE EXC. POOR QUALITY DIESEL FUEL<KF0> 03.145 (B) ID=17.2	8-98052-395-0	01	1	1304-
24	03.162 CLIP; FUEL HOSE 03.145 (B) ID=17.2	8-98052-395-0	01	1	1304-
65	03.163 HOSE; FUEL,DELIVERY PIPE (A)	8-98206-281-1	01	1	1304-
65	03.163 HOSE; FUEL,DELIVERY PIPE (B)	8-98206-283-1	01	1	1304-
65	03.163 HOSE; FUEL,DELIVERY PIPE EXC. POOR QUALITY DIESEL FUEL<KF0> (C)	8-98206-278-0	01	1	1304-
66	03.163 HOSE; FUEL,RETURN PIPE POOR QUALITY DIESEL FUEL<KF0> (A)	8-98206-280-0	01	1	1304-
66	03.163 HOSE; FUEL,RETURN PIPE (B)	8-98206-269-1	01	1	1304-
66	03.163 HOSE; FUEL,RETURN PIPE (B)	8-98206-269-1	01	1	1304-
66	03.163 HOSE; FUEL,RETURN PIPE EXC. POOR QUALITY DIESEL FUEL<KF0> (C)	8-98206-279-0	01	1	1304-
98	03.162 BOLT; BRKT,FUEL PIPE EXC. POOR QUALITY DIESEL FUEL<KF0> 02.343 M6X16 FLANGE	0-28650-616-0	01	1	1304-
232	03.162 BOLT; CLIP,PIPE EXC. POOR QUALITY DIESEL FUEL<KF0> 06.509 M10X25 FLANGE	0-28061-025-0	02	1	1304-
308	03.162 BRACKET; FUEL PIPE (B)	8-98233-889-0	01	1	1304-
308	03.162 BRACKET; FUEL PIPE (C)	8-98233-890-0	01	1	1304-
308	03.162 BRACKET; FUEL PIPE EXC. POOR QUALITY DIESEL FUEL<KF0> (A)	8-98128-259-0	01	1	1304-
350	03.163 PIPE; FUEL,DEL & RET (B)	8-98206-138-1	01	1	1304-
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) POOR QUALITY DIESEL FUEL<KF0> (A)	8-98206-134-1	01	1	1304-
350	03.163 PIPE; FUEL,DEL & RET (C)	8-98206-146-3	01	1	1304-
350	03.163 PIPE; FUEL,DEL & RET (C)	8-98206-146-3	01	1	1304-
350	03.163 PIPE; FUEL,DEL & RET EXC. POOR QUALITY DIESEL FUEL<KF0> (D)	8-98206-132-1	01	1	1304-
350	03.163 PIPE; FUEL,DEL & RET 4X4(TFS***) POOR QUALITY DIESEL FUEL<KF0> (A)	8-98206-136-1	01	1	1304-
369	03.162 CLAMP; HOSE,FUEL POOR QUALITY DIESEL FUEL<KF0> 03.145 (A) ID=17.2	8-98052-395-0	09	1	1304-
369	03.162 CLAMP; HOSE,FUEL 01.762 (B) ID=16	8-98030-682-0	01	1	1304-
369	03.162 CLAMP; HOSE,FUEL EXC. POOR QUALITY DIESEL FUEL<KF0> 03.145 (A) ID=17.2	8-98052-395-0	06	1	1304-
453	03.162 BAND; FLEX HOSE EXC. POOR QUALITY DIESEL FUEL<KF0>	8-98233-888-0	01	1	1304-

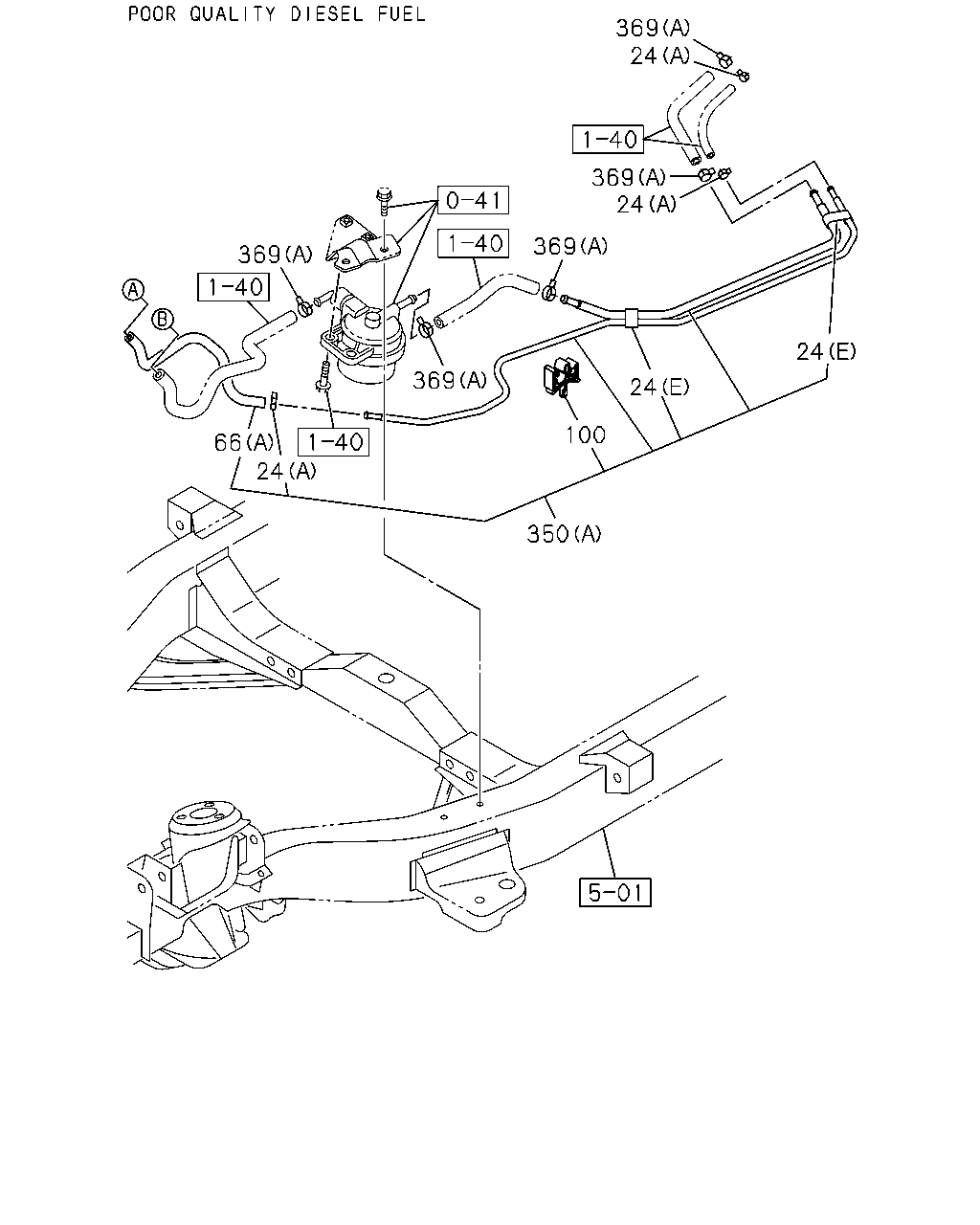

369 24 369 24 24 24 350 100 369 369 66 24 369

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	03.162 CLIP; FUEL HOSE (E)	8-98233-886-0	02	1	1304-
24	03.162 CLIP; FUEL HOSE EXC. POOR QUALITY DIESEL FUEL<KF0> (F)	8-98233-887-0	01	1	1304-
24	03.162 CLIP; FUEL HOSE (D) ID=13	8-98150-357-0	02	1	1304-
24	03.162 CLIP; FUEL HOSE (D) ID=13	8-98150-357-0	02	1	1304-
24	03.162 CLIP; FUEL HOSE 01.762 (C) ID=16	8-98030-682-0	01	1	1304-
24	03.162 CLIP; FUEL HOSE 03.330 (A) ID=11.5	8-98051-892-0	01	1	1304-
24	03.162 CLIP; FUEL HOSE 03.330 (A) ID=11.5	8-98051-892-0	01	1	1304-
24	03.162 CLIP; FUEL HOSE 03.330 (A) ID=11.5	8-98051-892-0	06	1	1304-
24	03.162 CLIP; FUEL HOSE EXC. POOR QUALITY DIESEL FUEL<KF0> 03.145 (B) ID=17.2	8-98052-395-0	01	1	1304-
24	03.162 CLIP; FUEL HOSE 03.145 (B) ID=17.2	8-98052-395-0	01	1	1304-
66	03.163 HOSE; FUEL,RETURN PIPE POOR QUALITY DIESEL FUEL<KF0> (A)	8-98206-280-0	01	1	1304-
66	03.163 HOSE; FUEL,RETURN PIPE (B)	8-98206-269-1	01	1	1304-
66	03.163 HOSE; FUEL,RETURN PIPE (B)	8-98206-269-1	01	1	1304-
66	03.163 HOSE; FUEL,RETURN PIPE EXC. POOR QUALITY DIESEL FUEL<KF0> (C)	8-98206-279-0	01	1	1304-
100	03.162 CLIP; FUEL PIPE POOR QUALITY DIESEL FUEL<KF0>	8-98113-581-0	01	1	1304-
100	03.162 CLIP; FUEL PIPE	8-98113-581-0	01	1	1304-
350	03.163 PIPE; FUEL,DEL & RET (B)	8-98206-138-1	01	1	1304-
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) POOR QUALITY DIESEL FUEL<KF0> (A)	8-98206-134-1	01	1	1304-
350	03.163 PIPE; FUEL,DEL & RET (C)	8-98206-146-3	01	1	1304-
350	03.163 PIPE; FUEL,DEL & RET (C)	8-98206-146-3	01	1	1304-
350	03.163 PIPE; FUEL,DEL & RET EXC. POOR QUALITY DIESEL FUEL<KF0> (D)	8-98206-132-1	01	1	1304-
350	03.163 PIPE; FUEL,DEL & RET 4X4(TFS***) POOR QUALITY DIESEL FUEL<KF0> (A)	8-98206-136-1	01	1	1304-
369	03.162 CLAMP; HOSE,FUEL POOR QUALITY DIESEL FUEL<KF0> 03.145 (A) ID=17.2	8-98052-395-0	09	1	1304-
369	03.162 CLAMP; HOSE,FUEL 01.762 (B) ID=16	8-98030-682-0	01	1	1304-
369	03.162 CLAMP; HOSE,FUEL EXC. POOR QUALITY DIESEL FUEL<KF0> 03.145 (A) ID=17.2	8-98052-395-0	06	1	1304-

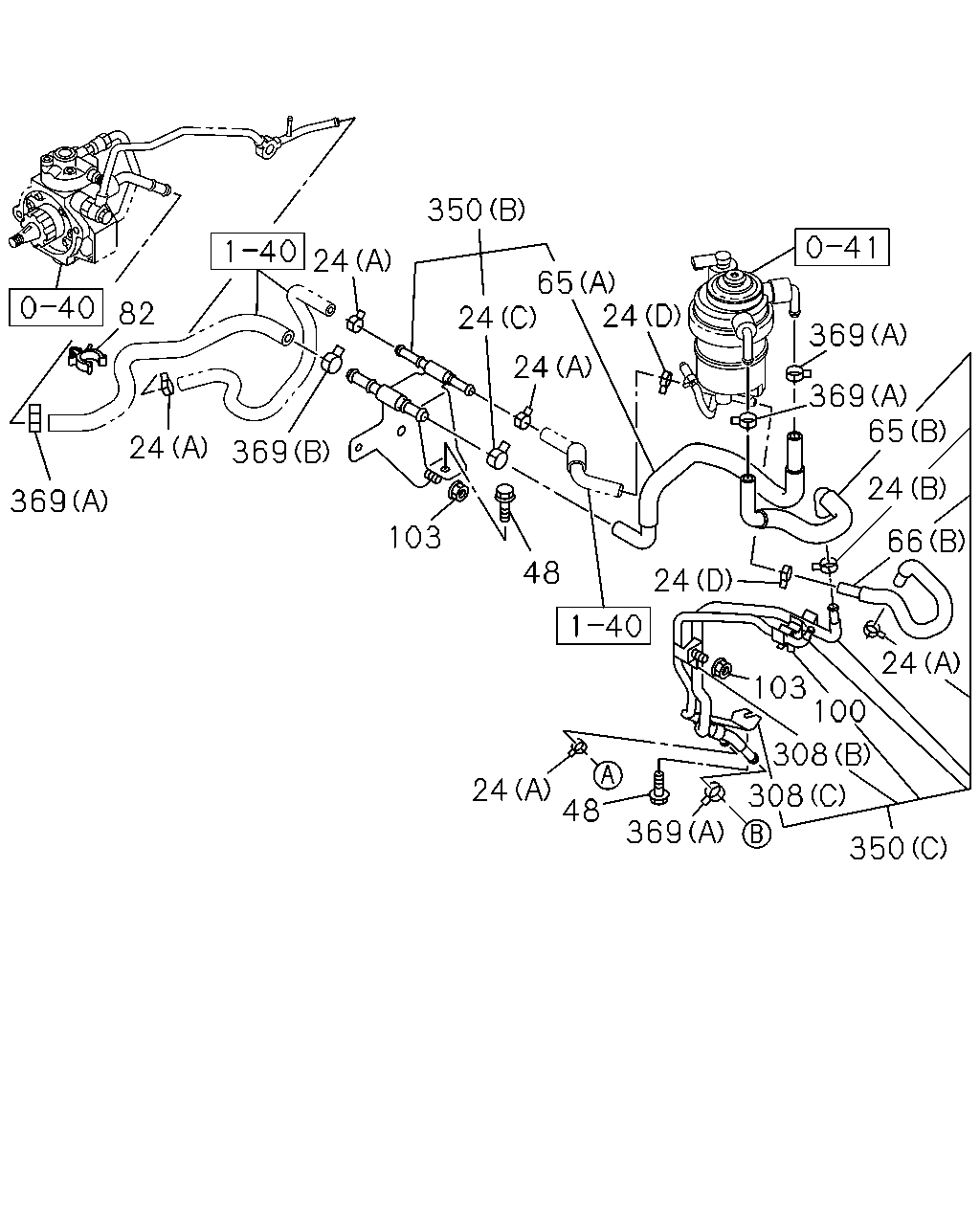

82 369 24 369 24 350 24 103 24 65 48 24 48 369 24 24 369 369 24 66 24 100 103 308 308 350 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	03.162 CLIP; FUEL HOSE (E)	8-98233-886-0	02	1	1304-
24	03.162 CLIP; FUEL HOSE EXC. POOR QUALITY DIESEL FUEL<KF0> (F)	8-98233-887-0	01	1	1304-
24	03.162 CLIP; FUEL HOSE (D) ID=13	8-98150-357-0	02	1	1304-
24	03.162 CLIP; FUEL HOSE (D) ID=13	8-98150-357-0	02	1	1304-
24	03.162 CLIP; FUEL HOSE 01.762 (C) ID=16	8-98030-682-0	01	1	1304-
24	03.162 CLIP; FUEL HOSE 03.330 (A) ID=11.5	8-98051-892-0	01	1	1304-
24	03.162 CLIP; FUEL HOSE 03.330 (A) ID=11.5	8-98051-892-0	01	1	1304-
24	03.162 CLIP; FUEL HOSE 03.330 (A) ID=11.5	8-98051-892-0	06	1	1304-
24	03.162 CLIP; FUEL HOSE EXC. POOR QUALITY DIESEL FUEL<KF0> 03.145 (B) ID=17.2	8-98052-395-0	01	1	1304-
24	03.162 CLIP; FUEL HOSE 03.145 (B) ID=17.2	8-98052-395-0	01	1	1304-
48	03.162 BOLT; BRKT 02.343 M6X16 FLANGE	0-28650-616-0	02	1	1304-
65	03.163 HOSE; FUEL,DELIVERY PIPE (A)	8-98206-281-1	01	1	1304-
65	03.163 HOSE; FUEL,DELIVERY PIPE (B)	8-98206-283-1	01	1	1304-
65	03.163 HOSE; FUEL,DELIVERY PIPE EXC. POOR QUALITY DIESEL FUEL<KF0> (C)	8-98206-278-0	01	1	1304-
66	03.163 HOSE; FUEL,RETURN PIPE POOR QUALITY DIESEL FUEL<KF0> (A)	8-98206-280-0	01	1	1304-
66	03.163 HOSE; FUEL,RETURN PIPE (B)	8-98206-269-1	01	1	1304-
66	03.163 HOSE; FUEL,RETURN PIPE (B)	8-98206-269-1	01	1	1304-
66	03.163 HOSE; FUEL,RETURN PIPE EXC. POOR QUALITY DIESEL FUEL<KF0> (C)	8-98206-279-0	01	1	1304-
82	03.163 CLIP; FUEL HOSE 06.672 ID=17	8-94382-792-1	01	1	1304-
100	03.162 CLIP; FUEL PIPE POOR QUALITY DIESEL FUEL<KF0>	8-98113-581-0	01	1	1304-
100	03.162 CLIP; FUEL PIPE	8-98113-581-0	01	1	1304-
103	03.130 NUT; BRKT 01.062 M6 FLANGE	0-91180-106-0	02	1	1304-
308	03.162 BRACKET; FUEL PIPE (B)	8-98233-889-0	01	1	1304-
308	03.162 BRACKET; FUEL PIPE (C)	8-98233-890-0	01	1	1304-
308	03.162 BRACKET; FUEL PIPE EXC. POOR QUALITY DIESEL FUEL<KF0> (A)	8-98128-259-0	01	1	1304-
350	03.163 PIPE; FUEL,DEL & RET (B)	8-98206-138-1	01	1	1304-
350	03.163 PIPE; FUEL,DEL & RET 4X2(TFB***) POOR QUALITY DIESEL FUEL<KF0> (A)	8-98206-134-1	01	1	1304-
350	03.163 PIPE; FUEL,DEL & RET (C)	8-98206-146-3	01	1	1304-
350	03.163 PIPE; FUEL,DEL & RET (C)	8-98206-146-3	01	1	1304-
350	03.163 PIPE; FUEL,DEL & RET EXC. POOR QUALITY DIESEL FUEL<KF0> (D)	8-98206-132-1	01	1	1304-
350	03.163 PIPE; FUEL,DEL & RET 4X4(TFS***) POOR QUALITY DIESEL FUEL<KF0> (A)	8-98206-136-1	01	1	1304-
369	03.162 CLAMP; HOSE,FUEL POOR QUALITY DIESEL FUEL<KF0> 03.145 (A) ID=17.2	8-98052-395-0	09	1	1304-
369	03.162 CLAMP; HOSE,FUEL 01.762 (B) ID=16	8-98030-682-0	01	1	1304-
369	03.162 CLAMP; HOSE,FUEL EXC. POOR QUALITY DIESEL FUEL<KF0> 03.145 (A) ID=17.2	8-98052-395-0	06	1	1304-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
