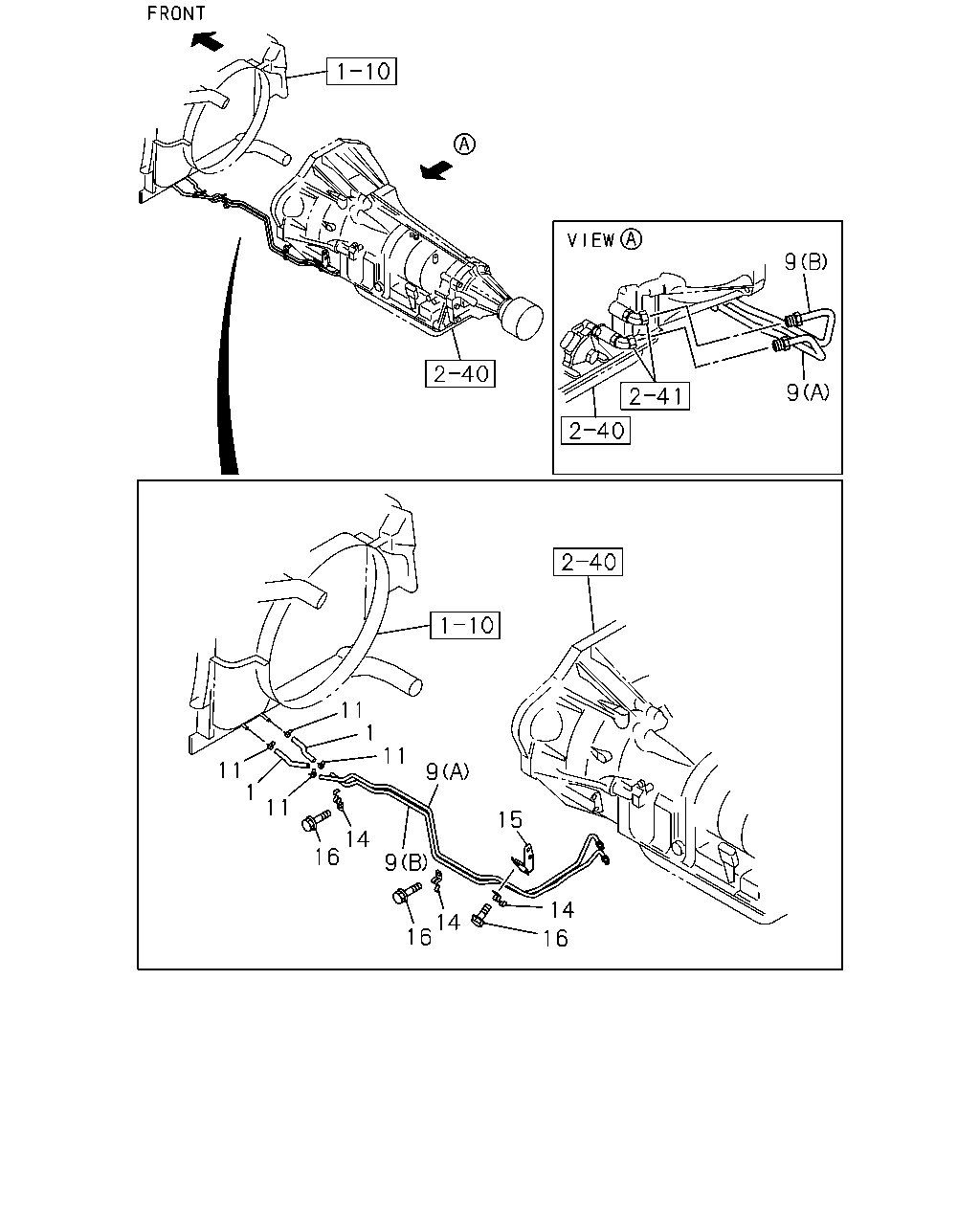

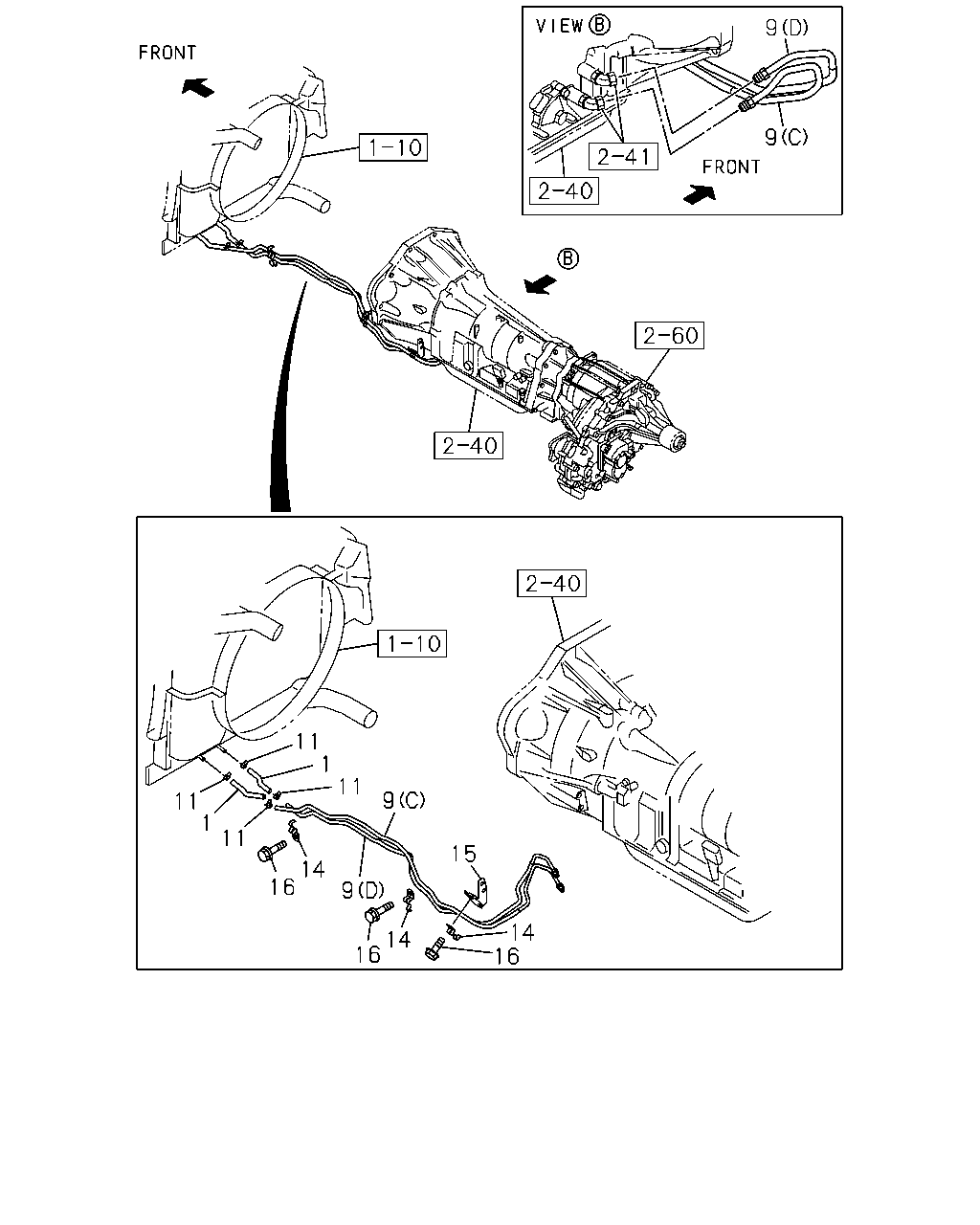

2-53B — TRANSMISSION OIL COOLER SYSTEM (#117120) — 34 parça

9 9 11 1 11 9 15 14 16 14 16 9 14 16 11 1 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	04.128 HOSE; ATF L=180 SERVICED BY L=3000	0-02259-300-0	02	1	1304-
9	04.128 PIPE; ATF,INL,A/T 4X2(TFB***) 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) (A) INLET	8-98100-272-2	01	1	1304-
9	04.128 PIPE; ATF,INL,A/T 4X2(TFB***) 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) (B) RETURN	8-98100-274-2	01	1	1304-
9	04.128 PIPE; ATF,INL,A/T 4X2(TFB***) 4JK1-TCY ENG(RDX) (A) INLET	8-98155-564-2	01	1	1304-1408
9	04.128 PIPE; ATF,INL,A/T 4X2(TFB***) 4JK1-TCY ENG(RDX) (A) INLET	8-98289-239-1	01	1	1409-
9	04.128 PIPE; ATF,INL,A/T 4X2(TFB***) 4JK1-TCY ENG(RDX) (B) RETURN	8-98155-566-2	01	1	1304-1408
9	04.128 PIPE; ATF,INL,A/T 4X2(TFB***) 4JK1-TCY ENG(RDX) (B) RETURN	8-98289-242-1	01	1	1409-
9	04.128 PIPE; ATF,INL,A/T 4X4(TFS***) 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) (C) INLET	8-98100-273-3	01	1	1304-
9	04.128 PIPE; ATF,INL,A/T 4X4(TFS***) 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) (D) RETURN	8-98100-275-3	01	1	1304-
9	04.128 PIPE; ATF,INL,A/T 4X4(TFS***) 4JK1-TCY ENG(RDX) (C) INLET	8-98155-565-2	01	1	1304-1408
9	04.128 PIPE; ATF,INL,A/T 4X4(TFS***) 4JK1-TCY ENG(RDX) (C) INLET	8-98289-240-1	01	1	1409-
9	04.128 PIPE; ATF,INL,A/T 4X4(TFS***) 4JK1-TCY ENG(RDX) (D) RETURN	8-98155-567-2	01	1	1304-1408
9	04.128 PIPE; ATF,INL,A/T 4X4(TFS***) 4JK1-TCY ENG(RDX) (D) RETURN	8-98289-243-1	01	1	1409-
11	04.128 CLIP; PIPE	8-98008-165-0	04	1	1304-
14	04.128 CLIP; PIPE TO ENG SIDE	8-98008-163-0	03	1	1304-
15	04.128 BRACKET; ATF PIPE	8-98100-277-0	01	1	1304-
16	04.128 BOLT; CLIP,ENG SIDE 02.343 M8X16 FLANGE	0-28050-816-0	03	1	1304-

9 9 11 1 11 9 15 14 16 16 9 14 16 11 1 11 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	04.128 HOSE; ATF L=180 SERVICED BY L=3000	0-02259-300-0	02	1	1304-
9	04.128 PIPE; ATF,INL,A/T 4X2(TFB***) 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) (A) INLET	8-98100-272-2	01	1	1304-
9	04.128 PIPE; ATF,INL,A/T 4X2(TFB***) 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) (B) RETURN	8-98100-274-2	01	1	1304-
9	04.128 PIPE; ATF,INL,A/T 4X2(TFB***) 4JK1-TCY ENG(RDX) (A) INLET	8-98155-564-2	01	1	1304-1408
9	04.128 PIPE; ATF,INL,A/T 4X2(TFB***) 4JK1-TCY ENG(RDX) (A) INLET	8-98289-239-1	01	1	1409-
9	04.128 PIPE; ATF,INL,A/T 4X2(TFB***) 4JK1-TCY ENG(RDX) (B) RETURN	8-98155-566-2	01	1	1304-1408
9	04.128 PIPE; ATF,INL,A/T 4X2(TFB***) 4JK1-TCY ENG(RDX) (B) RETURN	8-98289-242-1	01	1	1409-
9	04.128 PIPE; ATF,INL,A/T 4X4(TFS***) 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) (C) INLET	8-98100-273-3	01	1	1304-
9	04.128 PIPE; ATF,INL,A/T 4X4(TFS***) 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) (D) RETURN	8-98100-275-3	01	1	1304-
9	04.128 PIPE; ATF,INL,A/T 4X4(TFS***) 4JK1-TCY ENG(RDX) (C) INLET	8-98155-565-2	01	1	1304-1408
9	04.128 PIPE; ATF,INL,A/T 4X4(TFS***) 4JK1-TCY ENG(RDX) (C) INLET	8-98289-240-1	01	1	1409-
9	04.128 PIPE; ATF,INL,A/T 4X4(TFS***) 4JK1-TCY ENG(RDX) (D) RETURN	8-98155-567-2	01	1	1304-1408
9	04.128 PIPE; ATF,INL,A/T 4X4(TFS***) 4JK1-TCY ENG(RDX) (D) RETURN	8-98289-243-1	01	1	1409-
11	04.128 CLIP; PIPE	8-98008-165-0	04	1	1304-
14	04.128 CLIP; PIPE TO ENG SIDE	8-98008-163-0	03	1	1304-
15	04.128 BRACKET; ATF PIPE	8-98100-277-0	01	1	1304-
16	04.128 BOLT; CLIP,ENG SIDE 02.343 M8X16 FLANGE	0-28050-816-0	03	1	1304-
