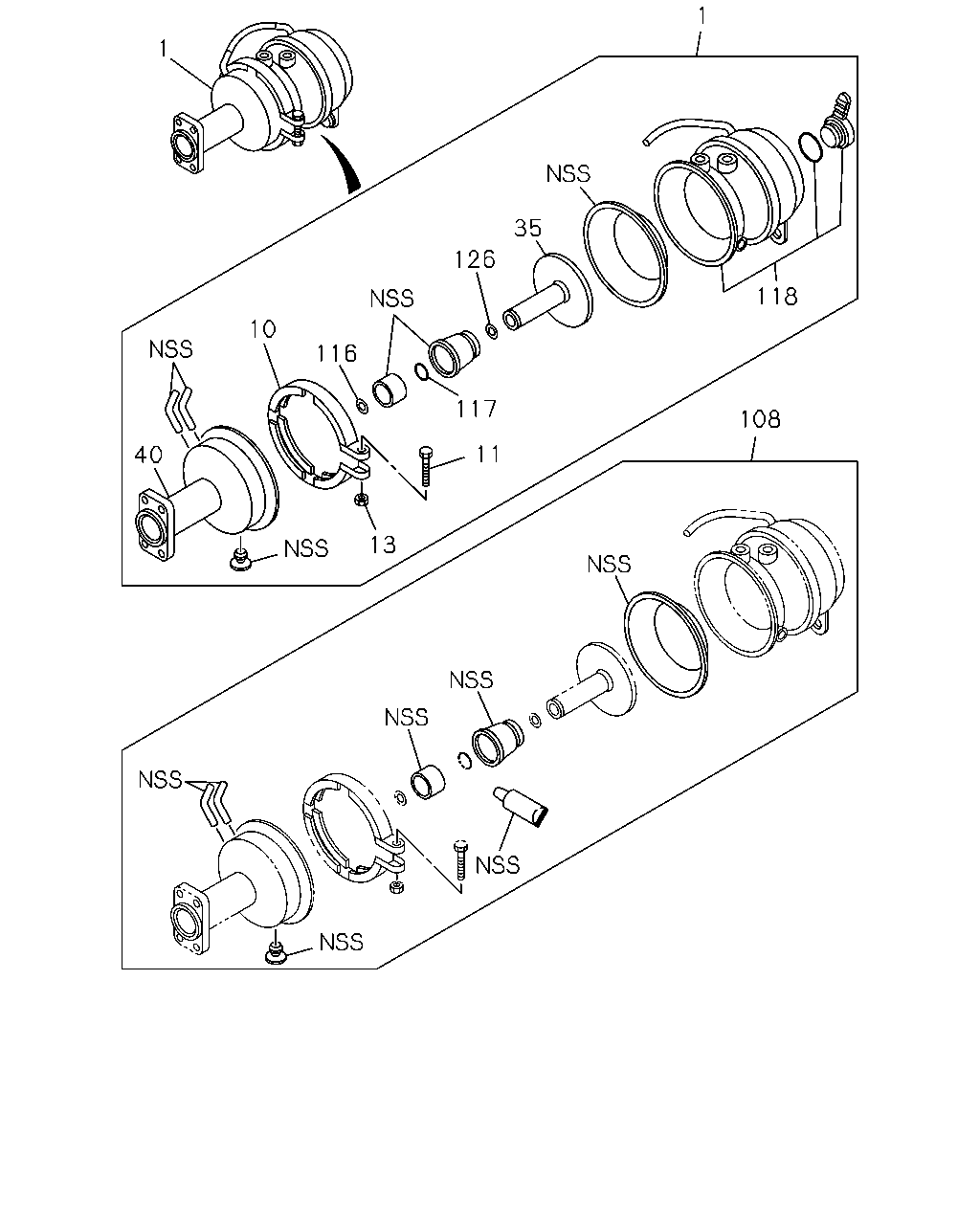

3-41 — REAR BRAKE POWER CHAMBER (#117111) — 56 parça

1 1 40 10 116 126 35 13 11 117 118 108

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CHAMBER ASM; SPRING REARWARD	1-87412-083-0	01	1	1302-1302	●	●
1	CHAMBER ASM; SPRING REARWARD	1-87412-084-0	01	1	1302-1302	●	●
1	CHAMBER ASM; SPRING FORWARD	1-87412-089-0	01	1	1302-1302	●	●
1	CHAMBER ASM; SPRING	1-87412-089-0	01	1	1303-	●	●
1	CHAMBER ASM; SPRING	1-87412-089-0	01	1	1303-	●	●
1	CHAMBER ASM; SPRING FORWARD	1-87412-090-0	01	1	1302-1302	●	●
1	CHAMBER ASM; SPRING	1-87412-090-0	01	1	1303-	●	●
1	CHAMBER ASM; SPRING	1-87412-090-0	01	1	1303-	●	●
10	RING; CLAMP,SPR CHAMBER REARWARD THA	8-98167-056-0	02	1	1302-1302	●	●
10	RING; CLAMP,SPR CHAMBER FORWARD THA	1-48269-256-0	02	1	1302-1302	●	●
10	RING; CLAMP,SPR CHAMBER THA	1-48269-256-0	02	1	1303-	●	●
10	RING; CLAMP,SPR CHAMBER THA	1-48269-256-0	02	1	1303-	●	●
11	BOLT; CLAMP RING THA	1-48269-257-0	02	1	1302-	●	●
11	BOLT; CLAMP RING THA	1-48269-257-0	02	1	1302-	●	●
13	NUT; CLAMP RING THA	1-48269-147-0	02	1	1302-	●	●
13	NUT; CLAMP RING THA	1-48269-147-0	02	1	1302-	●	●
35	PLATE; ROD END,SPR CHAMBER REARWARD THA	8-98146-971-0	02	1	1302-1302	●	●
35	PLATE; ROD END,SPR CHAMBER FORWARD THA	8-98146-972-0	02	1	1302-1302	●	●
35	PLATE; ROD END,SPR CHAMBER THA	8-98146-972-0	02	1	1303-	●	●
35	PLATE; ROD END,SPR CHAMBER THA	8-98146-972-0	02	1	1303-	●	●
40	COVER ASM; LWR,SPR CHAMBER REARWARD THA	1-48251-138-1	01	1	1302-1302	●	●
40	COVER ASM; LWR,SPR CHAMBER REARWARD THA	1-48251-139-1	01	1	1302-1302	●	●
40	COVER ASM; LWR,SPR CHAMBER FORWARD THA	1-48251-134-1	01	1	1302-1302	●	●
40	COVER ASM; LWR,SPR CHAMBER THA	1-48251-134-1	01	1	1303-	●	●
40	COVER ASM; LWR,SPR CHAMBER THA	1-48251-134-1	01	1	1303-	●	●
40	COVER ASM; LWR,SPR CHAMBER FORWARD THA	1-48251-135-1	01	1	1302-1302	●	●
40	COVER ASM; LWR,SPR CHAMBER THA	1-48251-135-1	01	1	1303-	●	●
40	COVER ASM; LWR,SPR CHAMBER THA	1-48251-135-1	01	1	1303-	●	●
108	REPAIR KIT; SPR CHAMBER REARWARD THA	8-98146-981-0	02	1	1302-1302	●	●
108	REPAIR KIT; SPR CHAMBER FORWARD THA	8-98146-982-0	02	1	1302-1302	●	●
108	REPAIR KIT; SPR CHAMBER THA	8-98146-982-0	02	1	1303-	●	●
108	REPAIR KIT; SPR CHAMBER THA	8-98146-982-0	02	1	1303-	●	●
116	GUIDE; SPR CHAMBER THA	8-98146-963-0	02	1	1302-	●	●
116	GUIDE; SPR CHAMBER THA	8-98146-963-0	02	1	1302-	●	●
117	RING; SPR CHAMBER THA	8-98146-966-0	02	1	1302-	●	●
117	RING; SPR CHAMBER THA	8-98146-966-0	02	1	1302-	●	●
118	CHAMBER; PIGGY BACK REARWARD THA	1-87412-107-0	01	1	1302-1302	●	●
118	CHAMBER; PIGGY BACK REARWARD THA	1-87412-108-0	01	1	1302-1302	●	●
118	CHAMBER; PIGGY BACK FORWARD THA	1-87412-111-0	01	1	1302-1302	●	●
118	CHAMBER; PIGGY BACK THA	1-87412-111-0	01	1	1303-	●	●
118	CHAMBER; PIGGY BACK THA	1-87412-111-0	01	1	1303-	●	●
118	CHAMBER; PIGGY BACK FORWARD THA	1-87412-112-0	01	1	1302-1302	●	●
118	CHAMBER; PIGGY BACK THA	1-87412-112-0	01	1	1303-	●	●
118	CHAMBER; PIGGY BACK THA	1-87412-112-0	01	1	1303-	●	●
126	SHIM THA	8-98146-965-0	AR	1	1302-	●	●
126	SHIM THA	8-98146-965-0	AR	1	1302-	●	●

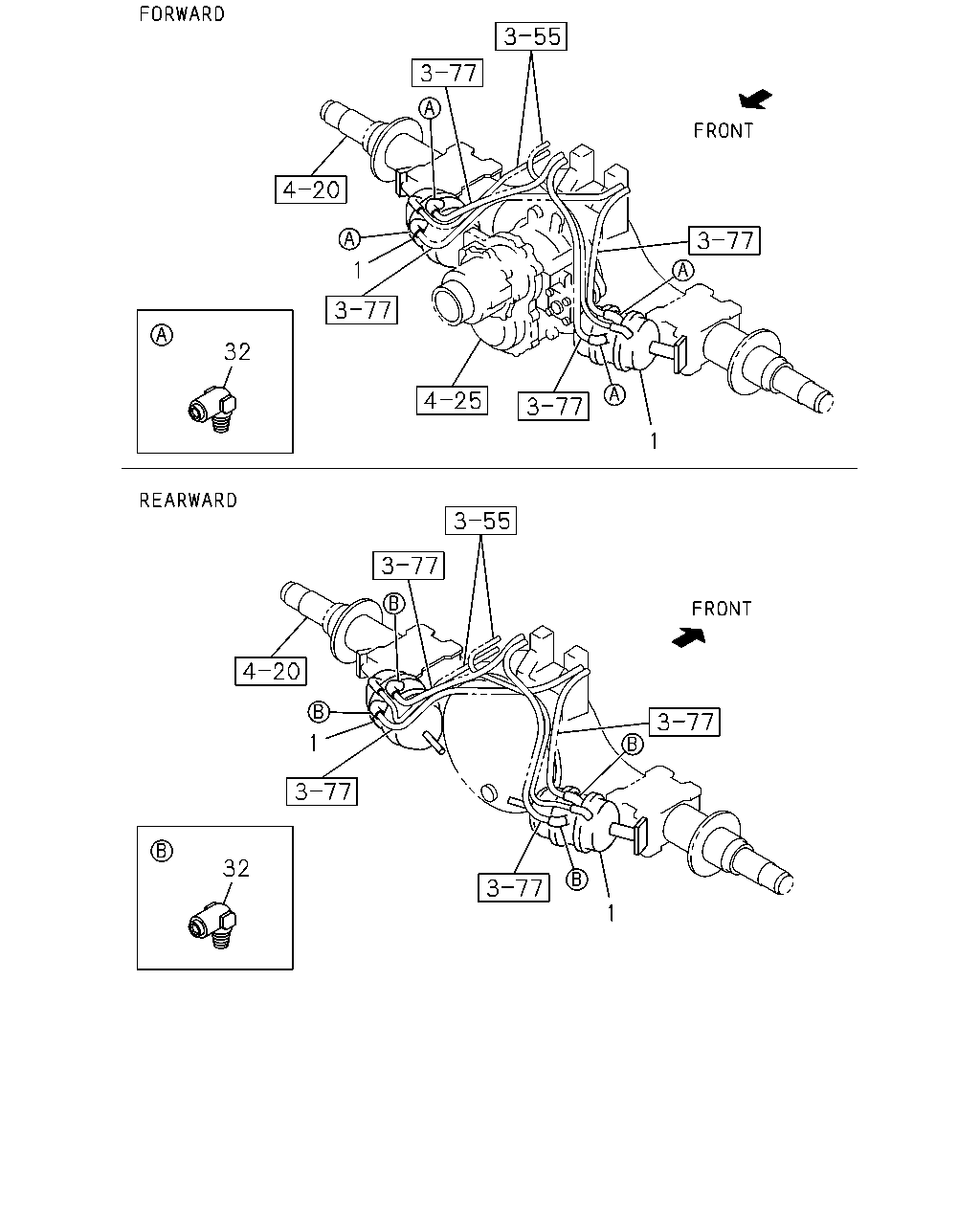

1 1 32 1 1 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CHAMBER ASM; SPRING REARWARD	1-87412-083-0	01	1	1302-1302	●	●
1	CHAMBER ASM; SPRING REARWARD	1-87412-084-0	01	1	1302-1302	●	●
1	CHAMBER ASM; SPRING FORWARD	1-87412-089-0	01	1	1302-1302	●	●
1	CHAMBER ASM; SPRING	1-87412-089-0	01	1	1303-	●	●
1	CHAMBER ASM; SPRING	1-87412-089-0	01	1	1303-	●	●
1	CHAMBER ASM; SPRING FORWARD	1-87412-090-0	01	1	1302-1302	●	●
1	CHAMBER ASM; SPRING	1-87412-090-0	01	1	1303-	●	●
1	CHAMBER ASM; SPRING	1-87412-090-0	01	1	1303-	●	●
32	CONNECTOR; SPR CHAMBER DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	1302-	●	●
32	CONNECTOR; SPR CHAMBER DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	1302-	●	●
