2-07B — CLUTCH BOOSTER; MINIPACK (#11711) — 67 parça

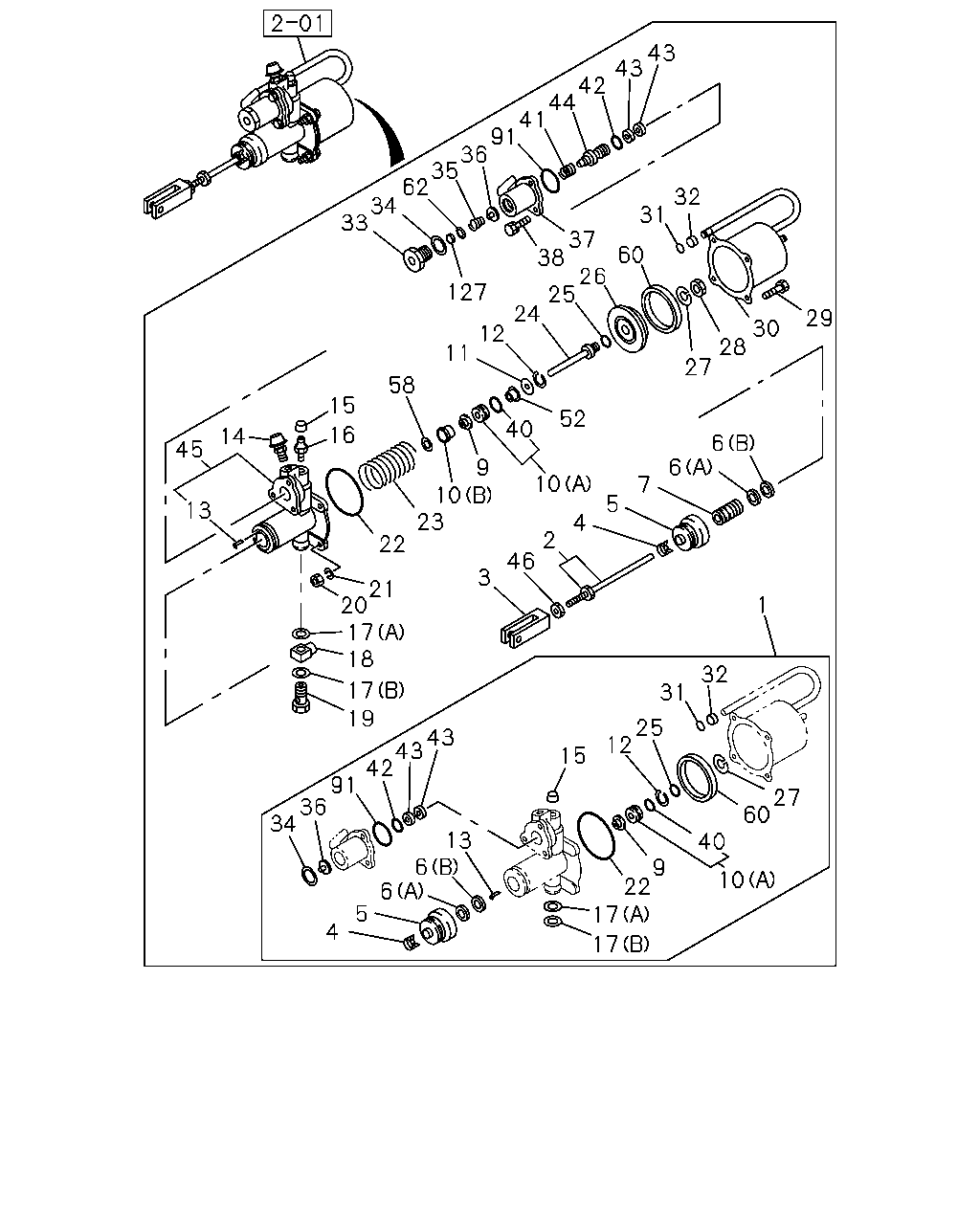

çizim 23212
43 43 42 44 41 91 36 35 62 34 33 32 31 37 38 60 26 25 24 12 11 127 29 30 28 27 58 15 16 52 40 14 6 6 45 9 10 23 22 10 5 7 13 4 2 46 3 21 20 17 18 17 19 1 32 31 25 12 43 43 42 91 36 34 15 27 60 13 6 6 5 40 9 22 17 17 10 4
BalonParca AdiParca NoAdetTipApplied Date
1 REPAIR KIT; CLU BOOSTER 1-31829-330-0 01 1 0106-0106
1 REPAIR KIT; CLU BOOSTER 1-31829-551-0 01 1 0107-
2 ROD; PUSH,CLU BOOSTER 1-31824-172-0 01 1 0106-
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-187-0 01 1 0106-
4 CLAMP; BOOSTER 1-31829-168-0 01 1 0106-
5 GUARD; PISTON,CLU BOOSTER 1-31829-174-0 01 1 0106-
6 GASKET; PISTON CUP,CLU BOOSTER
(A) 		1-31829-055-0 01 1 0106-
6 GASKET; PISTON CUP,CLU BOOSTER
(B) 		1-31829-056-0 01 1 0106-
7 PISTON; CLU BOOSTER 1-31821-013-0 01 1 0106-0106
7 PISTON; CLU BOOSTER 1-31821-048-0 01 1 0107-
9 GASKET; PISTON CUP,CLU BOOSTER 1-31829-251-0 01 1 0106-
10 RETAINER; PISTON,CLU BOOSTER
(A) 		1-31829-285-0 01 1 0106-
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-293-0 01 1 0106-0106
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-428-0 01 1 0107-
11 WASHER; PISTON,CLU BOOSTER 1-31829-105-0 01 1 0106-
12 RING; RET,CLU BOOSTER 1-31829-142-0 01 1 0106-
13 PIN; SPR 1-31829-109-0 01 1 0106-
14 COVER; EXH,CLU BOOSTER 1-31829-415-0 01 1 0106-0106
14 COVER; EXH,CLU BOOSTER 1-31829-365-0 01 1 0107-
15 PROTECTOR; END PLATE,CLU BOOSTER 9-83335-044-0 01 1 0106-
16 PLUG; END PLATE,CLU BOOSTER 9-83331-704-0 01 1 0106-
17 GASKET; CONN,CLU BOOSTER
(A) 		9-09920-267-0 01 1 0106-
17 GASKET; CONN,CLU BOOSTER
(B) 		9-09920-268-0 01 1 0106-
18 CONNECTOR; END PLATE,CLU BOOSTER 1-31829-248-0 01 1 0106-
19 BOLT; EYE,END PLATE,CLU BOOSTER 9-83315-047-0 01 1 0106-
20 NUT; END PLATE TO SHELL,CLU BOOSTER 9-83315-085-0 04 1 0106-
21 WASHER; END PLATE TO SHELL,CLU BOOSTER
ID=8.2 		9-09150-508-0 04 1 0106-
22 GASKET; END PLATE TO SHELL,CLU BOOSTER 1-09623-327-0 01 1 0106-
23 SPRING; SHELL,CLU BOOSTER 1-31829-358-0 01 1 0106-
24 ROD; PUSH,CLU BOOSTER 1-31829-340-0 01 1 0106-0106
24 ROD; PUSH,CLU BOOSTER 1-31829-334-0 01 1 0107-
25 GASKET; PUSH ROD,CLU BOOSTER 1-09623-321-0 01 1 0106-
26 PISTON; SHELL,CLU BOOSTER 1-31821-057-0 01 1 0106-0106
26 PISTON; SHELL,CLU BOOSTER 1-31821-083-0 01 1 0107-
27 SPRING; CLU BOOSTER 1-31829-111-0 01 1 0106-
28 NUT; PUSH ROD,CLU BOOSTER 9-88510-365-0 01 1 0106-
29 BOLT; END PLATE TO SHELL,CLU BOOSTER 1-31829-015-0 04 1 0106-
30 SHELL; CYL,CLU BOOSTER 1-31811-026-0 01 1 0106-0106
30 SHELL; CYL,CLU BOOSTER 1-31811-123-0 01 1 0107-
31 GASKET; SHELL,CLU BOOSTER 1-31829-113-0 01 1 0106-
32 BUSHING; SHELL,CLU BOOSTER 1-31829-114-0 01 1 0106-
33 CONNECTOR; UPR,VLV,CLU BOOSTER 1-31829-214-0 01 1 0106-
34 GASKET; CONN,CLU BOOSTER 1-31829-053-0 01 1 0106-
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-077-0 01 1 0106-0106
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-451-0 01 1 0107-
36 VALVE; POPPET,CLU BOOSTER 1-31829-016-0 01 1 0106-0106
36 VALVE; POPPET,CLU BOOSTER 1-31829-452-0 01 1 0107-
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-014-0 01 1 0106-0106
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-092-0 01 1 0107-
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE 9-83315-113-0 03 1 0106-
40 GASKET; PISTON,CLU BOOSTER 1-31829-037-0 01 1 0106-
41 SPRING; DIAPH,CLU BOOSTER 1-31829-104-0 01 1 0106-0106
41 SPRING; DIAPH,CLU BOOSTER 1-31829-420-0 01 1 0107-
42 GASKET; FITTING,CLU BOOSTER 1-31829-123-0 01 1 0106-
43 GASKET; UPR VLV,CLU BOOSTER 1-31829-083-0 02 1 0106-
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-030-0 01 1 0106-
45 PLATE; END,CLU BOOSTER 1-31811-064-0 01 1 0106-
45 PLATE; END,CLU BOOSTER 1-31811-020-0 01 1 0107-
46 NUT; PUSH ROD,CLU BOOSTER
M10 		9-09111-410-0 01 1 0106-0106
46 NUT; PUSH ROD,CLU BOOSTER
M10 		9-09111-410-0 02 1 0107-
52 SEAL; OIL,END PLATE,CLU BOOSTER 1-47819-027-0 01 1 0107-
58 WASHER; PISTON,CLU BOOSTER 1-31829-301-0 01 1 0106-0106
60 GASKET; SHELL,CLU BOOSTER 1-31829-066-0 01 1 0106-0106
60 GASKET; SHELL,CLU BOOSTER 1-31829-535-0 01 1 0107-
62 RETAINER; POPPET 1-31829-489-0 01 1 0107-
91 GASKET; CLU BOOSTER 1-31829-103-0 01 1 0106-
127 FILTER; POPPET 1-31829-495-0 01 1 0107-
