◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11527 - FVR(MALAYSIA) 280PS ▶ 3 - Brakes, Brake System ▶ 3-20 - AIR TANK ▶
3-20 — AIR TANK (#117104) — 122 parça

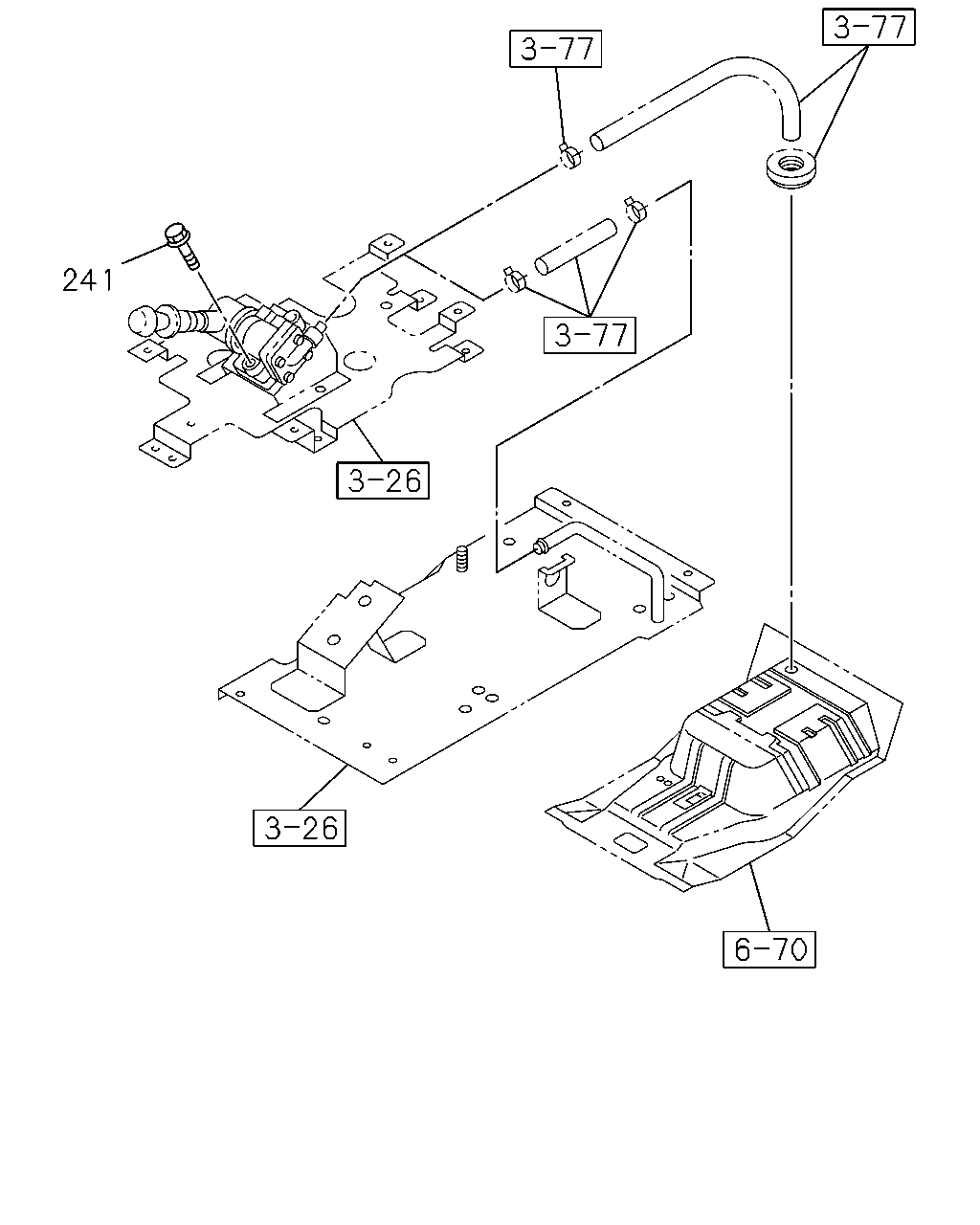

çizim 343130
241
BalonParca AdiParca NoAdetTipApplied Date
241 BOLT; SET,CONT VLV
M8X70 FLANGE 		0-28050-870-0 02 1 1304-

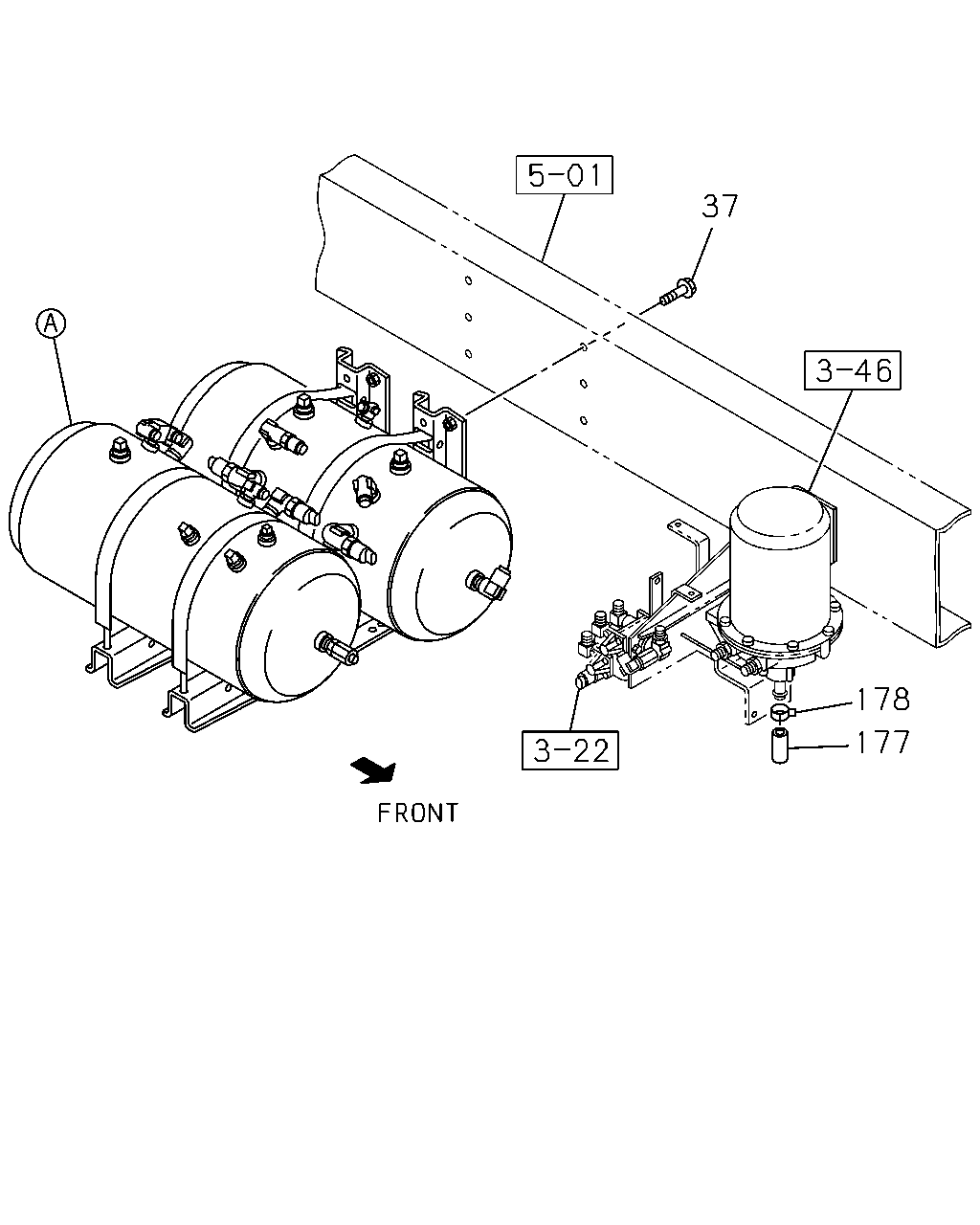

çizim 344908
37 178 177
BalonParca AdiParca NoAdetTipApplied Date
37 BOLT; AIR TANK
M12X40 FLANGE 		0-28651-240-0 08 1 1304-
177 HOSE; RUBBER,DRAIN
AIR DRYER<PS7> L=60 SERVICED BY L=3000 		0-03566-300-0 01 1 1304-
178 CLIP; HOSE
AIR DRYER<PS7> ID=21 		8-94242-034-0 01 1 1304-

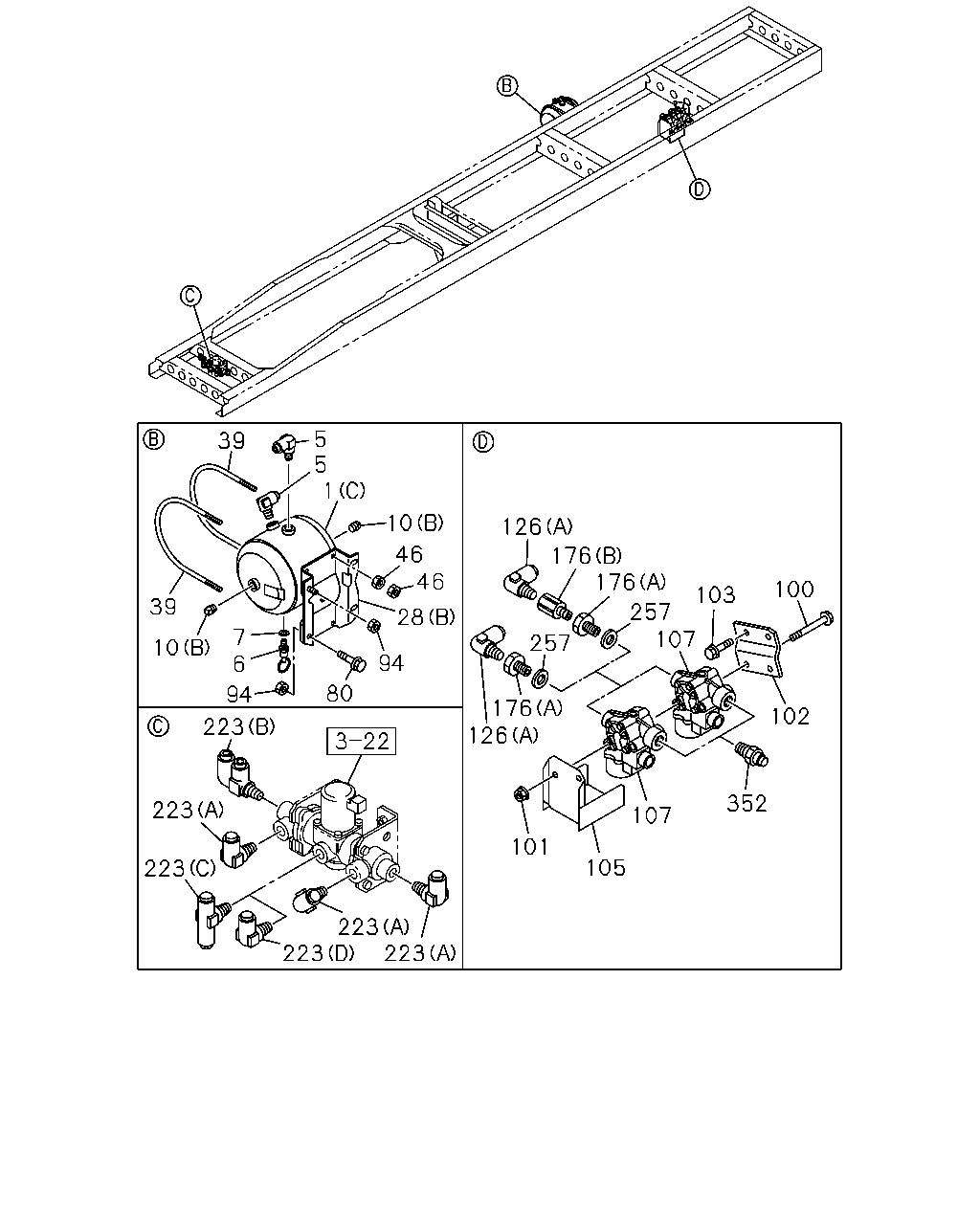

çizim 345520
39 5 5 1 39 10 126 176 176 257 103 100 107 102 352 107 105 101 176 126 257 46 46 28 94 7 10 6 80 94 223 223 223 223 223 223
BalonParca AdiParca NoAdetTipApplied Date
1 TANK ASM; AIR
BRAKE REGULATION ECE(TDV) (C) 		8-98081-870-1 01 1 1304-
1 TANK ASM; AIR
BRAKE REGULATION ECE(TDV) EXC. TIRE INFLATOR DEVICE<SG4> (A) 		1-48370-181-1 01 1 1304-
1 TANK ASM; AIR
EXC. BRAKE REGULATION ECE(TDV) (A) 		1-48370-181-1 01 1 1304-
1 TANK ASM; AIR
BRAKE REGULATION ECE(TDV) EXC. TIRE INFLATOR DEVICE<SG4> (B) 		8-98184-783-0 01 1 1304-
1 TANK ASM; AIR
EXC. BRAKE REGULATION ECE(TDV) (B) 		8-98184-783-0 01 1 1304-
5 UNION; AIR TANK
BRAKE REGULATION ECE(TDV) DIN8 & R3/8 ELBOW 		1-09660-957-0 02 1 1304-
6 COCK; DRAIN,AIR TANK
BRAKE REGULATION ECE(TDV) 		1-48312-015-0 01 1 1304-
6 COCK; DRAIN,AIR TANK
BRAKE REGULATION ECE(TDV) EXC. TIRE INFLATOR DEVICE<SG4> 		1-48312-015-0 05 1 1304-
6 COCK; DRAIN,AIR TANK
EXC. BRAKE REGULATION ECE(TDV) 		1-48312-015-0 05 1 1304-
7 GASKET; DRAIN COCK
BRAKE REGULATION ECE(TDV) ID=14 		1-09630-145-0 01 1 1304-
7 GASKET; DRAIN COCK
BRAKE REGULATION ECE(TDV) EXC. TIRE INFLATOR DEVICE<SG4> ID=14 		1-09630-145-0 05 1 1304-
7 GASKET; DRAIN COCK
EXC. BRAKE REGULATION ECE(TDV) ID=14 		1-09630-145-0 05 1 1304-
10 PLUG; AIR TANK
BRAKE REGULATION ECE(TDV) (B) PT3/8 		9-09204-517-0 02 1 1304-
10 PLUG; AIR TANK
EXC. TIRE INFLATOR DEVICE<SG4> (B) PT3/8 		9-09204-517-0 02 1 1304-
10 PLUG; AIR TANK
BRAKE REGULATION ECE(TDV) EXC. TIRE INFLATOR DEVICE<SG4> (A) PT3/4 		9-09204-526-0 03 1 1304-
10 PLUG; AIR TANK
EXC. BRAKE REGULATION ECE(TDV) (A) PT3/4 		9-09204-526-0 03 1 1304-
10 PLUG; AIR TANK
TIRE INFLATOR DEVICE<SG4> EXC. BRAKE REGULATION ECE(TDV) (B) PT3/8 		9-09204-517-0 01 1 1304-
28 BRACKET; AIR TANK
BRAKE REGULATION ECE(TDV) (B) 		8-98100-165-3 01 1 1304-
28 BRACKET; AIR TANK
BRAKE REGULATION ECE(TDV) EXC. TIRE INFLATOR DEVICE<SG4> (A) 		1-48317-601-5 02 1 1304-
28 BRACKET; AIR TANK
EXC. BRAKE REGULATION ECE(TDV) (A) 		1-48317-601-5 02 1 1304-
39 U-BOLT; AIR TANK
BRAKE REGULATION ECE(TDV) L=210 		1-48317-458-1 02 1 1304-
46 NUT; U-BOLT
BRAKE REGULATION ECE(TDV) M8 		0-91110-508-0 08 1 1304-
80 BOLT; BRKT
BRAKE REGULATION ECE(TDV) M10X30 FLANGE 		0-28651-030-0 03 1 1304-
94 NUT; BRKT FIX
BRAKE REGULATION ECE(TDV) M10 FLANGE 		0-91180-210-0 04 1 1304-
100 BOLT; MODULATOR
ANTI LOCK BRAKE<JE5> M8X140 FLANGE 		0-28055-814-0 02 1 1304-
101 NUT; MODULATOR
ANTI LOCK BRAKE<JE5> M8 FLANGE 		0-91180-108-0 02 1 1304-
102 BRACKET; MODULATOR
ANTI LOCK BRAKE<JE5> 		8-98075-781-0 01 1 1304-1410
102 BRACKET; MODULATOR
ANTI LOCK BRAKE<JE5> 		8-98272-718-0 01 1 1411-
103 BOLT; BRKT
ANTI LOCK BRAKE<JE5> M8X20 FLANGE 		0-28650-820-0 02 1 1304-
105 COVER; MODULATOR
ANTI LOCK BRAKE<JE5> 		1-47479-792-0 01 1 1304-1410
105 COVER; MODULATOR
ANTI LOCK BRAKE<JE5> 		8-98272-749-0 01 1 1411-
107 MODULATOR; RR
ANTI LOCK BRAKE<JE5> 		1-48240-115-0 02 1 1304-1410
107 MODULATOR; RR
ANTI LOCK BRAKE<JE5> 		8-98215-454-0 02 1 1411-
126 CONNECTOR; ELBOW
ANTI LOCK BRAKE<JE5> (A) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1304-
126 CONNECTOR; ELBOW
BRAKE REGULATION ECE(TDV) EXC. TIRE INFLATOR DEVICE<SG4> (B) PT1/4 & PT1/4 2WAY 		1-09660-693-0 04 1 1304-
126 CONNECTOR; ELBOW
EXC. BRAKE REGULATION ECE(TDV) (B) PT1/4 & PT1/4 2WAY 		1-09660-693-0 04 1 1304-
126 CONNECTOR; ELBOW
BRAKE REGULATION ECE(TDV) EXC. TIRE INFLATOR DEVICE<SG4> (H) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1304-
126 CONNECTOR; ELBOW
EXC. BRAKE REGULATION ECE(TDV) (H) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1304-
126 CONNECTOR; ELBOW
BRAKE REGULATION ECE(TDV) EXC. TIRE INFLATOR DEVICE<SG4> (G) DIN8 & R3/8 ELBOW 		1-09660-957-0 02 1 1304-
126 CONNECTOR; ELBOW
EXC. BRAKE REGULATION ECE(TDV) (G) DIN8 & R3/8 ELBOW 		1-09660-957-0 02 1 1304-
126 CONNECTOR; ELBOW
BRAKE REGULATION ECE(TDV) EXC. TIRE INFLATOR DEVICE<SG4> (A) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 1304-
126 CONNECTOR; ELBOW
BRAKE REGULATION ECE(TDV) EXC. TIRE INFLATOR DEVICE<SG4> (D) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 03 1 1304-
126 CONNECTOR; ELBOW
BRAKE REGULATION ECE(TDV) EXC. TIRE INFLATOR DEVICE<SG4> (E) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 03 1 1304-
126 CONNECTOR; ELBOW
BRAKE REGULATION ECE(TDV) EXC. TIRE INFLATOR DEVICE<SG4> (F) R3/8 & RC3/8 & RC1/4 3WAY 		8-98166-127-0 04 1 1304-
126 CONNECTOR; ELBOW
EXC. BRAKE REGULATION ECE(TDV) (A) DIN12 & R3/8 ELBOW 		1-09660-959-0 06 1 1304-
126 CONNECTOR; ELBOW
EXC. BRAKE REGULATION ECE(TDV) (D) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1304-
126 CONNECTOR; ELBOW
EXC. BRAKE REGULATION ECE(TDV) (F) R3/8 & RC3/8 & RC1/4 3WAY 		8-98166-127-0 01 1 1304-
126 CONNECTOR; ELBOW
TIRE INFLATOR DEVICE<SG4> EXC. BRAKE REGULATION ECE(TDV) (C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1304-
176 ADAPTER
ANTI LOCK BRAKE<JE5> (A) INNER PT3/8,OUTER M22 		1-09650-494-1 02 1 1304-
176 ADAPTER
ANTI LOCK BRAKE<JE5> (B) PT3/8 		1-09664-210-0 01 1 1304-
223 UNION
H.S.A SYSTEM<6EP> (A) DIN8 & R3/8 ELBOW 		1-09660-957-0 03 1 1304-
223 UNION
H.S.A SYSTEM<6EP> (B) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 1304-
223 UNION
H.S.A SYSTEM<6EP> RIGID SEAT WO/ARM REST<TAZ> (D) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1304-
223 UNION
H.S.A SYSTEM<6EP> EXC. RIGID SEAT WO/ARM REST<TAZ> (C) 		1-09661-073-0 01 1 1304-
257 GASKET; PLUG
ANTI LOCK BRAKE<JE5> ID=22.5 		9-09571-422-0 02 1 1304-
352 CONNECTOR; STRAIGHT
ANTI LOCK BRAKE<JE5> DIN12 & M22 STRAIGHT 		1-09661-050-0 02 1 1304-

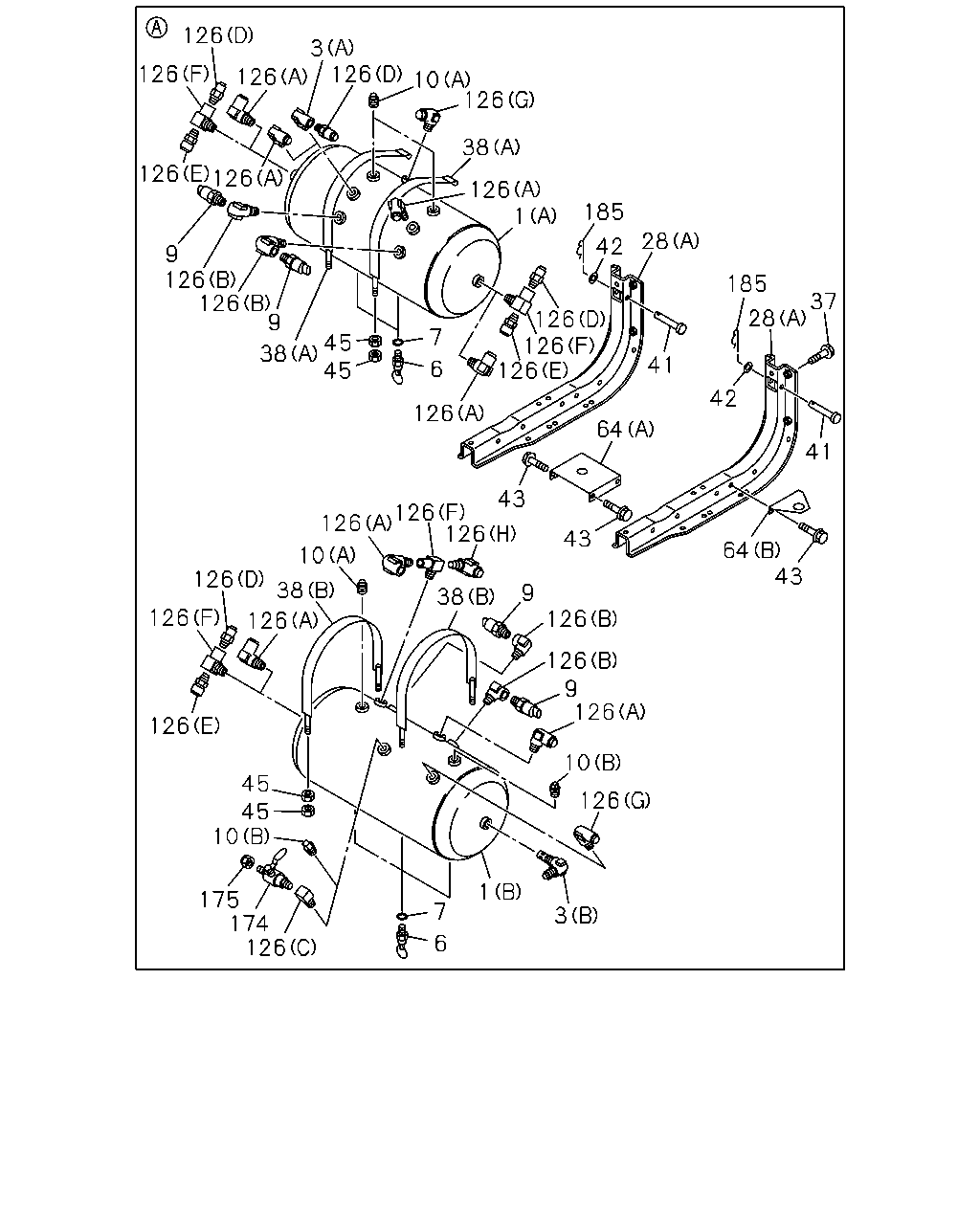

çizim 345782
126 3 126 126 126 126 126 10 9 126 126 38 126 126 9 1 38 185 45 7 45 6 28 42 126 126 126 126 185 42 37 28 41 41 64 64 43 43 43 126 126 126 9 10 126 38 38 126 126 9 126 126 126 126 10 126 45 45 10 175 174 126 7 6 3 1
BalonParca AdiParca NoAdetTipApplied Date
1 TANK ASM; AIR
BRAKE REGULATION ECE(TDV) (C) 		8-98081-870-1 01 1 1304-
1 TANK ASM; AIR
BRAKE REGULATION ECE(TDV) EXC. TIRE INFLATOR DEVICE<SG4> (A) 		1-48370-181-1 01 1 1304-
1 TANK ASM; AIR
EXC. BRAKE REGULATION ECE(TDV) (A) 		1-48370-181-1 01 1 1304-
1 TANK ASM; AIR
BRAKE REGULATION ECE(TDV) EXC. TIRE INFLATOR DEVICE<SG4> (B) 		8-98184-783-0 01 1 1304-
1 TANK ASM; AIR
EXC. BRAKE REGULATION ECE(TDV) (B) 		8-98184-783-0 01 1 1304-
3 VALVE; CHECK,AIR TANK
AIR DRYER<PS7> TIRE INFLATOR DEVICE<SG4> EXC. BRAKE REGULATION ECE(TDV) (B) M20 & PT3/4 ELBOW 		1-48410-412-0 01 1 1304-
3 VALVE; CHECK,AIR TANK
AIR DRYER<PS7> EXC. TIRE INFLATOR DEVICE<SG4> (B) M20 & PT3/4 ELBOW 		1-48410-412-0 01 1 1304-
3 VALVE; CHECK,AIR TANK
EXC. BRAKE REGULATION ECE(TDV) (A) 		1-48320-031-1 01 1 1304-
3 VALVE; CHECK,AIR TANK
TIRE INFLATOR DEVICE<SG4> EXC. AIR DRYER<PS7>,BRAKE REGULATION ECE(TDV) (B) M22 & PT3/4 ELBOW 		1-48410-134-3 01 1 1304-
3 VALVE; CHECK,AIR TANK
EXC. AIR DRYER<PS7>,TIRE INFLATOR DEVICE<SG4> (B) M22 & PT3/4 ELBOW 		1-48410-134-3 01 1 1304-
6 COCK; DRAIN,AIR TANK
BRAKE REGULATION ECE(TDV) 		1-48312-015-0 01 1 1304-
6 COCK; DRAIN,AIR TANK
BRAKE REGULATION ECE(TDV) EXC. TIRE INFLATOR DEVICE<SG4> 		1-48312-015-0 05 1 1304-
6 COCK; DRAIN,AIR TANK
EXC. BRAKE REGULATION ECE(TDV) 		1-48312-015-0 05 1 1304-
7 GASKET; DRAIN COCK
BRAKE REGULATION ECE(TDV) ID=14 		1-09630-145-0 01 1 1304-
7 GASKET; DRAIN COCK
BRAKE REGULATION ECE(TDV) EXC. TIRE INFLATOR DEVICE<SG4> ID=14 		1-09630-145-0 05 1 1304-
7 GASKET; DRAIN COCK
EXC. BRAKE REGULATION ECE(TDV) ID=14 		1-09630-145-0 05 1 1304-
9 SWITCH; LOW PRESSURE GAGE,AIR TANK
BRAKE REGULATION ECE(TDV) EXC. TIRE INFLATOR DEVICE<SG4> STAMP 5.5 		8-97609-249-0 04 1 1304-
9 SWITCH; LOW PRESSURE GAGE,AIR TANK
EXC. BRAKE REGULATION ECE(TDV) STAMP 5.5 		8-97609-249-0 04 1 1304-
10 PLUG; AIR TANK
BRAKE REGULATION ECE(TDV) (B) PT3/8 		9-09204-517-0 02 1 1304-
10 PLUG; AIR TANK
EXC. TIRE INFLATOR DEVICE<SG4> (B) PT3/8 		9-09204-517-0 02 1 1304-
10 PLUG; AIR TANK
BRAKE REGULATION ECE(TDV) EXC. TIRE INFLATOR DEVICE<SG4> (A) PT3/4 		9-09204-526-0 03 1 1304-
10 PLUG; AIR TANK
EXC. BRAKE REGULATION ECE(TDV) (A) PT3/4 		9-09204-526-0 03 1 1304-
10 PLUG; AIR TANK
TIRE INFLATOR DEVICE<SG4> EXC. BRAKE REGULATION ECE(TDV) (B) PT3/8 		9-09204-517-0 01 1 1304-
28 BRACKET; AIR TANK
BRAKE REGULATION ECE(TDV) (B) 		8-98100-165-3 01 1 1304-
28 BRACKET; AIR TANK
BRAKE REGULATION ECE(TDV) EXC. TIRE INFLATOR DEVICE<SG4> (A) 		1-48317-601-5 02 1 1304-
28 BRACKET; AIR TANK
EXC. BRAKE REGULATION ECE(TDV) (A) 		1-48317-601-5 02 1 1304-
37 BOLT; AIR TANK
M12X40 FLANGE 		0-28651-240-0 08 1 1304-
38 BAND; AIR TANK
BRAKE REGULATION ECE(TDV) EXC. TIRE INFLATOR DEVICE<SG4> (A) 		1-48317-108-2 02 1 1304-
38 BAND; AIR TANK
EXC. BRAKE REGULATION ECE(TDV) (A) 		1-48317-108-2 02 1 1304-
38 BAND; AIR TANK
BRAKE REGULATION ECE(TDV) EXC. TIRE INFLATOR DEVICE<SG4> (B) 		1-48317-109-2 02 1 1304-
38 BAND; AIR TANK
EXC. BRAKE REGULATION ECE(TDV) (B) 		1-48317-109-2 02 1 1304-
41 PIN; BAND FIX
BRAKE REGULATION ECE(TDV) EXC. TIRE INFLATOR DEVICE<SG4> OD=10 L=60 		0-82254-060-0 02 1 1304-
41 PIN; BAND FIX
EXC. BRAKE REGULATION ECE(TDV) OD=10 L=60 		0-82254-060-0 02 1 1304-
42 WASHER; PL
BRAKE REGULATION ECE(TDV) EXC. TIRE INFLATOR DEVICE<SG4> ID=10.5 		0-91614-510-0 02 1 1304-
42 WASHER; PL
EXC. BRAKE REGULATION ECE(TDV) ID=10.5 		0-91614-510-0 02 1 1304-
43 BOLT; STAY,AIR TANK,MAIN
BRAKE REGULATION ECE(TDV) EXC. TIRE INFLATOR DEVICE<SG4> M8X25 FLANGE 		0-28650-825-0 06 1 1304-
43 BOLT; STAY,AIR TANK,MAIN
EXC. BRAKE REGULATION ECE(TDV) M8X25 FLANGE 		0-28650-825-0 06 1 1304-
45 NUT; AIR TANK,MAIN
BRAKE REGULATION ECE(TDV) EXC. TIRE INFLATOR DEVICE<SG4> M8 		0-91110-508-0 12 1 1304-
45 NUT; AIR TANK,MAIN
EXC. BRAKE REGULATION ECE(TDV) M8 		0-91110-508-0 12 1 1304-
64 STAY; AIR TANK,MAIN
BRAKE REGULATION ECE(TDV) EXC. TIRE INFLATOR DEVICE<SG4> (A) 		1-48317-607-0 01 1 1304-
64 STAY; AIR TANK,MAIN
EXC. BRAKE REGULATION ECE(TDV) (A) 		1-48317-607-0 01 1 1304-
64 STAY; AIR TANK,MAIN
BRAKE REGULATION ECE(TDV) EXC. TIRE INFLATOR DEVICE<SG4> (B) 		1-48317-691-0 01 1 1304-
64 STAY; AIR TANK,MAIN
EXC. BRAKE REGULATION ECE(TDV) (B) 		1-48317-691-0 01 1 1304-
126 CONNECTOR; ELBOW
ANTI LOCK BRAKE<JE5> (A) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1304-
126 CONNECTOR; ELBOW
BRAKE REGULATION ECE(TDV) EXC. TIRE INFLATOR DEVICE<SG4> (B) PT1/4 & PT1/4 2WAY 		1-09660-693-0 04 1 1304-
126 CONNECTOR; ELBOW
EXC. BRAKE REGULATION ECE(TDV) (B) PT1/4 & PT1/4 2WAY 		1-09660-693-0 04 1 1304-
126 CONNECTOR; ELBOW
BRAKE REGULATION ECE(TDV) EXC. TIRE INFLATOR DEVICE<SG4> (H) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1304-
126 CONNECTOR; ELBOW
EXC. BRAKE REGULATION ECE(TDV) (H) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1304-
126 CONNECTOR; ELBOW
BRAKE REGULATION ECE(TDV) EXC. TIRE INFLATOR DEVICE<SG4> (G) DIN8 & R3/8 ELBOW 		1-09660-957-0 02 1 1304-
126 CONNECTOR; ELBOW
EXC. BRAKE REGULATION ECE(TDV) (G) DIN8 & R3/8 ELBOW 		1-09660-957-0 02 1 1304-
126 CONNECTOR; ELBOW
BRAKE REGULATION ECE(TDV) EXC. TIRE INFLATOR DEVICE<SG4> (A) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 1304-
126 CONNECTOR; ELBOW
BRAKE REGULATION ECE(TDV) EXC. TIRE INFLATOR DEVICE<SG4> (D) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 03 1 1304-
126 CONNECTOR; ELBOW
BRAKE REGULATION ECE(TDV) EXC. TIRE INFLATOR DEVICE<SG4> (E) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 03 1 1304-
126 CONNECTOR; ELBOW
BRAKE REGULATION ECE(TDV) EXC. TIRE INFLATOR DEVICE<SG4> (F) R3/8 & RC3/8 & RC1/4 3WAY 		8-98166-127-0 04 1 1304-
126 CONNECTOR; ELBOW
EXC. BRAKE REGULATION ECE(TDV) (A) DIN12 & R3/8 ELBOW 		1-09660-959-0 06 1 1304-
126 CONNECTOR; ELBOW
EXC. BRAKE REGULATION ECE(TDV) (D) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1304-
126 CONNECTOR; ELBOW
EXC. BRAKE REGULATION ECE(TDV) (F) R3/8 & RC3/8 & RC1/4 3WAY 		8-98166-127-0 01 1 1304-
126 CONNECTOR; ELBOW
TIRE INFLATOR DEVICE<SG4> EXC. BRAKE REGULATION ECE(TDV) (C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1304-
174 COCK; AIR,INFLATOR
TIRE INFLATOR DEVICE<SG4> EXC. BRAKE REGULATION ECE(TDV) 		1-09680-099-0 01 1 1304-
175 CAP; AIR COCK
TIRE INFLATOR DEVICE<SG4> EXC. BRAKE REGULATION ECE(TDV) 		9-48319-102-0 01 1 1304-
185 PIN; SNAP
BRAKE REGULATION ECE(TDV) EXC. TIRE INFLATOR DEVICE<SG4> L=32.6 		8-98062-280-0 02 1 1304-
185 PIN; SNAP
EXC. BRAKE REGULATION ECE(TDV) L=32.6 		8-98062-280-0 02 1 1304-
