◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51474 - TFR/TFS-RHD ▶ 3 - Brakes, Brake System ▶ 3-10 - BRAKE PEDAL AND CONTROL ▶
3-10 — BRAKE PEDAL AND CONTROL (#117102) — 27 parça

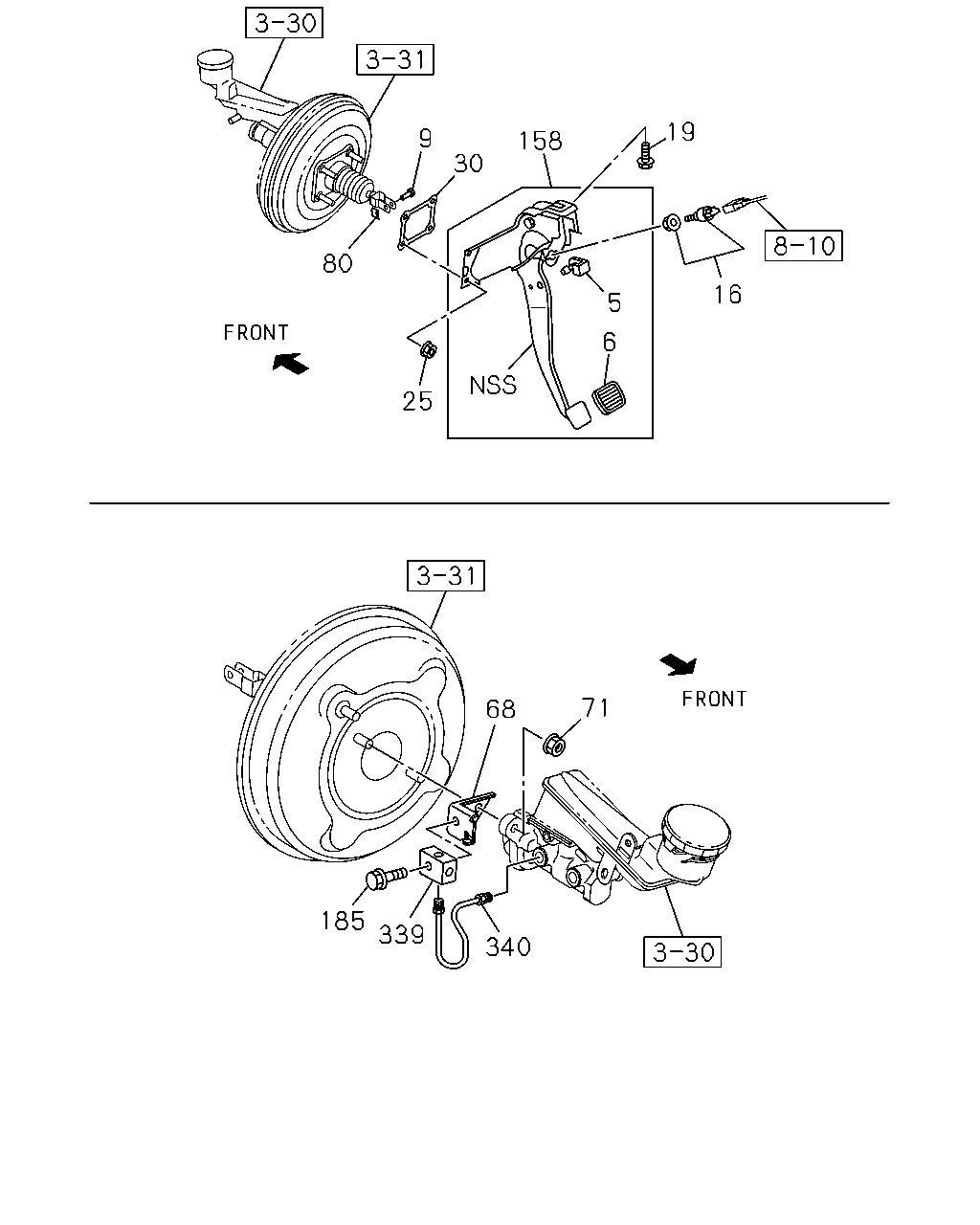

çizim 343091
9 80 25 30 158 19 16 6 5 71 68 185 339 340
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
5 04.634 STOPPER; BRK PEDAL 1-73996-231-1 01 1 1304- ● ● ● ● ● ●
6 04.630 COVER; BRK PEDAL 8-97318-799-0 01 1 1304- ● ●
6 04.630 COVER; BRK PEDAL
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T MSG 5 SPEED(M75),M/T AISIN 6 SPEED(RNU),M/T MUA 5 SPEED 5G(RSP) 		8-97318-799-0 01 1 1304- ● ● ● ●
6 04.630 COVER; BRK PEDAL
A/T 5 SPEED-AISIN(MA1) 		8-97263-035-0 01 1 1304-1306 ● ● ● ●
6 04.630 COVER; BRK PEDAL
A/T 5 SPEED-AISIN(MA1) 		8-97263-035-0 01 1 1307- ● ● ● ● ●
9 04.634 PIN; JAW JOINT 8-97311-602-0 01 1 1304- ● ● ● ● ● ●
16 02.447 SWITCH; STOP LAMP
AUTO CRUISE CONT<K30> 		8-98140-487-0 01 1 1304- ● ● ● ● ● ●
16 02.447 SWITCH; STOP LAMP
4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) M/T MUA 5 SPEED 5H(MWQ),M/T AISIN 6 SPEED(RNU) EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> EXC. AUTO CRUISE CONT<K30> 		8-98140-487-0 01 1 1304- ● ● ● ●
16 02.447 SWITCH; STOP LAMP
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0) EXC. AUTO CRUISE CONT<K30> 		8-98140-486-0 01 1 1304-1306 ● ● ● ● ● ●
16 02.447 SWITCH; STOP LAMP
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) EURO3 SPECIFICATION<NT3> EXC. AUTO CRUISE CONT<K30> 		8-98140-486-0 01 1 1304-1306 ● ● ●
16 02.447 SWITCH; STOP LAMP
4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) A/T 5 SPEED-AISIN(MA1) EXC. AUTO CRUISE CONT<K30> 		8-98140-486-0 01 1 1304-1306 ● ● ●
16 02.447 SWITCH; STOP LAMP
4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ), 4JA1-T ENG(LP0),4JJ1-TCX ENG(LS0) EXC. AUTO CRUISE CONT<K30> 		8-98140-486-0 01 1 1307- ● ● ● ● ● ●
16 02.447 SWITCH; STOP LAMP
4JK1-TCX ENG(LR0),4JK1-TCY ENG(RDX) A/T 5 SPEED-AISIN(MA1) EXC. AUTO CRUISE CONT<K30> 		8-98140-486-0 01 1 1307- ● ● ● ●
16 02.447 SWITCH; STOP LAMP
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) EURO3 SPECIFICATION<NT3> EXC. AUTO CRUISE CONT<K30> 		8-98140-486-0 01 1 1307- ● ● ●
19 04.634 BOLT; BRKT
M8X22.5 W/PL WASHER 		8-97947-104-1 01 1 1304- ● ● ● ● ● ●
25 04.634 NUT; FLANGE,MTG BRKT TO BODY
M8 FLANGE 		8-97581-233-0 04 1 1304- ● ● ● ● ● ●
30 04.910 GASKET; M/VAC TO BODY 8-97943-457-0 01 1 1304- ● ● ● ● ● ●
68 04.634 BRACKET; SERVO TO DASH PANEL
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98163-234-0 01 1 1304- ● ● ● ● ●
71 04.650 NUT; BRK M/CYL 8-98031-675-0 02 1 1304- ● ● ● ● ● ●
80 04.634 PIN; SNAP,BRK PEDAL
00.833 		8-98007-161-0 01 1 1304- ● ● ● ● ● ●
158 04.625 PEDAL ASM; BRK 8-98061-817-1 01 1 1304- ● ●
158 04.625 PEDAL ASM; BRK
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),M/T MSG 5 SPEED(M75),M/T AISIN 6 SPEED(RNU),M/T MUA 5 SPEED 5G(RSP) 		8-98061-817-1 01 1 1304- ● ● ● ●
158 04.625 PEDAL ASM; BRK
A/T 5 SPEED-AISIN(MA1) 		8-98061-818-1 01 1 1304-1306 ● ● ● ●
158 04.625 PEDAL ASM; BRK
A/T 5 SPEED-AISIN(MA1) 		8-98061-818-1 01 1 1307- ● ● ● ● ●
185 04.634 BOLT; BRKT
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> M8X35 FLANGE 		8-97947-755-0 01 1 1304- ● ● ● ● ●
339 04.685 CONNECTOR; OIL PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98163-269-0 01 1 1304- ● ● ● ● ●
340 04.685 PIPE; BRK M/CYL
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97947-756-0 01 1 1304- ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
