3-02 — FRONT DISC BRAKE CALIPER (#117100) — 25 parça

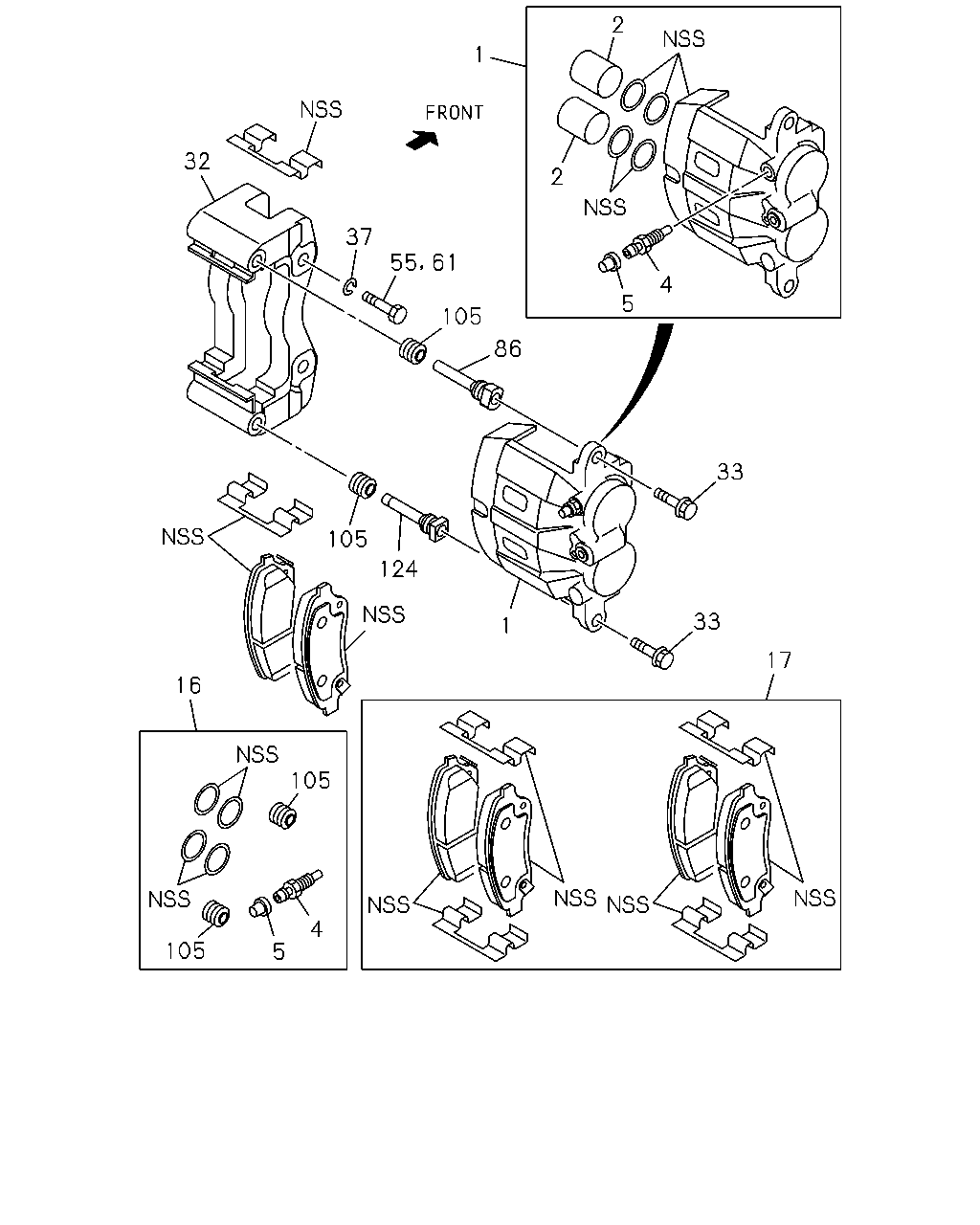

çizim 343117
17 1 33 33 124 105 16 105 105 5 32 4 86 105 55 37 1 61 2 2 5 4
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 04.665 CALIPER; FRT DISC BRK 8-98077-996-0 01 1 1304- ● ● ● ● ●
1 04.665 CALIPER; FRT DISC BRK 8-98077-997-0 01 1 1304- ● ● ● ● ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT 8-98078-000-0 04 1 1304- ● ● ● ● ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT 8-98050-476-0 02 1 1304- ● ● ● ● ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT 8-98050-479-0 02 1 1304- ● ● ● ● ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT 8-98079-105-0 01 1 1304- ● ● ● ● ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
ECUADOR EQUIPMENT(E46) 		8-98298-384-0 01 1 1506- ● ● ● ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
HIGH RIDE SUSPENSION(7YC) 		8-97947-571-0 01 1 1304-1505 ● ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT 8-97947-571-0 01 1 1304-1505 ● ● ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> ISRAEL EQUIPMENT(2G1) HIGH RIDE SUSPENSION(7YC) 		8-97947-571-0 01 1 1506- ● ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
HIGH RIDE SUSPENSION(7YC) EXC. ECUADOR EQUIPMENT(E46),ISRAEL EQUIPMENT(2G1) 		8-97947-571-0 01 1 1506- ● ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT 8-97947-571-0 01 1 1506- ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> ISRAEL EQUIPMENT(2G1) 		8-97947-571-0 01 1 1506- ● ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
EXC. ECUADOR EQUIPMENT(E46),ISRAEL EQUIPMENT(2G1) 		8-97947-571-0 01 1 1506- ● ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97947-466-0 01 1 1304-1505 ● ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> ISRAEL EQUIPMENT(2G1) EXC. HIGH RIDE SUSPENSION(7YC) 		8-97947-466-0 01 1 1506- ● ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
EXC. ECUADOR EQUIPMENT(E46),ISRAEL EQUIPMENT(2G1),HIGH RIDE SUSPENSION(7YC) 		8-97947-466-0 01 1 1506- ● ●
32 04.665 SUPPORT; FRT DISC BRK 8-97947-221-0 02 1 1304- ● ● ● ● ●
33 04.665 BOLT; SUPPORT BRKT TO DISC BRK 8-98078-192-0 04 1 1304- ● ● ● ● ●
37 04.665 WASHER; LK
06.174 ID=14.2 		0-91510-814-0 04 1 1304- ● ● ● ● ●
55 04.681 BOLT; SUPPORT BRKT TO DISC BRK 8-98037-731-0 02 1 1304- ● ● ● ● ●
61 04.665 BOLT; SUPPORT BRKT TO KNUCKLE
04.681 		8-98037-731-0 02 1 1304- ● ● ● ● ●
86 04.665 PIN; GUIDE 8-98078-175-0 02 1 1304- ● ● ● ● ●
105 04.665 BOOT; CALIPER 8-98078-193-0 04 1 1304- ● ● ● ● ●
124 04.665 PIN ASM; W/BUSH 8-98078-176-0 02 1 1304- ● ● ● ● ●
