◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51473 - TFR/TFS-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#117095) — 119 parça

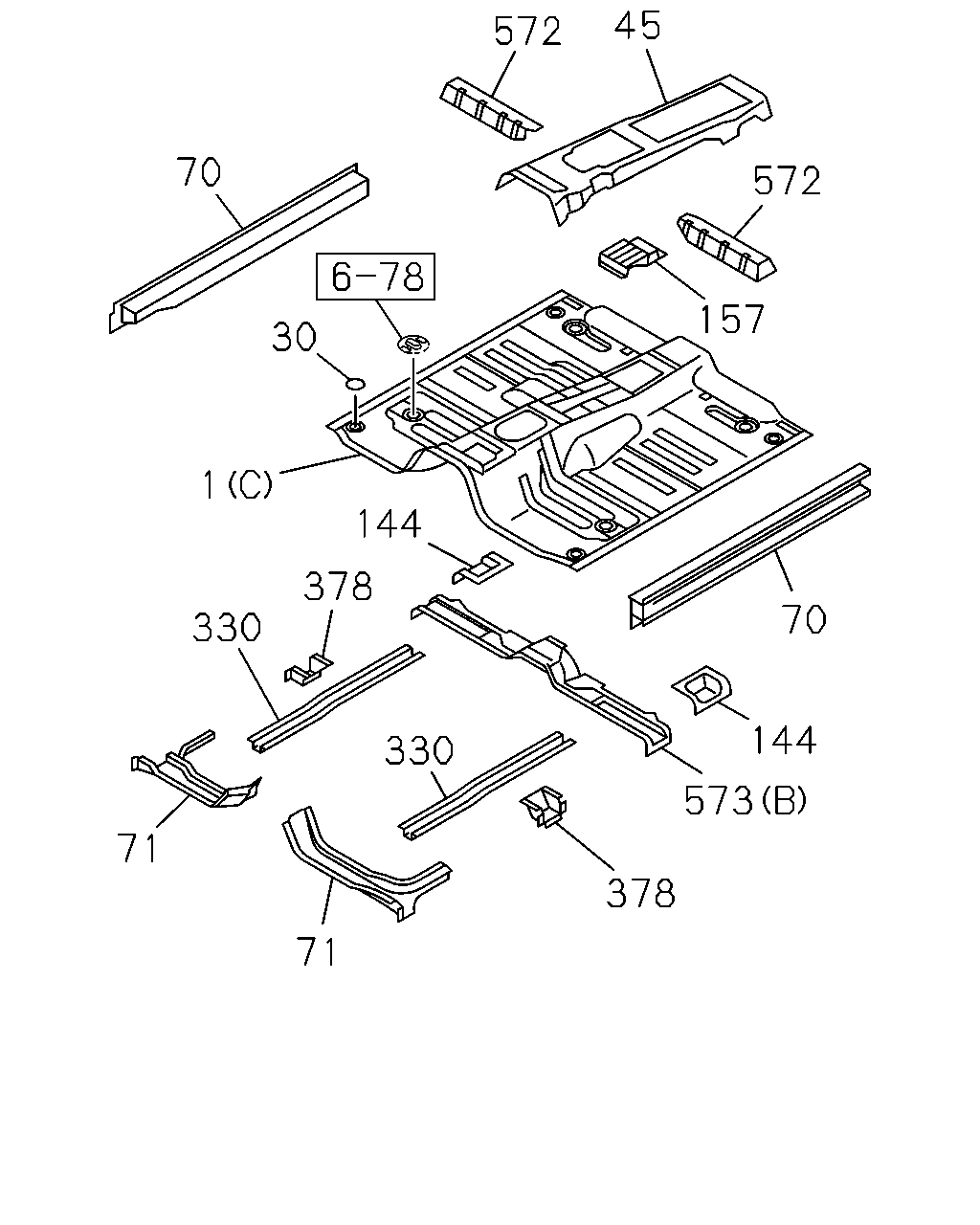

çizim 343842
572 45 70 572 157 30 1 330 71 330 71 378 144 573 70 144 378
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 16.545 PANEL; FLOOR
(C) 		8-98103-921-7 01 1 1304- ● ●
1 16.545 PANEL; FLOOR
(B) 		8-98104-004-4 01 1 1304-1306 ● ●
1 16.545 PANEL; FLOOR
(B) 		8-98199-516-0 01 1 1307- ● ●
1 16.545 PANEL; FLOOR
(A) 		8-98112-030-6 01 1 1304- ●
30 16.547 GROMMET; CAB MTG RAIL
OD=59 T=9 		8-98202-803-0 04 1 1304- ● ● ●
30 16.547 GROMMET; CAB MTG RAIL
OD=59 T=9 		8-98202-803-0 06 1 1304- ● ●
45 16.545 REINFORCEMENT; TUNNEL,FRT 8-98104-200-5 01 1 1304- ● ●
45 16.545 REINFORCEMENT; TUNNEL,FRT 8-98101-017-6 01 1 1304- ● ● ●
70 16.545 PANEL; ROCKER INNER
COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46),ISRAEL EQUIPMENT(2G1) 		8-98162-991-1 01 1 1304- ● ●
70 16.545 PANEL; ROCKER INNER
COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46),ISRAEL EQUIPMENT(2G1) 		8-98162-996-1 01 1 1304- ● ●
70 16.545 PANEL; ROCKER INNER
EXC. COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46), ISRAEL EQUIPMENT(2G1) 		8-98103-893-3 01 1 1304- ● ●
70 16.545 PANEL; ROCKER INNER
EXC. COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46), ISRAEL EQUIPMENT(2G1) 		8-98103-907-3 01 1 1304- ● ●
70 16.545 PANEL; ROCKER INNER
RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46),ISRAEL EQUIPMENT(2G1) 		8-98162-994-1 01 1 1304-1312 ● ●
70 16.545 PANEL; ROCKER INNER
RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46),CHILE EQUIPMENT(KE1),ISR AEL EQUIPMENT(2G1) 		8-98162-994-1 01 1 1401- ● ●
70 16.545 PANEL; ROCKER INNER
RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46),ISRAEL EQUIPMENT(2G1) 		8-98162-998-1 01 1 1304-1312 ● ●
70 16.545 PANEL; ROCKER INNER
RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46),CHILE EQUIPMENT(KE1),ISR AEL EQUIPMENT(2G1) 		8-98162-998-1 01 1 1401- ● ●
70 16.545 PANEL; ROCKER INNER
EXC. RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF), ECUADOR EQUIPMENT(E46),ISRAEL EQUIPMENT(2G1) 		8-98103-894-3 01 1 1304-1312 ● ●
70 16.545 PANEL; ROCKER INNER
EXC. RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF), ECUADOR EQUIPMENT(E46),CHILE EQUIPMENT(KE1),ISRAEL EQUIPMENT(2G1) 		8-98103-894-3 01 1 1401- ● ●
70 16.545 PANEL; ROCKER INNER
EXC. RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF), ECUADOR EQUIPMENT(E46),ISRAEL EQUIPMENT(2G1) 		8-98103-912-3 01 1 1304-1312 ● ●
70 16.545 PANEL; ROCKER INNER
EXC. RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF), ECUADOR EQUIPMENT(E46),CHILE EQUIPMENT(KE1),ISRAEL EQUIPMENT(2G1) 		8-98103-912-3 01 1 1401- ● ●
70 16.545 PANEL; ROCKER INNER 8-98162-993-2 01 1 1304- ●
70 16.545 PANEL; ROCKER INNER 8-98162-997-2 01 1 1304- ●
71 16.545 BRACKET; CAB MTG,CENTER 8-98101-984-5 01 1 1304- ● ● ● ● ●
71 16.545 BRACKET; CAB MTG,CENTER 8-98101-985-8 01 1 1304- ● ● ● ● ●
144 16.545 BRACKET; MTG,RR 8-98100-940-3 01 1 1304- ● ●
144 16.545 BRACKET; MTG,RR 8-98104-737-4 01 1 1304- ● ●
144 16.545 BRACKET; MTG,RR 8-98100-940-3 02 1 1304- ● ●
157 16.520 BRACKET; TOOL BOX LID 8-98115-434-6 01 1 1304- ● ●
157 16.520 BRACKET; TOOL BOX LID 8-98115-430-5 01 1 1304- ● ●
330 16.545 REINFORCEMENT; FLOOR 8-98100-938-0 02 1 1304- ● ● ● ● ●
378 16.545 GASSET; LWR 8-98101-037-0 02 1 1304- ● ● ● ● ●
572 16.576 SILL; FLOOR,FRT 8-98101-019-3 01 1 1304- ● ● ● ● ●
572 16.576 SILL; FLOOR,FRT 8-98101-020-3 01 1 1304- ● ● ● ● ●
573 16.576 SILL; FLOOR,RR
FRONT SEAT SPLIT BENCH<AM6> (B) 		8-98103-925-4 01 1 1304- ● ● ● ●
573 16.576 SILL; FLOOR,RR
FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> (B) 		8-98151-571-2 01 1 1304- ● ● ● ● ●
573 16.576 SILL; FLOOR,RR
(C) 		8-98104-056-3 01 1 1304- ● ●
573 16.576 SILL; FLOOR,RR
JUMP SEAT<AJ2> (A) 		8-98104-745-3 01 1 1304- ●
573 16.576 SILL; FLOOR,RR
EXC. JUMP SEAT<AJ2> (A) 		8-98101-960-4 01 1 1304- ●

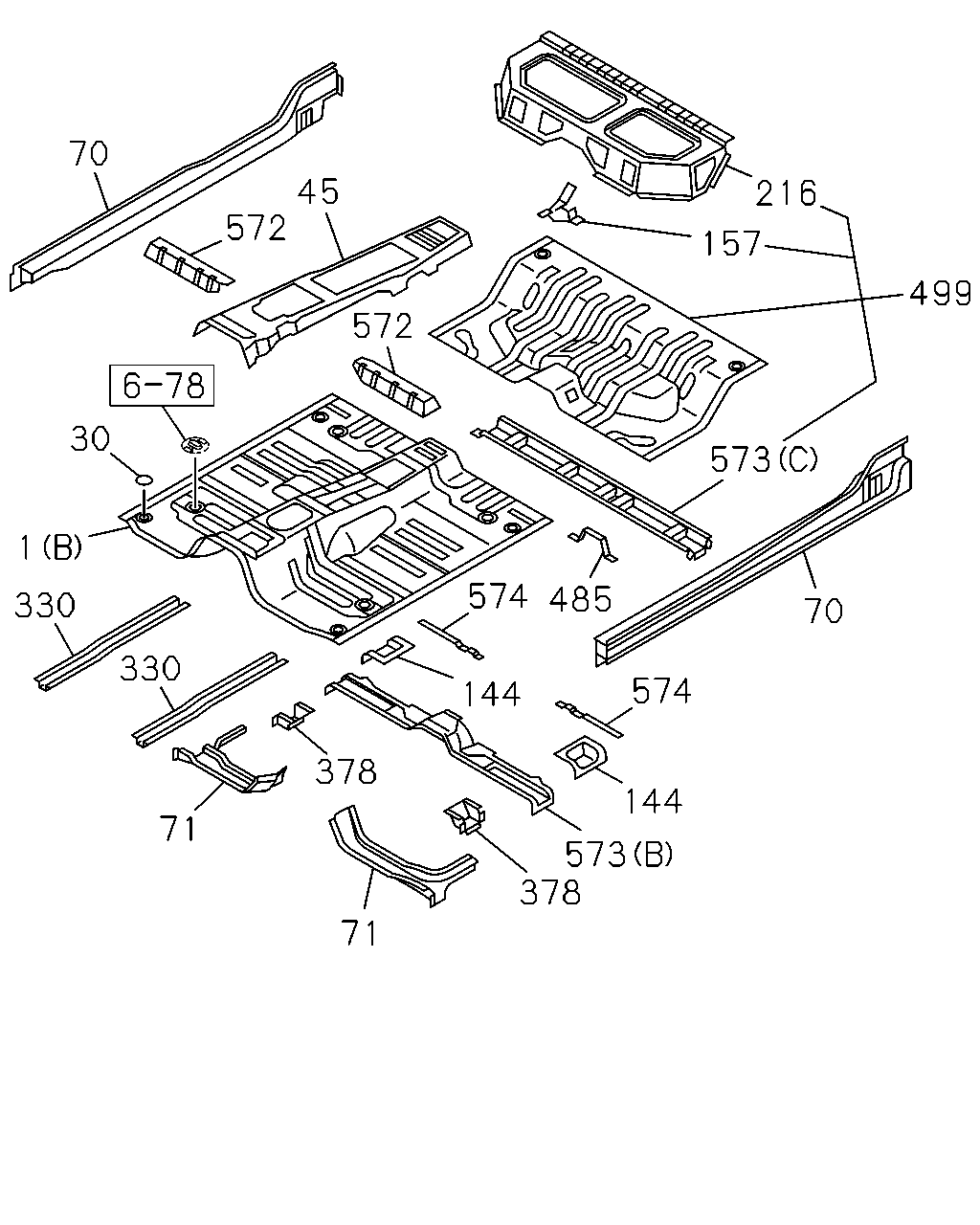

çizim 343897
499 216 45 572 70 157 573 70 485 574 144 573 378 71 71 330 330 378 574 144 573 30 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 16.545 PANEL; FLOOR
(C) 		8-98103-921-7 01 1 1304- ● ●
1 16.545 PANEL; FLOOR
(B) 		8-98104-004-4 01 1 1304-1306 ● ●
1 16.545 PANEL; FLOOR
(B) 		8-98199-516-0 01 1 1307- ● ●
1 16.545 PANEL; FLOOR
(A) 		8-98112-030-6 01 1 1304- ●
30 16.547 GROMMET; CAB MTG RAIL
OD=59 T=9 		8-98202-803-0 04 1 1304- ● ● ●
30 16.547 GROMMET; CAB MTG RAIL
OD=59 T=9 		8-98202-803-0 06 1 1304- ● ●
45 16.545 REINFORCEMENT; TUNNEL,FRT 8-98104-200-5 01 1 1304- ● ●
45 16.545 REINFORCEMENT; TUNNEL,FRT 8-98101-017-6 01 1 1304- ● ● ●
70 16.545 PANEL; ROCKER INNER
COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46),ISRAEL EQUIPMENT(2G1) 		8-98162-991-1 01 1 1304- ● ●
70 16.545 PANEL; ROCKER INNER
COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46),ISRAEL EQUIPMENT(2G1) 		8-98162-996-1 01 1 1304- ● ●
70 16.545 PANEL; ROCKER INNER
EXC. COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46), ISRAEL EQUIPMENT(2G1) 		8-98103-893-3 01 1 1304- ● ●
70 16.545 PANEL; ROCKER INNER
EXC. COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46), ISRAEL EQUIPMENT(2G1) 		8-98103-907-3 01 1 1304- ● ●
70 16.545 PANEL; ROCKER INNER
RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46),ISRAEL EQUIPMENT(2G1) 		8-98162-994-1 01 1 1304-1312 ● ●
70 16.545 PANEL; ROCKER INNER
RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46),CHILE EQUIPMENT(KE1),ISR AEL EQUIPMENT(2G1) 		8-98162-994-1 01 1 1401- ● ●
70 16.545 PANEL; ROCKER INNER
RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46),ISRAEL EQUIPMENT(2G1) 		8-98162-998-1 01 1 1304-1312 ● ●
70 16.545 PANEL; ROCKER INNER
RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46),CHILE EQUIPMENT(KE1),ISR AEL EQUIPMENT(2G1) 		8-98162-998-1 01 1 1401- ● ●
70 16.545 PANEL; ROCKER INNER
EXC. RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF), ECUADOR EQUIPMENT(E46),ISRAEL EQUIPMENT(2G1) 		8-98103-894-3 01 1 1304-1312 ● ●
70 16.545 PANEL; ROCKER INNER
EXC. RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF), ECUADOR EQUIPMENT(E46),CHILE EQUIPMENT(KE1),ISRAEL EQUIPMENT(2G1) 		8-98103-894-3 01 1 1401- ● ●
70 16.545 PANEL; ROCKER INNER
EXC. RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF), ECUADOR EQUIPMENT(E46),ISRAEL EQUIPMENT(2G1) 		8-98103-912-3 01 1 1304-1312 ● ●
70 16.545 PANEL; ROCKER INNER
EXC. RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF), ECUADOR EQUIPMENT(E46),CHILE EQUIPMENT(KE1),ISRAEL EQUIPMENT(2G1) 		8-98103-912-3 01 1 1401- ● ●
70 16.545 PANEL; ROCKER INNER 8-98162-993-2 01 1 1304- ●
70 16.545 PANEL; ROCKER INNER 8-98162-997-2 01 1 1304- ●
71 16.545 BRACKET; CAB MTG,CENTER 8-98101-984-5 01 1 1304- ● ● ● ● ●
71 16.545 BRACKET; CAB MTG,CENTER 8-98101-985-8 01 1 1304- ● ● ● ● ●
144 16.545 BRACKET; MTG,RR 8-98100-940-3 01 1 1304- ● ●
144 16.545 BRACKET; MTG,RR 8-98104-737-4 01 1 1304- ● ●
144 16.545 BRACKET; MTG,RR 8-98100-940-3 02 1 1304- ● ●
157 16.520 BRACKET; TOOL BOX LID 8-98115-434-6 01 1 1304- ● ●
157 16.520 BRACKET; TOOL BOX LID 8-98115-430-5 01 1 1304- ● ●
216 16.670 PANEL; SEAT RISER 8-98116-648-4 01 1 1304- ● ●
216 16.670 PANEL; SEAT RISER
JUMP SEAT<AJ2> 		8-98104-744-8 01 1 1304- ●
216 16.670 PANEL; SEAT RISER
EXC. JUMP SEAT<AJ2> 		8-98101-953-8 01 1 1304- ●
330 16.545 REINFORCEMENT; FLOOR 8-98100-938-0 02 1 1304- ● ● ● ● ●
378 16.545 GASSET; LWR 8-98101-037-0 02 1 1304- ● ● ● ● ●
485 16.800 SEAL; TAPE TYPE 8-94336-915-0 01 1 1304- ● ●
499 16.545 PANEL; FLOOR,RR 8-98116-646-9 01 1 1304-1506 ● ●
499 16.545 PANEL; FLOOR,RR 8-98322-482-0 01 1 1507- ● ●
572 16.576 SILL; FLOOR,FRT 8-98101-019-3 01 1 1304- ● ● ● ● ●
572 16.576 SILL; FLOOR,FRT 8-98101-020-3 01 1 1304- ● ● ● ● ●
573 16.576 SILL; FLOOR,RR
FRONT SEAT SPLIT BENCH<AM6> (B) 		8-98103-925-4 01 1 1304- ● ● ● ●
573 16.576 SILL; FLOOR,RR
FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> (B) 		8-98151-571-2 01 1 1304- ● ● ● ● ●
573 16.576 SILL; FLOOR,RR
(C) 		8-98104-056-3 01 1 1304- ● ●
573 16.576 SILL; FLOOR,RR
JUMP SEAT<AJ2> (A) 		8-98104-745-3 01 1 1304- ●
573 16.576 SILL; FLOOR,RR
EXC. JUMP SEAT<AJ2> (A) 		8-98101-960-4 01 1 1304- ●
574 16.800 TAPE; ADHESIVE 8-98178-885-0 02 1 1304- ● ●

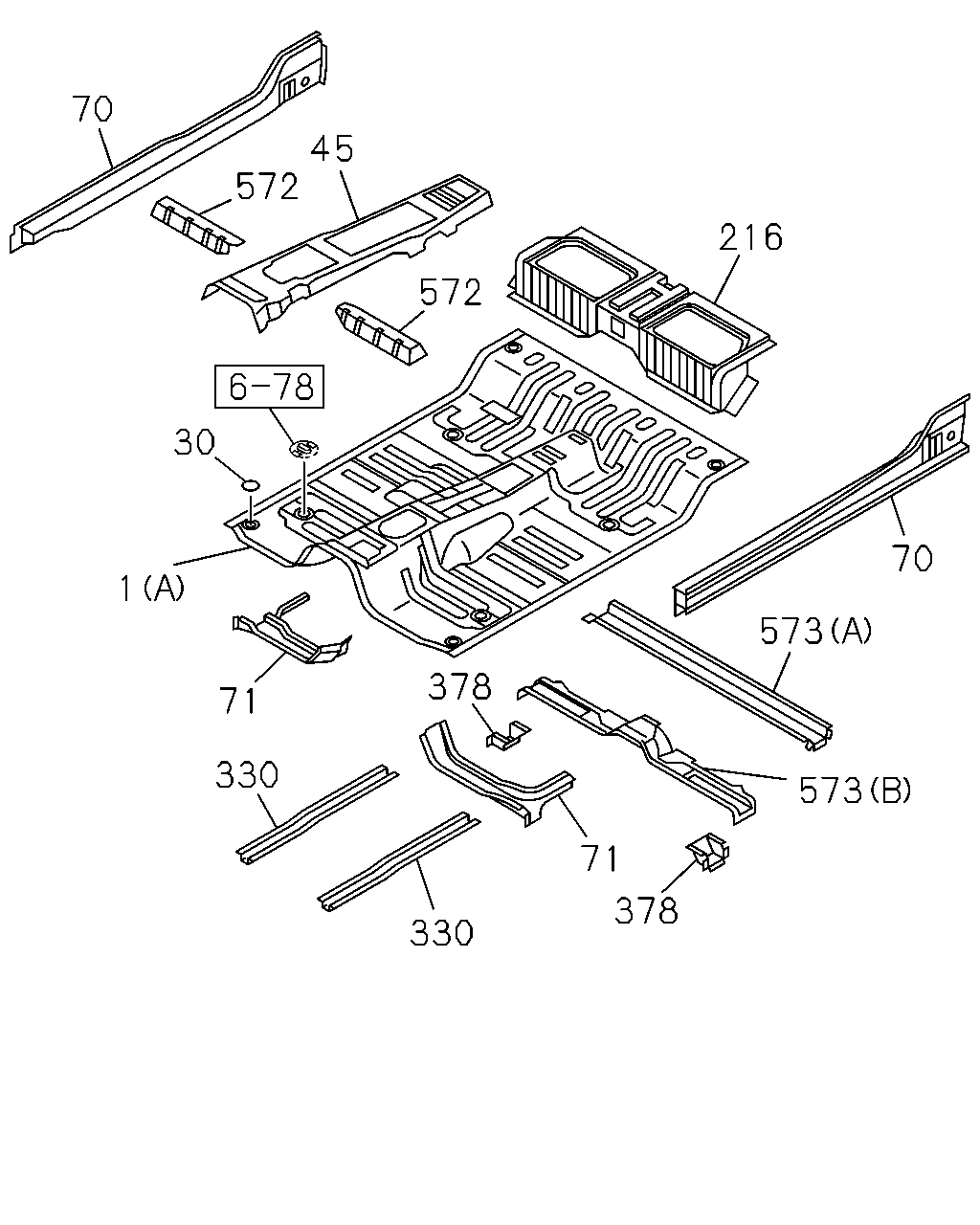

çizim 343936
70 572 45 572 216 70 573 573 378 71 330 378 330 71 1 30
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 16.545 PANEL; FLOOR
(C) 		8-98103-921-7 01 1 1304- ● ●
1 16.545 PANEL; FLOOR
(B) 		8-98104-004-4 01 1 1304-1306 ● ●
1 16.545 PANEL; FLOOR
(B) 		8-98199-516-0 01 1 1307- ● ●
1 16.545 PANEL; FLOOR
(A) 		8-98112-030-6 01 1 1304- ●
30 16.547 GROMMET; CAB MTG RAIL
OD=59 T=9 		8-98202-803-0 04 1 1304- ● ● ●
30 16.547 GROMMET; CAB MTG RAIL
OD=59 T=9 		8-98202-803-0 06 1 1304- ● ●
45 16.545 REINFORCEMENT; TUNNEL,FRT 8-98104-200-5 01 1 1304- ● ●
45 16.545 REINFORCEMENT; TUNNEL,FRT 8-98101-017-6 01 1 1304- ● ● ●
70 16.545 PANEL; ROCKER INNER
COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46),ISRAEL EQUIPMENT(2G1) 		8-98162-991-1 01 1 1304- ● ●
70 16.545 PANEL; ROCKER INNER
COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46),ISRAEL EQUIPMENT(2G1) 		8-98162-996-1 01 1 1304- ● ●
70 16.545 PANEL; ROCKER INNER
EXC. COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46), ISRAEL EQUIPMENT(2G1) 		8-98103-893-3 01 1 1304- ● ●
70 16.545 PANEL; ROCKER INNER
EXC. COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46), ISRAEL EQUIPMENT(2G1) 		8-98103-907-3 01 1 1304- ● ●
70 16.545 PANEL; ROCKER INNER
RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46),ISRAEL EQUIPMENT(2G1) 		8-98162-994-1 01 1 1304-1312 ● ●
70 16.545 PANEL; ROCKER INNER
RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46),CHILE EQUIPMENT(KE1),ISR AEL EQUIPMENT(2G1) 		8-98162-994-1 01 1 1401- ● ●
70 16.545 PANEL; ROCKER INNER
RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46),ISRAEL EQUIPMENT(2G1) 		8-98162-998-1 01 1 1304-1312 ● ●
70 16.545 PANEL; ROCKER INNER
RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46),CHILE EQUIPMENT(KE1),ISR AEL EQUIPMENT(2G1) 		8-98162-998-1 01 1 1401- ● ●
70 16.545 PANEL; ROCKER INNER
EXC. RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF), ECUADOR EQUIPMENT(E46),ISRAEL EQUIPMENT(2G1) 		8-98103-894-3 01 1 1304-1312 ● ●
70 16.545 PANEL; ROCKER INNER
EXC. RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF), ECUADOR EQUIPMENT(E46),CHILE EQUIPMENT(KE1),ISRAEL EQUIPMENT(2G1) 		8-98103-894-3 01 1 1401- ● ●
70 16.545 PANEL; ROCKER INNER
EXC. RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF), ECUADOR EQUIPMENT(E46),ISRAEL EQUIPMENT(2G1) 		8-98103-912-3 01 1 1304-1312 ● ●
70 16.545 PANEL; ROCKER INNER
EXC. RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF), ECUADOR EQUIPMENT(E46),CHILE EQUIPMENT(KE1),ISRAEL EQUIPMENT(2G1) 		8-98103-912-3 01 1 1401- ● ●
70 16.545 PANEL; ROCKER INNER 8-98162-993-2 01 1 1304- ●
70 16.545 PANEL; ROCKER INNER 8-98162-997-2 01 1 1304- ●
71 16.545 BRACKET; CAB MTG,CENTER 8-98101-984-5 01 1 1304- ● ● ● ● ●
71 16.545 BRACKET; CAB MTG,CENTER 8-98101-985-8 01 1 1304- ● ● ● ● ●
216 16.670 PANEL; SEAT RISER 8-98116-648-4 01 1 1304- ● ●
216 16.670 PANEL; SEAT RISER
JUMP SEAT<AJ2> 		8-98104-744-8 01 1 1304- ●
216 16.670 PANEL; SEAT RISER
EXC. JUMP SEAT<AJ2> 		8-98101-953-8 01 1 1304- ●
330 16.545 REINFORCEMENT; FLOOR 8-98100-938-0 02 1 1304- ● ● ● ● ●
378 16.545 GASSET; LWR 8-98101-037-0 02 1 1304- ● ● ● ● ●
572 16.576 SILL; FLOOR,FRT 8-98101-019-3 01 1 1304- ● ● ● ● ●
572 16.576 SILL; FLOOR,FRT 8-98101-020-3 01 1 1304- ● ● ● ● ●
573 16.576 SILL; FLOOR,RR
FRONT SEAT SPLIT BENCH<AM6> (B) 		8-98103-925-4 01 1 1304- ● ● ● ●
573 16.576 SILL; FLOOR,RR
FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> (B) 		8-98151-571-2 01 1 1304- ● ● ● ● ●
573 16.576 SILL; FLOOR,RR
(C) 		8-98104-056-3 01 1 1304- ● ●
573 16.576 SILL; FLOOR,RR
JUMP SEAT<AJ2> (A) 		8-98104-745-3 01 1 1304- ●
573 16.576 SILL; FLOOR,RR
EXC. JUMP SEAT<AJ2> (A) 		8-98101-960-4 01 1 1304- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
