Sayfa 2-05 - Isuzu EPC

2-05 — CLUTCH PIPING (#11709) — 349 parça

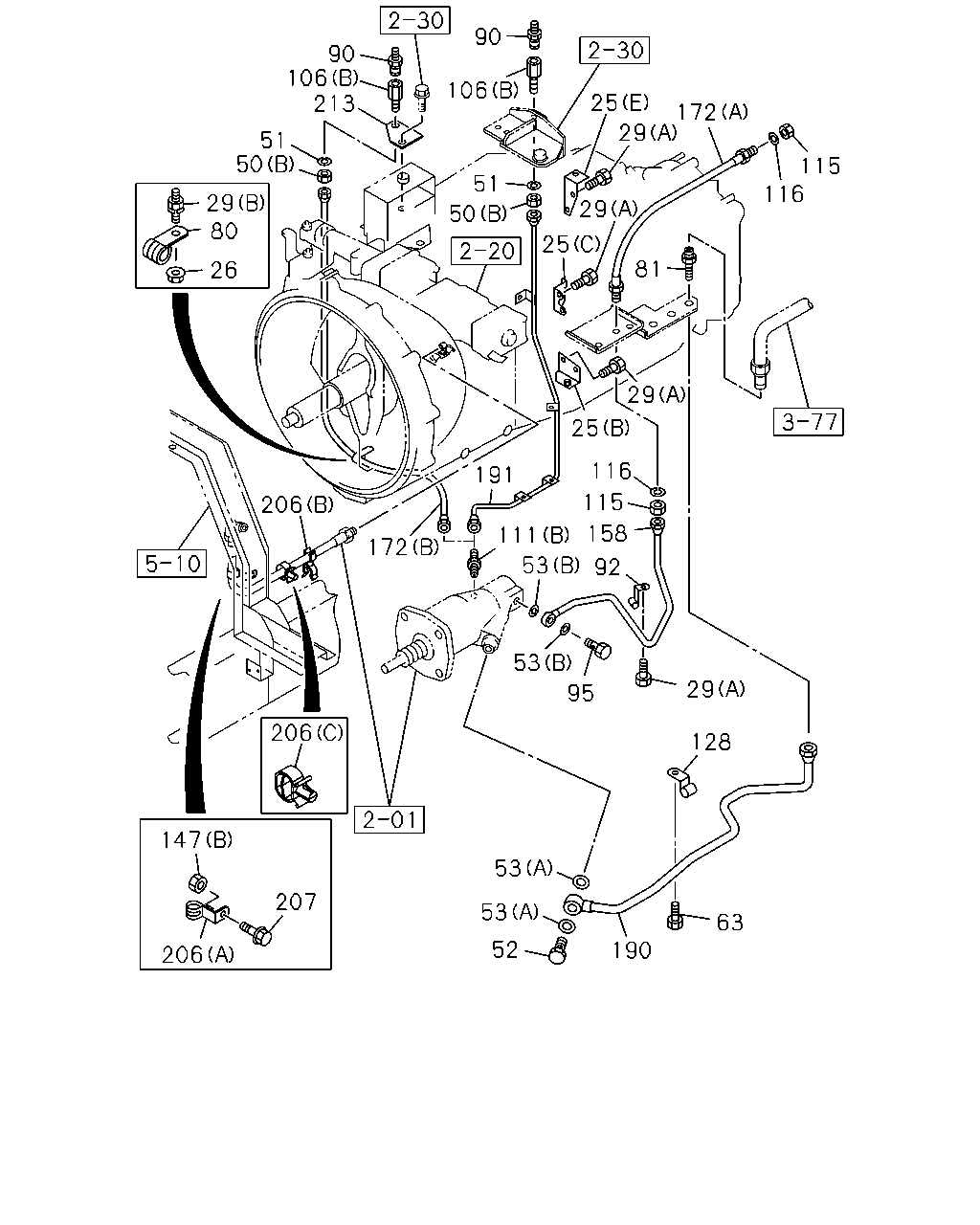

90 90 106 213 106 25 172 29 51 50 115 116 51 29 29 80 50 25 81 26 29 25 116 191 115 206 158 172 111 53 92 53 29 95 206 128 147 53 207 53 63 52 190 206

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
25	BRACKET; OIL PIPE (A)	1-47478-411-1	01	1	0106-0106
25	BRACKET; OIL PIPE (A)	1-47479-297-0	01	1	0107-
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) (B)	1-47477-498-1	01	1	0106-0107
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) (C)	1-47477-499-1	01	1	0106-0107
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) (E)	1-47478-406-0	01	1	0106-0107
25	BRACKET; OIL PIPE ZF M/T<X9E> (D) L=50	1-47475-299-2	03	1	0106-
26	NUT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) M8 FLANGE	0-91150-108-0	01	1	0108-0602
26	NUT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) M8 FLANGE	0-91180-108-0	01	1	0603-
26	NUT; CLIP,OIL PIPE FULLER M/T<X9B> M8 FLANGE	0-91150-108-0	03	1	0106-0602
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	03	1	0603-
26	NUT; CLIP,OIL PIPE ZF M/T<X9E> M8 FLANGE	0-91150-108-0	04	1	0106-0602
26	NUT; CLIP,OIL PIPE ZF M/T<X9E> M8 FLANGE	0-91180-108-0	04	1	0603-
29	BOLT; CLIP,OIL PIPE FULLER M/T<X9B> (A) M8X30 FLANGE	0-28680-830-0	02	1	0106-0512
29	BOLT; CLIP,OIL PIPE (A) M8X30 FLANGE	0-28650-830-0	02	1	0601-
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) (A) M8X16 FLANGE	0-28080-816-0	04	1	0106-0107
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) (B) M8X12,M10X20 L=39	1-09039-005-0	01	1	0108-
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) (A) M8X30 FLANGE	0-28680-830-0	01	1	0106-0512
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) (A) M8X30 FLANGE	0-28650-830-0	01	1	0601-
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> (A) M8X16 FLANGE	0-28080-816-0	03	1	0106-0512
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> (A) M8X16 FLANGE	0-28050-816-0	03	1	0601-
29	BOLT; CLIP,OIL PIPE (A) M8X25 FLANGE	0-28680-825-0	02	1	0106-0512
29	BOLT; CLIP,OIL PIPE (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-
50	NUT; UNION (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0106-
50	NUT; UNION (C) M14	9-99111-414-0	01	1	0106-0512
50	NUT; UNION (C) M14	0-91111-514-0	01	1	0601-
50	NUT; UNION TRANSMISSION-ZF 16S221 OD(Y1U) (A) M12	9-09840-280-0	01	1	0106-
50	NUT; UNION ZF M/T<X9E> (A) M12 FLANGE	0-91150-212-0	01	1	0106-0602
50	NUT; UNION ZF M/T<X9E> (A) M12 FLANGE	0-91180-212-0	01	1	0603-
51	WASHER; LK TRANSMISSION-ZF 16S221 OD(Y1U) ID=12.2	9-09150-512-0	01	1	0106-0603
51	WASHER; LK TRANSMISSION-ZF 16S221 OD(Y1U) ID=12.2	0-91510-512-0	01	1	0604-
52	BOLT; EYE,AIR PIPE TRANSMISSION-ZF 16S221 OD(Y1U) M16X30	1-09675-026-0	01	1	0106-
53	GASKET; JOINT BOLT TRANSMISSION-ZF 16S221 OD(Y1U) (A) ID=16.2	1-09630-086-0	02	1	0106-
53	GASKET; JOINT BOLT TRANSMISSION-ZF 16S221 OD(Y1U) (B) ID=14.2 OD=20.0	9-09571-414-0	02	1	0106-
63	BOLT; CLIP,PIPE TRANSMISSION-ZF 16S221 OD(Y1U) M8X16 FLANGE	0-28080-816-0	01	1	0106-0512
63	BOLT; CLIP,PIPE TRANSMISSION-ZF 16S221 OD(Y1U) M8X16 FLANGE	0-28050-816-0	01	1	0601-
80	CLIP; HOSE ID=16 L=50	1-09701-158-0	01	1	0607-
80	CLIP; HOSE TRANSMISSION-ZF 16S221 OD(Y1U) ID=16 L=28	1-09700-872-0	01	1	0108-
81	UNION; AIR PIPE TRANSMISSION-ZF 16S221 OD(Y1U)	1-09664-233-0	01	1	0106-
90	NIPPLE; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U)	1-31829-485-0	01	1	0106-
92	CLIP; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U)	1-09701-221-0	01	1	0106-
95	BOLT; EYE,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) M14X27 FLANGE	1-09675-086-0	01	1	0106-
106	UNION; OIL PIPE (A) M14 STRAIGHT	9-09223-008-1	01	1	0106-0607
106	UNION; OIL PIPE M14 STRAIGHT	0-92113-008-0	01	1	0608-
106	UNION; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) (B)	1-09654-384-0	01	1	0106-
111	UNION; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) (B) M8 & M12 STRAIGHT	1-09654-383-0	01	1	0106-
111	UNION; OIL PIPE ZF M/T<X9E> (A) M14 2WAY	1-09654-176-2	01	1	0106-
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	02	1	0106-0512
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	02	1	0601-
115	NUT; FLEX HOSE,CLU CONT ZF M/T<X9E> M14	9-99111-414-0	01	1	0106-0512
115	NUT; FLEX HOSE,CLU CONT ZF M/T<X9E> M14	0-91111-514-0	01	1	0601-
116	WASHER; FLEX HOSE,CLU CONT FULLER M/T<X9B> ID=14.2	9-09150-514-0	02	1	0106-0603
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	02	1	0604-
116	WASHER; FLEX HOSE,CLU CONT ZF M/T<X9E> ID=14.2	9-09150-514-0	01	1	0106-0603
116	WASHER; FLEX HOSE,CLU CONT ZF M/T<X9E> ID=14.2	0-91510-514-0	01	1	0604-
128	CLIP; AIR PIPE TRANSMISSION-ZF 16S221 OD(Y1U)	1-09701-232-0	01	1	0106-
147	NUT; CLIP FIX (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	0106-
147	NUT; CLIP FIX ZF M/T<X9E> (B) M8 FLANGE	0-91150-208-0	01	1	0106-0602
147	NUT; CLIP FIX ZF M/T<X9E> (B) M8 FLANGE	0-91180-208-0	01	1	0603-
158	PIPE; OIL,FLEX HOSE TO CLU BOOSTER TRANSMISSION-ZF 16S221 OD(Y1U)	1-49161-054-0	01	1	0106-
172	HOSE; FLEX,CLU BOOSTER TRANSMISSION-ZF 16S221 OD(Y1U) (B) L=570	1-09365-162-0	01	1	0108-
172	HOSE; FLEX,CLU BOOSTER TRANSMISSION-ZF 16S221 OD(Y1U) (A) L=380	1-09364-261-0	01	1	0106-
190	PIPE; AIR,UNION TO MINIPAC TRANSMISSION-ZF 16S221 OD(Y1U)	1-49161-730-0	01	1	0106-
191	PIPE; OIL,UNION TO MINIPAC TRANSMISSION-ZF 16S221 OD(Y1U)	1-49163-428-0	01	1	0106-0107
206	CLIP; TUBE ZF M/T<X9E> (A) ID=18 L=28 H=30	1-09701-110-0	01	1	0106-
206	CLIP; TUBE ZF M/T<X9E> (C) ID=13-18 L=14.5	1-09709-290-0	01	1	0106-
206	CLIP; TUBE ZF M/T<X9E> (B) ID=13 & 12	8-94178-797-0	01	1	0106-
207	BOLT; CLIP ZF M/T<X9E> M8X20 FLANGE	0-28680-820-0	01	1	0106-0512
207	BOLT; CLIP ZF M/T<X9E> M8X20 FLANGE	0-28650-820-0	01	1	0601-
213	BRACKET; OIL HOSE TRANSMISSION-ZF 16S221 OD(Y1U)	1-47478-478-0	01	1	0108-

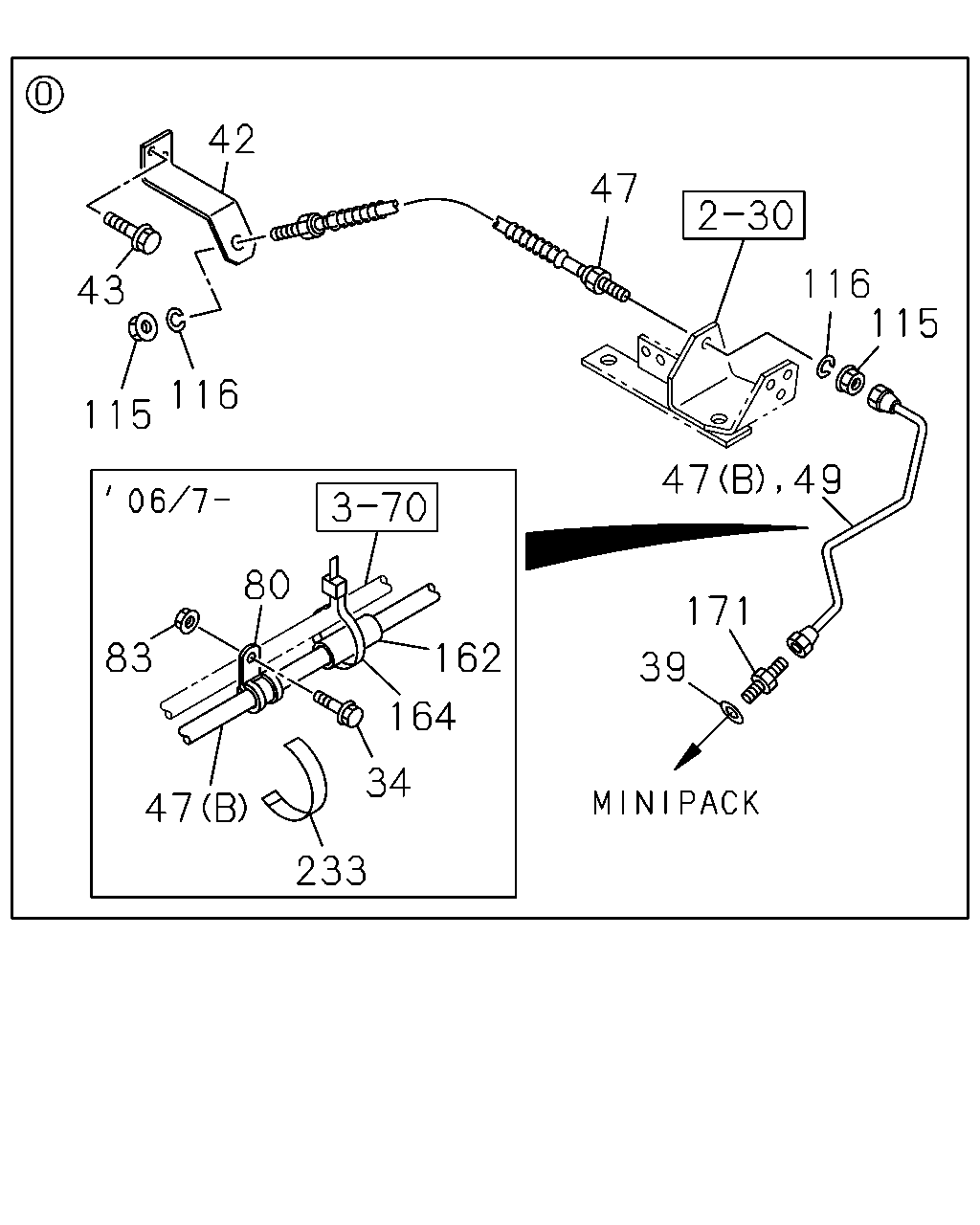

30 32 33 34 35 33 34 30 32 31 33 35 116 115 153 111 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
30	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	02	1	0106-0512
30	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	0601-
30	BOLT; BRKT ZF M/T<X9E> M8X30 FLANGE	0-28680-830-0	01	1	0106-0512
30	BOLT; BRKT ZF M/T<X9E> M8X30 FLANGE	0-28650-830-0	01	1	0601-
31	NUT; BRKT ZF M/T<X9E> M8 FLANGE	0-91150-108-0	01	1	0106-0602
31	NUT; BRKT ZF M/T<X9E> M8 FLANGE	0-91180-108-0	01	1	0603-
32	BRACKET; CLIP OIL PIPE ZF M/T<X9E> (A) L=50	1-47475-299-2	01	1	0106-
32	BRACKET; CLIP OIL PIPE ZF M/T<X9E> (B)	1-47475-881-0	01	1	0106-0106
32	BRACKET; CLIP OIL PIPE ZF M/T<X9E> (B)	1-47477-669-1	01	1	0107-
33	CLIP; OIL PIPE COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (C) ID=19 & 9 L=22 & 18	1-09701-298-0	01	1	0106-
33	CLIP; OIL PIPE FULLER M/T<X9B> (A) ID=8 H=20 L=20	1-09700-604-0	02	1	0106-
33	CLIP; OIL PIPE ZF M/T<X9E> (A) ID=8 H=20 L=20	1-09700-604-0	01	1	0106-
33	CLIP; OIL PIPE ZF M/T<X9E> (B) ID=16 & 9 L=18 & 17	1-09700-669-0	01	1	0106-
33	CLIP; OIL PIPE ZF M/T<X9E> (C) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	0106-
33	CLIP; OIL PIPE FULLER M/T<X9B> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (C) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	0106-
34	BOLT; PIPE CLIP (A) M8X20 FLANGE	0-28080-820-0	01	1	0106-0512
34	BOLT; PIPE CLIP (A) M8X20 FLANGE	0-28050-820-0	01	1	0601-0606
34	BOLT; PIPE CLIP M8X20 FLANGE	0-28050-820-0	02	1	0607-
34	BOLT; PIPE CLIP FULLER M/T<X9B> (C) M8X45 FLANGE	0-28080-845-0	01	1	0106-0512
34	BOLT; PIPE CLIP (C) M8X45 FLANGE	0-28050-845-0	01	1	0601-
34	BOLT; PIPE CLIP FULLER M/T<X9B> (B) M8X30 FLANGE	0-28680-830-0	02	1	0106-0512
34	BOLT; PIPE CLIP (B) M8X30 FLANGE	0-28650-830-0	02	1	0601-
34	BOLT; PIPE CLIP ZF M/T<X9E> (A) M8X16 FLANGE	0-28080-816-0	01	1	0106-0512
34	BOLT; PIPE CLIP ZF M/T<X9E> (A) M8X16 FLANGE	0-28050-816-0	01	1	0601-
34	BOLT; PIPE CLIP ZF M/T<X9E> (B) M8X30 FLANGE	0-28680-830-0	01	1	0106-0106
34	BOLT; PIPE CLIP ZF M/T<X9E> (B) M8X30 FLANGE	0-28680-830-0	01	1	0106-0106
34	BOLT; PIPE CLIP ZF M/T<X9E> (B) M8X30 FLANGE	0-28680-830-0	01	1	0107-0512
34	BOLT; PIPE CLIP ZF M/T<X9E> (B) M8X30 FLANGE	0-28650-830-0	01	1	0601-
35	NUT; PIPE CLIP ZF M/T<X9E> M8 FLANGE	0-91150-108-0	02	1	0107-0602
35	NUT; PIPE CLIP ZF M/T<X9E> M8 FLANGE	0-91180-108-0	01	1	0603-
35	NUT; PIPE CLIP FULLER M/T<X9B> M8 FLANGE	0-91150-108-0	03	1	0106-0602
35	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	03	1	0603-
35	NUT; PIPE CLIP ZF M/T<X9E> M8 FLANGE	0-91150-108-0	01	1	0106-0106
35	NUT; PIPE CLIP ZF M/T<X9E> M8 FLANGE	0-91150-108-0	01	1	0106-0106
35	NUT; PIPE CLIP ZF M/T<X9E> M8 FLANGE	0-91150-108-0	01	1	0107-0602
35	NUT; PIPE CLIP ZF M/T<X9E> M8 FLANGE	0-91180-108-0	02	1	0603-
50	NUT; UNION (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0106-
50	NUT; UNION (C) M14	9-99111-414-0	01	1	0106-0512
50	NUT; UNION (C) M14	0-91111-514-0	01	1	0601-
50	NUT; UNION TRANSMISSION-ZF 16S221 OD(Y1U) (A) M12	9-09840-280-0	01	1	0106-
50	NUT; UNION ZF M/T<X9E> (A) M12 FLANGE	0-91150-212-0	01	1	0106-0602
50	NUT; UNION ZF M/T<X9E> (A) M12 FLANGE	0-91180-212-0	01	1	0603-
111	UNION; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) (B) M8 & M12 STRAIGHT	1-09654-383-0	01	1	0106-
111	UNION; OIL PIPE ZF M/T<X9E> (A) M14 2WAY	1-09654-176-2	01	1	0106-
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	02	1	0106-0512
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	02	1	0601-
115	NUT; FLEX HOSE,CLU CONT ZF M/T<X9E> M14	9-99111-414-0	01	1	0106-0512
115	NUT; FLEX HOSE,CLU CONT ZF M/T<X9E> M14	0-91111-514-0	01	1	0601-
116	WASHER; FLEX HOSE,CLU CONT FULLER M/T<X9B> ID=14.2	9-09150-514-0	02	1	0106-0603
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	02	1	0604-
116	WASHER; FLEX HOSE,CLU CONT ZF M/T<X9E> ID=14.2	9-09150-514-0	01	1	0106-0603
116	WASHER; FLEX HOSE,CLU CONT ZF M/T<X9E> ID=14.2	0-91510-514-0	01	1	0604-
153	PIPE ASM; CLU,UNION TO FLEX (B) L=464	1-47424-530-2	01	1	0106-
153	PIPE ASM; CLU,UNION TO FLEX FULLER M/T<X9B> (A) L=1587 SERVICED BY L=1700	1-47426-391-0	01	1	0106-
153	PIPE ASM; CLU,UNION TO FLEX ZF M/T<X9E> (A) L=955	1-49163-430-0	01	1	0106-

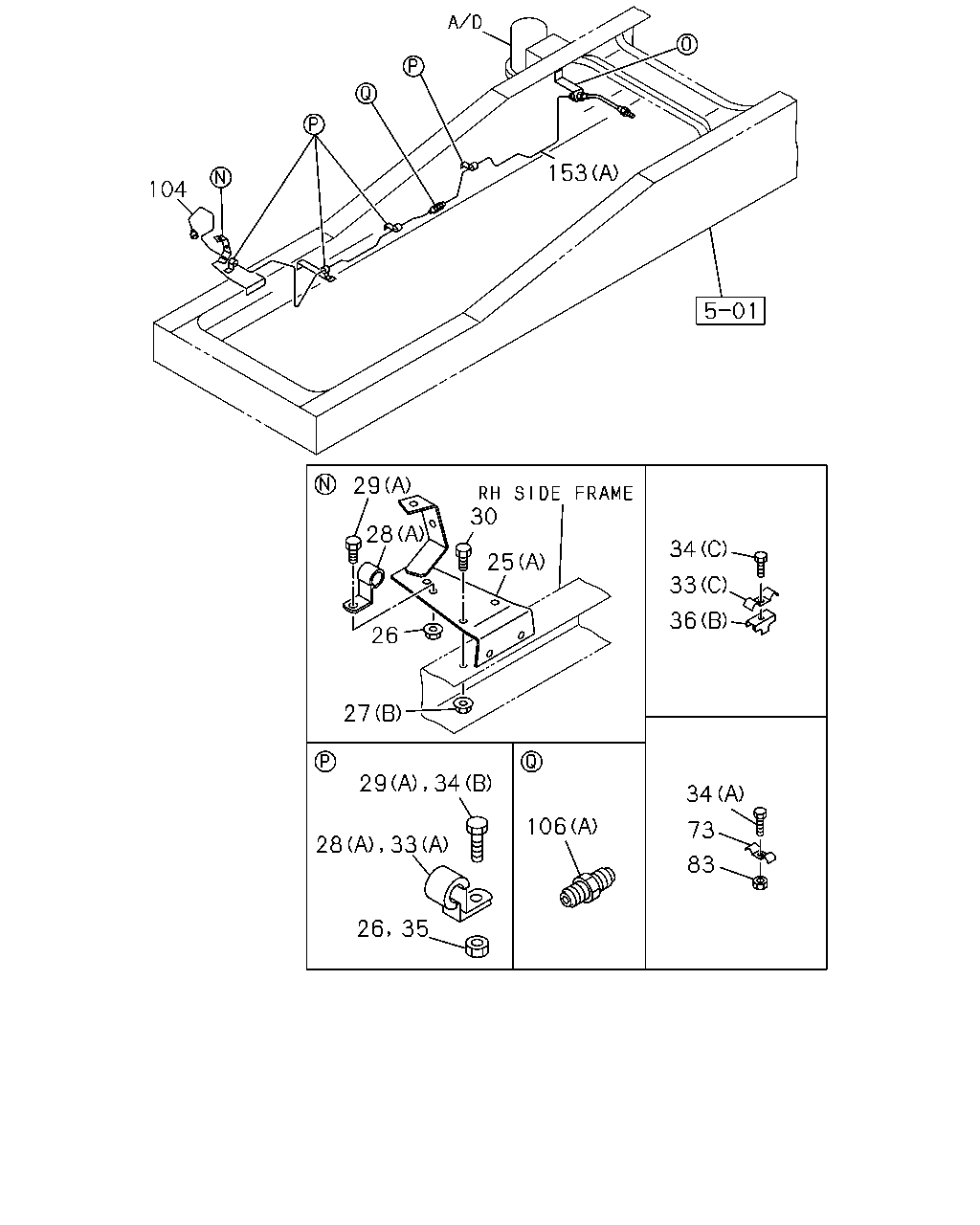

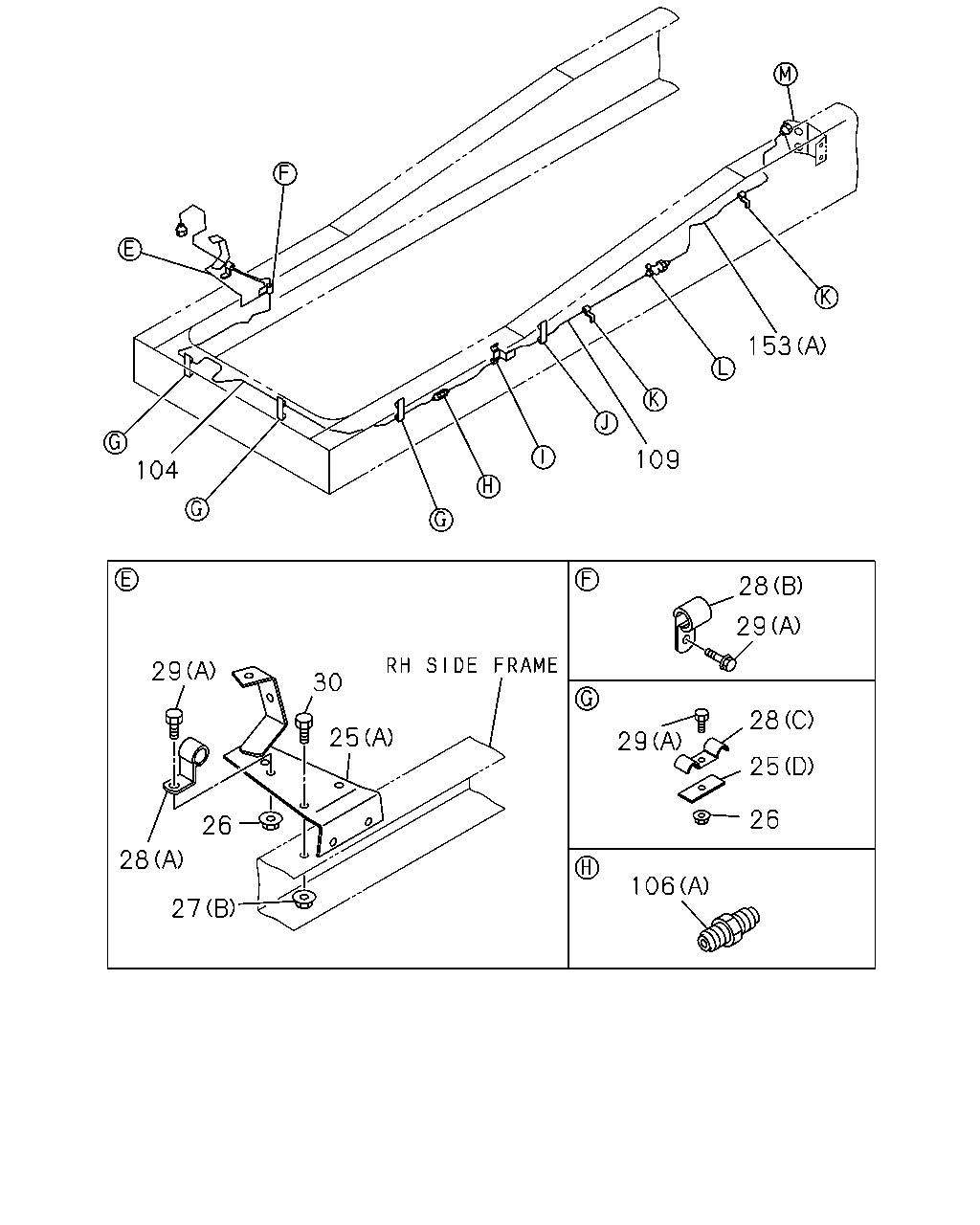

153 104 29 30 28 34 25 33 36 26 27 29 34 34 106 73 28 33 83 26 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
25	BRACKET; OIL PIPE (A)	1-47478-411-1	01	1	0106-0106
25	BRACKET; OIL PIPE (A)	1-47479-297-0	01	1	0107-
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) (B)	1-47477-498-1	01	1	0106-0107
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) (C)	1-47477-499-1	01	1	0106-0107
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) (E)	1-47478-406-0	01	1	0106-0107
25	BRACKET; OIL PIPE ZF M/T<X9E> (D) L=50	1-47475-299-2	03	1	0106-
26	NUT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) M8 FLANGE	0-91150-108-0	01	1	0108-0602
26	NUT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) M8 FLANGE	0-91180-108-0	01	1	0603-
26	NUT; CLIP,OIL PIPE FULLER M/T<X9B> M8 FLANGE	0-91150-108-0	03	1	0106-0602
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	03	1	0603-
26	NUT; CLIP,OIL PIPE ZF M/T<X9E> M8 FLANGE	0-91150-108-0	04	1	0106-0602
26	NUT; CLIP,OIL PIPE ZF M/T<X9E> M8 FLANGE	0-91180-108-0	04	1	0603-
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	0106-0602
27	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	0603-
27	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	0106-0602
27	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	0603-
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0106-
28	CLIP; OIL PIPE FULLER M/T<X9B> (A) ID=8 H=20 L=20	1-09700-604-0	03	1	0106-
28	CLIP; OIL PIPE ZF M/T<X9E> (A) ID=8 H=20 L=20	1-09700-604-0	01	1	0106-
28	CLIP; OIL PIPE ZF M/T<X9E> (C) ID=16 & 9 L=21 & 18	1-09700-676-0	03	1	0106-
28	CLIP; OIL PIPE (B) ID=9 L=20	9-09524-835-0	01	1	0106-0606
28	CLIP; OIL PIPE (B) ID=9 L=20	0-95234-835-0	01	1	0607-
29	BOLT; CLIP,OIL PIPE FULLER M/T<X9B> (A) M8X30 FLANGE	0-28680-830-0	02	1	0106-0512
29	BOLT; CLIP,OIL PIPE (A) M8X30 FLANGE	0-28650-830-0	02	1	0601-
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) (A) M8X16 FLANGE	0-28080-816-0	04	1	0106-0107
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) (B) M8X12,M10X20 L=39	1-09039-005-0	01	1	0108-
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) (A) M8X30 FLANGE	0-28680-830-0	01	1	0106-0512
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) (A) M8X30 FLANGE	0-28650-830-0	01	1	0601-
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> (A) M8X16 FLANGE	0-28080-816-0	03	1	0106-0512
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> (A) M8X16 FLANGE	0-28050-816-0	03	1	0601-
29	BOLT; CLIP,OIL PIPE (A) M8X25 FLANGE	0-28680-825-0	02	1	0106-0512
29	BOLT; CLIP,OIL PIPE (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-
30	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	02	1	0106-0512
30	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	0601-
30	BOLT; BRKT ZF M/T<X9E> M8X30 FLANGE	0-28680-830-0	01	1	0106-0512
30	BOLT; BRKT ZF M/T<X9E> M8X30 FLANGE	0-28650-830-0	01	1	0601-
33	CLIP; OIL PIPE COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (C) ID=19 & 9 L=22 & 18	1-09701-298-0	01	1	0106-
33	CLIP; OIL PIPE FULLER M/T<X9B> (A) ID=8 H=20 L=20	1-09700-604-0	02	1	0106-
33	CLIP; OIL PIPE ZF M/T<X9E> (A) ID=8 H=20 L=20	1-09700-604-0	01	1	0106-
33	CLIP; OIL PIPE ZF M/T<X9E> (B) ID=16 & 9 L=18 & 17	1-09700-669-0	01	1	0106-
33	CLIP; OIL PIPE ZF M/T<X9E> (C) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	0106-
33	CLIP; OIL PIPE FULLER M/T<X9B> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (C) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	0106-
34	BOLT; PIPE CLIP (A) M8X20 FLANGE	0-28080-820-0	01	1	0106-0512
34	BOLT; PIPE CLIP (A) M8X20 FLANGE	0-28050-820-0	01	1	0601-0606
34	BOLT; PIPE CLIP M8X20 FLANGE	0-28050-820-0	02	1	0607-
34	BOLT; PIPE CLIP FULLER M/T<X9B> (C) M8X45 FLANGE	0-28080-845-0	01	1	0106-0512
34	BOLT; PIPE CLIP (C) M8X45 FLANGE	0-28050-845-0	01	1	0601-
34	BOLT; PIPE CLIP FULLER M/T<X9B> (B) M8X30 FLANGE	0-28680-830-0	02	1	0106-0512
34	BOLT; PIPE CLIP (B) M8X30 FLANGE	0-28650-830-0	02	1	0601-
34	BOLT; PIPE CLIP ZF M/T<X9E> (A) M8X16 FLANGE	0-28080-816-0	01	1	0106-0512
34	BOLT; PIPE CLIP ZF M/T<X9E> (A) M8X16 FLANGE	0-28050-816-0	01	1	0601-
34	BOLT; PIPE CLIP ZF M/T<X9E> (B) M8X30 FLANGE	0-28680-830-0	01	1	0106-0106
34	BOLT; PIPE CLIP ZF M/T<X9E> (B) M8X30 FLANGE	0-28680-830-0	01	1	0106-0106
34	BOLT; PIPE CLIP ZF M/T<X9E> (B) M8X30 FLANGE	0-28680-830-0	01	1	0107-0512
34	BOLT; PIPE CLIP ZF M/T<X9E> (B) M8X30 FLANGE	0-28650-830-0	01	1	0601-
35	NUT; PIPE CLIP ZF M/T<X9E> M8 FLANGE	0-91150-108-0	02	1	0107-0602
35	NUT; PIPE CLIP ZF M/T<X9E> M8 FLANGE	0-91180-108-0	01	1	0603-
35	NUT; PIPE CLIP FULLER M/T<X9B> M8 FLANGE	0-91150-108-0	03	1	0106-0602
35	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	03	1	0603-
35	NUT; PIPE CLIP ZF M/T<X9E> M8 FLANGE	0-91150-108-0	01	1	0106-0106
35	NUT; PIPE CLIP ZF M/T<X9E> M8 FLANGE	0-91150-108-0	01	1	0106-0106
35	NUT; PIPE CLIP ZF M/T<X9E> M8 FLANGE	0-91150-108-0	01	1	0107-0602
35	NUT; PIPE CLIP ZF M/T<X9E> M8 FLANGE	0-91180-108-0	02	1	0603-
36	BRACKET; CLIP (A)	1-71117-191-1	01	1	0106-
36	BRACKET; CLIP FULLER M/T<X9B> (B)	1-47475-427-1	01	1	0106-
73	CLIP; OIL PIPE FULLER M/T<X9B> ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	0106-
83	NUT; PIPE CLIP M8	9-09110-408-0	01	1	0106-0512
83	NUT; PIPE CLIP M8	0-91110-508-0	01	1	0601-0606
83	NUT; PIPE CLIP M8	0-91110-508-0	02	1	0607-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR FULLER M/T<X9B> L=1618	1-49166-188-0	01	1	0106-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF M/T<X9E>	1-49166-191-0	01	1	0106-0106
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF M/T<X9E>	1-49166-212-0	01	1	0107-0206
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF M/T<X9E>	1-49166-668-0	01	1	0207-
106	UNION; OIL PIPE (A) M14 STRAIGHT	9-09223-008-1	01	1	0106-0607
106	UNION; OIL PIPE M14 STRAIGHT	0-92113-008-0	01	1	0608-
106	UNION; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) (B)	1-09654-384-0	01	1	0106-
153	PIPE ASM; CLU,UNION TO FLEX (B) L=464	1-47424-530-2	01	1	0106-
153	PIPE ASM; CLU,UNION TO FLEX FULLER M/T<X9B> (A) L=1587 SERVICED BY L=1700	1-47426-391-0	01	1	0106-
153	PIPE ASM; CLU,UNION TO FLEX ZF M/T<X9E> (A) L=955	1-49163-430-0	01	1	0106-

24 153 167 56 104 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,CLU CONT L=520	1-09364-948-1	01	1	0106-
24	PIPE ASM; CLU,M/CYL TO UNION FULLER M/T<X9B> L=643	1-47424-529-2	01	1	0106-
24	PIPE ASM; CLU,M/CYL TO UNION TRANSMISSION-ZF 16S221 OD(Y1U)	1-47427-608-0	01	1	0106-
56	BRACKET; FLEX HOSE	1-47477-602-1	01	1	0106-0110
56	BRACKET; FLEX HOSE	1-47478-300-1	01	1	0111-0201
56	BRACKET; FLEX HOSE	1-47477-602-1	01	1	0202-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR FULLER M/T<X9B> L=1618	1-49166-188-0	01	1	0106-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF M/T<X9E>	1-49166-191-0	01	1	0106-0106
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF M/T<X9E>	1-49166-212-0	01	1	0107-0206
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF M/T<X9E>	1-49166-668-0	01	1	0207-
153	PIPE ASM; CLU,UNION TO FLEX (B) L=464	1-47424-530-2	01	1	0106-
153	PIPE ASM; CLU,UNION TO FLEX FULLER M/T<X9B> (A) L=1587 SERVICED BY L=1700	1-47426-391-0	01	1	0106-
153	PIPE ASM; CLU,UNION TO FLEX ZF M/T<X9E> (A) L=955	1-49163-430-0	01	1	0106-
167	BRACKET; UNION	1-71117-183-3	01	1	0106-

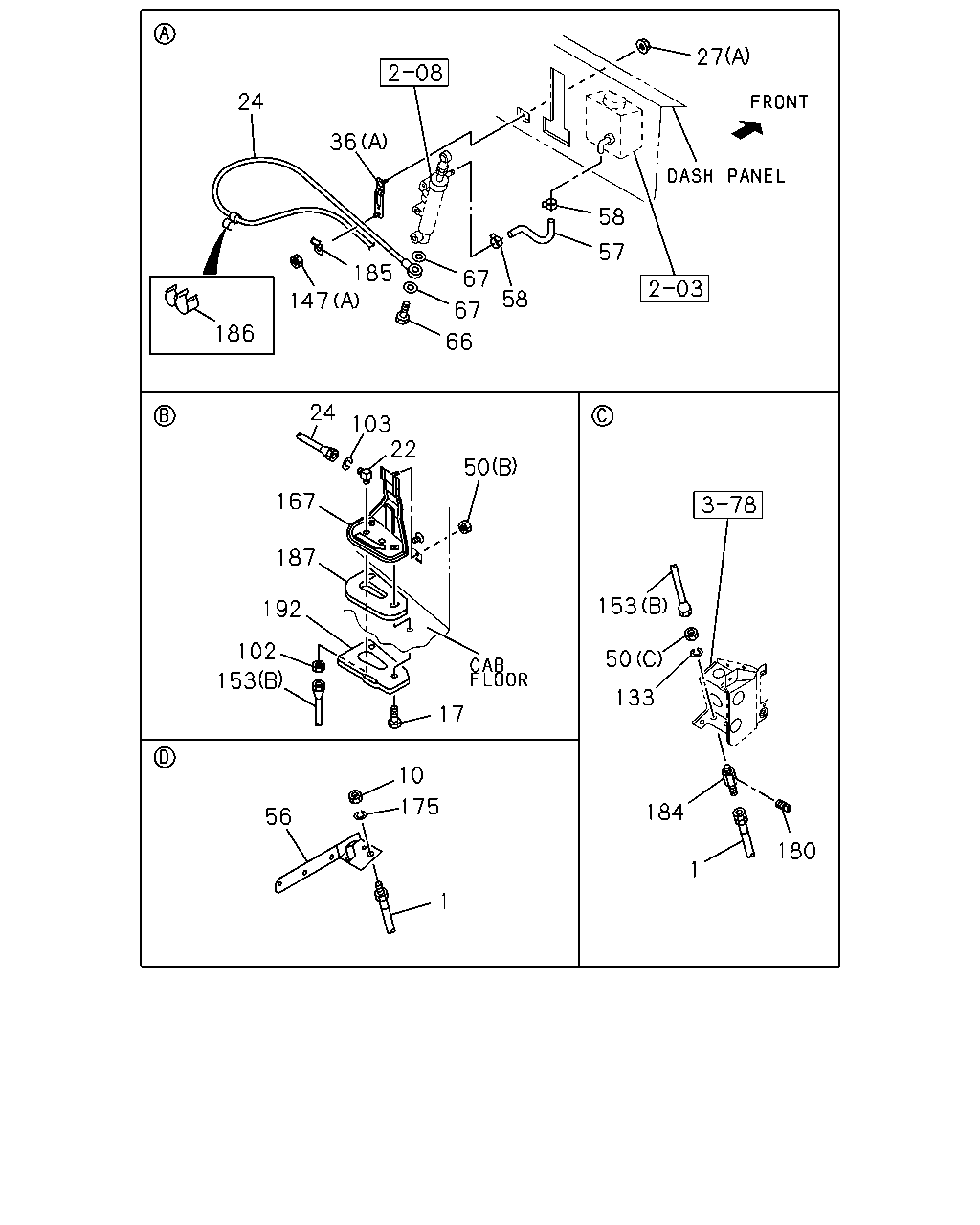

27 24 36 58 185 147 57 67 58 67 66 186 24 103 22 50 167 187 153 192 102 153 50 133 17 10 175 184 56 180 1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,CLU CONT L=520	1-09364-948-1	01	1	0106-
10	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0106-0512
10	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-
17	BOLT; BRKT M8X20 W/LK&PL WASHER	8-94279-216-0	02	1	0106-
22	UNION; CLU PIPE M14	9-09225-208-1	01	1	0106-0607
22	UNION; CLU PIPE M14	0-92125-208-0	01	1	0608-
24	PIPE ASM; CLU,M/CYL TO UNION FULLER M/T<X9B> L=643	1-47424-529-2	01	1	0106-
24	PIPE ASM; CLU,M/CYL TO UNION TRANSMISSION-ZF 16S221 OD(Y1U)	1-47427-608-0	01	1	0106-
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	0106-0602
27	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	0603-
27	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	0106-0602
27	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	0603-
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0106-
36	BRACKET; CLIP (A)	1-71117-191-1	01	1	0106-
36	BRACKET; CLIP FULLER M/T<X9B> (B)	1-47475-427-1	01	1	0106-
50	NUT; UNION (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0106-
50	NUT; UNION (C) M14	9-99111-414-0	01	1	0106-0512
50	NUT; UNION (C) M14	0-91111-514-0	01	1	0601-
50	NUT; UNION TRANSMISSION-ZF 16S221 OD(Y1U) (A) M12	9-09840-280-0	01	1	0106-
50	NUT; UNION ZF M/T<X9E> (A) M12 FLANGE	0-91150-212-0	01	1	0106-0602
50	NUT; UNION ZF M/T<X9E> (A) M12 FLANGE	0-91180-212-0	01	1	0603-
56	BRACKET; FLEX HOSE	1-47477-602-1	01	1	0106-0110
56	BRACKET; FLEX HOSE	1-47478-300-1	01	1	0111-0201
56	BRACKET; FLEX HOSE	1-47477-602-1	01	1	0202-
57	HOSE; CLU M/CYL TO OIL TANK	1-47424-533-0	01	1	0106-
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	0106-
66	BOLT; EYE JOINT,CLU M/CYL M14X30 FLANGE	1-09675-146-0	01	1	0106-
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	0106-
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0106-0512
102	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0106-0603
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-
133	WASHER; LK,UNION ID=14.2	9-09150-514-0	01	1	0106-0603
133	WASHER; LK,UNION ID=14.2	0-91510-514-0	01	1	0604-
147	NUT; CLIP FIX (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	0106-
147	NUT; CLIP FIX ZF M/T<X9E> (B) M8 FLANGE	0-91150-208-0	01	1	0106-0602
147	NUT; CLIP FIX ZF M/T<X9E> (B) M8 FLANGE	0-91180-208-0	01	1	0603-
153	PIPE ASM; CLU,UNION TO FLEX (B) L=464	1-47424-530-2	01	1	0106-
153	PIPE ASM; CLU,UNION TO FLEX FULLER M/T<X9B> (A) L=1587 SERVICED BY L=1700	1-47426-391-0	01	1	0106-
153	PIPE ASM; CLU,UNION TO FLEX ZF M/T<X9E> (A) L=955	1-49163-430-0	01	1	0106-
167	BRACKET; UNION	1-71117-183-3	01	1	0106-
175	WASER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0106-0603
175	WASER; LK,FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-
180	PLUG; PIPE	9-09204-510-0	01	1	0106-
184	UNION; FLEX HOSE	1-09656-679-0	01	1	0106-
185	CLIP; BRKT ID=9 L=20	9-09545-108-0	01	1	0106-0606
185	CLIP; BRKT ID=9 L=20	0-95405-308-0	01	1	0607-
186	HOLDER; CLIP DRIVER ISRINGHAUSEN SEAT TYPE 6800(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-94107-710-0	02	1	0106-
187	SEAL; BRKT	1-71117-222-0	01	1	0106-
192	PLATE	1-71117-221-0	01	1	0106-

153 109 104 28 29 29 30 28 25 29 25 26 26 28 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
25	BRACKET; OIL PIPE (A)	1-47478-411-1	01	1	0106-0106
25	BRACKET; OIL PIPE (A)	1-47479-297-0	01	1	0107-
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) (B)	1-47477-498-1	01	1	0106-0107
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) (C)	1-47477-499-1	01	1	0106-0107
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) (E)	1-47478-406-0	01	1	0106-0107
25	BRACKET; OIL PIPE ZF M/T<X9E> (D) L=50	1-47475-299-2	03	1	0106-
26	NUT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) M8 FLANGE	0-91150-108-0	01	1	0108-0602
26	NUT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) M8 FLANGE	0-91180-108-0	01	1	0603-
26	NUT; CLIP,OIL PIPE FULLER M/T<X9B> M8 FLANGE	0-91150-108-0	03	1	0106-0602
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	03	1	0603-
26	NUT; CLIP,OIL PIPE ZF M/T<X9E> M8 FLANGE	0-91150-108-0	04	1	0106-0602
26	NUT; CLIP,OIL PIPE ZF M/T<X9E> M8 FLANGE	0-91180-108-0	04	1	0603-
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	0106-0602
27	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	0603-
27	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	0106-0602
27	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	0603-
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0106-
28	CLIP; OIL PIPE FULLER M/T<X9B> (A) ID=8 H=20 L=20	1-09700-604-0	03	1	0106-
28	CLIP; OIL PIPE ZF M/T<X9E> (A) ID=8 H=20 L=20	1-09700-604-0	01	1	0106-
28	CLIP; OIL PIPE ZF M/T<X9E> (C) ID=16 & 9 L=21 & 18	1-09700-676-0	03	1	0106-
28	CLIP; OIL PIPE (B) ID=9 L=20	9-09524-835-0	01	1	0106-0606
28	CLIP; OIL PIPE (B) ID=9 L=20	0-95234-835-0	01	1	0607-
29	BOLT; CLIP,OIL PIPE FULLER M/T<X9B> (A) M8X30 FLANGE	0-28680-830-0	02	1	0106-0512
29	BOLT; CLIP,OIL PIPE (A) M8X30 FLANGE	0-28650-830-0	02	1	0601-
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) (A) M8X16 FLANGE	0-28080-816-0	04	1	0106-0107
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) (B) M8X12,M10X20 L=39	1-09039-005-0	01	1	0108-
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) (A) M8X30 FLANGE	0-28680-830-0	01	1	0106-0512
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) (A) M8X30 FLANGE	0-28650-830-0	01	1	0601-
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> (A) M8X16 FLANGE	0-28080-816-0	03	1	0106-0512
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> (A) M8X16 FLANGE	0-28050-816-0	03	1	0601-
29	BOLT; CLIP,OIL PIPE (A) M8X25 FLANGE	0-28680-825-0	02	1	0106-0512
29	BOLT; CLIP,OIL PIPE (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-
30	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	02	1	0106-0512
30	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	0601-
30	BOLT; BRKT ZF M/T<X9E> M8X30 FLANGE	0-28680-830-0	01	1	0106-0512
30	BOLT; BRKT ZF M/T<X9E> M8X30 FLANGE	0-28650-830-0	01	1	0601-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR FULLER M/T<X9B> L=1618	1-49166-188-0	01	1	0106-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF M/T<X9E>	1-49166-191-0	01	1	0106-0106
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF M/T<X9E>	1-49166-212-0	01	1	0107-0206
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF M/T<X9E>	1-49166-668-0	01	1	0207-
109	PIPE; AIR,UNION TO UNION ZF M/T<X9E> L=1106 SERVICED BY L=1100	1-47426-387-0	01	1	0106-0106
109	PIPE; AIR,UNION TO UNION ZF M/T<X9E> L=1102 SERVICED BY L=1000	1-47426-386-0	01	1	0107-
153	PIPE ASM; CLU,UNION TO FLEX (B) L=464	1-47424-530-2	01	1	0106-
153	PIPE ASM; CLU,UNION TO FLEX FULLER M/T<X9B> (A) L=1587 SERVICED BY L=1700	1-47426-391-0	01	1	0106-
153	PIPE ASM; CLU,UNION TO FLEX ZF M/T<X9E> (A) L=955	1-49163-430-0	01	1	0106-

42 47 116 115 43 116 115 80 171 83 162 39 164 34 47 233 47 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	BOLT; PIPE CLIP (A) M8X20 FLANGE	0-28080-820-0	01	1	0106-0512
34	BOLT; PIPE CLIP (A) M8X20 FLANGE	0-28050-820-0	01	1	0601-0606
34	BOLT; PIPE CLIP M8X20 FLANGE	0-28050-820-0	02	1	0607-
34	BOLT; PIPE CLIP FULLER M/T<X9B> (C) M8X45 FLANGE	0-28080-845-0	01	1	0106-0512
34	BOLT; PIPE CLIP (C) M8X45 FLANGE	0-28050-845-0	01	1	0601-
34	BOLT; PIPE CLIP FULLER M/T<X9B> (B) M8X30 FLANGE	0-28680-830-0	02	1	0106-0512
34	BOLT; PIPE CLIP (B) M8X30 FLANGE	0-28650-830-0	02	1	0601-
34	BOLT; PIPE CLIP ZF M/T<X9E> (A) M8X16 FLANGE	0-28080-816-0	01	1	0106-0512
34	BOLT; PIPE CLIP ZF M/T<X9E> (A) M8X16 FLANGE	0-28050-816-0	01	1	0601-
34	BOLT; PIPE CLIP ZF M/T<X9E> (B) M8X30 FLANGE	0-28680-830-0	01	1	0106-0106
34	BOLT; PIPE CLIP ZF M/T<X9E> (B) M8X30 FLANGE	0-28680-830-0	01	1	0106-0106
34	BOLT; PIPE CLIP ZF M/T<X9E> (B) M8X30 FLANGE	0-28680-830-0	01	1	0107-0512
34	BOLT; PIPE CLIP ZF M/T<X9E> (B) M8X30 FLANGE	0-28650-830-0	01	1	0601-
39	GASKET; CONNECTOR FULLER M/T<X9B> ID=10.2 OD=16.0	9-09571-410-0	01	1	0106-
42	BRACKET; FLEX HOSE,CLU CONT FULLER M/T<X9B>	1-47478-796-0	01	1	0106-
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28680-830-0	02	1	0106-0512
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28650-830-0	02	1	0601-
47	HOSE; FLEX,CLU CONT (B) L=550	1-09365-377-0	01	1	0607-
47	HOSE; FLEX,CLU CONT FULLER M/T<X9B> (A) L=445	1-09364-478-0	01	1	0106-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER FULLER M/T<X9B>	1-49161-120-0	01	1	0106-0606
80	CLIP; HOSE ID=16 L=50	1-09701-158-0	01	1	0607-
80	CLIP; HOSE TRANSMISSION-ZF 16S221 OD(Y1U) ID=16 L=28	1-09700-872-0	01	1	0108-
83	NUT; PIPE CLIP M8	9-09110-408-0	01	1	0106-0512
83	NUT; PIPE CLIP M8	0-91110-508-0	01	1	0601-0606
83	NUT; PIPE CLIP M8	0-91110-508-0	02	1	0607-
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	02	1	0106-0512
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	02	1	0601-
115	NUT; FLEX HOSE,CLU CONT ZF M/T<X9E> M14	9-99111-414-0	01	1	0106-0512
115	NUT; FLEX HOSE,CLU CONT ZF M/T<X9E> M14	0-91111-514-0	01	1	0601-
116	WASHER; FLEX HOSE,CLU CONT FULLER M/T<X9B> ID=14.2	9-09150-514-0	02	1	0106-0603
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	02	1	0604-
116	WASHER; FLEX HOSE,CLU CONT ZF M/T<X9E> ID=14.2	9-09150-514-0	01	1	0106-0603
116	WASHER; FLEX HOSE,CLU CONT ZF M/T<X9E> ID=14.2	0-91510-514-0	01	1	0604-
162	COVER; RUBBER,FLEX HOSE ID=14 OD=18 L=60	1-09337-030-0	01	1	0607-
164	CLIP; BAND,FLEX HOSE L=250	5-09707-030-1	01	1	0607-
171	CONNECTOR; CLU BOOSTER FULLER M/T<X9B>	1-09650-256-1	01	1	0106-
233	BAND; FLEX HOSE L=175	1-09707-178-0	01	1	0607-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
