6-60 — ROOF PANEL (#117081) — 41 parça

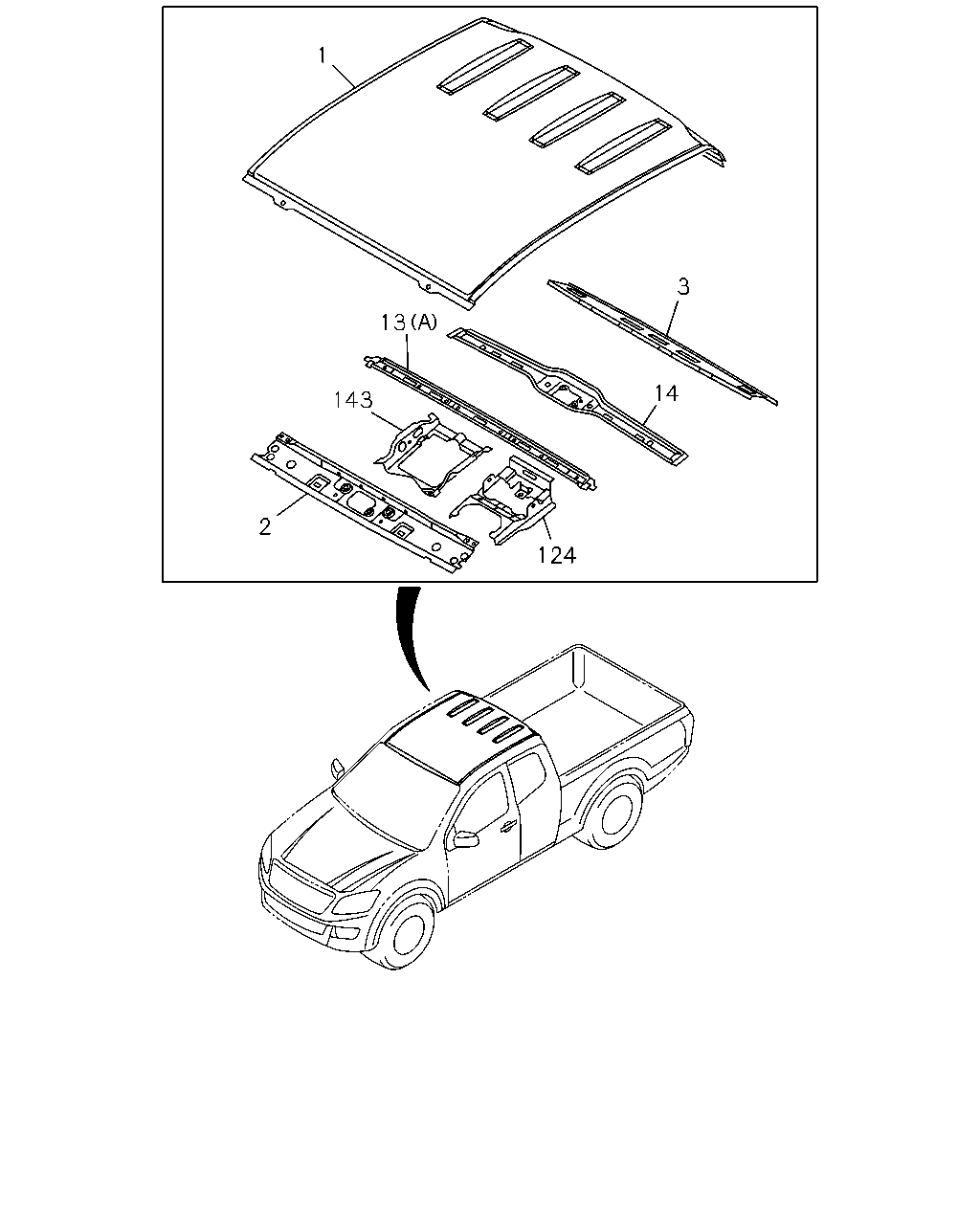

çizim 343894
1 13 143 2 124 14 3
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 16.585 PANEL; ROOF
ROOF RADIO ANTENNA<U71> 		8-98103-954-3 01 1 1304- ● ●
1 16.585 PANEL; ROOF
EXC. HEADER CONSOLE<DK6>,ROOF RADIO ANTENNA<U71> 		8-98103-953-3 01 1 1304- ● ●
1 16.585 PANEL; ROOF
RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) 		8-98103-951-3 01 1 1304- ● ●
1 16.585 PANEL; ROOF
INTERIOR BASIC(RBA) EXC. HEADER CONSOLE<DK6>,ROOF RADIO ANTENNA<U71> 		8-98103-957-3 01 1 1304- ● ●
1 16.585 PANEL; ROOF
INTERIOR CUSTOM(RBD) ROOF RADIO ANTENNA<U71> 		8-98103-960-3 01 1 1304- ● ●
2 16.585 PANEL; ROOF,CENTER 8-98103-964-5 01 1 1304- ● ● ● ● ● ●
3 16.585 PANEL; ROOF,RR 8-98103-999-3 01 1 1304- ● ● ● ● ● ●
13 16.585 PANEL; ROOF SUPPORT
RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) (C) 		8-98150-942-0 01 1 1304- ● ●
13 16.585 PANEL; ROOF SUPPORT
(B) 		8-98103-982-0 01 1 1304- ● ●
13 16.585 PANEL; ROOF SUPPORT
(A) 		8-98103-963-1 01 1 1304- ● ● ● ● ● ●
14 16.585 SUPPORT; ROOF 8-98103-976-1 01 1 1304- ● ●
14 16.585 SUPPORT; ROOF 8-98112-817-1 01 1 1304- ● ●
124 16.585 BRACKET; ROOM LAMP
MAP LAMP<C74> 		8-98103-968-0 01 1 1304- ● ● ● ●
143 16.584 BRACKET; CONSOLE
HEADER CONSOLE<DK6> 16.570 		8-98103-962-1 01 1 1304- ● ● ● ●

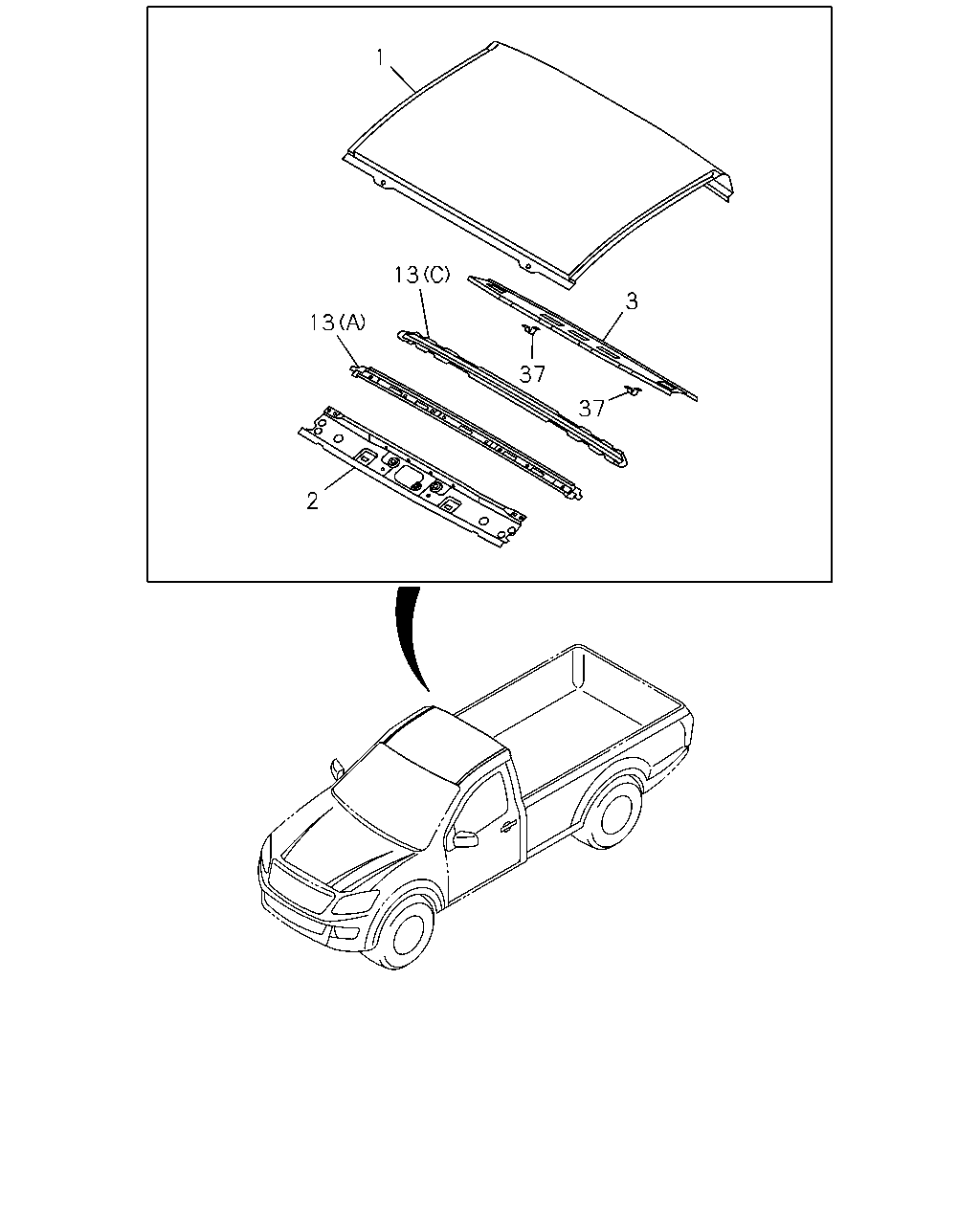

çizim 343911
1 3 37 37 13 13 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 16.585 PANEL; ROOF
ROOF RADIO ANTENNA<U71> 		8-98103-954-3 01 1 1304- ● ●
1 16.585 PANEL; ROOF
EXC. HEADER CONSOLE<DK6>,ROOF RADIO ANTENNA<U71> 		8-98103-953-3 01 1 1304- ● ●
1 16.585 PANEL; ROOF
RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) 		8-98103-951-3 01 1 1304- ● ●
1 16.585 PANEL; ROOF
INTERIOR BASIC(RBA) EXC. HEADER CONSOLE<DK6>,ROOF RADIO ANTENNA<U71> 		8-98103-957-3 01 1 1304- ● ●
1 16.585 PANEL; ROOF
INTERIOR CUSTOM(RBD) ROOF RADIO ANTENNA<U71> 		8-98103-960-3 01 1 1304- ● ●
2 16.585 PANEL; ROOF,CENTER 8-98103-964-5 01 1 1304- ● ● ● ● ● ●
3 16.585 PANEL; ROOF,RR 8-98103-999-3 01 1 1304- ● ● ● ● ● ●
13 16.585 PANEL; ROOF SUPPORT
RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) (C) 		8-98150-942-0 01 1 1304- ● ●
13 16.585 PANEL; ROOF SUPPORT
(B) 		8-98103-982-0 01 1 1304- ● ●
13 16.585 PANEL; ROOF SUPPORT
(A) 		8-98103-963-1 01 1 1304- ● ● ● ● ● ●
37 16.585 BRACKET; TRIM,ROOF BACK 8-98103-996-0 02 1 1304- ● ● ● ●

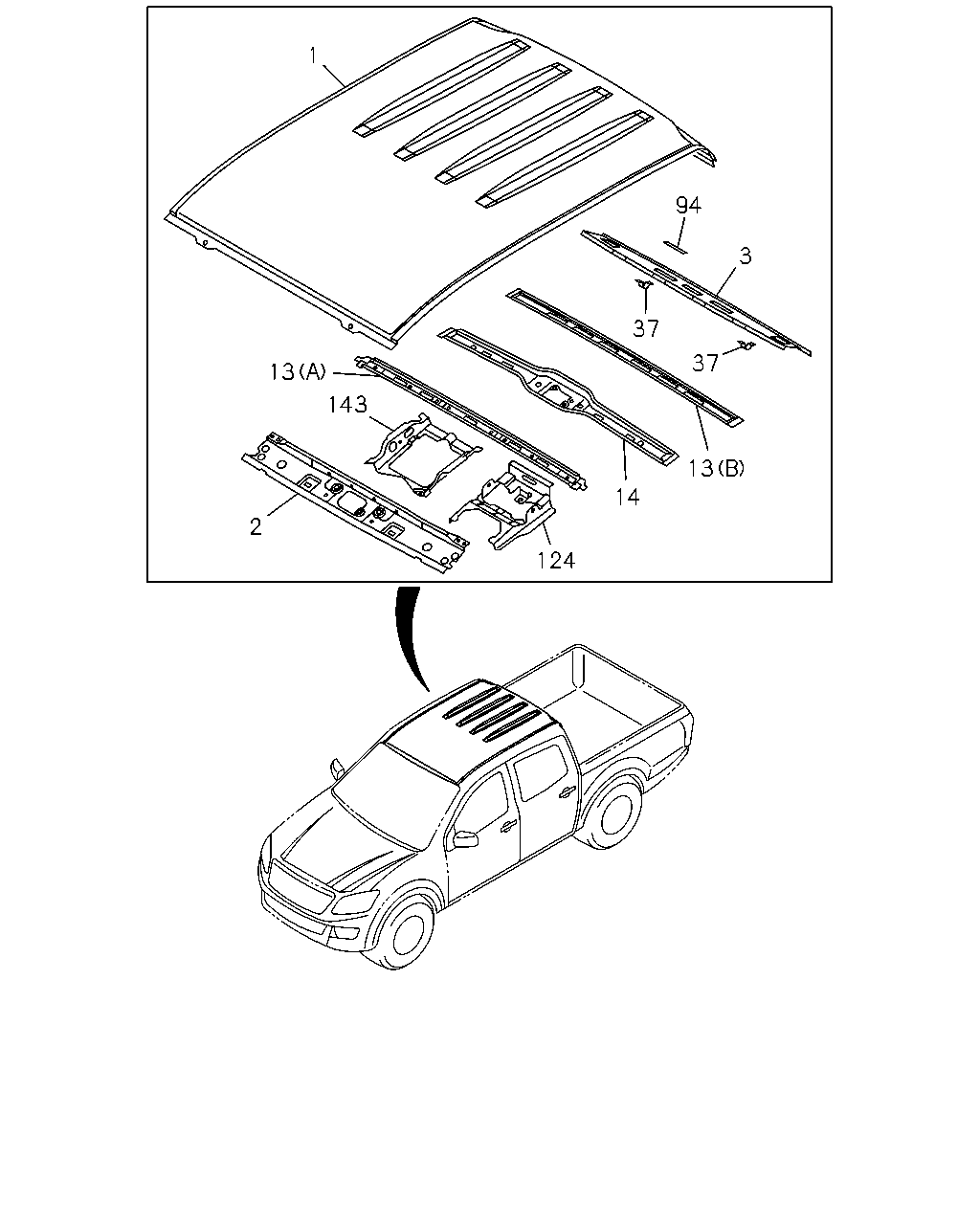

çizim 343935
2 13 124 14 37 37 94 3 13 143 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 16.585 PANEL; ROOF
ROOF RADIO ANTENNA<U71> 		8-98103-954-3 01 1 1304- ● ●
1 16.585 PANEL; ROOF
EXC. HEADER CONSOLE<DK6>,ROOF RADIO ANTENNA<U71> 		8-98103-953-3 01 1 1304- ● ●
1 16.585 PANEL; ROOF
RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) 		8-98103-951-3 01 1 1304- ● ●
1 16.585 PANEL; ROOF
INTERIOR BASIC(RBA) EXC. HEADER CONSOLE<DK6>,ROOF RADIO ANTENNA<U71> 		8-98103-957-3 01 1 1304- ● ●
1 16.585 PANEL; ROOF
INTERIOR CUSTOM(RBD) ROOF RADIO ANTENNA<U71> 		8-98103-960-3 01 1 1304- ● ●
2 16.585 PANEL; ROOF,CENTER 8-98103-964-5 01 1 1304- ● ● ● ● ● ●
3 16.585 PANEL; ROOF,RR 8-98103-999-3 01 1 1304- ● ● ● ● ● ●
13 16.585 PANEL; ROOF SUPPORT
RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) (C) 		8-98150-942-0 01 1 1304- ● ●
13 16.585 PANEL; ROOF SUPPORT
(B) 		8-98103-982-0 01 1 1304- ● ●
13 16.585 PANEL; ROOF SUPPORT
(A) 		8-98103-963-1 01 1 1304- ● ● ● ● ● ●
14 16.585 SUPPORT; ROOF 8-98103-976-1 01 1 1304- ● ●
14 16.585 SUPPORT; ROOF 8-98112-817-1 01 1 1304- ● ●
37 16.585 BRACKET; TRIM,ROOF BACK 8-98103-996-0 02 1 1304- ● ● ● ●
94 16.570 SEAL; REINFORCEMENT 8-98201-900-0 01 1 1304- ● ●
124 16.585 BRACKET; ROOM LAMP
MAP LAMP<C74> 		8-98103-968-0 01 1 1304- ● ● ● ●
143 16.584 BRACKET; CONSOLE
HEADER CONSOLE<DK6> 16.570 		8-98103-962-1 01 1 1304- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
