◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51473 - TFR/TFS-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-60 - ROOF PANEL ▶
6-60 — ROOF PANEL (#117080) — 65 parça

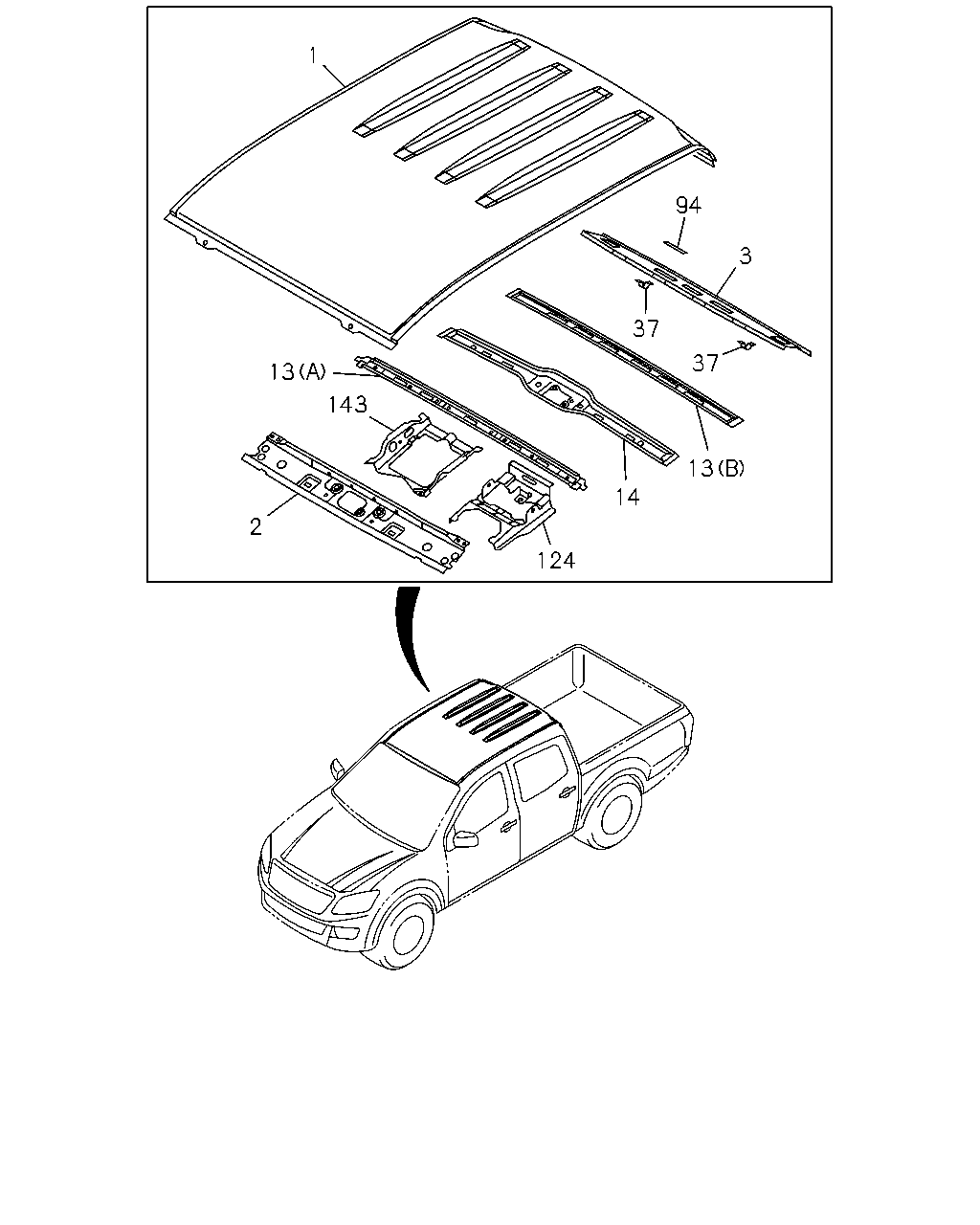

çizim 343895
1 13 2 143 124 14 37 37 94 3 13
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 16.585 PANEL; ROOF
HIGH MOUNT STOP LAMP<TS6> RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C),INST PANEL FORDIN E SIZE AUDIO(7QL) 		8-98103-951-3 01 1 1304- ● ●
1 16.585 PANEL; ROOF
RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. HIGH MOUNT STOP LAMP<TS6>,ISRAEL EQUIPMENT(2G1) 		8-98103-950-3 01 1 1304- ● ●
1 16.585 PANEL; ROOF
INTERIOR BASIC(RBA) HIGH MOUNT STOP LAMP<TS6> EXC. RUSSIA EQUIPMENT(B12),HEADER CONSOLE<DK6>,ROOF RADIO ANTENNA<U71> 		8-98103-957-3 01 1 1304- ● ●
1 16.585 PANEL; ROOF
INTERIOR BASIC(RBA) EXC. RUSSIA EQUIPMENT(B12),HEADER CONSOLE<DK6>,HIGH MOUNT STOP LAMP<TS6>,ROO F RADIO ANTENNA<U71>,ISRAEL EQUIPMENT(2G1) 		8-98103-955-3 01 1 1304-1312 ● ●
1 16.585 PANEL; ROOF
INTERIOR BASIC(RBA) EXC. RUSSIA EQUIPMENT(B12),HEADER CONSOLE<DK6>,CHILE EQUIPMENT(KE1),HIGH MOU NT STOP LAMP<TS6>,ROOF RADIO ANTENNA<U71>,ISRAEL EQUIPMENT(2G1) 		8-98103-955-3 01 1 1401- ● ●
1 16.585 PANEL; ROOF
INTERIOR CUSTOM(RBD) CONGO EQUIPMENT(CDF) HIGH MOUNT STOP LAMP<TS6> 		8-98184-915-1 01 1 1304- ● ●
1 16.585 PANEL; ROOF
INTERIOR CUSTOM(RBD) CONGO EQUIPMENT(CDF) EXC. HIGH MOUNT STOP LAMP<TS6> 		8-98184-914-1 01 1 1304- ● ●
1 16.585 PANEL; ROOF
INTERIOR CUSTOM(RBD) MAP LAMP<C74> HIGH MOUNT STOP LAMP<TS6> EXC. CONGO EQUIPMENT(CDF) 		8-98103-960-3 01 1 1304- ● ●
1 16.585 PANEL; ROOF
HIGH MOUNT STOP LAMP<TS6> ROOF RADIO ANTENNA<U71> 		8-98103-954-3 01 1 1304- ●
1 16.585 PANEL; ROOF
HIGH MOUNT STOP LAMP<TS6> EXC. HEADER CONSOLE<DK6>,ROOF RADIO ANTENNA<U71> 		8-98103-953-3 01 1 1304- ●
1 16.585 PANEL; ROOF
EXC. HEADER CONSOLE<DK6>,HIGH MOUNT STOP LAMP<TS6>,ROOF RADIO ANTENNA<U71> 		8-98103-952-3 01 1 1304- ●
2 16.585 PANEL; ROOF,CENTER 8-98103-964-5 01 1 1304- ● ● ● ● ●
3 16.585 PANEL; ROOF,RR 8-98103-999-3 01 1 1304- ● ● ● ● ●
13 16.585 PANEL; ROOF SUPPORT
(C) 		8-98150-942-0 01 1 1304- ● ●
13 16.585 PANEL; ROOF SUPPORT
(A) 		8-98103-963-1 01 1 1304- ● ● ● ● ●
13 16.585 PANEL; ROOF SUPPORT
(B) 		8-98103-982-0 01 1 1304- ● ●
14 16.585 SUPPORT; ROOF
EXC. RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF), ECUADOR EQUIPMENT(E46),ISRAEL EQUIPMENT(2G1) 		8-98163-387-1 01 1 1304-1312 ● ●
14 16.585 SUPPORT; ROOF
EXC. RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF), ECUADOR EQUIPMENT(E46),CHILE EQUIPMENT(KE1),ISRAEL EQUIPMENT(2G1) 		8-98163-387-1 01 1 1401- ● ●
14 16.585 SUPPORT; ROOF 8-98163-386-1 01 1 1304- ●
14 16.585 SUPPORT; ROOF
RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46),ISRAEL EQUIPMENT(2G1) 		8-98112-817-1 01 1 1304-1312 ● ●
14 16.585 SUPPORT; ROOF
RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46),CHILE EQUIPMENT(KE1),ISR AEL EQUIPMENT(2G1) 		8-98112-817-1 01 1 1401- ● ●
37 16.585 BRACKET; TRIM,ROOF BACK 8-98103-996-0 02 1 1304- ● ● ● ●
94 16.570 SEAL; REINFORCEMENT 8-98201-900-0 01 1 1304- ● ●
124 16.585 BRACKET; ROOM LAMP
MAP LAMP<C74> 		8-98103-968-0 01 1 1304- ● ● ●
143 16.584 BRACKET; CONSOLE
HEADER CONSOLE<DK6> 16.570 		8-98103-962-1 01 1 1304- ● ● ●

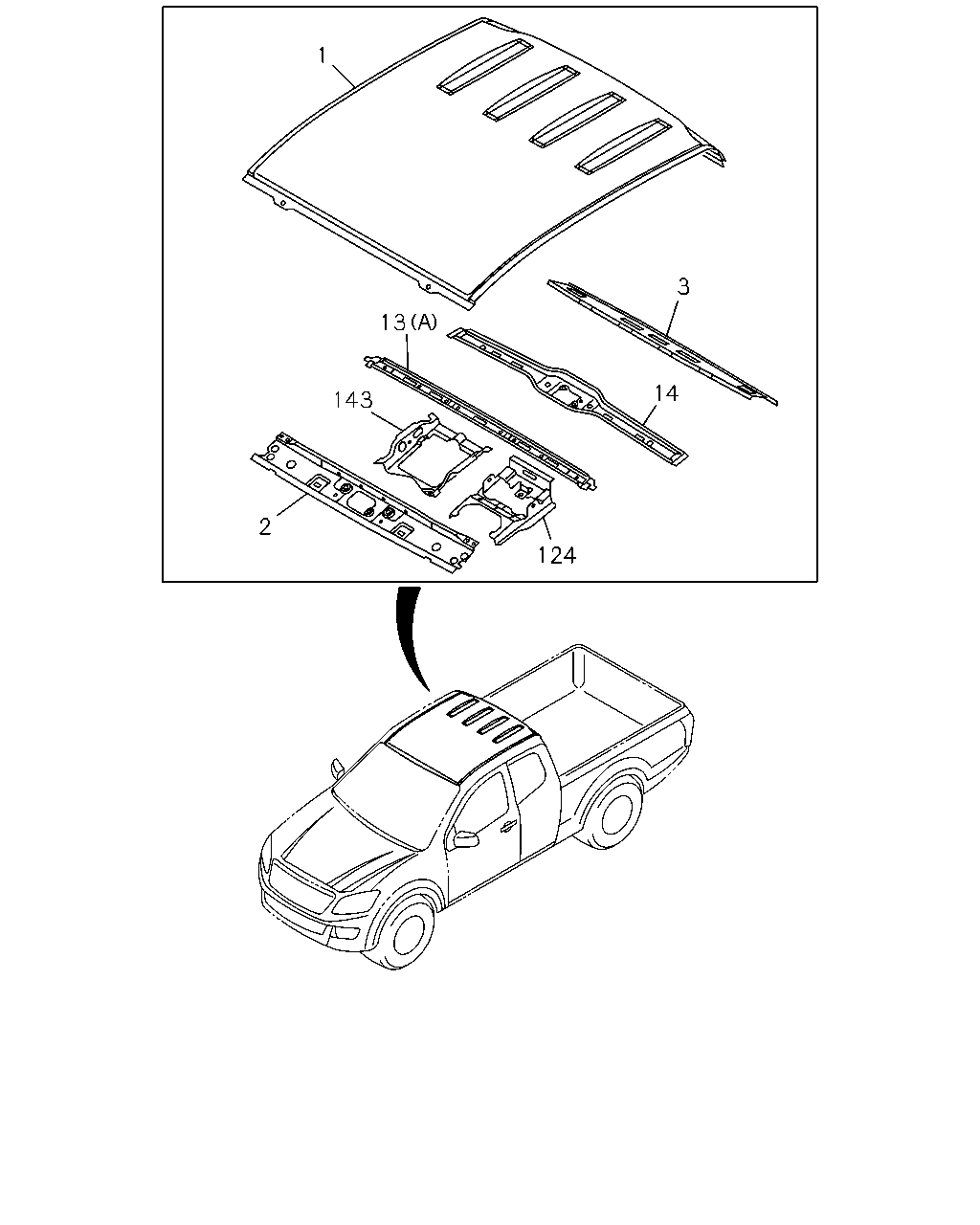

çizim 343912
1 3 14 13 143 124 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 16.585 PANEL; ROOF
HIGH MOUNT STOP LAMP<TS6> RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C),INST PANEL FORDIN E SIZE AUDIO(7QL) 		8-98103-951-3 01 1 1304- ● ●
1 16.585 PANEL; ROOF
RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. HIGH MOUNT STOP LAMP<TS6>,ISRAEL EQUIPMENT(2G1) 		8-98103-950-3 01 1 1304- ● ●
1 16.585 PANEL; ROOF
INTERIOR BASIC(RBA) HIGH MOUNT STOP LAMP<TS6> EXC. RUSSIA EQUIPMENT(B12),HEADER CONSOLE<DK6>,ROOF RADIO ANTENNA<U71> 		8-98103-957-3 01 1 1304- ● ●
1 16.585 PANEL; ROOF
INTERIOR BASIC(RBA) EXC. RUSSIA EQUIPMENT(B12),HEADER CONSOLE<DK6>,HIGH MOUNT STOP LAMP<TS6>,ROO F RADIO ANTENNA<U71>,ISRAEL EQUIPMENT(2G1) 		8-98103-955-3 01 1 1304-1312 ● ●
1 16.585 PANEL; ROOF
INTERIOR BASIC(RBA) EXC. RUSSIA EQUIPMENT(B12),HEADER CONSOLE<DK6>,CHILE EQUIPMENT(KE1),HIGH MOU NT STOP LAMP<TS6>,ROOF RADIO ANTENNA<U71>,ISRAEL EQUIPMENT(2G1) 		8-98103-955-3 01 1 1401- ● ●
1 16.585 PANEL; ROOF
INTERIOR CUSTOM(RBD) CONGO EQUIPMENT(CDF) HIGH MOUNT STOP LAMP<TS6> 		8-98184-915-1 01 1 1304- ● ●
1 16.585 PANEL; ROOF
INTERIOR CUSTOM(RBD) CONGO EQUIPMENT(CDF) EXC. HIGH MOUNT STOP LAMP<TS6> 		8-98184-914-1 01 1 1304- ● ●
1 16.585 PANEL; ROOF
INTERIOR CUSTOM(RBD) MAP LAMP<C74> HIGH MOUNT STOP LAMP<TS6> EXC. CONGO EQUIPMENT(CDF) 		8-98103-960-3 01 1 1304- ● ●
1 16.585 PANEL; ROOF
HIGH MOUNT STOP LAMP<TS6> ROOF RADIO ANTENNA<U71> 		8-98103-954-3 01 1 1304- ●
1 16.585 PANEL; ROOF
HIGH MOUNT STOP LAMP<TS6> EXC. HEADER CONSOLE<DK6>,ROOF RADIO ANTENNA<U71> 		8-98103-953-3 01 1 1304- ●
1 16.585 PANEL; ROOF
EXC. HEADER CONSOLE<DK6>,HIGH MOUNT STOP LAMP<TS6>,ROOF RADIO ANTENNA<U71> 		8-98103-952-3 01 1 1304- ●
2 16.585 PANEL; ROOF,CENTER 8-98103-964-5 01 1 1304- ● ● ● ● ●
3 16.585 PANEL; ROOF,RR 8-98103-999-3 01 1 1304- ● ● ● ● ●
13 16.585 PANEL; ROOF SUPPORT
(C) 		8-98150-942-0 01 1 1304- ● ●
13 16.585 PANEL; ROOF SUPPORT
(A) 		8-98103-963-1 01 1 1304- ● ● ● ● ●
13 16.585 PANEL; ROOF SUPPORT
(B) 		8-98103-982-0 01 1 1304- ● ●
14 16.585 SUPPORT; ROOF
EXC. RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF), ECUADOR EQUIPMENT(E46),ISRAEL EQUIPMENT(2G1) 		8-98163-387-1 01 1 1304-1312 ● ●
14 16.585 SUPPORT; ROOF
EXC. RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF), ECUADOR EQUIPMENT(E46),CHILE EQUIPMENT(KE1),ISRAEL EQUIPMENT(2G1) 		8-98163-387-1 01 1 1401- ● ●
14 16.585 SUPPORT; ROOF 8-98163-386-1 01 1 1304- ●
14 16.585 SUPPORT; ROOF
RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46),ISRAEL EQUIPMENT(2G1) 		8-98112-817-1 01 1 1304-1312 ● ●
14 16.585 SUPPORT; ROOF
RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7),CONGO EQUIPMENT(CDF),ECUADOR EQUIPMENT(E46),CHILE EQUIPMENT(KE1),ISR AEL EQUIPMENT(2G1) 		8-98112-817-1 01 1 1401- ● ●
124 16.585 BRACKET; ROOM LAMP
MAP LAMP<C74> 		8-98103-968-0 01 1 1304- ● ● ●
143 16.584 BRACKET; CONSOLE
HEADER CONSOLE<DK6> 16.570 		8-98103-962-1 01 1 1304- ● ● ●

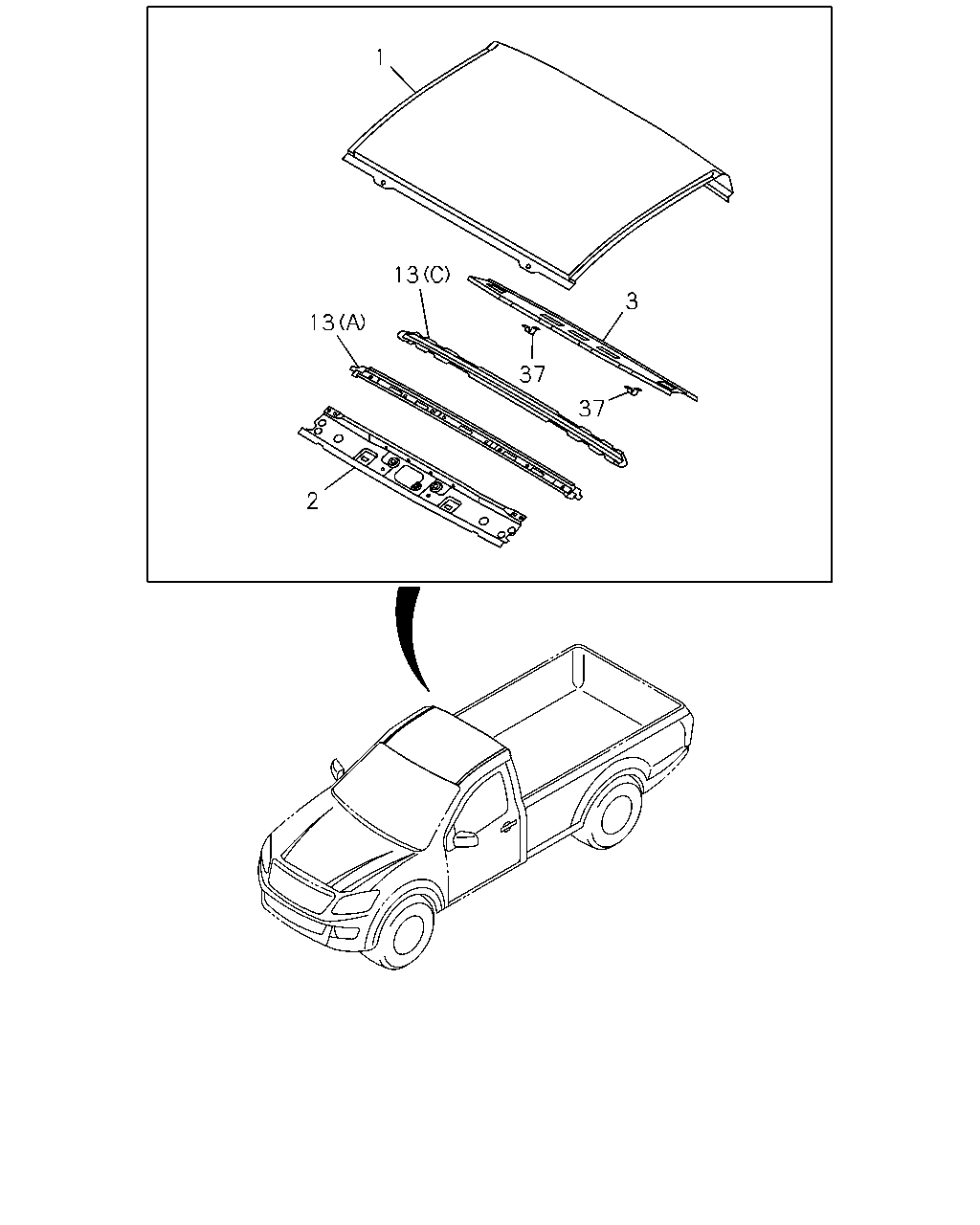

çizim 345380
1 13 13 2 37 3 37
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 16.585 PANEL; ROOF
HIGH MOUNT STOP LAMP<TS6> RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C),INST PANEL FORDIN E SIZE AUDIO(7QL) 		8-98103-951-3 01 1 1304- ● ●
1 16.585 PANEL; ROOF
RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. HIGH MOUNT STOP LAMP<TS6>,ISRAEL EQUIPMENT(2G1) 		8-98103-950-3 01 1 1304- ● ●
1 16.585 PANEL; ROOF
INTERIOR BASIC(RBA) HIGH MOUNT STOP LAMP<TS6> EXC. RUSSIA EQUIPMENT(B12),HEADER CONSOLE<DK6>,ROOF RADIO ANTENNA<U71> 		8-98103-957-3 01 1 1304- ● ●
1 16.585 PANEL; ROOF
INTERIOR BASIC(RBA) EXC. RUSSIA EQUIPMENT(B12),HEADER CONSOLE<DK6>,HIGH MOUNT STOP LAMP<TS6>,ROO F RADIO ANTENNA<U71>,ISRAEL EQUIPMENT(2G1) 		8-98103-955-3 01 1 1304-1312 ● ●
1 16.585 PANEL; ROOF
INTERIOR BASIC(RBA) EXC. RUSSIA EQUIPMENT(B12),HEADER CONSOLE<DK6>,CHILE EQUIPMENT(KE1),HIGH MOU NT STOP LAMP<TS6>,ROOF RADIO ANTENNA<U71>,ISRAEL EQUIPMENT(2G1) 		8-98103-955-3 01 1 1401- ● ●
1 16.585 PANEL; ROOF
INTERIOR CUSTOM(RBD) CONGO EQUIPMENT(CDF) HIGH MOUNT STOP LAMP<TS6> 		8-98184-915-1 01 1 1304- ● ●
1 16.585 PANEL; ROOF
INTERIOR CUSTOM(RBD) CONGO EQUIPMENT(CDF) EXC. HIGH MOUNT STOP LAMP<TS6> 		8-98184-914-1 01 1 1304- ● ●
1 16.585 PANEL; ROOF
INTERIOR CUSTOM(RBD) MAP LAMP<C74> HIGH MOUNT STOP LAMP<TS6> EXC. CONGO EQUIPMENT(CDF) 		8-98103-960-3 01 1 1304- ● ●
1 16.585 PANEL; ROOF
HIGH MOUNT STOP LAMP<TS6> ROOF RADIO ANTENNA<U71> 		8-98103-954-3 01 1 1304- ●
1 16.585 PANEL; ROOF
HIGH MOUNT STOP LAMP<TS6> EXC. HEADER CONSOLE<DK6>,ROOF RADIO ANTENNA<U71> 		8-98103-953-3 01 1 1304- ●
1 16.585 PANEL; ROOF
EXC. HEADER CONSOLE<DK6>,HIGH MOUNT STOP LAMP<TS6>,ROOF RADIO ANTENNA<U71> 		8-98103-952-3 01 1 1304- ●
2 16.585 PANEL; ROOF,CENTER 8-98103-964-5 01 1 1304- ● ● ● ● ●
3 16.585 PANEL; ROOF,RR 8-98103-999-3 01 1 1304- ● ● ● ● ●
13 16.585 PANEL; ROOF SUPPORT
(C) 		8-98150-942-0 01 1 1304- ● ●
13 16.585 PANEL; ROOF SUPPORT
(A) 		8-98103-963-1 01 1 1304- ● ● ● ● ●
13 16.585 PANEL; ROOF SUPPORT
(B) 		8-98103-982-0 01 1 1304- ● ●
37 16.585 BRACKET; TRIM,ROOF BACK 8-98103-996-0 02 1 1304- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
