◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10871 - EXZ RHD FUEL TANK 400L/400L+400L ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-03 - CLUTCH PEDAL AND CONTROL ▶
2-03 — CLUTCH PEDAL AND CONTROL (#11708) — 35 parça

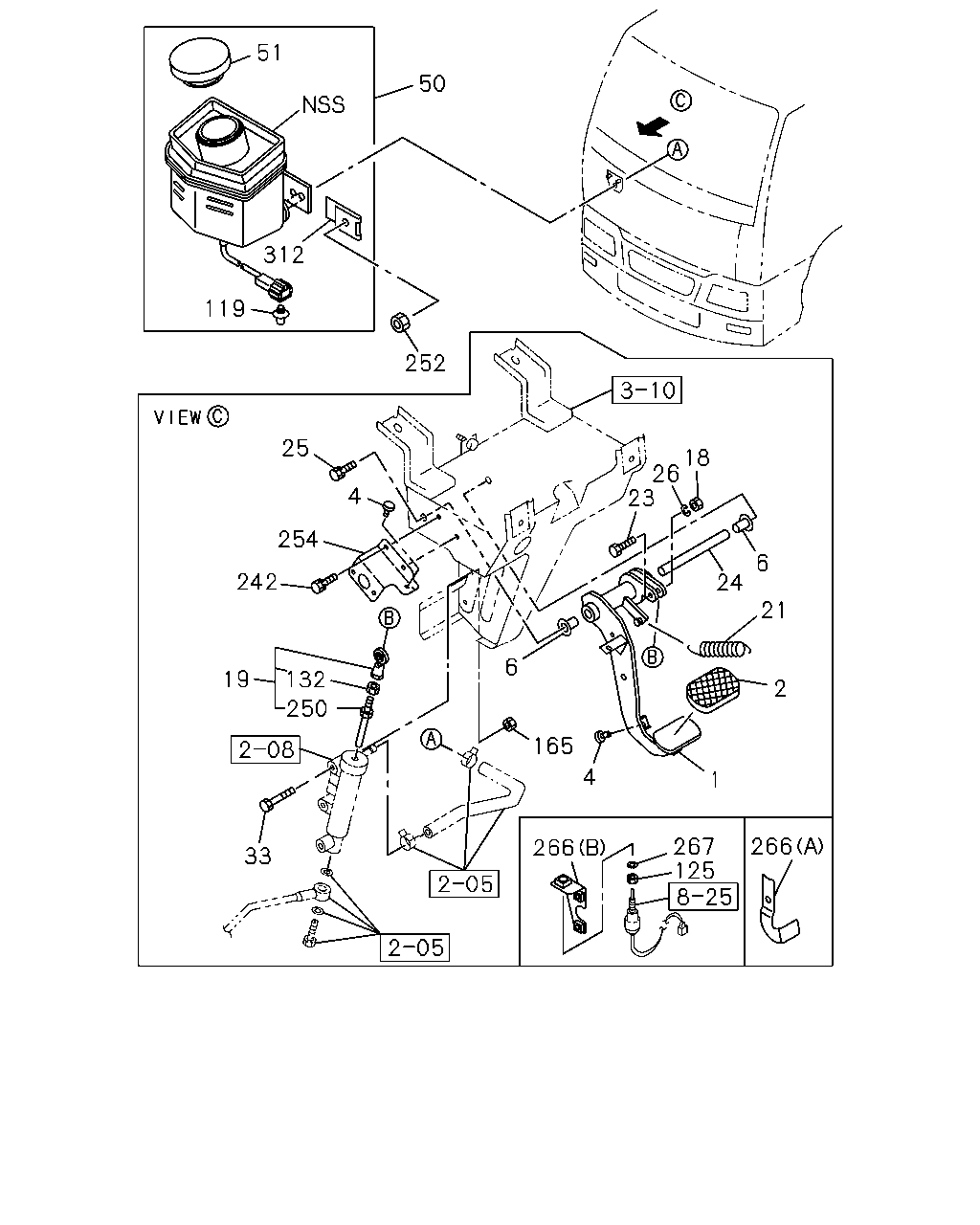

çizim 78180
51 50 312 119 252 6 25 18 26 23 4 254 6 24 242 21 19 132 250 2 165 4 1 266 267 125 266 33
BalonParca AdiParca NoAdetTipApplied Date
1 PEDAL; CLU
FULLER M/T<X9B> 		1-73907-321-4 01 1 0106-
1 PEDAL; CLU
TRANSMISSION-ZF 16S221 OD(Y1U) 		1-73907-469-1 01 1 0106-
2 COVER; CLU PEDAL 8-97893-618-1 01 1 0106-
4 STOPPER; CLU PEDAL
FULLER M/T<X9B> 		1-47319-014-1 04 1 0106-0109
4 STOPPER; CLU PEDAL 1-47319-014-1 04 1 0110-
4 STOPPER; CLU PEDAL
TRANSMISSION-ZF 16S221 OD(Y1U) 		1-47319-014-1 02 1 0106-0109
6 BUSHING; CLU PEDAL 1-09330-045-0 02 1 0106-
18 NUT; PUSH ROD
M8 		9-09110-508-0 01 1 0106-
19 ROD ASM; PUSH,CLU
FULLER M/T<X9B> 		1-73907-320-1 01 1 0106-
19 ROD ASM; PUSH,CLU
TRANSMISSION-ZF 16S221 OD(Y1U) 		1-73907-679-0 01 1 0106-
21 SPRING; RETURN,CLU PEDAL
FULLER M/T<X9B> 		1-73908-265-0 01 1 0106-
21 SPRING; RETURN,CLU PEDAL
TRANSMISSION-ZF 16S221 OD(Y1U) 		1-73907-445-0 01 1 0106-
23 BOLT; PUSH ROD
M8X39.7 		1-09009-150-0 01 1 0106-
24 SHAFT; CLU PEDAL 1-73998-936-1 01 1 0106-
25 BOLT; PEDAL
M10X25 W/LK WASHER 		0-50051-025-0 02 1 0106-
26 WASHER; LK,PUSH ROD
ID=8.2 		9-09150-608-0 01 1 0106-
33 BOLT; CLU M/CYL TO BRKT
M10X60 FLANGE 		0-28081-060-0 02 1 0106-0512
33 BOLT; CLU M/CYL TO BRKT
M10X60 FLANGE 		0-28051-060-0 02 1 0601-
50 TANK; OIL,CLU 1-47530-182-0 01 1 0106-
51 CAP; OIL TANK,CLU 8-94136-483-1 01 1 0106-
119 CLIP; CONNECTOR
OD=7 H=1.2 		8-94364-750-0 01 1 0106-
125 NUT; CLU SWITCH
TRANSMISSION-ZF 16S221 OD(Y1U) M10 		9-09110-510-0 01 1 0106-
132 NUT; LK,PUSH ROD
M8 		9-09110-408-0 01 1 0106-
165 NUT; CLU M/CYL
TRANSMISSION-ZF 16S221 OD(Y1U) M10 FLANGE 		0-91150-210-0 02 1 0106-0602
165 NUT; CLU M/CYL
TRANSMISSION-ZF 16S221 OD(Y1U) M10 FLANGE 		0-91180-210-0 02 1 0603-
242 BOLT; BRKT,CLUTCH
FULLER M/T<X9B> M6X16 W/LK WASHER 		0-50040-616-0 02 1 0106-
242 BOLT; BRKT,CLUTCH
TRANSMISSION-ZF 16S221 OD(Y1U) M6X16 W/LK WASHER 		0-50040-616-0 04 1 0106-
250 ROD; PUSH,CLU
FULLER M/T<X9B> 		1-73996-219-0 01 1 0106-
250 ROD; PUSH,CLU
TRANSMISSION-ZF 16S221 OD(Y1U) 		1-31422-019-0 01 1 0106-
252 NUT; OIL TANK
M8 FLANGE W/RUBBER 		1-09984-176-0 02 1 0106-
254 BRACKET; CLU SENSOR 1-73998-979-5 01 1 0106-
266 BRACKET; CLU SWITCH
TRANSMISSION-ZF 16S221 OD(Y1U) (A) 		1-73907-395-1 01 1 0106-
266 BRACKET; CLU SWITCH
TRANSMISSION-ZF 16S221 OD(Y1U) (B) 		1-73908-354-0 01 1 0106-
267 WASHER; LK,CLU SWITCH
TRANSMISSION-ZF 16S221 OD(Y1U) ID=10.2 		9-09150-510-0 01 1 0106-
312 PLATE; OIL TANK,CLU 1-21249-007-1 01 1 0106-
