Isuzu WW
▶
TRUCKS
▶
GXR
▶
11529 - GXR(RHD)EURO5
▶
5 - Frame, Cab Mounting
▶
5-01 - FRAME AND OTHER PARTS
▶
5-01 — FRAME AND OTHER PARTS
(#117065) — 72 parça
◀

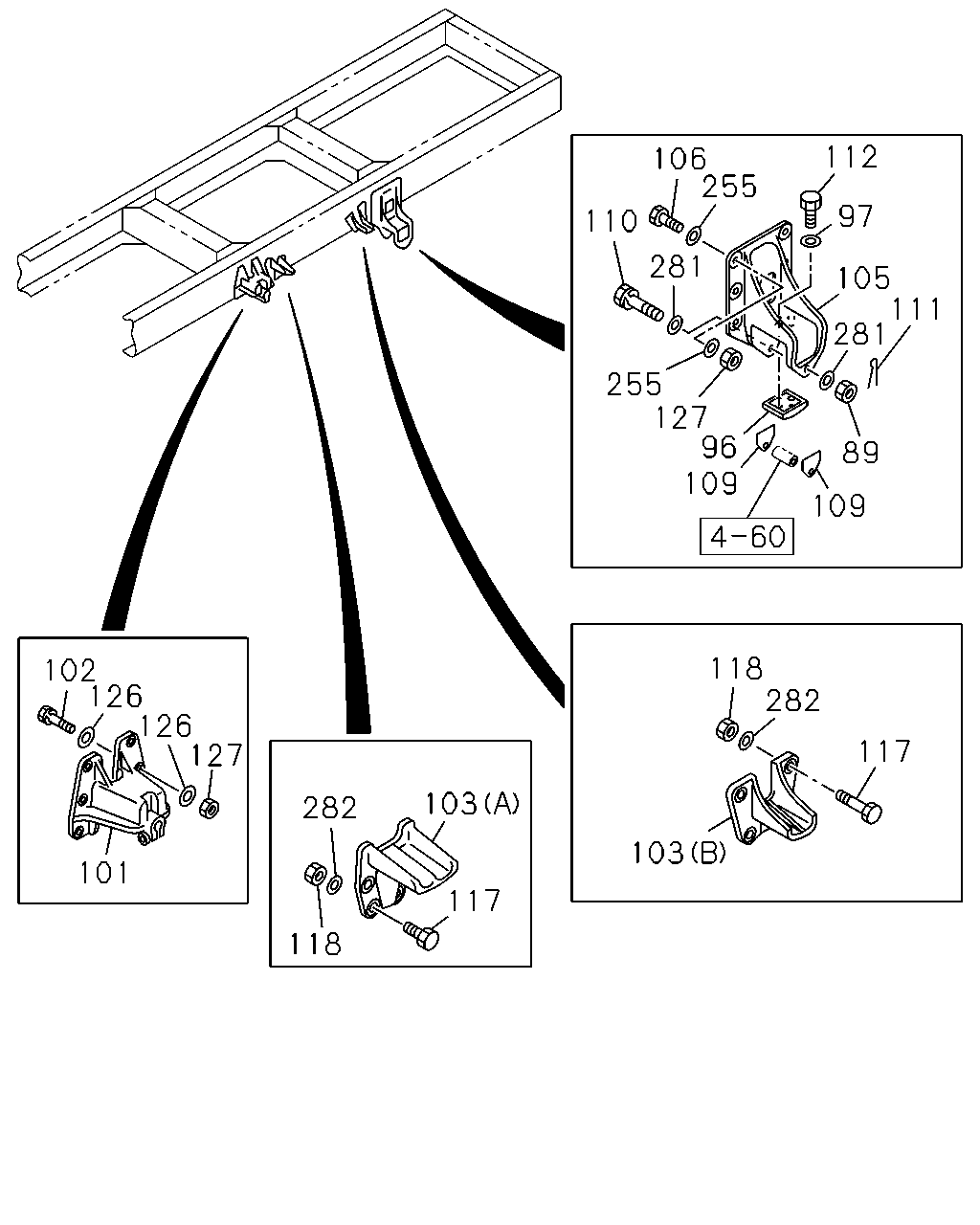

[501A] BRACKET;REAR (21 parça)

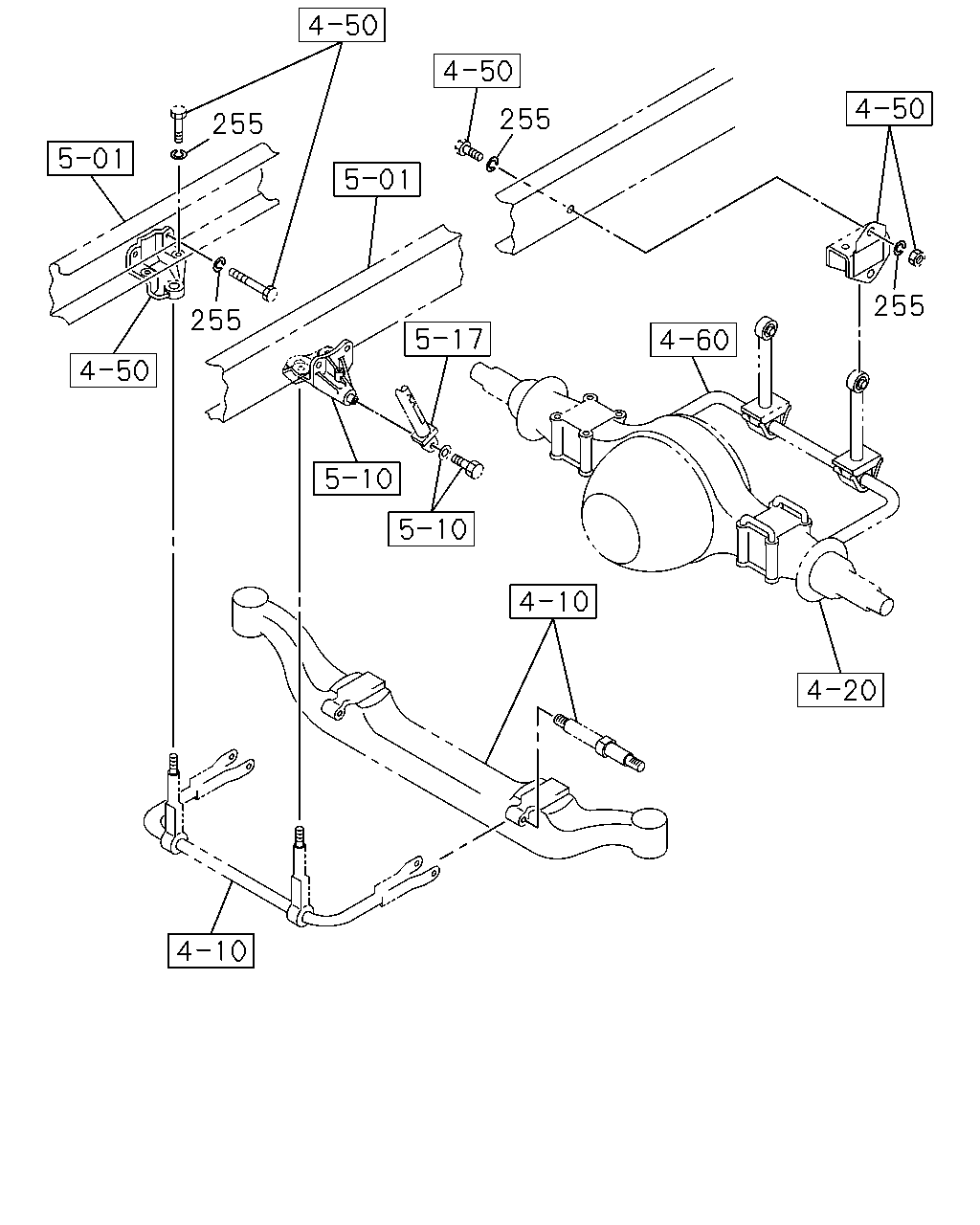

[501A] BRACKET;STABILIZER (1 parça)

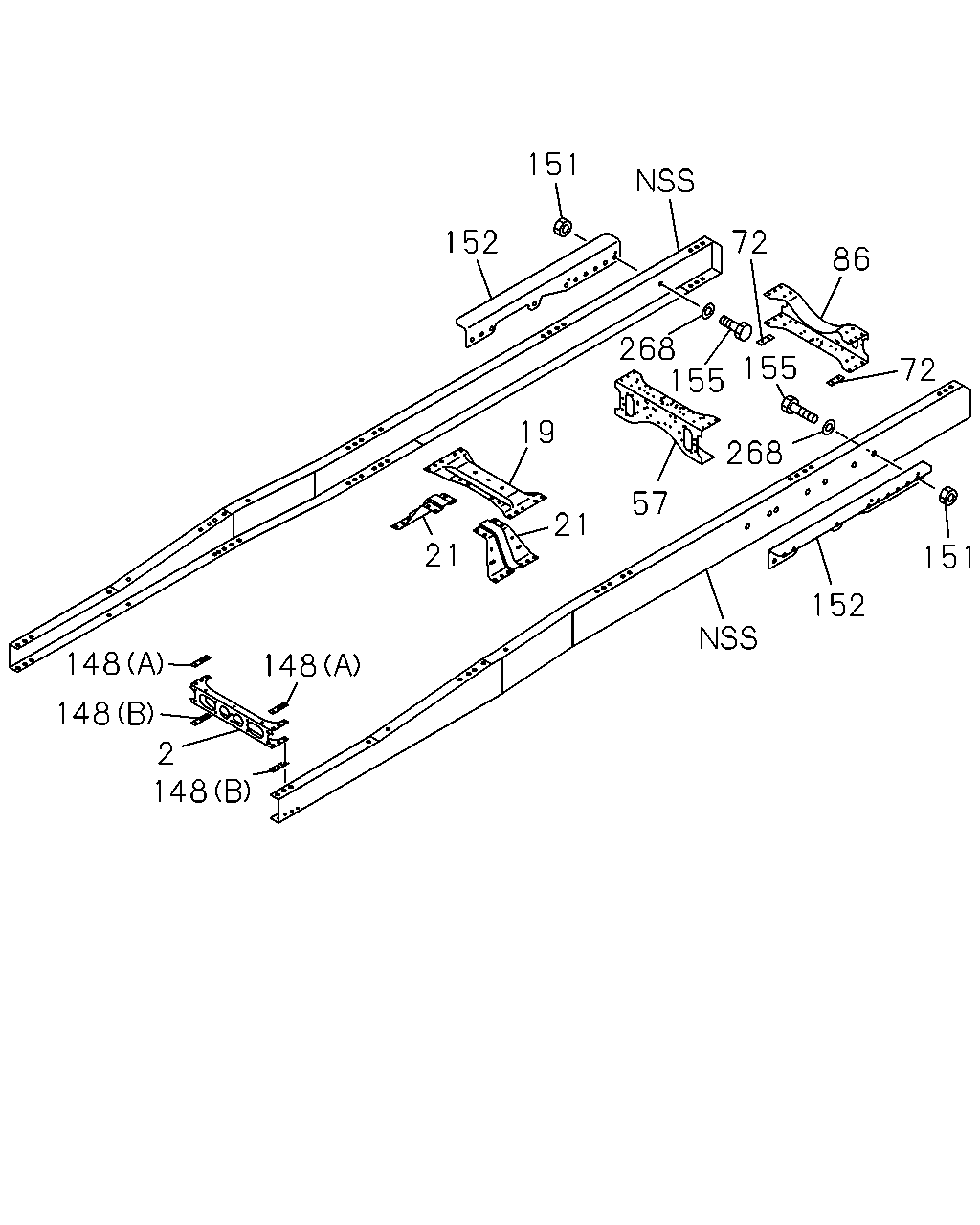

[501A] CROSS MEMBER AND OUTRIGGER (21 parça)

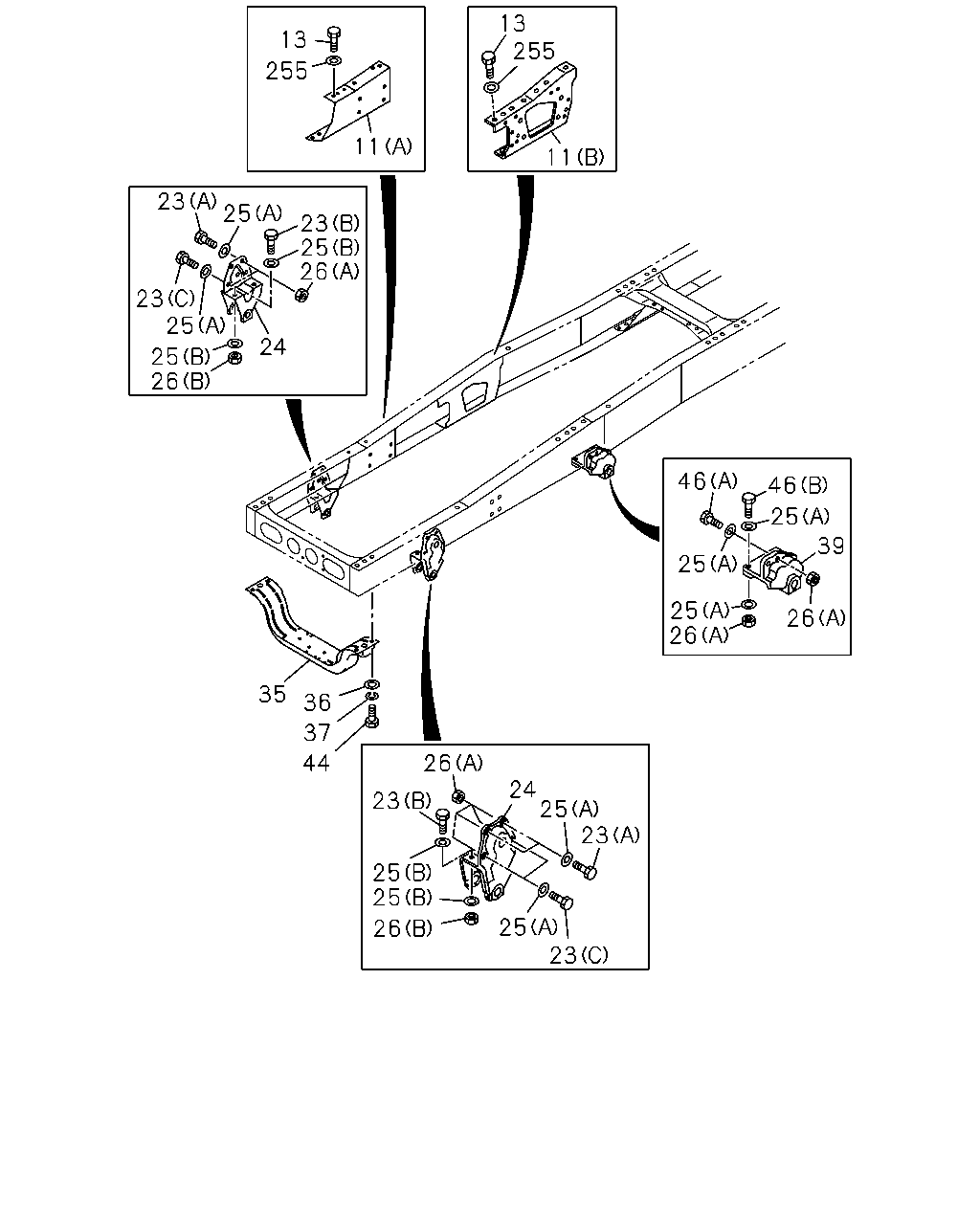

[501A] BRACKET;FRONT AND UNDER MEMBER (29 parça)
▶
103
117
282
118
282
103
117
118
101
127
126
126
102
109
89
109
96
281
111
97
105
255
112
106
110
255
281
127
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
89
NUT; LEAF SPR STOPPER
M14 SLOTTED
0-91116-514-0
02
1
1304-
96
PAD; RR SPR
1-53359-047-0
02
1
1304-
97
WASHER; LK,PAD
ID=14.2
0-91510-514-0
04
1
1304-
101
BRACKET; RR SPR,FRT
1-53353-078-1
02
1
1304-
102
BOLT; BRKT,RR SPR
M14X50
0-20951-450-0
12
1
1304-
103
STOPPER; SUB SPR
(A)
1-53356-057-0
02
1
1304-
103
STOPPER; SUB SPR
(B)
1-53357-037-0
02
1
1304-
105
BRACKET; RR SPR,RR
1-53354-064-1
02
1
1304-
106
BOLT; BRKT
M14X50
0-20951-450-0
12
1
1304-
109
SHIM; RR SPR
T=4.5
1-53359-061-1
02
1
1304-
109
SHIM; RR SPR
T=3.2
1-53359-062-1
02
1
1304-
110
BOLT; LEAF SPR STOPPER
1-09000-007-0
02
1
1304-
111
PIN; SPLIT,LEAF SPR STOPPER
OD=2.8 L=28
0-81123-028-0
02
1
1304-
112
BOLT; PAD
M14X35
0-20951-435-0
04
1
1304-
117
BOLT; STOPPER
M14X40
0-20951-440-0
16
1
1304-
118
NUT; STOPPER
M14
0-91110-514-0
16
1
1304-
126
WASHER; PL,BRKT
ID=15
8-98010-627-1
24
1
1304-
127
NUT; BRKT
M14
0-91110-514-0
24
1
1304-
255
WASHER; PL,BRKT
ID=15
8-98010-627-1
54
1
1304-
281
WASHER; LEAF SPR STOPPER
ID=15 OD=30 T=2.6
0-91610-614-0
04
1
1304-
282
WASHER; PL,STOPPER
ID=15
8-98010-627-1
16
1
1304-
255
255
255
255
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
255
WASHER; PL,BRKT
ID=15
8-98010-627-1
54
1
1304-
152
151
72
268
86
155
155
72
268
151
152
57
19
21
21
148
148
2
148
148
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
MEMBER; CROSS,1ST
8-97623-017-3
01
1
1304-
19
MEMBER; CROSS,2ND
8-98098-303-0
01
1
1304-
21
GUSSET; 2ND CROSS
8-98202-398-0
01
1
1304-1407
21
GUSSET; 2ND CROSS
8-98202-398-0
01
1
1408-
21
GUSSET; 2ND CROSS
8-98202-399-0
01
1
1304-1407
21
GUSSET; 2ND CROSS
8-98202-399-0
01
1
1408-
57
MEMBER; CROSS,RR SUSP FRT
8-97625-336-0
01
1
1304-
72
SPACER; TRUNNION
8-98191-613-0
02
1
1304-
86
MEMBER; CROSS,RR SUSP RR
8-97624-484-1
01
1
1304-
148
SPACER; C/MBR
(A)
8-98118-884-2
02
1
1304-
148
SPACER; C/MBR
(B)
8-98118-885-0
02
1
1304-
151
NUT; OUTRIGGER
M16
0-91110-516-0
28
1
1304-1309
151
NUT; OUTRIGGER
M16
0-91110-516-0
20
1
1310-
152
OUTRIGGER
8-98231-822-0
01
1
1304-1309
152
OUTRIGGER
8-98249-854-0
01
1
1310-
152
OUTRIGGER
8-98231-823-0
01
1
1304-1309
152
OUTRIGGER
8-98249-855-0
01
1
1310-
155
BOLT; OUTRIGGER
M16X40
0-20951-640-0
28
1
1304-1309
155
BOLT; OUTRIGGER
M16X40
0-20951-640-0
20
1
1310-
268
WASHER; PL,OUTRIGGER
ID=17 OD=30
9-09851-935-0
28
1
1304-1309
268
WASHER; PL,OUTRIGGER
ID=17 OD=30
9-09851-935-0
20
1
1310-
13
255
11
23
25
23
25
26
23
25
24
25
26
11
255
13
46
46
25
39
25
25
26
26
26
35
36
37
44
23
24
25
23
25
25
26
25
23
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
11
BRACKET; ENG MTG
(B)
8-98055-432-1
01
1
1304-1407
11
BRACKET; ENG MTG
(B)
8-98055-432-1
01
1
1408-
11
BRACKET; ENG MTG
(B)
8-98055-433-0
01
1
1304-1407
11
BRACKET; ENG MTG
(B)
8-98055-433-0
01
1
1408-
11
BRACKET; ENG MTG
(A)
8-98059-445-1
01
1
1304-1407
11
BRACKET; ENG MTG
(A)
8-98059-445-1
01
1
1408-
11
BRACKET; ENG MTG
(A)
8-98059-446-1
01
1
1304-1407
11
BRACKET; ENG MTG
(A)
8-98059-446-1
01
1
1408-
13
BOLT; BRKT,ENG MTG
M14X35
0-20951-435-0
04
1
1304-
13
BOLT; BRKT,ENG MTG
M14X40
0-20951-440-0
10
1
1304-
23
BOLT; BRKT,SPR
(A) M14X40
0-20951-440-0
04
1
1304-
23
BOLT; BRKT,SPR
(B) M16X50
0-20951-650-0
04
1
1304-
23
BOLT; BRKT,SPR
(C) M14X43
8-98097-159-0
04
1
1304-
24
BRACKET; FRT SPR,FRT
8-98052-580-0
02
1
1304-
25
WASHER; PL,BRKT
(B) ID=16.2
1-09503-316-0
08
1
1304-
25
WASHER; PL,BRKT
(A) ID=15
8-98010-627-1
28
1
1304-
26
NUT; BRKT,SPR
(A) M14
0-91110-514-0
16
1
1304-
26
NUT; BRKT,SPR
(B) M16
0-91110-516-0
04
1
1304-
35
MEMBER; UNDER
1-53174-263-2
01
1
1304-
36
WASHER; PL,UNDER MBR
ID=17
0-91614-516-0
04
1
1304-
37
WASHER; LK,UNDER MBR
ID=16.2
0-91510-816-0
04
1
1304-
39
BRACKET; FRT SPR,RR
1-53352-152-0
01
1
1304-1407
39
BRACKET; FRT SPR,RR
1-53352-152-0
01
1
1408-
39
BRACKET; FRT SPR,RR
1-53352-153-0
01
1
1304-1407
39
BRACKET; FRT SPR,RR
1-53352-153-0
01
1
1408-
44
BOLT; UNDER MBR
M16X60
0-20951-660-0
04
1
1304-
46
BOLT; BRKT FIX
(A) M14X40
0-20951-440-0
04
1
1304-
46
BOLT; BRKT FIX
(B) M14X40
8-98097-157-0
04
1
1304-
255
WASHER; PL,BRKT
ID=15
8-98010-627-1
54
1
1304-
