Isuzu WW
▶
TRUCKS
▶
GXR
▶
11528 - GXR(RHD)EURO3
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶

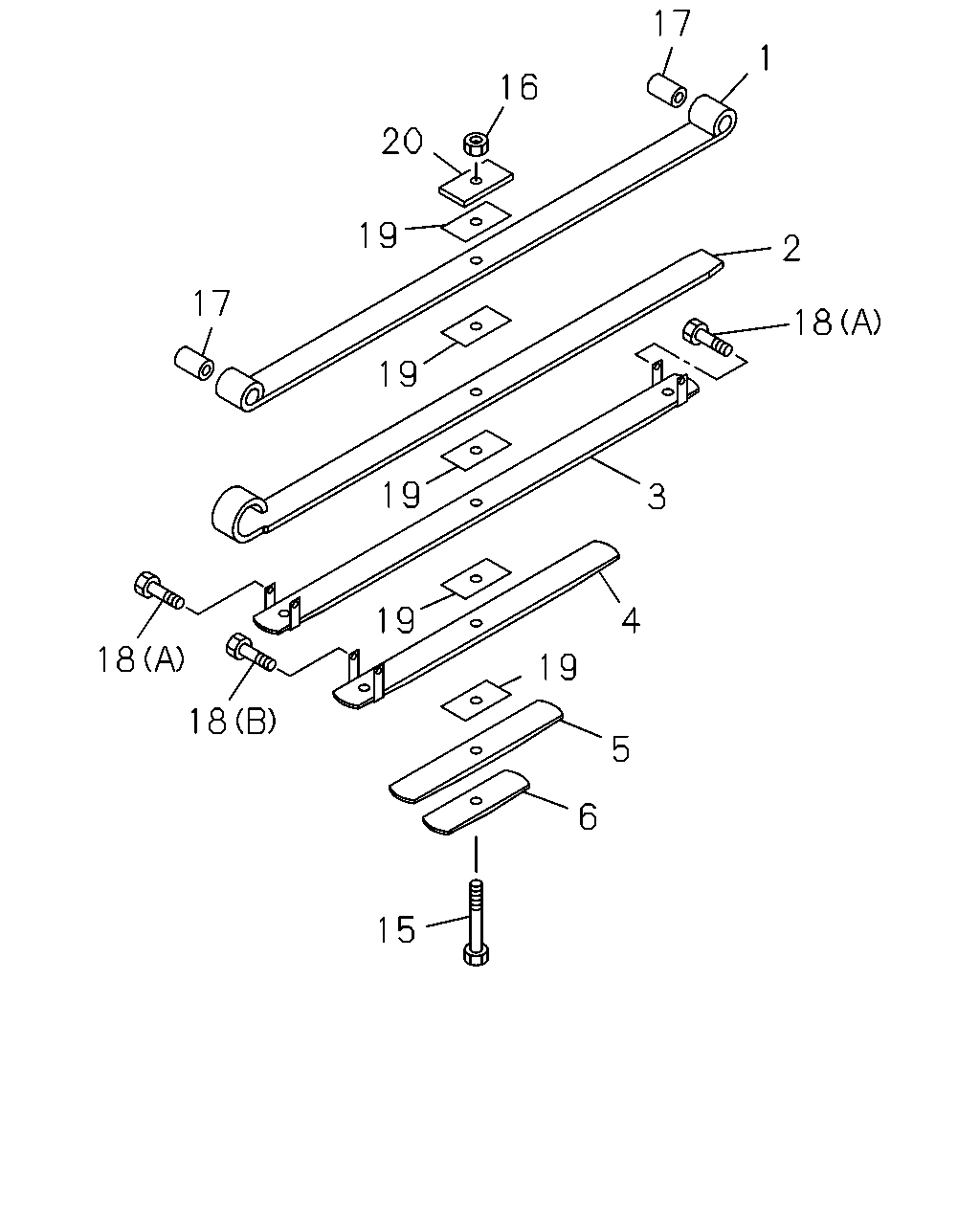

4-55 - FRONT LEAF SPRING
▶
4-55 — FRONT LEAF SPRING
(#117061) — 13 parça
1
2
3
19
20
16
17
17
19
19
18
18
19
19
5
6
15
18
4
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SPRING; LEAF,NO 1,FRT
ASM PART: A = 8-98236-923-0
8-98242-107-0
01
1
-
2
SPRING; LEAF,NO 2,FRT
ASM PART: A = 8-98236-923-0
8-98242-108-0
01
1
-
3
SPRING; LEAF,NO 3,FRT
ASM PART: A = 8-98236-923-0
8-98242-109-0
01
1
-
4
SPRING; LEAF,NO 4,FRT
ASM PART: A = 8-98236-923-0
8-98242-110-0
01
1
-
5
SPRING; LEAF,NO 5,FRT
ASM PART: A = 8-98236-923-0
8-98242-111-0
01
1
-
6
SPRING; LEAF,NO 6,FRT
ASM PART: A = 8-98236-923-0
8-98242-112-0
01
1
-
15
BOLT; CENTER,LEAF SPR,FRT
L=130 ASM PART: A = 8-98236-923-0
8-98013-247-0
01
1
-
16
NUT; CENTER BOLT,LEAF SPR,FRT
M16 ASM PART: A = 8-98236-923-0
1-09400-054-0
01
1
-
17
BUSHING; LEAF SPR,FRT
OD=38 ASM PART: A = 8-98236-923-0
1-51351-009-0
02
1
-
18
BOLT; CLIP,LEAF SPR,FRT
(A), M10X103 ASM PART: A = 8-98236-923-0
8-97615-331-0
02
1
-
18
BOLT; CLIP,LEAF SPR,FRT
(B), M10X99 ASM PART: A = 8-98236-923-0
8-97615-895-0
01
1
-
19
SPACER; LEAF SPRING,FRT
T=1 ASM PART: A = 8-98236-923-0
1-51177-071-0
05
1
-
20
SEAT; LEAF SPR,FRT
T=14 ASM PART: A = 8-98236-923-0
1-51177-097-0
01
1
-
