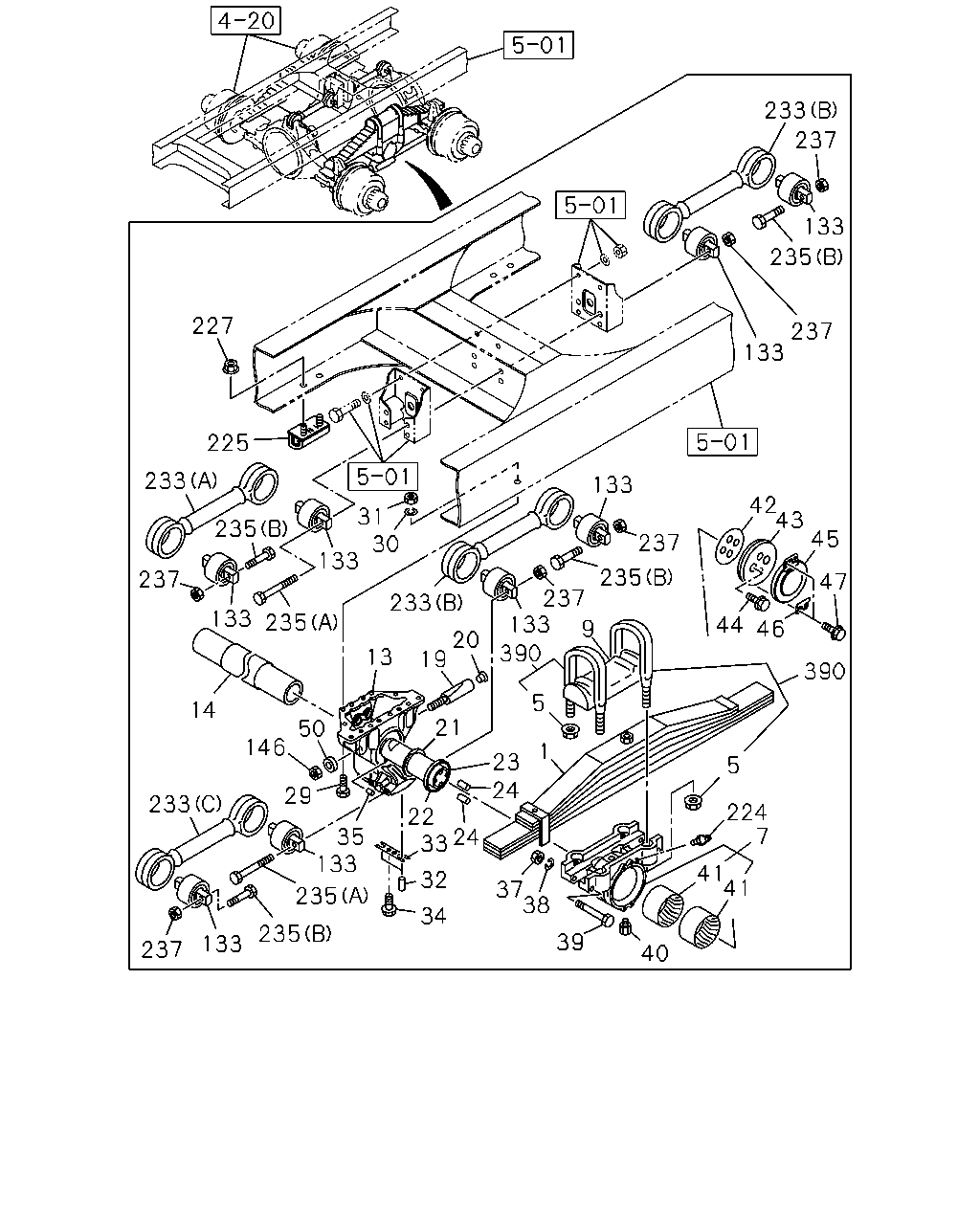

4-60 — REAR SUSPENSION (#117060) — 74 parça

227 225 233 237 235 133 235 133 30 31 233 13 19 20 390 133 237 235 237 133 42 43 45 47 390 46 44 5 224 7 41 41 40 39 38 37 32 34 33 24 24 23 1 5 9 21 22 35 133 235 235 133 237 233 29 146 50 14 133 237 235 133 237 233

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 4500MM(45W) MULTI LEAF SUSP RR<SAS> 9-LEAF	1-51410-294-0	02	1	1304-	●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. TAPER LEAF SUSP RR<SAT> 5-LEAF	8-98102-211-1	02	1	1304-	●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 6600MM(66W) MULTI LEAF SUSP RR<SAS> 9-LEAF	8-98236-926-0	02	1	1304-	●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 4700MM(47W) MULTI LEAF SUSP RR<SAS> 10-LEAF	1-51410-150-0	02	1	1304-		●
5	NUT; U-BOLT,RR SPR M27 FLANGE	1-09440-058-0	08	1	1304-	●	●
7	SEAT; SPR,LWR	8-97614-049-2	02	1	1304-	●	●
9	PAD; U BOLT,RR SPR	8-98177-265-0	02	1	1304-	●	●
13	BRACKET; TRUNNION SHAFT	1-53361-079-0	02	1	1304-	●	●
14	PIPE; TRUNNION BRKT	1-51389-032-1	01	1	1304-	●	●
19	BOLT; KEY,SHAFT	1-51389-066-0	02	1	1304-	●	●
20	GROMMET; KEY BOLT	1-09333-057-0	02	1	1304-	●	●
21	WASHER; THRUST,TRUNNION SHAFT	1-51389-058-0	02	1	1304-	●	●
22	SHAFT; TRUNNION,RR SUSP	1-51381-022-3	02	1	1304-	●	●
23	SEAL; OIL,TRUNNION SHAFT	1-51389-005-0	02	1	1304-	●	●
24	PIN; SIDE PLATE TO SHAFT	1-09740-009-0	04	1	1304-	●	●
29	BOLT; BRKT TO FRAME M18X75	8-98012-872-0	24	1	1304-	●	●
29	BOLT; BRKT TO FRAME M18X55	9-92061-855-0	04	1	1304-	●	●
30	WASHER; PL,TRUNNION BRKT ID=19	1-09503-162-0	28	1	1304-	●	●
31	NUT; TRUNNION BRKT M18	0-91110-518-0	28	1	1304-	●	●
32	PIN; STRAIGHT	1-09740-027-0	04	1	1304-	●	●
33	PLATE; LK KNOCK PIN	1-53369-032-1	02	1	1304-	●	●
34	BOLT; LOCK PLATE M10X16 FLANGE	0-28051-016-0	02	1	1304-	●	●
35	PIN; TRUNNION SHAFT	1-09749-030-1	04	1	1304-	●	●
37	NUT; SPR SETTING M22	0-91110-522-0	04	1	1304-	●	●
38	WASHER; LK,SPR SETTING ID=22.5	0-91510-622-0	04	1	1304-	●	●
39	BOLT; SPR SETTING M22X155	9-09801-290-1	04	1	1304-	●	●
40	VALVE; GREASE ESCAPE	9-51389-010-0	02	1	1304-	●	●
41	BUSHING; TRUNNION SHAFT	8-98081-832-0	04	1	1304-	●	●
42	SHIM; SIDE PLATE TO SHAFT	1-51389-033-1	12	1	1304-	●	●
43	PLATE; SIDE,TRUNNION SHAFT	1-51382-010-4	02	1	1304-	●	●
44	BOLT; SIDE PLATE TO SHAFT M18X48.5 FLANGE	1-09044-038-2	04	1	1304-	●	●
45	COVER; SPR SEAT	1-51387-013-2	02	1	1304-	●	●
46	BRACKET; COVER	1-51387-015-2	02	1	1304-	●	●
47	BOLT; COVER TO SEAT M8X12 FLANGE	0-28050-812-0	08	1	1304-	●	●
50	WASHER; PL,TRUNNION SHAFT ID=25	8-98012-871-0	02	1	1304-	●	●
133	BUSHING; RUBBER,TORQUE ROD BEST VALUE PARTS	1-87411-074-1	02	1	1304-1412	●	●
133	BUSHING; RUBBER,TORQUE ROD BEST VALUE PARTS	1-87411-074-1	02	1	1304-1412	●	●
133	BUSHING; RUBBER,TORQUE ROD BEST VALUE PARTS	1-87411-074-1	04	1	1501-	●	●
133	BUSHING; RUBBER,TORQUE ROD BEST VALUE PARTS	1-87411-074-1	04	1	1501-	●	●
133	BUSHING; RUBBER,TORQUE ROD OD=105	1-51519-113-1	02	1	1304-	●	●
133	BUSHING; RUBBER,TORQUE ROD OD=105	1-51519-113-1	02	1	1304-	●	●
133	BUSHING; RUBBER,TORQUE ROD OD=105	1-51519-113-1	04	1	1304-	●	●
133	BUSHING; RUBBER,TORQUE ROD OD=105	1-51519-113-1	04	1	1304-	●	●
133	BUSHING; RUBBER,TORQUE ROD BEST VALUE PARTS	1-87411-074-1	04	1	1304-1412	●	●
133	BUSHING; RUBBER,TORQUE ROD BEST VALUE PARTS	1-87411-074-1	04	1	1304-1412	●	●
133	BUSHING; RUBBER,TORQUE ROD BEST VALUE PARTS	1-87411-074-1	02	1	1501-	●	●
133	BUSHING; RUBBER,TORQUE ROD BEST VALUE PARTS	1-87411-074-1	02	1	1501-	●	●
146	NUT; KEY BOLT M24	0-91110-524-0	02	1	1304-	●	●
224	NIPPLE; GREASE,SPR SEAT PT1/8 STRAIGHT	0-90301-410-0	02	1	1304-	●	●
225	RUBBER; CUSHION,RR SPR WHEEL BASE 4500MM(45W) FORWARD LH,REARWARD RH	1-53366-072-2	02	1	1304-	●
225	RUBBER; CUSHION,RR SPR WHEEL BASE 6600MM(66W) MULTI LEAF SUSP RR<SAS> FORWARD LH,REARWARD RH	1-53366-072-2	02	1	1304-	●
225	RUBBER; CUSHION,RR SPR WHEEL BASE 4500MM(45W) FORWARD RH,REARWARD LH	1-53366-073-2	02	1	1304-	●
225	RUBBER; CUSHION,RR SPR WHEEL BASE 6600MM(66W) MULTI LEAF SUSP RR<SAS> FORWARD RH,REARWARD LH	1-53366-073-2	02	1	1304-	●
225	RUBBER; CUSHION,RR SPR WHEEL BASE 6600MM(66W) TAPER LEAF SUSP RR<SAT> FORWARD RH,REARWARD LH	1-53366-045-1	02	1	1304-	●
225	RUBBER; CUSHION,RR SPR FORWARD RH,REARWARD LH	1-53366-045-1	02	1	1304-		●
225	RUBBER; CUSHION,RR SPR WHEEL BASE 6600MM(66W) TAPER LEAF SUSP RR<SAT> FORWARD LH,REARWARD RH	1-53366-046-1	02	1	1304-	●
225	RUBBER; CUSHION,RR SPR FORWARD LH,REARWARD RH	1-53366-046-1	02	1	1304-		●
227	NUT; CUSHION RUBBER M12 FLANGE	0-91180-212-0	08	1	1304-	●	●
233	ROD ASM; TORQUE,RR SUSP WHEEL BASE 4500MM(45W) (C) L=525	1-51511-656-0	02	1	1304-	●
233	ROD ASM; TORQUE,RR SUSP (C) L=525	1-51511-656-0	02	1	1304-		●
233	ROD ASM; TORQUE,RR SUSP WHEEL BASE 4500MM(45W) (B) L=550	1-51511-659-0	01	1	1304-	●
233	ROD ASM; TORQUE,RR SUSP (B) L=550	1-51511-659-0	01	1	1304-		●
233	ROD ASM; TORQUE,RR SUSP WHEEL BASE 4500MM(45W) (B) L=550	1-51511-659-0	02	1	1304-	●
233	ROD ASM; TORQUE,RR SUSP (B) L=550	1-51511-659-0	02	1	1304-		●
233	ROD ASM; TORQUE,RR SUSP WHEEL BASE 6600MM(66W) (A) L=530	1-51511-678-0	01	1	1304-	●
233	ROD ASM; TORQUE,RR SUSP (A) L=530	1-51511-678-0	01	1	1304-		●
233	ROD ASM; TORQUE,RR SUSP WHEEL BASE 4500MM(45W) (A) L=525	1-51511-656-0	01	1	1304-	●
233	ROD ASM; TORQUE,RR SUSP WHEEL BASE 6600MM(66W) (C) L=520	1-51511-605-0	02	1	1304-	●
233	ROD ASM; TORQUE,RR SUSP WHEEL BASE 6600MM(66W) (B) L=560	1-51511-669-0	01	1	1304-	●
233	ROD ASM; TORQUE,RR SUSP WHEEL BASE 6600MM(66W) (B) L=560	1-51511-669-0	02	1	1304-	●
235	BOLT; TORQUE ROD (A) M18X265	8-98012-875-0	06	1	1304-	●	●
235	BOLT; TORQUE ROD (B) M18X102	8-98012-877-0	12	1	1304-	●	●
237	NUT; TORQUE ROD M18	1-09464-011-0	18	1	1304-	●	●
390	U-BOLT SET; RR SPRING L=350	1-87870-392-1	04	1	1304-	●	●
