4-55 — FRONT LEAF SPRING (#117058) — 69 parça

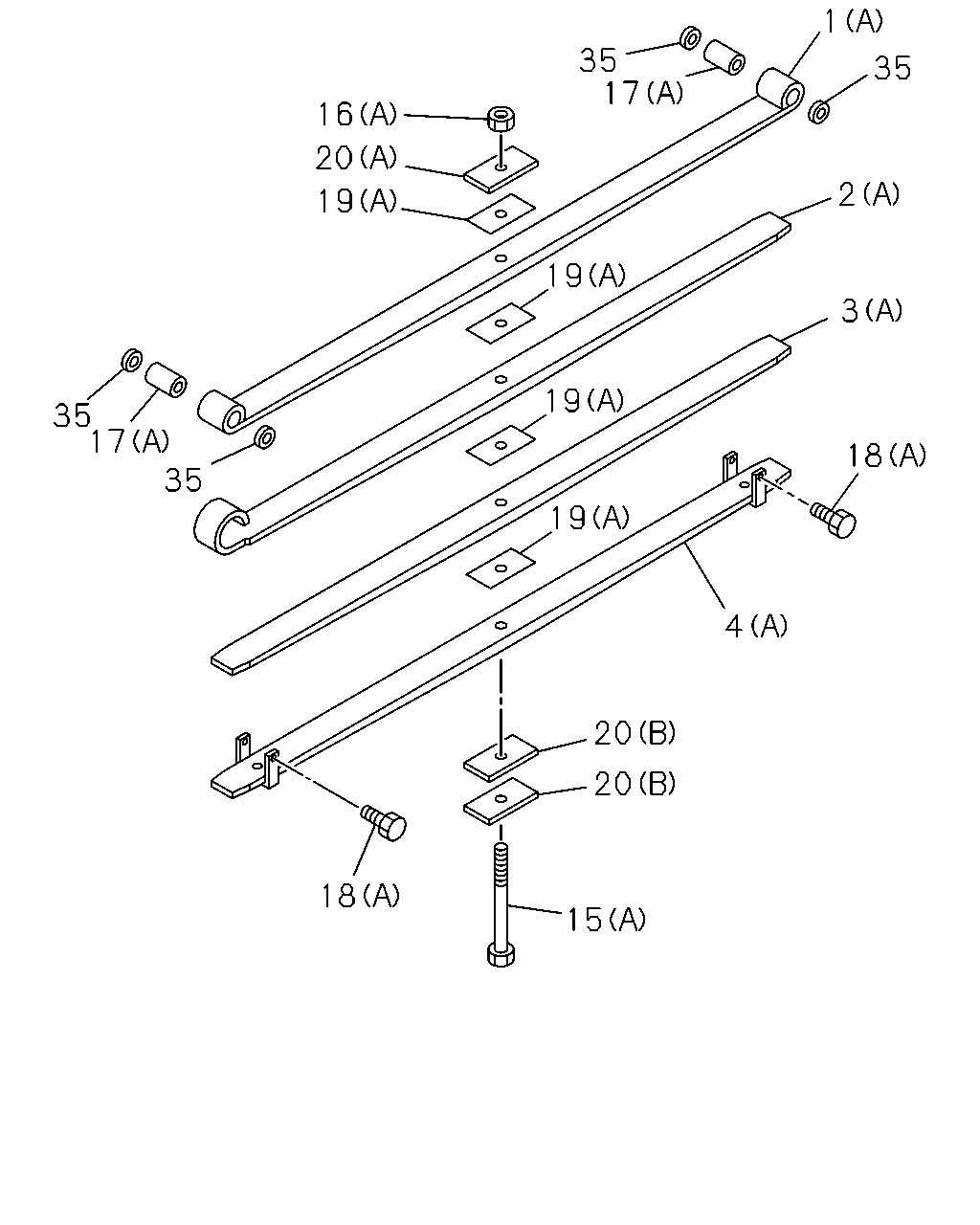

çizim 343501
16 19 20 35 1 2 17 35 3 18 4 19 19 19 35 35 17 18 15 20 20
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING; LEAF,NO 1,FRT
(A) ASM PART: A = 8-97618-758-0 		8-98071-906-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(B) ASM PART: B = 8-98162-076-0, C = 8-98236-921-0 		8-98165-020-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(B) ASM PART: D = 8-98236-924-0 		8-98188-249-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(A) ASM PART: A = 8-97618-758-0 		8-98071-907-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(B) ASM PART: B = 8-98162-076-0, C = 8-98236-921-0 		8-98165-021-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(B) ASM PART: D = 8-98236-924-0 		8-98188-250-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(A) ASM PART: A = 8-97618-758-0 		8-98071-908-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(B) ASM PART: B = 8-98162-076-0, C = 8-98236-921-0 		8-98165-022-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(B) ASM PART: D = 8-98236-924-0 		8-98188-251-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
(A) ASM PART: A = 8-97618-758-0 		8-98071-909-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
(B) ASM PART: B = 8-98162-076-0, C = 8-98236-921-0 		8-98165-023-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
(B) ASM PART: D = 8-98236-924-0 		8-98188-252-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(B), L=150 ASM PART: B = 8-98162-076-0, D = 8-98236-924-0 		1-51156-328-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(B), L=165 ASM PART: C = 8-98236-921-0 		1-51156-366-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(A), L=145 ASM PART: A = 8-97618-758-0 		1-51156-419-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
(B), M16 ASM PART: B = 8-98162-076-0, C = 8-98236-921-0, D = 8-98236-924-0 		1-09400-054-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
(A), M16 ASM PART: A = 8-97618-758-0 		1-09400-061-0 01 1 -
17 BUSHING; LEAF SPR,FRT
(B), OD=38 ASM PART: B = 8-98162-076-0, C = 8-98236-921-0, D = 8-98236-924-0 		1-51351-009-0 02 1 -
17 BUSHING; LEAF SPR,FRT
(A), OD=42 ASM PART: A = 8-97618-758-0 		1-51351-046-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(C), M10X99 ASM PART: D = 8-98236-924-0 		1-09000-328-0 01 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(B), M10X103 ASM PART: D = 8-98236-924-0 		1-09000-536-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(A), M10X102 ASM PART: A = 8-97618-758-0 		1-09000-759-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(B), M10X103 ASM PART: B = 8-98162-076-0, C = 8-98236-921-0 		8-97615-331-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(C), M10X99 ASM PART: B = 8-98162-076-0, C = 8-98236-921-0 		8-97615-895-0 01 1 -
19 SPACER; LEAF SPRING,FRT
(B), T=1 ASM PART: B = 8-98162-076-0, C = 8-98236-921-0, D = 8-98236-924-0 		1-51177-071-0 06 1 -
19 SPACER; LEAF SPRING,FRT
(A), T=1 ASM PART: A = 8-97618-758-0 		1-51177-339-0 04 1 -
20 SEAT; LEAF SPR,FRT
(D), T=6 ASM PART: C = 8-98236-921-0 		1-51177-070-0 01 1 -
20 SEAT; LEAF SPR,FRT
(E), T=9 ASM PART: C = 8-98236-921-0 		1-51177-085-0 01 1 -
20 SEAT; LEAF SPR,FRT
(C), T=14 ASM PART: B = 8-98162-076-0, C = 8-98236-921-0, D = 8-98236-924-0 		1-51177-097-0 01 1 -
20 SEAT; LEAF SPR,FRT
(A), T=14 ASM PART: A = 8-97618-758-0 		1-51377-400-0 01 1 -
20 SEAT; LEAF SPR,FRT
(B), T=9 ASM PART: A = 8-97618-758-0 		1-51377-401-0 02 1 -
35 SEAL; DUST
ASM PART: A = 8-97618-758-0 		1-51177-321-0 04 1 -

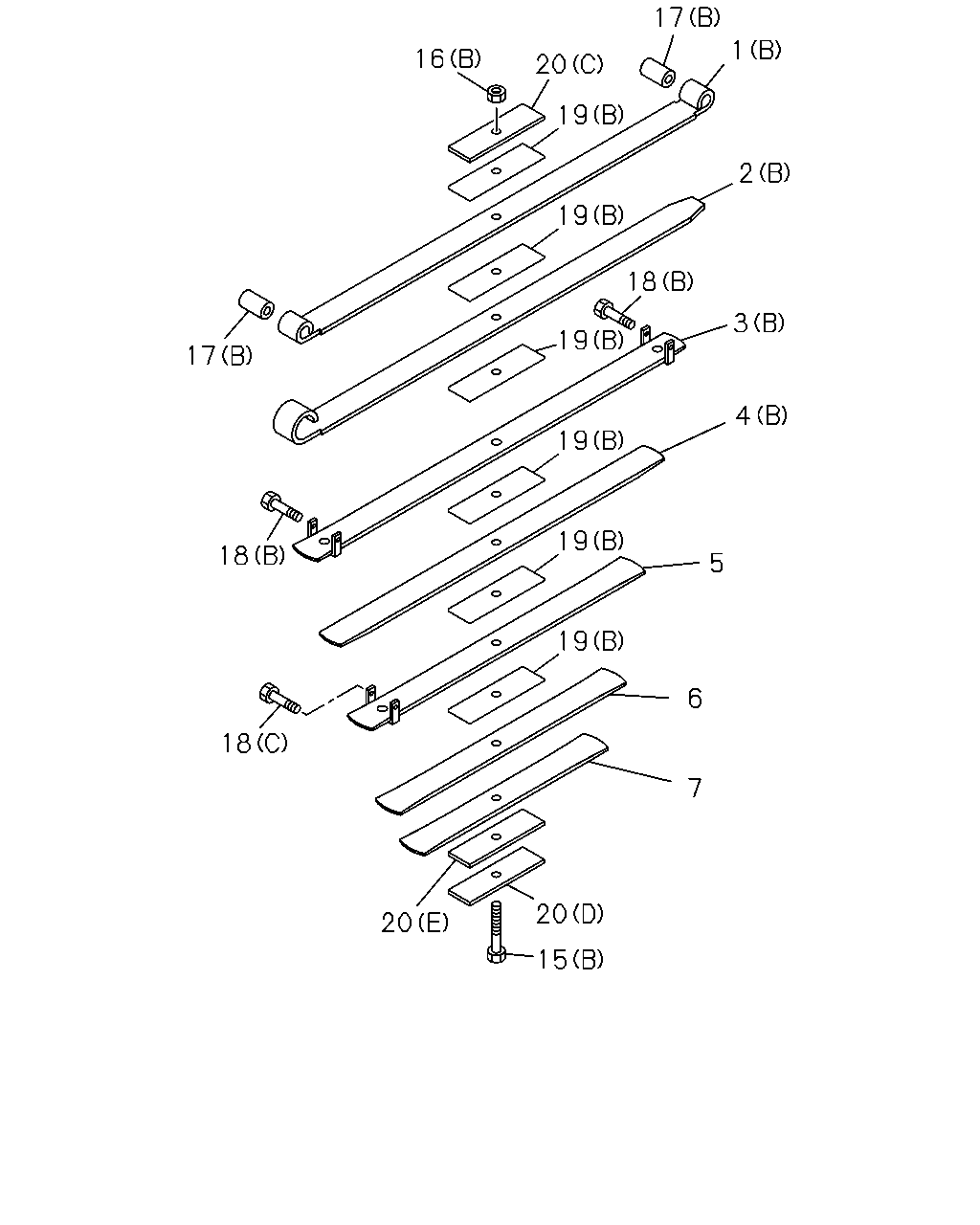

çizim 343516
1 2 3 4 5 19 19 19 19 18 6 7 20 15 20 18 18 17 16 20 17 19 19
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING; LEAF,NO 1,FRT
(A) ASM PART: A = 8-97618-758-0 		8-98071-906-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(B) ASM PART: B = 8-98162-076-0, C = 8-98236-921-0 		8-98165-020-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(B) ASM PART: D = 8-98236-924-0 		8-98188-249-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(A) ASM PART: A = 8-97618-758-0 		8-98071-907-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(B) ASM PART: B = 8-98162-076-0, C = 8-98236-921-0 		8-98165-021-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(B) ASM PART: D = 8-98236-924-0 		8-98188-250-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(A) ASM PART: A = 8-97618-758-0 		8-98071-908-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(B) ASM PART: B = 8-98162-076-0, C = 8-98236-921-0 		8-98165-022-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(B) ASM PART: D = 8-98236-924-0 		8-98188-251-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
(A) ASM PART: A = 8-97618-758-0 		8-98071-909-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
(B) ASM PART: B = 8-98162-076-0, C = 8-98236-921-0 		8-98165-023-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
(B) ASM PART: D = 8-98236-924-0 		8-98188-252-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
ASM PART: B = 8-98162-076-0, C = 8-98236-921-0 		8-98165-024-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
ASM PART: D = 8-98236-924-0 		8-98188-253-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
ASM PART: B = 8-98162-076-0, C = 8-98236-921-0 		8-98165-025-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
ASM PART: D = 8-98236-924-0 		8-98188-254-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
ASM PART: B = 8-98162-076-0, C = 8-98236-921-0 		8-98165-026-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
ASM PART: D = 8-98236-924-0 		8-98188-255-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(B), L=150 ASM PART: B = 8-98162-076-0, D = 8-98236-924-0 		1-51156-328-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(B), L=165 ASM PART: C = 8-98236-921-0 		1-51156-366-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(A), L=145 ASM PART: A = 8-97618-758-0 		1-51156-419-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
(B), M16 ASM PART: B = 8-98162-076-0, C = 8-98236-921-0, D = 8-98236-924-0 		1-09400-054-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
(A), M16 ASM PART: A = 8-97618-758-0 		1-09400-061-0 01 1 -
17 BUSHING; LEAF SPR,FRT
(B), OD=38 ASM PART: B = 8-98162-076-0, C = 8-98236-921-0, D = 8-98236-924-0 		1-51351-009-0 02 1 -
17 BUSHING; LEAF SPR,FRT
(A), OD=42 ASM PART: A = 8-97618-758-0 		1-51351-046-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(C), M10X99 ASM PART: D = 8-98236-924-0 		1-09000-328-0 01 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(B), M10X103 ASM PART: D = 8-98236-924-0 		1-09000-536-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(A), M10X102 ASM PART: A = 8-97618-758-0 		1-09000-759-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(B), M10X103 ASM PART: B = 8-98162-076-0, C = 8-98236-921-0 		8-97615-331-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(C), M10X99 ASM PART: B = 8-98162-076-0, C = 8-98236-921-0 		8-97615-895-0 01 1 -
19 SPACER; LEAF SPRING,FRT
(B), T=1 ASM PART: B = 8-98162-076-0, C = 8-98236-921-0, D = 8-98236-924-0 		1-51177-071-0 06 1 -
19 SPACER; LEAF SPRING,FRT
(A), T=1 ASM PART: A = 8-97618-758-0 		1-51177-339-0 04 1 -
20 SEAT; LEAF SPR,FRT
(D), T=6 ASM PART: C = 8-98236-921-0 		1-51177-070-0 01 1 -
20 SEAT; LEAF SPR,FRT
(E), T=9 ASM PART: C = 8-98236-921-0 		1-51177-085-0 01 1 -
20 SEAT; LEAF SPR,FRT
(C), T=14 ASM PART: B = 8-98162-076-0, C = 8-98236-921-0, D = 8-98236-924-0 		1-51177-097-0 01 1 -
20 SEAT; LEAF SPR,FRT
(A), T=14 ASM PART: A = 8-97618-758-0 		1-51377-400-0 01 1 -
20 SEAT; LEAF SPR,FRT
(B), T=9 ASM PART: A = 8-97618-758-0 		1-51377-401-0 02 1 -
