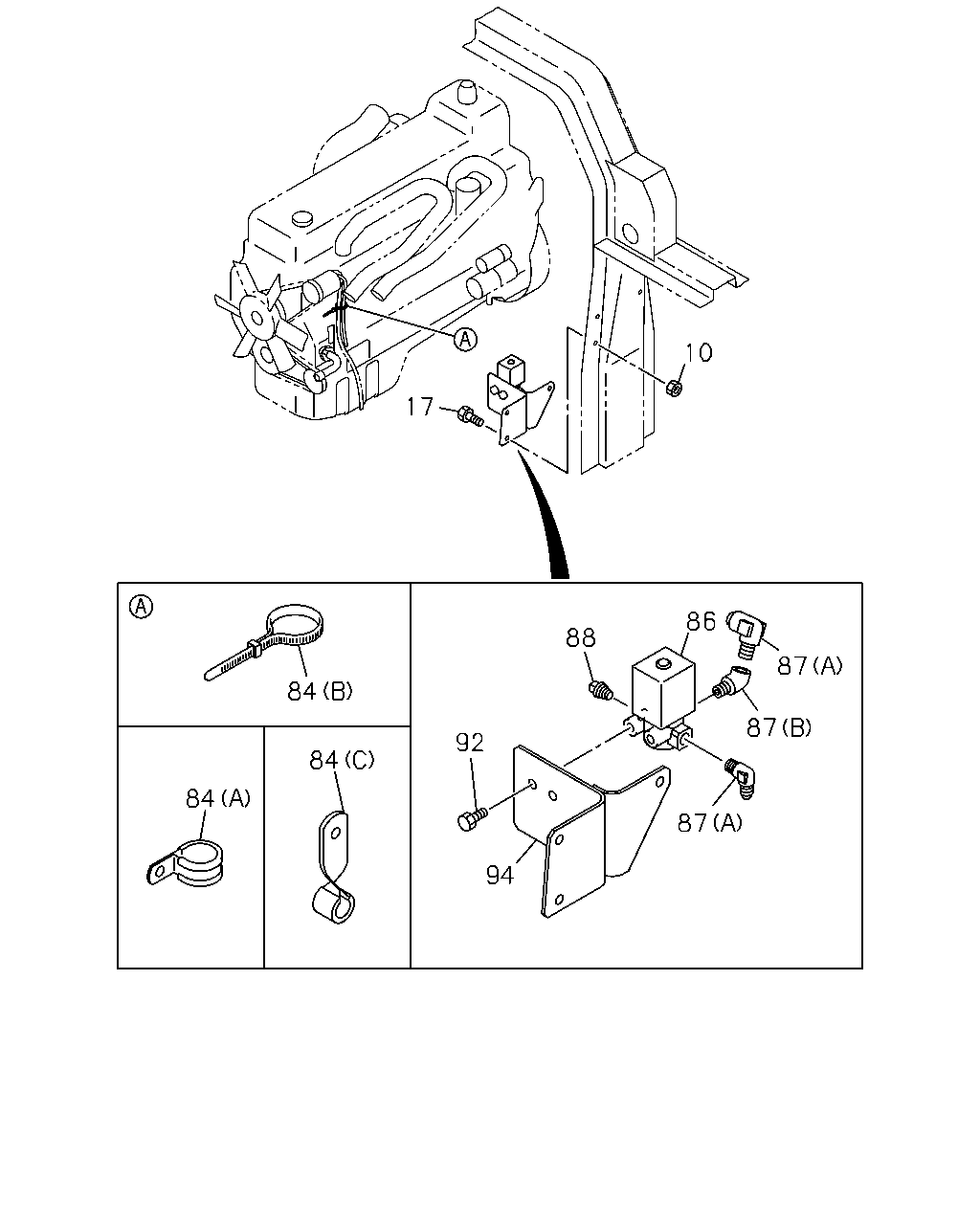

1-56 — EXHAUST BRAKE SYSTEM
(#11705) — 17 parça
10
17
86
88
87
84
87
92
84
84
87
94
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
10
NUT; BRKT,EXH BRAKE
M8 FLANGE
0-91150-108-0
03
1
0106-0602
10
NUT; BRKT,EXH BRAKE
M8 FLANGE
0-91180-108-0
03
1
0603-
17
BOLT; BRKT
M8X25 FLANGE
0-28680-825-0
03
1
0106-0512
17
BOLT; BRKT
M8X25 FLANGE
0-28650-825-0
03
1
0601-
84
CLIP; HARNESS
(A) ID=19 L=50
9-09525-886-0
01
1
0201-0606
84
CLIP; HARNESS
(A) ID=19 L=50
0-95235-886-0
01
1
0607-
84
CLIP; HARNESS
(A) ID=22 L=32
1-09700-126-1
02
1
0106-0112
84
CLIP; HARNESS
(A) ID=22 L=32
1-09700-126-1
01
1
0201-
84
CLIP; HARNESS
(C) ID=20 L=50
1-09700-679-1
01
1
0106-
84
CLIP; HARNESS
(B) L=140
5-09707-031-1
01
1
0106-
86
VALVE; MAG,EXH BRK
1-82563-871-2
01
1
0106-
87
CONNECTOR
(B) PT1/4
1-09664-211-0
01
1
0201-
87
CONNECTOR
(A) M12 & PT1/4 ELBOW
1-09650-430-0
02
1
0106-
88
PLUG
PT1/4
9-99204-513-0
01
1
0106-
92
BOLT; MAG VLV
M8X20 FLANGE
0-28680-820-0
02
1
0106-0512
92
BOLT; MAG VLV
M8X20 FLANGE
0-28650-820-0
02
1
0601-
94
BRACKET; MAG VLV,EXH BRAKE
1-82569-273-0
01
1
0106-
