7-45 — CONSOLE BOX (#117041) — 141 parça

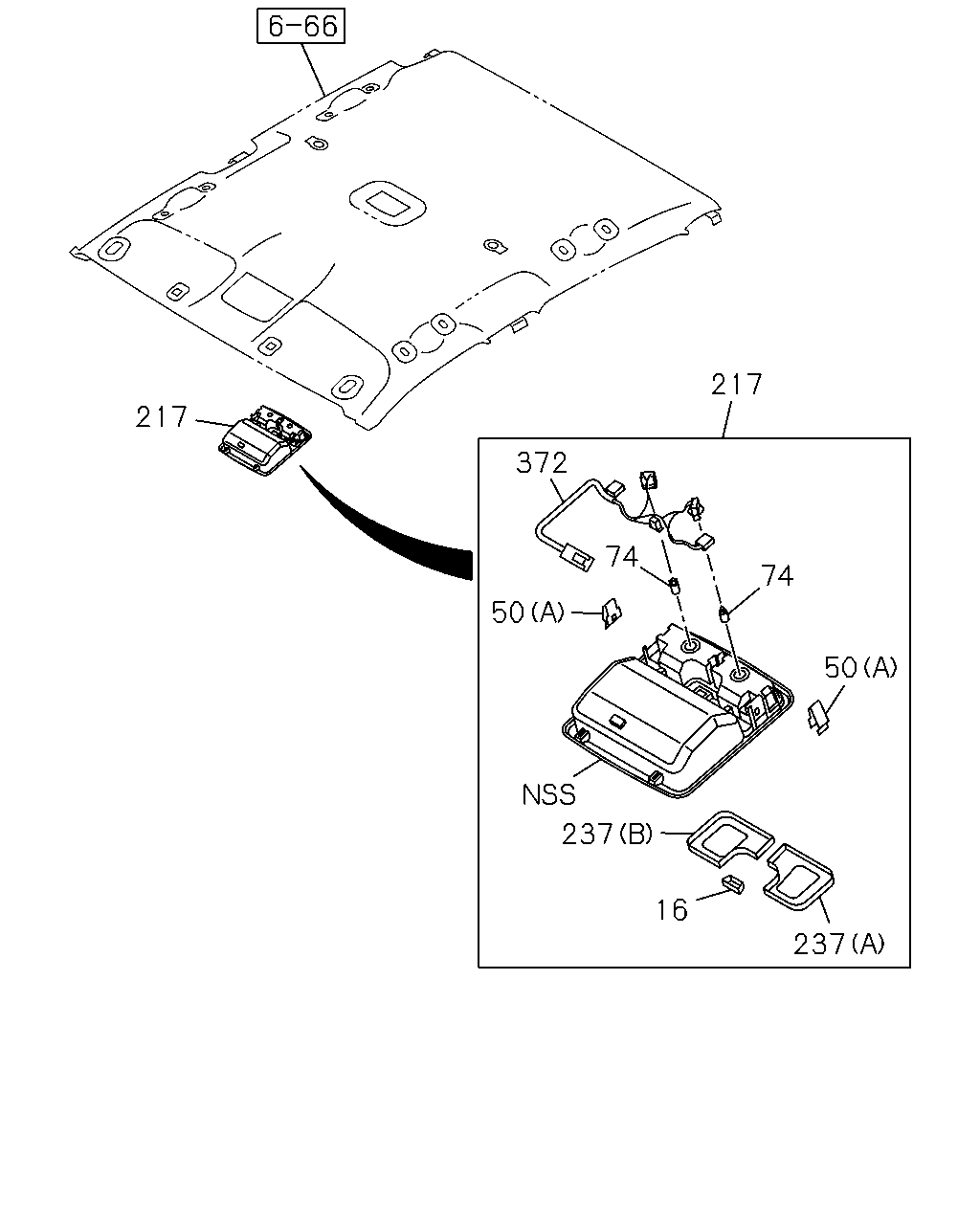

çizim 344158
217 217 372 74 50 74 50 237 237 16
BalonParca AdiParca NoAdetTipApplied Date A B C D E
16 16.650 KNOB ASM
HEADER CONSOLE<DK6> GRAY 		8-97423-261-0 01 1 1304- ● ● ●
50 04.010 CLIP; CONSOLE
FRONT SEAT SPLIT BENCH<AM6> EXC. FRONT CONSOLE WO/LID<D54>,FRONT CONSOLE W/LID<D55> 16.165 (B) 		8-98164-677-0 02 1 1304- ● ●
50 04.010 CLIP; CONSOLE
FRONT SEAT BUCKET STANDARD<A50> FRONT CONSOLE WO/LID<D54> 16.165 (B) 		8-98164-677-0 02 1 1304- ● ●
50 04.010 CLIP; CONSOLE
FRONT SEAT SPLIT BENCH<AM6> EXC. CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE WO/LID<D54>,FRONT CONSOLE W/LID <D55> 16.165 (B) 		8-98164-677-0 02 1 1304- ● ●
50 04.010 CLIP; CONSOLE
FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FRONT CONSOLE WO/LID<D54> 16.165 (B) 		8-98164-677-0 02 1 1304- ● ●
50 04.010 CLIP; CONSOLE
FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FRONT CONSOLE WO/LID<D54> 16.165 (B) 		8-98164-677-0 02 1 1304- ●
50 04.010 CLIP; CONSOLE
HEADER CONSOLE<DK6> (A) 		8-98192-891-0 02 1 1304- ● ● ●
74 08.991 BULB; CONSOLE
HEADER CONSOLE<DK6> 12V 5W 		8-94124-595-0 02 1 1304- ● ● ●
217 16.745 CONSOLE; HEADER
HEADER CONSOLE<DK6> GRAY 		8-97416-690-5 01 1 1304- ● ● ●
237 16.650 LENS; HEADER CONSOLE
HEADER CONSOLE<DK6> (A) 		8-98192-893-0 01 1 1304- ● ● ●
237 16.650 LENS; HEADER CONSOLE
HEADER CONSOLE<DK6> (B) 		8-98192-894-0 01 1 1304- ● ● ●
372 16.674 HARNESS ASM; SWITCH,HEADER CONSO
HEADER CONSOLE<DK6> 		8-98192-890-0 01 1 1304- ● ● ●

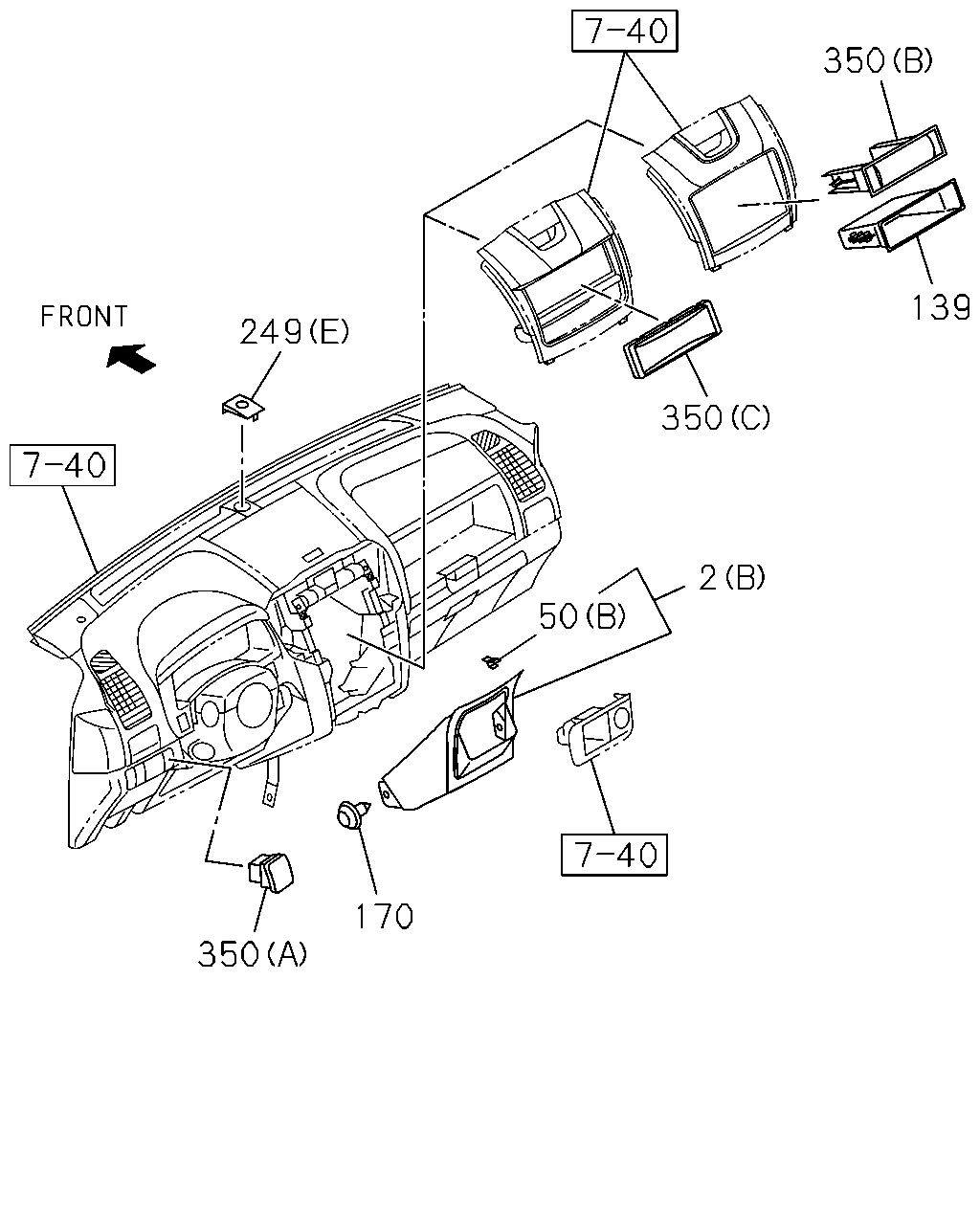

çizim 345110
350 139 350 2 50 170 350 249
BalonParca AdiParca NoAdetTipApplied Date A B C D E
2 16.081 CONSOLE; CENTER
FRONT SEAT SPLIT BENCH<AM6> EXC. FRONT CONSOLE WO/LID<D54>,FRONT CONSOLE W/LID<D55> (B) BLACK 		8-97416-633-4 01 1 1304- ● ●
2 16.081 CONSOLE; CENTER
FRONT SEAT BUCKET STANDARD<A50> FRONT CONSOLE WO/LID<D54> (B) BLACK 		8-97416-633-4 01 1 1304- ● ●
2 16.081 CONSOLE; CENTER
FRONT SEAT SPLIT BENCH<AM6> EXC. CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE WO/LID<D54>,FRONT CONSOLE W/LID <D55> (B) BLACK 		8-97416-633-4 01 1 1304- ● ●
2 16.081 CONSOLE; CENTER
FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FRONT CONSOLE WO/LID<D54> (B) BLACK 		8-97416-633-4 01 1 1304- ● ●
2 16.081 CONSOLE; CENTER
FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FRONT CONSOLE WO/LID<D54> (B) BLACK 		8-97416-633-4 01 1 1304- ●
2 16.081 CONSOLE; CENTER
FRONT CONSOLE WO/LID<D54> (C) BLACK 		8-97417-411-3 01 1 1304- ● ● ● ● ●
2 16.081 CONSOLE; CENTER
FRONT CONSOLE W/LID<D55> (A) BLACK 		8-97417-412-7 01 1 1304- ● ● ●
2 16.081 CONSOLE; CENTER
FRONT CONSOLE W/LID<D55> EXC. REAR HEATER DUCT<S8C> (A) BLACK 		8-97417-412-7 01 1 1304- ● ●
2 16.081 CONSOLE; CENTER
CUSTOM FRONT CONSOLE<D07> REAR HEATER DUCT<S8C> (A) BLACK 		8-97423-331-1 01 1 1304- ● ●
2 16.081 CONSOLE; CENTER
CUSTOM FRONT CONSOLE<D07> EXC. REAR HEATER DUCT<S8C> (A) BLACK 		8-97417-410-7 01 1 1304- ● ●
2 16.081 CONSOLE; CENTER
FRONT CONSOLE W/LID<D55> REAR HEATER DUCT<S8C> (A) BLACK 		8-97423-332-1 01 1 1304- ● ●
50 04.010 CLIP; CONSOLE
FRONT SEAT SPLIT BENCH<AM6> EXC. FRONT CONSOLE WO/LID<D54>,FRONT CONSOLE W/LID<D55> 16.165 (B) 		8-98164-677-0 02 1 1304- ● ●
50 04.010 CLIP; CONSOLE
FRONT SEAT BUCKET STANDARD<A50> FRONT CONSOLE WO/LID<D54> 16.165 (B) 		8-98164-677-0 02 1 1304- ● ●
50 04.010 CLIP; CONSOLE
FRONT SEAT SPLIT BENCH<AM6> EXC. CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE WO/LID<D54>,FRONT CONSOLE W/LID <D55> 16.165 (B) 		8-98164-677-0 02 1 1304- ● ●
50 04.010 CLIP; CONSOLE
FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FRONT CONSOLE WO/LID<D54> 16.165 (B) 		8-98164-677-0 02 1 1304- ● ●
50 04.010 CLIP; CONSOLE
FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FRONT CONSOLE WO/LID<D54> 16.165 (B) 		8-98164-677-0 02 1 1304- ●
50 04.010 CLIP; CONSOLE
HEADER CONSOLE<DK6> (A) 		8-98192-891-0 02 1 1304- ● ● ●
139 16.650 BOX; CONSOLE,UPR
RADIO DELETE(UL5),RADIO AM/FM STEREO, SEEK/SCAN,CD,CLOCK(U1C) BLACK 		8-97416-619-0 01 1 1304- ● ● ● ● ●
170 16.650 RETAINER; CONSOLE BOX
FRONT SEAT SPLIT BENCH<AM6> EXC. FRONT CONSOLE WO/LID<D54>,FRONT CONSOLE W/LID<D55> BLACK 		8-97416-699-0 02 1 1304- ● ●
170 16.650 RETAINER; CONSOLE BOX
FRONT SEAT BUCKET STANDARD<A50> FRONT CONSOLE WO/LID<D54> BLACK 		8-97416-699-0 02 1 1304- ● ●
170 16.650 RETAINER; CONSOLE BOX
FRONT SEAT SPLIT BENCH<AM6> EXC. CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE WO/LID<D54>,FRONT CONSOLE W/LID <D55> BLACK 		8-97416-699-0 02 1 1304- ● ●
170 16.650 RETAINER; CONSOLE BOX
FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FRONT CONSOLE WO/LID<D54> BLACK 		8-97416-699-0 02 1 1304- ● ●
170 16.650 RETAINER; CONSOLE BOX
FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FRONT CONSOLE WO/LID<D54> BLACK 		8-97416-699-0 02 1 1304- ●
249 16.674 COVER
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) (E) BLACK 		8-97416-613-2 01 1 1304- ● ● ● ● ●
249 16.674 COVER
FRONT CONSOLE W/LID<D55> (C) BLACK 		8-97416-660-1 01 1 1304- ●
249 16.674 COVER
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (C) BLACK 		8-97416-660-1 01 1 1304- ●
249 16.674 COVER
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T AISIN 6 SPEED(RNU),M/T MUA 5 SPEED 5G(RSP) INTERIOR BASIC(RBA) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (A) BLACK 		8-97417-151-2 01 1 1304- ● ● ● ● ●
249 16.674 COVER
AIR CONDITIONER AUTOMATIC CONT(C61) (E) BLACK 		8-97416-614-2 01 1 1304- ● ● ●
249 16.674 COVER
A/T 5 SPEED-AISIN(MA1) INTERIOR BASIC(RBA) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (B) BLACK 		8-97417-153-1 01 1 1304- ● ● ●
249 16.674 COVER
A/T 5 SPEED-AISIN(MA1) INTERIOR CUSTOM(RBD) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> HEATER FRT SEAT<KA1> (B) BLACK 		8-97417-418-1 01 1 1304- ● ●
249 16.674 COVER
A/T 5 SPEED-AISIN(MA1) INTERIOR CUSTOM(RBD) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> EXC. HEATER FRT SEAT<KA1> (B) BLACK 		8-97417-152-1 01 1 1304- ● ● ●
249 16.674 COVER
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T AISIN 6 SPEED(RNU),M/T MUA 5 SPEED 5G(RSP) INTERIOR CUSTOM(RBD) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> HEATER FRT SEAT<KA1> (A) BLACK 		8-97417-414-2 01 1 1304- ● ●
249 16.674 COVER
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T AISIN 6 SPEED(RNU),M/T MUA 5 SPEED 5G(RSP) INTERIOR CUSTOM(RBD) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> EXC. HEATER FRT SEAT<KA1> (A) BLACK 		8-97417-150-2 01 1 1304- ● ● ●
249 16.674 COVER
FRONT CONSOLE W/LID<D55> (D) BLACK 		8-97416-659-2 01 1 1304- ● ●
249 16.674 COVER
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (D) BLACK 		8-97416-659-2 01 1 1304- ●
350 16.650 COVER; CONSOLE
RADIO DELETE(UL5) (B) BLACK 		8-97416-806-0 01 1 1304- ● ● ● ● ●
350 16.650 COVER; CONSOLE
INST PANEL FOR DIN E SIZE AUDIO(7QL) (C) BLACK 		8-97416-807-0 01 1 1304- ● ● ● ● ●
350 16.650 COVER; CONSOLE
(A) 		8-98103-424-2 01 1 1304-1312 ● ● ● ● ●
350 16.650 COVER; CONSOLE
EXC. ELECTRONIC TRACTION CONTROL<NW9> (A) 		8-98103-424-2 01 1 1304-1312 ● ● ● ● ●
350 16.650 COVER; CONSOLE
EXC. HEAD LAMP LEVELING MANUAL<T92> (A) 		8-98103-424-2 01 1 1304-1312 ● ● ● ●
350 16.650 COVER; CONSOLE
EXC. REAR AXLE DIFF LOCK<8CL> (A) 		8-98103-424-2 01 1 1304-1312 ● ● ● ●
350 16.650 COVER; CONSOLE
EXC. ISRAEL EQUIPMENT(2G1) (A) 		8-98103-424-2 01 1 1304-1312 ● ●
350 16.650 COVER; CONSOLE
EXC. RUSSIA EQUIPMENT(B12),ISRAEL EQUIPMENT(2G1) (A) 		8-98103-424-2 01 1 1304-1312 ● ●
350 16.650 COVER; CONSOLE
(A) 		8-98103-424-2 01 1 1304-1312 ●
350 16.650 COVER; CONSOLE
(A) 		8-98103-424-2 01 1 1304-1312 ●
350 16.650 COVER; CONSOLE
(A) 		8-98103-424-2 01 1 1304-1312 ●
350 16.650 COVER; CONSOLE
(A) 		8-98103-424-2 01 1 1401- ● ● ● ● ●
350 16.650 COVER; CONSOLE
EXC. ELECTRONIC TRACTION CONTROL<NW9> (A) 		8-98103-424-2 01 1 1401- ● ● ● ● ●
350 16.650 COVER; CONSOLE
EXC. HEAD LAMP LEVELING MANUAL<T92> (A) 		8-98103-424-2 01 1 1401- ● ● ● ●
350 16.650 COVER; CONSOLE
EXC. REAR AXLE DIFF LOCK<8CL> (A) 		8-98103-424-2 01 1 1401- ● ● ● ●
350 16.650 COVER; CONSOLE
EXC. ISRAEL EQUIPMENT(2G1) (A) 		8-98103-424-2 01 1 1401- ● ●
350 16.650 COVER; CONSOLE
EXC. RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),ISRAEL EQUIPMENT(2G1) (A) 		8-98103-424-2 01 1 1401- ● ●
350 16.650 COVER; CONSOLE
(A) 		8-98103-424-2 01 1 1401- ●
350 16.650 COVER; CONSOLE
(A) 		8-98103-424-2 01 1 1401- ●
350 16.650 COVER; CONSOLE
(A) 		8-98103-424-2 01 1 1401- ●

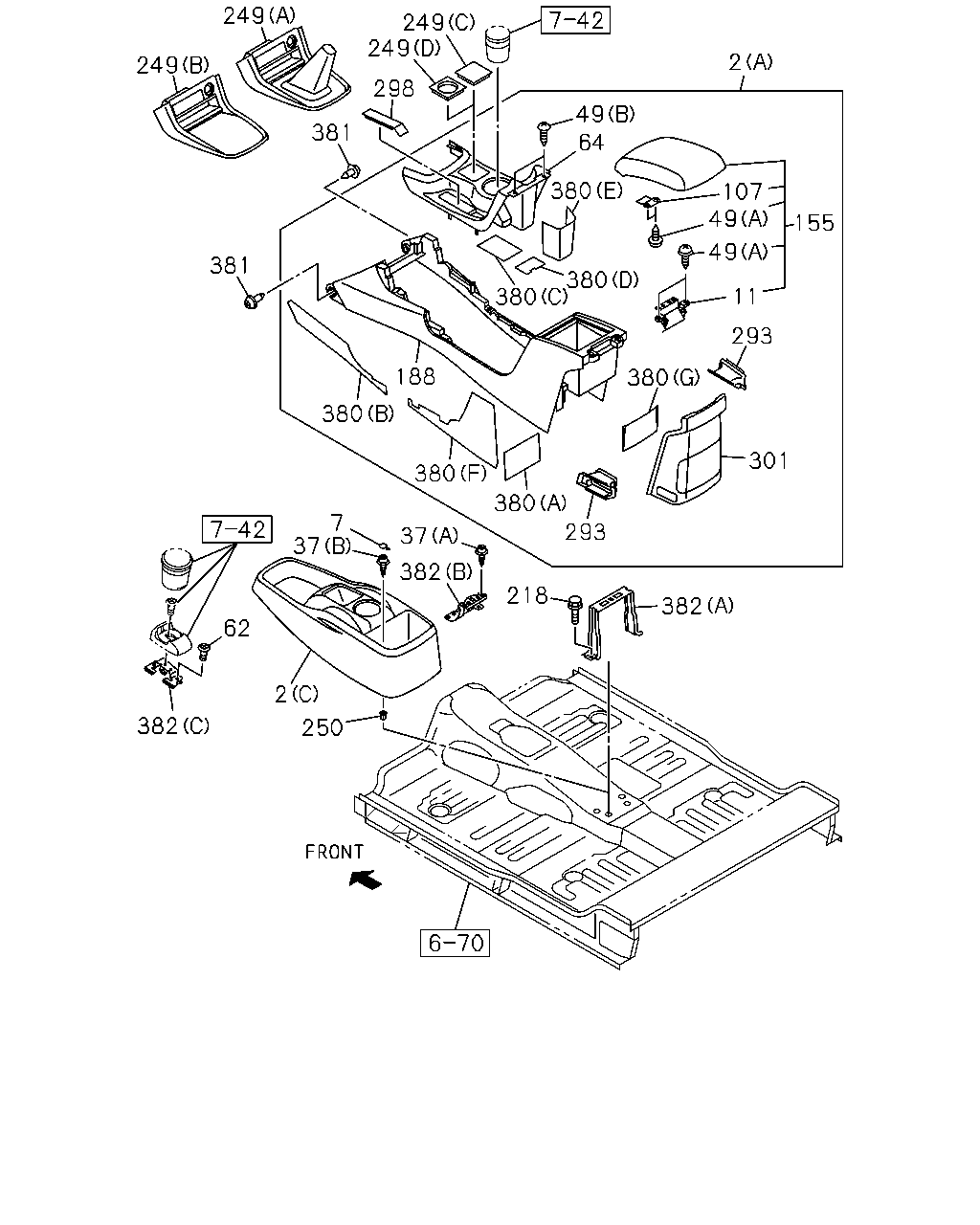

çizim 345114
382 301 293 380 11 155 49 49 107 2 249 249 249 249 298 381 381 188 380 380 380 380 380 380 64 49 293 218 37 7 37 62 2 250 382 382
BalonParca AdiParca NoAdetTipApplied Date A B C D E
2 16.081 CONSOLE; CENTER
FRONT SEAT SPLIT BENCH<AM6> EXC. FRONT CONSOLE WO/LID<D54>,FRONT CONSOLE W/LID<D55> (B) BLACK 		8-97416-633-4 01 1 1304- ● ●
2 16.081 CONSOLE; CENTER
FRONT SEAT BUCKET STANDARD<A50> FRONT CONSOLE WO/LID<D54> (B) BLACK 		8-97416-633-4 01 1 1304- ● ●
2 16.081 CONSOLE; CENTER
FRONT SEAT SPLIT BENCH<AM6> EXC. CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE WO/LID<D54>,FRONT CONSOLE W/LID <D55> (B) BLACK 		8-97416-633-4 01 1 1304- ● ●
2 16.081 CONSOLE; CENTER
FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FRONT CONSOLE WO/LID<D54> (B) BLACK 		8-97416-633-4 01 1 1304- ● ●
2 16.081 CONSOLE; CENTER
FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FRONT CONSOLE WO/LID<D54> (B) BLACK 		8-97416-633-4 01 1 1304- ●
2 16.081 CONSOLE; CENTER
FRONT CONSOLE WO/LID<D54> (C) BLACK 		8-97417-411-3 01 1 1304- ● ● ● ● ●
2 16.081 CONSOLE; CENTER
FRONT CONSOLE W/LID<D55> (A) BLACK 		8-97417-412-7 01 1 1304- ● ● ●
2 16.081 CONSOLE; CENTER
FRONT CONSOLE W/LID<D55> EXC. REAR HEATER DUCT<S8C> (A) BLACK 		8-97417-412-7 01 1 1304- ● ●
2 16.081 CONSOLE; CENTER
CUSTOM FRONT CONSOLE<D07> REAR HEATER DUCT<S8C> (A) BLACK 		8-97423-331-1 01 1 1304- ● ●
2 16.081 CONSOLE; CENTER
CUSTOM FRONT CONSOLE<D07> EXC. REAR HEATER DUCT<S8C> (A) BLACK 		8-97417-410-7 01 1 1304- ● ●
2 16.081 CONSOLE; CENTER
FRONT CONSOLE W/LID<D55> REAR HEATER DUCT<S8C> (A) BLACK 		8-97423-332-1 01 1 1304- ● ●
7 16.650 COVER; HOLE,FLOOR CONSOLE
FRONT CONSOLE WO/LID<D54> 16.165 BLACK 		8-97416-610-0 02 1 1304- ● ● ● ● ●
11 16.650 HINGE; CONSOLE LID
FRONT CONSOLE W/LID<D55> BLACK 		8-97423-090-0 01 1 1304- ● ● ●
11 16.650 HINGE; CONSOLE LID
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> BLACK 		8-97423-090-0 01 1 1304- ● ●
37 16.650 SCREW; CONSOLE
FRONT CONSOLE WO/LID<D54> 03.028 (B) M5X16 TAPPING W/PL WASHER 		8-98039-091-0 02 1 1304- ● ● ● ● ●
37 16.650 SCREW; CONSOLE
FRONT CONSOLE W/LID<D55> 01.269 (A) M5X16 TAPPING W/PL WASHER 		0-74165-516-0 03 1 1304- ● ● ●
37 16.650 SCREW; CONSOLE
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> 01.269 (A) M5X16 TAPPING W/PL WASHER 		0-74165-516-0 03 1 1304- ● ●
49 04.017 SCREW; CONSOLE
FRONT CONSOLE W/LID<D55> 16.081 (A) M5X16 		8-98197-847-0 06 1 1304- ● ● ●
49 04.017 SCREW; CONSOLE
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> 16.081 (A) M5X16 		8-98197-847-0 06 1 1304- ● ●
49 04.017 SCREW; CONSOLE
FRONT CONSOLE W/LID<D55> (B) M4X14 		8-98234-823-0 02 1 1304- ● ● ●
49 04.017 SCREW; CONSOLE
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (B) M4X14 		8-98234-823-0 02 1 1304- ● ●
62 16.650 SCREW; BRKT
EXC. CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> 16.100 M5X10 TAPPING 		0-71240-510-0 02 1 1304-1305 ● ● ● ● ●
62 16.650 SCREW; BRKT
EXC. CONGO EQUIPMENT(CDF),CUSTOM FRONTCONSOLE<D07>,FRONT CONSOLE W/LID<D55> 16.100 M5X10 TAPPING 		0-71240-510-0 02 1 1306- ● ● ● ● ●
64 16.650 BEZEL; CENTER CONSOLE
FRONT CONSOLE W/LID<D55> BLACK 		8-97423-093-3 01 1 1304- ● ● ●
64 16.650 BEZEL; CENTER CONSOLE
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> BLACK 		8-97423-093-3 01 1 1304- ● ●
107 16.650 LOCK; LID,RR CONSOLE
FRONT CONSOLE W/LID<D55> BLACK 		8-97423-089-0 01 1 1304- ● ● ●
107 16.650 LOCK; LID,RR CONSOLE
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> BLACK 		8-97423-089-0 01 1 1304- ● ●
155 16.650 LID; PARCEL BOX
FRONT CONSOLE W/LID<D55> BLACK 		8-97423-094-1 01 1 1304- ● ● ●
155 16.650 LID; PARCEL BOX
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> BLACK 		8-97423-094-1 01 1 1304- ● ●
188 16.650 CONSOLE; RR
FRONT CONSOLE W/LID<D55> BLACK 		8-97423-086-3 01 1 1304- ● ● ●
188 16.650 CONSOLE; RR
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> BLACK 		8-97423-086-3 01 1 1304- ● ●
218 16.650 BOLT; BRKT
FRONT CONSOLE W/LID<D55> M6X12.5 FLANGE 		8-98014-141-0 02 1 1304- ● ● ●
218 16.650 BOLT; BRKT
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> M6X12.5 FLANGE 		8-98014-141-0 02 1 1304- ● ●
249 16.674 COVER
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) (E) BLACK 		8-97416-613-2 01 1 1304- ● ● ● ● ●
249 16.674 COVER
FRONT CONSOLE W/LID<D55> (C) BLACK 		8-97416-660-1 01 1 1304- ●
249 16.674 COVER
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (C) BLACK 		8-97416-660-1 01 1 1304- ●
249 16.674 COVER
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T AISIN 6 SPEED(RNU),M/T MUA 5 SPEED 5G(RSP) INTERIOR BASIC(RBA) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (A) BLACK 		8-97417-151-2 01 1 1304- ● ● ● ● ●
249 16.674 COVER
AIR CONDITIONER AUTOMATIC CONT(C61) (E) BLACK 		8-97416-614-2 01 1 1304- ● ● ●
249 16.674 COVER
A/T 5 SPEED-AISIN(MA1) INTERIOR BASIC(RBA) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (B) BLACK 		8-97417-153-1 01 1 1304- ● ● ●
249 16.674 COVER
A/T 5 SPEED-AISIN(MA1) INTERIOR CUSTOM(RBD) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> HEATER FRT SEAT<KA1> (B) BLACK 		8-97417-418-1 01 1 1304- ● ●
249 16.674 COVER
A/T 5 SPEED-AISIN(MA1) INTERIOR CUSTOM(RBD) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> EXC. HEATER FRT SEAT<KA1> (B) BLACK 		8-97417-152-1 01 1 1304- ● ● ●
249 16.674 COVER
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T AISIN 6 SPEED(RNU),M/T MUA 5 SPEED 5G(RSP) INTERIOR CUSTOM(RBD) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> HEATER FRT SEAT<KA1> (A) BLACK 		8-97417-414-2 01 1 1304- ● ●
249 16.674 COVER
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T AISIN 6 SPEED(RNU),M/T MUA 5 SPEED 5G(RSP) INTERIOR CUSTOM(RBD) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> EXC. HEATER FRT SEAT<KA1> (A) BLACK 		8-97417-150-2 01 1 1304- ● ● ●
249 16.674 COVER
FRONT CONSOLE W/LID<D55> (D) BLACK 		8-97416-659-2 01 1 1304- ● ●
249 16.674 COVER
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (D) BLACK 		8-97416-659-2 01 1 1304- ●
250 16.650 GROMMET; CONSOLE BOX
FRONT CONSOLE WO/LID<D54> 16.588 D=7X7 L=7.5 		5-09983-007-0 02 1 1304- ● ● ● ● ●
293 16.650 DUCT
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> REAR HEATER DUCT<S8C> 		8-98134-786-0 01 1 1304- ● ●
293 16.650 DUCT
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> REAR HEATER DUCT<S8C> 		8-98134-787-0 01 1 1304- ● ●
298 16.650 BEZEL; HAND BRAKE,CONSOLE
FRONT CONSOLE W/LID<D55> BLACK 		8-97416-651-2 01 1 1304- ● ● ●
298 16.650 BEZEL; HAND BRAKE,CONSOLE
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> BLACK 		8-97416-651-2 01 1 1304- ● ●
301 16.650 BEZEL; CONSOLE
FRONT CONSOLE W/LID<D55> BLACK 		8-97423-092-2 01 1 1304- ● ● ● ● ●
301 16.650 BEZEL; CONSOLE
CUSTOM FRONT CONSOLE<D07> BLACK 		8-97423-091-2 01 1 1304- ● ●
380 16.650 INSULATOR; CONSOLE
FRONT CONSOLE W/LID<D55> (A) 		8-98234-827-0 01 1 1304- ● ● ●
380 16.650 INSULATOR; CONSOLE
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (A) 		8-98234-827-0 01 1 1304- ● ●
380 16.650 INSULATOR; CONSOLE
FRONT CONSOLE W/LID<D55> (B) 		8-98234-828-0 01 1 1304- ● ● ●
380 16.650 INSULATOR; CONSOLE
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (B) 		8-98234-828-0 01 1 1304- ● ●
380 16.650 INSULATOR; CONSOLE
FRONT CONSOLE W/LID<D55> (C) 		8-98234-830-0 01 1 1304- ● ● ●
380 16.650 INSULATOR; CONSOLE
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (C) 		8-98234-830-0 01 1 1304- ● ●
380 16.650 INSULATOR; CONSOLE
FRONT CONSOLE W/LID<D55> (F) 		8-98234-832-0 01 1 1304- ● ● ●
380 16.650 INSULATOR; CONSOLE
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (F) 		8-98234-832-0 01 1 1304- ● ●
380 16.650 INSULATOR; CONSOLE
FRONT CONSOLE W/LID<D55> (D) 		8-98234-834-0 01 1 1304- ● ● ●
380 16.650 INSULATOR; CONSOLE
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (D) 		8-98234-834-0 01 1 1304- ● ●
380 16.650 INSULATOR; CONSOLE
FRONT CONSOLE W/LID<D55> (E) 		8-98234-835-0 01 1 1304- ● ● ●
380 16.650 INSULATOR; CONSOLE
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (E) 		8-98234-835-0 01 1 1304- ● ●
380 16.650 INSULATOR; CONSOLE
FRONT CONSOLE W/LID<D55> (G) 		8-98234-825-0 01 1 1304- ● ● ● ● ●
380 16.650 INSULATOR; CONSOLE
CUSTOM FRONT CONSOLE<D07> (G) 		8-98234-824-0 01 1 1304- ● ●
381 16.100 RETAINER; FLOOR CONSOLE
FRONT CONSOLE W/LID<D55> BLACK 		8-97360-070-0 02 1 1304- ● ● ●
381 16.100 RETAINER; FLOOR CONSOLE
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> BLACK 		8-97360-070-0 02 1 1304- ● ●
382 16.100 BRACKET; FLOOR CONSOLE
EXC. CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (C) 		8-98124-704-1 01 1 1304-1305 ● ● ● ● ●
382 16.100 BRACKET; FLOOR CONSOLE
EXC. CONGO EQUIPMENT(CDF),CUSTOM FRONTCONSOLE<D07>,FRONT CONSOLE W/LID<D55> (C) 		8-98124-704-1 01 1 1306- ● ● ● ● ●
382 16.100 BRACKET; FLOOR CONSOLE
FRONT CONSOLE W/LID<D55> (A) 		8-98102-973-3 01 1 1304- ● ● ●
382 16.100 BRACKET; FLOOR CONSOLE
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (A) 		8-98102-973-3 01 1 1304- ● ●
382 16.100 BRACKET; FLOOR CONSOLE
FRONT CONSOLE W/LID<D55> (B) 		8-98112-864-4 01 1 1304- ● ● ●
382 16.100 BRACKET; FLOOR CONSOLE
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (B) 		8-98112-864-4 01 1 1304- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
