Isuzu WW
▶
TRUCKS
▶
EXZ
▶
10871 - EXZ RHD FUEL TANK 400L/400L+400L
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-55 - EXHAUST BRAKE VALVE AND CONTROL CYLINDER
▶
1-55 — EXHAUST BRAKE VALVE AND CONTROL CYLINDER
(#11704) — 69 parça
◀
[155A] COMPONENT (47 parça)
[155A] FIXING (22 parça)
▶

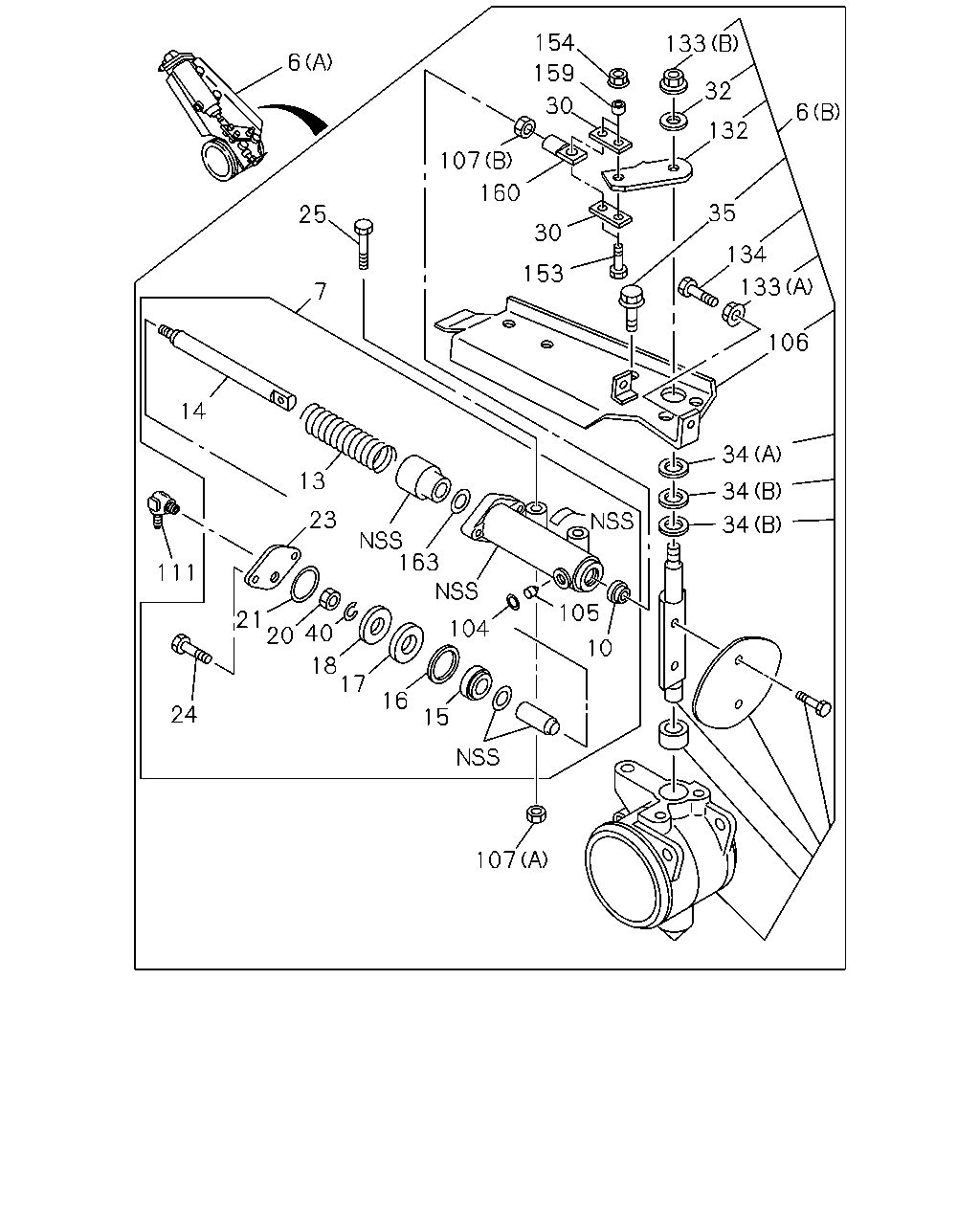

154
133
6
159
32
30
6
132
107
160
35
25
30
134
153
133
7
106
14
34
13
34
23
34
163
111
105
21
20
104
40
10
18
17
16
24
15
107
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
VALVE; EXH BRAKE
(A)
1-14144-603-3
01
1
0106-
6
VALVE; EXH BRAKE
(B)
1-14144-616-0
01
1
0106-
7
CYLINDER ASM; CONT
1-22190-592-1
01
1
0106-
10
SEAL; DUST,CONT
1-22189-016-0
01
1
0106-0206
10
SEAL; DUST,CONT
1-22199-071-0
01
1
0207-
13
SPRING; CONT CYL
1-22199-077-0
01
1
0106-
14
SHAFT; CONT CYL
1-22199-142-0
01
1
0106-0206
14
SHAFT; CONT CYL
1-22199-158-0
01
1
0207-
15
PLATE; CONT CYL
1-22199-096-0
01
1
0106-0206
15
PLATE; CONT CYL
8-97600-316-0
01
1
0207-
16
RING; WEAR,CONT CYL
1-22189-161-0
01
1
0106-0206
16
RING; WEAR,CONT CYL
8-97600-317-0
01
1
0207-
17
GASKET; CONT CYL
1-22189-160-0
01
1
0106-0206
17
GASKET; CONT CYL
8-97600-318-0
01
1
0207-
18
RETAINER; CONT CYL
9-88510-324-0
01
1
0106-0206
20
NUT; CONT CYL
9-83315-085-0
01
1
0106-0206
20
NUT; CONT CYL
M8 FLANGE
0-91150-108-0
01
1
0207-
21
GASKET; COVER
9-88510-372-0
01
1
0106-0206
21
GASKET; COVER
1-22199-072-0
01
1
0207-
23
COVER; CONT CYL
1-22199-066-0
01
1
0106-
24
BOLT; COVER
1-22199-155-0
02
1
0106-0206
24
BOLT; COVER
1-22199-217-0
02
1
0207-
25
BOLT; CONT CYL
M10X60 FLANGE
1-22199-160-0
02
1
0106-0206
25
BOLT; CONT CYL
M10X60 FLANGE
0-28081-060-0
02
1
0207-
30
ROD; LINK,CONT CYL
1-22199-165-0
02
1
0106-
32
WASHER; LK
ID=10.5 OD=26
9-09164-710-0
01
1
0106-
34
RING; SEAL
(A) ID=21
1-22189-158-0
01
1
0106-
34
RING; SEAL
(B) ID=18.8
1-22189-159-0
02
1
0106-
35
BOLT; PLATE FIX
M10X20
0-28021-020-0
03
1
0106-
40
WASHER; LK,COVER
ID=8.2
9-09150-508-0
01
1
0106-0206
104
RING; RET
9-88510-331-0
01
1
0106-
105
FILTER; CONT CYL
9-88510-330-0
01
1
0106-
106
BRACKET; CONT CYL
1-22186-138-0
01
1
0106-
107
NUT; CONT CYL
(A)
9-83315-080-0
02
1
0106-0206
107
NUT; CONT CYL
(A) M10 FLANGE
0-91150-110-0
02
1
0207-
107
NUT; CONT CYL
(B)
9-83315-085-0
01
1
0106-
111
ELBOW; CONT CYL
PT1/4 & M12 ELBOW
1-09650-117-1
01
1
0106-
132
LEVER; BRK VLV
1-22196-346-0
01
1
0106-
133
NUT; LK
(A) M8 FLANGE
0-91150-108-0
02
1
0106-
133
NUT; LK
(B) M10 FLANGE
0-91150-110-0
01
1
0106-
134
BOLT; STOPPER
M8X30
1-09000-112-1
02
1
0106-
153
BOLT; CLEVIS,CONT CYL
1-33739-200-0
02
1
0106-0206
153
BOLT; CLEVIS,CONT CYL
M8X25 FLANGE
0-28080-825-0
02
1
0207-
154
NUT; CLEVIS,CONT CYL
M8 FLANGE
0-91150-108-0
02
1
0106-
159
COLLAR; CONT CYL
1-22199-151-0
02
1
0106-
160
JOINT; CONT CYL
1-22199-164-0
01
1
0106-
163
WASHER; CONT CYL
1-22199-148-0
01
1
0207-

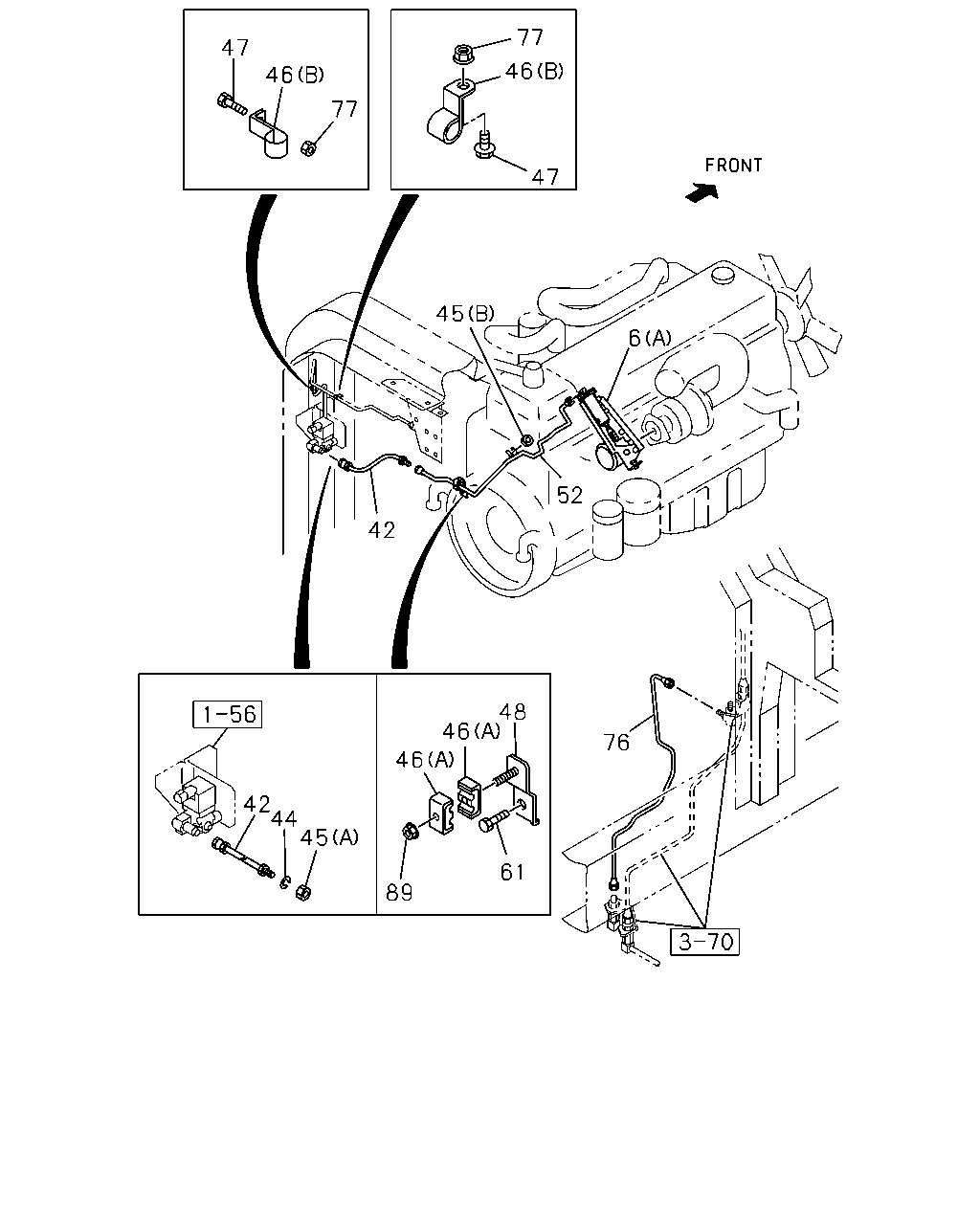

77
46
47
46
77
47
45
6
52
42
48
46
46
76
42
44
45
61
89
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
VALVE; EXH BRAKE
(A)
1-14144-603-3
01
1
0106-
6
VALVE; EXH BRAKE
(B)
1-14144-616-0
01
1
0106-
42
HOSE; FLEX,EXH BRK
L=320
1-09363-656-0
01
1
0106-
44
WASHER; LK,FLEX HOSE
ID=12.2
9-09150-512-0
01
1
0106-0603
44
WASHER; LK,FLEX HOSE
ID=12.2
0-91510-512-0
01
1
0604-
45
NUT; FLEX HOSE
(A) M8 FLANGE
0-91150-108-0
01
1
0106-0602
45
NUT; FLEX HOSE
(A) M8 FLANGE
0-91180-108-0
01
1
0603-
45
NUT; FLEX HOSE
(B) M12
9-09840-280-0
01
1
0106-
46
CLIP; AIR PIPE
(B) ID=6 H=20 L=20
1-09700-603-0
02
1
0106-
46
CLIP; AIR PIPE
(A) ID=15 L=30
1-09701-132-1
02
1
0106-
47
BOLT; CLIP
M8X25 FLANGE
0-28680-825-0
02
1
0106-0512
47
BOLT; CLIP
M8X25 FLANGE
0-28650-825-0
02
1
0601-
48
BRACKET; AIR PIPE
1-47477-407-0
01
1
0106-
52
PIPE ASM; AIR FLEX HOSE
1-19192-904-0
01
1
0106-
61
BOLT; BRKT AIR PIPE
M14X20 FLANGE
0-28981-420-0
01
1
0106-0512
61
BOLT; BRKT AIR PIPE
M14X20 FLANGE
0-28951-420-0
01
1
0601-
76
PIPE ASM; AIR UNION TO UNION
L=708 SERVICED BY L=800
1-47428-812-0
01
1
0106-0111
76
PIPE ASM; AIR UNION TO UNION
1-49123-404-0
01
1
0112-
77
NUT; CLIP
M8 FLANGE
0-91150-108-0
02
1
0106-0602
77
NUT; CLIP
M8 FLANGE
0-91180-108-0
02
1
0603-
89
NUT; BRKT
M6 FLANGE
0-91150-106-0
01
1
0106-0602
89
NUT; BRKT
M6 FLANGE
0-91180-106-0
01
1
0603-
