Sayfa 1-50 - Isuzu EPC

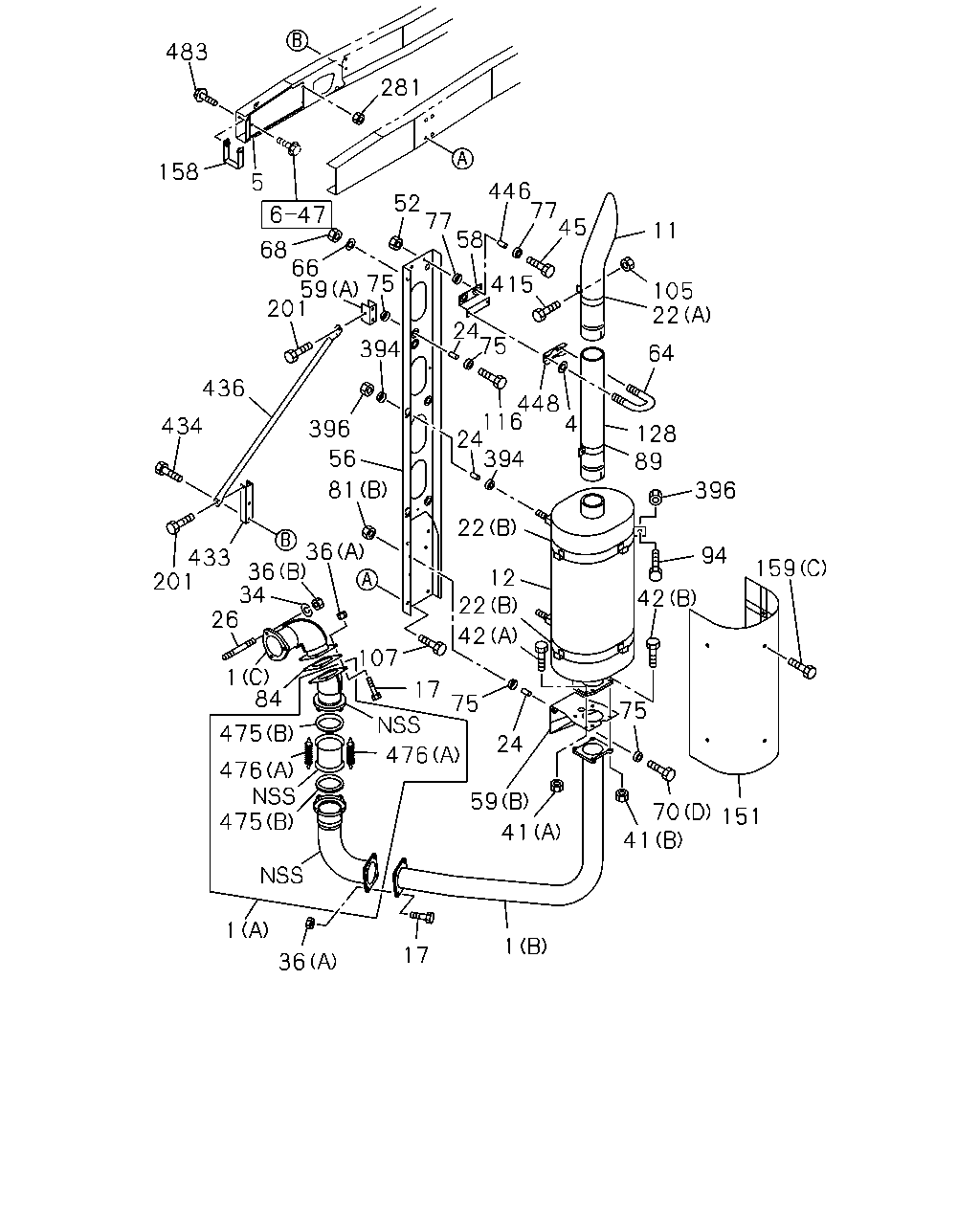

1-50 — EXHAUST PIPE AND SILENCER (#11703) — 209 parça

483 281 158 5 446 77 45 52 77 58 11 68 66 59 201 75 415 105 22 24 75 394 64 436 448 116 4 24 394 434 396 128 89 56 81 396 22 36 36 34 26 94 433 201 159 12 22 42 42 1 84 107 17 75 75 475 24 476 476 475 59 70 41 151 41 1 1 17 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; EXH (C)	1-22122-227-1	01	1	0106-
1	PIPE; EXH (A)	1-22122-818-0	01	1	0106-
1	PIPE; EXH SILENCER SINGLE VERTICAL<N28> (B)	1-22123-191-1	01	1	0106-
1	PIPE; EXH EXC. SILENCER SINGLE VERTICAL<N28> (B)	1-22122-862-0	01	1	0106-
4	WASHER; PL,U BOLT SILENCER SINGLE VERTICAL<N28> ID=8.4 OD=22	9-09160-708-0	02	1	0106-0605
4	WASHER; PL,U BOLT SILENCER SINGLE VERTICAL<N28> ID=8.4 OD=22	0-91610-708-0	02	1	0606-
5	PROTECTOR; HEAT	1-22119-405-0	01	1	0106-
11	PIPE; EXH,RR SILENCER SINGLE VERTICAL<N28>	1-22123-086-1	01	1	0106-
12	SILENCER ASM; EXH SILENCER SINGLE VERTICAL<N28>	1-22140-942-0	01	1	0106-
12	SILENCER ASM; EXH EXC. SILENCER SINGLE VERTICAL<N28>	1-22140-968-3	01	1	0106-
17	BOLT; EXH PIPE M12X25 FLANGE	1-09000-604-0	07	1	0106-
22	CLAMP; EXH PIPE SILENCER SINGLE VERTICAL<N28> (A)	1-22133-266-1	01	1	0106-
22	CLAMP; EXH PIPE SILENCER SINGLE VERTICAL<N28> (B)	1-22133-269-0	02	1	0106-
24	COLLAR; DIST,CLAMP SILENCER SINGLE VERTICAL<N28> L=25	1-14234-083-0	10	1	0106-
24	COLLAR; DIST,CLAMP EXC. SILENCER SINGLE VERTICAL<N28> L=22	9-22159-024-0	04	1	0106-
26	STUD; EXH MANIF M12X140 L=160	1-09302-163-0	03	1	0106-
34	WASHER; EXH PIPE ID=13 OD=24 DISH	1-09556-020-0	03	1	0106-
36	NUT; EXH PIPE (B) M12	1-09400-131-0	03	1	0106-
36	NUT; EXH PIPE (A) M12	9-99110-512-0	08	1	0106-0512
36	NUT; EXH PIPE (A) M12	0-91110-512-0	08	1	0601-
41	NUT; EXH PIPE TO EXH SILENCER SILENCER SINGLE VERTICAL<N28> (A) M10	9-09110-510-0	01	1	0106-0512
41	NUT; EXH PIPE TO EXH SILENCER SILENCER SINGLE VERTICAL<N28> (A) M10	0-91110-510-0	01	1	0601-
41	NUT; EXH PIPE TO EXH SILENCER SILENCER SINGLE VERTICAL<N28> (B) M12	9-99110-512-0	04	1	0106-0512
41	NUT; EXH PIPE TO EXH SILENCER SILENCER SINGLE VERTICAL<N28> (B) M12	0-91110-512-0	04	1	0601-
41	NUT; EXH PIPE TO EXH SILENCER EXC. SILENCER SINGLE VERTICAL<N28> (B) M12	9-99110-512-0	08	1	0106-0512
41	NUT; EXH PIPE TO EXH SILENCER EXC. SILENCER SINGLE VERTICAL<N28> (B) M12	0-91110-512-0	08	1	0601-
42	BOLT; EXH PIPE TO EXH SILENCER SILENCER SINGLE VERTICAL<N28> (A) M10X35 FLANGE	0-28681-035-0	01	1	0106-0512
42	BOLT; EXH PIPE TO EXH SILENCER SILENCER SINGLE VERTICAL<N28> (A) M10X35 FLANGE	0-28651-035-0	01	1	0601-
42	BOLT; EXH PIPE TO EXH SILENCER SILENCER SINGLE VERTICAL<N28> (B) M12X35 FLANGE	1-09000-653-0	04	1	0106-
42	BOLT; EXH PIPE TO EXH SILENCER EXC. SILENCER SINGLE VERTICAL<N28> (C) M12X25 FLANGE	1-09000-604-0	08	1	0106-
45	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M10X50 FLANGE	0-28081-050-0	02	1	0106-0512
45	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M10X50 FLANGE	0-28051-050-0	02	1	0601-
52	NUT; BRKT SILENCER SINGLE VERTICAL<N28> M10 FLANGE	0-91150-210-0	02	1	0106-0602
52	NUT; BRKT SILENCER SINGLE VERTICAL<N28> M10 FLANGE	0-91180-210-0	02	1	0603-
56	BRACKET; CLAMP,EXH PIPE SILENCER SINGLE VERTICAL<N28>	1-22151-767-3	01	1	0106-0109
56	BRACKET; CLAMP,EXH PIPE SILENCER SINGLE VERTICAL<N28>	1-22151-938-0	01	1	0110-
56	BRACKET; CLAMP,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28>	1-22151-788-0	01	1	0106-
58	BRACKET; EXH PIPE,RR SILENCER SINGLE VERTICAL<N28>	1-22131-799-0	01	1	0106-
59	BRACKET; EXH SILENCER,FRT SILENCER SINGLE VERTICAL<N28> (A)	1-22119-252-1	01	1	0106-
59	BRACKET; EXH SILENCER,FRT SILENCER SINGLE VERTICAL<N28> (B)	1-22151-768-1	01	1	0106-
59	BRACKET; EXH SILENCER,FRT EXC. SILENCER SINGLE VERTICAL<N28> (C)	1-22151-710-1	02	1	0106-
64	U-BOLT; EXH PIPE,RR SILENCER SINGLE VERTICAL<N28>	1-22113-097-0	01	1	0106-
66	WASHER; LK,U BOLT SILENCER SINGLE VERTICAL<N28> ID=8.2	9-09150-508-0	02	1	0106-0603
66	WASHER; LK,U BOLT SILENCER SINGLE VERTICAL<N28> ID=8.2	0-91510-508-0	02	1	0604-
68	NUT; U BOLT SILENCER SINGLE VERTICAL<N28> M8 FLANGE	0-91150-108-0	02	1	0106-0602
68	NUT; U BOLT SILENCER SINGLE VERTICAL<N28> M8 FLANGE	0-91180-108-0	02	1	0603-
70	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> (D) M10X60 FLANGE	0-28081-060-0	04	1	0106-0512
70	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> (D) M10X60 FLANGE	0-28051-060-0	04	1	0601-
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M10X50 FLANGE	0-28081-050-0	05	1	0106-0512
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M10X50 FLANGE	0-28051-050-0	05	1	0601-
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (B) M10X25 FLANGE	0-28681-025-0	04	1	0106-0406
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (B) M10X20 FLANGE	0-28681-020-0	04	1	0407-0512
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (B) M10X20 FLANGE	0-28651-020-0	04	1	0601-
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (C) M8X50 FLANGE	0-28080-850-0	02	1	0106-0512
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (C) M8X50 FLANGE	0-28050-850-0	02	1	0601-
75	RUBBER; SUPPORT,BRKT OD=40	1-22159-094-0	08	1	0106-
75	RUBBER; SUPPORT,BRKT SILENCER SINGLE VERTICAL<N28> OD=40	1-22159-094-0	04	1	0106-
77	RUBBER; CUSHION,BRKT SILENCER SINGLE VERTICAL<N28> OD=40	1-22159-094-0	04	1	0106-
81	NUT; BRKT SILENCER SINGLE VERTICAL<N28> (B) M10 FLANGE	0-91150-210-0	04	1	0106-0602
81	NUT; BRKT SILENCER SINGLE VERTICAL<N28> (B) M10 FLANGE	0-91180-210-0	04	1	0603-
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M12 FLANGE	0-91150-212-0	08	1	0106-0602
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M12 FLANGE	0-91180-212-0	08	1	0603-
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (C) M8 FLANGE	0-91150-108-0	02	1	0106-0602
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (C) M8 FLANGE	0-91180-108-0	02	1	0603-
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (B) M10 FLANGE	0-91150-210-0	01	1	0106-0602
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (B) M10 FLANGE	0-91180-210-0	01	1	0603-
84	GASKET; EXH PIPE	1-22116-030-0	01	1	0106-
89	CLAMP; EXH SILENCER,RR SILENCER SINGLE VERTICAL<N28>	1-22133-266-1	01	1	0106-
94	BOLT; CLAMP SILENCER SINGLE VERTICAL<N28> M10X40 FLANGE	0-28681-040-0	01	1	0106-0512
94	BOLT; CLAMP SILENCER SINGLE VERTICAL<N28> M10X40 FLANGE	0-28651-040-0	01	1	0601-
94	BOLT; CLAMP SILENCER SINGLE VERTICAL<N28> M10X40 FLANGE	0-28681-040-0	02	1	0106-0512
94	BOLT; CLAMP SILENCER SINGLE VERTICAL<N28> M10X40 FLANGE	0-28651-040-0	02	1	0601-
105	NUT; CLAMP SILENCER SINGLE VERTICAL<N28> M10 FLANGE	0-91150-210-0	01	1	0106-0602
105	NUT; CLAMP SILENCER SINGLE VERTICAL<N28> M10 FLANGE	0-91150-210-0	01	1	0106-0602
105	NUT; CLAMP SILENCER SINGLE VERTICAL<N28> M10 FLANGE	0-91180-210-0	01	1	0603-
105	NUT; CLAMP SILENCER SINGLE VERTICAL<N28> M10 FLANGE	0-91180-210-0	01	1	0603-
107	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M12X45 FLANGE	0-28081-245-0	04	1	0106-0111
107	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M12X35 FLANGE	0-28081-235-0	04	1	0112-0512
107	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M12X35 FLANGE	0-28051-235-0	04	1	0601-
107	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> M12X40 FLANGE	0-28681-240-0	04	1	0106-0512
107	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> M12X40 FLANGE	0-28651-240-0	04	1	0601-
116	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M10X50 FLANGE	0-28081-050-0	02	1	0106-0512
116	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M10X50 FLANGE	0-28051-050-0	02	1	0601-
128	PIPE; EXH,RR SILENCER SINGLE VERTICAL<N28>	1-22123-087-1	01	1	0106-
128	PIPE; EXH,RR EXC. SILENCER SINGLE VERTICAL<N28>	1-22123-207-0	01	1	0106-
151	PROTECTOR; HEAT,EXH PIPE SILENCER SINGLE VERTICAL<N28>	1-22159-334-0	01	1	0106-
158	BRACKET; HEAT PROTECTOR	1-22119-368-0	01	1	0106-
159	BOLT; HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28> (C) M8X25 W/LK&PL WASHER	1-09030-027-0	06	1	0106-
159	BOLT; HEAT PROTECTOR EXC. SILENCER SINGLE VERTICAL<N28> (A) M8X20 FLANGE	0-28680-820-0	02	1	0106-0512
159	BOLT; HEAT PROTECTOR EXC. SILENCER SINGLE VERTICAL<N28> (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-
159	BOLT; HEAT PROTECTOR EXC. SILENCER SINGLE VERTICAL<N28> (B) M8X22 W/LK&PL WASHER	1-09030-042-0	12	1	0106-
201	BOLT; STAY SILENCER SINGLE VERTICAL<N28> M10X25 FLANGE	0-28681-025-0	04	1	0106-0512
201	BOLT; STAY SILENCER SINGLE VERTICAL<N28> M10X25 FLANGE	0-28651-025-0	04	1	0601-
281	NUT; HEAT PROTECTOR M8 FLANGE	0-91150-108-0	02	1	0106-0602
281	NUT; HEAT PROTECTOR M8 FLANGE	0-91180-108-0	02	1	0603-
394	RUBBER; SUPPORT,CLAMP SILENCER SINGLE VERTICAL<N28> OD=40	1-22159-094-0	08	1	0106-
396	NUT; CLAMP SILENCER SINGLE VERTICAL<N28> M10 FLANGE	0-91150-210-0	06	1	0106-0602
396	NUT; CLAMP SILENCER SINGLE VERTICAL<N28> M10 FLANGE	0-91180-210-0	06	1	0603-
415	BOLT; CLAMP SILENCER SINGLE VERTICAL<N28> M10X40 FLANGE	0-28681-040-0	01	1	0106-0512
415	BOLT; CLAMP SILENCER SINGLE VERTICAL<N28> M10X40 FLANGE	0-28651-040-0	01	1	0601-
433	BRACKET; STAY,EXH PIPE SILENCER SINGLE VERTICAL<N28>	1-22151-811-0	01	1	0106-
434	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M10X30 FLANGE	0-28681-030-0	02	1	0106-0512
434	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M10X30 FLANGE	0-28651-030-0	02	1	0601-
436	STAY; SUPPORT,EXH SILENCER SINGLE VERTICAL<N28>	1-22131-798-2	02	1	0106-
446	PIECE; DIST,EXH PIPE,RR SILENCER SINGLE VERTICAL<N28> L=25	1-14234-083-0	02	1	0106-
448	PIECE; DIST,U-BOLT SILENCER SINGLE VERTICAL<N28>	1-22113-095-0	01	1	0106-
475	BEARING; SEAL,VIBNON,EXH PIPE (B) OD=122	1-22119-297-0	02	1	0106-
475	BEARING; SEAL,VIBNON,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (A) OD=112	1-22119-294-0	01	1	0106-
475	BEARING; SEAL,VIBNON,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (C) OD=122	1-22119-297-0	01	1	0106-
476	SPRING; VIBNON,EXH PIPE (A)	1-09583-298-0	04	1	0106-
476	SPRING; VIBNON,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (B)	8-94141-851-0	02	1	0106-
483	BOLT; BRKT,HEAT PROTECTOR M8X30 FLANGE	0-28680-830-0	01	1	0106-0512
483	BOLT; BRKT,HEAT PROTECTOR M8X30 FLANGE	0-28650-830-0	01	1	0601-

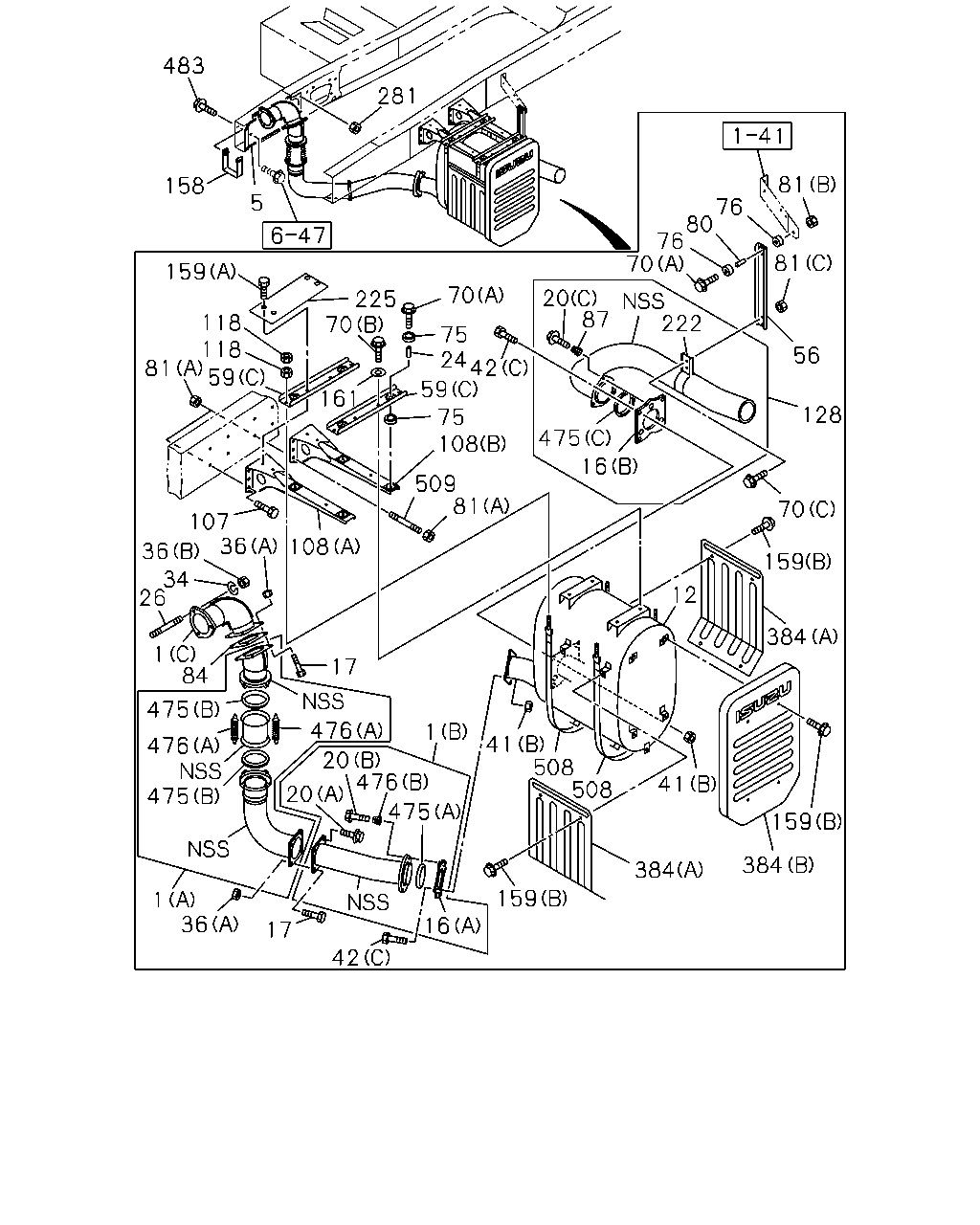

483 281 81 81 158 5 76 80 76 70 159 70 20 87 225 70 222 118 118 59 75 24 42 59 75 108 56 81 161 128 475 16 509 81 70 107 36 108 36 34 26 159 12 1 84 384 17 475 476 1 41 508 508 476 475 20 476 41 20 475 159 384 384 159 1 36 16 17 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; EXH (C)	1-22122-227-1	01	1	0106-
1	PIPE; EXH (A)	1-22122-818-0	01	1	0106-
1	PIPE; EXH SILENCER SINGLE VERTICAL<N28> (B)	1-22123-191-1	01	1	0106-
1	PIPE; EXH EXC. SILENCER SINGLE VERTICAL<N28> (B)	1-22122-862-0	01	1	0106-
5	PROTECTOR; HEAT	1-22119-405-0	01	1	0106-
12	SILENCER ASM; EXH SILENCER SINGLE VERTICAL<N28>	1-22140-942-0	01	1	0106-
12	SILENCER ASM; EXH EXC. SILENCER SINGLE VERTICAL<N28>	1-22140-968-3	01	1	0106-
16	FLANGE; EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-22115-148-1	01	1	0106-
16	FLANGE; EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (B)	1-22115-194-0	01	1	0106-
17	BOLT; EXH PIPE M12X25 FLANGE	1-09000-604-0	07	1	0106-
20	BOLT; FLANGE,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (A) M12X30 FLANGE	0-28691-230-0	01	1	0106-0512
20	BOLT; FLANGE,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (A) M12X30 FLANGE	0-28661-230-0	01	1	0601-
20	BOLT; FLANGE,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (C) M10X51.4	1-09009-167-0	03	1	0106-
20	BOLT; FLANGE,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (B)	8-94436-943-0	02	1	0106-
24	COLLAR; DIST,CLAMP SILENCER SINGLE VERTICAL<N28> L=25	1-14234-083-0	10	1	0106-
24	COLLAR; DIST,CLAMP EXC. SILENCER SINGLE VERTICAL<N28> L=22	9-22159-024-0	04	1	0106-
26	STUD; EXH MANIF M12X140 L=160	1-09302-163-0	03	1	0106-
34	WASHER; EXH PIPE ID=13 OD=24 DISH	1-09556-020-0	03	1	0106-
36	NUT; EXH PIPE (B) M12	1-09400-131-0	03	1	0106-
36	NUT; EXH PIPE (A) M12	9-99110-512-0	08	1	0106-0512
36	NUT; EXH PIPE (A) M12	0-91110-512-0	08	1	0601-
41	NUT; EXH PIPE TO EXH SILENCER SILENCER SINGLE VERTICAL<N28> (A) M10	9-09110-510-0	01	1	0106-0512
41	NUT; EXH PIPE TO EXH SILENCER SILENCER SINGLE VERTICAL<N28> (A) M10	0-91110-510-0	01	1	0601-
41	NUT; EXH PIPE TO EXH SILENCER SILENCER SINGLE VERTICAL<N28> (B) M12	9-99110-512-0	04	1	0106-0512
41	NUT; EXH PIPE TO EXH SILENCER SILENCER SINGLE VERTICAL<N28> (B) M12	0-91110-512-0	04	1	0601-
41	NUT; EXH PIPE TO EXH SILENCER EXC. SILENCER SINGLE VERTICAL<N28> (B) M12	9-99110-512-0	08	1	0106-0512
41	NUT; EXH PIPE TO EXH SILENCER EXC. SILENCER SINGLE VERTICAL<N28> (B) M12	0-91110-512-0	08	1	0601-
42	BOLT; EXH PIPE TO EXH SILENCER SILENCER SINGLE VERTICAL<N28> (A) M10X35 FLANGE	0-28681-035-0	01	1	0106-0512
42	BOLT; EXH PIPE TO EXH SILENCER SILENCER SINGLE VERTICAL<N28> (A) M10X35 FLANGE	0-28651-035-0	01	1	0601-
42	BOLT; EXH PIPE TO EXH SILENCER SILENCER SINGLE VERTICAL<N28> (B) M12X35 FLANGE	1-09000-653-0	04	1	0106-
42	BOLT; EXH PIPE TO EXH SILENCER EXC. SILENCER SINGLE VERTICAL<N28> (C) M12X25 FLANGE	1-09000-604-0	08	1	0106-
56	BRACKET; CLAMP,EXH PIPE SILENCER SINGLE VERTICAL<N28>	1-22151-767-3	01	1	0106-0109
56	BRACKET; CLAMP,EXH PIPE SILENCER SINGLE VERTICAL<N28>	1-22151-938-0	01	1	0110-
56	BRACKET; CLAMP,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28>	1-22151-788-0	01	1	0106-
59	BRACKET; EXH SILENCER,FRT SILENCER SINGLE VERTICAL<N28> (A)	1-22119-252-1	01	1	0106-
59	BRACKET; EXH SILENCER,FRT SILENCER SINGLE VERTICAL<N28> (B)	1-22151-768-1	01	1	0106-
59	BRACKET; EXH SILENCER,FRT EXC. SILENCER SINGLE VERTICAL<N28> (C)	1-22151-710-1	02	1	0106-
70	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> (D) M10X60 FLANGE	0-28081-060-0	04	1	0106-0512
70	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> (D) M10X60 FLANGE	0-28051-060-0	04	1	0601-
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M10X50 FLANGE	0-28081-050-0	05	1	0106-0512
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M10X50 FLANGE	0-28051-050-0	05	1	0601-
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (B) M10X25 FLANGE	0-28681-025-0	04	1	0106-0406
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (B) M10X20 FLANGE	0-28681-020-0	04	1	0407-0512
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (B) M10X20 FLANGE	0-28651-020-0	04	1	0601-
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (C) M8X50 FLANGE	0-28080-850-0	02	1	0106-0512
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (C) M8X50 FLANGE	0-28050-850-0	02	1	0601-
75	RUBBER; SUPPORT,BRKT OD=40	1-22159-094-0	08	1	0106-
75	RUBBER; SUPPORT,BRKT SILENCER SINGLE VERTICAL<N28> OD=40	1-22159-094-0	04	1	0106-
76	SUPPORT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> OD=40	1-22159-094-0	02	1	0106-
80	COLLAR; DIST,SUPPORT RUBBER EXC. SILENCER SINGLE VERTICAL<N28> L=22	9-22159-024-0	01	1	0106-
81	NUT; BRKT SILENCER SINGLE VERTICAL<N28> (B) M10 FLANGE	0-91150-210-0	04	1	0106-0602
81	NUT; BRKT SILENCER SINGLE VERTICAL<N28> (B) M10 FLANGE	0-91180-210-0	04	1	0603-
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M12 FLANGE	0-91150-212-0	08	1	0106-0602
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M12 FLANGE	0-91180-212-0	08	1	0603-
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (C) M8 FLANGE	0-91150-108-0	02	1	0106-0602
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (C) M8 FLANGE	0-91180-108-0	02	1	0603-
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (B) M10 FLANGE	0-91150-210-0	01	1	0106-0602
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (B) M10 FLANGE	0-91180-210-0	01	1	0603-
84	GASKET; EXH PIPE	1-22116-030-0	01	1	0106-
87	SPRING; PRE SILENCER EXC. SILENCER SINGLE VERTICAL<N28>	8-94141-851-0	03	1	0106-
107	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M12X45 FLANGE	0-28081-245-0	04	1	0106-0111
107	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M12X35 FLANGE	0-28081-235-0	04	1	0112-0512
107	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M12X35 FLANGE	0-28051-235-0	04	1	0601-
107	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> M12X40 FLANGE	0-28681-240-0	04	1	0106-0512
107	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> M12X40 FLANGE	0-28651-240-0	04	1	0601-
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-22131-774-3	01	1	0106-
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR EXC. SILENCER SINGLE VERTICAL<N28> (B)	1-22131-775-3	01	1	0106-
118	NUT; SILENCER MTG BRKT EXC. SILENCER SINGLE VERTICAL<N28> M10	9-09110-510-0	08	1	0106-0512
118	NUT; SILENCER MTG BRKT EXC. SILENCER SINGLE VERTICAL<N28> M10	0-91110-510-0	08	1	0601-
128	PIPE; EXH,RR SILENCER SINGLE VERTICAL<N28>	1-22123-087-1	01	1	0106-
128	PIPE; EXH,RR EXC. SILENCER SINGLE VERTICAL<N28>	1-22123-207-0	01	1	0106-
158	BRACKET; HEAT PROTECTOR	1-22119-368-0	01	1	0106-
159	BOLT; HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28> (C) M8X25 W/LK&PL WASHER	1-09030-027-0	06	1	0106-
159	BOLT; HEAT PROTECTOR EXC. SILENCER SINGLE VERTICAL<N28> (A) M8X20 FLANGE	0-28680-820-0	02	1	0106-0512
159	BOLT; HEAT PROTECTOR EXC. SILENCER SINGLE VERTICAL<N28> (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-
159	BOLT; HEAT PROTECTOR EXC. SILENCER SINGLE VERTICAL<N28> (B) M8X22 W/LK&PL WASHER	1-09030-042-0	12	1	0106-
161	WASHER; PL,HEAT PROTECTOR EXC. SILENCER SINGLE VERTICAL<N28> ID=10.5 OD=26	9-09160-710-0	08	1	0106-
222	CLAMP; EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28>	1-22133-276-0	01	1	0106-
225	PROTECTOR; HEAT EXC. SILENCER SINGLE VERTICAL<N28>	1-22119-515-0	01	1	0106-
281	NUT; HEAT PROTECTOR M8 FLANGE	0-91150-108-0	02	1	0106-0602
281	NUT; HEAT PROTECTOR M8 FLANGE	0-91180-108-0	02	1	0603-
384	PROTECTOR; HEAT SILENCER MTG EXC. SILENCER SINGLE VERTICAL<N28> (B)	1-22119-378-3	01	1	0106-
384	PROTECTOR; HEAT SILENCER MTG EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-22119-379-1	02	1	0106-
475	BEARING; SEAL,VIBNON,EXH PIPE (B) OD=122	1-22119-297-0	02	1	0106-
475	BEARING; SEAL,VIBNON,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (A) OD=112	1-22119-294-0	01	1	0106-
475	BEARING; SEAL,VIBNON,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (C) OD=122	1-22119-297-0	01	1	0106-
476	SPRING; VIBNON,EXH PIPE (A)	1-09583-298-0	04	1	0106-
476	SPRING; VIBNON,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (B)	8-94141-851-0	02	1	0106-
483	BOLT; BRKT,HEAT PROTECTOR M8X30 FLANGE	0-28680-830-0	01	1	0106-0512
483	BOLT; BRKT,HEAT PROTECTOR M8X30 FLANGE	0-28650-830-0	01	1	0601-
508	BAND; EXHAUST SILENCER EXC. SILENCER SINGLE VERTICAL<N28>	1-22159-264-1	04	1	0106-0312
508	BAND; EXHAUST SILENCER EXC. SILENCER SINGLE VERTICAL<N28>	1-22159-264-1	02	1	0401-0408
508	BAND; EXHAUST SILENCER EXC. SILENCER SINGLE VERTICAL<N28>	1-22159-382-0	02	1	0409-
508	BAND; EXHAUST SILENCER EXC. SILENCER SINGLE VERTICAL<N28>	1-22159-369-0	02	1	0401-
509	STUD; BRKT EXC. SILENCER SINGLE VERTICAL<N28> M12X32 L=54	1-09300-096-0	04	1	0106-0303
509	STUD; BRKT EXC. SILENCER SINGLE VERTICAL<N28> M12X40 L=56	1-09300-123-0	04	1	0304-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
