Sayfa 7-10 - Isuzu EPC

7-10 — CAUTION PLATE AND LABEL (#117028) — 19 parça

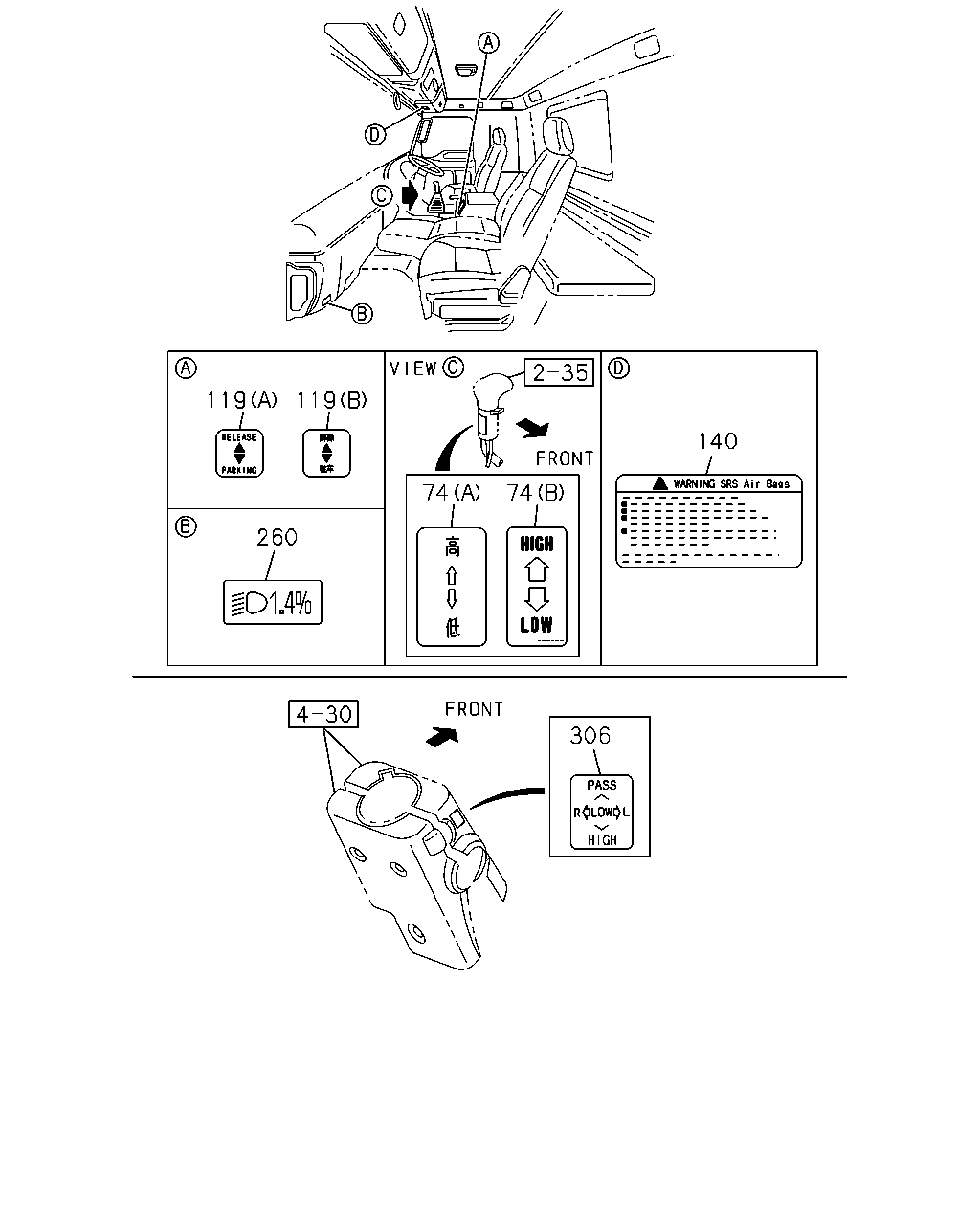

119 119 260 74 74 140 306

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
74	PLATE; CAUTION,CHANGE LEV SHIFT PATTERN SINGLE-H<EDY> CAUTIONS CHINESE<SL7> (A)	8-98120-457-0	01	1	1304-
74	PLATE; CAUTION,CHANGE LEV SHIFT PATTERN SINGLE-H<EDY> EXC. CAUTIONS CHINESE<SL7> (B)	8-98118-493-0	01	1	1304-
119	PLATE; CAUTION,HAND BRK LEVER CAUTIONS CHINESE<SL7> (B)	1-85881-874-0	01	1	1304-
119	PLATE; CAUTION,HAND BRK LEVER CAUTIONS ENGLISH<RR8> (A)	1-85881-759-0	01	1	1304-
140	PLATE; CAUTION,SRS AIR BAG DRIVER(AJ3) CAUTIONS CHINESE<SL7>	8-98158-430-0	01	1	1304-
140	PLATE; CAUTION,SRS AIR BAG DRIVER(AJ3) CAUTIONS ENGLISH<RR8>	8-98139-964-0	01	1	1304-
260	PLATE; CAUTION,HEAD LAMP LEVELING	8-98008-779-0	01	1	1304-
306	LABEL; BEAM & PASS	8-98070-239-0	01	1	1304-

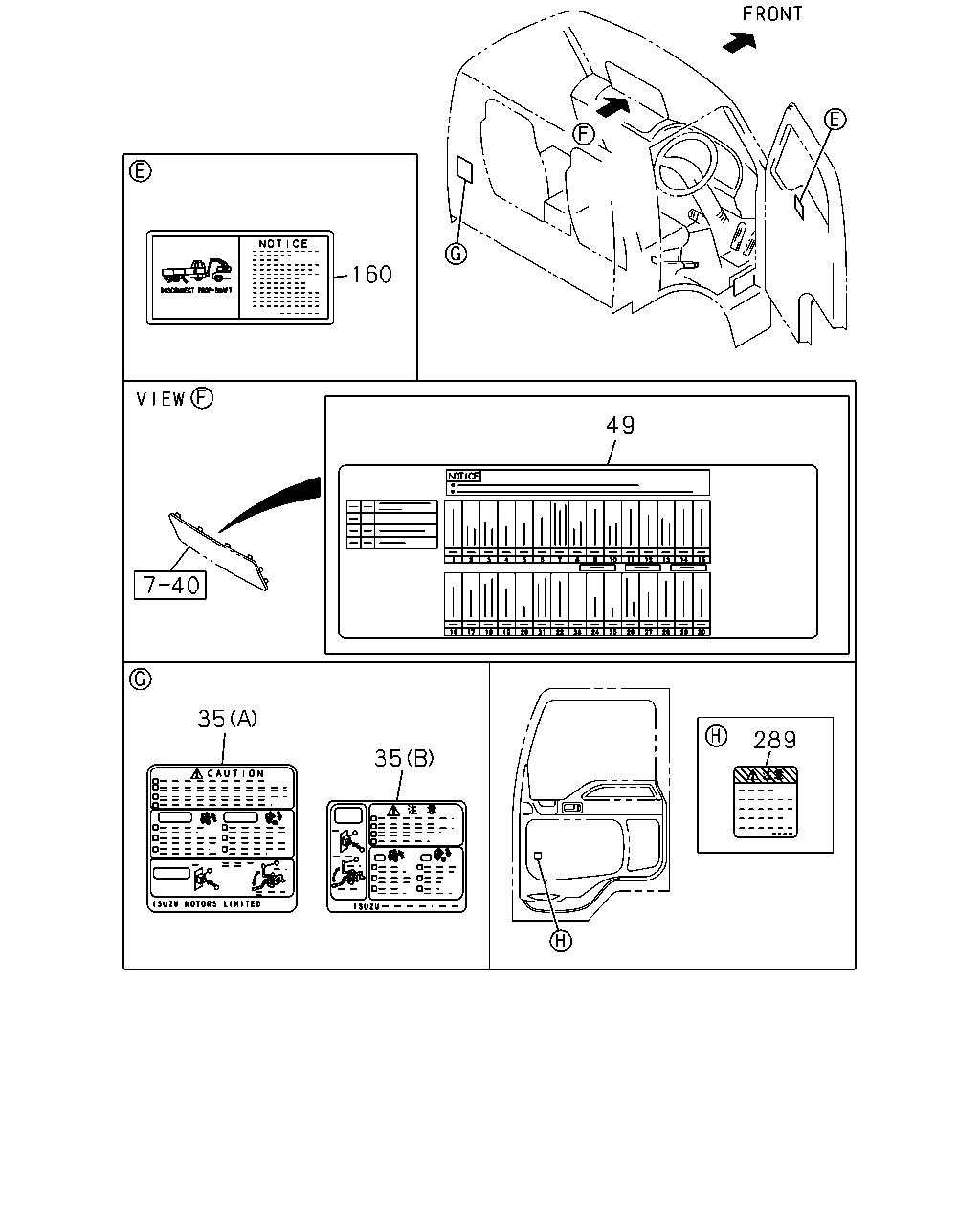

160 49 35 35 289

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
35	PLATE; CAUTION,CAB CAUTIONS CHINESE<SL7> (B)	8-98171-036-0	01	1	1304-
35	PLATE; CAUTION,CAB CAUTIONS ENGLISH<RR8> (A)	8-98017-667-1	01	1	1304-
49	PLATE; CAUTION,FUSE BOX CAUTIONS CHINESE<SL7>	8-98155-328-0	01	1	1304-
49	PLATE; CAUTION,FUSE BOX CAUTIONS ENGLISH<RR8>	8-98076-221-0	01	1	1304-
160	PLATE; CAUTION,TOWING CAUTIONS CHINESE<SL7>	8-98155-058-0	01	1	1304-
160	PLATE; CAUTION,TOWING CAUTIONS ENGLISH<RR8>	1-85888-737-1	01	1	1304-
289	PLATE; CAUTION,DRIVING HONG KONG EQUIPMENT(PQ1) CAUTIONS CHINESE<SL7>	1-85883-223-1	01	1	1304-

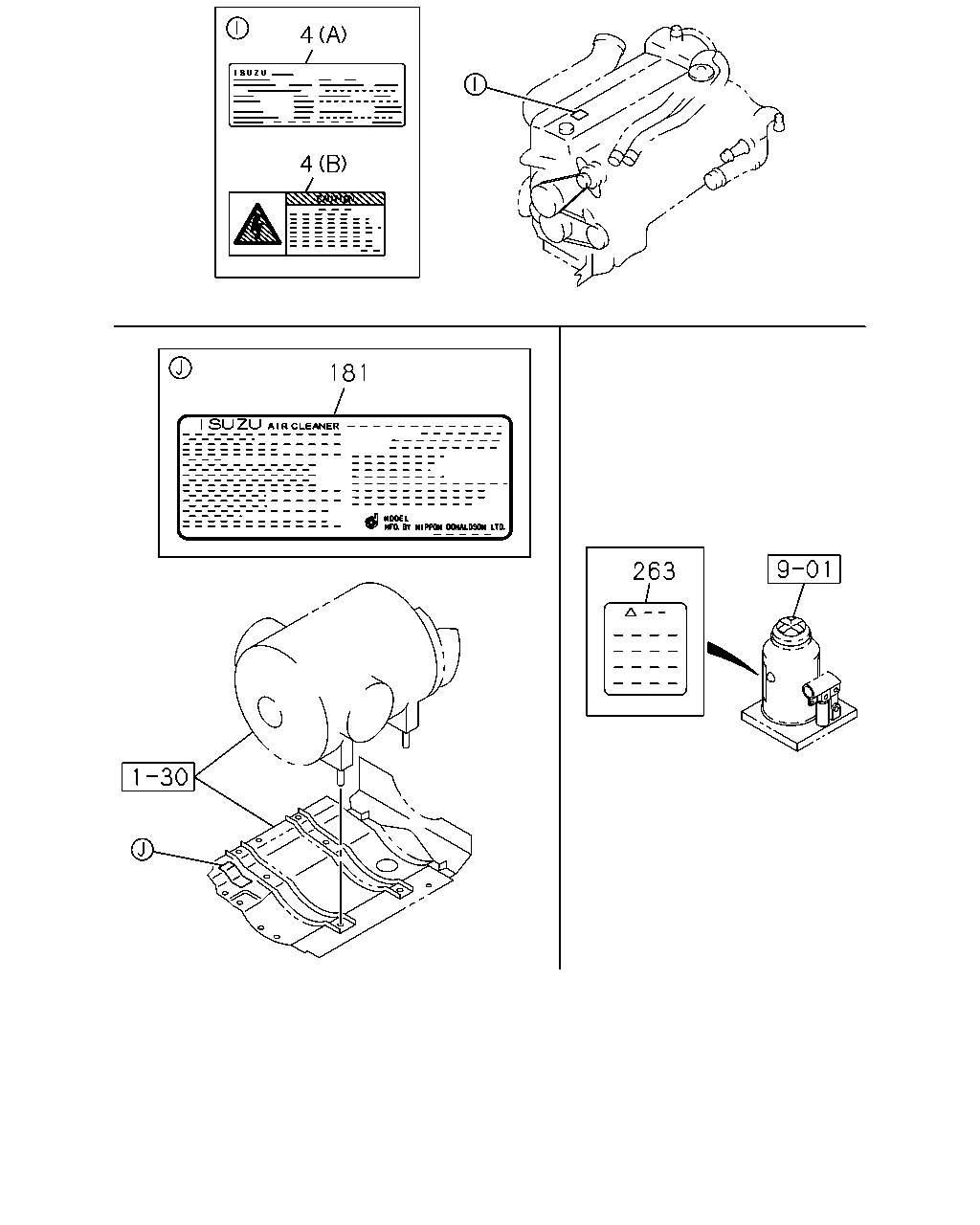

4 4 181 263

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	LABEL; ENG MAINTENANCE (B)	8-94391-524-0	01	1	1304-
4	LABEL; ENG MAINTENANCE (A)	8-98164-931-1	01	1	1304-
181	PLATE; CAUTION,AIR CLEANER	1-85886-796-1	01	1	1304-
263	PLATE; CAUTION,JACK TOOL B KIT<SL1> CAUTIONS CHINESE<SL7>	1-85881-878-0	01	1	1304-
