Isuzu WW
▶
PICKUP
▶
TFR
▶
51473 - TFR/TFS-LHD
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-76 - FLOOR EQUIPMENT AND SEALING
▶

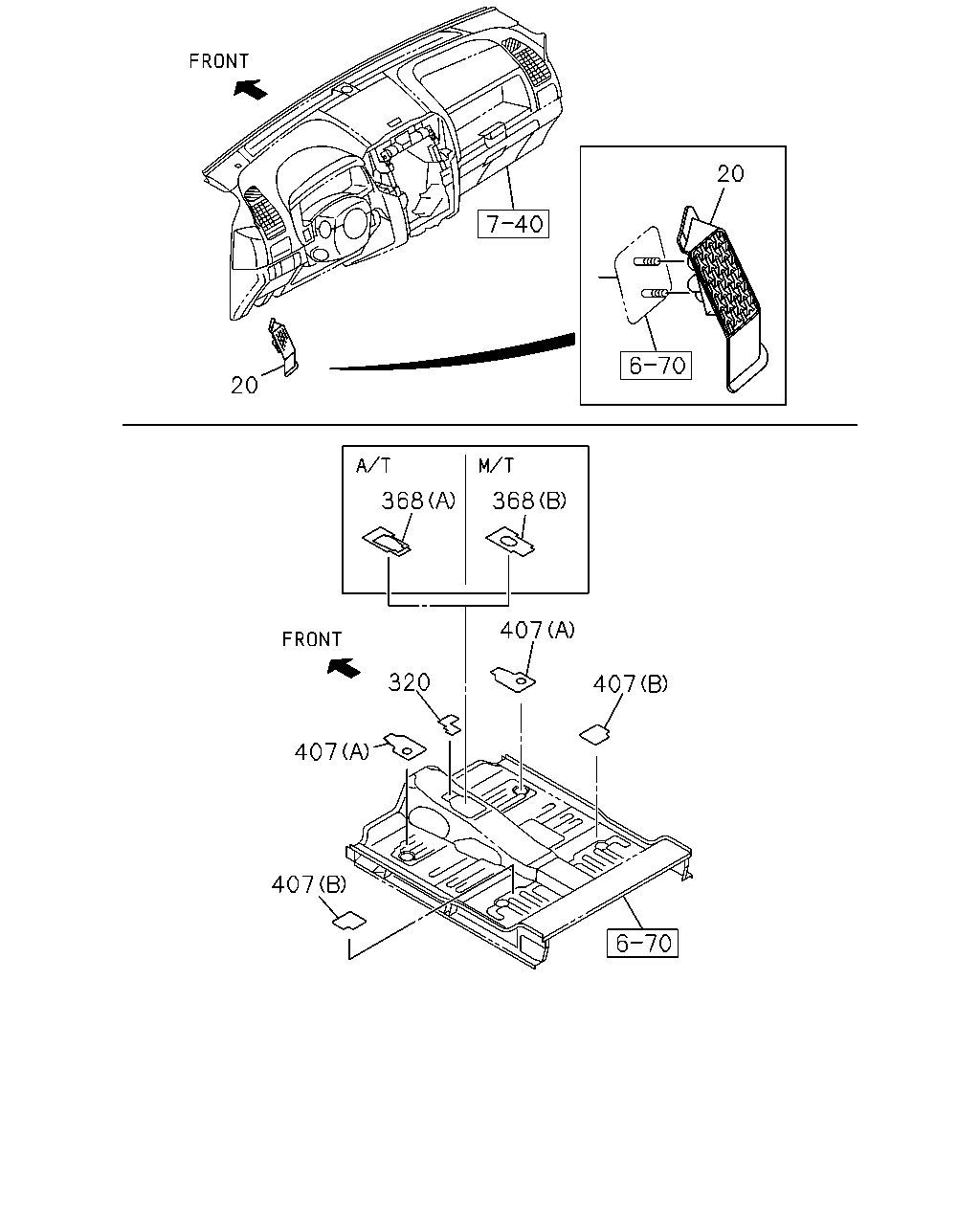

6-76 — FLOOR EQUIPMENT AND SEALING
(#117016) — 9 parça
Tümü
A - TFB6SF
B - TFB6WF
C - TFS6CF
D - TFS6SF
E - TFS6WF
20
20
320
407
407
407
407
368
368
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
20
16.547 REST; FOOT
8-98102-836-2
01
1
1304-
●
●
●
●
●
320
16.549 INSULATOR; FLOOR,FRT
AIR BAG DRIVER & PASSENGER(AK5),AIR BAG DRIVER & PASSENGER & SIDE & ROOF(AY0) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55>
8-98166-704-0
01
1
1304-
●
●
●
●
●
320
16.549 INSULATOR; FLOOR,FRT
AIR BAG DRIVER & PASSENGER DELETE(AK6) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55>
8-98166-705-0
01
1
1304-
●
●
●
●
●
368
16.549 INSULATOR; FLOOR,RR
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T AISIN 6 SPEED(RNU),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (B)
8-98166-706-0
01
1
1304-
●
●
●
●
●
368
16.549 INSULATOR; FLOOR,RR
A/T 5 SPEED-AISIN(MA1) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (A)
8-98166-707-0
01
1
1304-
●
●
368
16.549 INSULATOR; FLOOR,RR
A/T 5 SPEED-AISIN(MA1) FRONT CONSOLE W/LID<D55> (A)
8-98166-707-0
01
1
1304-
●
407
16.850 DEADENER; FLOOR PANEL
ISRAEL EQUIPMENT(2G1) (A)
8-98103-655-1
01
1
1304-
●
●
407
16.850 DEADENER; FLOOR PANEL
(A)
8-98103-655-1
02
1
1304-
●
●
●
407
16.850 DEADENER; FLOOR PANEL
(B)
8-98155-918-0
02
1
1304-
●
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
