Isuzu WW
▶
TRUCKS
▶
FVR
▶
11527 - FVR(MALAYSIA) 280PS
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-76 - FLOOR EQUIPMENT AND SEALING
▶

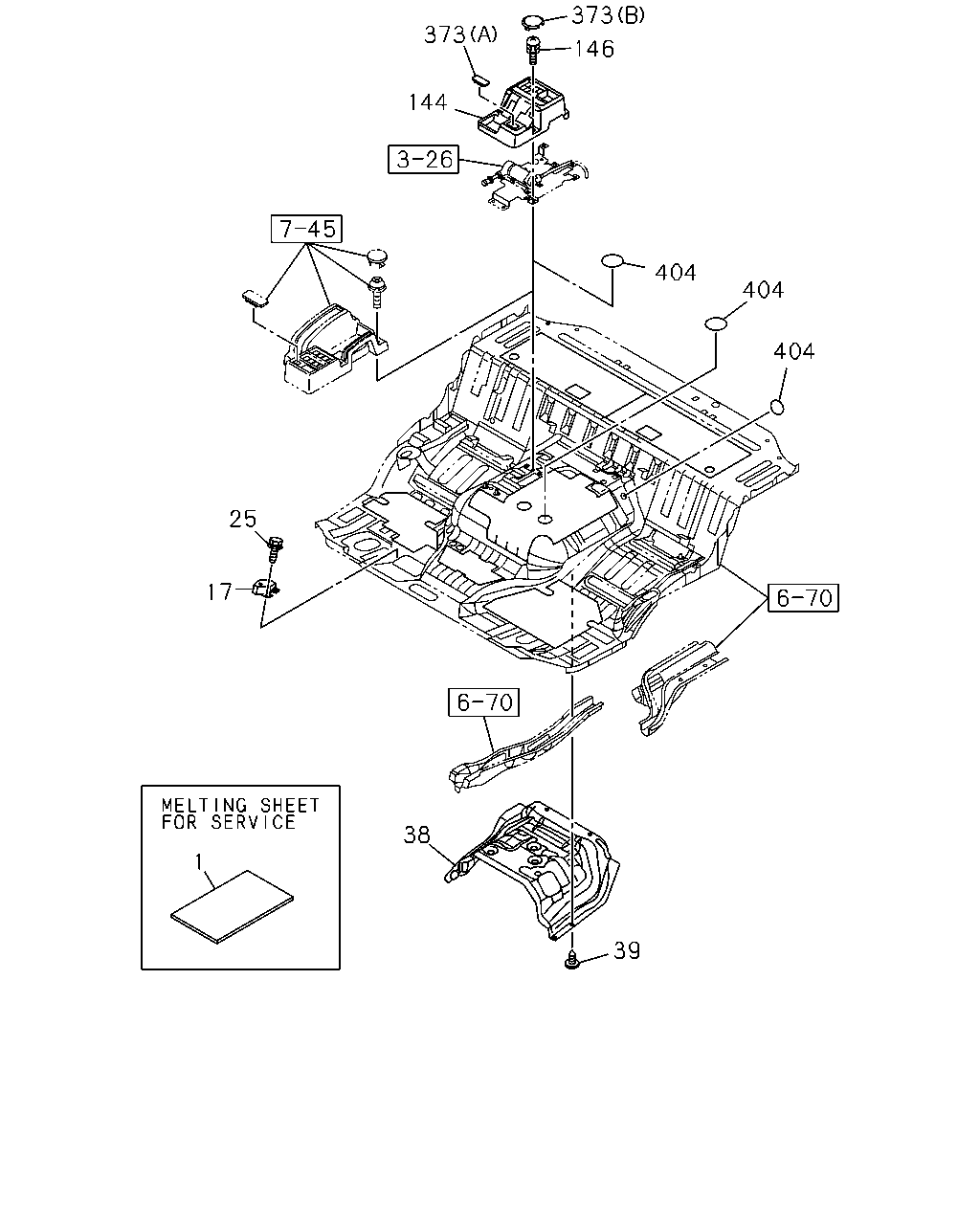

6-76 — FLOOR EQUIPMENT AND SEALING
(#117015) — 13 parça
◀
[676A] NO.1 (12 parça)
[676A] NO.2 (1 parça)
▶
373
373
144
404
404
25
17
39
38
1
146
404
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SHEET; MELTING,FLOOR
NON ASBESTOS 1000X600 T=1.5; PARTS ONLY
8-94262-093-0
AR
1
1304-
17
REST; FOOT,DRIVER
8-98076-322-1
01
1
1304-
25
SCREW; FOOT REST
BOLT M6X19.5 W/LK&PL WASHER
8-94279-201-0
03
1
1304-
38
INSULATOR; ENG COVER
8-98180-258-0
01
1
1304-1405
38
INSULATOR; ENG COVER
8-98248-305-0
01
1
1406-
39
CLIP; INSULATOR,COVER
ID=6.2 L=11.4
8-97808-623-0
17
1
1304-
144
COVER; HAND BRK VLV
GRAY
8-97407-974-0
01
1
1304-
146
BOLT; COVER BRKT
M6X16
0-38050-616-0
04
1
1304-
373
COVER; HOLE
(B) GRAY
8-97407-951-0
04
1
1304-
373
COVER; HOLE
(A) GRAY
8-97409-339-0
01
1
1304-
404
SEAL; FLOOR,HOLE
OD=25 BLACK
1-76798-019-0
12
1
1304-
404
SEAL; FLOOR,HOLE
EXC. CENTER SEAT DELETE<SP9> OD=25 BLACK
1-76798-019-0
02
1
1304-
370
370
370
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
370
SEAL; LOCATION HOLE
OD=30 T=0.8
8-98230-420-0
08
1
1304-
