1-41 — FUEL PIPING; CHASSIS (#11701) — 82 parça

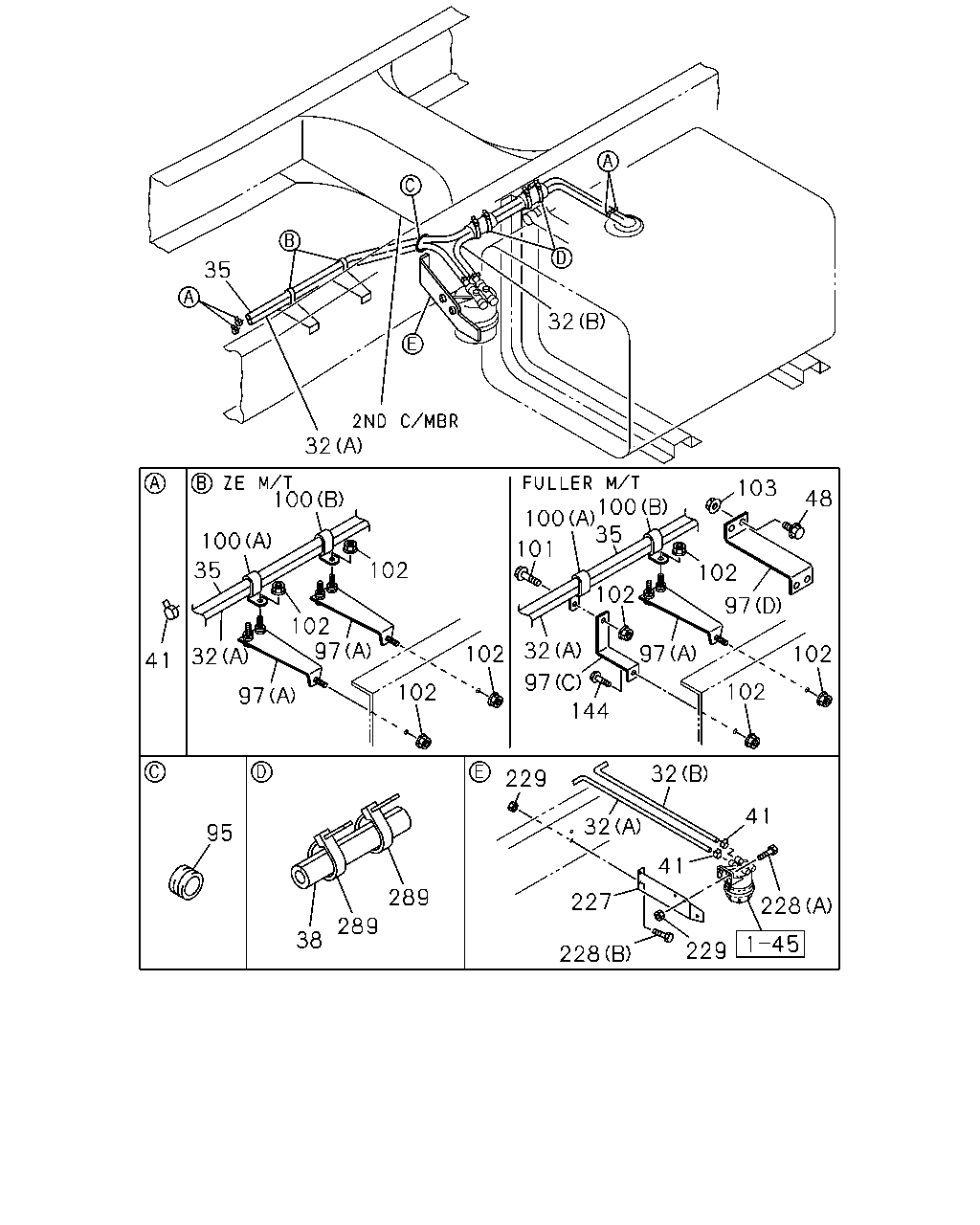

35 32 32 100 100 35 103 48 100 100 101 35 102 102 102 97 102 97 97 32 102 102 102 102 32 41 97 97 144 32 229 41 32 95 41 289 227 228 289 38 229 228

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
32	PIPE; DELIVERY,FUEL TANK (B) L=820 SERVICED BY L=3000	0-01260-300-0	01	1	0106-
32	PIPE; DELIVERY,FUEL TANK (A) L=1200 SERVICED BY L=3000	0-01260-300-0	01	1	0106-
35	PIPE; FUEL TANK,RETURN L=1650 SERVICED BY L=3000	0-01260-300-0	01	1	0106-
38	SLEEVE; RUBBER,RUBBER HOSE L=150	1-09360-677-1	02	1	0106-0107
38	SLEEVE; RUBBER,RUBBER HOSE L=150 SERVICED BY L=1300	1-09360-677-1	03	1	0108-
41	CLIP; FUEL PIPE,FUEL TANK ID=14	1-09704-102-0	06	1	0106-
48	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M8X30 FLANGE	0-28680-830-0	02	1	0112-0512
48	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M8X30 FLANGE	0-28650-830-0	02	1	0601-
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=25	1-09332-011-1	01	1	0106-
97	BRACKET; CLIP SILENCER SINGLE VERTICAL<N28> (D)	1-47479-345-0	01	1	0110-0111
97	BRACKET; CLIP SILENCER SINGLE VERTICAL<N28> (D)	1-47479-379-0	01	1	0112-
97	BRACKET; CLIP FUEL TANK 400L+400L<NAR> (B)	1-53461-494-1	01	1	0106-
97	BRACKET; CLIP FULLER M/T<X9B> (A)	1-47479-247-0	01	1	0106-0111
97	BRACKET; CLIP SILENCER SINGLE VERTICAL<N28> (A)	1-47479-247-0	01	1	0112-0408
97	BRACKET; CLIP FULLER M/T<X9B> EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-47479-247-0	01	1	0112-0408
97	BRACKET; CLIP SILENCER SINGLE VERTICAL<N28> (A)	1-47471-045-0	01	1	0409-
97	BRACKET; CLIP FULLER M/T<X9B> EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-47471-045-0	01	1	0409-
97	BRACKET; CLIP FULLER M/T<X9B> (C)	1-47479-248-0	01	1	0106-0111
97	BRACKET; CLIP FULLER M/T<X9B> EXC. SILENCER SINGLE VERTICAL<N28> (C)	1-47479-248-0	01	1	0112-
97	BRACKET; CLIP ZF M/T<X9E> (A)	1-47479-247-0	02	1	0106-0111
97	BRACKET; CLIP ZF M/T<X9E> EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-47479-247-0	02	1	0112-0408
97	BRACKET; CLIP ZF M/T<X9E> EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-47471-045-0	02	1	0409-
100	CLIP; FUEL PIPE FULLER M/T<X9B> (A) H=15 ID=14	1-09700-744-0	01	1	0106-
100	CLIP; FUEL PIPE FULLER M/T<X9B> (B) ID=15	1-09700-845-1	01	1	0106-0106
100	CLIP; FUEL PIPE FULLER M/T<X9B> (B)	1-09701-299-0	01	1	0107-
100	CLIP; FUEL PIPE ZF M/T<X9E> (B) ID=15	1-09700-845-1	02	1	0106-0106
100	CLIP; FUEL PIPE ZF M/T<X9E> (B)	1-09701-299-0	02	1	0107-
101	BOLT; CLIP,FUEL PIPE FULLER M/T<X9B> M8X25 FLANGE	0-28680-825-0	01	1	0106-0512
101	BOLT; CLIP,FUEL PIPE FULLER M/T<X9B> M8X25 FLANGE	0-28650-825-0	01	1	0601-
102	NUT; CLIP,FUEL PIPE SILENCER SINGLE VERTICAL<N28> M8 FLANGE	0-91150-108-0	01	1	0110-0111
102	NUT; CLIP,FUEL PIPE EXC. SILENCER SINGLE VERTICAL<N28> M8 FLANGE	0-91150-108-0	02	1	0112-0602
102	NUT; CLIP,FUEL PIPE M8 FLANGE	0-91150-108-0	02	1	0112-0602
102	NUT; CLIP,FUEL PIPE EXC. SILENCER SINGLE VERTICAL<N28> M8 FLANGE	0-91180-108-0	02	1	0603-
102	NUT; CLIP,FUEL PIPE M8 FLANGE	0-91180-108-0	02	1	0603-
102	NUT; CLIP,FUEL PIPE M8 FLANGE	0-91150-108-0	02	1	0106-0111
102	NUT; CLIP,FUEL PIPE M8 FLANGE	0-91150-108-0	02	1	0106-0111
103	NUT; BRKT SILENCER SINGLE VERTICAL<N28> M8 FLANGE	0-91150-108-0	03	1	0112-0602
103	NUT; BRKT SILENCER SINGLE VERTICAL<N28> M8 FLANGE	0-91180-108-0	03	1	0603-
144	BOLT; CLIP,FUEL PIPE,C/MBR FULLER M/T<X9B> M8X30 FLANGE	0-28680-830-0	01	1	0106-0109
144	BOLT; CLIP,FUEL PIPE,C/MBR SILENCER SINGLE VERTICAL<N28> M8X30 FLANGE	0-28680-830-0	01	1	0110-0111
144	BOLT; CLIP,FUEL PIPE,C/MBR FULLER M/T<X9B> M8X30 FLANGE	0-28680-830-0	01	1	0110-0111
144	BOLT; CLIP,FUEL PIPE,C/MBR FULLER M/T<X9B> EXC. SILENCER SINGLE VERTICAL<N28> M8X30 FLANGE	0-28680-830-0	01	1	0112-0512
144	BOLT; CLIP,FUEL PIPE,C/MBR FULLER M/T<X9B> EXC. SILENCER SINGLE VERTICAL<N28> M8X30 FLANGE	0-28650-830-0	01	1	0601-
227	BRACKET; FUEL SEDIMENTER	1-22518-168-2	01	1	0106-
228	BOLT; BRKT,SEDIMENTER (B) M10X30 FLANGE	0-28681-030-0	02	1	0106-0512
228	BOLT; BRKT,SEDIMENTER (B) M10X30 FLANGE	0-28651-030-0	02	1	0601-
228	BOLT; BRKT,SEDIMENTER (A) M10X35 FLANGE	0-28681-035-0	02	1	0106-0512
228	BOLT; BRKT,SEDIMENTER (A) M10X35 FLANGE	0-28651-035-0	02	1	0601-
229	NUT; BRKT,FUEL FILTER M10 FLANGE	0-91150-210-0	02	1	0106-0602
229	NUT; BRKT,FUEL FILTER M10 FLANGE	0-91150-210-0	02	1	0106-0602
229	NUT; BRKT,FUEL FILTER M10 FLANGE	0-91180-210-0	02	1	0603-
229	NUT; BRKT,FUEL FILTER M10 FLANGE	0-91180-210-0	02	1	0603-
289	CLIP; BAND,HOSE L=250	5-09707-030-1	04	1	0106-0107
289	CLIP; BAND,HOSE L=250	5-09707-030-1	06	1	0108-

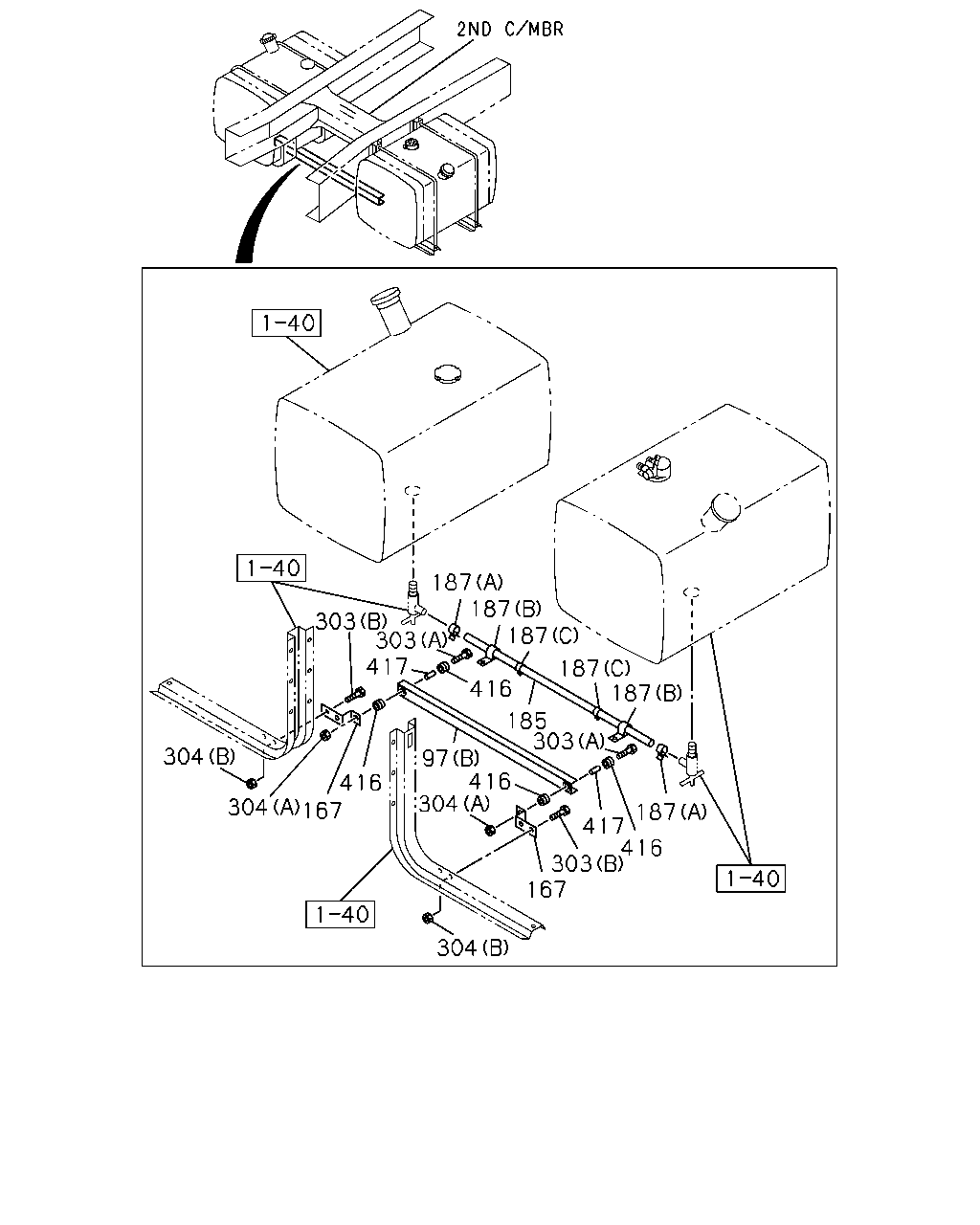

187 187 187 187 187 303 303 417 97 416 416 304 304 167 416 185 303 304 187 417 416 303 167 304

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
97	BRACKET; CLIP SILENCER SINGLE VERTICAL<N28> (D)	1-47479-345-0	01	1	0110-0111
97	BRACKET; CLIP SILENCER SINGLE VERTICAL<N28> (D)	1-47479-379-0	01	1	0112-
97	BRACKET; CLIP FUEL TANK 400L+400L<NAR> (B)	1-53461-494-1	01	1	0106-
97	BRACKET; CLIP FULLER M/T<X9B> (A)	1-47479-247-0	01	1	0106-0111
97	BRACKET; CLIP SILENCER SINGLE VERTICAL<N28> (A)	1-47479-247-0	01	1	0112-0408
97	BRACKET; CLIP FULLER M/T<X9B> EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-47479-247-0	01	1	0112-0408
97	BRACKET; CLIP SILENCER SINGLE VERTICAL<N28> (A)	1-47471-045-0	01	1	0409-
97	BRACKET; CLIP FULLER M/T<X9B> EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-47471-045-0	01	1	0409-
97	BRACKET; CLIP FULLER M/T<X9B> (C)	1-47479-248-0	01	1	0106-0111
97	BRACKET; CLIP FULLER M/T<X9B> EXC. SILENCER SINGLE VERTICAL<N28> (C)	1-47479-248-0	01	1	0112-
97	BRACKET; CLIP ZF M/T<X9E> (A)	1-47479-247-0	02	1	0106-0111
97	BRACKET; CLIP ZF M/T<X9E> EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-47479-247-0	02	1	0112-0408
97	BRACKET; CLIP ZF M/T<X9E> EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-47471-045-0	02	1	0409-
167	BRACKET FUEL TANK 400L+400L<NAR>	1-47478-031-0	02	1	0106-
185	PIPE; FUEL TANK TO TANK FUEL TANK 400L+400L<NAR> L=1800 SERVICED BY L=3000	0-01262-300-0	01	1	0106-
187	CLIP; FUEL PIPE TANK TO TANK FUEL TANK 400L+400L<NAR> (A) ID=19	8-94238-569-0	02	1	0106-
187	CLIP; FUEL PIPE TANK TO TANK FUEL TANK 400L+400L<NAR> (B) ID=19 H=25 L=25	9-09917-035-0	02	1	0106-
187	CLIP; FUEL PIPE TANK TO TANK FUEL TANK 400L+400L<NAR> (C) ID=22 L=52	9-09917-431-0	02	1	0106-
303	BOLT; BRKT FUEL TANK 400L+400L<NAR> (A) M10X50 FLANGE	0-28081-050-0	02	1	0106-0512
303	BOLT; BRKT FUEL TANK 400L+400L<NAR> (A) M10X50 FLANGE	0-28051-050-0	02	1	0601-
303	BOLT; BRKT FUEL TANK 400L+400L<NAR> (B) M8X25 FLANGE	0-28680-825-0	04	1	0106-0512
303	BOLT; BRKT FUEL TANK 400L+400L<NAR> (B) M8X25 FLANGE	0-28650-825-0	04	1	0601-
304	NUT; BRKT FUEL TANK 400L+400L<NAR> (B) M8 FLANGE	0-91150-108-0	04	1	0106-0602
304	NUT; BRKT FUEL TANK 400L+400L<NAR> (B) M8 FLANGE	0-91180-108-0	04	1	0603-
304	NUT; BRKT FUEL TANK 400L+400L<NAR> (A) M10 FLANGE	0-91150-210-0	02	1	0106-0602
304	NUT; BRKT FUEL TANK 400L+400L<NAR> (A) M10 FLANGE	0-91180-210-0	02	1	0603-
416	RUBBER; SUPPORT FUEL TANK 400L+400L<NAR> OD=40	1-22159-094-0	04	1	0106-
417	TUBE; DISTANCE,BRKT FUEL TANK 400L+400L<NAR> L=22	9-22159-024-0	02	1	0106-
