Sayfa 4-35 - Isuzu EPC

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#117008) — 70 parça

157 266 111 257 256 195

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
111	BRACKET; OIL PIPE	8-98086-991-0	01	1	1304-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=77	1-09623-143-0	01	1	1304-
195	BOLT; BRKT (B) M10X20 FLANGE	0-28651-020-0	02	1	1304-
195	BOLT; BRKT (A) M8X35 W/LK&PL WASHER	0-50640-835-0	03	1	1304-
256	NUT; UNION M22	0-91111-522-0	01	1	1304-
256	NUT; UNION M22	0-91111-522-0	01	1	1304-
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	1304-
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	1304-
266	UNION; OIL PIPE,P/S M20 & M22 STRAIGHT	1-09654-167-1	01	1	1304-

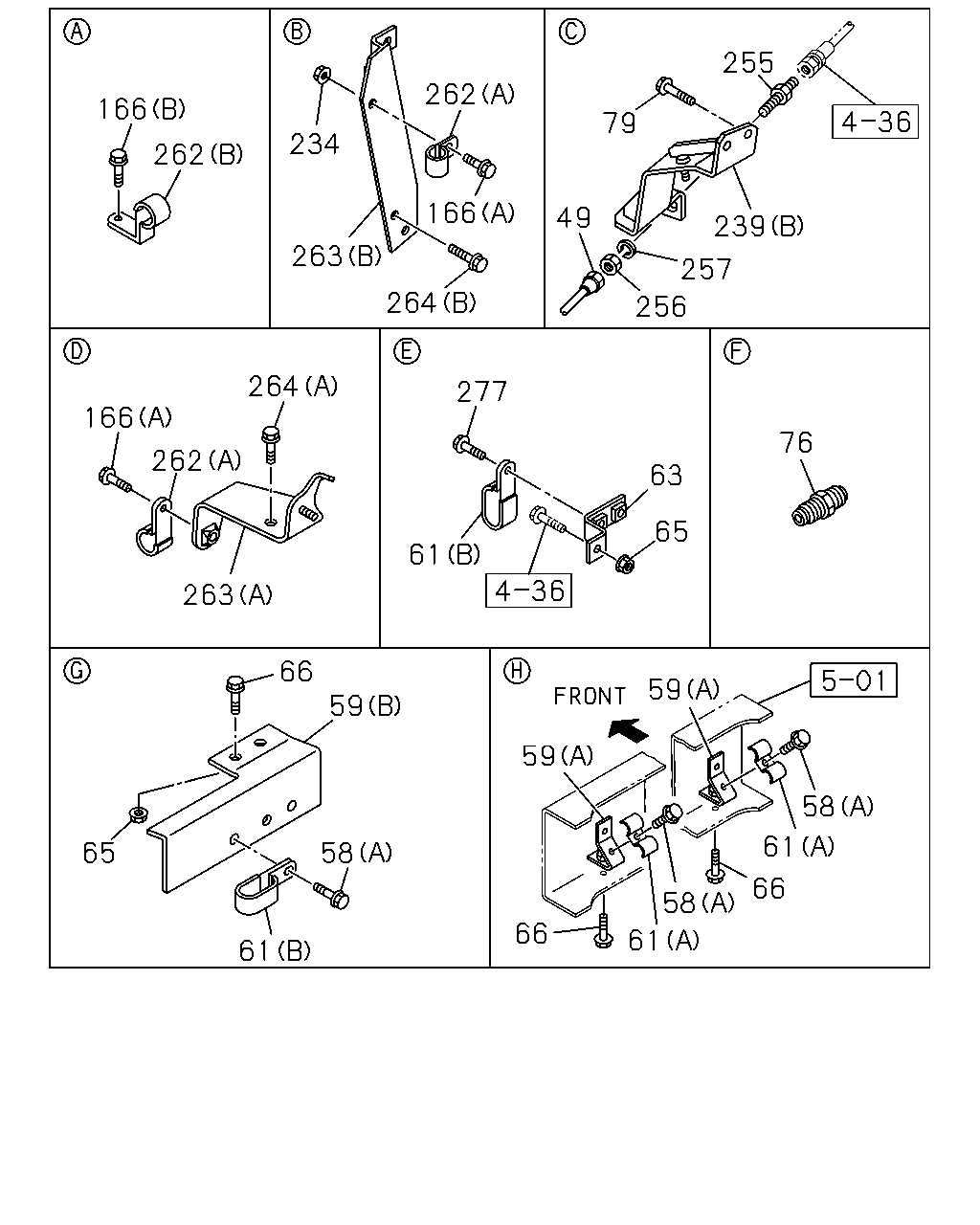

166 234 263 166 262 79 239 257 256 49 255 277 63 76 61 166 264 262 263 262 264 65 66 59 58 61 66 58 61 66 59 58 59 61 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
49	PIPE; OIL,FLEX HOSE TO UNION	8-98240-634-0	01	1	1304-
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	04	1	1304-
58	BOLT; CLIP (B) M8X25 FLANGE	0-28650-825-0	01	1	1304-
59	BRACKET; CLIP,OIL PIPE (A)	1-47479-521-0	02	1	1304-
59	BRACKET; CLIP,OIL PIPE (B)	8-98169-340-0	01	1	1304-
61	CLIP; OIL PIPE (B) ID=16X2 L=20	0-95325-535-0	02	1	1304-
61	CLIP; OIL PIPE (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	02	1	1304-
63	BRACKET; CLIP,P/S	1-47479-482-0	01	1	1304-
65	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1304-
66	BOLT; BRKT,OIL PIPE M8X20 FLANGE	0-28050-820-0	02	1	1304-
66	BOLT; BRKT,OIL PIPE M8X25 FLANGE	0-28650-825-0	02	1	1304-
76	UNION; OIL PIPE M22 L=51	0-92123-015-0	02	1	1304-
79	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1304-
166	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	02	1	1304-
166	BOLT; CLIP (B) M8X25 FLANGE	0-28650-825-0	01	1	1304-
234	NUT; PIPE CLIP,P/S M8 FLANGE	0-91180-108-0	01	1	1304-
239	BRACKET; FLEX HOSE (B)	8-97608-869-1	01	1	1304-
239	BRACKET; FLEX HOSE (A)	8-97621-113-0	01	1	1304-
255	UNION; FLEX HOSE M22 & M22 STRAIGHT	1-09654-204-2	01	1	1304-
256	NUT; UNION M22	0-91111-522-0	01	1	1304-
256	NUT; UNION M22	0-91111-522-0	01	1	1304-
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	1304-
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	1304-
262	CLIP; P/S PIPE (A) ID=16 L=20	0-95235-535-0	02	1	1304-
262	CLIP; P/S PIPE (B) ID=15 H=24 L=20	1-09700-606-0	01	1	1304-
263	BRACKET; P/S PIPE (A)	8-98089-895-2	01	1	1304-
263	BRACKET; P/S PIPE (B)	8-98090-366-0	01	1	1304-
264	BOLT; PIPE BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	1304-
264	BOLT; PIPE BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	1304-
277	BOLT; HOSE CLIP M8X20 FLANGE	0-28650-820-0	02	1	1304-

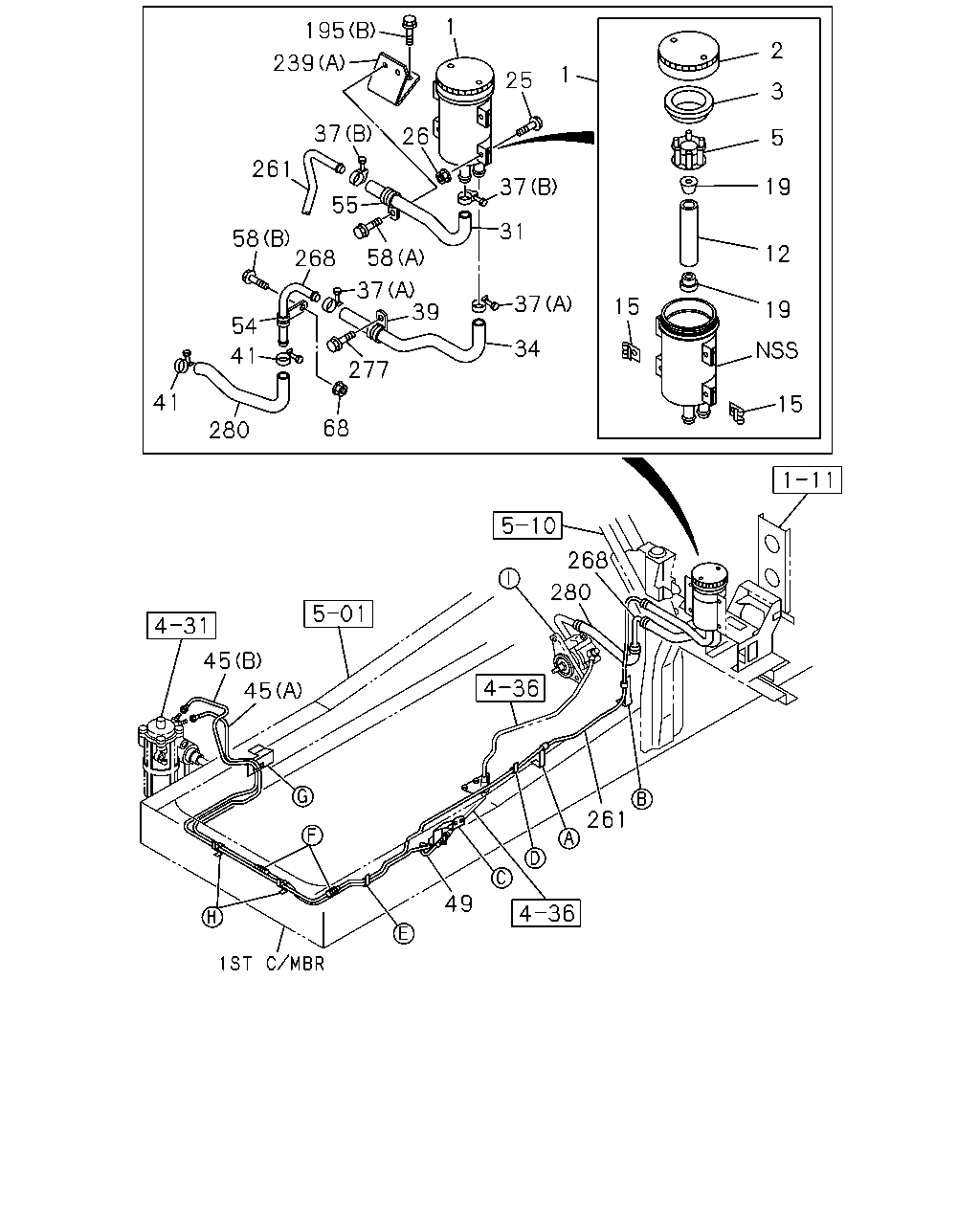

2 3 5 19 12 19 15 15 1 25 1 195 239 37 26 261 37 55 31 58 268 54 37 39 277 41 41 280 68 34 37 58 268 280 261 49 45 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	8-98166-958-0	01	1	1304-
2	CAP; OIL TANK,P/S	8-98166-876-0	01	1	1304-
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	1304-
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	1304-
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-004-1	01	1	1304-
15	PLATE; FILTER,OIL TANK	1-21249-016-0	04	1	1304-
19	SEAT; OIL TANK	1-21249-004-0	02	1	1304-
25	BOLT; OIL TANK BRKT M8X25 FLANGE	0-28650-825-0	04	1	1304-
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91180-108-0	04	1	1304-
31	HOSE; P/S OIL TANK,INL	8-97618-666-1	01	1	1304-
34	HOSE; P/S OIL TANK,OUTLET	8-97618-665-1	01	1	1304-
37	CLIP; HOSE,P/S (A) ID=32	1-09704-085-0	02	1	1304-
37	CLIP; HOSE,P/S (B) ID=28	9-09915-672-1	02	1	1304-
39	CLIP; FLEX HOSE ID=31 L=35	1-09700-329-1	01	1	1304-
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	1304-
45	PIPE; OIL,P/S UNIT TO UNION (B)	8-98123-061-0	01	1	1304-
45	PIPE; OIL,P/S UNIT TO UNION (A)	8-98123-062-0	01	1	1304-
49	PIPE; OIL,FLEX HOSE TO UNION	8-98240-634-0	01	1	1304-
54	CLIP; OIL PIPE ID=19 L=60	0-95235-896-0	01	1	1304-
55	CLIP; P/S RUBBER HOSE ID=28 L=32	1-09701-107-1	01	1	1304-
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	04	1	1304-
58	BOLT; CLIP (B) M8X25 FLANGE	0-28650-825-0	01	1	1304-
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	01	1	1304-
195	BOLT; BRKT (B) M10X20 FLANGE	0-28651-020-0	02	1	1304-
195	BOLT; BRKT (A) M8X35 W/LK&PL WASHER	0-50640-835-0	03	1	1304-
239	BRACKET; FLEX HOSE (B)	8-97608-869-1	01	1	1304-
239	BRACKET; FLEX HOSE (A)	8-97621-113-0	01	1	1304-
261	PIPE; OIL,UNION TO HOSE	8-98226-407-0	01	1	1304-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE	8-97618-672-0	01	1	1304-
277	BOLT; HOSE CLIP M8X20 FLANGE	0-28650-820-0	02	1	1304-
280	HOSE; P/S OIL PUMP,INL	1-21437-995-0	01	1	1304-
