Isuzu WW
▶
TRUCKS
▶
FXZ
▶
11530 - FXZ/GXZ(RHD)EURO3
▶
3 - Brakes, Brake System
▶

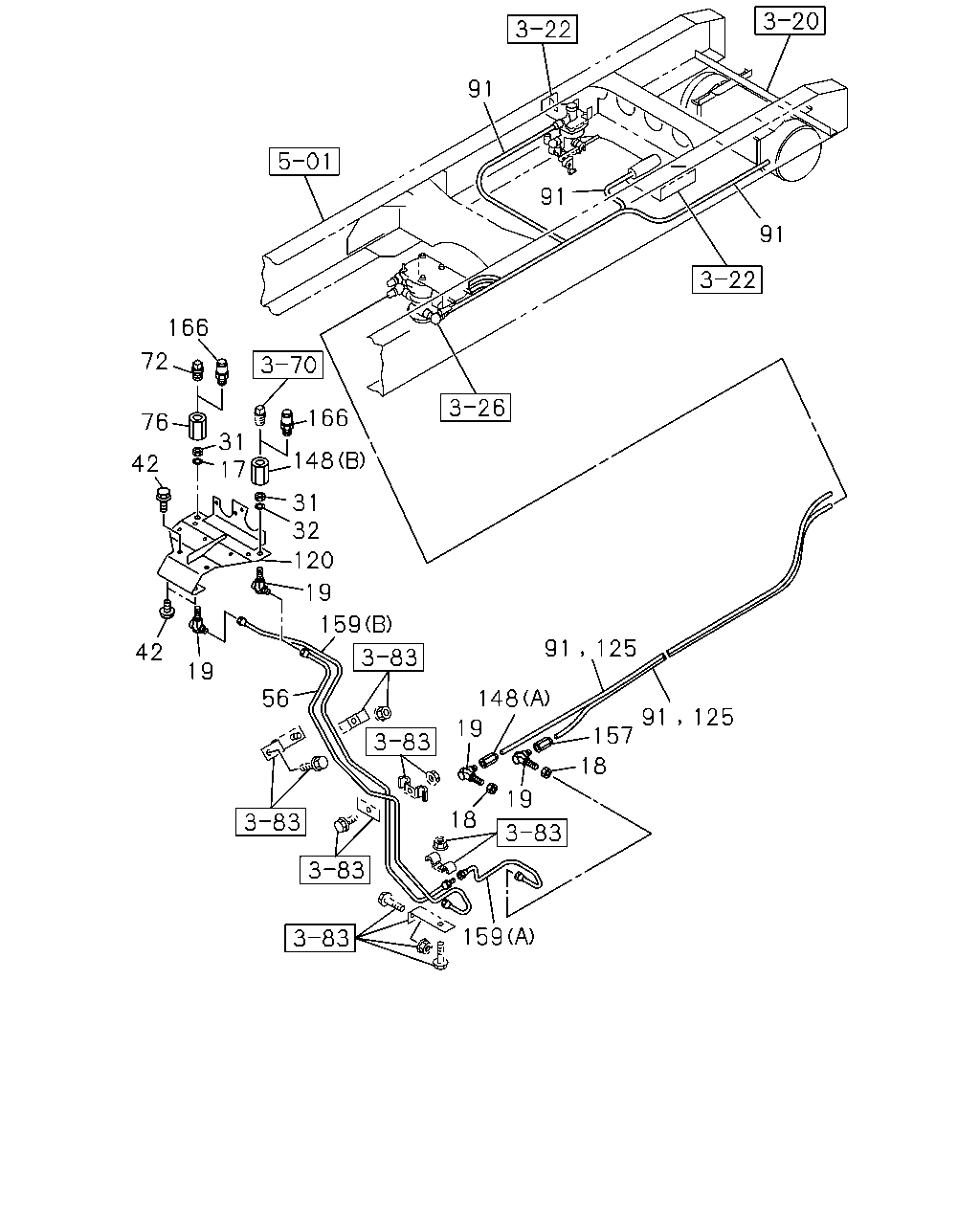

3-80 - BRAKE PIPING; TRAILER
▶
3-80 — BRAKE PIPING; TRAILER
(#117003) — 23 parça
91
91
91
166
72
76
42
42
19
56
19
120
32
31
148
166
31
17
159
91
125
91
125
18
157
148
19
19
18
159
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
17
WASHER; LK,UNION
ID=16.2
0-91510-516-0
01
1
1304-
18
NUT; UNION
M16
0-91111-516-0
02
1
1304-
19
UNION; AIR PIPE
M16 ELBOW
0-92135-210-0
04
1
1304-
31
NUT; UNION
M16
0-91111-516-0
02
1
1304-
32
WASHER; LK,UNION
ID=16.2
0-91510-516-0
01
1
1304-
42
BOLT; BRKT
M10X25 FLANGE
0-28651-025-0
04
1
1304-
56
PIPE; AIR,UNION TO COCK
L=1309
8-98100-125-0
01
1
1304-
72
PLUG
PT3/8
9-09204-517-0
01
1
1304-1306
76
NIPPLE; AIR PIPE
M16 & RC3/8 STRAIGHT
1-09660-882-0
01
1
1304-1306
76
NIPPLE; AIR PIPE
M16 & RC1/4 STRAIGHT
1-09660-886-0
01
1
1307-
91
TUBE; NYLON
SERVICED BY L=2000 OD=8
1-87411-006-0
AR
1
1304-
91
TUBE; NYLON
SERVICED BY L=2000 OD=12
1-87411-011-0
AR
1
1304-
91
TUBE; NYLON
SERVICED BY L=4000 OD=12
1-87411-012-0
AR
1
1304-
120
BRACKET; COCK
8-98118-861-0
01
1
1304-
125
TUBE; CORRUGATE
SERVICED BY L=2000 ID=10
1-87411-019-0
AR
1
1304-
125
TUBE; CORRUGATE
SERVICED BY L=2000 ID=13
1-87411-022-0
AR
1
1304-
148
ADAPTER; NYLON TUBE
(A) DIN12 & M16 STRAIGHT
1-09660-876-0
01
1
1304-
148
ADAPTER; NYLON TUBE
(B) M16 & RC3/8 STRAIGHT
1-09660-882-0
01
1
1304-1306
148
ADAPTER; NYLON TUBE
(B) M16 & RC1/4 STRAIGHT
1-09660-886-0
01
1
1307-
157
ADAPTER
DIN12 & M16 STRAIGHT
1-09660-876-0
01
1
1304-
159
PIPE; AIR,UNION TO CONNECTOR
(A)
8-98119-479-0
01
1
1304-
159
PIPE; AIR,UNION TO CONNECTOR
(B) L=1379
8-98119-480-0
01
1
1304-
166
CONNECTOR; TEST
R1/4 & M16 TEST CONNECTOR
1-47459-013-1
02
1
1307-
