◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11530 - FXZ/GXZ(RHD)EURO3 ▶ 3 - Brakes, Brake System ▶ 3-78 - FIXING PARTS; AIR PIPING ▶
3-78 — FIXING PARTS; AIR PIPING (#117002) — 242 parça

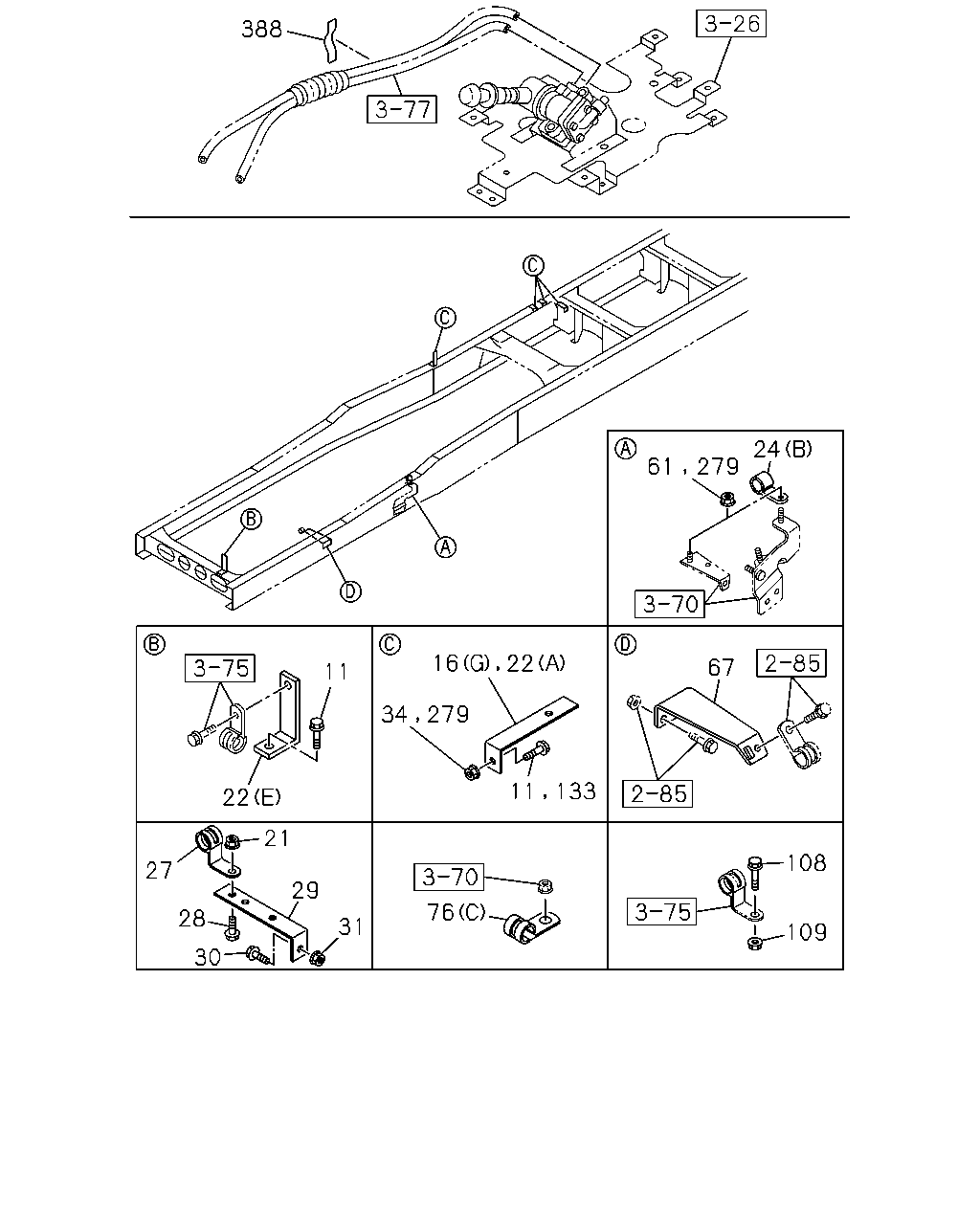

çizim 343262
388 61 279 24 11 22 16 22 11 133 34 279 67 21 29 31 30 28 27 76 108 109
BalonParca AdiParca NoAdetTipApplied Date A B
11 BOLT; CLIP BRKT
WHEEL BASE 4500MM(45W) M8X25 FLANGE 		0-28650-825-0 03 1 1304- ●
11 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 03 1 1304- ●
11 BOLT; CLIP BRKT
WHEEL BASE 6600MM(66W) M8X30 FLANGE 		0-28650-830-0 01 1 1304- ●
11 BOLT; CLIP BRKT
WHEEL BASE 4500MM(45W),WHEEL BASE 6600MM(66W) M8X25 FLANGE 		0-28650-825-0 01 1 1304- ●
11 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 1304- ●
11 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 1304- ●
16 BRACKET; PIPE CLIP
(F) 		1-47471-309-0 01 1 1304- ●
16 BRACKET; PIPE CLIP
(G) L=60 H=30 		1-47477-716-1 01 1 1304- ●
16 BRACKET; PIPE CLIP
(H) 		8-98054-389-0 01 1 1304- ●
16 BRACKET; PIPE CLIP
(A) 		1-47479-856-0 02 1 1304- ● ●
16 BRACKET; PIPE CLIP
(B) 		1-47479-857-0 02 1 1304- ● ●
16 BRACKET; PIPE CLIP
(C) 		1-47479-898-0 02 1 1304- ● ●
16 BRACKET; PIPE CLIP
(D) 		8-98086-226-0 01 1 1304- ● ●
16 BRACKET; PIPE CLIP
(E) 		8-98110-074-0 01 1 1304- ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 04 1 1304- ● ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1304- ● ●
21 NUT; CLIP
MJT7U M/T(Y4X) M8 FLANGE 		0-91180-108-0 01 1 1304- ●
22 BRACKET; CLIP
(C) L=150 H=30 		1-47477-629-2 02 1 1304- ●
22 BRACKET; CLIP
(F) 		1-47479-554-0 01 1 1304- ●
22 BRACKET; CLIP
(F) 		1-47479-554-0 01 1 1304- ●
22 BRACKET; CLIP
(E) L=145 		1-47475-655-0 01 1 1304- ● ●
22 BRACKET; CLIP
(D) L=95 		1-82698-557-0 01 1 1304- ● ●
22 BRACKET; CLIP
(B) L=150 		1-47471-217-0 02 1 1304- ●
22 BRACKET; CLIP
WHEEL BASE 4500MM(45W) (C) L=150 H=30 		1-47477-629-2 01 1 1304- ●
22 BRACKET; CLIP
(A) L=60 H=30 		1-47477-716-1 01 1 1304- ● ●
22 BRACKET; CLIP
(A) L=60 H=30 		1-47477-716-1 01 1 1304- ● ●
22 BRACKET; CLIP
WHEEL BASE 4500MM(45W) (A) L=60 H=30 		1-47477-716-1 01 1 1304- ●
24 CLIP; PIPE
(A) ID=15 H=24 L=20 		1-09700-606-0 01 1 1304- ● ●
24 CLIP; PIPE
WHEEL BASE 4500MM(45W),WHEEL BASE 6600MM(66W) (B) ID=25 L=50 		1-09701-019-0 03 1 1304- ●
24 CLIP; PIPE
ZF9S1310 M/T(Y5K) (B) ID=25 L=50 		1-09701-019-0 03 1 1304- ●
27 CLIP; FLEX HOSE
ID=25 H=30 L=35 		1-09700-875-0 01 1 1304- ● ●
28 BOLT; CLIP,FLEX HOSE
BATTERY 80D26L<TM1> M8X20 FLANGE 		0-28650-820-0 01 1 1304- ● ●
29 BRACKET; CLIP,AIR PIPE
BATTERY 80D26L<TM1> L=145 B=25 		1-47479-123-0 01 1 1304- ● ●
30 BOLT; CLIP BRKT
BATTERY 80D26L<TM1> M8X25 FLANGE 		0-28650-825-0 01 1 1304- ● ●
31 NUT; CLIP BRKT
BATTERY 80D26L<TM1> M8 FLANGE 		0-91180-108-0 01 1 1304- ● ●
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1304- ● ●
61 NUT; CLIP FIX
M8 FLANGE 		0-91180-108-0 01 1 1304- ●
61 NUT; CLIP FIX
WHEEL BASE 4500MM(45W),WHEEL BASE 6600MM(66W) M8 FLANGE 		0-91180-108-0 03 1 1304- ●
61 NUT; CLIP FIX
M8 FLANGE 		0-91180-108-0 03 1 1304- ●
67 BRACKET; CLIP
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		8-98240-931-0 01 1 1304- ●
76 CLIP; NYLON TUBE
WHEEL BASE 4500MM(45W) TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) L=350 		1-09707-183-0 08 1 1304- ●
76 CLIP; NYLON TUBE
WHEEL BASE 6600MM(66W) (A) L=350 		1-09707-183-0 08 1 1304- ●
76 CLIP; NYLON TUBE
WHEEL BASE 4500MM(45W) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) L=350 		1-09707-183-0 07 1 1304- ●
76 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 05 1 1304- ●
76 CLIP; NYLON TUBE
(B) ID=24-30 L=18 		1-09709-297-0 01 1 1304- ● ●
76 CLIP; NYLON TUBE
(C) ID=39 L=33 		8-98009-359-0 01 1 1304- ● ●
108 BOLT; TUBE CLIP
ANTILOCK BRAKE SYSTEM(BFA) M8X20 FLANGE 		0-28650-820-0 01 1 1304- ● ●
108 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28650-825-0 02 1 1304- ● ●
108 BOLT; TUBE CLIP
M8X35 FLANGE 		0-28650-835-0 03 1 1304- ● ●
109 NUT; TUBE CLIP
EXC. ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91180-108-0 03 1 1304- ● ●
109 NUT; TUBE CLIP
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91180-108-0 04 1 1304- ● ●
133 BOLT; BRKT
MJT7U M/T(Y4X) M8X35 FLANGE 		0-28650-835-0 03 1 1304- ●
133 BOLT; BRKT
WHEEL BASE 4500MM(45W) M8X35 FLANGE 		0-28650-835-0 01 1 1304- ●
133 BOLT; BRKT
WHEEL BASE 6600MM(66W) M8X30 FLANGE 		0-28650-830-0 01 1 1304- ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 1304- ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1304- ● ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1304- ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 1304- ● ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 04 1 1304- ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 1304- ●
133 BOLT; BRKT
ZF9S1310 M/T(Y5K) M8X35 FLANGE 		0-28650-835-0 04 1 1304- ●
133 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 04 1 1304- ●
279 NUT; BRKT
MJT7U M/T(Y4X) M8 FLANGE 		0-91180-108-0 05 1 1304- ●
279 NUT; BRKT
ZF9S1310 M/T(Y5K) M8 FLANGE 		0-91180-108-0 06 1 1304- ●
279 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1304- ● ●
279 NUT; BRKT
M8 FLANGE 		0-91180-108-0 11 1 1304- ●
388 SEAL
100X40 		1-72498-022-1 03 1 1304- ● ●

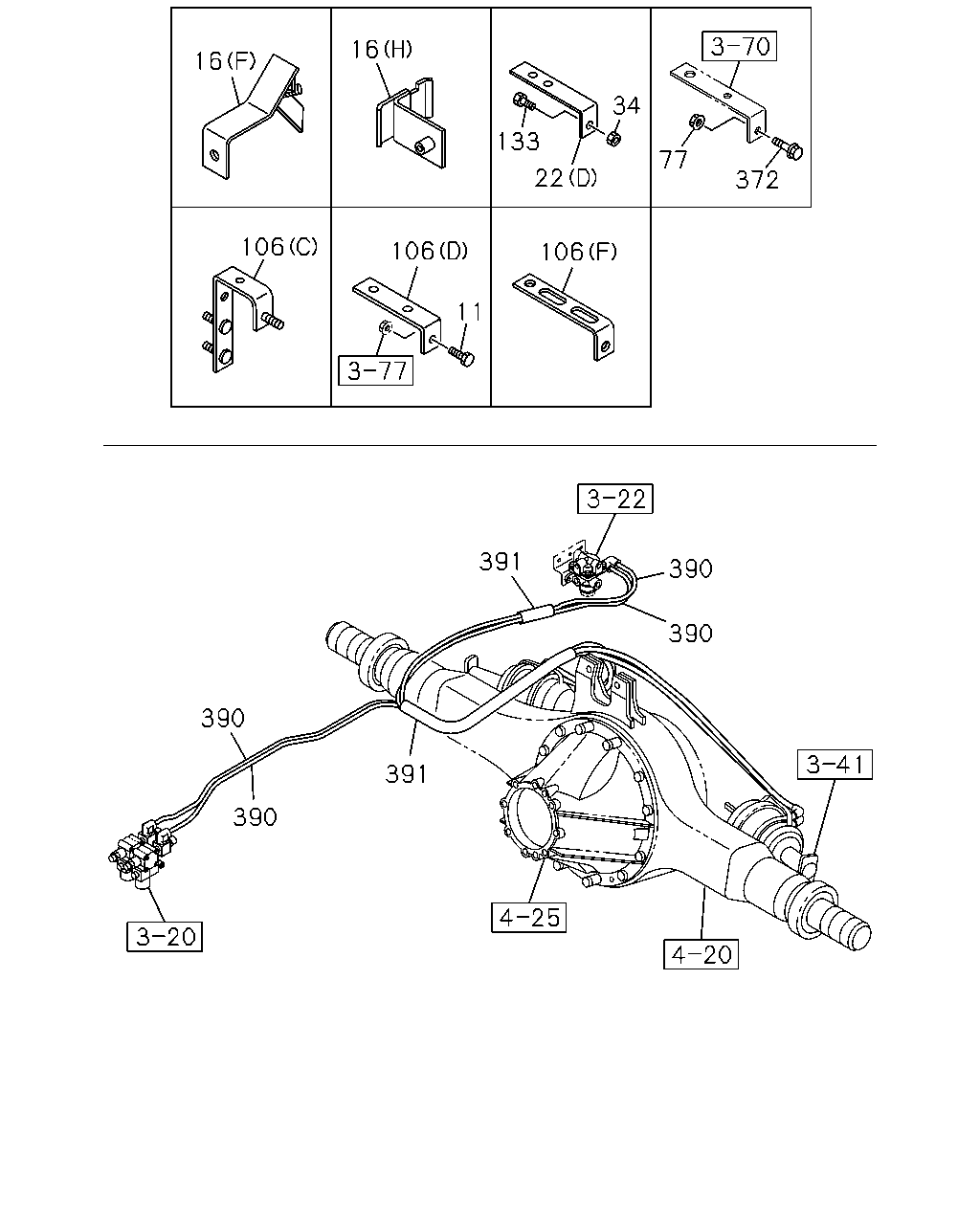

çizim 343283
16 16 106 106 106 11 133 34 22 77 372 391 390 390 391 390 390
BalonParca AdiParca NoAdetTipApplied Date A B
11 BOLT; CLIP BRKT
WHEEL BASE 4500MM(45W) M8X25 FLANGE 		0-28650-825-0 03 1 1304- ●
11 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 03 1 1304- ●
11 BOLT; CLIP BRKT
WHEEL BASE 6600MM(66W) M8X30 FLANGE 		0-28650-830-0 01 1 1304- ●
11 BOLT; CLIP BRKT
WHEEL BASE 4500MM(45W),WHEEL BASE 6600MM(66W) M8X25 FLANGE 		0-28650-825-0 01 1 1304- ●
11 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 1304- ●
11 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 1304- ●
16 BRACKET; PIPE CLIP
(F) 		1-47471-309-0 01 1 1304- ●
16 BRACKET; PIPE CLIP
(G) L=60 H=30 		1-47477-716-1 01 1 1304- ●
16 BRACKET; PIPE CLIP
(H) 		8-98054-389-0 01 1 1304- ●
16 BRACKET; PIPE CLIP
(A) 		1-47479-856-0 02 1 1304- ● ●
16 BRACKET; PIPE CLIP
(B) 		1-47479-857-0 02 1 1304- ● ●
16 BRACKET; PIPE CLIP
(C) 		1-47479-898-0 02 1 1304- ● ●
16 BRACKET; PIPE CLIP
(D) 		8-98086-226-0 01 1 1304- ● ●
16 BRACKET; PIPE CLIP
(E) 		8-98110-074-0 01 1 1304- ●
22 BRACKET; CLIP
(C) L=150 H=30 		1-47477-629-2 02 1 1304- ●
22 BRACKET; CLIP
(F) 		1-47479-554-0 01 1 1304- ●
22 BRACKET; CLIP
(F) 		1-47479-554-0 01 1 1304- ●
22 BRACKET; CLIP
(E) L=145 		1-47475-655-0 01 1 1304- ● ●
22 BRACKET; CLIP
(D) L=95 		1-82698-557-0 01 1 1304- ● ●
22 BRACKET; CLIP
(B) L=150 		1-47471-217-0 02 1 1304- ●
22 BRACKET; CLIP
WHEEL BASE 4500MM(45W) (C) L=150 H=30 		1-47477-629-2 01 1 1304- ●
22 BRACKET; CLIP
(A) L=60 H=30 		1-47477-716-1 01 1 1304- ● ●
22 BRACKET; CLIP
(A) L=60 H=30 		1-47477-716-1 01 1 1304- ● ●
22 BRACKET; CLIP
WHEEL BASE 4500MM(45W) (A) L=60 H=30 		1-47477-716-1 01 1 1304- ●
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1304- ● ●
77 NUT; CLIP BRKT
WHEEL BASE 6600MM(66W) M8 FLANGE 		0-91180-108-0 01 1 1304- ●
106 BRACKET; TUBE CLIP
ZF9S1310 M/T(Y5K) (D) L=90 		1-47477-755-1 02 1 1304- ●
106 BRACKET; TUBE CLIP
(D) L=90 		1-47477-755-1 02 1 1304- ●
106 BRACKET; TUBE CLIP
(B) L=150 		1-47471-217-0 03 1 1304- ●
106 BRACKET; TUBE CLIP
(A) L=100 H=30 		1-47477-645-2 02 1 1304- ●
106 BRACKET; TUBE CLIP
(C) 		1-47479-329-0 01 1 1304- ●
106 BRACKET; TUBE CLIP
(A) L=100 H=30 		1-47477-645-2 01 1 1304- ●
106 BRACKET; TUBE CLIP
(E) L=60 H=30 		1-47477-716-1 01 1 1304- ● ●
106 BRACKET; TUBE CLIP
MJT7U M/T(Y4X) (D) L=90 		1-47477-755-1 01 1 1304- ●
106 BRACKET; TUBE CLIP
(F) 		1-47479-598-0 02 1 1304- ● ●
133 BOLT; BRKT
MJT7U M/T(Y4X) M8X35 FLANGE 		0-28650-835-0 03 1 1304- ●
133 BOLT; BRKT
WHEEL BASE 4500MM(45W) M8X35 FLANGE 		0-28650-835-0 01 1 1304- ●
133 BOLT; BRKT
WHEEL BASE 6600MM(66W) M8X30 FLANGE 		0-28650-830-0 01 1 1304- ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 1304- ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1304- ● ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1304- ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 1304- ● ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 04 1 1304- ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 1304- ●
133 BOLT; BRKT
ZF9S1310 M/T(Y5K) M8X35 FLANGE 		0-28650-835-0 04 1 1304- ●
133 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 04 1 1304- ●
372 BOLT; CLIP BRKT
WHEEL BASE 6600MM(66W) M8X25 FLANGE 		0-28650-825-0 01 1 1304- ●
390 TUBE; NYLON
ANTILOCK BRAKE SYSTEM(BFA) SERVICED BY L=4000 OD=12 		1-87411-012-0 04 1 1304- ●
390 TUBE; NYLON
ANTILOCK BRAKE SYSTEM(BFA) SERVICED BY L=2000 OD=12 		1-87411-011-0 02 1 1304- ●
390 TUBE; NYLON
ANTILOCK BRAKE SYSTEM(BFA) SERVICED BY L=4000 OD=12 		1-87411-012-0 02 1 1304- ●
391 TUBE; CORRUGATE
ANTILOCK BRAKE SYSTEM(BFA) SERVICED BY L=2000 ID=25 		1-87411-031-0 01 1 1304- ●
391 TUBE; CORRUGATE
ANTILOCK BRAKE SYSTEM(BFA) SERVICED BY L=2000 ID=13 		1-87411-022-0 04 1 1304- ● ●
391 TUBE; CORRUGATE
ANTILOCK BRAKE SYSTEM(BFA) SERVICED BY L=2000 ID=28 		1-87411-033-0 01 1 1304- ● ●

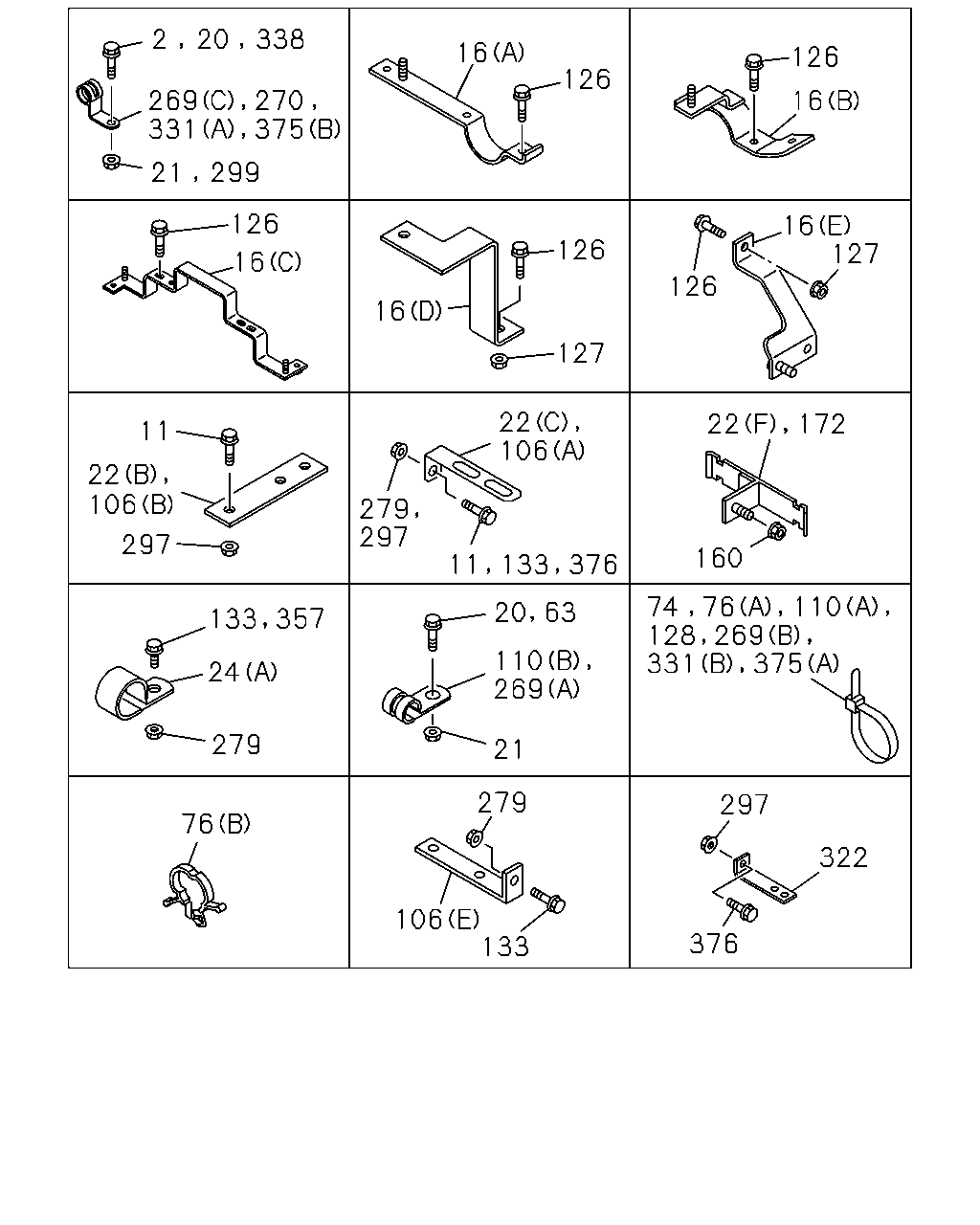

çizim 345744
2 20 338 269 270 21 299 331 375 16 126 126 16 126 126 127 16 16 126 16 127 11 22 297 106 22 279 106 297 133 11 376 22 172 160 133 24 279 357 20 21 110 63 269 74 110 76 128 269 331 375 76 279 106 133 297 376 322
BalonParca AdiParca NoAdetTipApplied Date A B
2 BOLT; CLIP FIX
M8X20 FLANGE 		0-28650-820-0 01 1 1304- ●
2 BOLT; CLIP FIX
M8X20 FLANGE 		0-28650-820-0 03 1 1304- ●
11 BOLT; CLIP BRKT
WHEEL BASE 4500MM(45W) M8X25 FLANGE 		0-28650-825-0 03 1 1304- ●
11 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 03 1 1304- ●
11 BOLT; CLIP BRKT
WHEEL BASE 6600MM(66W) M8X30 FLANGE 		0-28650-830-0 01 1 1304- ●
11 BOLT; CLIP BRKT
WHEEL BASE 4500MM(45W),WHEEL BASE 6600MM(66W) M8X25 FLANGE 		0-28650-825-0 01 1 1304- ●
11 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 1304- ●
11 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 1304- ●
16 BRACKET; PIPE CLIP
(F) 		1-47471-309-0 01 1 1304- ●
16 BRACKET; PIPE CLIP
(G) L=60 H=30 		1-47477-716-1 01 1 1304- ●
16 BRACKET; PIPE CLIP
(H) 		8-98054-389-0 01 1 1304- ●
16 BRACKET; PIPE CLIP
(A) 		1-47479-856-0 02 1 1304- ● ●
16 BRACKET; PIPE CLIP
(B) 		1-47479-857-0 02 1 1304- ● ●
16 BRACKET; PIPE CLIP
(C) 		1-47479-898-0 02 1 1304- ● ●
16 BRACKET; PIPE CLIP
(D) 		8-98086-226-0 01 1 1304- ● ●
16 BRACKET; PIPE CLIP
(E) 		8-98110-074-0 01 1 1304- ●
20 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 1304- ● ●
20 BOLT; CLIP
MJT7U M/T(Y4X) M8X25 FLANGE 		0-28650-825-0 01 1 1304- ●
20 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 1304- ● ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 04 1 1304- ● ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1304- ● ●
21 NUT; CLIP
MJT7U M/T(Y4X) M8 FLANGE 		0-91180-108-0 01 1 1304- ●
22 BRACKET; CLIP
(C) L=150 H=30 		1-47477-629-2 02 1 1304- ●
22 BRACKET; CLIP
(F) 		1-47479-554-0 01 1 1304- ●
22 BRACKET; CLIP
(F) 		1-47479-554-0 01 1 1304- ●
22 BRACKET; CLIP
(E) L=145 		1-47475-655-0 01 1 1304- ● ●
22 BRACKET; CLIP
(D) L=95 		1-82698-557-0 01 1 1304- ● ●
22 BRACKET; CLIP
(B) L=150 		1-47471-217-0 02 1 1304- ●
22 BRACKET; CLIP
WHEEL BASE 4500MM(45W) (C) L=150 H=30 		1-47477-629-2 01 1 1304- ●
22 BRACKET; CLIP
(A) L=60 H=30 		1-47477-716-1 01 1 1304- ● ●
22 BRACKET; CLIP
(A) L=60 H=30 		1-47477-716-1 01 1 1304- ● ●
22 BRACKET; CLIP
WHEEL BASE 4500MM(45W) (A) L=60 H=30 		1-47477-716-1 01 1 1304- ●
24 CLIP; PIPE
(A) ID=15 H=24 L=20 		1-09700-606-0 01 1 1304- ● ●
24 CLIP; PIPE
WHEEL BASE 4500MM(45W),WHEEL BASE 6600MM(66W) (B) ID=25 L=50 		1-09701-019-0 03 1 1304- ●
24 CLIP; PIPE
ZF9S1310 M/T(Y5K) (B) ID=25 L=50 		1-09701-019-0 03 1 1304- ●
63 BOLT; CLIP
MJT7U M/T(Y4X) M8X20 FLANGE 		0-28650-820-0 01 1 1304- ●
63 BOLT; CLIP
ZF9S1310 M/T(Y5K) M8X20 FLANGE 		0-28650-820-0 02 1 1304- ●
63 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 1304- ●
74 CLIP; NYLON TUBE
L=350 		1-09707-183-0 02 1 1304- ●
76 CLIP; NYLON TUBE
WHEEL BASE 4500MM(45W) TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) L=350 		1-09707-183-0 08 1 1304- ●
76 CLIP; NYLON TUBE
WHEEL BASE 6600MM(66W) (A) L=350 		1-09707-183-0 08 1 1304- ●
76 CLIP; NYLON TUBE
WHEEL BASE 4500MM(45W) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) L=350 		1-09707-183-0 07 1 1304- ●
76 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 05 1 1304- ●
76 CLIP; NYLON TUBE
(B) ID=24-30 L=18 		1-09709-297-0 01 1 1304- ● ●
76 CLIP; NYLON TUBE
(C) ID=39 L=33 		8-98009-359-0 01 1 1304- ● ●
106 BRACKET; TUBE CLIP
ZF9S1310 M/T(Y5K) (D) L=90 		1-47477-755-1 02 1 1304- ●
106 BRACKET; TUBE CLIP
(D) L=90 		1-47477-755-1 02 1 1304- ●
106 BRACKET; TUBE CLIP
(B) L=150 		1-47471-217-0 03 1 1304- ●
106 BRACKET; TUBE CLIP
(A) L=100 H=30 		1-47477-645-2 02 1 1304- ●
106 BRACKET; TUBE CLIP
(C) 		1-47479-329-0 01 1 1304- ●
106 BRACKET; TUBE CLIP
(A) L=100 H=30 		1-47477-645-2 01 1 1304- ●
106 BRACKET; TUBE CLIP
(E) L=60 H=30 		1-47477-716-1 01 1 1304- ● ●
106 BRACKET; TUBE CLIP
MJT7U M/T(Y4X) (D) L=90 		1-47477-755-1 01 1 1304- ●
106 BRACKET; TUBE CLIP
(F) 		1-47479-598-0 02 1 1304- ● ●
110 CLIP; BAND,NYLON TUBE
MJT7U M/T(Y4X) (B) ID=19 L=20 		0-95235-836-0 01 1 1304- ●
110 CLIP; BAND,NYLON TUBE
MJT7U M/T(Y4X) (A) L=350 		1-09707-183-0 11 1 1304- ●
110 CLIP; BAND,NYLON TUBE
ZF9S1310 M/T(Y5K) (B) ID=19 L=20 		0-95235-836-0 02 1 1304- ●
110 CLIP; BAND,NYLON TUBE
(B) ID=19 L=20 		0-95235-836-0 02 1 1304- ●
110 CLIP; BAND,NYLON TUBE
ZF9S1310 M/T(Y5K) (A) L=350 		1-09707-183-0 10 1 1304- ●
110 CLIP; BAND,NYLON TUBE
(A) L=350 		1-09707-183-0 10 1 1304- ●
126 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1304- ● ●
126 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1304- ●
126 BOLT; CLIP BRKT
M8X45 FLANGE 		0-28050-845-0 01 1 1304- ●
126 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 03 1 1304- ●
126 BOLT; CLIP BRKT
M8X12 FLANGE 		0-28050-812-0 04 1 1304- ● ●
126 BOLT; CLIP BRKT
M8X35 FLANGE 		0-28650-835-0 02 1 1304- ● ●
127 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 01 1 1304- ● ●
127 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 01 1 1304- ●
127 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 02 1 1304- ●
128 CLIP; NYLON TUBE
EXC. ANTILOCK BRAKE SYSTEM(BFA) L=350 		1-09707-183-0 10 1 1310- ●
128 CLIP; NYLON TUBE
WHEEL BASE 6600MM(66W) L=350 		1-09707-183-0 05 1 1304- ●
128 CLIP; NYLON TUBE
L=350 		1-09707-183-0 10 1 1304-1309 ●
128 CLIP; NYLON TUBE
ANTILOCK BRAKE SYSTEM(BFA) L=350 		1-09707-183-0 11 1 1310- ●
128 CLIP; NYLON TUBE
WHEEL BASE 4500MM(45W) L=350 		1-09707-183-0 03 1 1304- ●
133 BOLT; BRKT
MJT7U M/T(Y4X) M8X35 FLANGE 		0-28650-835-0 03 1 1304- ●
133 BOLT; BRKT
WHEEL BASE 4500MM(45W) M8X35 FLANGE 		0-28650-835-0 01 1 1304- ●
133 BOLT; BRKT
WHEEL BASE 6600MM(66W) M8X30 FLANGE 		0-28650-830-0 01 1 1304- ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 1304- ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1304- ● ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1304- ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 1304- ● ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 04 1 1304- ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 1304- ●
133 BOLT; BRKT
ZF9S1310 M/T(Y5K) M8X35 FLANGE 		0-28650-835-0 04 1 1304- ●
133 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 04 1 1304- ●
160 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 01 1 1304- ●
172 BRACKET; TUBE CLIP 1-47479-554-0 01 1 1304- ●
269 CLIP; BAND,NYLON TUBE
(A) ID=35 L=33 		1-09700-945-0 01 1 1304- ●
269 CLIP; BAND,NYLON TUBE
WHEEL BASE 4500MM(45W) (B) L=350 		1-09707-183-0 15 1 1304- ●
269 CLIP; BAND,NYLON TUBE
WHEEL BASE 6600MM(66W) (B) L=350 		1-09707-183-0 12 1 1304- ●
269 CLIP; BAND,NYLON TUBE
(B) L=350 		1-09707-183-0 01 1 1304- ●
269 CLIP; BAND,NYLON TUBE
(A) ID=35 L=33 		1-09700-945-0 02 1 1304- ●
269 CLIP; BAND,NYLON TUBE
(A) ID=35 L=33 		1-09700-945-0 03 1 1304- ● ●
269 CLIP; BAND,NYLON TUBE
(B) L=350 		1-09707-183-0 03 1 1304- ● ●
269 CLIP; BAND,NYLON TUBE
(C) ID=35 H=45 L=33 		1-09700-947-0 02 1 1304- ●
269 CLIP; BAND,NYLON TUBE
(C) ID=35 H=45 L=33 		1-09700-947-0 01 1 1304- ●
269 CLIP; BAND,NYLON TUBE
AIR SUSP DRIVER SEAT(A56) (C) ID=28 H=45 L=30 		1-09700-948-0 01 1 1304- ●
269 CLIP; BAND,NYLON TUBE
(C) ID=28 H=45 L=30 		1-09700-948-0 01 1 1304- ●
269 CLIP; BAND,NYLON TUBE
AIR SUSP DRIVER SEAT(A56) (A) ID=28 L=40 		1-09701-261-0 02 1 1304- ●
269 CLIP; BAND,NYLON TUBE
(A) ID=28 L=40 		1-09701-261-0 02 1 1304- ●
269 CLIP; BAND,NYLON TUBE
RIGID SEAT WO/ARM REST(TAZ) (A) ID=23 L=27 		1-09700-946-0 02 1 1304- ●
269 CLIP; BAND,NYLON TUBE
RIGID SEAT WO/ARM REST(TAZ) (C) ID=21 L=30 H=40 		1-09700-991-1 01 1 1304- ●
269 CLIP; BAND,NYLON TUBE
(B) L=350 		1-09707-183-0 21 1 1304-1309 ●
269 CLIP; BAND,NYLON TUBE
(B) L=350 		1-09707-183-0 22 1 1310- ●
270 CLIP; NYLON TUBE
ID=16 H=45 L=20 		1-09701-161-0 02 1 1304- ●
270 CLIP; NYLON TUBE
ID=16 H=25 L=25 		1-09701-162-0 03 1 1304- ●
279 NUT; BRKT
MJT7U M/T(Y4X) M8 FLANGE 		0-91180-108-0 05 1 1304- ●
279 NUT; BRKT
ZF9S1310 M/T(Y5K) M8 FLANGE 		0-91180-108-0 06 1 1304- ●
279 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1304- ● ●
279 NUT; BRKT
M8 FLANGE 		0-91180-108-0 11 1 1304- ●
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1304- ● ●
297 NUT; BRKT
MJT7U M/T(Y4X) M8 FLANGE 		0-91180-108-0 01 1 1304- ●
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1304- ●
299 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1304- ● ●
322 BRACKET; CLIP
MJT7U M/T(Y4X) L=95 		1-82698-557-0 01 1 1304- ●
331 CLIP; NYLON TUBE
(A) ID=6 H=20 L=20 		1-09700-603-0 01 1 1304- ● ●
331 CLIP; NYLON TUBE
(B) L=350 		1-09707-183-0 04 1 1304- ● ●
338 BOLT; PIPE CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1304- ● ●
357 BOLT; CLIP FIX
M8X10 FLANGE 		0-28050-810-0 02 1 1304- ● ●
375 CLIP; AIR PIPE
(A) L=350 		1-09707-183-0 01 1 1304- ● ●
375 CLIP; AIR PIPE
MJT7U M/T(Y4X) (B) ID=8 H=20 L=20 		1-09700-604-0 01 1 1304- ●
376 BOLT; BRKT
MJT7U M/T(Y4X) M8X25 FLANGE 		0-28650-825-0 01 1 1304- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
