8-73 — BLOWER UNIT (#1170) — 34 parça

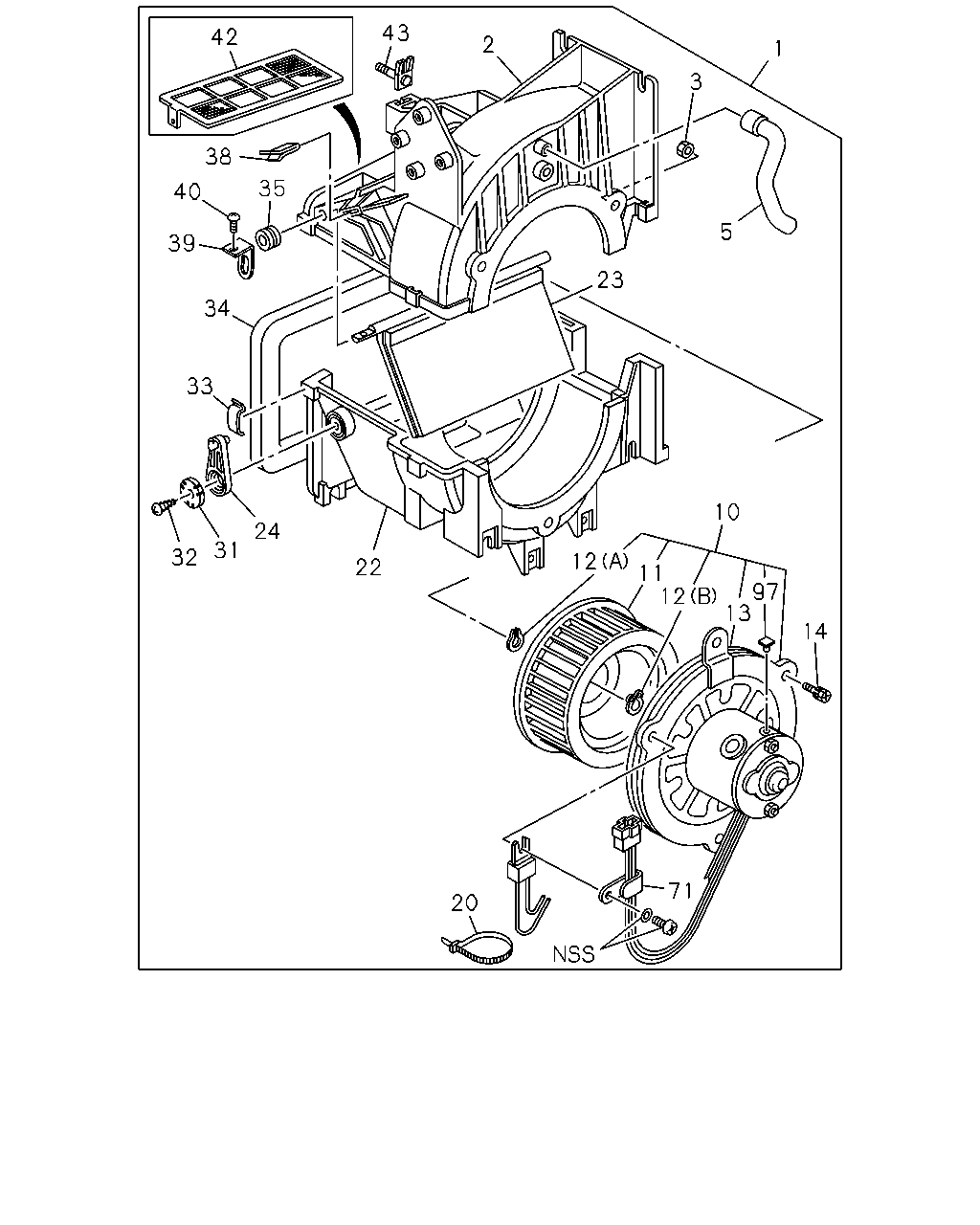

çizim 95673
42 43 2 3 1 5 23 38 40 35 39 34 33 24 31 32 22 10 12 11 12 13 97 14 71 20
BalonParca AdiParca NoAdetTipApplied Date A B
1 BLOWER ASM
AIR CON MANUAL CONTROL(C60) 		1-83561-040-6 01 1 9202- ● ●
1 BLOWER ASM
HEATER & DEFROSTER(C41) BLOWER UNIT HIGH CAPACITY VAR 1<SFX> 		1-83561-040-6 01 1 9202- ● ●
1 BLOWER ASM
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EXC. BLOWER UNIT HIGH CAPACITY VAR 1<SFX> 		1-83561-049-3 01 1 9202- ● ●
2 CASE; BLOWER UNIT,FRT 1-83563-119-0 01 1 9202- ● ●
3 NUT; CASE 8-94233-154-0 04 1 9202- ● ●
5 HOSE; AIR 1-83563-105-0 01 1 9202- ● ●
10 MOTOR ASM; FAN,BLOWER UNIT
AIR CON MANUAL CONTROL(C60) 		1-83561-070-1 01 1 9202- ● ●
10 MOTOR ASM; FAN,BLOWER UNIT
HEATER & DEFROSTER(C41) BLOWER UNIT HIGH CAPACITY VAR 1<SFX> 		1-83561-070-1 01 1 9202- ● ●
10 MOTOR ASM; FAN,BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EXC. BLOWER UNIT HIGH CAPACITY VAR 1<SFX> 		1-83561-068-1 01 1 9202- ● ●
11 IMPELLER; FAN MOTOR 1-83579-226-0 01 1 9202- ● ●
12 RING; SNAP,FAN MOTOR
(B) 		5-83569-088-0 01 1 9202- ● ●
12 RING; SNAP,FAN MOTOR
(A) 		8-94243-962-0 01 1 9202- ● ●
13 LINING; BLOWER UNIT
AIR CON MANUAL CONTROL(C60) 		8-94243-963-0 01 1 9202- ● ●
13 LINING; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-94233-165-0 01 1 9202- ● ●
14 SCREW; COVER TO CASE
M5X25 		5-15729-279-0 04 1 9202- ● ●
20 BAND; CLIP,BLOWER UNIT 1-83579-263-0 01 1 9202- ● ●
22 CASE; BLOWER UNIT,RR 1-83563-115-0 01 1 9202- ● ●
23 SHUTTER; BLOWER UNIT 1-83579-234-1 01 1 9202- ● ●
24 LEVER; CASE 1-83564-189-0 01 1 9202- ● ●
31 WASHER; LEVER 1-83579-095-0 01 1 9202- ● ●
32 SCREW; LEVER
M5X16 		8-94248-820-0 01 1 9202- ● ●
33 CLIP; BLOWER UNIT
AIR CON MANUAL CONTROL(C60) 		8-94315-776-0 05 1 9202-9301 ● ●
33 CLIP; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83574-148-0 05 1 9202-9301 ● ●
33 CLIP; BLOWER UNIT 1-83574-148-0 05 1 9302- ● ●
34 LINING; BLOWER UNIT 1-83579-286-0 01 1 9202- ● ●
35 BUSHING; LEVER 1-83576-028-0 01 1 9202- ● ●
38 CLIP; BLOWER UNIT 1-83574-149-0 01 1 9202- ● ●
39 LEVER; SHUTTER,BLOWER UNIT 1-83564-191-0 01 1 9202- ● ●
40 SCREW; LEVER,BLOWER UNIT 5-83571-160-0 01 1 9202- ● ●
42 FILTER; BLOWER UNIT
AIR CON MANUAL CONTROL(C60) 		1-83579-267-1 01 1 9202- ● ●
42 FILTER; BLOWER UNIT
HEATER & DEFROSTER(C41) BLOWER UNIT HIGH CAPACITY VAR 1<SFX> 		1-83579-267-1 01 1 9202- ● ●
43 BOLT; CASE 1-83579-175-0 03 1 9202- ● ●
71 CLIP; HARNESS 1-83574-080-0 01 1 9202- ● ●
97 PLUG; FAN MOTOR 1-83579-248-0 01 1 9202- ● ●
