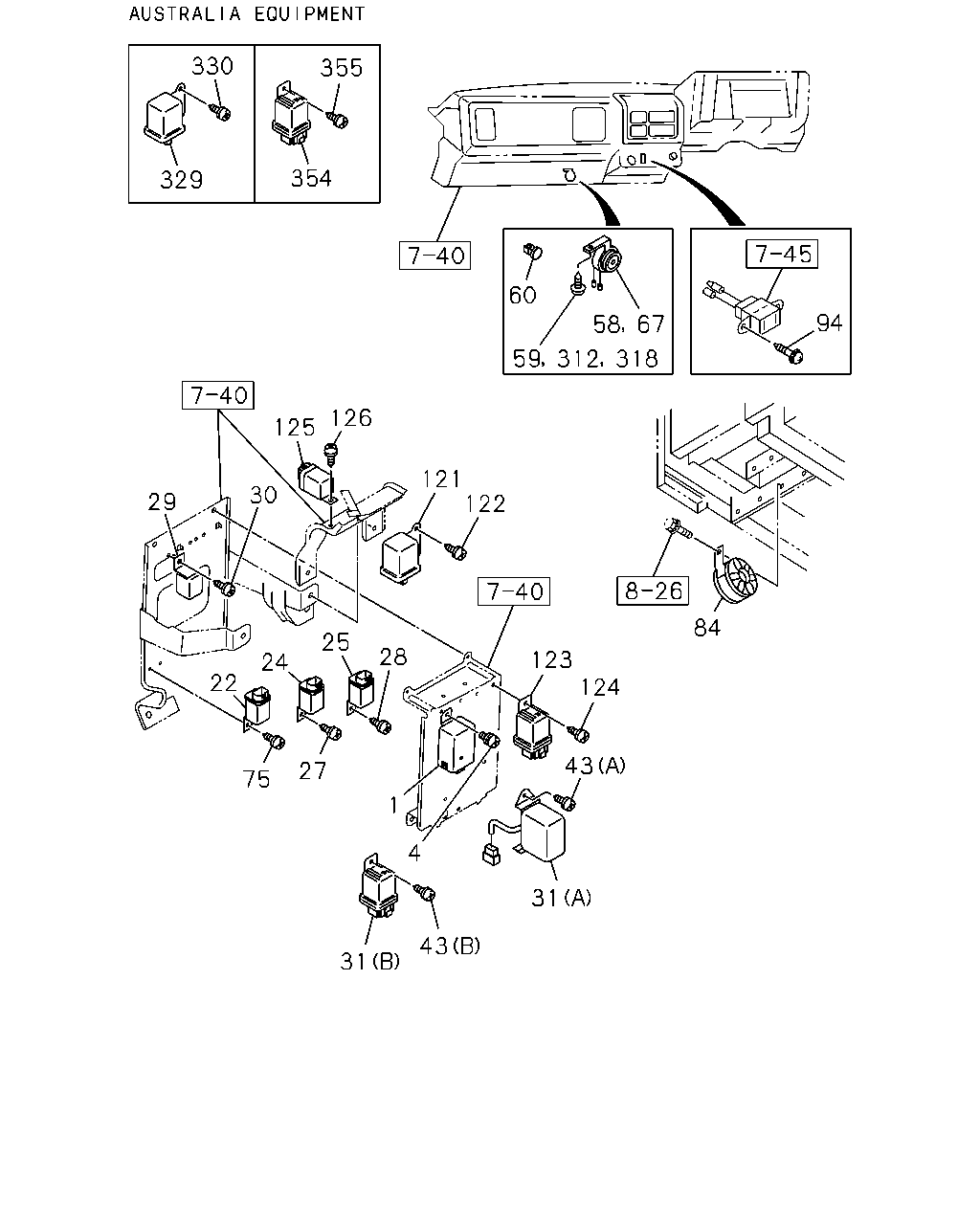

8-28 — CHASSIS ELECTRICAL (#117) — 66 parça

330 355 354 329 60 94 58 67 59 312 318 126 125 121 122 30 29 84 25 28 123 124 24 22 43 27 75 1 4 31 43 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	UNIT; FLASHER BUMPER W/HEADLAMPS<SLB>	1-83470-033-0	01	1	9202-9404	●	●
1	UNIT; FLASHER LIGHTING SYSTEM ECE<SLC>	1-83470-033-1	01	1	9405-	●	●
1	UNIT; FLASHER EXC. BUMPER W/HEADLAMPS<SLB>	1-83470-034-1	01	1	9202-9404	●	●
1	UNIT; FLASHER EXC. LIGHTING SYSTEM ECE<SLC>	1-83470-034-1	01	1	9405-	●	●
4	SCREW; FLASHER UNIT M5X14 TAPPING W/PL WASHER	0-74100-514-0	01	1	9202-	●	●
22	RELAY; STOP LAMP 24V	1-82550-176-0	01	1	9202-	●	●
24	RELAY; LIGHTING 24V	1-82550-176-0	02	1	9202-	●	●
25	RELAY; TAIL LAMP 24V	1-82550-176-0	01	1	9202-	●	●
27	SCREW; SET,LIGHTING RELAY M5X14 TAPPING W/PL WASHER	0-74100-514-0	02	1	9202-	●	●
28	SCREW; SET,TAIL LAMP RELAY M5X14 TAPPING W/PL WASHER	0-74100-514-0	01	1	9202-	●	●
29	RELAY; HORN	1-83420-001-0	01	1	9202-	●	●
30	SCREW; HORN RELAY TO DASH SIDE M5X14 TAPPING W/PL WASHER	0-74100-514-0	01	1	9202-	●	●
31	RELAY; PTO CONT ISUZU M/T<X9A> PTO CONTROL<SV6> (B) 24V 12.5A JIDECO	1-82550-197-0	01	1	9202-	●	●
31	RELAY; PTO CONT PTO CONTROL<SV6> (A) 24V	1-82550-187-1	01	1	9202-	●	●
43	SCREW; PTO RELAY ISUZU M/T<X9A> PTO CONTROL<SV6> (B) M5X14 TAPPING W/PL WASHER	0-74100-514-0	03	1	9202-	●	●
43	SCREW; PTO RELAY PTO CONTROL<SV6> (A) M5X14 TAPPING W/PL WASHER	0-74100-514-0	02	1	9202-	●	●
58	BUZZER; AIR PRESSURE WARNING	1-83460-022-0	01	1	9202-	●	●
59	SCREW; BUZZER M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	9507-	●	●
60	GROMMET; SCREW,BUZZER ENGINE OVERRUN BUZZER<SK4> D=7X7 L=7.5	5-09983-007-0	01	1	9202-	●	●
67	BUZZER; ENG OVERRUN ENGINE OVERRUN BUZZER<SK4>	1-83460-032-0	01	1	9202-	●	●
75	SCREW; STOP LAMP RELAY M5X14 TAPPING W/PL WASHER	0-74100-514-0	01	1	9202-	●	●
84	BUZZER; POWER CAB TILT	1-83460-033-3	01	1	9202-		●
94	SCREW; CONSENT TO BLIND PNL M5X14 W/PL WASHER	5-09981-050-0	02	1	9202-	●	●
121	RELAY; PARKING BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-82550-070-0	01	1	9202-9403	●	●
121	RELAY; PARKING BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-82550-285-0	01	1	9404-	●	●
122	SCREW; PARKING BRK RELAY REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M5X14 TAPPING W/PL WASHER	0-74100-514-0	01	1	9202-	●	●
123	RELAY; HTR HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 24V	1-82550-176-0	01	1	9202-	●	●
124	SCREW; SET,HTR RELAY HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14 TAPPING W/PL WASHER	0-74100-514-0	01	1	9202-	●	●
125	RELAY; STROKE,BRAKE LINING WARNING	5-82550-046-0	01	1	9202-	●	●
126	SCREW; STROKE RELAY,BRAKE LINING WARNI M6X16 W/LK&PL WASHER	1-09981-141-0	01	1	9202-	●	●
312	BOLT; BUZZER M6X14 W/LK&PL WASHER	8-94279-142-0	01	1	9309-9506	●	●
318	SCREW; BUZZER ENGINE OVERRUN BUZZER<SK4> M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	9202-	●	●
329	RELAY; BACK LAMP AUSTRALIA EQUIPMENT(RR3)	1-82550-070-0	01	1	9202-9403	●	●
329	RELAY; BACK LAMP AUSTRALIA EQUIPMENT(RR3)	1-82550-285-0	01	1	9404-	●	●
330	SCREW; BACK LAMP RELAY AUSTRALIA EQUIPMENT(RR3) M5X14 TAPPING W/PL WASHER	0-74100-514-0	02	1	9202-	●	●
354	RELAY; BRAKE FLUID CHECK AUSTRALIA EQUIPMENT(RR3) 24V	1-82550-176-0	01	1	9202-	●	●
355	SCREW; RELAY AUSTRALIA EQUIPMENT(RR3) M5X14 TAPPING W/PL WASHER	0-74100-514-0	01	1	9202-	●	●

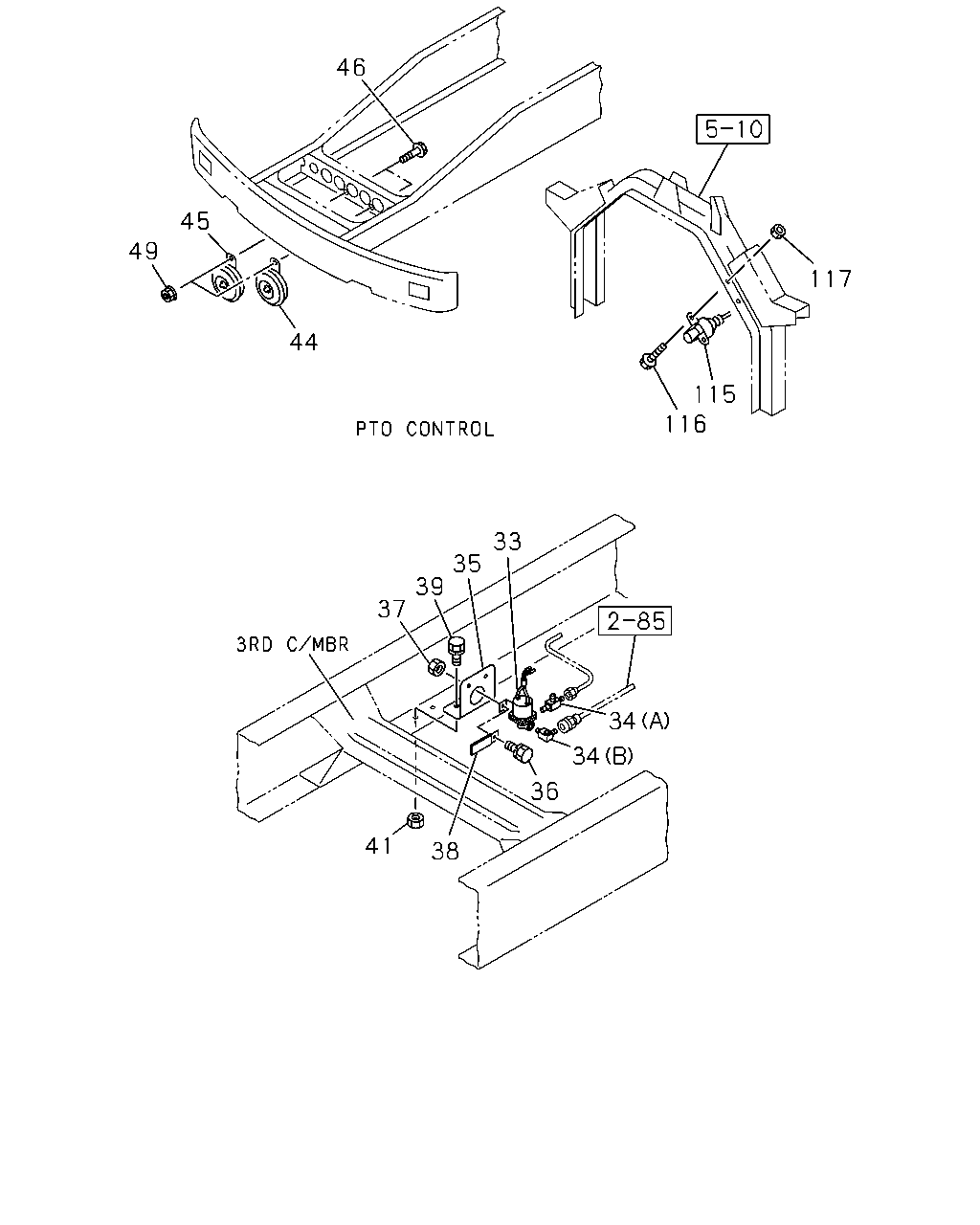

46 45 49 117 44 115 116 33 35 39 37 34 34 36 41 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
33	VALVE; MAG,PTO CONT PTO CONTROL<SV6>	1-82563-154-0	01	1	9202-	●	●
34	CONNECTOR; MAG VLV,INL PORT EXHAUST BRAKE<NF8> PTO CONTROL<SV6> (A) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	9202-	●	●
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> EXC. EXHAUST BRAKE<NF8>,DUAL AIR GAUGE<UG2> (A) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	9202-	●	●
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> (B) M20 & PT1/4 ELBOW	1-09660-137-0	01	1	9202-9302	●	●
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> (B) M20 & PT1/4 ELBOW	1-09660-681-0	01	1	9303-	●	●
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> DUAL AIR GAUGE<UG2> EXC. EXHAUST BRAKE<NF8> (A) PT1/4 & M12 ELBOW	1-09650-117-1	01	1	9202-9302	●	●
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> DUAL AIR GAUGE<UG2> EXC. EXHAUST BRAKE<NF8> (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9303-	●	●
35	BRACKET; MAG VLV,PTO CONT PTO CONTROL<SV6>	1-82569-085-0	01	1	9202-	●	●
36	BOLT; MAG VLV,PTO CONT EXHAUST BRAKE<NF8> PTO CONTROL<SV6> M8X18	0-28010-818-0	02	1	9202-9204	●	●
36	BOLT; MAG VLV,PTO CONT PTO CONTROL<SV6> EXC. EXHAUST BRAKE<NF8>,DUAL AIR GAUGE<UG2> M8X18	0-28010-818-0	02	1	9202-9204	●	●
36	BOLT; MAG VLV,PTO CONT EXHAUST BRAKE<NF8> PTO CONTROL<SV6> M8X18 FLANGE	0-28080-818-0	02	1	9205-9207	●	●
36	BOLT; MAG VLV,PTO CONT PTO CONTROL<SV6> EXC. EXHAUST BRAKE<NF8>,DUAL AIR GAUGE<UG2> M8X18 FLANGE	0-28080-818-0	02	1	9205-9207	●	●
36	BOLT; MAG VLV,PTO CONT EXHAUST BRAKE<NF8> PTO CONTROL<SV6> M8X14 FLANGE	0-28080-814-0	02	1	9208-	●	●
36	BOLT; MAG VLV,PTO CONT PTO CONTROL<SV6> EXC. EXHAUST BRAKE<NF8>,DUAL AIR GAUGE<UG2> M8X14 FLANGE	0-28080-814-0	02	1	9208-	●	●
36	BOLT; MAG VLV,PTO CONT PTO CONTROL<SV6> DUAL AIR GAUGE<UG2> EXC. EXHAUST BRAKE<NF8> M8X25 W/LK WASHER	9-01900-825-0	02	1	9202-9204	●	●
36	BOLT; MAG VLV,PTO CONT PTO CONTROL<SV6> DUAL AIR GAUGE<UG2> EXC. EXHAUST BRAKE<NF8> M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-	●	●
37	NUT; MAG VLV,PTO CONT PTO CONTROL<SV6> M8	9-09110-408-0	02	1	9202-	●	●
38	CLIP; MAG VLV HARNESS PTO CONTROL<SV6> L=63	1-09700-418-1	01	1	9202-	●	●
39	BOLT; BRKT,MAG VLV PTO CONTROL<SV6> M8X25 FLANGE	0-28010-825-0	02	1	9202-9204	●	●
39	BOLT; BRKT,MAG VLV PTO CONTROL<SV6> M8X25 FLANGE	0-28080-825-0	02	1	9205-	●	●
41	NUT; BRKT,MAG VLV PTO CONTROL<SV6> M8	9-09110-408-0	02	1	9202-	●	●
44	HORN; HIGH NOTE	1-83410-053-1	01	1	9202-	●	●
45	HORN; LOW NOTE	1-83410-054-1	01	1	9202-	●	●
46	BOLT; HORN TO BODY M8X25 FLANGE	0-28080-825-0	02	1	9202-	●	●
49	NUT; HORN TO BODY M8 FLANGE	5-09440-005-0	02	1	9202-	●	●
115	RELAY; POWER CAB TILT UNIT NIKKO	1-81171-046-0	01	1	9202-		●
116	BOLT; RELAY FIX M8X20 W/LK WASHER	9-01900-820-0	02	1	9202-9204		●
116	BOLT; RELAY FIX M8X20 W/LK WASHER	0-50040-820-0	02	1	9205-		●
117	NUT; RELAY FIX M8	9-09110-408-0	02	1	9202-		●
