Isuzu WW
▶
TRUCKS
▶
EXZ
▶
10871 - EXZ RHD FUEL TANK 400L/400L+400L
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶

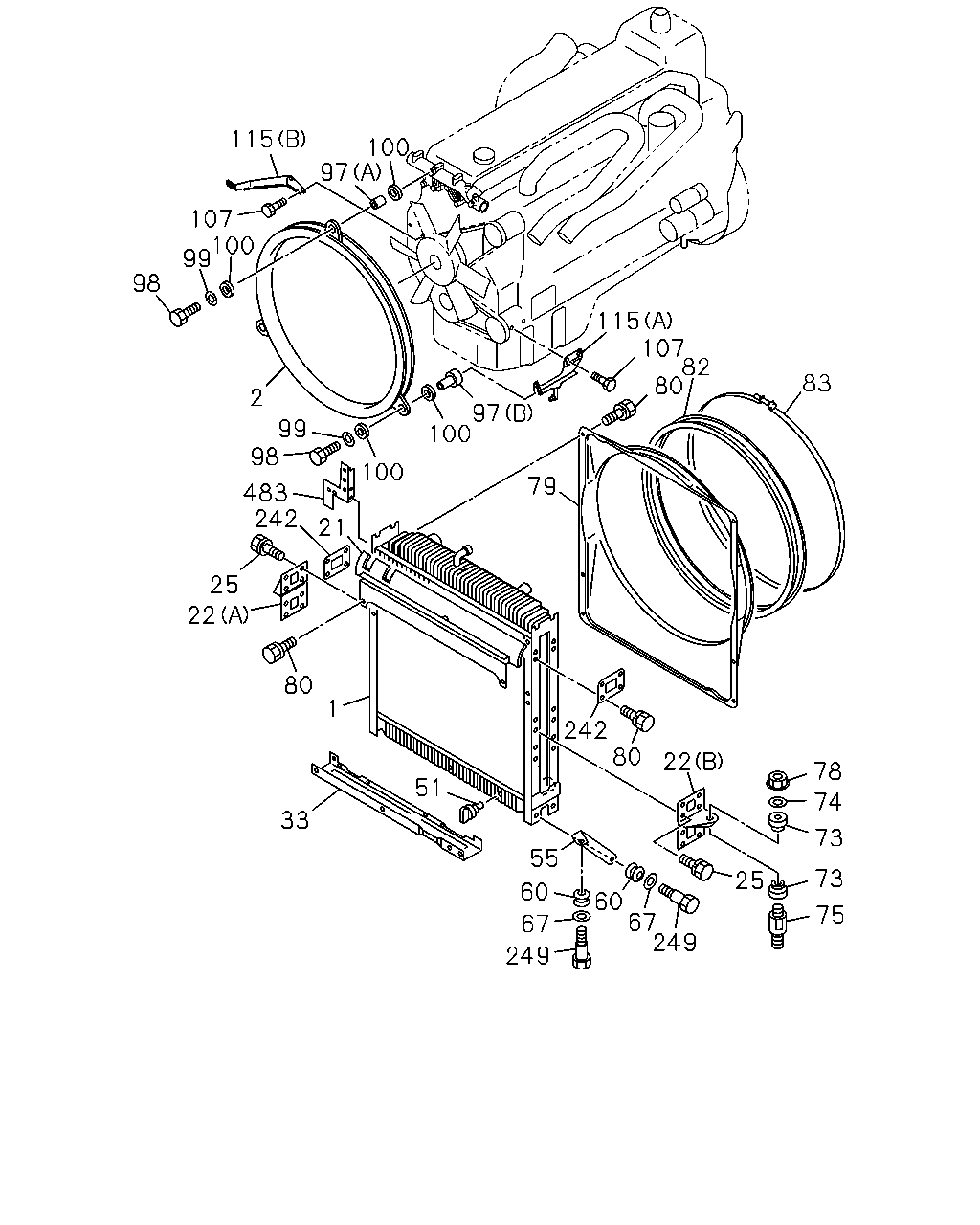

1-10 - RADIATOR
▶
1-10 — RADIATOR
(#11695) — 43 parça
115
100
97
107
100
99
98
115
107
82
80
83
97
100
2
99
98
79
100
483
242
21
25
22
80
1
242
80
22
78
51
74
33
73
55
60
67
249
73
25
60
75
67
249
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
RADIATOR ASM
1-21410-729-1
01
1
0106-
2
GUIDE; FAN
1-21551-369-0
01
1
0106-
21
SEAL; RAD
1-21460-097-0
01
1
0106-0111
21
SEAL; RAD
1-21460-127-0
01
1
0112-
22
BRACKET; RAD MTG
(A)
1-21464-443-0
01
1
0106-0111
22
BRACKET; RAD MTG
(A)
1-21464-503-0
01
1
0112-
22
BRACKET; RAD MTG
(B)
1-21464-444-0
01
1
0106-0111
22
BRACKET; RAD MTG
(B)
1-21464-504-0
01
1
0112-
25
BOLT; BRKT
M8X16 FLANGE
0-28080-816-0
18
1
0106-
33
PROTECTOR; RAD
1-21419-050-0
01
1
0106-
51
PLUG; DRAIN
W/GASKET
1-09609-009-0
01
1
0106-
55
STAY; RAD TO UPR MBR
1-21464-638-0
01
1
0106-
55
STAY; RAD TO UPR MBR
1-21464-637-0
01
1
0106-
60
GROMMET
1-09332-117-0
04
1
0106-
67
WASHER; PL,STAY,RAD MBR
ID=12.5 OD=26
9-09160-612-0
04
1
0106-0605
67
WASHER; PL,STAY,RAD MBR
ID=12.5 OD=26
0-91610-612-0
04
1
0606-
73
RUBBER; CUSHION,RAD MTG
T=14
1-21467-004-0
04
1
0106-
74
WASHER; PL,CUSHION RUBBER
ID=8.4 OD=22
1-09503-154-1
02
1
0106-
75
BOLT; CUSHION RUBBER,RAD MTG
1-21466-005-0
02
1
0106-
78
NUT; CUSHION RUBBER
M10 FLANGE
0-91150-210-0
02
1
0106-0602
78
NUT; CUSHION RUBBER
M10 FLANGE
0-91180-210-0
02
1
0603-
79
GUIDE; FAN,RAD
1-21551-415-0
01
1
0106-
80
BOLT; FAN GUIDE
M8X12 FLANGE
0-28080-812-0
15
1
0106-
82
COVER; FAN,RAD
1-21559-134-1
01
1
0106-
83
CLIP; FAN COVER
1-09707-127-1
01
1
0106-
97
TUBE; DIST,FAN GUIDE
(A) ID=11.8 L=27
1-21559-149-0
01
1
0106-
97
TUBE; DIST,FAN GUIDE
(B)
1-21559-273-0
02
1
0106-
98
BOLT; RAD FAN GUIDE
M10X45 FLANGE
0-28081-045-0
03
1
0106-0512
98
BOLT; RAD FAN GUIDE
M10X45 FLANGE
0-28051-045-0
03
1
0601-
99
WASHER; PL
ID=10.5 OD=26
9-09164-710-0
03
1
0106-0605
99
WASHER; PL
ID=10.5 OD=26
0-91614-710-0
03
1
0606-
100
RUBBER; MTG
1-09337-017-0
06
1
0106-
107
BOLT; BRKT TO STAY
M14X25 FLANGE
0-28981-425-0
02
1
0106-0512
107
BOLT; BRKT TO STAY
M14X25 FLANGE
0-28951-425-0
02
1
0601-
115
BRACKET; FAN GUIDE
(A)
1-21559-353-0
01
1
0106-
115
BRACKET; FAN GUIDE
(B)
1-21559-354-0
01
1
0106-0307
115
BRACKET; FAN GUIDE
(B)
1-21559-485-0
01
1
0308-
242
BRACKET; RAD
1-21464-461-1
02
1
0106-
249
BOLT; STAY,RAD MBR
M8X26
1-09009-175-0
02
1
0202-
249
BOLT; STAY,RAD MBR
M8X30
1-09009-020-1
04
1
0106-0201
249
BOLT; STAY,RAD MBR
M8X30
1-09009-020-1
02
1
0202-
483
BRACKET; SEAL
1-21460-092-1
01
1
0106-0111
483
BRACKET; SEAL
1-21460-128-0
01
1
0112-
