Sayfa 1-01 - Isuzu EPC

1-01 — ACCELERATOR PEDAL AND CONTROL (#11694) — 188 parça

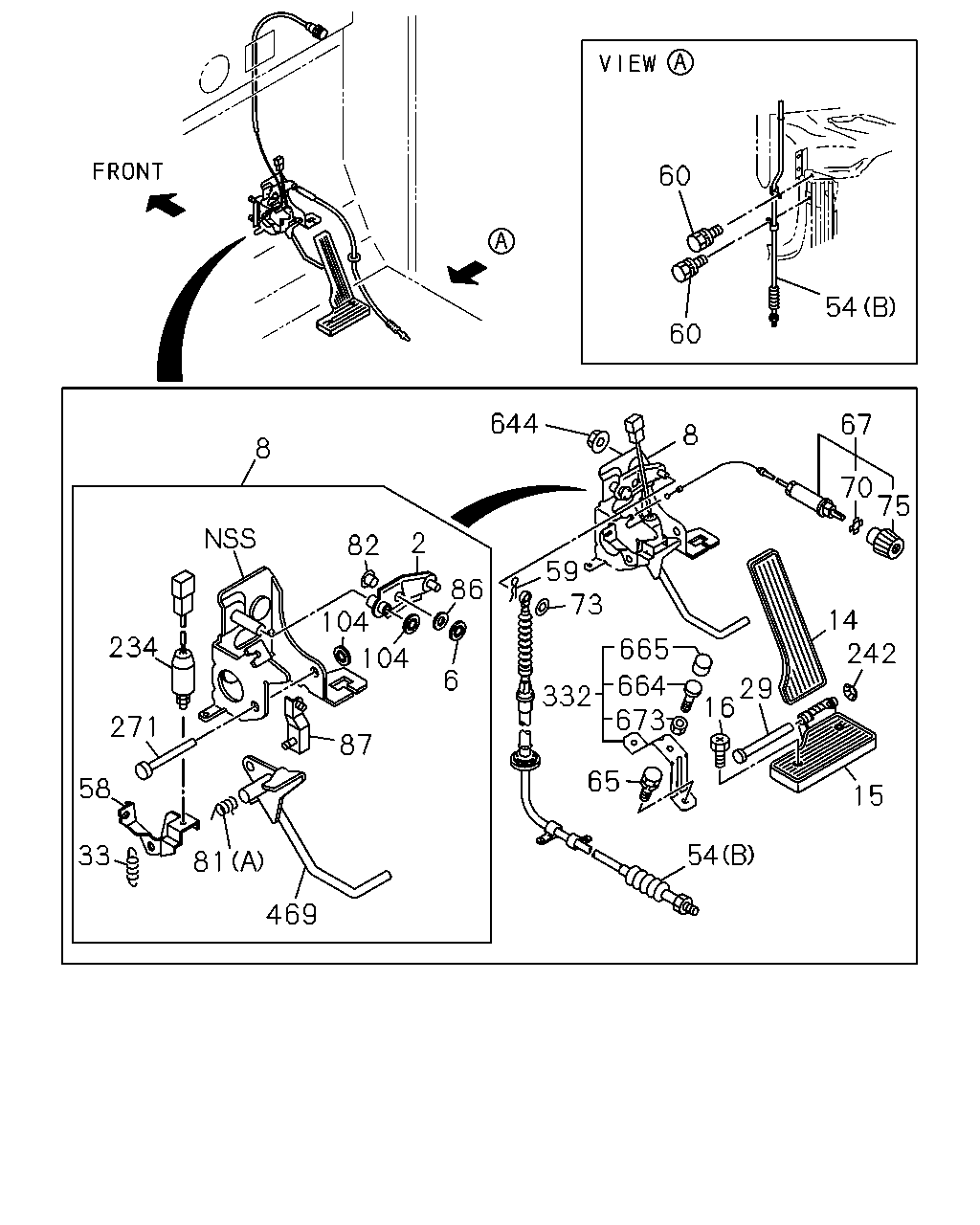

60 54 60 644 67 8 59 73 8 70 75 2 82 86 104 104 14 242 234 665 664 29 16 673 6 332 271 33 87 65 58 15 54 81 469

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	LEVER; ENG CONT ELECTRONIC GOV RED3(KG5)	1-71907-550-1	01	1	0106-
2	LEVER; ENG CONT EXC. ELECTRONIC GOV RED3(KG5)	1-71907-210-2	01	1	0106-
6	RING; SNAP,LINK TO LINK EXC. ELECTRONIC GOV RED3(KG5) ID=4	9-09185-404-0	02	1	0106-0604
6	RING; SNAP,LINK TO LINK EXC. ELECTRONIC GOV RED3(KG5) ID=4	0-91805-504-0	02	1	0605-
8	LINK ASM; ENG CONT ELECTRONIC GOV RED3(KG5)	1-71907-551-3	01	1	0106-
8	LINK ASM; ENG CONT EXC. ELECTRONIC GOV RED3(KG5)	1-73996-206-6	01	1	0106-
14	PAD; PEDAL,ACCEL	1-73907-563-0	01	1	0106-
15	STAND; HEEL,ACCEL PEDAL	1-73907-266-3	01	1	0106-
16	SCREW; HEEL STAND,ACCEL PEDAL M6X28 W/LK&PL WASHER	1-09980-543-0	02	1	0106-
29	SHAFT; ACCEL PEDAL OD=8.0 L=74	1-71907-212-1	01	1	0106-
33	SPRING; IDLING CONT LEVER EXC. ELECTRONIC GOV RED3(KG5)	8-94414-815-0	01	1	0106-
54	CABLE; ENG CONT ELECTRONIC GOV RED3(KG5) (C) L=850	1-71907-257-0	01	1	0106-
54	CABLE; ENG CONT EXC. ELECTRONIC GOV RED3(KG5) (B) L=2971	1-73907-566-1	01	1	0106-
54	CABLE; ENG CONT EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (A) L=1300	1-23230-132-0	01	1	0106-
58	LEVER; IDLING CONT EXC. ELECTRONIC GOV RED3(KG5)	1-71907-242-1	01	1	0106-
59	PIN; SNAP,ENG CONT CABLE EXC. ELECTRONIC GOV RED3(KG5) L=27.7	1-09747-005-0	01	1	0106-
60	BOLT; CABLE EXC. ELECTRONIC GOV RED3(KG5) M8X20 W/LK&PL WASHER	8-94279-208-0	02	1	0106-
65	BOLT M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0106-
67	CABLE ASM; IDLE CONT EXC. ELECTRONIC GOV RED3(KG5) L=399	1-73998-912-3	01	1	0106-0204
67	CABLE ASM; IDLE CONT EXC. ELECTRONIC GOV RED3(KG5) L=315	1-73908-423-0	01	1	0205-
70	NUT; CONT CABLE EXC. ELECTRONIC GOV RED3(KG5)	1-73908-045-1	01	1	0106-
73	WASHER; PL,ACCEL CONT CABLE EXC. ELECTRONIC GOV RED3(KG5) ID=8.4	9-09160-508-0	01	1	0106-0605
73	WASHER; PL,ACCEL CONT CABLE EXC. ELECTRONIC GOV RED3(KG5) ID=8.4 OD=16	0-91610-508-0	01	1	0606-
75	KNOB ASM; IDLING CONT EXC. ELECTRONIC GOV RED3(KG5)	8-97066-797-1	01	1	0106-0109
75	KNOB ASM; IDLING CONT EXC. ELECTRONIC GOV RED3(KG5)	8-97137-504-0	01	1	0110-0204
75	KNOB ASM; IDLING CONT EXC. ELECTRONIC GOV RED3(KG5)	1-73908-409-0	01	1	0205-
81	SPRING; RETURN,ENG CONT LEVER (A)	8-97853-205-1	01	1	0106-
81	SPRING; RETURN,ENG CONT LEVER ELECTRONIC GOV RED3(KG5) (B)	1-71907-268-0	01	1	0106-0206
81	SPRING; RETURN,ENG CONT LEVER ELECTRONIC GOV RED3(KG5) (B)	8-97997-917-0	01	1	0207-
82	BUSHING; ENG CONT LVR ELECTRONIC GOV RED3(KG5) L=31.5	1-53459-627-0	01	1	0106-
82	BUSHING; ENG CONT LVR EXC. ELECTRONIC GOV RED3(KG5)	1-71907-244-1	02	1	0106-
86	WASHER; PL,ENG CONT LEVER EXC. ELECTRONIC GOV RED3(KG5) ID=6.4	9-09160-506-0	02	1	0106-
87	LINK; ENG CONT EXC. ELECTRONIC GOV RED3(KG5)	1-71907-211-1	01	1	0106-
104	NUT; ENG CONT ELECTRONIC GOV RED3(KG5) D=17.5	8-94368-617-0	01	1	0106-
104	NUT; ENG CONT EXC. ELECTRONIC GOV RED3(KG5) D=17.5	8-94368-617-0	02	1	0106-
234	SWITCH; ACCEL ELECTRONIC GOV RED3(KG5)	1-82380-131-1	01	1	0106-
234	SWITCH; ACCEL EXC. ELECTRONIC GOV RED3(KG5)	1-82380-114-3	01	1	0106-
242	NUT; ACCEL PEDAL ID=7.9 PUSH NUT	8-97022-565-0	01	1	0106-
271	SHAFT; ENG CONT ELECTRONIC GOV RED3(KG5) OD=8.0 L=69	1-71907-298-0	01	1	0106-
271	SHAFT; ENG CONT EXC. ELECTRONIC GOV RED3(KG5) OD=8.0 L=74	1-71907-212-1	01	1	0106-
332	BRACKET; ACCEL PEDAL STOPPER	1-73998-937-1	01	1	0106-
469	LEVER ASM EXC. ELECTRONIC GOV RED3(KG5)	1-71907-209-5	01	1	0106-
644	NUT; LINK,ENG CONT M8 FLANGE W/RUBBER	1-09984-176-0	03	1	0106-0304
644	NUT; LINK,ENG CONT M8 FLANGE W/RUBBER	1-09984-176-0	02	1	0305-
664	BOLT; STOPPER M8X45	0-20800-845-0	01	1	0106-
665	COVER; STOPPER RUBBER	1-23249-009-0	01	1	0106-
673	NUT; STOPPER M8	9-09111-408-0	01	1	0106-0512
673	NUT; STOPPER M8	0-91111-508-0	01	1	0601-

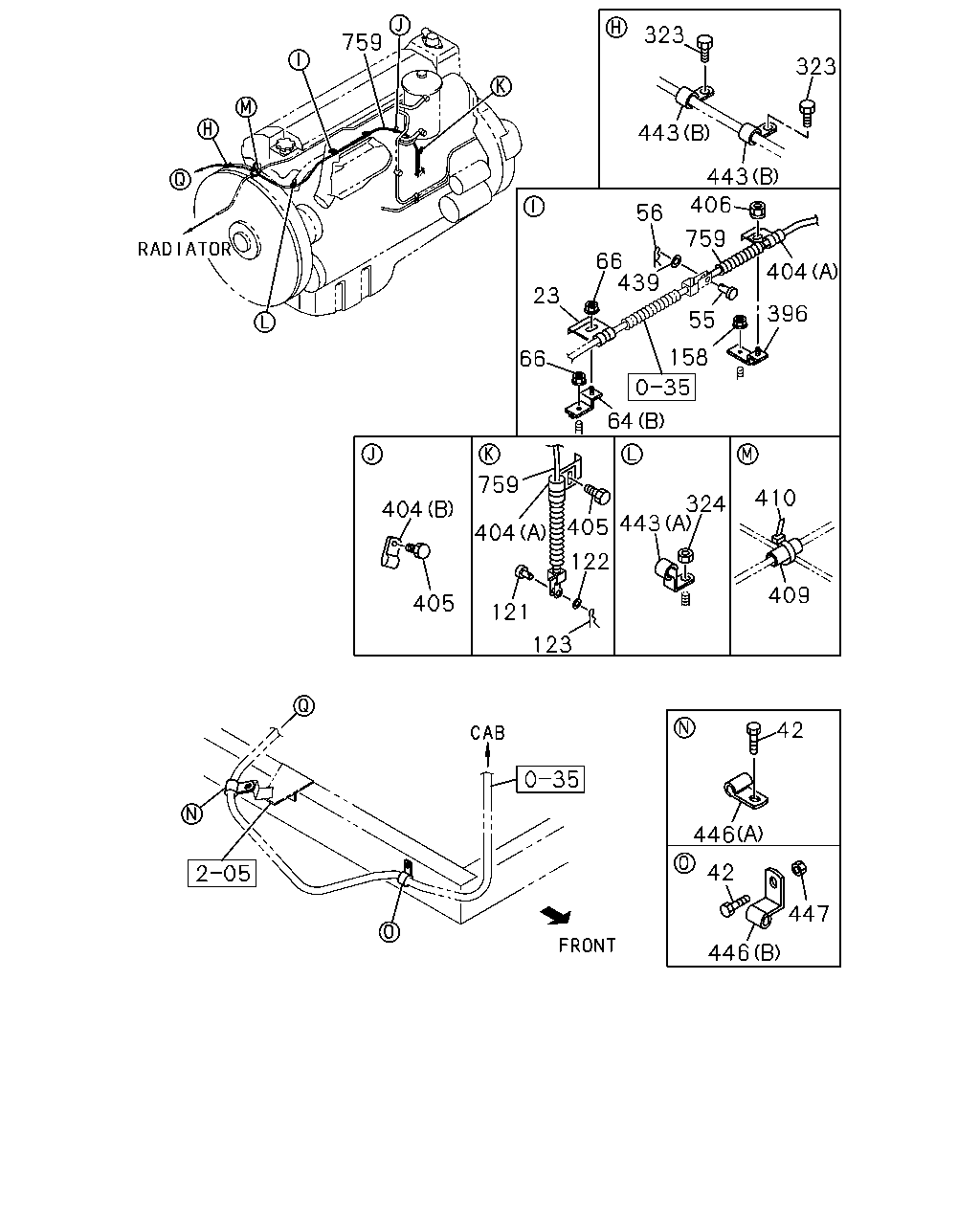

759 323 323 443 443 406 759 66 439 56 404 23 55 396 158 64 66 759 410 324 405 443 404 404 122 409 121 123 405 42 446 42 447 446

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
23	BRACKET; FUEL CUT CABLE ELECTRONIC GOV RED3(KG5)	1-14319-099-0	01	1	0106-0112
23	BRACKET; FUEL CUT CABLE ELECTRONIC GOV RED3(KG5)	1-14319-140-0	01	1	0201-0401
23	BRACKET; FUEL CUT CABLE ELECTRONIC GOV RED3(KG5)	1-14319-113-0	01	1	0402-0402
23	BRACKET; FUEL CUT CABLE ELECTRONIC GOV RED3(KG5)	1-14319-099-0	01	1	0403-
42	BOLT; BRKT,ENG CONT CABLE ELECTRONIC GOV RED3(KG5) M8X20 FLANGE	0-28080-820-0	02	1	0106-0512
42	BOLT; BRKT,ENG CONT CABLE ELECTRONIC GOV RED3(KG5) M8X20 FLANGE	0-28050-820-0	02	1	0601-
42	BOLT; BRKT,ENG CONT CABLE EXC. ELECTRONIC GOV RED3(KG5) M8X25 FLANGE	0-28650-825-0	04	1	0601-
55	PIN; JAW JOINT ELECTRONIC GOV RED3(KG5) L=11	1-09744-102-0	01	1	0106-
56	PIN; SNAP,JAW JOINT ELECTRONIC GOV RED3(KG5) L=17.9	1-09747-002-0	01	1	0106-
64	BRACKET; ENG CONT CABLE ELECTRONIC GOV RED3(KG5) (B)	1-47477-804-3	01	1	0106-
64	BRACKET; ENG CONT CABLE EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (A)	1-23219-105-1	01	1	0106-
66	NUT; BRKT ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	02	1	0106-0602
66	NUT; BRKT ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91180-108-0	02	1	0603-
121	PIN; JOINT,CABLE GLOW SYSTEM-FAST DIESEL ENGINE<KM6> L=11	1-09744-102-0	01	1	0106-
122	WASHER; PL,CABLE GLOW SYSTEM-FAST DIESEL ENGINE<KM6> ID=5.3	9-09160-505-0	01	1	0106-0605
122	WASHER; PL,CABLE GLOW SYSTEM-FAST DIESEL ENGINE<KM6> ID=5.3	0-91610-505-0	01	1	0606-
122	WASHER; PL,CABLE EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> ID=8.4	9-09160-508-0	01	1	0106-0605
122	WASHER; PL,CABLE EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> ID=8.4 OD=16	0-91610-508-0	01	1	0606-
123	PIN; SNAP,CABLE GLOW SYSTEM-FAST DIESEL ENGINE<KM6> L=17.9	1-09747-002-0	01	1	0106-
123	PIN; SNAP,CABLE EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> L=27.7	1-09747-005-0	01	1	0106-
158	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0106-0602
158	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0603-
323	BOLT; CLIP ELECTRONIC GOV RED3(KG5) M8X20 FLANGE	0-28680-820-0	02	1	0106-0512
323	BOLT; CLIP ELECTRONIC GOV RED3(KG5) M8X20 FLANGE	0-28650-820-0	02	1	0601-
324	NUT; CLIP FIX ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	01	1	0106-0602
324	NUT; CLIP FIX ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91180-108-0	02	1	0603-
396	BRACKET; CLIP	1-47478-055-0	01	1	0106-
404	CLIP; CABLE (A)	1-14319-111-0	01	1	0106-
404	CLIP; CABLE ELECTRONIC GOV RED3(KG5) (A)	1-14319-111-0	01	1	0106-
404	CLIP; CABLE (B) ID=9 L=40	9-09524-875-0	01	1	0106-0606
404	CLIP; CABLE EXC. ELECTRONIC GOV RED3(KG5) (B) ID=9 L=40	9-09524-875-0	01	1	0106-0606
404	CLIP; CABLE (B) ID=9 L=40	0-95234-875-0	01	1	0607-
404	CLIP; CABLE EXC. ELECTRONIC GOV RED3(KG5) (B) ID=9 L=40	0-95234-875-0	01	1	0607-
405	BOLT; CABLE CLIP M8X16 FLANGE	0-28080-816-0	02	1	0106-0512
405	BOLT; CABLE CLIP M8X16 FLANGE	0-28050-816-0	02	1	0601-
405	BOLT; CABLE CLIP EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> M6X16 FLANGE	0-28080-616-0	02	1	0106-0512
405	BOLT; CABLE CLIP EXC. ELECTRONIC GOV RED3(KG5) M6X16 FLANGE	0-28050-616-0	02	1	0601-
406	NUT; CABLE CLIP M8 FLANGE	0-91150-108-0	01	1	0106-0602
406	NUT; CABLE CLIP M8 FLANGE	0-91180-108-0	01	1	0603-
409	SLEEVE ELECTRONIC GOV RED3(KG5) ID=6 L=30	5-09360-352-0	01	1	0106-
410	CLIP; BAND ELECTRONIC GOV RED3(KG5) L=140	5-09707-031-1	01	1	0106-
439	WASHER; PL,PIN,JAW JOINT ELECTRONIC GOV RED3(KG5) ID=5.3	9-09160-505-0	01	1	0106-
439	WASHER; PL,PIN,JAW JOINT ID=5.3	0-91610-505-0	01	1	0606-
443	CLIP; CABLE ELECTRONIC GOV RED3(KG5) (A) ID=6 H=20 L=20	1-09700-603-0	01	1	0106-
443	CLIP; CABLE ELECTRONIC GOV RED3(KG5) (B) ID=7 L=20	9-09524-635-0	02	1	0106-0606
443	CLIP; CABLE ELECTRONIC GOV RED3(KG5) (B) ID=7 L=20	0-95234-635-0	02	1	0607-
446	CLIP; ENG CONT ELECTRONIC GOV RED3(KG5) (B) ID=11 H=20 L=20	5-09700-351-0	01	1	0106-
446	CLIP; ENG CONT ELECTRONIC GOV RED3(KG5) (A)	9-09917-514-0	01	1	0106-0404
446	CLIP; ENG CONT ELECTRONIC GOV RED3(KG5) (A) ID=11 L=20	9-09525-035-0	01	1	0405-0606
446	CLIP; ENG CONT ELECTRONIC GOV RED3(KG5) (A) ID=11 L=20	0-95235-035-0	01	1	0607-
447	NUT; BRKT,CONT WIRE ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	01	1	0106-0602
447	NUT; BRKT,CONT WIRE ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91180-108-0	01	1	0603-
447	NUT; BRKT,CONT WIRE EXC. ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91180-108-0	04	1	0603-
759	WIRE; CONT,FUEL CUT GLOW SYSTEM-FAST DIESEL ENGINE<KM6> L=752	1-23230-026-1	01	1	0106-

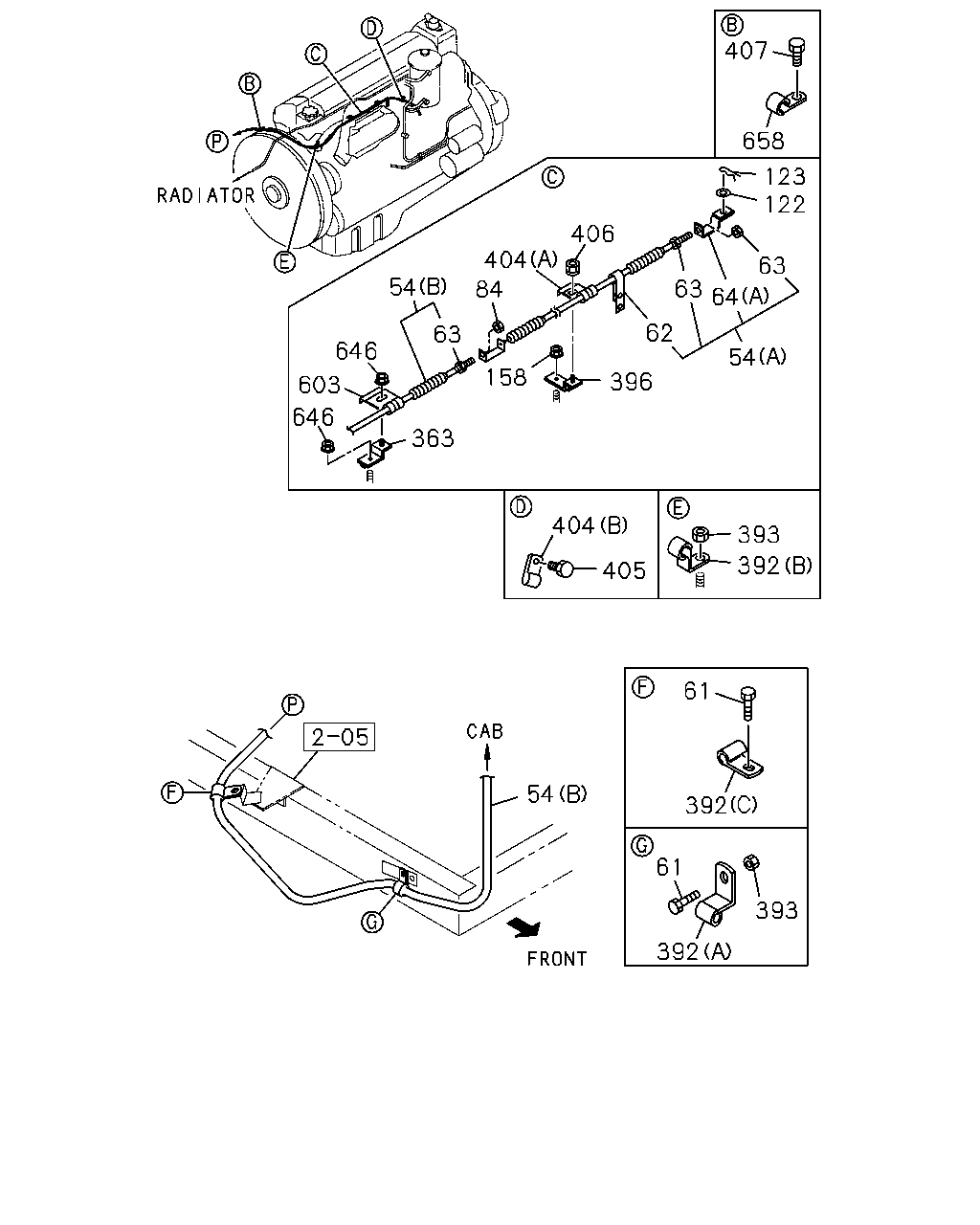

407 658 123 122 406 404 84 63 63 64 54 62 63 646 603 646 363 54 158 396 404 393 392 405 61 54 392 61 393 392

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
54	CABLE; ENG CONT ELECTRONIC GOV RED3(KG5) (C) L=850	1-71907-257-0	01	1	0106-
54	CABLE; ENG CONT EXC. ELECTRONIC GOV RED3(KG5) (B) L=2971	1-73907-566-1	01	1	0106-
54	CABLE; ENG CONT EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (A) L=1300	1-23230-132-0	01	1	0106-
61	BOLT; BRKT TO FRAME ENG CONT CABLE EXC. ELECTRONIC GOV RED3(KG5) M8X25 FLANGE	0-28680-825-0	02	1	0106-0512
61	BOLT; BRKT TO FRAME ENG CONT CABLE EXC. ELECTRONIC GOV RED3(KG5) M8X25 FLANGE	0-28650-825-0	02	1	0601-
62	CLIP; ENG CONT CABLE EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> L=30	1-09700-326-0	01	1	0106-
63	NUT; LOCK,BRKT EXC. ELECTRONIC GOV RED3(KG5) M8	9-09111-408-0	01	1	0106-
63	NUT; LOCK,BRKT EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> M8	9-09111-408-0	02	1	0106-
64	BRACKET; ENG CONT CABLE ELECTRONIC GOV RED3(KG5) (B)	1-47477-804-3	01	1	0106-
64	BRACKET; ENG CONT CABLE EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (A)	1-23219-105-1	01	1	0106-
84	NUT; ENG CONT LEVER EXC. ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	01	1	0106-0501
84	NUT; ENG CONT LEVER EXC. ELECTRONIC GOV RED3(KG5) M8	9-09110-408-0	01	1	0502-0512
84	NUT; ENG CONT LEVER EXC. ELECTRONIC GOV RED3(KG5) M8	0-91110-508-0	01	1	0601-
122	WASHER; PL,CABLE GLOW SYSTEM-FAST DIESEL ENGINE<KM6> ID=5.3	9-09160-505-0	01	1	0106-0605
122	WASHER; PL,CABLE GLOW SYSTEM-FAST DIESEL ENGINE<KM6> ID=5.3	0-91610-505-0	01	1	0606-
122	WASHER; PL,CABLE EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> ID=8.4	9-09160-508-0	01	1	0106-0605
122	WASHER; PL,CABLE EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> ID=8.4 OD=16	0-91610-508-0	01	1	0606-
123	PIN; SNAP,CABLE GLOW SYSTEM-FAST DIESEL ENGINE<KM6> L=17.9	1-09747-002-0	01	1	0106-
123	PIN; SNAP,CABLE EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> L=27.7	1-09747-005-0	01	1	0106-
158	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0106-0602
158	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0603-
363	SPACER; BRKT,ENG CONT SHAFT EXC. ELECTRONIC GOV RED3(KG5)	1-47477-804-3	01	1	0106-
392	CLIP; ACCEL CONT CABLE EXC. ELECTRONIC GOV RED3(KG5) (B) ID=8 H=20 L=20	1-09700-604-0	01	1	0106-
392	CLIP; ACCEL CONT CABLE EXC. ELECTRONIC GOV RED3(KG5) (C) ID=11 H=20 L=20	5-09700-351-0	01	1	0106-
392	CLIP; ACCEL CONT CABLE EXC. ELECTRONIC GOV RED3(KG5) (A) ID=11 L=20	9-09525-035-0	01	1	0106-0606
392	CLIP; ACCEL CONT CABLE EXC. ELECTRONIC GOV RED3(KG5) (A) ID=11 L=20	0-95235-035-0	01	1	0607-
393	NUT; CLIP TO FRAME EXC. ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	01	1	0106-0602
393	NUT; CLIP TO FRAME EXC. ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	01	1	0106-0602
393	NUT; CLIP TO FRAME EXC. ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91180-108-0	01	1	0603-
393	NUT; CLIP TO FRAME EXC. ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91180-108-0	01	1	0603-
396	BRACKET; CLIP	1-47478-055-0	01	1	0106-
404	CLIP; CABLE (A)	1-14319-111-0	01	1	0106-
404	CLIP; CABLE ELECTRONIC GOV RED3(KG5) (A)	1-14319-111-0	01	1	0106-
404	CLIP; CABLE (B) ID=9 L=40	9-09524-875-0	01	1	0106-0606
404	CLIP; CABLE EXC. ELECTRONIC GOV RED3(KG5) (B) ID=9 L=40	9-09524-875-0	01	1	0106-0606
404	CLIP; CABLE (B) ID=9 L=40	0-95234-875-0	01	1	0607-
404	CLIP; CABLE EXC. ELECTRONIC GOV RED3(KG5) (B) ID=9 L=40	0-95234-875-0	01	1	0607-
405	BOLT; CABLE CLIP M8X16 FLANGE	0-28080-816-0	02	1	0106-0512
405	BOLT; CABLE CLIP M8X16 FLANGE	0-28050-816-0	02	1	0601-
405	BOLT; CABLE CLIP EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> M6X16 FLANGE	0-28080-616-0	02	1	0106-0512
405	BOLT; CABLE CLIP EXC. ELECTRONIC GOV RED3(KG5) M6X16 FLANGE	0-28050-616-0	02	1	0601-
406	NUT; CABLE CLIP M8 FLANGE	0-91150-108-0	01	1	0106-0602
406	NUT; CABLE CLIP M8 FLANGE	0-91180-108-0	01	1	0603-
407	BOLT; CLIP TO ENG EXC. ELECTRONIC GOV RED3(KG5) M8X25 FLANGE	0-28680-825-0	02	1	0106-0512
407	BOLT; CLIP TO ENG EXC. ELECTRONIC GOV RED3(KG5) M8X25 FLANGE	0-28650-825-0	02	1	0601-
603	BRACKET; ENG CONT SHAFT EXC. ELECTRONIC GOV RED3(KG5)	1-14319-140-0	01	1	0106-
646	NUT; BRKT,LEVER EXC. ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	02	1	0106-0602
646	NUT; BRKT,LEVER EXC. ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91180-108-0	02	1	0603-
658	CLIP; ENG CONT CABLE EXC. ELECTRONIC GOV RED3(KG5) ID=7 L=20	9-09524-635-0	02	1	0106-0606
658	CLIP; ENG CONT CABLE EXC. ELECTRONIC GOV RED3(KG5) ID=7 L=20	0-95234-635-0	02	1	0607-

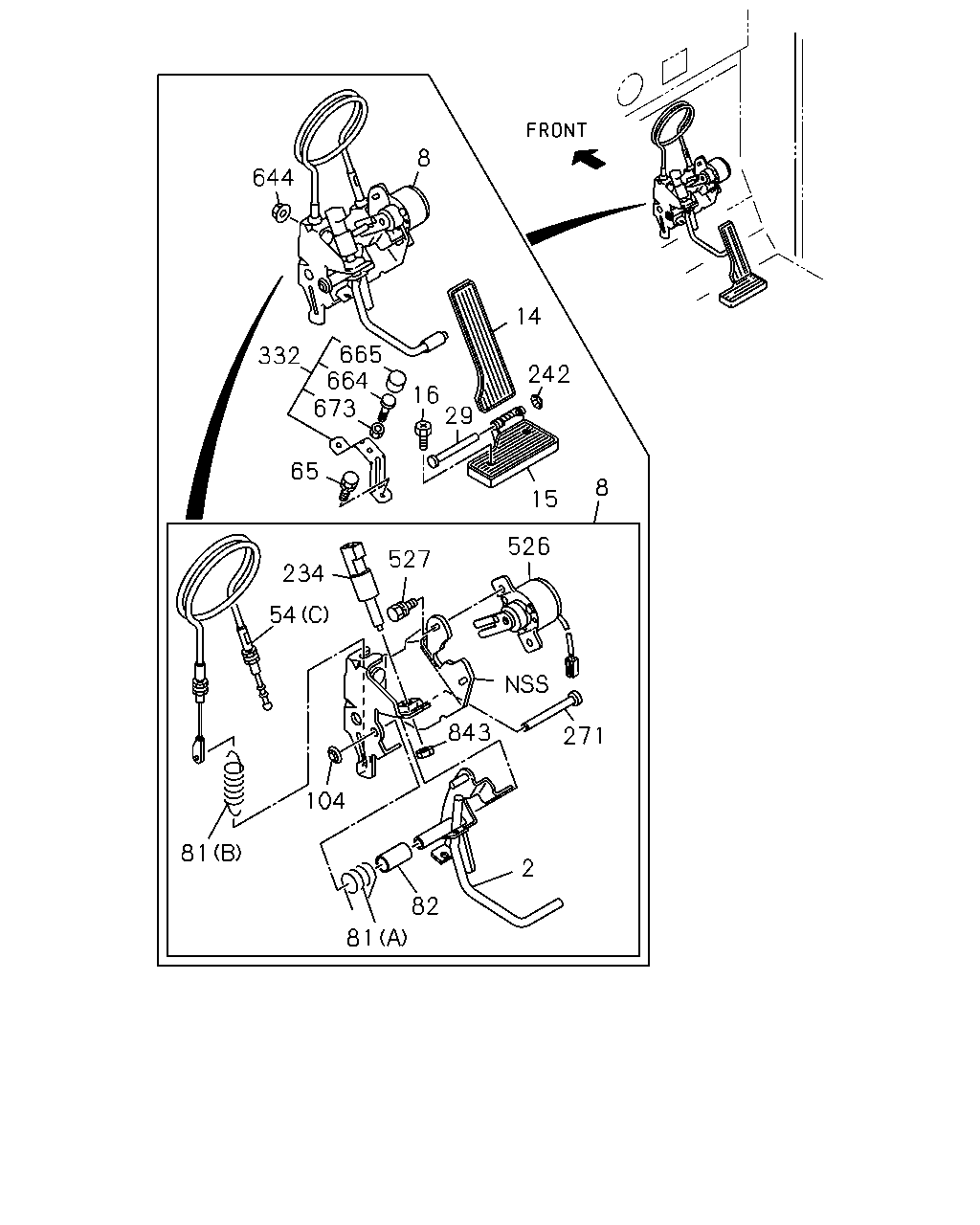

8 644 14 665 664 673 332 242 16 29 65 8 15 526 527 234 54 843 271 104 81 2 82 81

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	LEVER; ENG CONT ELECTRONIC GOV RED3(KG5)	1-71907-550-1	01	1	0106-
2	LEVER; ENG CONT EXC. ELECTRONIC GOV RED3(KG5)	1-71907-210-2	01	1	0106-
8	LINK ASM; ENG CONT ELECTRONIC GOV RED3(KG5)	1-71907-551-3	01	1	0106-
8	LINK ASM; ENG CONT EXC. ELECTRONIC GOV RED3(KG5)	1-73996-206-6	01	1	0106-
14	PAD; PEDAL,ACCEL	1-73907-563-0	01	1	0106-
15	STAND; HEEL,ACCEL PEDAL	1-73907-266-3	01	1	0106-
16	SCREW; HEEL STAND,ACCEL PEDAL M6X28 W/LK&PL WASHER	1-09980-543-0	02	1	0106-
29	SHAFT; ACCEL PEDAL OD=8.0 L=74	1-71907-212-1	01	1	0106-
54	CABLE; ENG CONT ELECTRONIC GOV RED3(KG5) (C) L=850	1-71907-257-0	01	1	0106-
54	CABLE; ENG CONT EXC. ELECTRONIC GOV RED3(KG5) (B) L=2971	1-73907-566-1	01	1	0106-
54	CABLE; ENG CONT EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (A) L=1300	1-23230-132-0	01	1	0106-
65	BOLT M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0106-
81	SPRING; RETURN,ENG CONT LEVER (A)	8-97853-205-1	01	1	0106-
81	SPRING; RETURN,ENG CONT LEVER ELECTRONIC GOV RED3(KG5) (B)	1-71907-268-0	01	1	0106-0206
81	SPRING; RETURN,ENG CONT LEVER ELECTRONIC GOV RED3(KG5) (B)	8-97997-917-0	01	1	0207-
82	BUSHING; ENG CONT LVR ELECTRONIC GOV RED3(KG5) L=31.5	1-53459-627-0	01	1	0106-
82	BUSHING; ENG CONT LVR EXC. ELECTRONIC GOV RED3(KG5)	1-71907-244-1	02	1	0106-
104	NUT; ENG CONT ELECTRONIC GOV RED3(KG5) D=17.5	8-94368-617-0	01	1	0106-
104	NUT; ENG CONT EXC. ELECTRONIC GOV RED3(KG5) D=17.5	8-94368-617-0	02	1	0106-
234	SWITCH; ACCEL ELECTRONIC GOV RED3(KG5)	1-82380-131-1	01	1	0106-
234	SWITCH; ACCEL EXC. ELECTRONIC GOV RED3(KG5)	1-82380-114-3	01	1	0106-
242	NUT; ACCEL PEDAL ID=7.9 PUSH NUT	8-97022-565-0	01	1	0106-
271	SHAFT; ENG CONT ELECTRONIC GOV RED3(KG5) OD=8.0 L=69	1-71907-298-0	01	1	0106-
271	SHAFT; ENG CONT EXC. ELECTRONIC GOV RED3(KG5) OD=8.0 L=74	1-71907-212-1	01	1	0106-
332	BRACKET; ACCEL PEDAL STOPPER	1-73998-937-1	01	1	0106-
526	SENSOR; ACCEL ELECTRONIC GOV RED3(KG5)	1-81534-003-2	01	1	0106-
527	BOLT; ACCEL SENSOR ELECTRONIC GOV RED3(KG5) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0106-0206
527	BOLT; ACCEL SENSOR ELECTRONIC GOV RED3(KG5) M6X16 W/LK&PL WASHER	8-94139-963-0	02	1	0207-
644	NUT; LINK,ENG CONT M8 FLANGE W/RUBBER	1-09984-176-0	03	1	0106-0304
644	NUT; LINK,ENG CONT M8 FLANGE W/RUBBER	1-09984-176-0	02	1	0305-
664	BOLT; STOPPER M8X45	0-20800-845-0	01	1	0106-
665	COVER; STOPPER RUBBER	1-23249-009-0	01	1	0106-
673	NUT; STOPPER M8	9-09111-408-0	01	1	0106-0512
673	NUT; STOPPER M8	0-91111-508-0	01	1	0601-
843	NUT ELECTRONIC GOV RED3(KG5) M12	9-99111-412-0	01	1	0106-0512
843	NUT ELECTRONIC GOV RED3(KG5) M12	0-91111-512-0	01	1	0601-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
