0-51 — OIL PUMP AND OIL STRAINER (#11683) — 27 parça

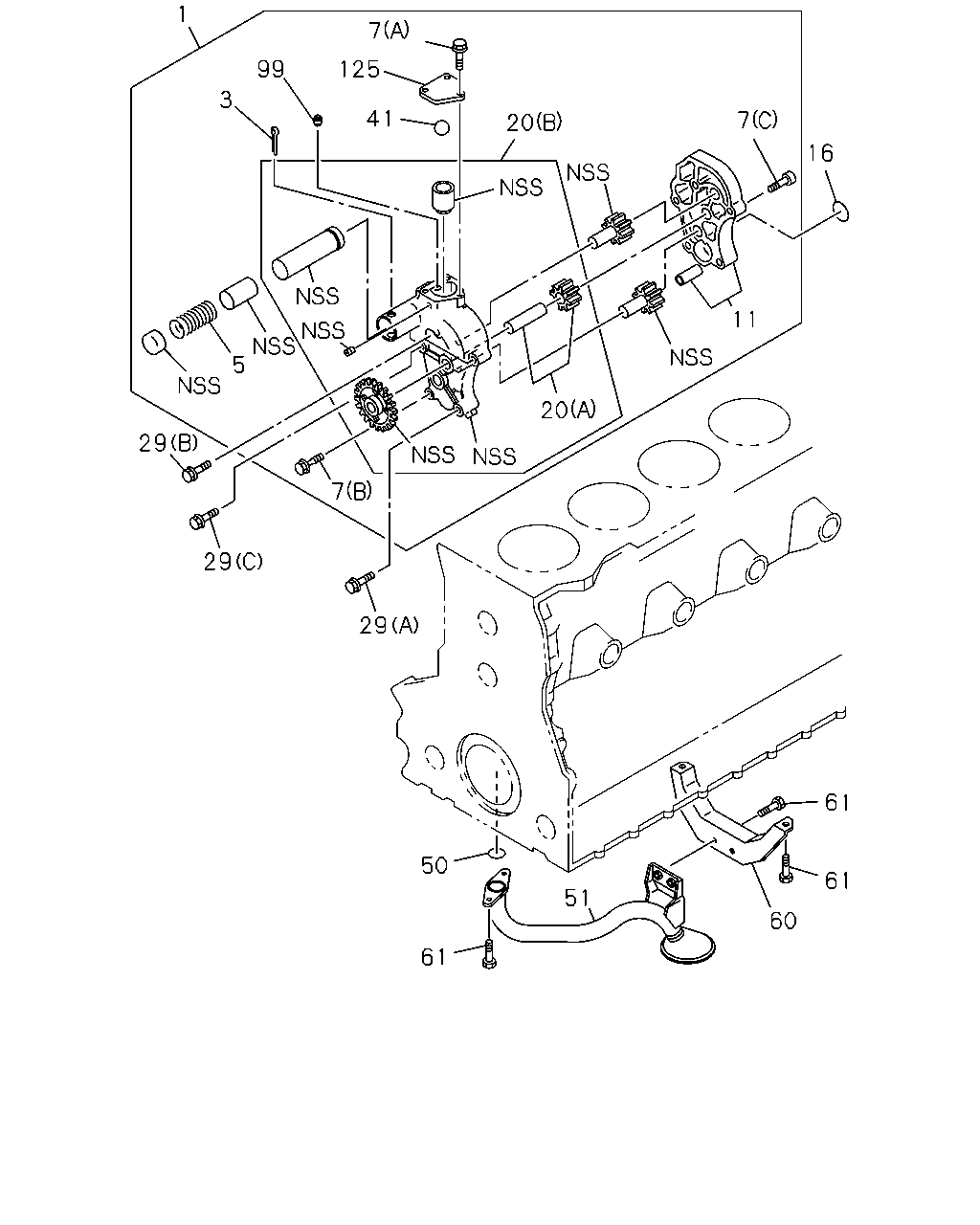

çizim 75358
1 7 99 125 3 41 7 20 16 11 5 20 29 7 29 29 61 50 61 51 60 61
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP ASM; OIL 1-13100-297-1 01 1 0106-0203
1 PUMP ASM; OIL 1-13100-307-1 01 1 0204-0401
1 PUMP ASM; OIL 1-13100-311-0 01 1 0402-
3 PIN; SPLIT
L=60 		9-08114-060-0 01 1 0106-
5 SPRING; COIL 1-09580-511-1 01 1 0106-
7 BOLT; COVER,OIL PUMP
(A) M8X18 FLANGE 		0-28080-818-0 03 1 0106-
7 BOLT; COVER,OIL PUMP
(B) M10X60 FLANGE 		0-28181-060-0 01 1 0106-0512
7 BOLT; COVER,OIL PUMP
(B) M10X60 FLANGE 		0-28151-060-0 01 1 0601-
7 BOLT; COVER,OIL PUMP
(C) M8X35 HEX SOCKET 		9-05820-835-0 02 1 0106-0211
7 BOLT; COVER,OIL PUMP
(C) M8X35 HEX SOCKET 		0-58310-835-0 02 1 0212-
11 COVER ASM; OIL PUMP 1-13113-068-0 01 1 0106-
16 GASKET; OIL PUMP,C/BL
ALSO INCLUDED IN GASKET SET(ENGINE) 		1-09623-529-0 01 1 0106-
20 GEAR; DRIVE,OIL PUMP
(A) 		1-13120-080-0 01 1 0106-
20 GEAR; DRIVE,OIL PUMP
(B) 		1-13120-082-1 01 1 0106-0203
20 GEAR; DRIVE,OIL PUMP
(B) 		1-13120-088-0 01 1 0204-
29 BOLT; OIL PUMP
(A) M10X85 FLANGE 		8-94397-359-1 01 1 0106-
29 BOLT; OIL PUMP
(B) M10X107 FLANGE 		8-94399-488-1 02 1 0106-
29 BOLT; OIL PUMP
(C) M10X80 		9-05921-080-0 01 1 0106-
41 BALL; OIL RELIEF VLV 1-13161-021-0 01 1 0106-
50 GASKET; OIL PIPE,STRAINER TO PUMP
ALSO INCLUDED IN GASKET SET(ENGINE) 		1-09623-529-0 01 1 0106-
51 STRAINER & PIPE ASM; OIL 1-13313-207-1 01 1 0106-
60 BRACKET; OIL STRAINER 1-13345-180-1 01 1 0106-
61 BOLT; OIL STRAINER
M10X20 FLANGE 		0-28181-020-0 06 1 0106-0512
61 BOLT; OIL STRAINER
M10X20 FLANGE 		0-28151-020-0 06 1 0601-
99 PLUG; OIL PUMP 1-13163-002-0 01 1 0106-
125 COVER; BALL 1-13163-003-0 01 1 0106-0211
125 COVER; BALL 1-13163-004-0 01 1 0212-
