◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10871 - EXZ RHD FUEL TANK 400L/400L+400L ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-41 - FUEL FILTER AND BRACKET ▶
0-41 — FUEL FILTER AND BRACKET (#11680) — 22 parça

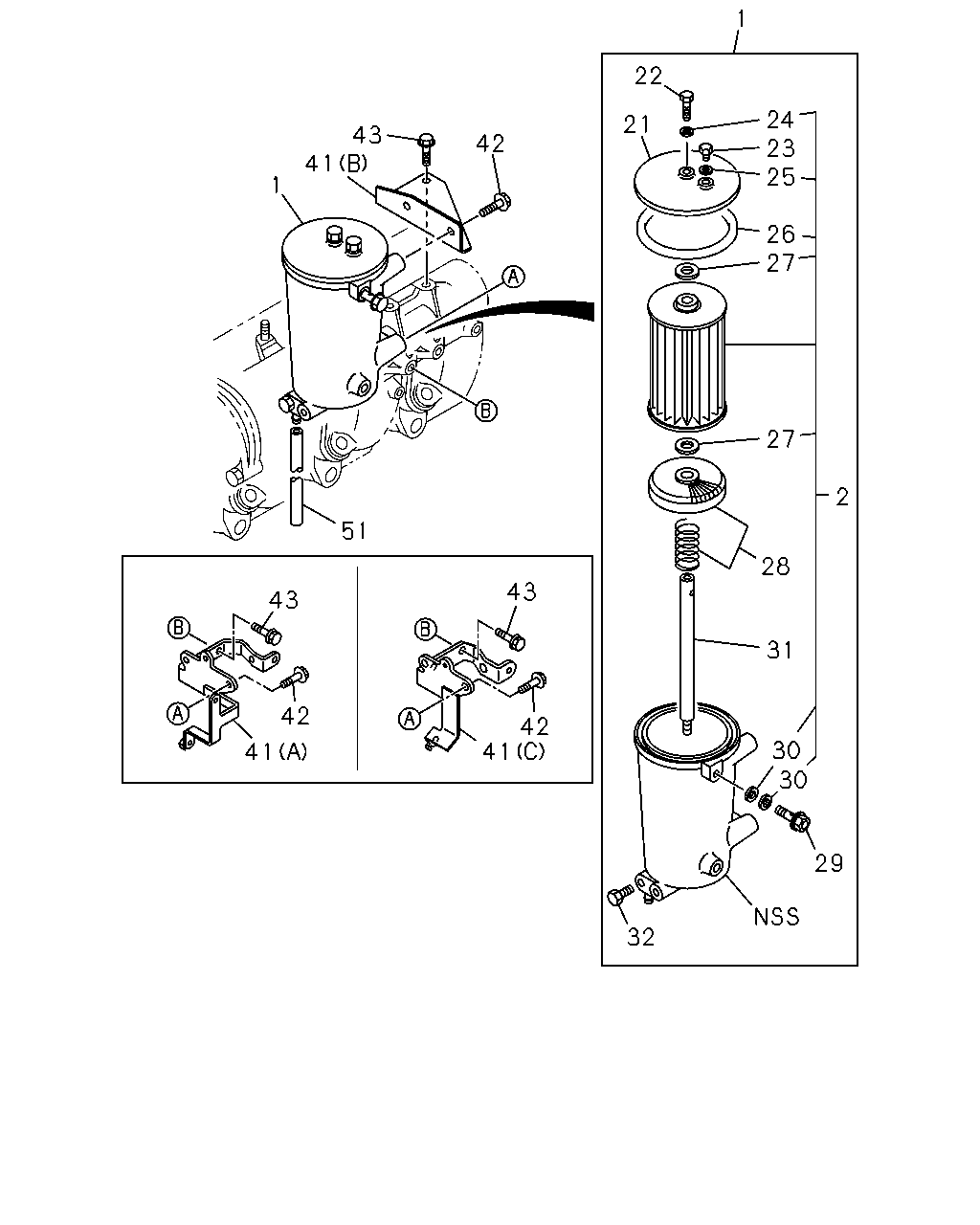

çizim 78600
1 22 24 23 25 21 43 41 42 1 26 27 27 2 51 28 43 43 31 42 41 42 41 30 30 29 32
BalonParca AdiParca NoAdetTipApplied Date
1 FILTER ASM; FUEL 1-13200-871-3 01 1 0106-
2 ELEMENT KIT; FUEL FILTER 1-87810-976-0 01 1 0106-
21 COVER; UPR,FUEL FILTER 1-13212-049-1 01 1 0106-
22 BOLT; CENTER TUBE,COVER 1-13219-045-0 01 1 0106-
23 PLUG; COVER 1-13219-074-0 01 1 0106-
24 GASKET; CENTER TUBE BOLT
ID=10.2 		1-09630-083-0 01 1 0106-
25 GASKET; AIR DRAIN PLUG
ID=10.2 		1-09630-083-0 01 1 0106-
26 GASKET; COVER TO BODY 9-09720-797-0 01 1 0106-
27 GASKET; ELEMENT 1-09630-007-0 02 1 0106-
28 STRAINER; WATER,FUEL FILTER 1-13251-001-0 01 1 0106-
29 VALVE; OVERFLOW 1-13260-074-0 01 1 0106-
30 GASKET; OVERFLOW VLV
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		1-09630-085-0 02 1 0106-
31 TUBE; CENTER BOLT 1-13231-026-0 01 1 0106-
32 BOLT; DRAIN,FUEL FILTER 1-13219-030-0 01 1 0106-
41 BRACKET; FUEL FILTER
(B) 		1-13219-282-0 01 1 0106-
41 BRACKET; FUEL FILTER
GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (C) 		1-13219-301-2 01 1 0106-
41 BRACKET; FUEL FILTER
EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (A) 		1-13219-354-0 01 1 0106-
42 BOLT; FUEL FILTER
M10X20 FLANGE 		0-28081-020-0 04 1 0106-0512
42 BOLT; FUEL FILTER
M10X20 FLANGE 		0-28051-020-0 04 1 0601-
43 BOLT; BRKT
M10X20 FLANGE 		0-28181-020-0 04 1 0106-0512
43 BOLT; BRKT
M10X20 FLANGE 		0-28151-020-0 04 1 0601-
51 PIPE; VINYL
L=750 SERVICED BY L=10000 		9-09914-909-0 01 1 0106-
