8-65 — CONTROL LEVER; HEATER AND AIR CON (#1168) — 27 parça

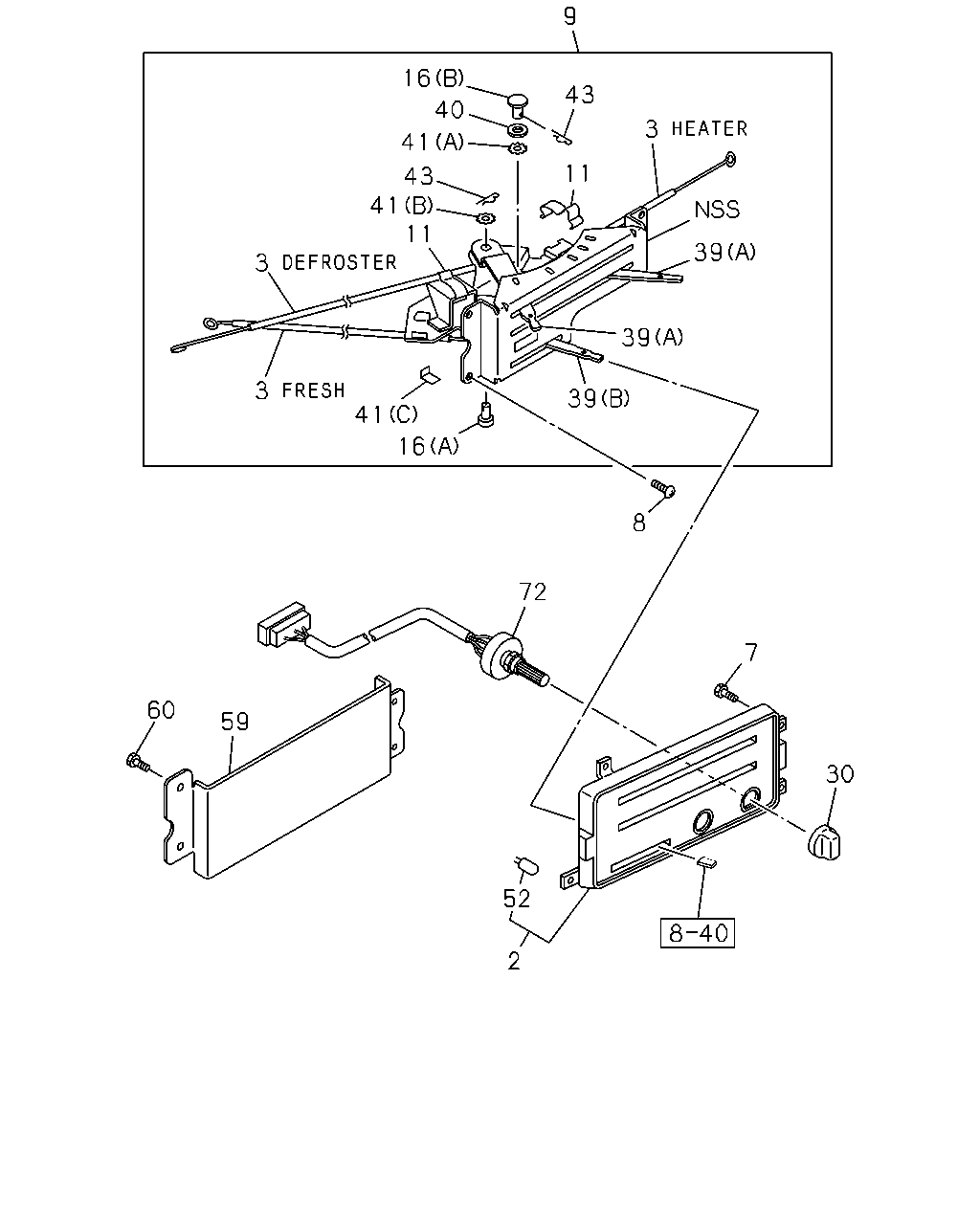

çizim 94265
9 43 3 11 39 39 39 8 7 30 52 2 72 59 60 16 41 3 3 11 41 43 41 40 16
BalonParca AdiParca NoAdetTipApplied Date A B
2 PANEL ASM; CONT,ILLUMINATION
HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) 		1-72410-155-2 01 1 9202- ● ●
2 PANEL ASM; CONT,ILLUMINATION
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-72410-156-1 01 1 9202- ● ●
3 CABLE; HTR CONT LVR
DEFROSTER 		1-83579-147-2 01 1 9202- ● ●
3 CABLE; HTR CONT LVR
FRESH 		1-83579-149-2 01 1 9202- ● ●
3 CABLE; HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) HEATER 		1-83579-148-1 01 1 9202- ● ●
7 SCREW; ILLUMINATION PNL
M5X14 W/PL WASHER 		5-09981-050-0 04 1 9202- ● ●
8 SCREW; CONT LVR TO INST PNL
M5X14 W/PL WASHER 		5-09981-050-0 03 1 9202- ● ●
9 LEVER ASM; HTR & A/C CONT
HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) 		1-83513-088-5 01 1 9202- ● ●
9 LEVER ASM; HTR & A/C CONT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83513-089-3 01 1 9202- ● ●
11 CLIP; CABLE,HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) 		1-83574-127-0 03 1 9202- ● ●
11 CLIP; CABLE,HTR CONT LVR
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83574-127-0 02 1 9202- ● ●
16 PIN; HTR CONT LVR
(A) 		1-83579-459-0 01 1 9202- ● ●
16 PIN; HTR CONT LVR
(B) 		1-83579-460-0 01 1 9202- ● ●
30 KNOB; FAN SW 1-82336-006-0 01 1 9202- ● ●
39 LEVER; HTR CONT LVR
(B) 		1-83564-287-0 01 1 9202- ● ●
39 LEVER; HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) (A) 		1-83564-286-0 02 1 9202- ● ●
39 LEVER; HTR CONT LVR
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83564-286-0 01 1 9202- ● ●
40 COLLAR; HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) 		1-83579-121-0 01 1 9202- ● ●
40 COLLAR; HTR CONT LVR
VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-461-0 01 1 9202- ● ●
41 SPRING; HTR CONT LVR
(B) 		1-83579-118-0 02 1 9202- ● ●
41 SPRING; HTR CONT LVR
(C) 		1-83579-463-0 02 1 9202- ● ●
41 SPRING; HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) (A) 		1-83579-462-0 01 1 9202- ● ●
43 PIN; HTR CONT LEVER 5-83519-020-0 02 1 9202- ● ●
52 BULB; PANEL ILLUMINATION
24V 1.2W 		1-82194-045-0 02 1 9202- ● ●
59 PANEL; BLIND,HTR CONT 1-72437-012-2 01 1 9202- ● ●
60 SCREW; BLIND PANEL
M5X14 W/PL WASHER 		5-09981-050-0 04 1 9202- ● ●
72 SWITCH; FAN MOTOR 1-82380-082-1 01 1 9202- ● ●
