0-38 — AIR COMPRESSOR PIPING; ENGINE SIDE (#11677) — 74 parça

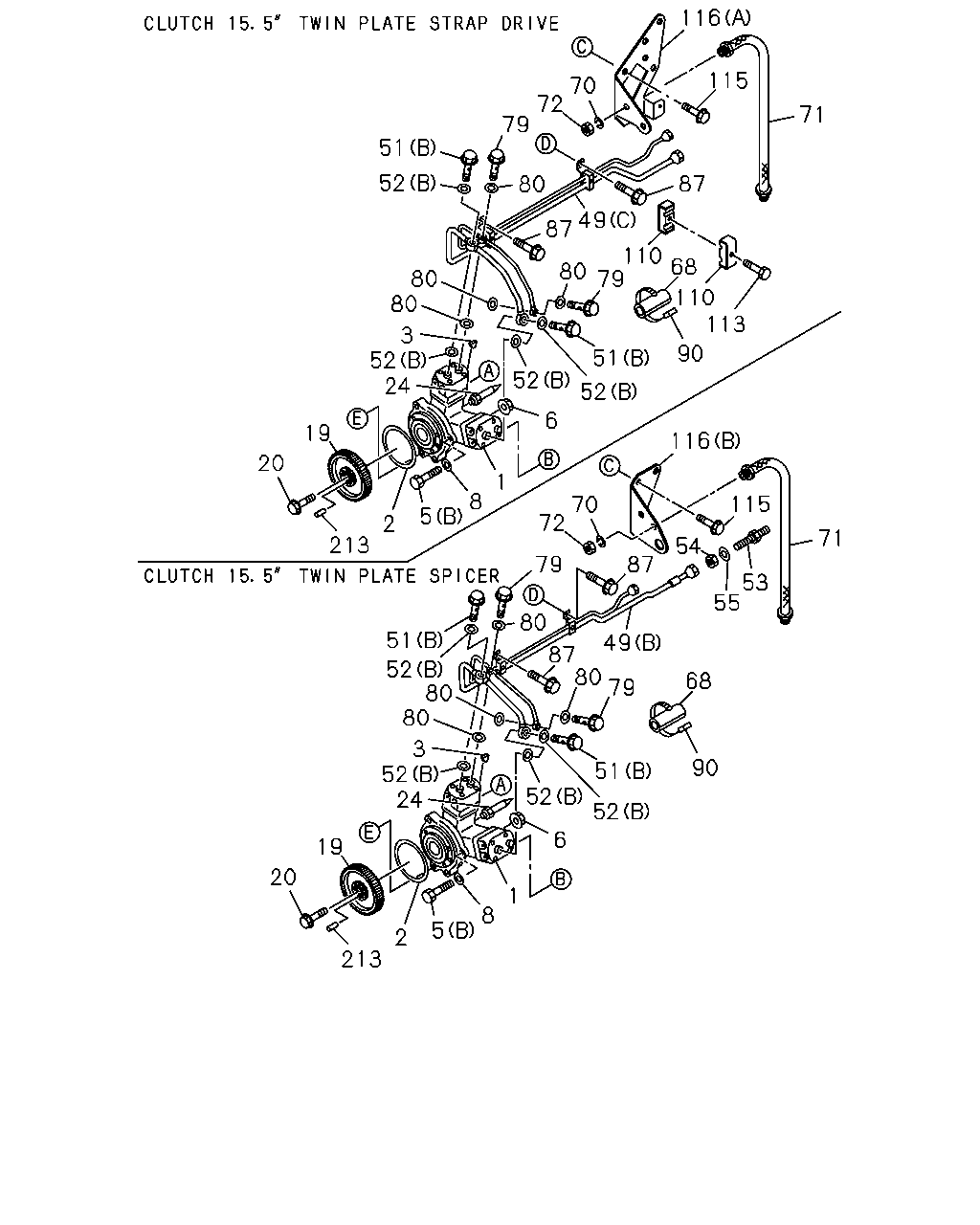

116 115 70 72 79 71 51 52 87 80 49 87 110 80 68 79 110 113 90 80 80 3 52 51 24 52 52 6 19 116 20 1 8 5 115 70 72 54 87 53 55 2 213 71 79 80 87 80 79 51 52 80 80 3 52 51 24 52 52 49 68 90 6 19 20 1 8 5 2 213

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-300-5	01	1	0106-
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE)	1-09623-476-0	01	1	0106-
3	KEY; COUPLING,INJ PUMP	9-08055-622-0	01	1	0106-
5	BOLT; AIR CMPR FIX (A) M14X128	8-94399-253-1	01	1	0106-
5	BOLT; AIR CMPR FIX (B) M14X90	9-91666-490-0	01	1	0106-0512
5	BOLT; AIR CMPR FIX (B) M14X90	0-16956-490-0	01	1	0601-
5	BOLT; AIR CMPR FIX AIR CONDITIONER MANUAL CONTROL(C60) (C) M14X150	9-09804-172-1	01	1	0106-
5	BOLT; AIR CMPR FIX EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) M14X100	9-91666-400-0	01	1	0106-0512
5	BOLT; AIR CMPR FIX EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) M14X100	0-16956-400-0	01	1	0601-
6	NUT; AIR CMPR M14 FLANGE	0-91150-114-0	01	1	0106-
8	WASHER; PL,AIR CMPR ID=15 OD=26	9-09164-514-0	03	1	0106-
19	GEAR; INJ PUMP Z=54	1-12524-111-1	01	1	0106-0202
19	GEAR; INJ PUMP	1-12524-164-0	01	1	0203-
20	BOLT; GEAR TO SHAFT M12X39 FLANGE	1-09070-116-0	05	1	0106-
24	POINTER; AIR CMPR	1-11327-017-1	01	1	0106-
49	PIPE; AIR,CHARGE (A)	9-19119-032-0	02	1	0106-
49	PIPE; AIR,CHARGE CLUTCH 15.5" TWIN PLATE SPICER(TEY) (C)	1-19193-371-0	01	1	0106-
49	PIPE; AIR,CHARGE CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (B)	1-19192-661-2	01	1	0106-
51	BOLT; EYE,AIR PIPE TO CMPR (B) M24X39	1-09675-175-1	02	1	0106-
51	BOLT; EYE,AIR PIPE TO CMPR EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (A) M10X21 FLANGE	1-09675-077-0	01	1	0106-
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE) (B) ID=24.5 OD=32	9-09571-424-0	04	1	0106-
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (A) ID=10.2	1-09630-083-0	02	1	0106-
53	UNION; CHARGE PIPE CLUTCH 15.5" TWIN PLATE SPICER(TEY)	1-09654-318-1	01	1	0106-
54	NUT; PIPE UNION CLUTCH 15.5" TWIN PLATE SPICER(TEY) M22	9-09111-522-0	01	1	0106-0512
54	NUT; PIPE UNION CLUTCH 15.5" TWIN PLATE SPICER(TEY) M22	0-91111-522-0	01	1	0601-
55	WASHER; LK,PIPE UNION CLUTCH 15.5" TWIN PLATE SPICER(TEY) ID=22.5	9-09150-522-0	01	1	0106-0603
55	WASHER; LK,PIPE UNION CLUTCH 15.5" TWIN PLATE SPICER(TEY) ID=22.5	0-91510-522-0	01	1	0604-
68	SLEEVE; RUBBER ID=18 OD=22 L=25	8-94412-773-0	04	1	0106-
70	WASHER; LK ID=12.2	9-09150-512-0	01	1	0106-0603
70	WASHER; LK ID=12.2	0-91510-512-0	01	1	0604-
71	HOSE; FLEX,AIR GOV L=520	1-09363-657-0	01	1	0106-
72	NUT; GOV HOSE M12	9-09840-280-0	01	1	0106-
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	02	1	0106-
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	04	1	0106-
87	BOLT; BRKT FIX M10X20 FLANGE	0-28181-020-0	02	1	0106-0512
87	BOLT; BRKT FIX M10X20 FLANGE	0-28151-020-0	02	1	0601-
90	CLIP; HARNESS L=140	5-09707-031-1	02	1	0106-
110	CLIP; AIR PIPE CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-09701-210-0	02	1	0106-
113	BOLT; CLIP,AIR PIPE CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M6X40 FLANGE	0-28080-640-0	01	1	0106-0512
113	BOLT; CLIP,AIR PIPE CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M6X40 FLANGE	0-28050-640-0	01	1	0601-
115	BOLT; AIR PIPE M10X20 FLANGE	0-28181-020-0	02	1	0106-0512
115	BOLT; AIR PIPE M10X20 FLANGE	0-28151-020-0	02	1	0601-
116	BRACKET; AIR PIPE CLUTCH 15.5" TWIN PLATE SPICER(TEY) (B)	1-19199-386-0	01	1	0106-
116	BRACKET; AIR PIPE CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (A)	1-19199-212-1	01	1	0106-
213	PIN; AIR CMPR GEAR	9-08150-510-0	01	1	0106-

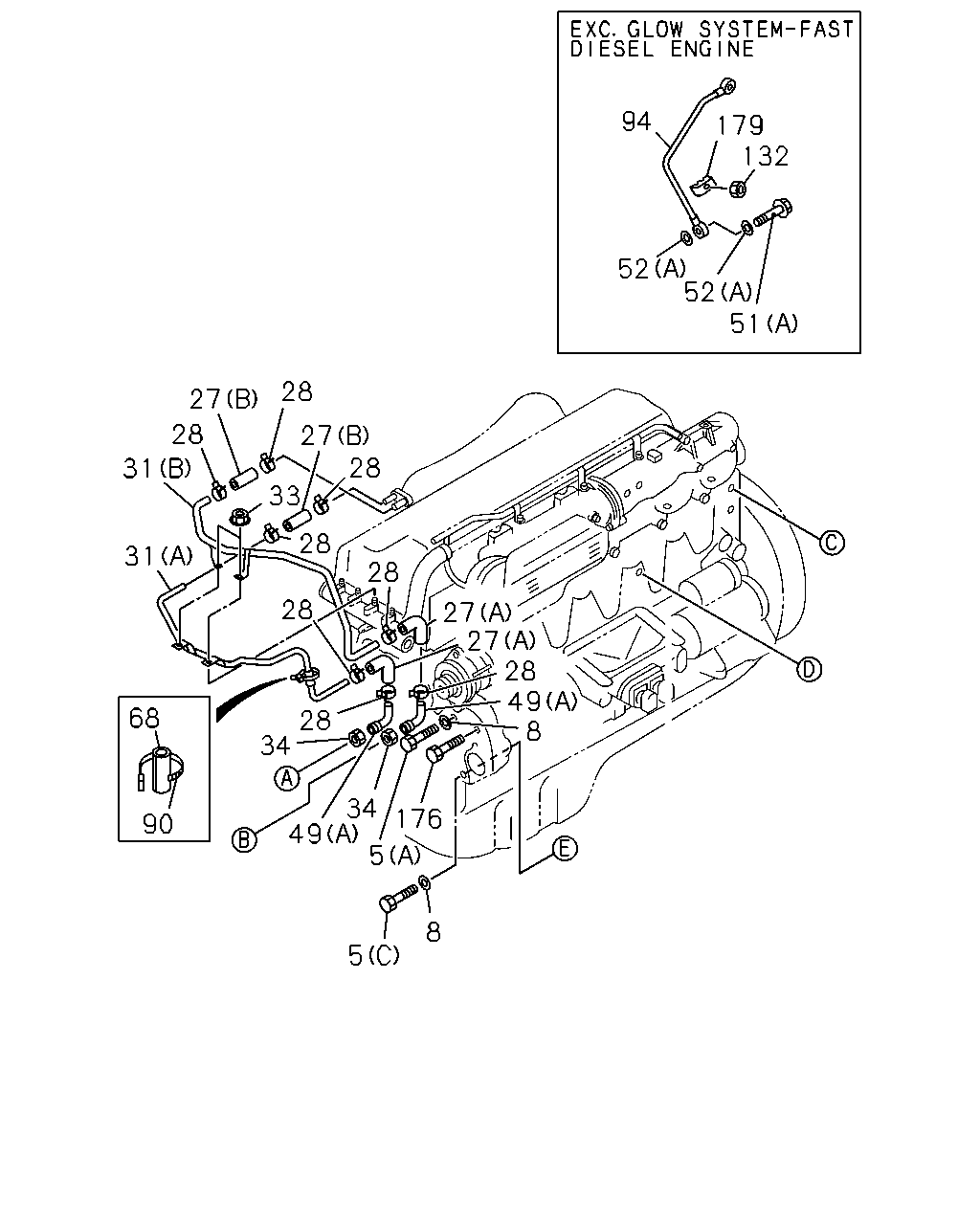

94 179 132 52 52 51 28 27 28 31 27 28 33 28 28 27 27 28 49 8 31 28 68 28 34 34 176 49 5 90 8 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	BOLT; AIR CMPR FIX (A) M14X128	8-94399-253-1	01	1	0106-
5	BOLT; AIR CMPR FIX (B) M14X90	9-91666-490-0	01	1	0106-0512
5	BOLT; AIR CMPR FIX (B) M14X90	0-16956-490-0	01	1	0601-
5	BOLT; AIR CMPR FIX AIR CONDITIONER MANUAL CONTROL(C60) (C) M14X150	9-09804-172-1	01	1	0106-
5	BOLT; AIR CMPR FIX EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) M14X100	9-91666-400-0	01	1	0106-0512
5	BOLT; AIR CMPR FIX EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) M14X100	0-16956-400-0	01	1	0601-
8	WASHER; PL,AIR CMPR ID=15 OD=26	9-09164-514-0	03	1	0106-
27	HOSE; AIR CMPR,SUCTION (B)	0-02117-080-0	02	1	0106-
27	HOSE; AIR CMPR,SUCTION (A)	1-09360-916-0	02	1	0106-
28	CLIP; HOSE,AIR CMPR ID=22.7	8-94466-382-0	08	1	0106-
31	PIPE; AIR,AIR CMPR SUCTION (A)	1-19192-991-0	01	1	0106-
31	PIPE; AIR,AIR CMPR SUCTION (B)	1-19192-992-0	01	1	0106-
33	NUT; PIPE FIX M8 FLANGE	0-91150-108-0	02	1	0106-0602
33	NUT; PIPE FIX M8 FLANGE	0-91180-108-0	02	1	0603-
34	NUT; LK SUCTION PIPE	9-09840-254-0	02	1	0106-
49	PIPE; AIR,CHARGE (A)	9-19119-032-0	02	1	0106-
49	PIPE; AIR,CHARGE CLUTCH 15.5" TWIN PLATE SPICER(TEY) (C)	1-19193-371-0	01	1	0106-
49	PIPE; AIR,CHARGE CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (B)	1-19192-661-2	01	1	0106-
51	BOLT; EYE,AIR PIPE TO CMPR (B) M24X39	1-09675-175-1	02	1	0106-
51	BOLT; EYE,AIR PIPE TO CMPR EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (A) M10X21 FLANGE	1-09675-077-0	01	1	0106-
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE) (B) ID=24.5 OD=32	9-09571-424-0	04	1	0106-
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (A) ID=10.2	1-09630-083-0	02	1	0106-
68	SLEEVE; RUBBER ID=18 OD=22 L=25	8-94412-773-0	04	1	0106-
90	CLIP; HARNESS L=140	5-09707-031-1	02	1	0106-
94	PIPE; AIR,BOOST EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>	1-19193-109-0	01	1	0106-
132	NUT; CLIP EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> M6 FLANGE	0-91150-106-0	01	1	0106-0602
132	NUT; CLIP EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> M6 FLANGE	0-91180-106-0	01	1	0603-
176	BOLT; BRKT FIX M10X135	8-94397-139-1	01	1	0106-
179	CLIP; PIPE EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> ID=15 L=30	1-09701-132-1	02	1	0106-
