Isuzu WW
▶
TRUCKS
▶
EXZ
▶
10871 - EXZ RHD FUEL TANK 400L/400L+400L
▶
0 - Engine, Emission, Engine Electrical
▶
0-35 - ENGINE CONTROL VALVE AND LEVER
▶

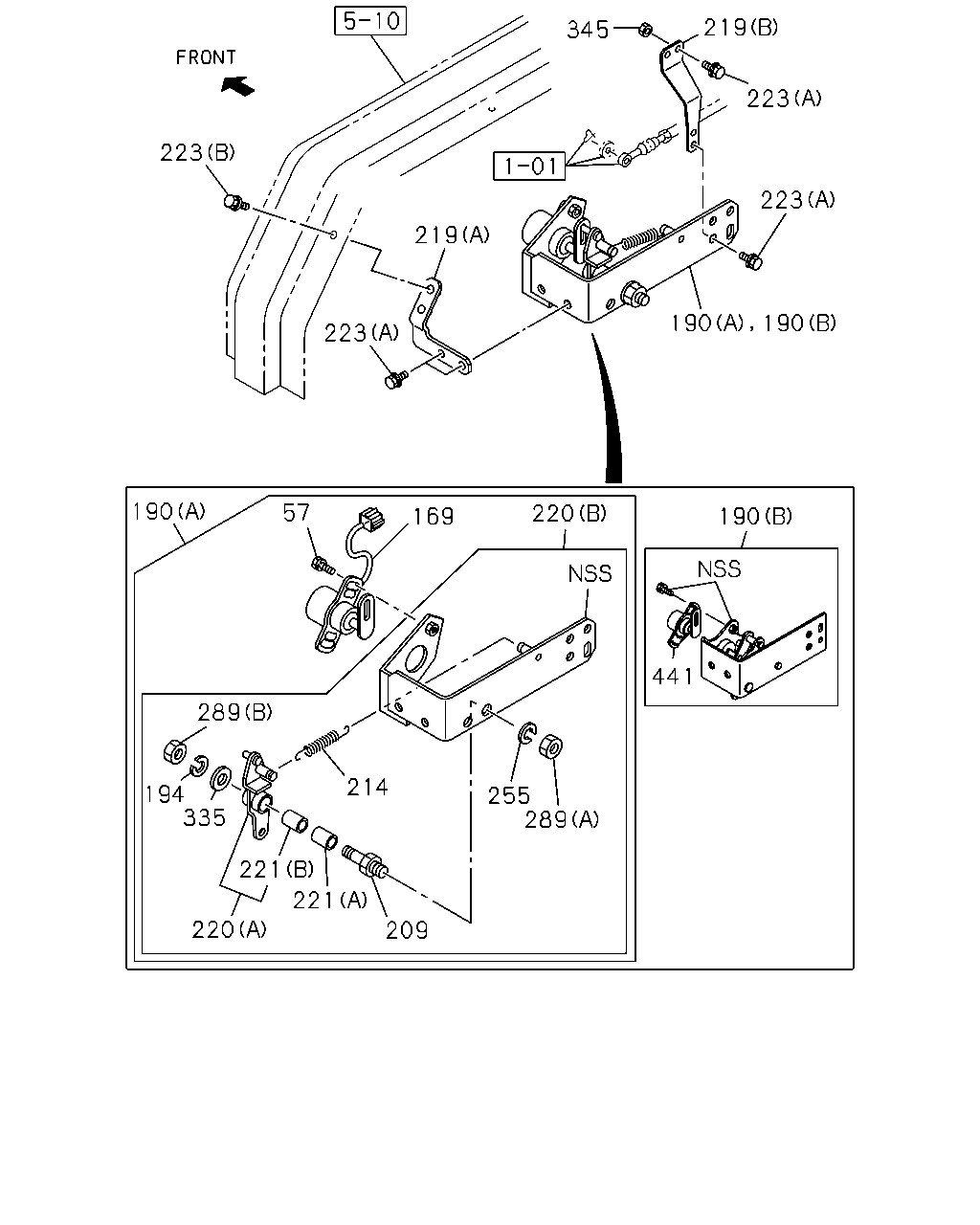

0-35 — ENGINE CONTROL VALVE AND LEVER
(#11674) — 30 parça
◀
[035A] FUEL CUT CABLE;ELECTRONIC GOV (4 parça)
[035A] LEVER ASM;PTO CONT OPERATION CAB BACK (26 parça)
▶
52
45
51
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
45
CLIP; FUEL CUT CABLE
ELECTRONIC GOV RED3(KG5) ID=11 L=20
9-09525-035-0
02
1
0106-0606
45
CLIP; FUEL CUT CABLE
ELECTRONIC GOV RED3(KG5) ID=11 L=20
0-95235-035-0
02
1
0607-
51
BOLT; CLIP,FUEL CUT CABLE
ELECTRONIC GOV RED3(KG5) M8X20 W/LK&PL WASHER
8-94279-208-0
02
1
0106-
52
CABLE; FUEL CUT
ELECTRONIC GOV RED3(KG5) L=3334
1-73907-534-0
01
1
0106-
219
345
223
223
223
219
190
190
223
190
57
220
190
169
441
289
214
194
335
255
289
221
221
220
209
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
57
BOLT; BRKT
PTO CONTROL OPERATION CAB BACK<TBZ> M6X20 W/LK&PL WASHER
0-50140-620-0
02
1
0106-0206
169
SENSOR
PTO CONTROL OPERATION CAB BACK<TBZ>
1-81534-010-0
01
1
0106-0206
190
LEVER; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> (A)
1-23335-504-0
01
1
0106-0206
190
LEVER; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> (B)
8-97219-466-3
01
1
0207-
194
WASHER; LK,LEVER
PTO CONTROL OPERATION CAB BACK<TBZ> ID=8.2
9-09150-508-0
01
1
0106-0206
209
SHAFT; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ>
1-14336-002-1
01
1
0106-0206
214
SPRING; ENG CONT RETURN
PTO CONTROL OPERATION CAB BACK<TBZ>
8-94481-840-1
01
1
0106-0206
219
BRACKET; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> (A)
1-23335-511-0
01
1
0106-0206
219
BRACKET; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> (A)
1-23335-580-0
01
1
0207-
219
BRACKET; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> (B)
1-23335-512-0
01
1
0106-0206
219
BRACKET; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> (B)
1-23335-582-0
01
1
0207-
220
LEVER ASM
PTO CONTROL OPERATION CAB BACK<TBZ> (A)
1-23311-357-0
01
1
0106-0206
220
LEVER ASM
PTO CONTROL OPERATION CAB BACK<TBZ> (B)
1-23335-505-0
01
1
0106-0206
221
BUSHING; LEVER
PTO CONTROL OPERATION CAB BACK<TBZ> (A)
1-09330-057-0
01
1
0106-0206
221
BUSHING; LEVER
PTO CONTROL OPERATION CAB BACK<TBZ> (B)
1-09330-058-0
01
1
0106-0206
223
BOLT; BRKT FIX
PTO CONTROL OPERATION CAB BACK<TBZ> (A) M8X20 FLANGE
0-28680-820-0
06
1
0106-0512
223
BOLT; BRKT FIX
PTO CONTROL OPERATION CAB BACK<TBZ> (A) M8X20 FLANGE
0-28650-820-0
06
1
0601-
223
BOLT; BRKT FIX
PTO CONTROL OPERATION CAB BACK<TBZ> (B) M8X25 FLANGE
0-28680-825-0
02
1
0106-0512
223
BOLT; BRKT FIX
PTO CONTROL OPERATION CAB BACK<TBZ> (B) M8X25 FLANGE
0-28650-825-0
02
1
0601-
255
WASHER; LK,LEVER
PTO CONTROL OPERATION CAB BACK<TBZ> ID=10.2
9-09150-510-0
01
1
0106-0206
289
NUT; LEVER
PTO CONTROL OPERATION CAB BACK<TBZ> (A) M10
9-09110-410-0
01
1
0106-0206
289
NUT; LEVER
PTO CONTROL OPERATION CAB BACK<TBZ> (B) M8
9-09111-408-0
01
1
0106-0206
335
WASHER; PL LEVER
PTO CONTROL OPERATION CAB BACK<TBZ>
5-09503-135-0
01
1
0106-0206
345
NUT; BRKT
PTO CONTROL OPERATION CAB BACK<TBZ> M8 FLANGE
0-91150-108-0
02
1
0106-0602
345
NUT; BRKT
PTO CONTROL OPERATION CAB BACK<TBZ> M8 FLANGE
0-91180-108-0
02
1
0603-
441
SENSOR; THROTTLE POSITION
PTO CONTROL OPERATION CAB BACK<TBZ>
8-97200-308-0
01
1
0207-
