1 |

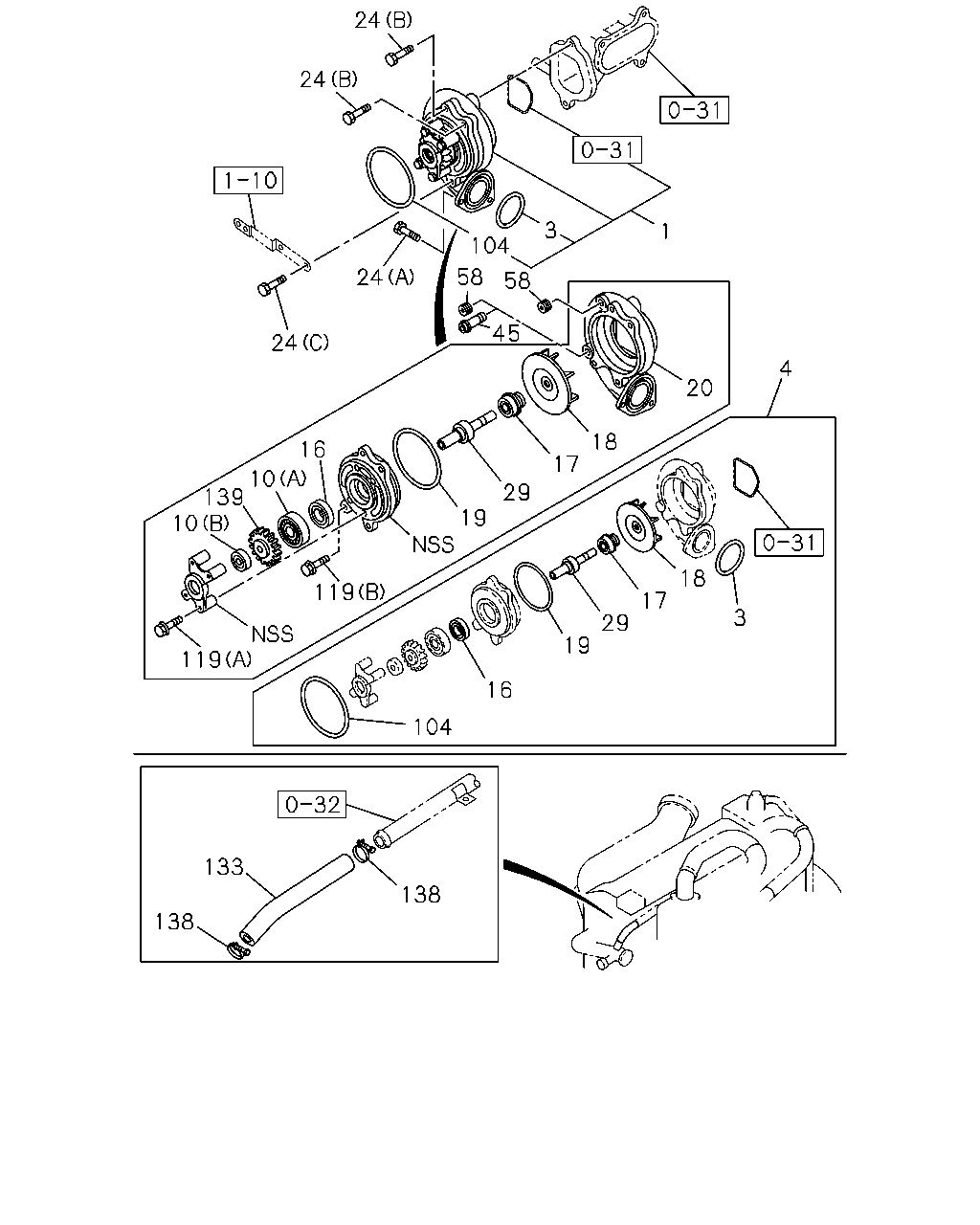

PUMP ASM; WATER,W/GASKET
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
|
1-13650-057-2 |
01 |
1 |
0106-0108 |
| |
1 |
PUMP ASM; WATER,W/GASKET
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
|
1-13650-056-3 |
01 |
1 |
0109-0303 |
| |
1 |
PUMP ASM; WATER,W/GASKET
|
1-13650-171-0 |
01 |
1 |
0304-0409 |
| |
1 |
PUMP ASM; WATER,W/GASKET
|
8-97606-250-2 |
01 |
1 |
0410-0603 |
| |
1 |
PUMP ASM; WATER,W/GASKET
|
8-97615-906-0 |
01 |
1 |
0604- |
| |
1 |
PUMP ASM; WATER,W/GASKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER
MANUALCONTROL(C60)
|
1-13650-058-2 |
01 |
1 |
0106-0108 |
| |
1 |
PUMP ASM; WATER,W/GASKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER
MANUALCONTROL(C60)
|
1-13650-160-1 |
01 |
1 |
0109-0303 |
| |
3 |
GASKET; PUMP TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE)
|
1-09623-586-1 |
01 |
1 |
0106- |
| |
4 |
REPAIR KIT; WATER PUMP
|
1-87811-843-0 |
01 |
1 |
0106-0412 |
| |
4 |
REPAIR KIT; WATER PUMP
|
1-87812-921-0 |
01 |
1 |
0501-0603 |
| |
4 |
REPAIR KIT; WATER PUMP
|
1-87813-072-0 |
01 |
1 |
0604- |
| |
10 |
BEARING; WATER PUMP
(A)
|
1-09800-252-0 |
01 |
1 |
0106- |
| |
10 |
BEARING; WATER PUMP
(B)
|
1-09800-253-0 |
01 |
1 |
0106- |
| |
16 |
SEAL; OIL,WATER PUMP
|
1-09625-551-0 |
01 |
1 |
0106- |
| |
17 |
SEAL UNIT; WATER PUMP
|
8-94392-090-0 |
01 |
1 |
0106- |
| |
18 |
IMPELLER; WATER PUMP
|
1-13621-049-0 |
01 |
1 |
0106-0603 |
| |
18 |
IMPELLER; WATER PUMP
|
8-97608-970-0 |
01 |
1 |
0604- |
| |
19 |
GASKET; COVER TO BODY
|
1-09623-587-0 |
01 |
1 |
0106-0501 |
| |
19 |
GASKET; COVER TO BODY
|
8-97606-729-0 |
01 |
1 |
0502- |
| |
20 |
COVER; WATER PUMP
|
1-13612-037-2 |
01 |
1 |
0109-0303 |
| |
20 |
COVER; WATER PUMP
|
1-13612-041-1 |
01 |
1 |
0106-0108 |
| |
20 |
COVER; WATER PUMP
|
1-13612-038-1 |
01 |
1 |
0109-0303 |
| |
20 |
COVER; WATER PUMP
|
1-13612-055-1 |
01 |
1 |
0304-0603 |
| |
20 |
COVER; WATER PUMP
|
8-97611-134-0 |
01 |
1 |
0604- |
| |
24 |
BOLT; WATER PUMP
(A)
M10X25 FLANGE
|
0-28181-025-0 |
02 |
1 |
0106-0512 |
| |
24 |
BOLT; WATER PUMP
(A)
M10X25 FLANGE
|
0-28151-025-0 |
02 |
1 |
0601- |
| |
24 |
BOLT; WATER PUMP
(B)
M10X90 FLANGE
|
0-28181-090-0 |
02 |
1 |
0106-0512 |
| |
24 |
BOLT; WATER PUMP
(B)
M10X90 FLANGE
|
0-28151-090-0 |
02 |
1 |
0601- |
| |
24 |
BOLT; WATER PUMP
(C)
M10X95 FLANGE
|
8-94397-027-1 |
02 |
1 |
0106- |
| |
29 |
SHAFT; WATER PUMP
|
1-13631-078-1 |
01 |
1 |
0106- |
| |
45 |
JOINT; HTR HOSE,WATER PUMP
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
PT3/8 & OD=18.3 L=47
|
9-09903-631-0 |
01 |
1 |
0106- |
| |
58 |
PLUG; HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
PT3/8
|
5-09605-005-0 |
01 |
1 |
0304-0603 |
| |
58 |
PLUG; HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
PT3/8
|
5-09605-005-0 |
02 |
1 |
0604- |
| |
58 |
PLUG; HTR
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER
MANUALCONTROL(C60)
PT3/8
|
5-09605-005-0 |
01 |
1 |
0106-0303 |
| |
58 |
PLUG; HTR
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER
MANUALCONTROL(C60)
PT3/8
|
5-09605-005-0 |
02 |
1 |
0304-0603 |
| |
58 |
PLUG; HTR
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER
MANUALCONTROL(C60)
PT3/8
|
5-09605-005-0 |
03 |
1 |
0604- |
| |
104 |
GASKET; WATER PUMP
ALSO INCLUDED IN GASKET SET(ENGINE)
|
1-09623-494-0 |
01 |
1 |
0106- |
| |
119 |
BOLT; PUMP COVER
(B)
M10X20
|
0-23801-020-0 |
01 |
1 |
0106-0303 |
| |
119 |
BOLT; PUMP COVER
(B)
M10X20 FLANGE
|
0-28181-020-0 |
01 |
1 |
0304-0512 |
| |
119 |
BOLT; PUMP COVER
(B)
M10X20 FLANGE
|
0-28151-020-0 |
01 |
1 |
0601- |
| |
119 |
BOLT; PUMP COVER
(A)
M8X40 FLANGE
|
0-28080-840-0 |
04 |
1 |
0106-0512 |
| |
119 |
BOLT; PUMP COVER
(A)
M8X40 FLANGE
|
0-28050-840-0 |
04 |
1 |
0601- |
| |
133 |
HOSE; RUBBER,WATER PIPE
L=270
SERVICED BY L=3000
|
0-03580-300-0 |
01 |
1 |
0106- |
| |
138 |
CLIP; RUBBER HOSE
ID=44
|
1-09704-077-0 |
02 |
1 |
0106- |
| |
139 |
GEAR; WATER PUMP,DRIVE
|
1-13641-168-0 |
01 |
1 |
0106-0202 |
| |
139 |
GEAR; WATER PUMP,DRIVE
|
1-13641-216-0 |
01 |
1 |
0203-0409 |
| |
139 |
GEAR; WATER PUMP,DRIVE
|
8-97606-219-0 |
01 |
1 |
0410- |
