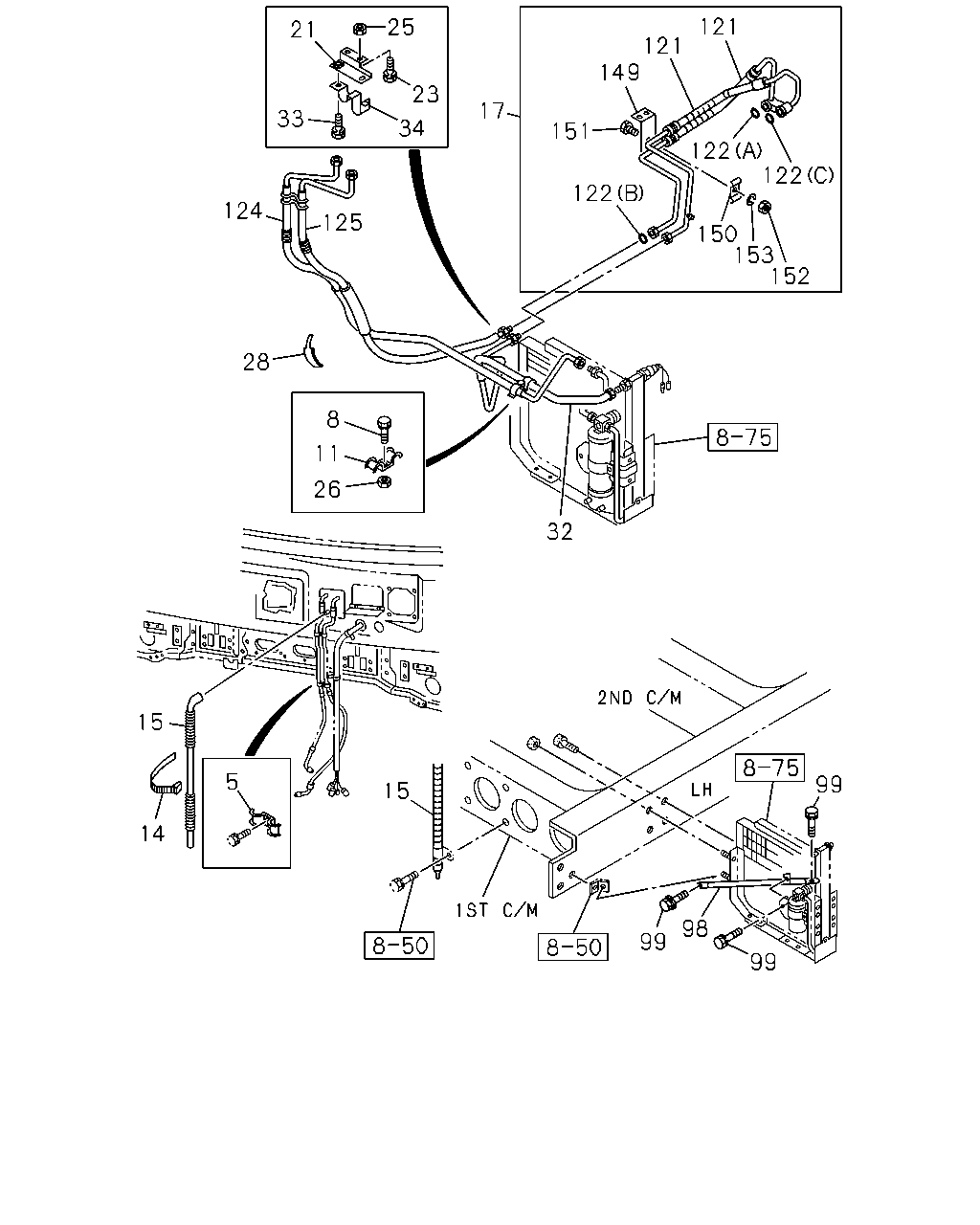

5 |
CLIP; FLEX HOSE,A/C
AIR CON MANUAL CONTROL(C60)
|
1-83574-194-0 |
01 |
1 |
9202- |
● |
● |
| |
8 |
BOLT; CLIP
AIR CON MANUAL CONTROL(C60)
M8X25 FLANGE
|
0-28080-825-0 |
01 |
1 |
9202- |
● |
● |
| |
11 |
CLIP; COOLER PIPE
AIR CON MANUAL CONTROL(C60)
|
1-83574-193-0 |
01 |
1 |
9202- |
● |
● |
| |
14 |
CLIP; BAND,EVAP DRAIN HOSE
AIR CON MANUAL CONTROL(C60)
L=250
|
5-09707-030-0 |
01 |
1 |
9202- |
● |
● |
| |
15 |
HOSE; DRAIN
AIR CON MANUAL CONTROL(C60)
|
1-83566-376-2 |
01 |
1 |
9202- |
● |
● |
| |
17 |
HOSE; FLEX,CMPR TO PIPE
6SA1 STD ENG(06L),6SA1TC ENG(28L)
AIR CON MANUAL CONTROL(C60)
|
1-83566-826-0 |
01 |
1 |
9202-9301 |
● |
● |
| |
17 |
HOSE; FLEX,CMPR TO PIPE
6SA1 STD ENG(06L),6SA1TC ENG(28L)
AIR CON MANUAL CONTROL(C60)
|
1-83566-984-0 |
01 |
1 |
9302- |
● |
● |
| |
17 |
HOSE; FLEX,CMPR TO PIPE
6HE1 STD ENG(46L)
AIR CON MANUAL CONTROL(C60)
|
1-83566-769-0 |
01 |
1 |
9202-9301 |
|
● |
| |
17 |
HOSE; FLEX,CMPR TO PIPE
6HE1 STD ENG(46L)
AIR CON MANUAL CONTROL(C60)
|
1-83566-983-0 |
01 |
1 |
9302- |
|
● |
| |
21 |
BRACKET; COOLER HOSE
AIR CON MANUAL CONTROL(C60)
|
1-83571-718-1 |
01 |
1 |
9202- |
● |
● |
| |
23 |
BOLT; BRKT
AIR CON MANUAL CONTROL(C60)
M8X20 FLANGE
|
0-28080-820-0 |
02 |
1 |
9202- |
● |
● |
| |
25 |
NUT; BRKT
AIR CON MANUAL CONTROL(C60)
M8
|
9-09110-408-0 |
02 |
1 |
9202- |
● |
● |
| |
26 |
NUT; PIPE CLIP
AIR CON MANUAL CONTROL(C60)
M8
|
9-09110-408-0 |
01 |
1 |
9202- |
● |
● |
| |
28 |
CLIP; PIPE,HOSE A/C
6SA1 STD ENG(06L),6SA1TC ENG(28L)
AIR CON MANUAL CONTROL(C60)
L=158
|
1-83574-031-0 |
01 |
1 |
9202- |
● |
● |
| |
32 |
PIPE; COOLER,HOSE TO CONDENSER
AIR CON MANUAL CONTROL(C60)
|
1-83567-404-1 |
01 |
1 |
9202-9301 |
● |
● |
| |
32 |
PIPE; COOLER,HOSE TO CONDENSER
AIR CON MANUAL CONTROL(C60)
|
1-83567-492-0 |
01 |
1 |
9302- |
● |
● |
| |
33 |
BOLT; CLIP
AIR CON MANUAL CONTROL(C60)
M8X20 FLANGE
|
0-28080-820-0 |
01 |
1 |
9202- |
● |
● |
| |
34 |
CLIP; COOLER PIPE
AIR CON MANUAL CONTROL(C60)
|
1-83574-166-1 |
01 |
1 |
9202- |
● |
● |
| |
98 |
STAY; CONDENSER
AIR CON MANUAL CONTROL(C60)
BUMPER W/HEADLAMPS<SLB>
|
1-83571-772-0 |
01 |
1 |
9202-9301 |
● |
● |
| |
98 |
STAY; CONDENSER
AIR CON MANUAL CONTROL(C60)
REINFORCEMENT BUMPER<VG7>
|
1-83571-771-0 |
01 |
1 |
9202- |
● |
● |
| |
99 |
BOLT; STAY FIX
AIR CON MANUAL CONTROL(C60)
M8X20 FLANGE
|
0-28080-820-0 |
02 |
1 |
9202- |
● |
● |
| |
99 |
BOLT; STAY FIX
AIR CON MANUAL CONTROL(C60)
M10X25 W/LK&PL WASHER
|
9-01961-025-0 |
01 |
1 |
9202-9204 |
● |
● |
| |
99 |
BOLT; STAY FIX
AIR CON MANUAL CONTROL(C60)
M10X25 W/LK&PL WASHER
|
0-50141-025-0 |
01 |
1 |
9205- |
● |
● |
| |
121 |
HOSE; COOLER
6SA1 STD ENG(06L),6SA1TC ENG(28L)
AIR CON MANUAL CONTROL(C60)
HIGH PRESSURE
|
1-83566-994-0 |
01 |
1 |
9302- |
● |
● |
| |
121 |
HOSE; COOLER
6SA1 STD ENG(06L),6SA1TC ENG(28L)
AIR CON MANUAL CONTROL(C60)
LOW PRESSURE
|
1-83566-995-0 |
01 |
1 |
9302- |
● |
● |
| |
121 |
HOSE; COOLER
6HE1 STD ENG(46L)
AIR CON MANUAL CONTROL(C60)
HIGH PRESSURE
|
1-83566-992-0 |
01 |
1 |
9302- |
|
● |
| |
121 |
HOSE; COOLER
6HE1 STD ENG(46L)
AIR CON MANUAL CONTROL(C60)
LOW PRESSURE
|
1-83566-993-0 |
01 |
1 |
9302- |
|
● |
| |
122 |
GASKET
AIR CON MANUAL CONTROL(C60)
(A)
|
1-09623-514-0 |
01 |
1 |
9202- |
● |
● |
| |
122 |
GASKET
AIR CON MANUAL CONTROL(C60)
(B)
|
1-09623-515-0 |
01 |
1 |
9202- |
● |
● |
| |
122 |
GASKET
AIR CON MANUAL CONTROL(C60)
(C)
|
1-09623-517-0 |
01 |
1 |
9202- |
● |
● |
| |
124 |
HOSE; FLEX,TANK TO UNIT
AIR CON MANUAL CONTROL(C60)
|
1-83566-642-0 |
01 |
1 |
9202-9301 |
● |
● |
| |
124 |
HOSE; FLEX,TANK TO UNIT
AIR CON MANUAL CONTROL(C60)
|
1-83572-002-0 |
01 |
1 |
9302- |
● |
● |
| |
125 |
HOSE; FLEX,UNIT TO CMPR
AIR CON MANUAL CONTROL(C60)
|
1-83566-643-0 |
01 |
1 |
9202-9301 |
● |
● |
| |
125 |
HOSE; FLEX,UNIT TO CMPR
AIR CON MANUAL CONTROL(C60)
|
1-83572-006-0 |
01 |
1 |
9302- |
● |
● |
| |
149 |
BRACKET; COOLER HOSE
6SA1 STD ENG(06L),6SA1TC ENG(28L)
AIR CON MANUAL CONTROL(C60)
|
1-83571-793-0 |
01 |
1 |
9202- |
● |
● |
| |
149 |
BRACKET; COOLER HOSE
6HE1 STD ENG(46L)
AIR CON MANUAL CONTROL(C60)
|
1-83571-600-1 |
01 |
1 |
9202- |
|
● |
| |
150 |
CLIP; HOSE
6SA1 STD ENG(06L),6SA1TC ENG(28L)
AIR CON MANUAL CONTROL(C60)
ID=12.2 & 16.2
|
1-83574-157-0 |
01 |
1 |
9202- |
● |
● |
| |
150 |
CLIP; HOSE
6HE1 STD ENG(46L)
AIR CON MANUAL CONTROL(C60)
|
1-83574-165-0 |
01 |
1 |
9202- |
|
● |
| |
151 |
BOLT; CLIP FIX,COOLER HOSE
6SA1 STD ENG(06L),6SA1TC ENG(28L)
AIR CON MANUAL CONTROL(C60)
M6X16 W/LK WASHER
|
9-01900-616-0 |
01 |
1 |
9202- |
● |
● |
| |
152 |
NUT; CLIP
6HE1 STD ENG(46L)
AIR CON MANUAL CONTROL(C60)
M6
|
9-09110-406-0 |
01 |
1 |
9202- |
|
● |
| |
153 |
WASHER
6HE1 STD ENG(46L)
AIR CON MANUAL CONTROL(C60)
ID=6.1
|
9-09150-506-0 |
01 |
1 |
9202- |
|
● |
