Isuzu WW
▶
TRUCKS
▶
EXZ
▶
10871 - EXZ RHD FUEL TANK 400L/400L+400L
▶
0 - Engine, Emission, Engine Electrical
▶
0-10 - CYLINDER HEAD COVER
▶
0-10 — CYLINDER HEAD COVER
(#11659) — 21 parça
◀

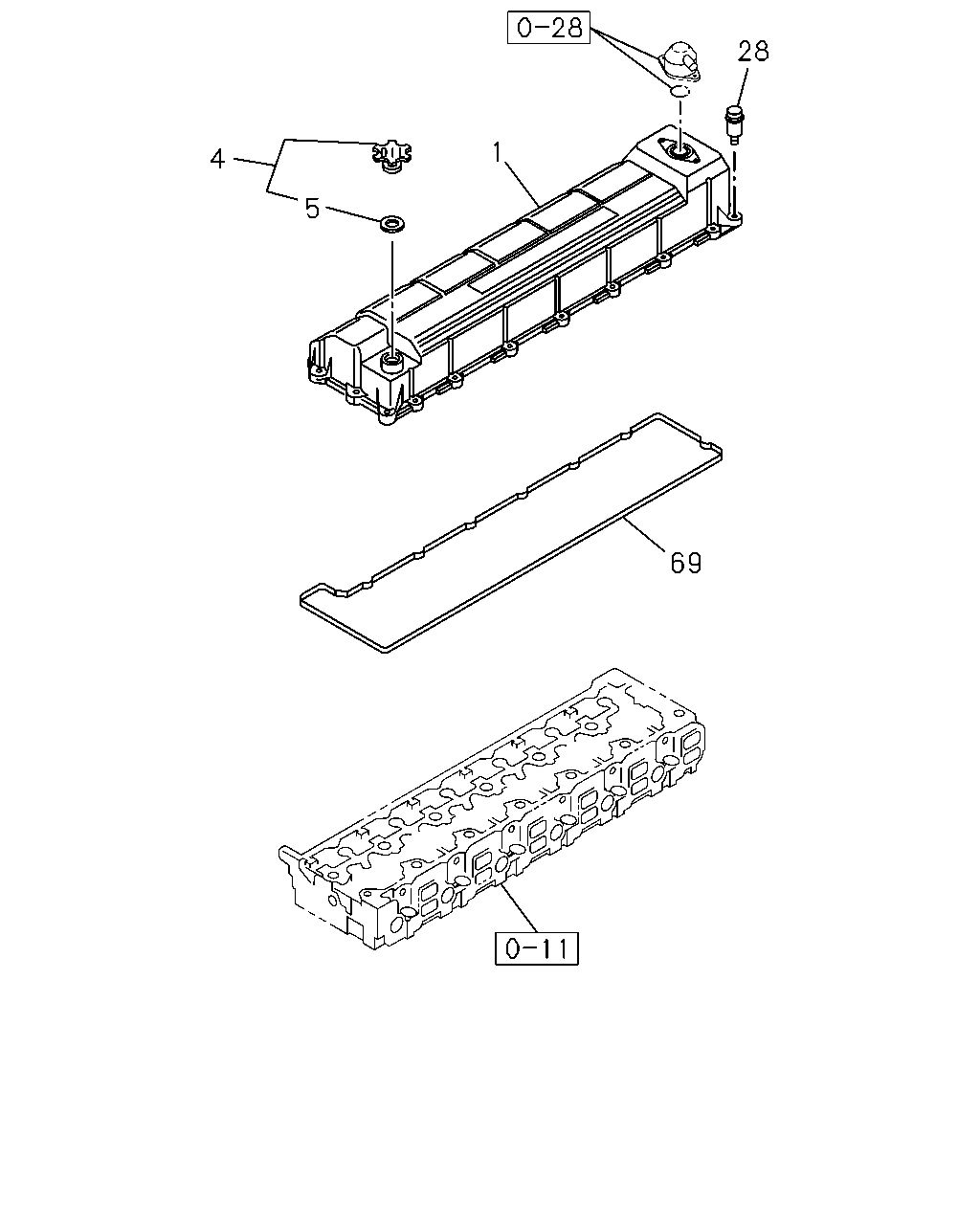

[010A] -'01/6 (9 parça)

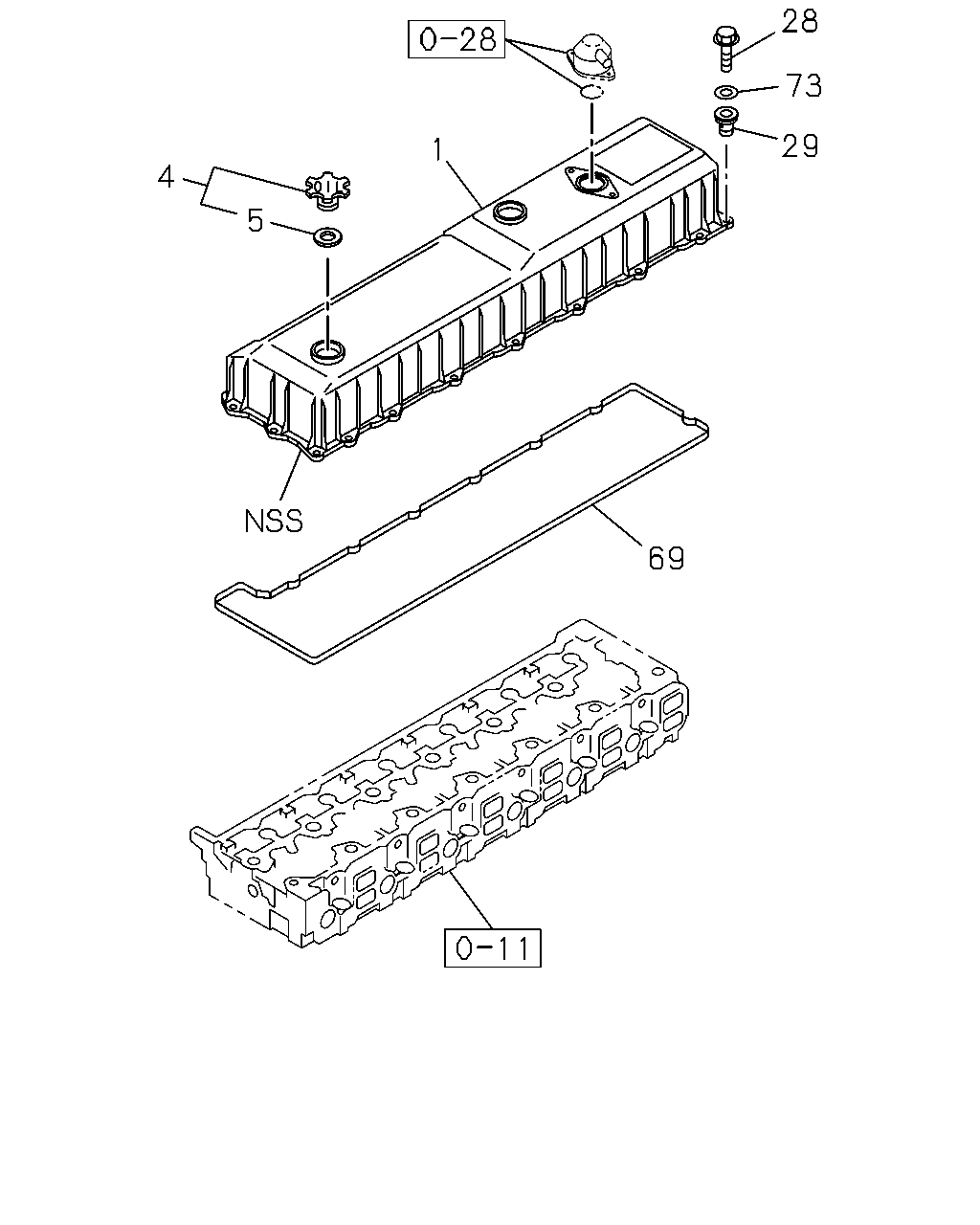

[010A] '01/7- (12 parça)
▶
28
1
4
5
69
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
COVER; CYL HD
1-11180-416-0
01
1
0106-0106
1
COVER; CYL HD
1-11180-464-0
01
1
0107-
4
CAP; OIL FILLER
8-94399-723-0
01
1
0106-
5
GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE)
8-94399-689-0
01
1
0106-
28
BOLT; HD COVER
1-09040-103-0
20
1
0106-0106
28
BOLT; HD COVER
M8X35 FLANGE
0-28080-835-0
20
1
0107-0512
28
BOLT; HD COVER
M8X35 FLANGE
0-28050-835-0
20
1
0601-
69
GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-11173-080-0
01
1
0106-0106
69
GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-11173-110-2
01
1
0107-
28
73
29
1
4
5
69
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
COVER; CYL HD
1-11180-416-0
01
1
0106-0106
1
COVER; CYL HD
1-11180-464-0
01
1
0107-
4
CAP; OIL FILLER
8-94399-723-0
01
1
0106-
5
GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE)
8-94399-689-0
01
1
0106-
28
BOLT; HD COVER
1-09040-103-0
20
1
0106-0106
28
BOLT; HD COVER
M8X35 FLANGE
0-28080-835-0
20
1
0107-0512
28
BOLT; HD COVER
M8X35 FLANGE
0-28050-835-0
20
1
0601-
29
RUBBER; MTG,HD COVER
8-97601-849-1
20
1
0107-
69
GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-11173-080-0
01
1
0106-0106
69
GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-11173-110-2
01
1
0107-
73
WASHER; PL,HD COVER
ID=8.4 OD=22
9-09160-708-0
20
1
0107-0605
73
WASHER; PL,HD COVER
ID=8.4 OD=22
0-91610-708-0
20
1
0606-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
